SAM612T
CSAM612T
Check availability
6x2 | 1U rack | 3-band EQ | analogue mixer

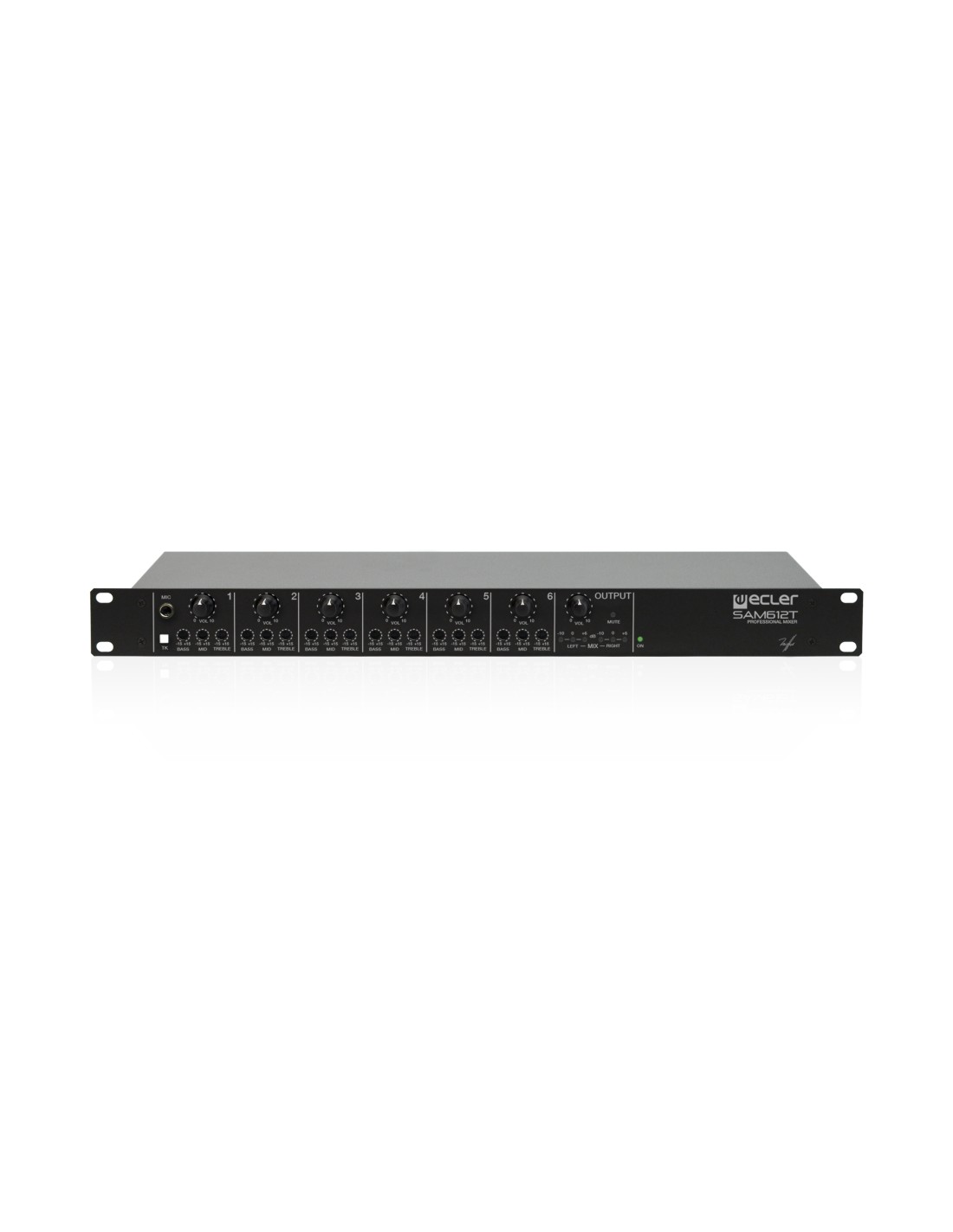

SAM612T is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs + 1 ST MIX input and 1 ST MAIN output + 1 ST REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.

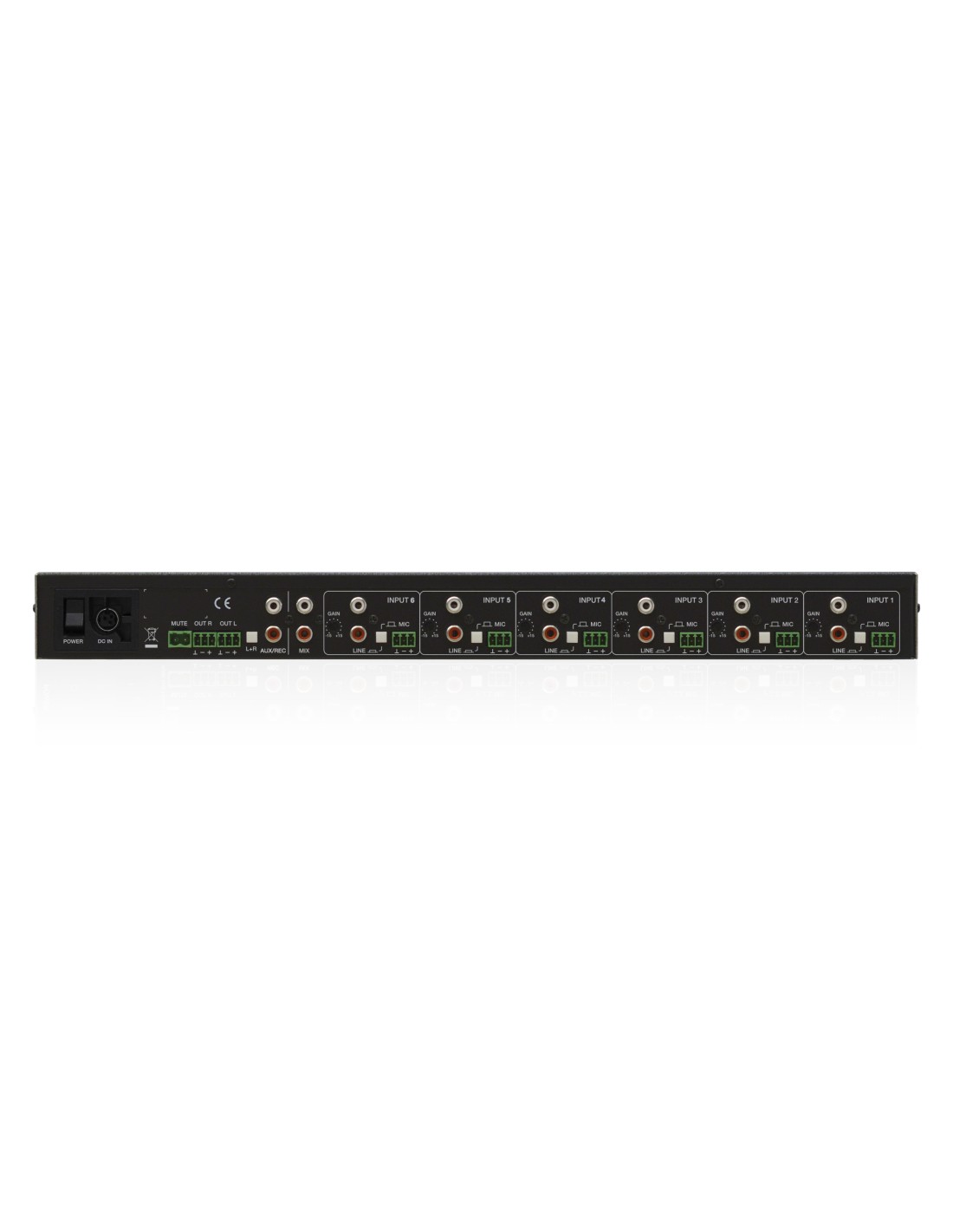

- Connection type
- MIC: 3-pin Euroblock
LINE/MIX: double RCA
Main: 3-pin Euroblock
REC: double RCA - Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Dimensions
- 482.6 x 44 x 120 mm / 19 x 1.73 x 4.73 in. (WxHxD)
- Weight
- 2.0 kg / 4.41 lb
- Shipping dimensions
- TBC
- Shipping weight
- TBC
- Status
- New
- EAN code
- 8435071305617
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Number of input ports
- 6, MIC/LINE level
1 ST MIX1 direct MIC input on front panel - Input sensitivity
- IN 1-6 (MIC/LINE): ±15dB
- CMRR
- MIC 60dB @ 1 kHz
MIC >60dB @ 1 kHz - Number of output ports
- 1 ST MAIN
1 ST REC - Output impedance
- OUT: 600Ω
REC: 10kΩ - GPIs
- MUTE control port NO/NC
- AC mains requirement
- 100-240 VAC + External PSU 17.5VDC
- AC mains connector
- IEC mains inlet connector
- Power consumption
- 18 VA
- Control Buttons
- Talkover switch, Mains switch POWER, MIC/LINE selector, MONO/ST switch
- Status Indicators
- MUTE LED, MIX Vu-meter LED, ON LED
- Power supply
- Universal external power supply (multi-plug)
- Phantom power
- +18VDC
- THD + Noise
- LINE 0.005%
MIC BAL 0.04% - Tone control
- 3-band tone control
- THD + Noise
- LINE 0.005%
MIC BAL 0.04%
LINE <0.005%
MIC BAL <0.04% - Tone Frequency Cut
- BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB - Talkover
- Yes
- Phantom voltage
- +18VDC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
MIC: 3-pin Euroblock
LINE/MIX: double RCA Main: 3-pin Euroblock REC: double RCA |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Dimensions |
482.6 x 44 x 120 mm / 19 x 1.73 x 4.73 in. (WxHxD) |
| Weight |
2.0 kg / 4.41 lb |
| Shipping dimensions |
TBC |
| Shipping weight |
TBC |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071305617 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
MICS
| Output impedance |
OUT: 600Ω
REC: 10kΩ |
|---|
ELECTRICAL
| AC mains requirement |
100-240 VAC + External PSU 17.5VDC |
|---|---|
| AC mains connector |
IEC mains inlet connector |
| Power consumption |
18 VA |
| Power supply |
Universal external power supply (multi-plug) |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
6, MIC/LINE level
1 ST MIX1 direct MIC input on front panel |
|---|---|
| Phantom voltage |
+18VDC |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
1 ST MAIN
1 ST REC |
|---|
REMOTE CONTROL CONNECTIONS
| GPIs |
MUTE control port NO/NC |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
IN 1-6 (MIC/LINE): ±15dB |
|---|---|
| THD + Noise |
LINE <0.005%
MIC BAL <0.04% LINE 0.005% MIC BAL 0.04% |
MONITORING AND CONTROL
| Tone control |
3-band tone control |
|---|
DEVICE CONTROL
| Control Buttons |
Talkover switch, Mains switch POWER, MIC/LINE selector, MONO/ST switch |
|---|---|
| Status Indicators |
MUTE LED, MIX Vu-meter LED, ON LED |
| Tone Frequency Cut |
BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB |
| Talkover |
Yes |
MIC INPUTS
| Phantom power |
+18VDC |
|---|
LINE INPUTS
| CMRR |
MIC >60dB @ 1 kHz MIC 60dB @ 1 kHz |
|---|
LINE OUTPUTS
| THD + Noise |
LINE 0.005%
MIC BAL 0.04% |
|---|
