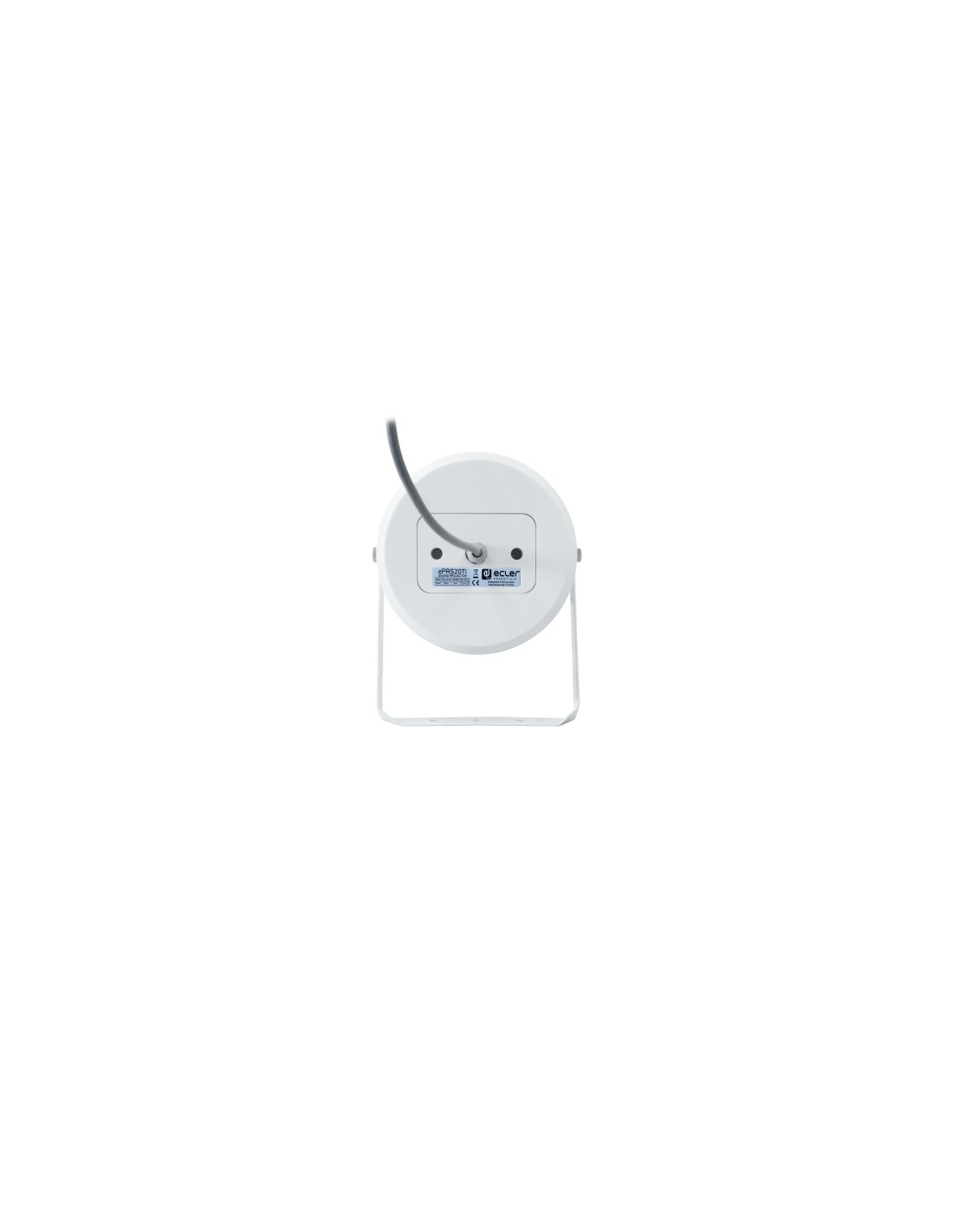

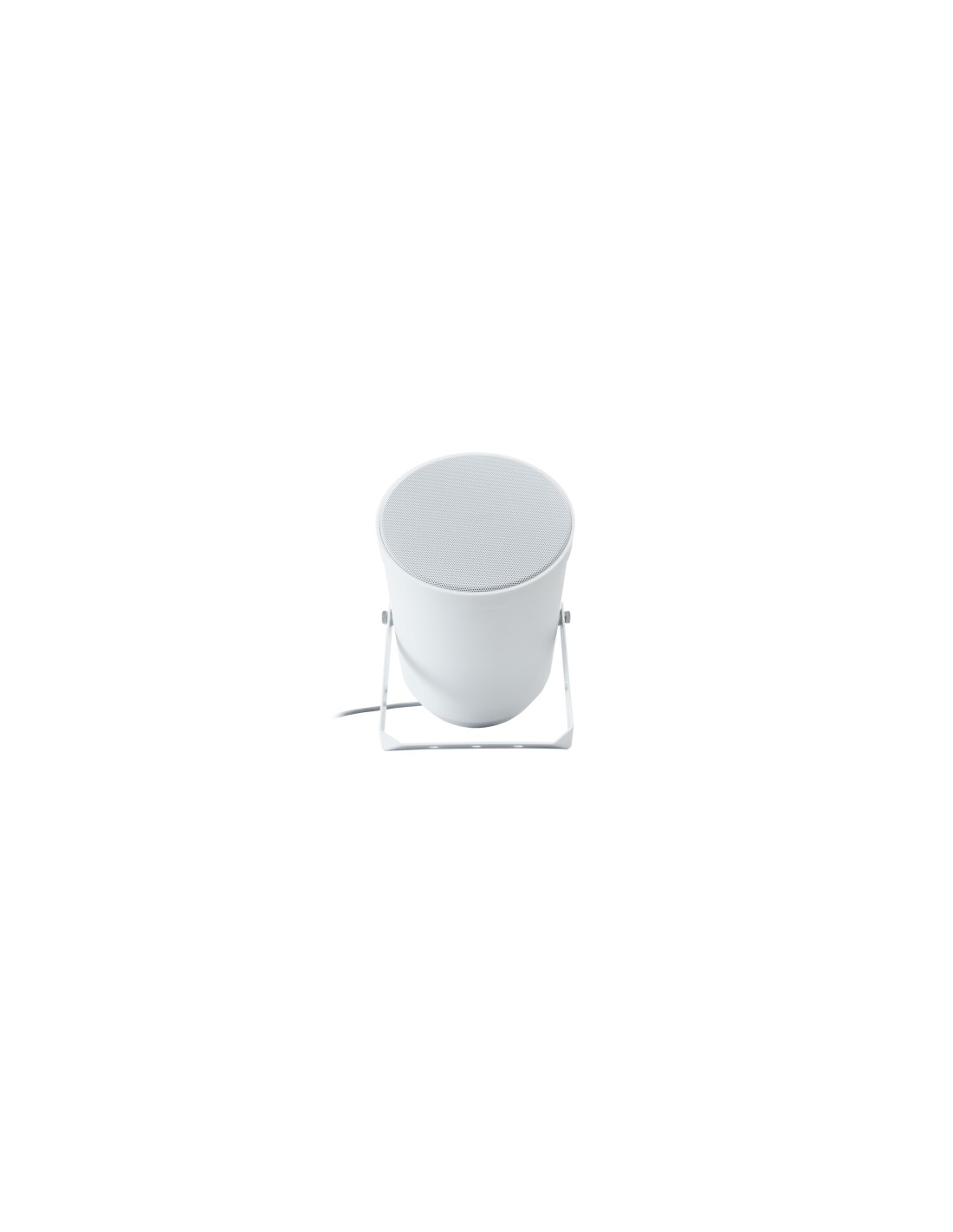

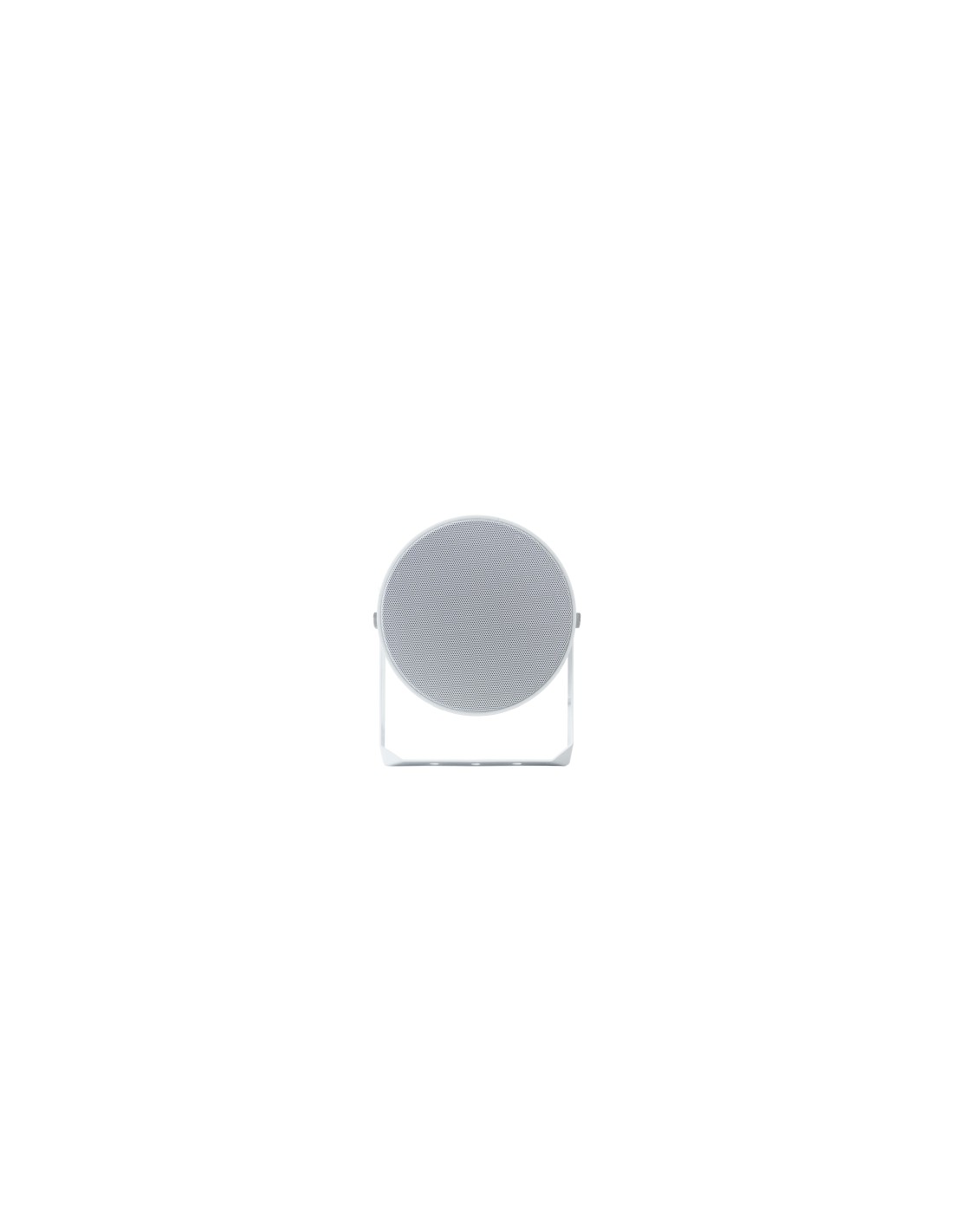

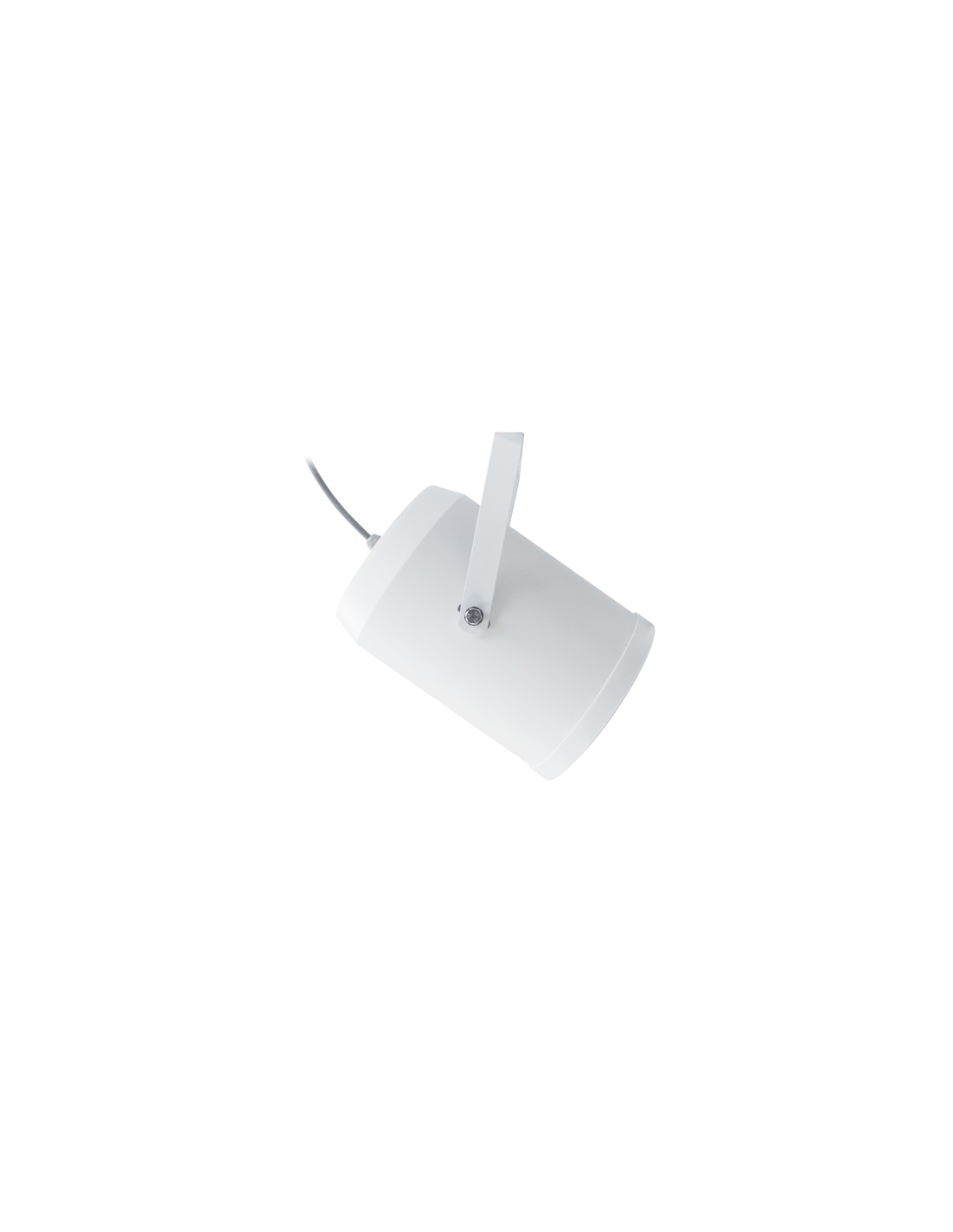

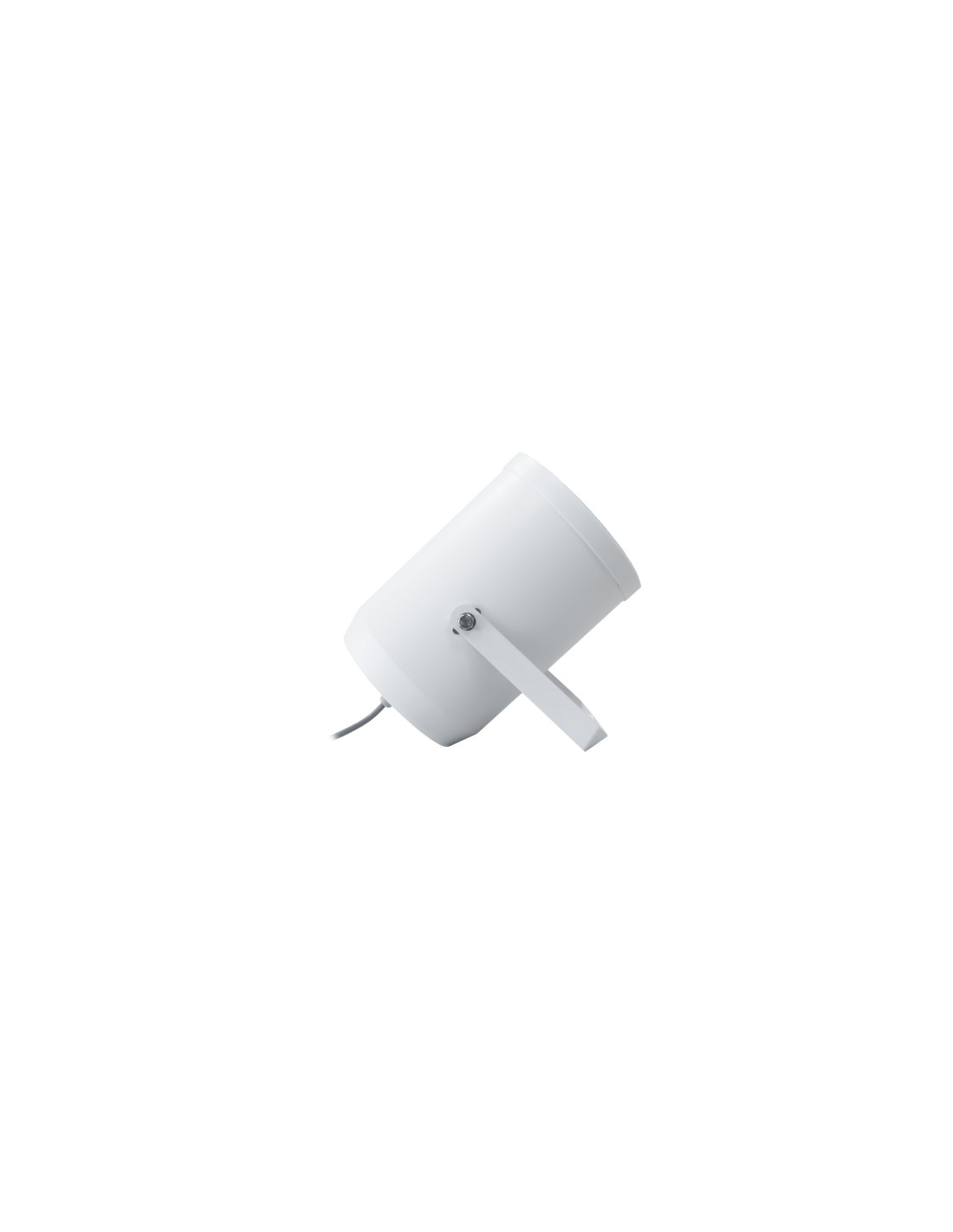

ePRS20Ti
CEPRS20TI
Available
6,5" | 1-way | 20 WRMS | IP55 | sound projector
ePRS20Ti is a 20W sound projector, carefully selected for the most widespread 70/100V applications: paging and background Music. They offer durability and an optimal voice and music reproduction. Made of reinforced ABS and IP55 certified, ideal for high performance outdoors.
- Effective Freq. Range
- 170 Hz-19 kHz (-10dB)
- Coverage angle / Dispersion
- 151°x151° (HxV)
- Power handling
- 20 W RMS / 80 W Peak
- Sensitivity
- 96 dB (1W/1m)
- Maximum SPL
- 109 dB continuous / 115 dB peak
- Recommended amplifier power
- 40 W RMS
- Ways
- 1 way
- Connection type
- Bare wire
- Environmental
- IP55
- Enclosure material
- ABS
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Finished colour
- White (RAL 9016)
- Dimensions
- 170 x 303 mm / 6.7"x9.6" (ØxD)
- Weight
- Including accessories:
1.8 kg / 3.97 lb - Pieces per box
- Unit
- Shipping dimensions
- 190 x 300 x 190 mm / 7.48 x 11.81 x 7.48 in. (WxHxD)
- Shipping weight
- 2.1 kg / 4.63 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307062
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 19.00
- Height (cm)
- 30.00
- Depth (cm)
- 19.00
- Vol. (dm3)
- 10.83
- Gross Weight (kg)
- 2.10
- Net Weight (kg)
- 1.70
- Format
- Unit
- Warranty (months)
- 36
- Driver
- 6,5"
- Power options (Hi Z Multi-tap)
- 100V: 20W / 10W / 5W
70V: 10W / 5W / 2.5W - Cable length
- 350mm / 13.8"
- Certifications
- IEC60529 Certified
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
170 Hz-19 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
151°x151° (HxV) |
| Power handling |
20 W RMS / 80 W Peak |
| Sensitivity |
96 dB (1W/1m) |
| Maximum SPL |
109 dB continuous / 115 dB peak |
| Recommended amplifier power |
40 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 20W / 10W / 5W
70V: 10W / 5W / 2.5W |
TRANSDUCERS
| Ways |
1 way |
|---|---|
| Driver |
6,5" |
PHYSICAL
| Connection type |
Bare wire |
|---|---|
| Environmental |
IP55 |
| Enclosure material |
ABS |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
White (RAL 9016) |
| Dimensions |
170 x 303 mm / 6.7"x9.6" (ØxD) |
| Weight |
Including accessories:
1.8 kg / 3.97 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
190 x 300 x 190 mm / 7.48 x 11.81 x 7.48 in. (WxHxD) |
| Shipping weight |
2.1 kg / 4.63 lb |
| Format |
Unit |
| Cable length |
350mm / 13.8" |
| Certifications |
IEC60529 Certified |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307062 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
19.00 |
| Height (cm) |
30.00 |
| Depth (cm) |
19.00 |
| Vol. (dm3) |
10.83 |
| Gross Weight (kg) |
2.10 |
| Net Weight (kg) |
1.70 |
| Warranty (months) |
36 |
