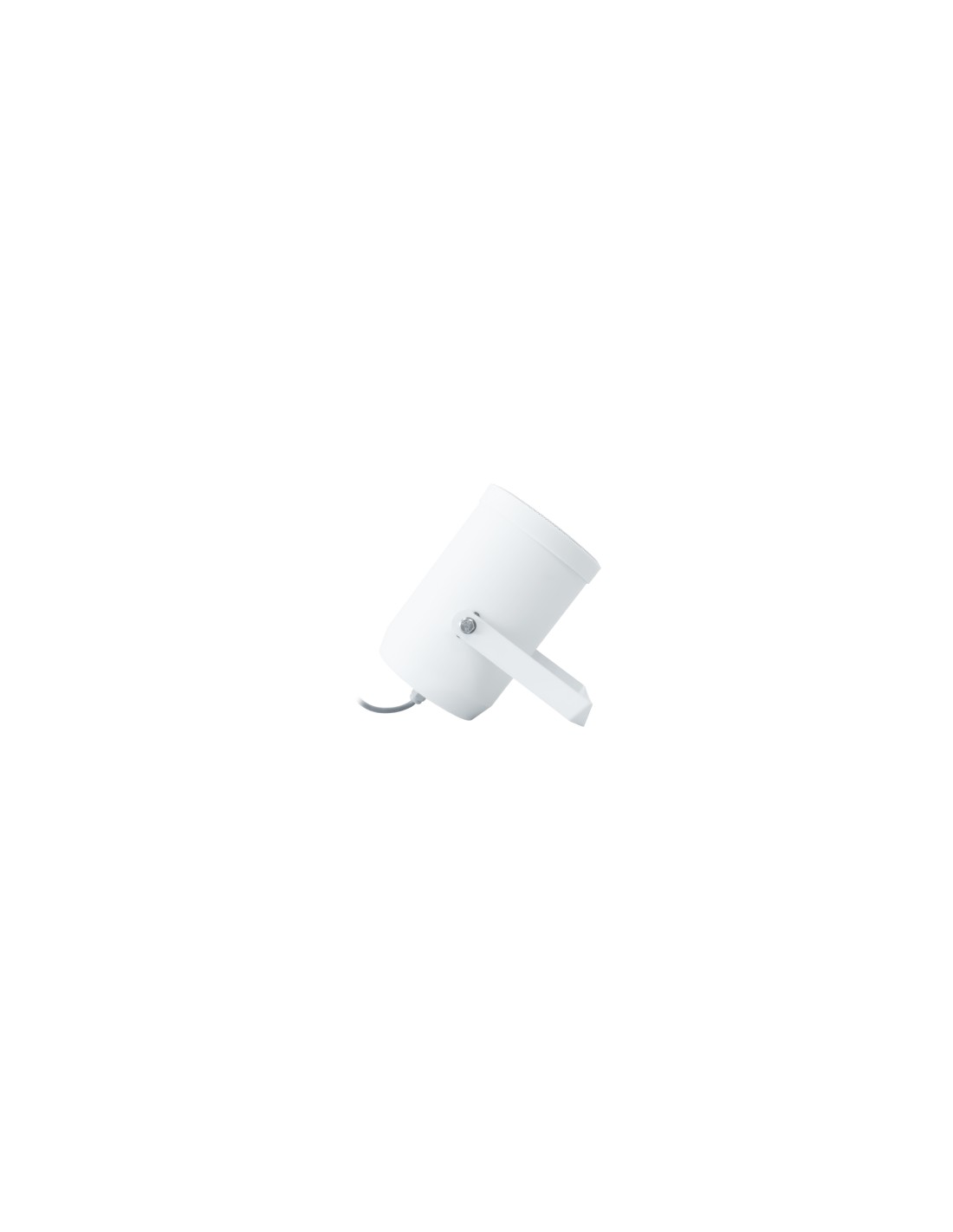

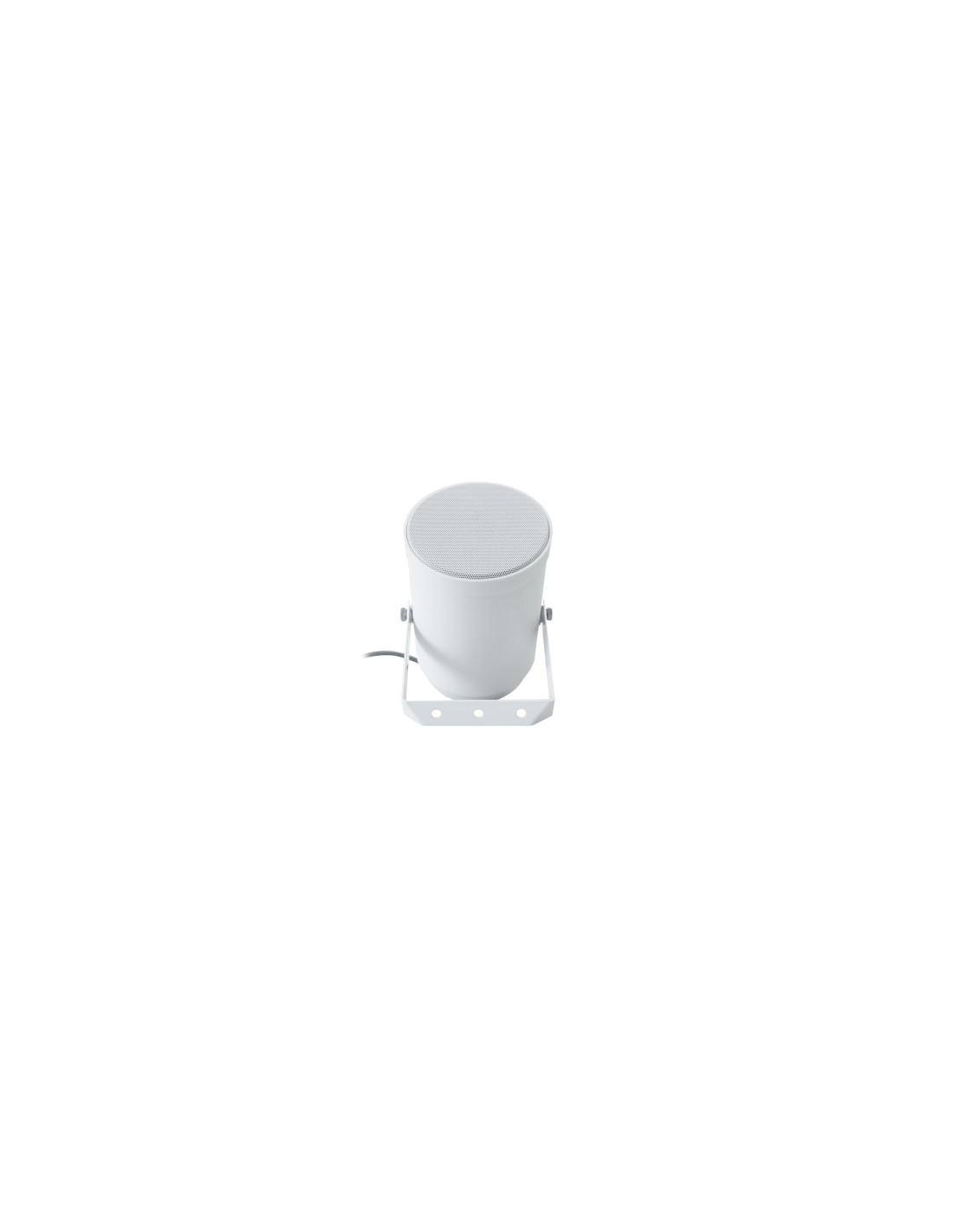

ePRS10Ti
CEPRS10TI
Available
5" | 1-way | 10 WRMS | IP55 | sound projector
ePRS10Ti is a 10W sound projector, carefully selected for the most widespread 70/100V applications: paging and background Music. They offer durability and an optimal voice and music reproduction. Made of reinforced ABS and IP55 certified, ideal for high performance outdoors.
- Effective Freq. Range
- 158 Hz-19 kHz (-10dB)
- Coverage angle / Dispersion
- 235°x235° (HxV)
- Power handling
- 10 W RMS / 40 W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 100 dB continuous / 106 dB peak
- Recommended amplifier power
- 20 W RMS
- Ways
- 1 way
- Connection type
- Bare wire
- Environmental
- IP55
- Enclosure material
- ABS
- Grille material
- Aluminum
- Operating temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Finished colour
- White (RAL 9016)
- Dimensions
- 138x205mm / 5.4"x8.1" (ØxD)
- Weight
- Including accessories:
1.6 kg / 3.5 lb - Pieces per box
- Unit
- Shipping dimensions
- 180 x 280 x 180 mm / 7.09 x 11.02 x 7.09 in. (WxHxD)
- Shipping weight
- 1.4 kg / 3.09 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307055
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 18.00
- Height (cm)
- 28.00
- Depth (cm)
- 18.00
- Vol. (dm3)
- 9.07
- Gross Weight (kg)
- 1.40
- Net Weight (kg)
- 1.00
- Format
- Unit
- Warranty (months)
- 36
- Driver
- 5"
- Power options (Hi Z Multi-tap)
- 100V: 10W / 5W / 2,5W
70V: 5W / 2,5W / 1,25W - Cable length
- 350 mm / 13.8"
- Certifications
- IEC60529 Certified
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
158 Hz-19 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
235°x235° (HxV) |
| Power handling |
10 W RMS / 40 W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
100 dB continuous / 106 dB peak |
| Recommended amplifier power |
20 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 10W / 5W / 2,5W
70V: 5W / 2,5W / 1,25W |
TRANSDUCERS
| Ways |
1 way |
|---|---|
| Driver |
5" |
PHYSICAL
| Connection type |
Bare wire |
|---|---|
| Environmental |
IP55 |
| Enclosure material |
ABS |
| Grille material |
Aluminum |
| Operating temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
White (RAL 9016)
|
| Dimensions |
138x205mm / 5.4"x8.1" (ØxD)
|
| Weight |
Including accessories:
1.6 kg / 3.5 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
180 x 280 x 180 mm / 7.09 x 11.02 x 7.09 in. (WxHxD) |
| Shipping weight |
1.4 kg / 3.09 lb |
| Format |
Unit |
| Cable length |
350 mm / 13.8" |
| Certifications |
IEC60529 Certified |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307055 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
18.00 |
| Height (cm) |
28.00 |
| Depth (cm) |
18.00 |
| Vol. (dm3) |
9.07 |
| Gross Weight (kg) |
1.40 |
| Net Weight (kg) |
1.00 |
| Warranty (months) |
36 |
