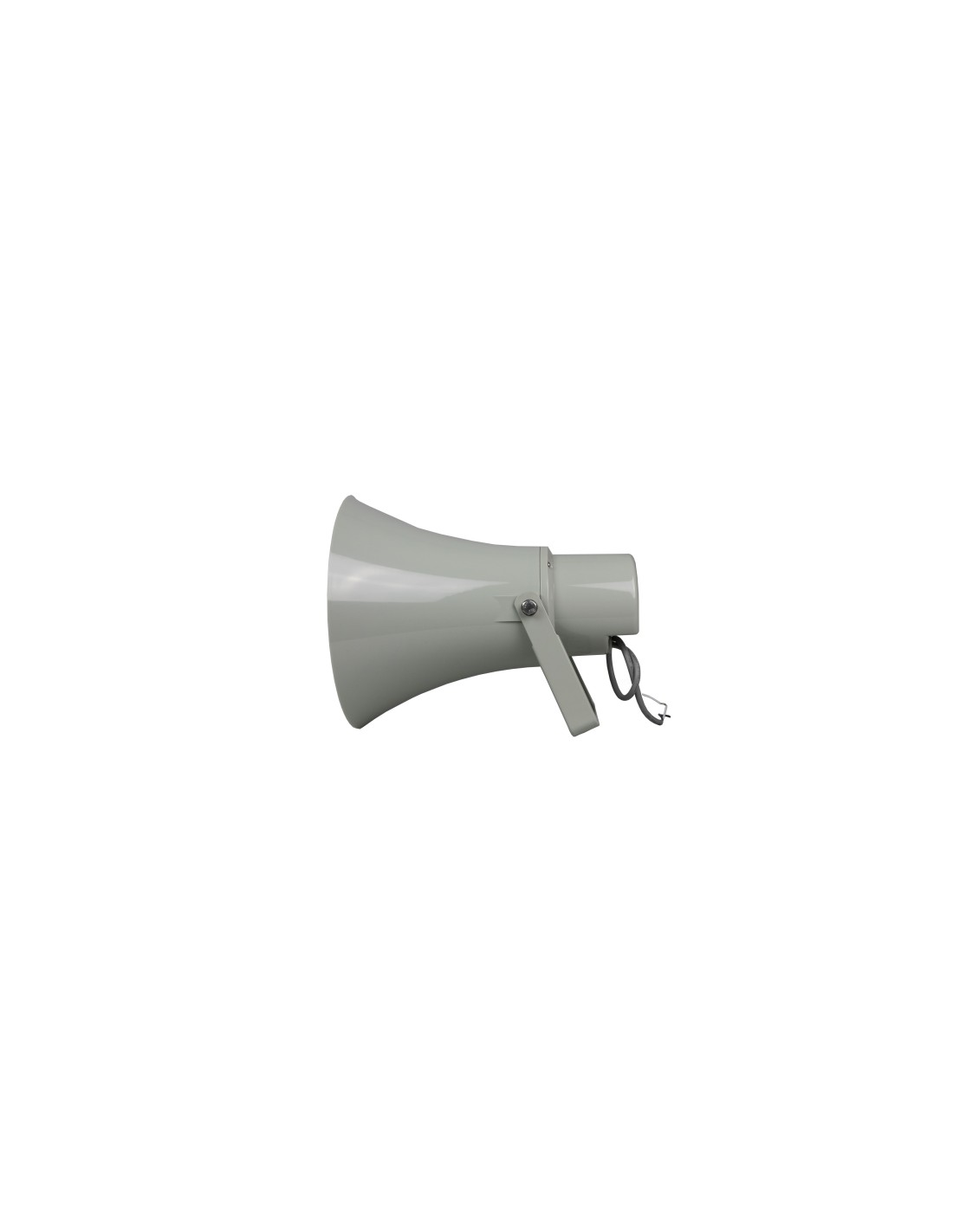

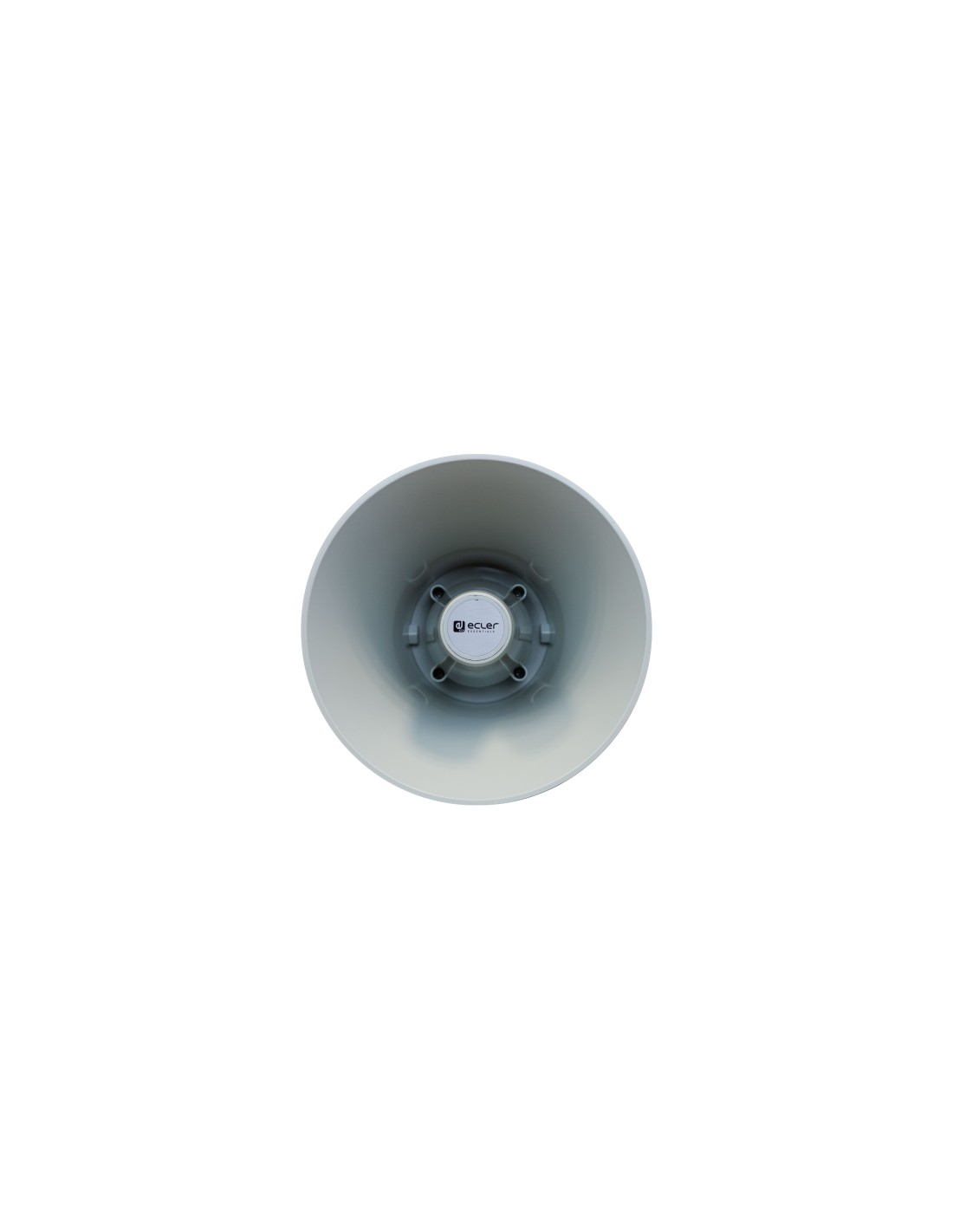

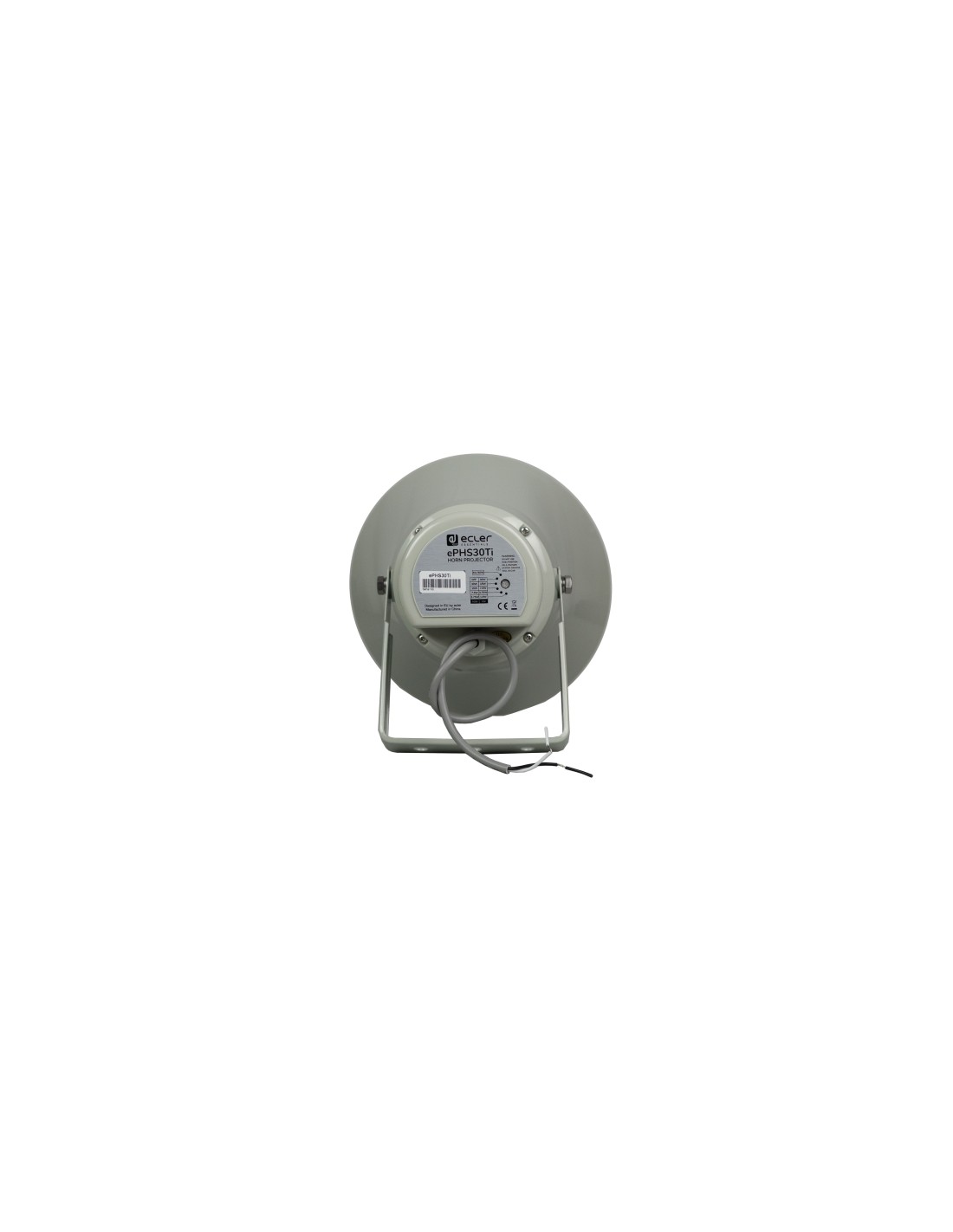

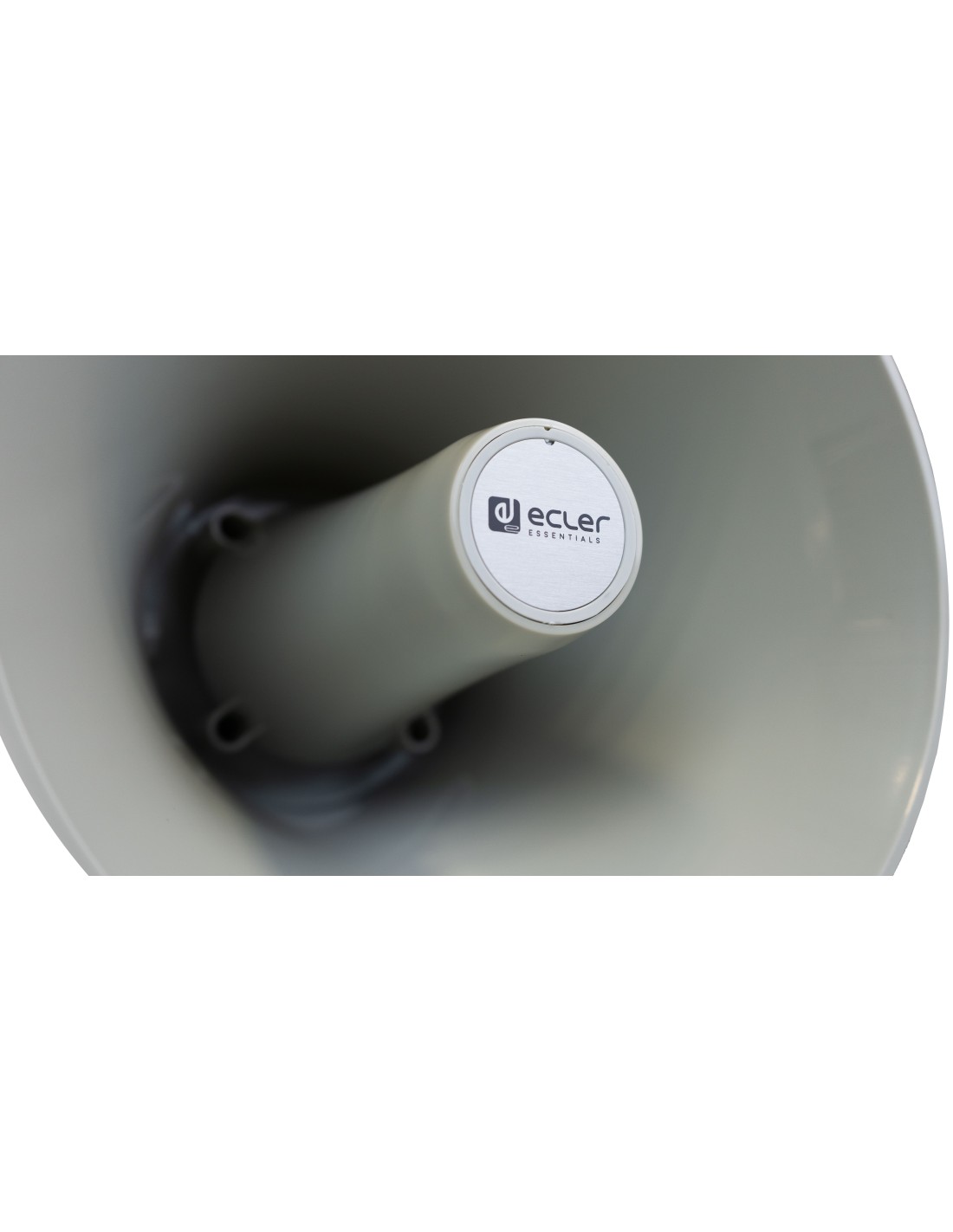

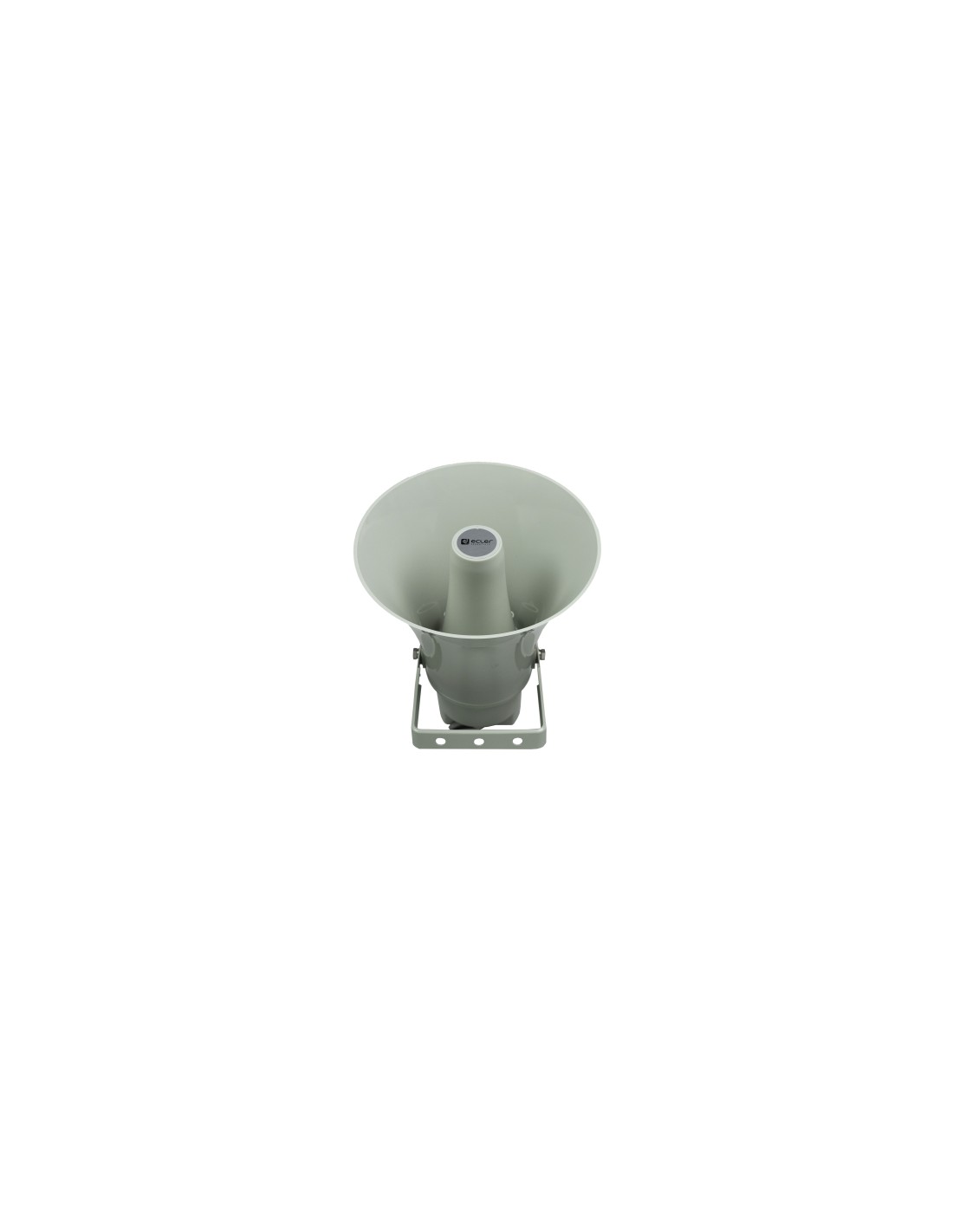

ePHS30Ti
CEPHS30TI
Available
6,5" | 1-way | 30 WRMS | IP66 | horn cabinet
ePHS30Ti is a 30W horn loudspeaker, carefully selected for the most widespread 70/100V applications: paging and background Music. They offer durability and an optimal voice and music reproduction. Made of reinforced ABS and IP66 certified, ideal for high performance outdoors.
- Effective Freq. Range
- 300 Hz-10 kHz (-10dB)
- Coverage angle / Dispersion
- 107°x107° (HxV)
- Power handling
- 30 W RMS / 120 W Peak
- Sensitivity
- 104 dB (1W/1m)
- Maximum SPL
- 119 dB continuous / 125 dB peak
- Recommended amplifier power
- 60 W RMS
- Nominal impedance
- 8Ω
- Connection type
- Bare wire
- Environmental
- IP66
- Operating temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Finished colour
- Light grey (RAL 7035)
- Dimensions
- 246 x 292 mm / 9.7"x11.5" (ØxD)
- Weight
- Including accessories:
2.4 kg / 5.3 lb - Pieces per box
- Unit
- Shipping dimensions
- 250 x 330 x 250 mm / 9.84 x 13 x 9.84 in. (WxHxD)
- Shipping weight
- 2.4 kg / 5.3 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307079
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 25.00
- Height (cm)
- 33.00
- Depth (cm)
- 25.00
- Vol. (dm3)
- 20.63
- Gross Weight (kg)
- 2.40
- Net Weight (kg)
- 2.00
- Format
- Unit
- Warranty (months)
- 36
- Power options (Hi Z Multi-tap)
- 100V: 30W / 15W / 7,5W / 3,75W / 8Ω
70W / 15W / 7,5W / 3,75W / 1,9W / 8Ω
- Cable length
- 350mm / 13.8"
- Certifications
- IEC60529 Certified
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
300 Hz-10 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
107°x107° (HxV) |
| Power handling |
30 W RMS / 120 W Peak |
| Sensitivity |
104 dB (1W/1m) |
| Maximum SPL |
119 dB continuous / 125 dB peak |
| Recommended amplifier power |
60 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 30W / 15W / 7,5W / 3,75W / 8Ω
70W / 15W / 7,5W / 3,75W / 1,9W / 8Ω
|
TRANSDUCERS
| Nominal impedance |
8Ω |
|---|
PHYSICAL
| Connection type |
Bare wire |
|---|---|
| Environmental |
IP66 |
| Operating temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
Light grey (RAL 7035) |
| Dimensions |
246 x 292 mm / 9.7"x11.5" (ØxD) |
| Weight |
Including accessories:
2.4 kg / 5.3 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
250 x 330 x 250 mm / 9.84 x 13 x 9.84 in. (WxHxD) |
| Shipping weight |
2.4 kg / 5.3 lb |
| Format |
Unit |
| Cable length |
350mm / 13.8" |
| Certifications |
IEC60529 Certified |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307079 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
25.00 |
| Height (cm) |
33.00 |
| Depth (cm) |
25.00 |
| Vol. (dm3) |
20.63 |
| Gross Weight (kg) |
2.40 |
| Net Weight (kg) |
2.00 |
| Warranty (months) |
36 |
