eMSP50Ti
CEMSP50TI
Available
6" |2-way | 50 WRMS | IP66 | sound projector

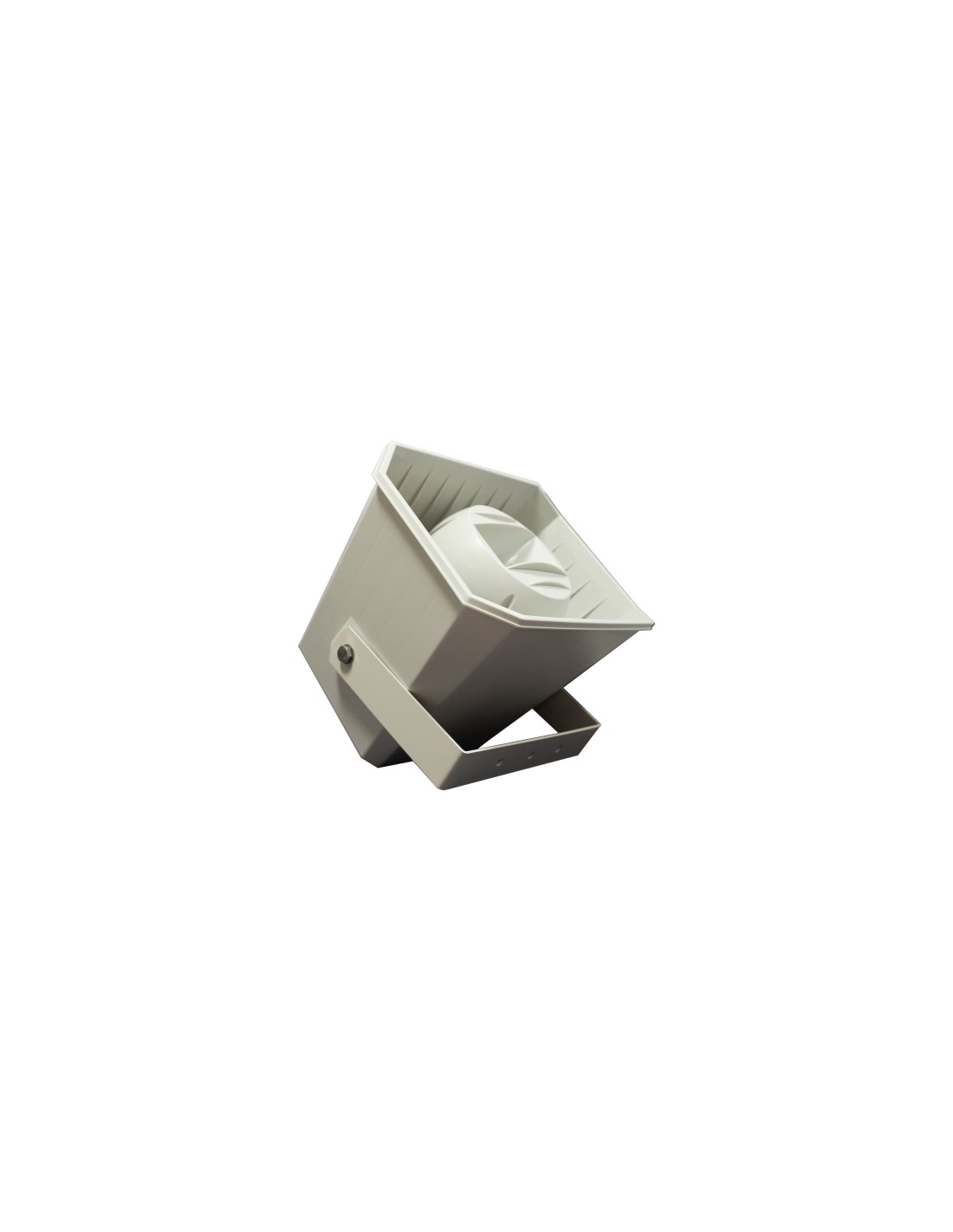

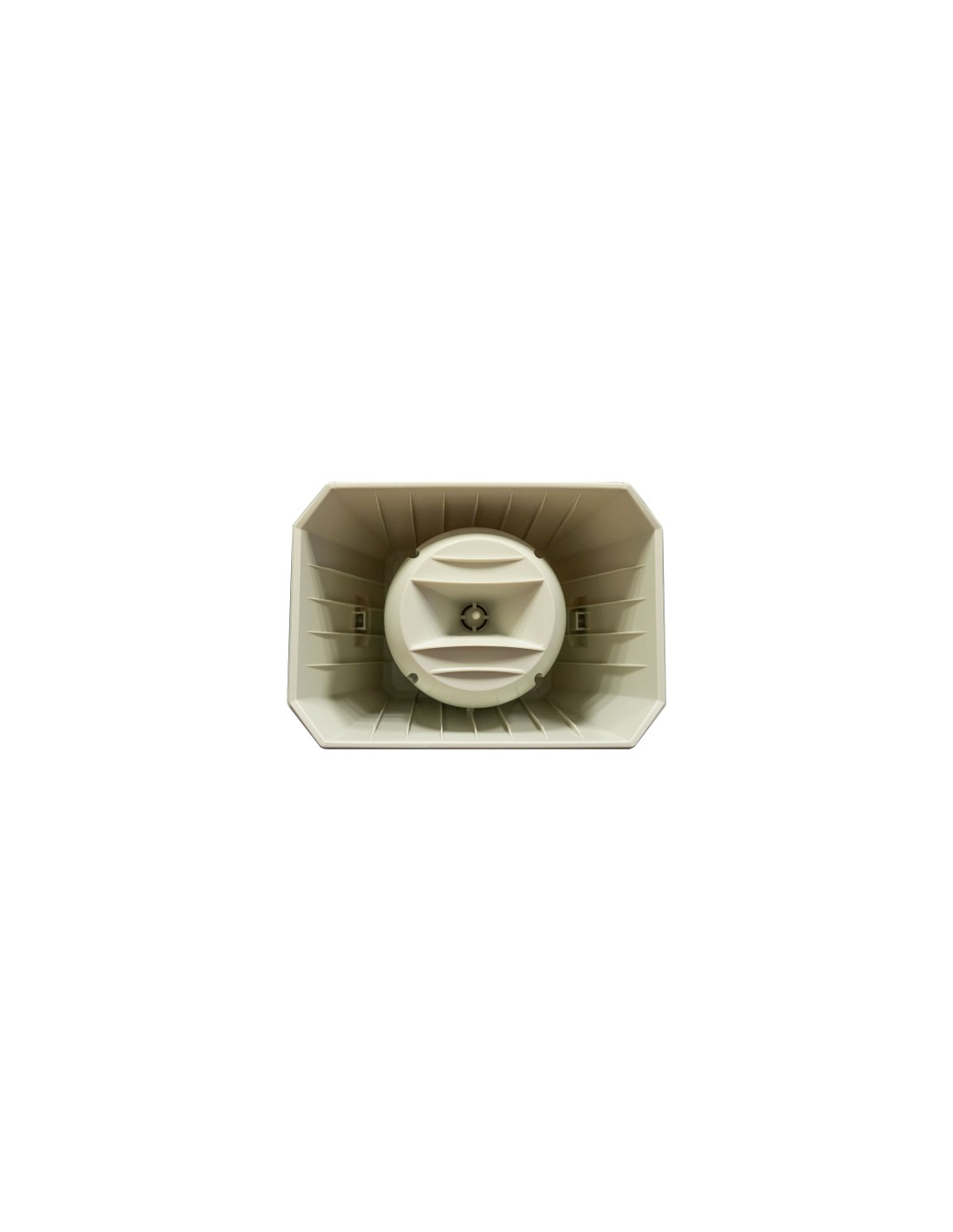

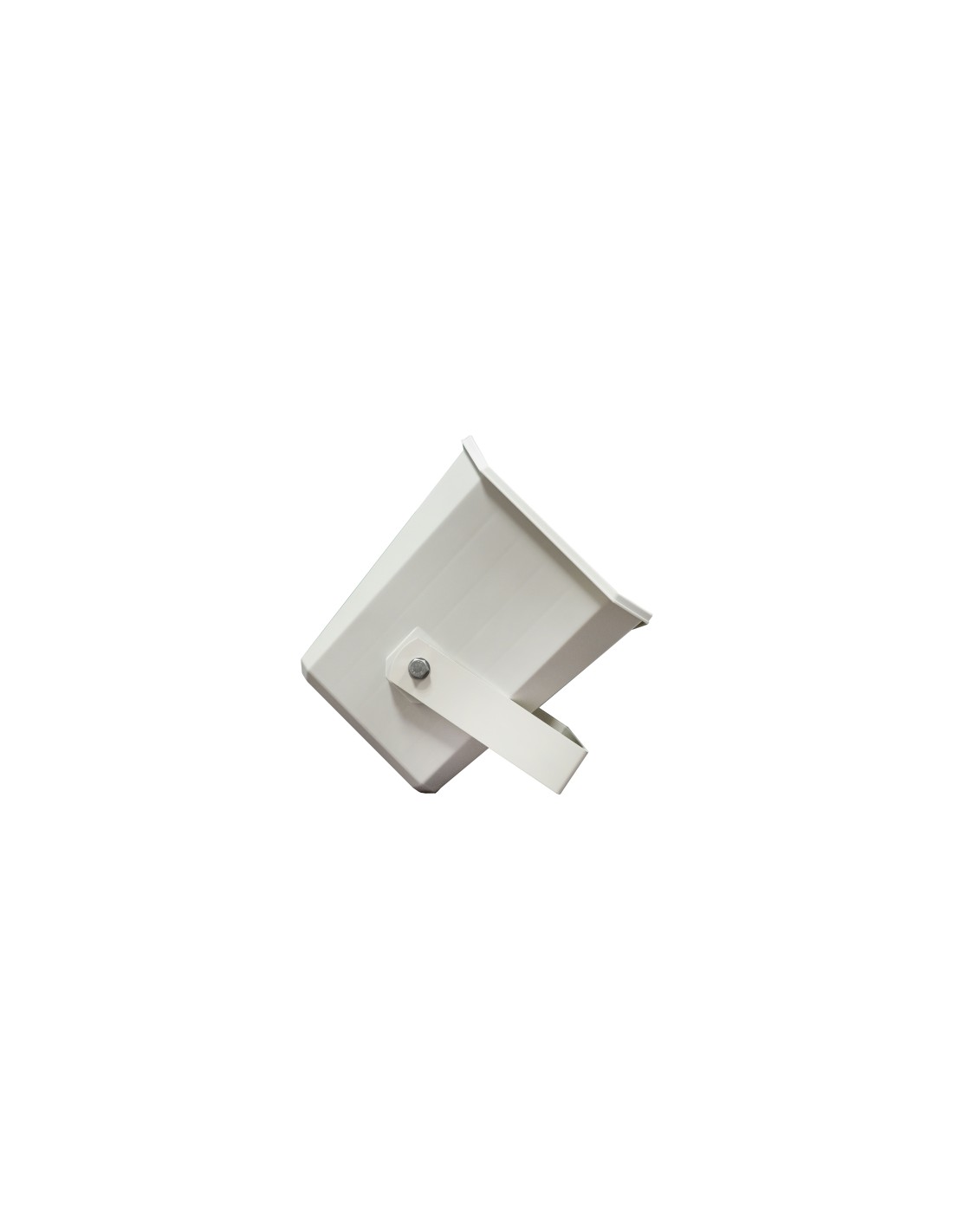

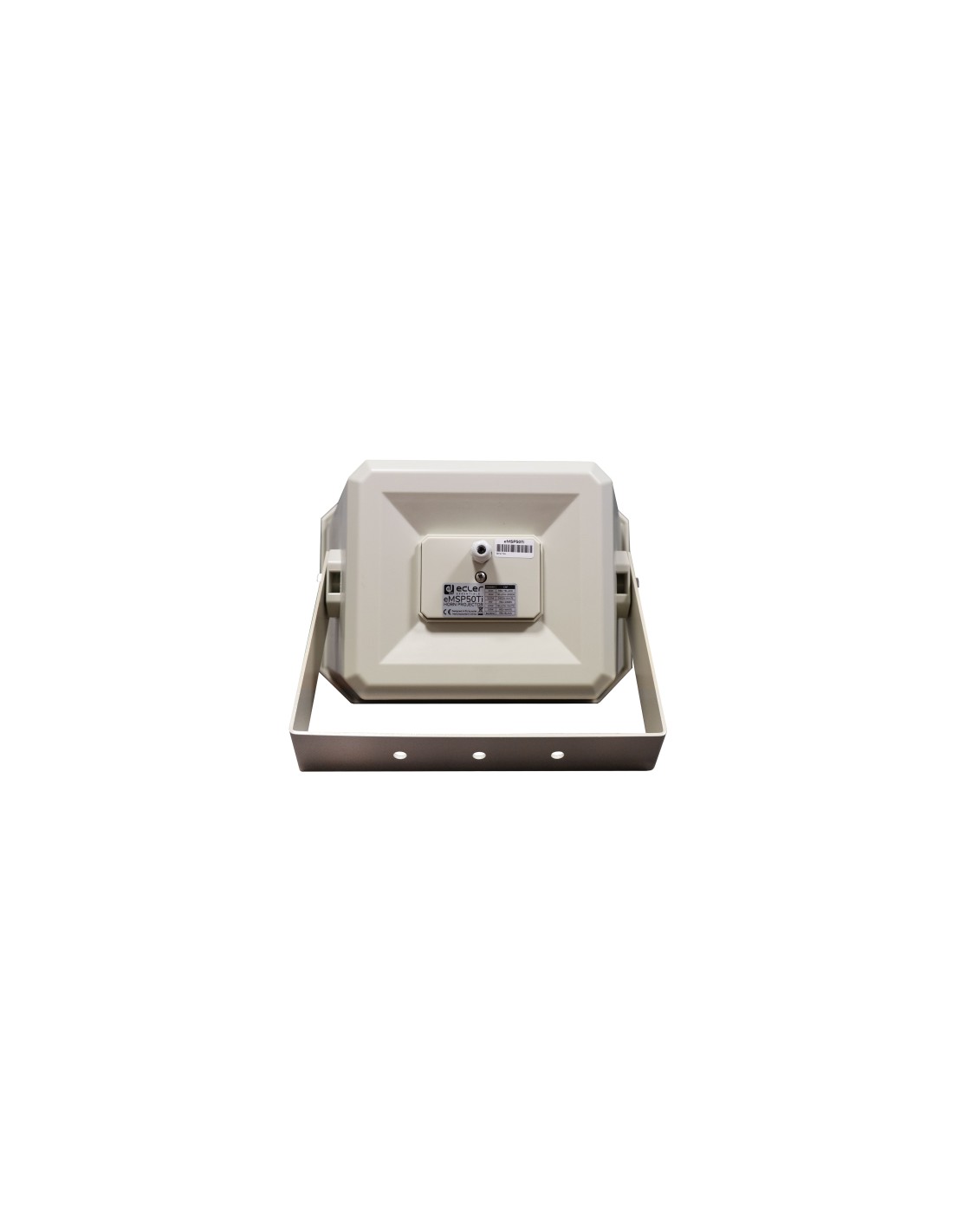

eMSP50Ti is a 2-way 50W sound projector, carefully selected for the most widespread 70/100V applications: paging and background Music. They offer durability and an optimal voice and music reproduction. Made of reinforced ABS and IP66 certified, ideal for high performance outdoors.
- Effective Freq. Range
- 153 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 66°x103° (HxV)
- Power handling
- 50 W RMS / 200 W Peak
- Sensitivity
- 95 dB (1W/1m)
- Maximum SPL
- 112 dB continuous / 118 dB peak
- Recommended amplifier power
- 100 W RMS
- Ways
- 2-ways
- Low frequency driver
- 6" woofer
- High frequency driver
- 1" dome tweeter
- Nominal impedance
- 8Ω
- Connection type
- Terminal block
- Environmental
- IP66
- Enclosure material
- ABS
- Operating temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Finished colour
- Papyrus white (RAL 9018)
- Dimensions
- 359 x 250 x 295mm / 14.13 x 9.84 x 11.61 in.(WxHxD)
- Weight
- Including accessories:
3.9 kg / 8.6 lb - Pieces per box
- Unit
- Shipping dimensions
- 340 x 380 x 280 mm / 13.39 x 14.96 x 11.02 in. (WxHxD)
- Shipping weight
- 5.0 kg / 11.02
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307086
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 34.00
- Height (cm)
- 38.00
- Depth (cm)
- 28.00
- Vol. (dm3)
- 36.18
- Gross Weight (kg)
- 5.00
- Net Weight (kg)
- 4.30
- Format
- Unit
- Warranty (months)
- 36
- Power options (Hi Z Multi-tap)
- 100V: 50W / 25W / 12,5W / 9W / 4,5W / 2,6W / 8Ω
70V: 25W / 12,5W / 9W / 4,5W / 2,6W / 1,3W / 8Ω - Certifications
- IEC60529 Certified
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
153 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
66°x103° (HxV) |
| Power handling |
50 W RMS / 200 W Peak |
| Sensitivity |
95 dB (1W/1m) |
| Maximum SPL |
112 dB continuous / 118 dB peak |
| Recommended amplifier power |
100 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 50W / 25W / 12,5W / 9W / 4,5W / 2,6W / 8Ω
70V: 25W / 12,5W / 9W / 4,5W / 2,6W / 1,3W / 8Ω |
TRANSDUCERS
| Ways |
2-ways |
|---|---|
| Low frequency driver |
6" woofer |
| High frequency driver |
1" dome tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Terminal block |
|---|---|
| Environmental |
IP66 |
| Enclosure material |
ABS |
| Operating temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
Papyrus white (RAL 9018)
|
| Dimensions |
359 x 250 x 295mm / 14.13 x 9.84 x 11.61 in.(WxHxD) |
| Weight |
Including accessories:
3.9 kg / 8.6 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
340 x 380 x 280 mm / 13.39 x 14.96 x 11.02 in. (WxHxD) |
| Shipping weight |
5.0 kg / 11.02 |
| Format |
Unit |
| Certifications |
IEC60529 Certified |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307086 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
34.00 |
| Height (cm) |
38.00 |
| Depth (cm) |
28.00 |
| Vol. (dm3) |
36.18 |
| Gross Weight (kg) |
5.00 |
| Net Weight (kg) |
4.30 |
| Warranty (months) |
36 |
