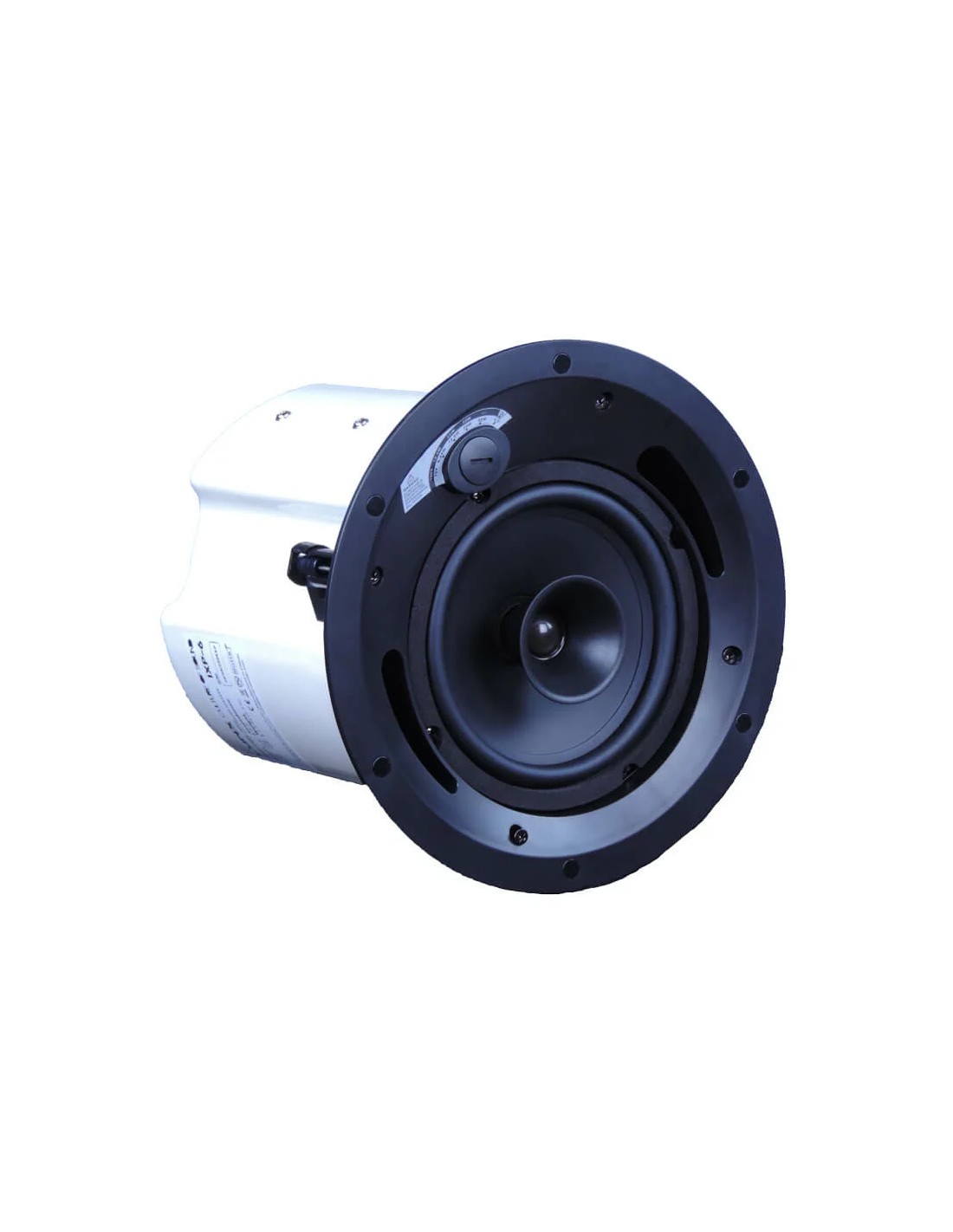

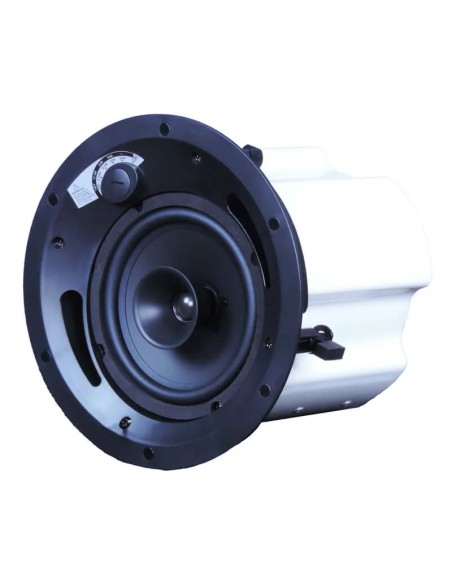

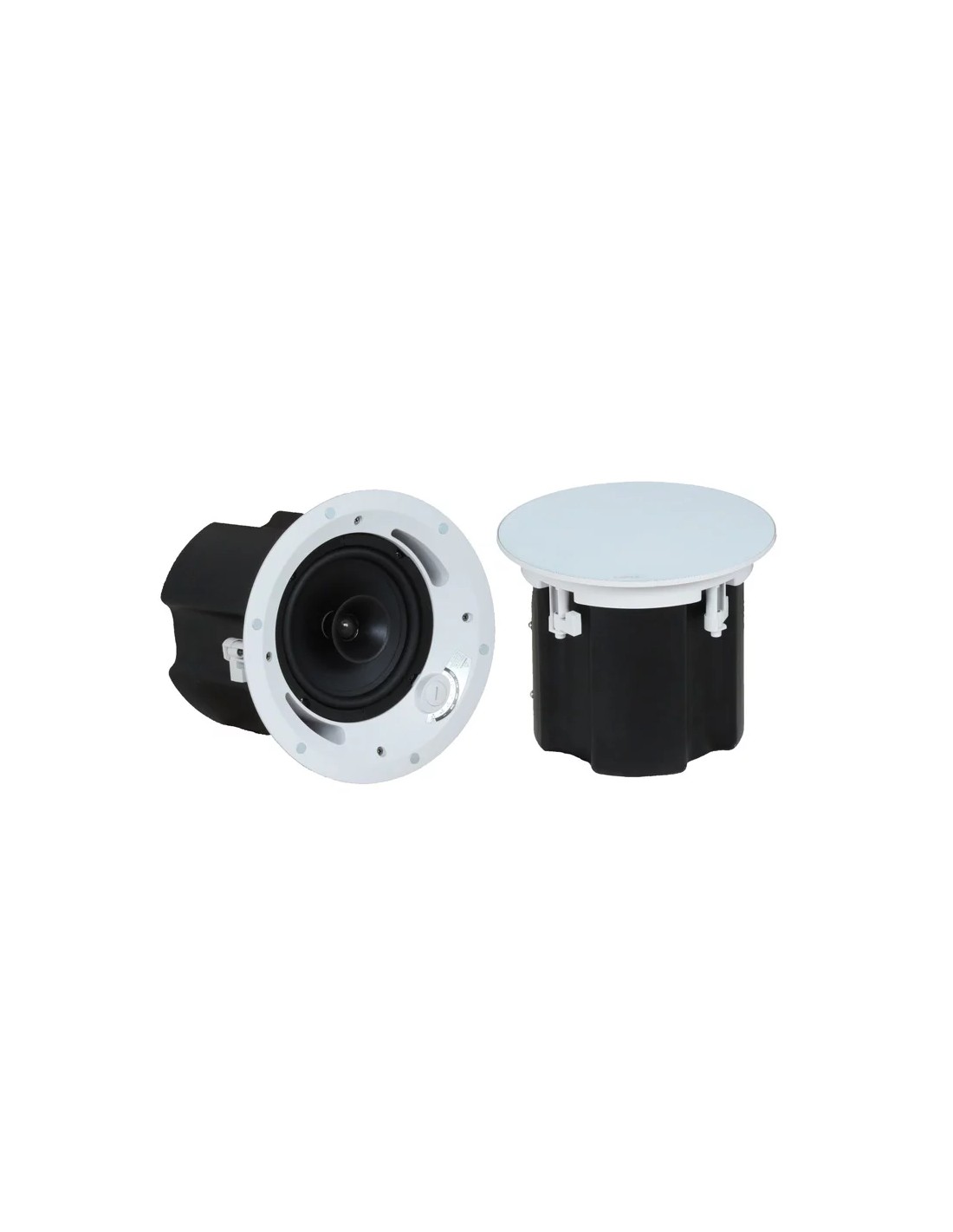

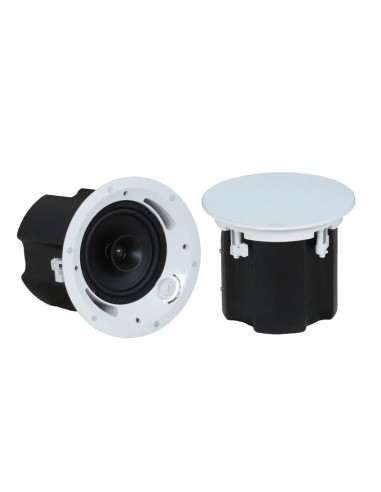

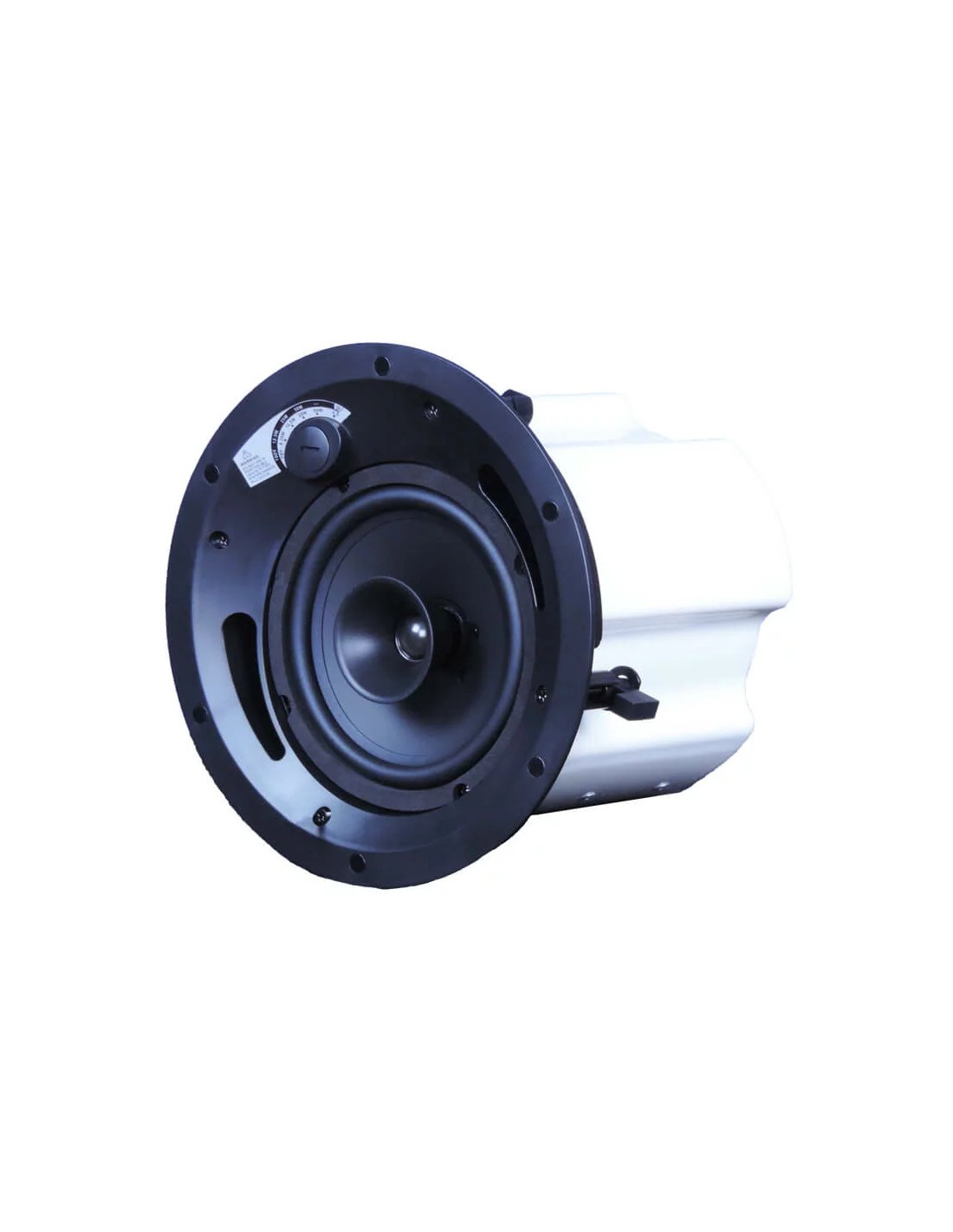

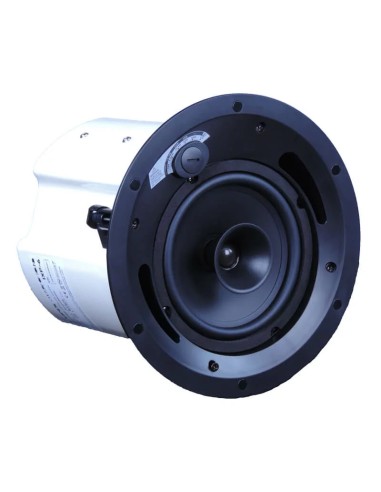

Professional coaxial two-way, full range, 6.5-inch ceiling mount loudspeaker system.
The IXP-6 is an in-ceiling loudspeaker delivering great sound performance. It features a 6.5” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 50/25/12.5W ( 6.25W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.
The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.
A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.
The frameless grill has a discrete design offering the possibility to paint easily if required. Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels.
- Effective Freq. Range
- 80 – 20.000 Hz
- Sensitivity
- 90 dB 1W / 1m @ Zn average 400 Hz to 8KHz
- Maximum SPL
- 8Ω 107 dB / 113 dB
100V / 70V 107 dB / 113 dB - Nominal impedance
- 8 Ω
- Crossover filter
- 5500 Hz 12dB/octave HP/LP filter
- Grille material
- Powder coated steel, white finish, paintable
- Dimensions
- 239 mm x 264 mm (9.4 in x 10.3 in)
- Status
- New
- EAN code
- 8436612043241
- Tariff code
- 8518900000
SYSTEM
| Effective Freq. Range |
80 – 20.000 Hz |
|---|---|
| Sensitivity |
90 dB 1W / 1m @ Zn average 400 Hz to 8KHz |
| Maximum SPL |
8Ω 107 dB / 113 dB
100V / 70V 107 dB / 113 dB |
TRANSDUCERS
| Nominal impedance |
8 Ω |
|---|
FILTERS
| Crossover filter |
5500 Hz 12dB/octave HP/LP filter |
|---|
PHYSICAL
| Grille material |
Powder coated steel, white finish, paintable |
|---|---|
| Dimensions |
239 mm x 264 mm (9.4 in x 10.3 in) |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612043241 |
| Tariff code |
8518900000 |
