IXP-4
CLYIXP4
Check availability

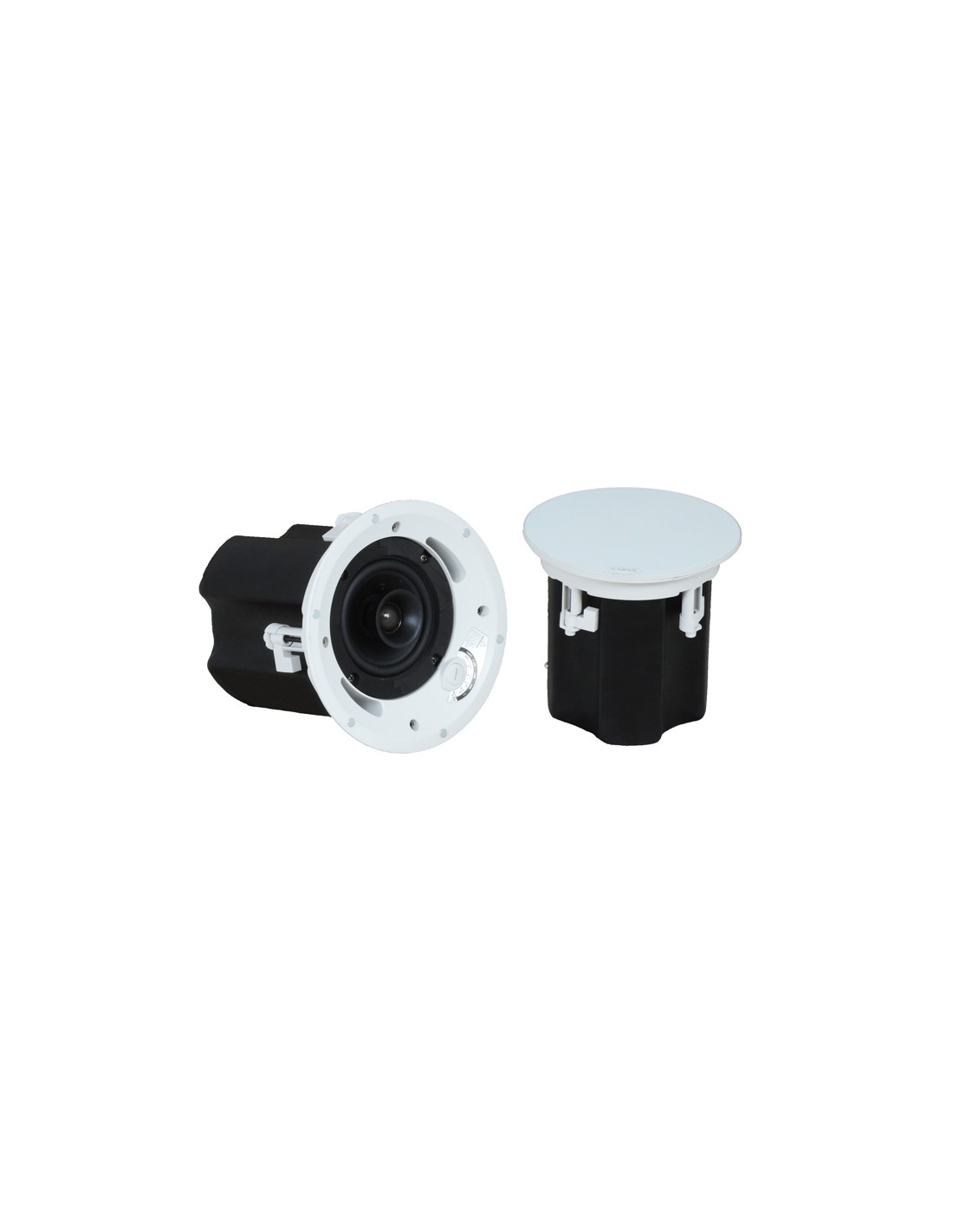

Ceiling Speaker 4" Coaxial 30W White
The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.
The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.
- Effective Freq. Range
- 90 - 20.000 Hz
- Coverage angle / Dispersion
- 100º conical dispersion
- Sensitivity
- 87 dB 1W / 1m @ Zn average 400Hz to 8KHz
- Maximum SPL
- 8Ω 102 dB
100V / 70V 102 dB - Nominal impedance
- 8 Ω
- Crossover filter
- 5500 Hz 12dB/octave HP/LP filter
- Enclosure material
- Baffle ABS, backcan steel black finish
- Grille material
- Powder coated steel, white finish, paintable
- Dimensions
- 188 mm x 204.5 mm (7.4 in x 8 in)
- Weight
- 2.6 Kg (5.7 lbs)
- Status
- New
- EAN code
- 8436612043234
- Tariff code
- 8518900000
- Shipping Location
- Spain
- Mounting system
- 4 Rotating Mounting tabs (dog ears)
- Audio inputs
- 4 poles Euroblock connector with loop-thru
- Display
- Front-face wattage / low impedance selector switch
- External diameter
- 168 mm (6.6 in)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
90 - 20.000 Hz |
|---|---|
| Coverage angle / Dispersion |
100º conical dispersion |
| Sensitivity |
87 dB 1W / 1m @ Zn average 400Hz to 8KHz |
| Maximum SPL |
8Ω 102 dB
100V / 70V 102 dB |
TRANSDUCERS
| Nominal impedance |
8 Ω |
|---|
FILTERS
| Crossover filter |
5500 Hz 12dB/octave HP/LP filter |
|---|
PHYSICAL
| Enclosure material |
Baffle ABS, backcan steel black finish |
|---|---|
| Grille material |
Powder coated steel, white finish, paintable |
| Dimensions |
188 mm x 204.5 mm (7.4 in x 8 in) |
| Weight |
2.6 Kg (5.7 lbs) |
| Mounting system |
4 Rotating Mounting tabs (dog ears) |
| External diameter |
168 mm (6.6 in) |
POWERED
| Audio inputs |
4 poles Euroblock connector with loop-thru |
|---|
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612043234 |
| Tariff code |
8518900000 |
| Shipping Location |
Spain |
SCREEN/DISPLAY
| Display |
Front-face wattage / low impedance selector switch |
|---|
