FXCS-P6510FR
CF0207166010
Available

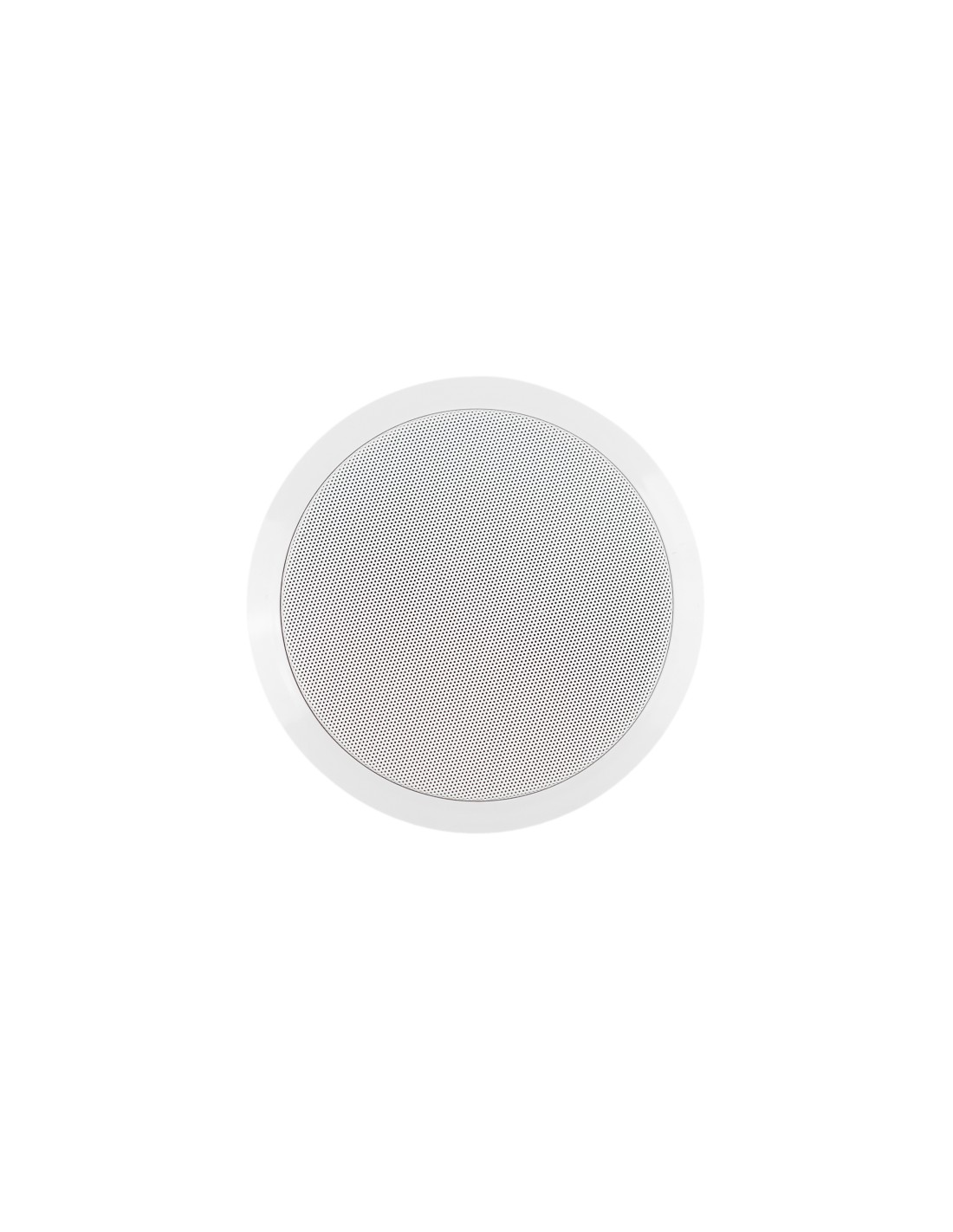

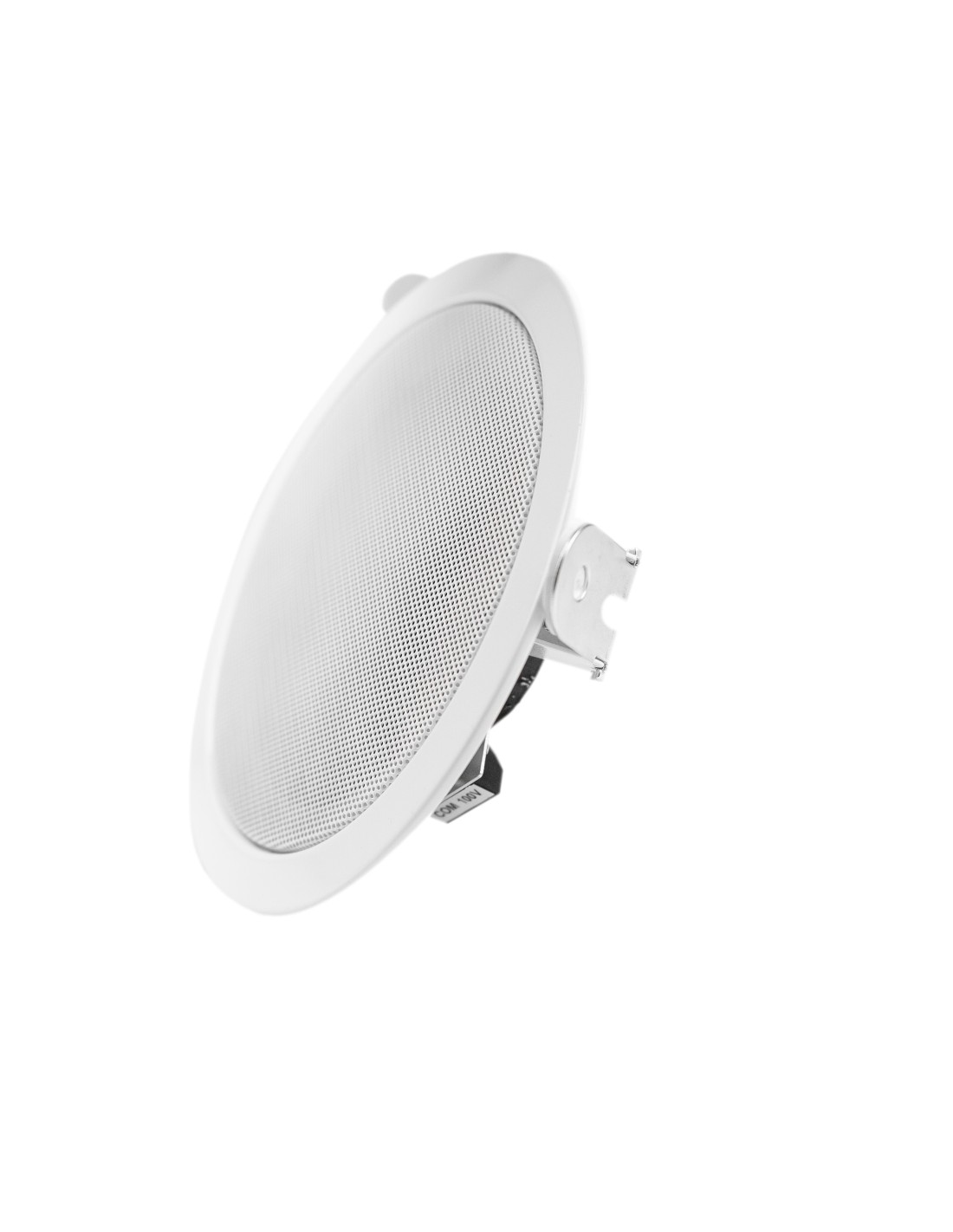

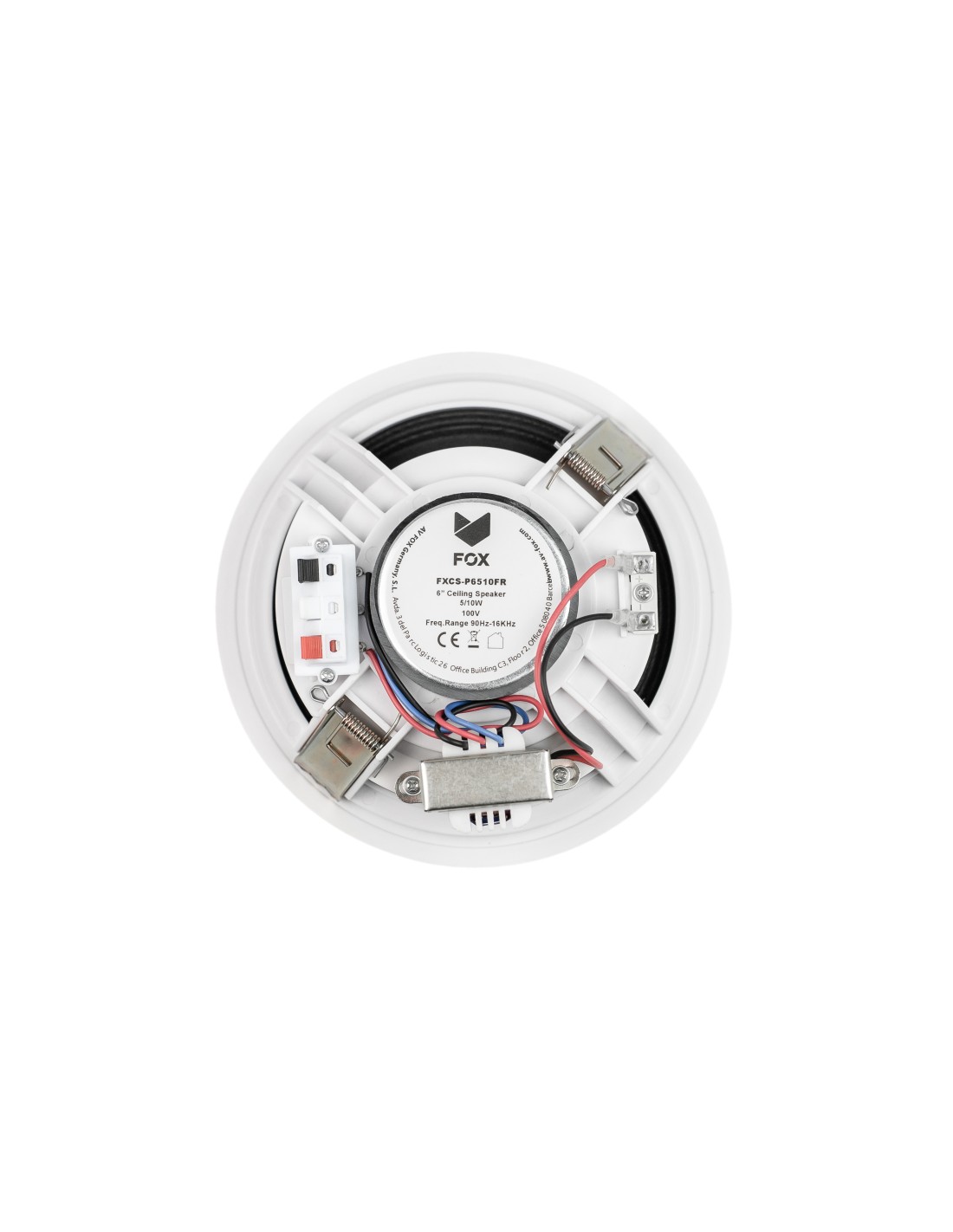

Ceiling Speaker 6"
Ceiling Speaker 6" / 5-10W / 100V / White
Frequency 90-16,000 Hz | SPL 90 dB

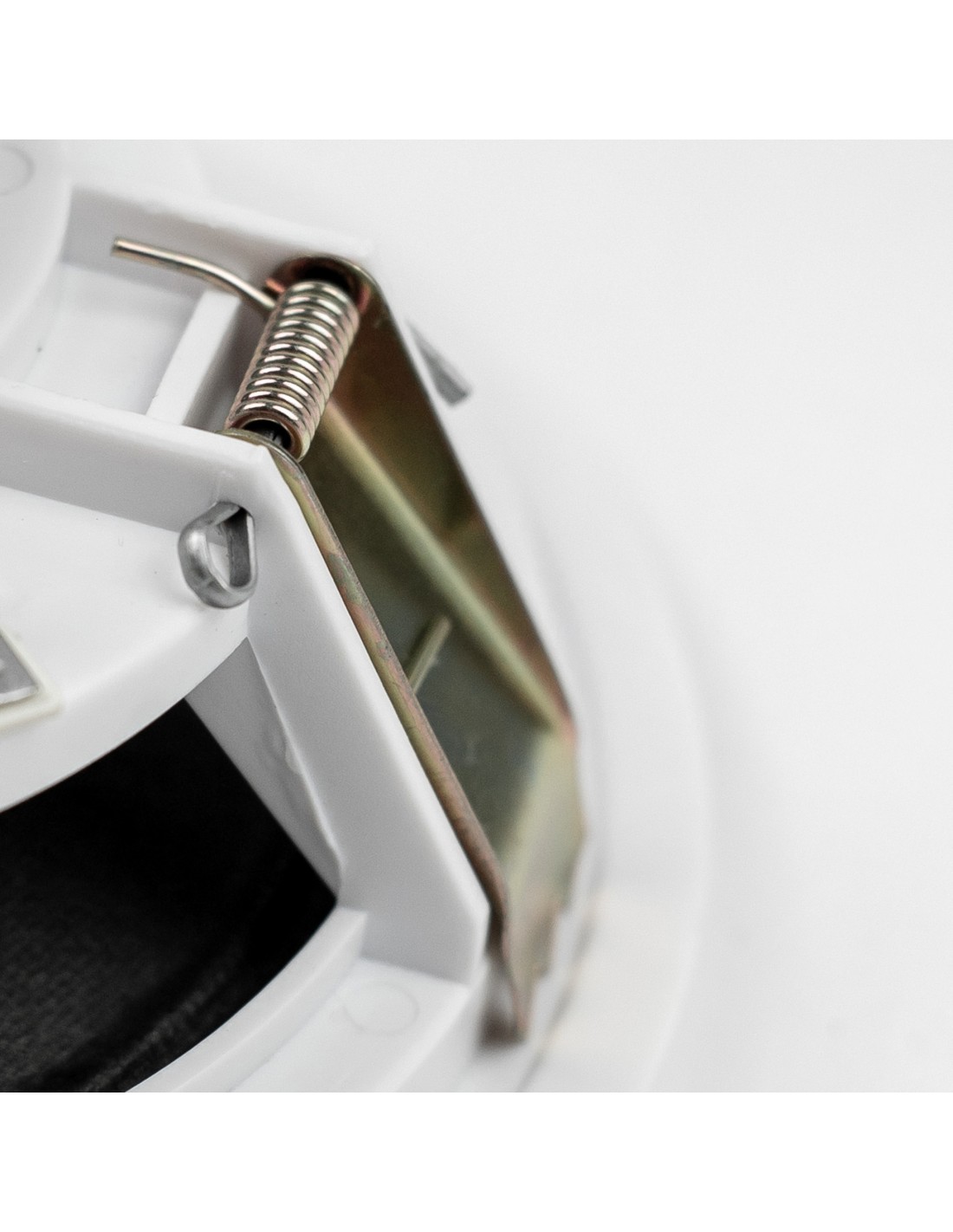

Quick mounting system | Lightweight plastic housing | Light weight plastic housing
Outer diameter: 190 mm | Cut-out diameter: 165 mm | 720 g
- Effective Freq. Range
- 90 - 16 000 Hz
- Power handling
- 5/10 W RMS
- Maximum SPL
- 90 dB
- Nominal impedance
- 100 V

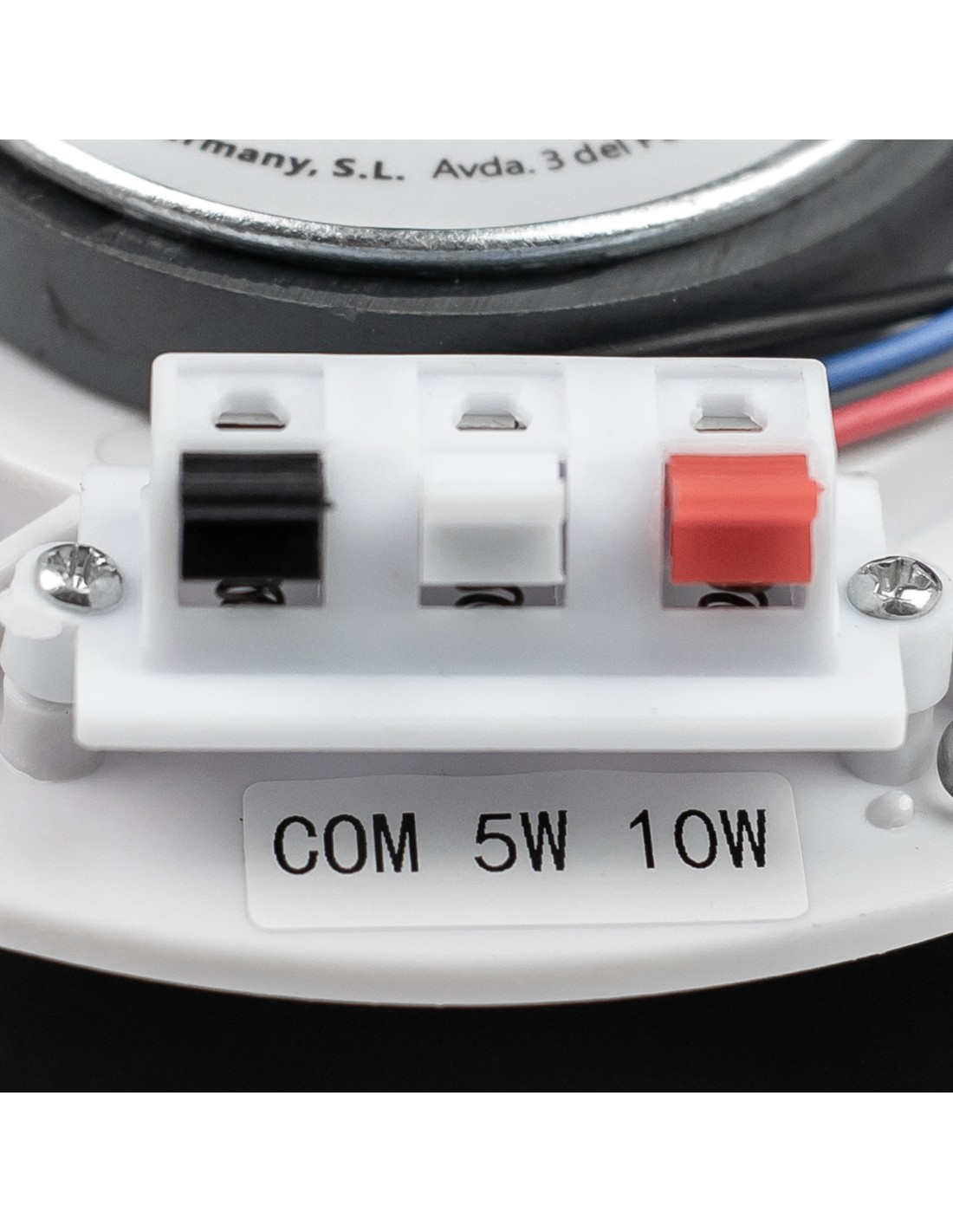

- Connection type
- Clamp connector
- Storage temperature
- 0 - 40 °C
- Weight
- 720 g
- Status
- New
- EAN code
- 8435071307796
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Recommended cut out diameter
- 165 mm
- External diameter
- 190 mm
- Required depth
- 80 mm
- Ceiling thickness
- 5 - 22 mm
SYSTEM
| Effective Freq. Range |
90 - 16 000 Hz |
|---|---|
| Power handling |
5/10 W RMS |
| Maximum SPL |
90 dB |
TRANSDUCERS
| Nominal impedance |
100 V |
|---|
PHYSICAL
| Connection type |
Clamp connector |
|---|---|
| Storage temperature |
0 - 40 °C |
| Weight |
720 g |
| Recommended cut out diameter |
165 mm |
| External diameter |
190 mm |
| Required depth |
80 mm |
| Ceiling thickness |
5 - 22 mm |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071307796 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
