FXCS-M8512FR
CF0207166008
Check availability

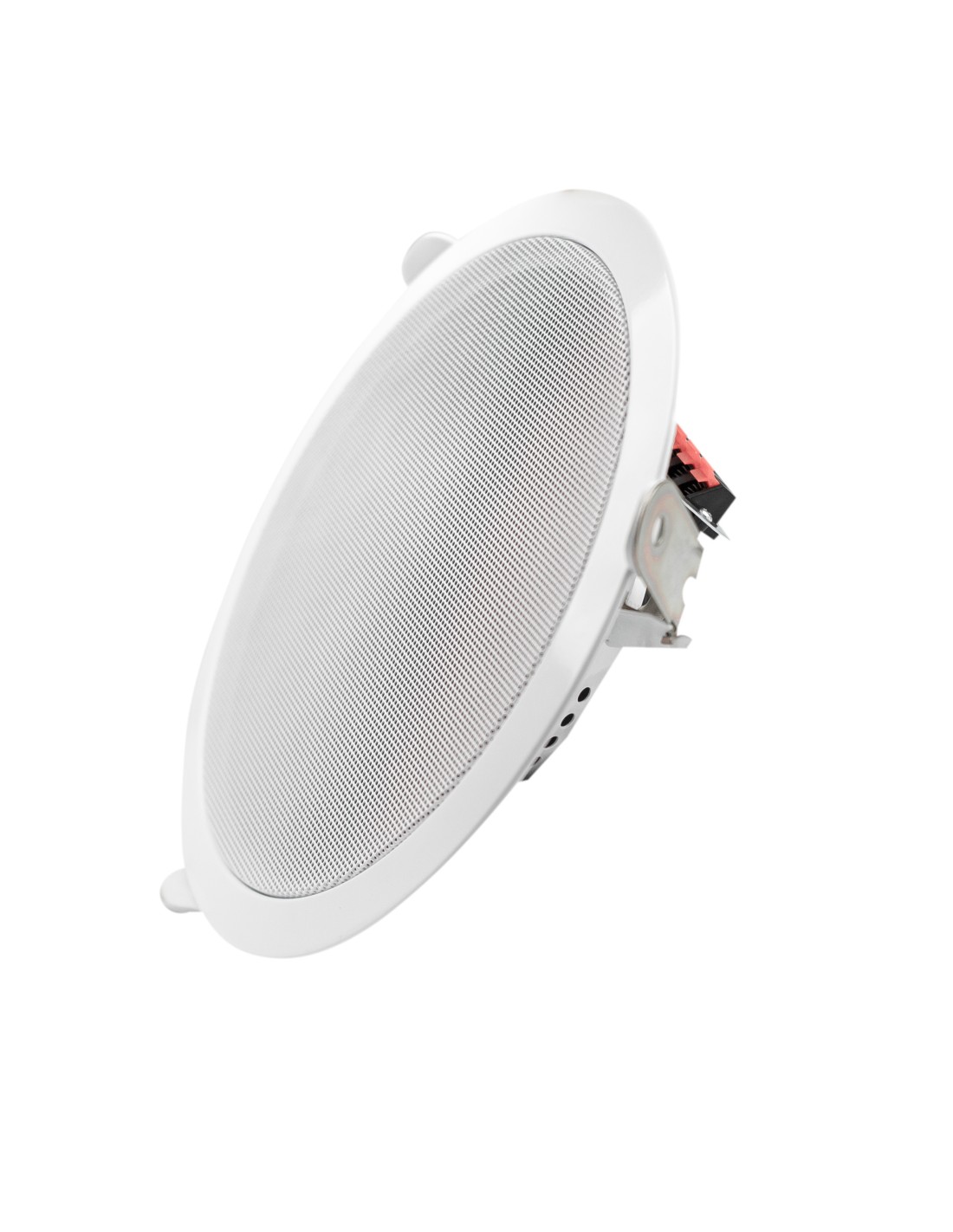

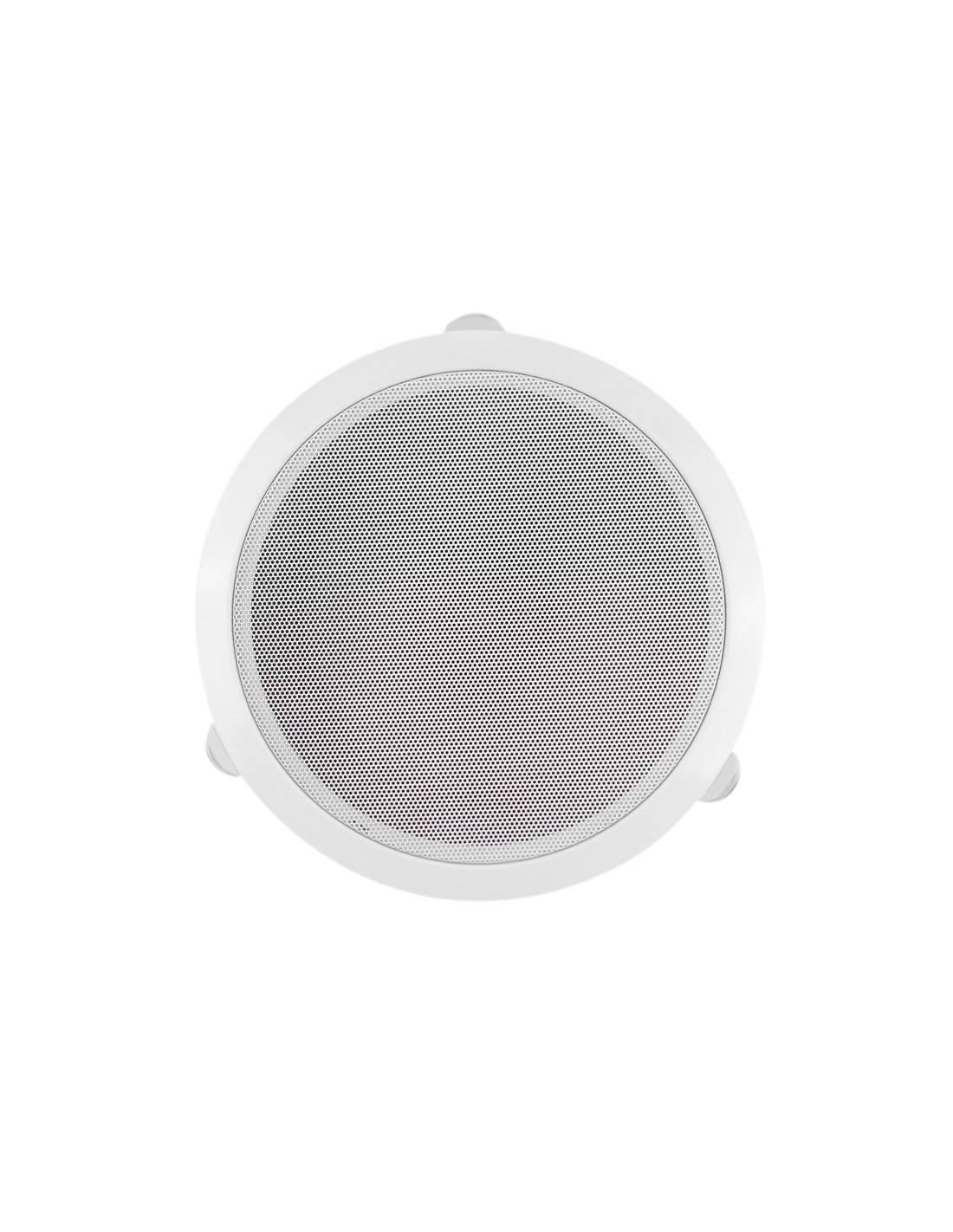

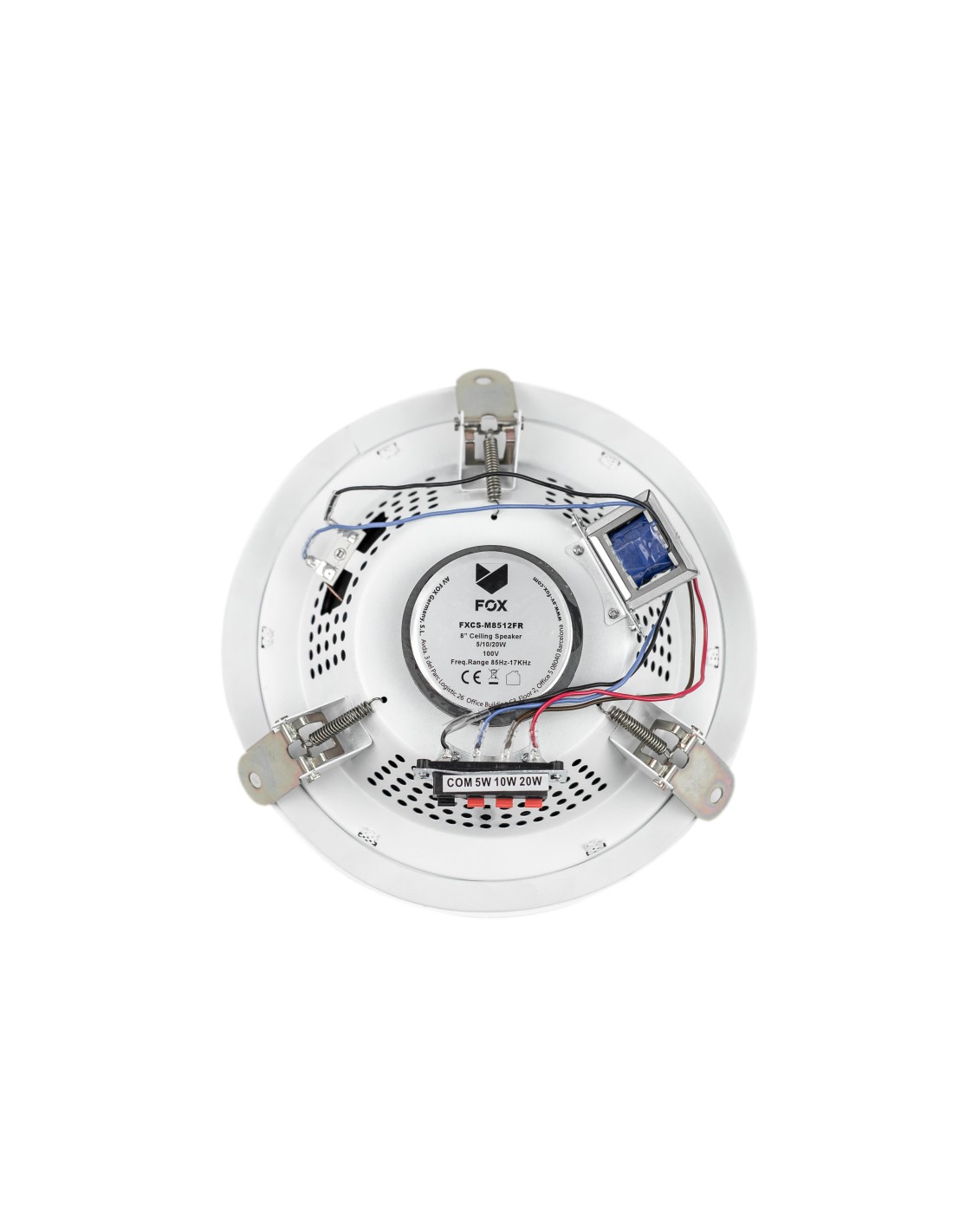

Ceiling Speaker 8"
Ceiling speaker 8" / 5-10-20W / 100V / White
Frequency 85-17,000 Hz | SPL 91 dB

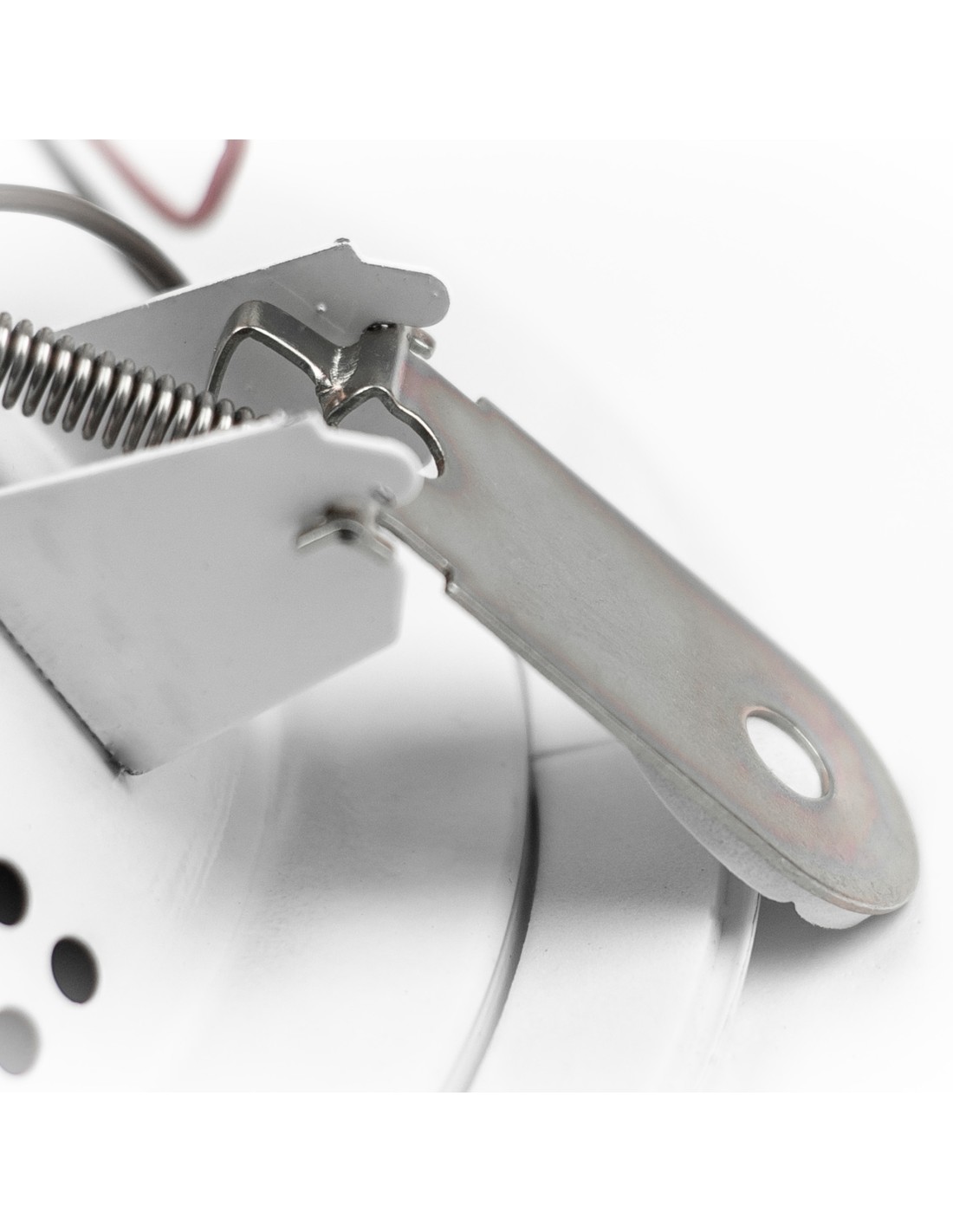

Quick mounting system | Durable metal casing | Durable metal housing
Outside Diameter: 250mm | Cutout Diameter: 220mm | 1.22 kg
- Effective Freq. Range
- 85 - 17 000 Hz
- Power handling
- 5/10/20 W RMS
- Maximum SPL
- 91 dB
- Nominal impedance
- 100 V
- Connection type
- Clamp connection
- Storage temperature
- 0 - 40 °C
- Weight
- 1220 g
- Status
- Eol
- EAN code
- 8435071307772
- Tariff code
- 8518220000
- Shipping Location
- Spain

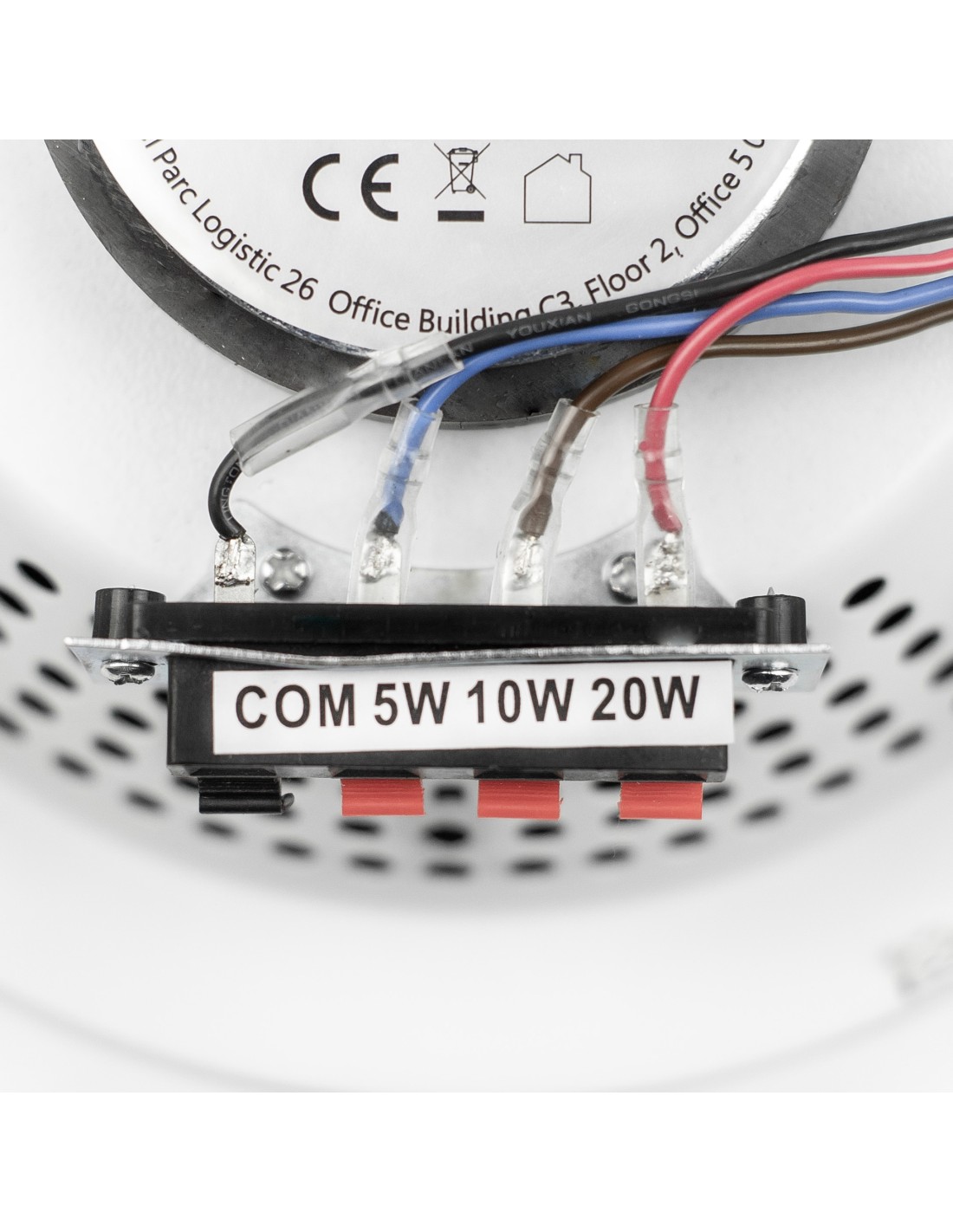

- Power options (Hi Z Multi-tap)
- 100 V: 5/10/20 W RMS
- Recommended cut out diameter
- 220 mm
- External diameter
- 250 mm
- Required depth
- 75 mm
- Ceiling thickness
- 10 - 40 mm
SYSTEM
| Effective Freq. Range |
85 - 17 000 Hz |
|---|---|
| Power handling |
5/10/20 W RMS |
| Maximum SPL |
91 dB |
| Power options (Hi Z Multi-tap) |
100 V: 5/10/20 W RMS |
TRANSDUCERS
| Nominal impedance |
100 V |
|---|
PHYSICAL
| Connection type |
Clamp connection |
|---|---|
| Storage temperature |
0 - 40 °C |
| Weight |
1220 g |
| Recommended cut out diameter |
220 mm |
| External diameter |
250 mm |
| Required depth |
75 mm |
| Ceiling thickness |
10 - 40 mm |
LOGISTICS
| Status |
Eol |
|---|---|
| EAN code |
8435071307772 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
