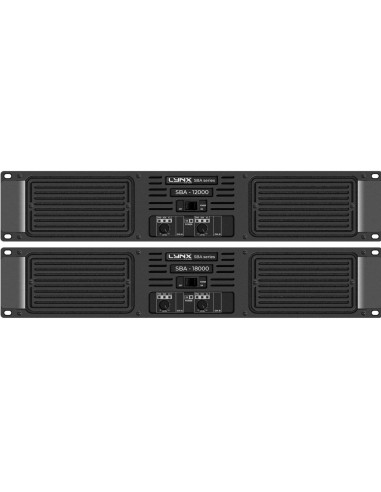

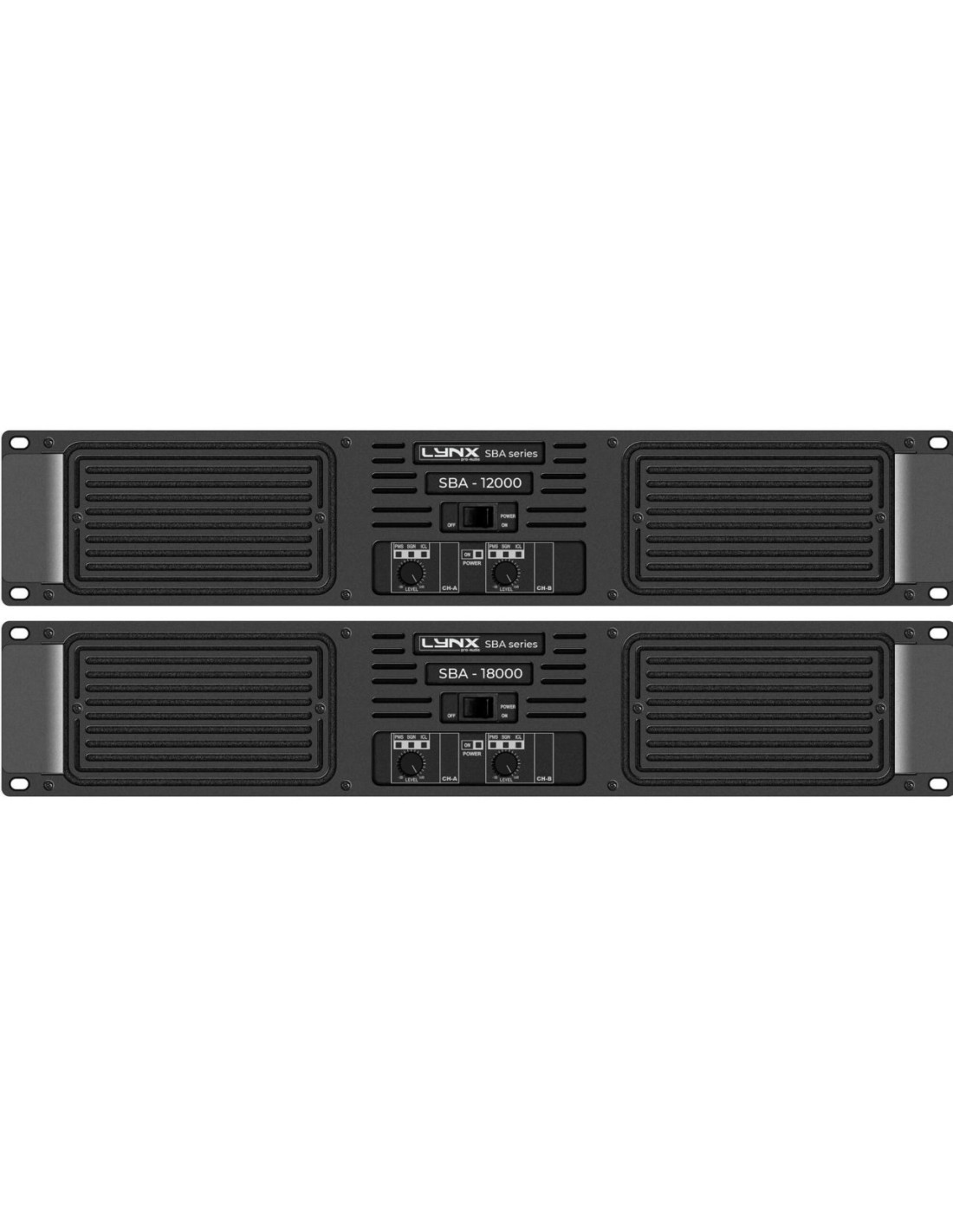

SBA-18000
CLYSBA18000
Check availability
2 x 9000W amplifier
The SBA series has been designed with the aim of offering the proper and more reliable amp to users of very big subwoofers with no concessions. Their output performances (270V/70A) are more than needed to push your subs as far as their maximum limits accept.
These 2-channels devices are based on the field proven Quanta PulseTM Technology with an oversized dual high capacity regulated power supply with PFC to deliver their full performances independently of mains status, and an also oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution.
- Dimensions
- W x H x D (mm): 483 x 88.9 x 460
W x H x D (inches): 19 x 3.5 x 18.1 - Weight
- 12 Kg / 26.5 lbs
- Status
- New
- EAN code
- 8436612043043
- Tariff code
- 8518900000
- Shipping Location
- Spain
- Frequency response
- Power Bandwidth: ± 0.25 dB 20 Hz - 20 KHz
- Input sensitivity
- Rated Power(26/32/38 dB Gain): 4.7/2.4/1.2 V
- Crosstalk
- 20 Hz - 1 KHz: 70 dB
20 Hz - 1 KHz: >70 dB - AC mains requirement
- Operating Voltage (50 Hz - 60 Hz): 170V-265V AC
Power on Idling (@230V): 0.5 A
1/8 Rated Power (@230 min.Z): 16 A - SNR
- 20 Hz - 20 KHz: 118 dB
- Number of output channels
- 4
- THD + Noise
- 20 Hz - 20 KHz: 0.05%
20 Hz - 20 KHz: <0.05% - Damping factor
- 20 - 500 Hz @ 8 Ohms: 500
20 - 500 Hz @ 8 Ohms: >500 - Gain
- 32 / 38 / 44 dB
- DC protection
- Yes
- Short-circuit protection
- Yes
- Thermal protection
- Yes
PHYSICAL
| Dimensions |
W x H x D (mm): 483 x 88.9 x 460
W x H x D (inches): 19 x 3.5 x 18.1 |
|---|---|
| Weight |
12 Kg / 26.5 lbs |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612043043 |
| Tariff code |
8518900000 |
| Shipping Location |
Spain |
ELECTRICAL
| AC mains requirement |
Operating Voltage (50 Hz - 60 Hz): 170V-265V AC
Power on Idling (@230V): 0.5 A
1/8 Rated Power (@230 min.Z): 16 A |
|---|
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
20 Hz - 1 KHz: >70 dB 20 Hz - 1 KHz: 70 dB |
|---|
CHANNELS
| Number of output channels |
4 |
|---|
SIGNAL
| SNR |
20 Hz - 20 KHz: 118 dB |
|---|---|
| Damping factor |
20 - 500 Hz @ 8 Ohms: >500 20 - 500 Hz @ 8 Ohms: 500 |
PROTECTIONS
| DC protection |
Yes |
|---|---|
| Short-circuit protection |
Yes |
| Thermal protection |
Yes |
SETTINGS
| Gain |
32 / 38 / 44 dB |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
Rated Power(26/32/38 dB Gain): 4.7/2.4/1.2 V |
|---|
LINE OUTPUTS
| Frequency response |
Power Bandwidth: ± 0.25 dB 20 Hz - 20 KHz |
|---|---|
| THD + Noise |
20 Hz - 20 KHz: <0.05% 20 Hz - 20 KHz: 0.05% |
OUTPUT POWER - All channels driven @ 1%THD
