LABI1-C100i
CLABI1C100I
Only a few left
12x3" | 1-way | 300 WRMS | column design

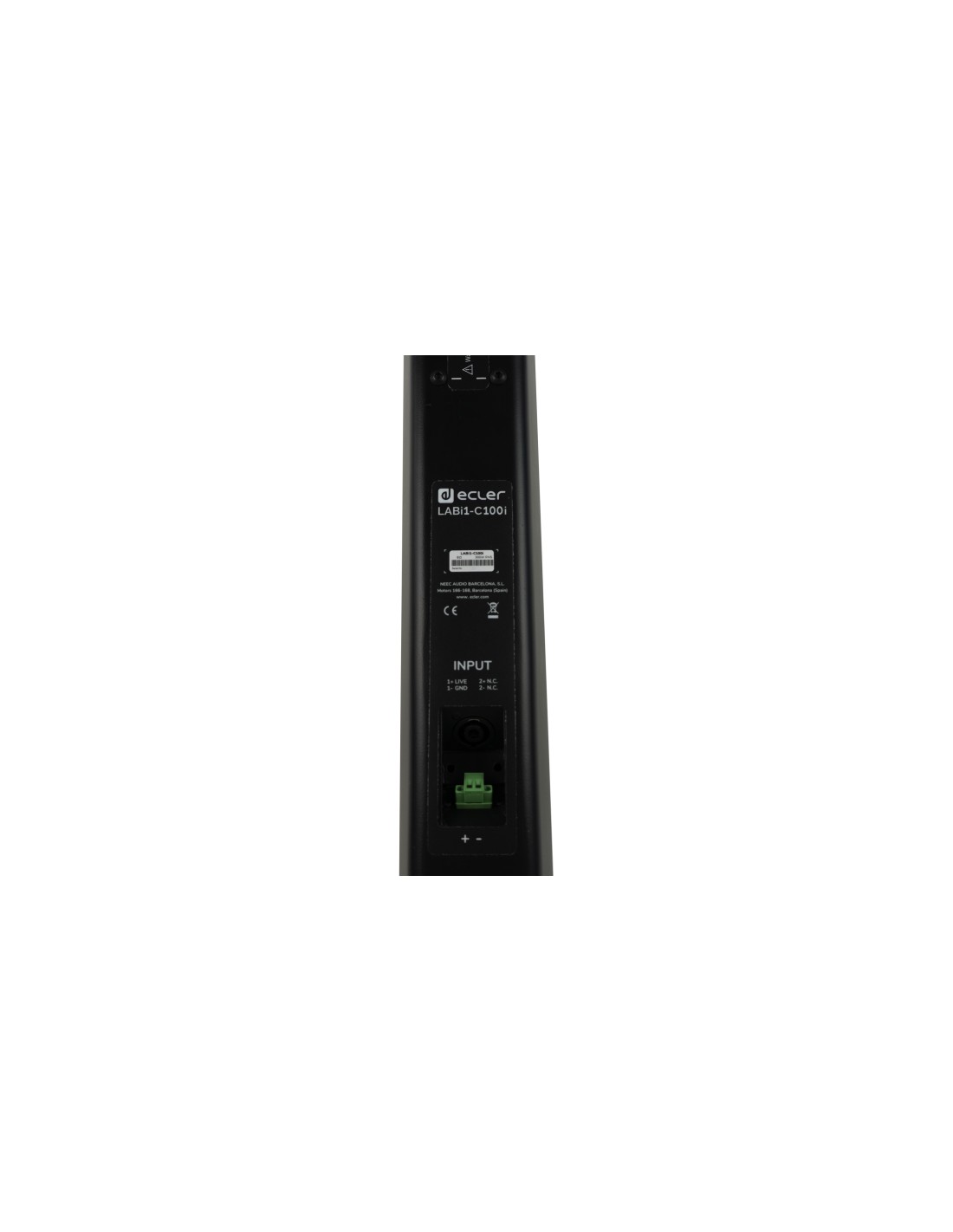

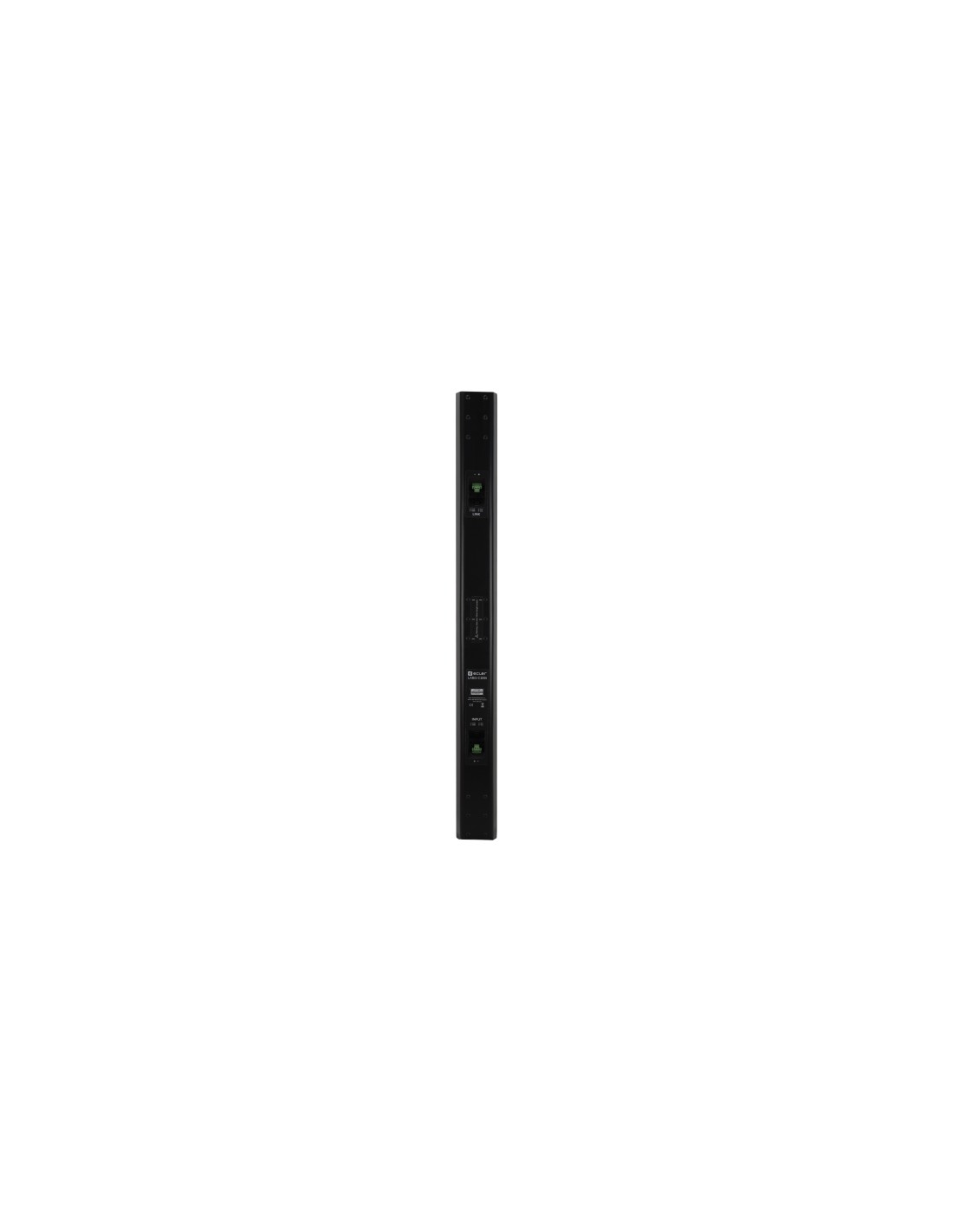

LABI1-C100i is a versatile and discreet column loudspeaker, designed for indoor and outdoor fixed installations and portable applications.
It features twelve 3” drivers with 0.75” neodymium voice coil each one, 300W AES. Its versatile profile allows the column to be installed in several ways such on the LABI subwoofers, on wall, pole, truss, etc. thanks to LABI1 accessories. Stand alone or combined with other LABI1-C100i and LABI1-SP18p to create a complete powerful solution, easy to mount and plug and play.
LABI1 series offers a modular solution to satisfy the most demanding fixed installations and mobile public address applications. Combining the different products of the series, it can fulfill any requirement.
- Effective Freq. Range
- 150 Hz - 20 kHz (-10dB)
- Coverage angle / Dispersion
- 100°x15°±5° (HxV)
- Power handling
- 300 W AES / 1200 W Peak
- Sensitivity
- 96 dB (1W/1m)
- Maximum SPL
- 121 dB continuous / 127 dB peak
- Recommended amplifier power
- 600 W
- Ways
- Full range
- Nominal impedance
- 8Ω
- Connection type
- 2 x Neutrik Speakon NL4MP + 2 x Euroblock 2-pin + Link connection
- Installation options
- Indoor/outdoor fixed installations
- Environmental
- IP54 with LABI1-ODCNX only
- Enclosure material
- Stainless steel
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
Min: 0°C ; 32°F
Max: 35°C ; 95°F
- Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Optional accessories
- LABI1-SAC, LABI1-CAC, LABI1-TBC, LABI1-WBC, LABI1-PBC, LABI1-HBC, LABI1-ODCNX, LABI1-CFC
- Finished colour
- Black (RAL 9005)
- Dimensions
- 89 x 1000 x 117 mm / 3.5 x 39.4 x 4.6 in. (WxHxD)
- Weight
- 7.8 kg / 17.2 lb
- Pieces per box
- Unit
- Shipping dimensions
- 200 x 170 x 1060 mm / 7.87 x 6.69 x 41.73 in. (WxHxD)
- Shipping weight
- 9.1 kg / 20.06 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071308854
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 20.00
- Height (cm)
- 17.00
- Depth (cm)
- 106.00
- Vol. (dm3)
- 36.04
- Gross Weight (kg)
- 9.10
- Net Weight (kg)
- 7.80
- Format
- Unit
- Warranty (months)
- 36
- Mounting system
- Several mounting options
- Driver
- 12 x 3" + 0,75" neodymium voice coil
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
150 Hz - 20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
100°x15°±5° (HxV) |
| Power handling |
300 W AES / 1200 W Peak |
| Sensitivity |
96 dB (1W/1m) |
| Maximum SPL |
121 dB continuous / 127 dB peak |
| Recommended amplifier power |
600 W |
TRANSDUCERS
| Ways |
Full range |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
12 x 3" + 0,75" neodymium voice coil |
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP + 2 x Euroblock 2-pin + Link connection |
|---|---|
| Installation options |
Indoor/outdoor fixed installations |
| Environmental |
IP54 with LABI1-ODCNX only |
| Enclosure material |
Stainless steel |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
LABI1-SAC, LABI1-CAC, LABI1-TBC, LABI1-WBC, LABI1-PBC, LABI1-HBC, LABI1-ODCNX, LABI1-CFC |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
89 x 1000 x 117 mm / 3.5 x 39.4 x 4.6 in. (WxHxD) |
| Weight |
7.8 kg / 17.2 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
200 x 170 x 1060 mm / 7.87 x 6.69 x 41.73 in. (WxHxD) |
| Shipping weight |
9.1 kg / 20.06 lb |
| Format |
Unit |
| Mounting system |
Several mounting options |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071308854 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
20.00 |
| Height (cm) |
17.00 |
| Depth (cm) |
106.00 |
| Vol. (dm3) |
36.04 |
| Gross Weight (kg) |
9.10 |
| Net Weight (kg) |
7.80 |
| Warranty (months) |
36 |
