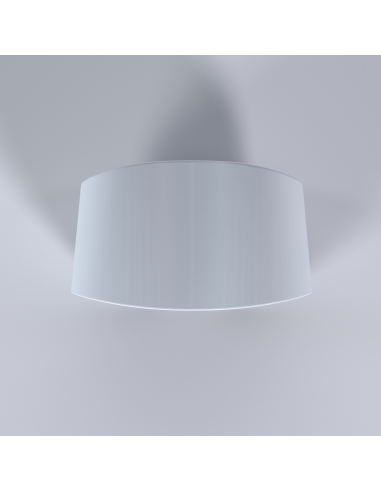

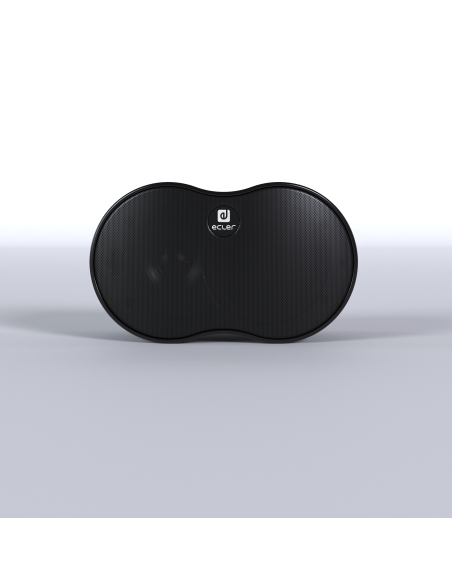

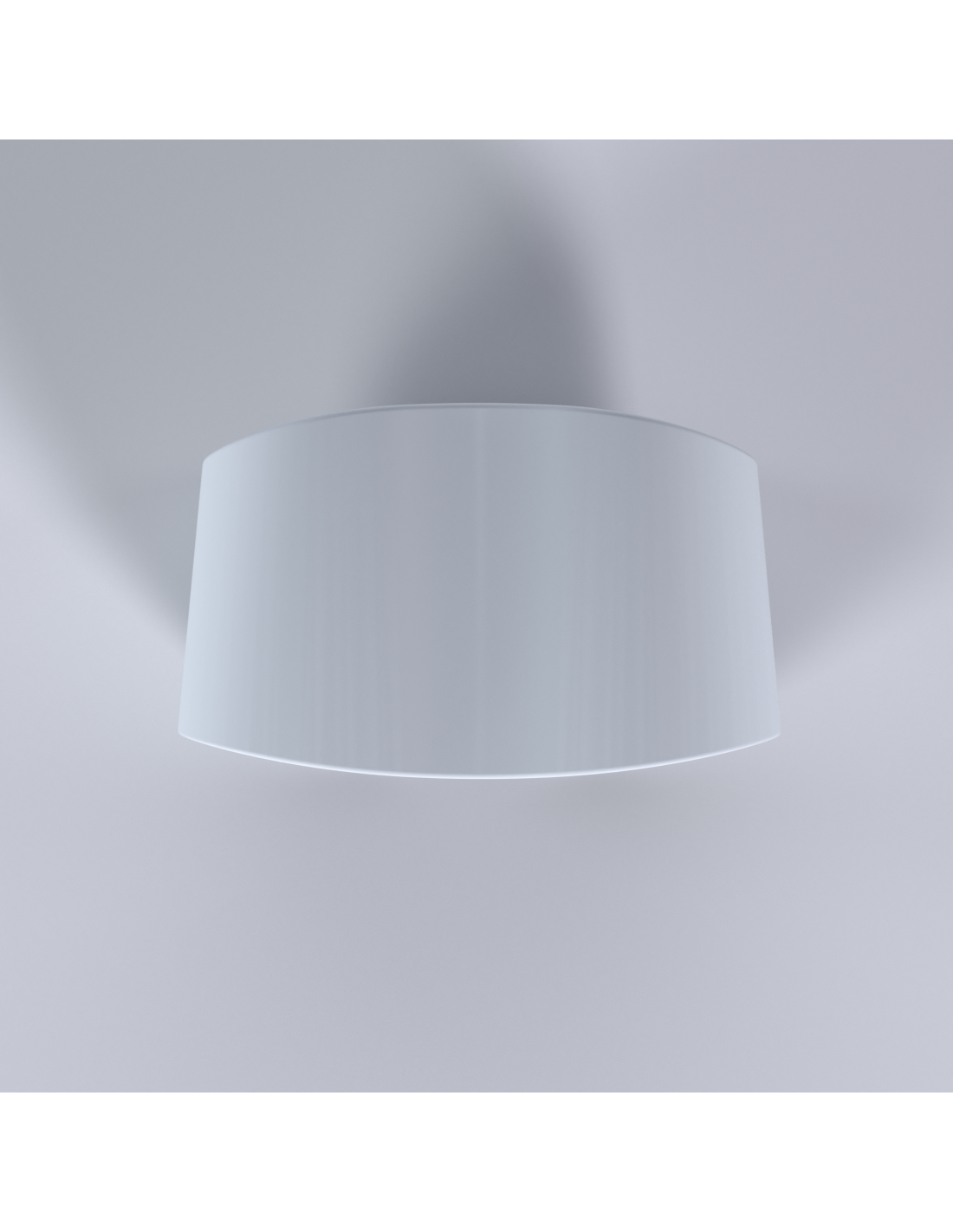

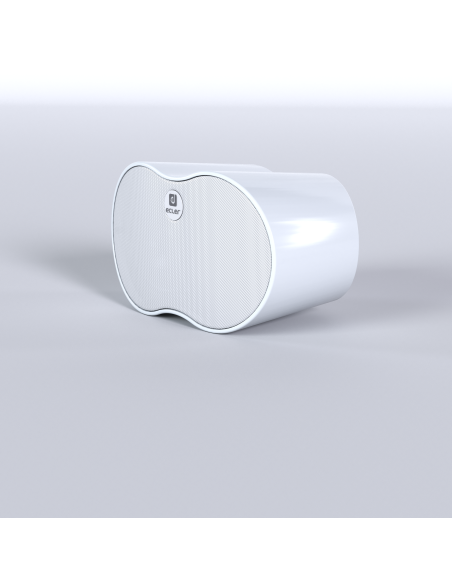

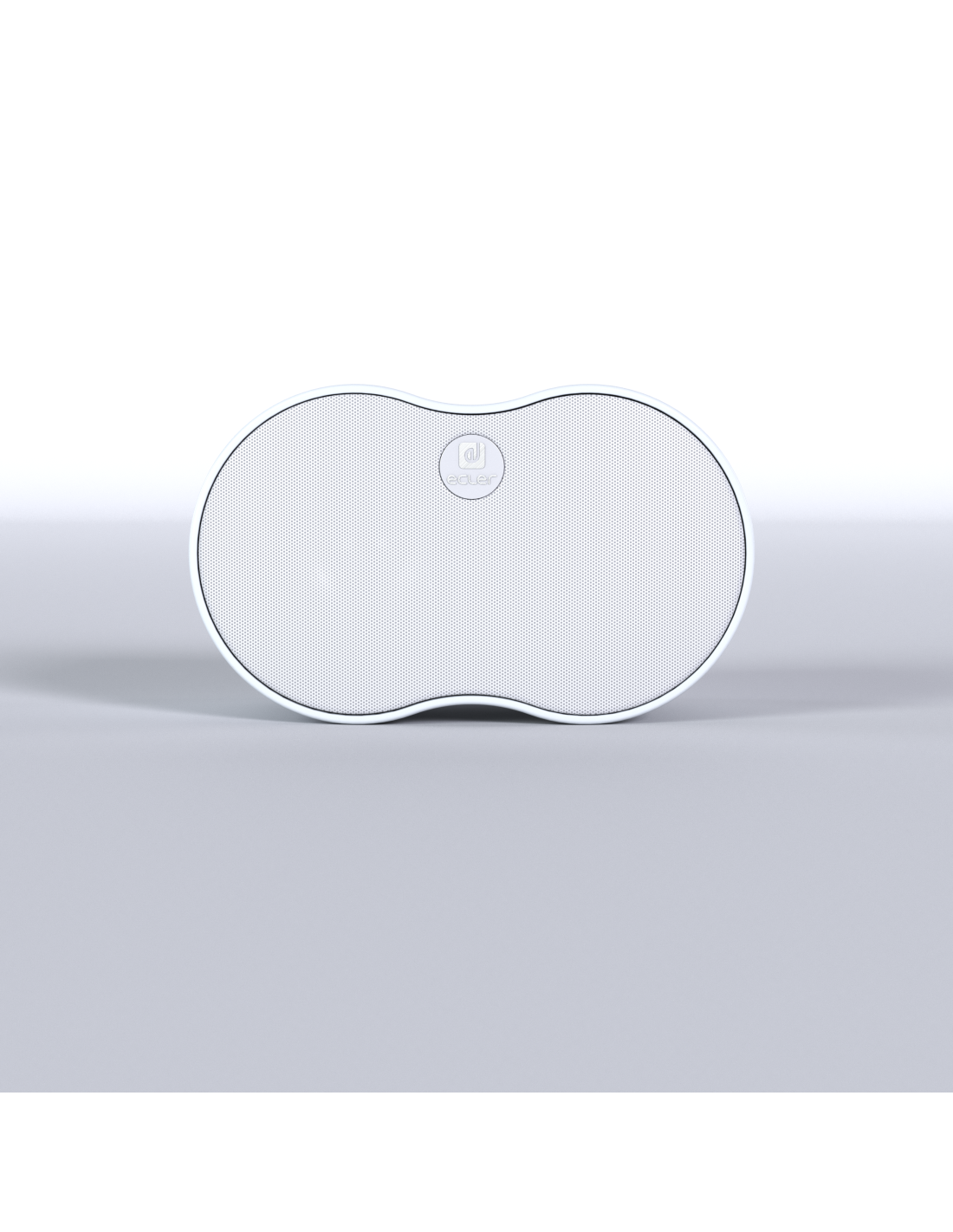

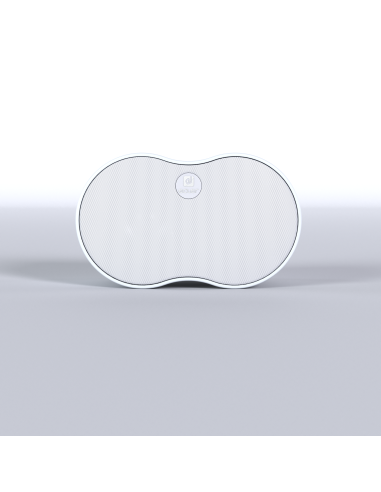

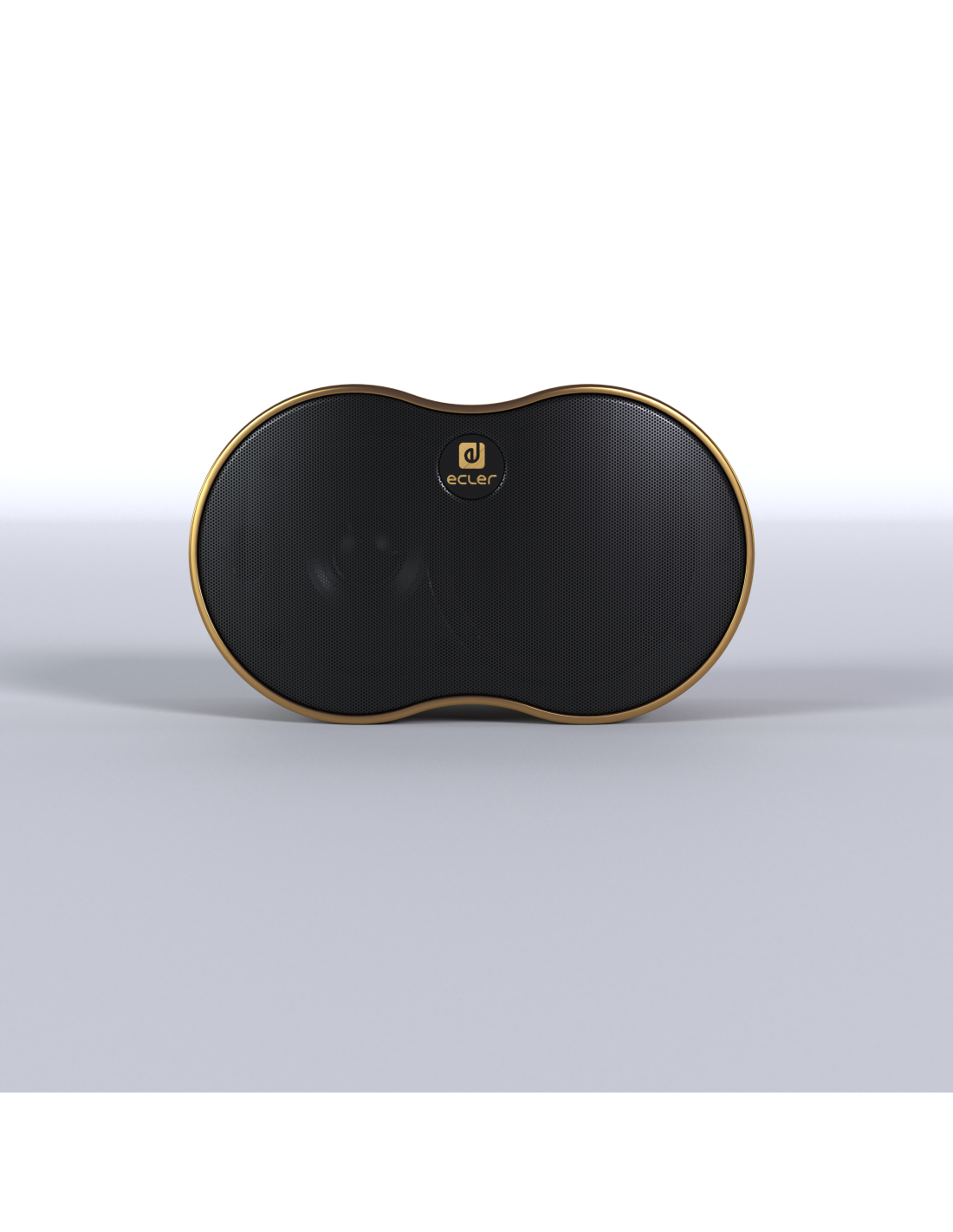

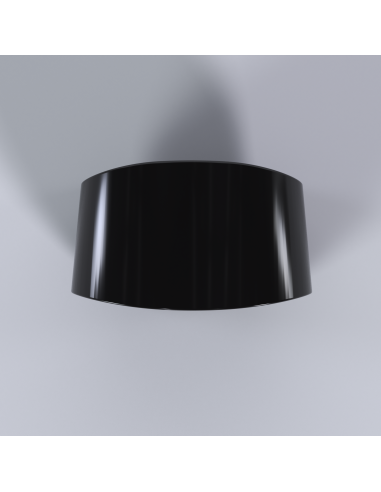

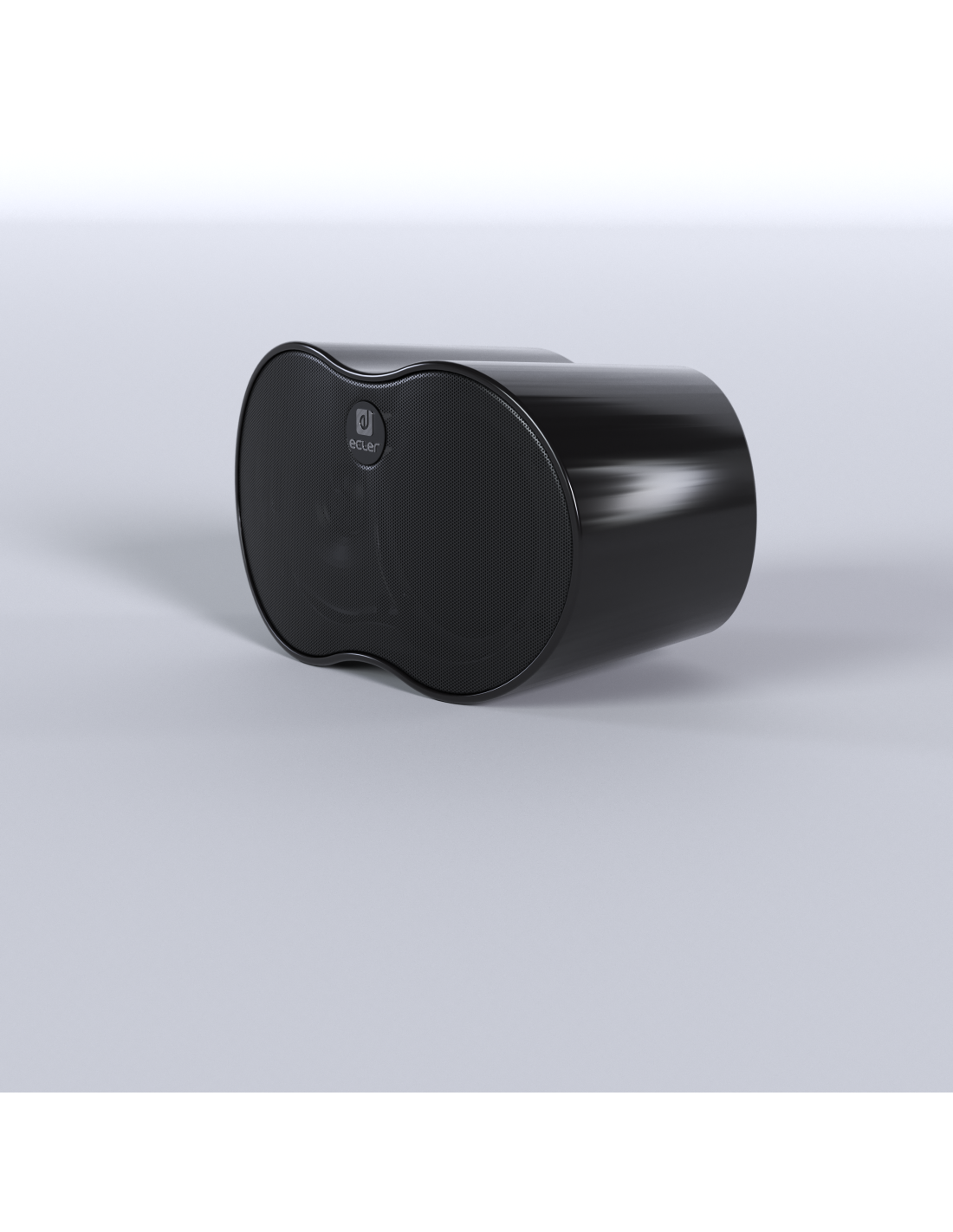

NIMBO-14 GD
CNIMBO14GD
Available
Top Performance Cabinet Loudspeaker

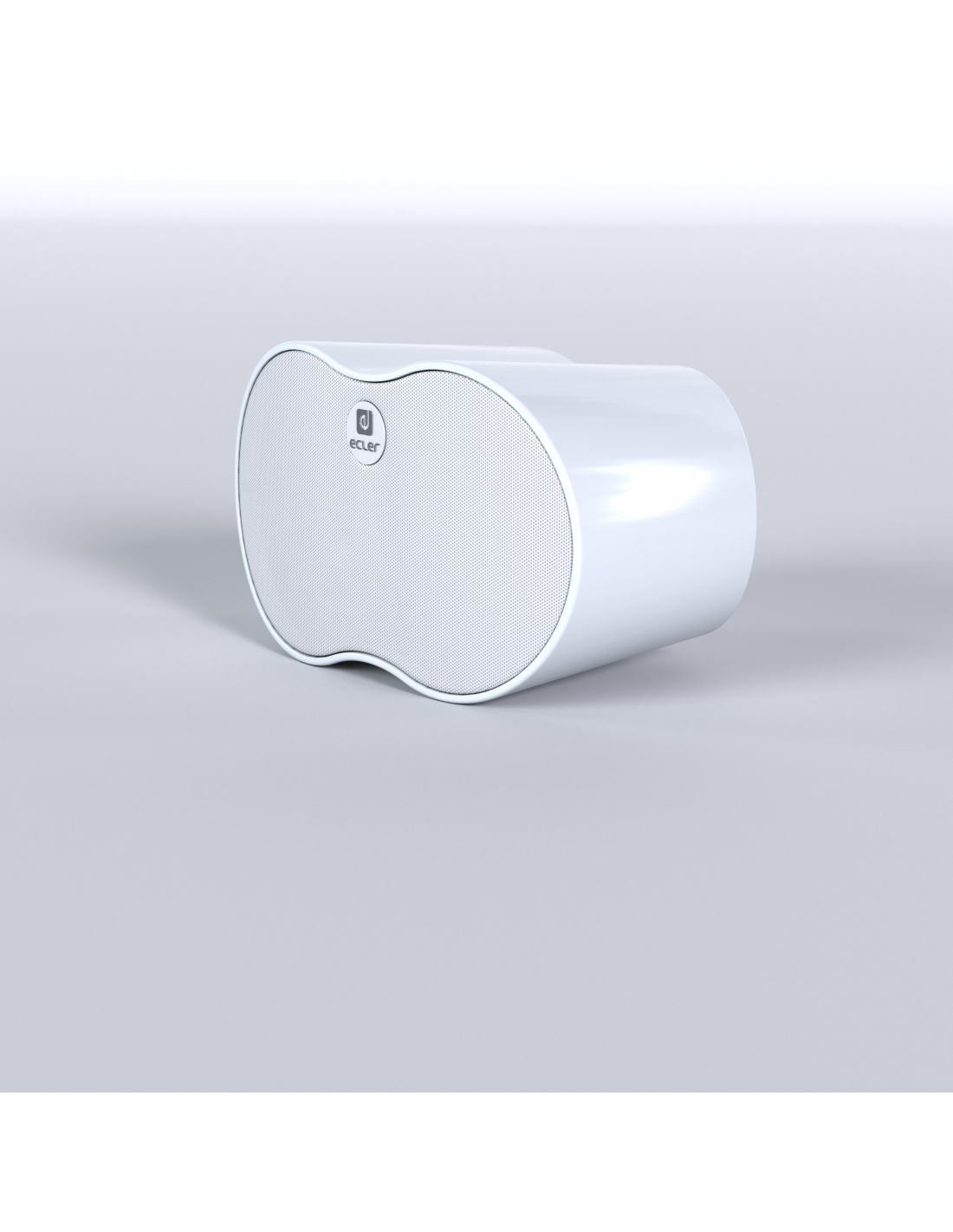

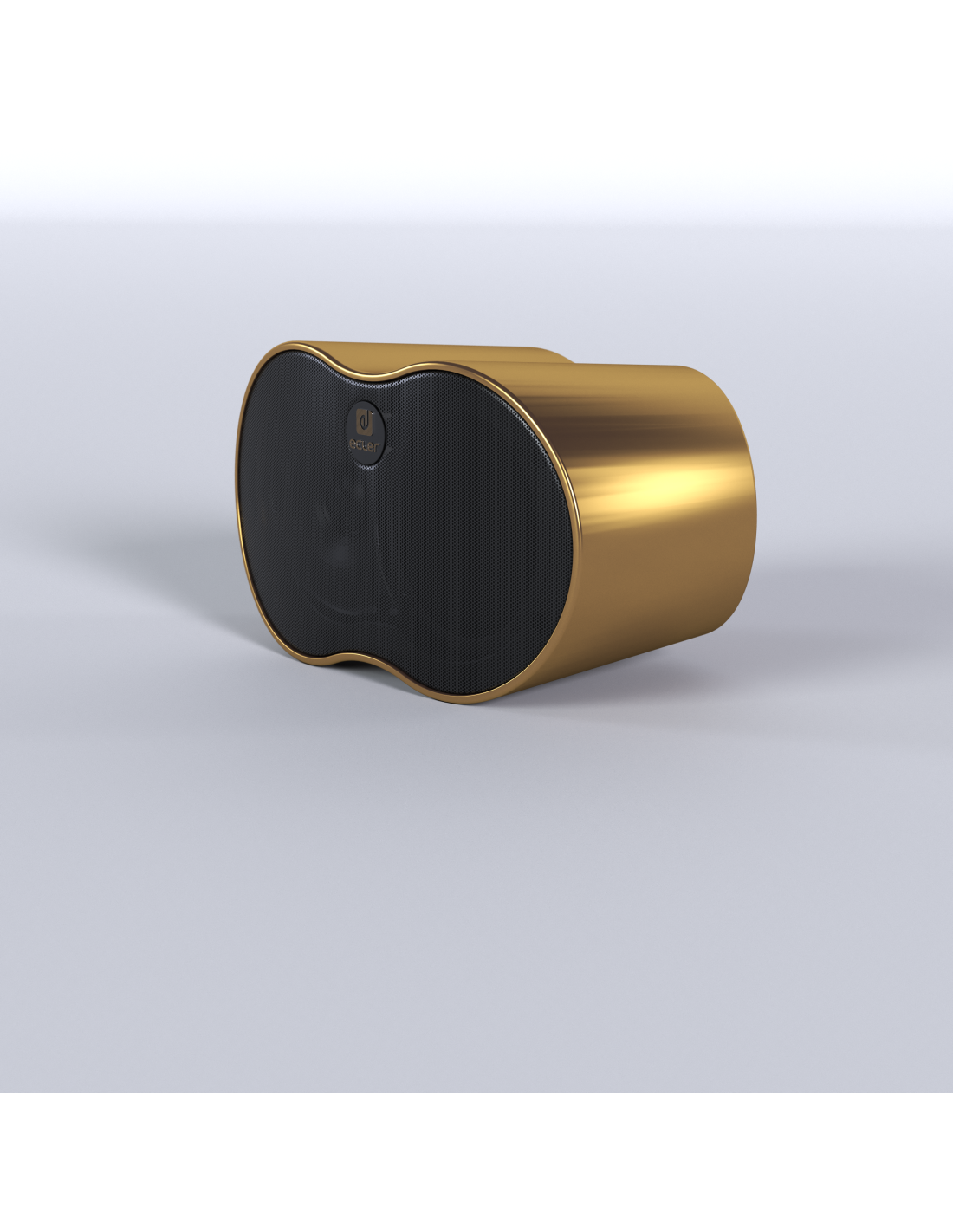

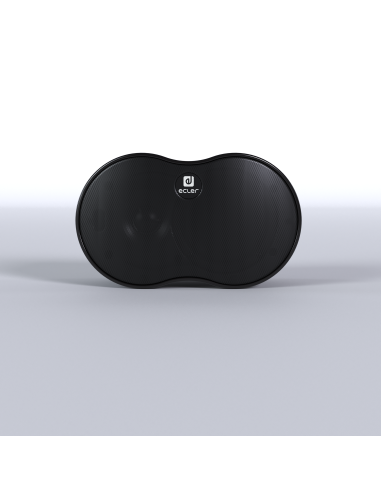

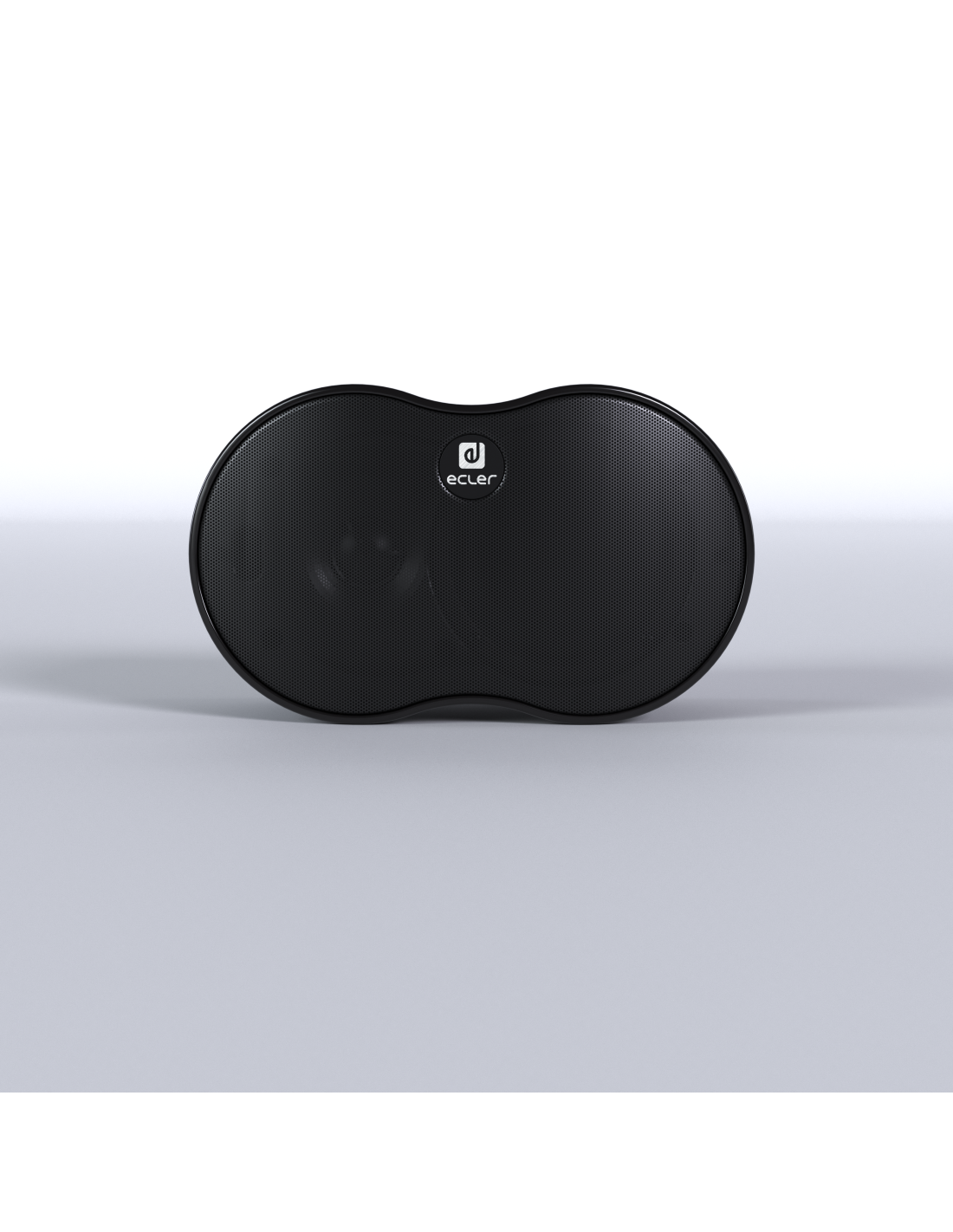

NIMBO-14 is a premium performance 2-way passive loudspeaker with 40W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers.
Including 1 x 4" woofer and a 1" silk tweeter located in the acoustic centre, acting as a single point source to disperse the sound evenly.

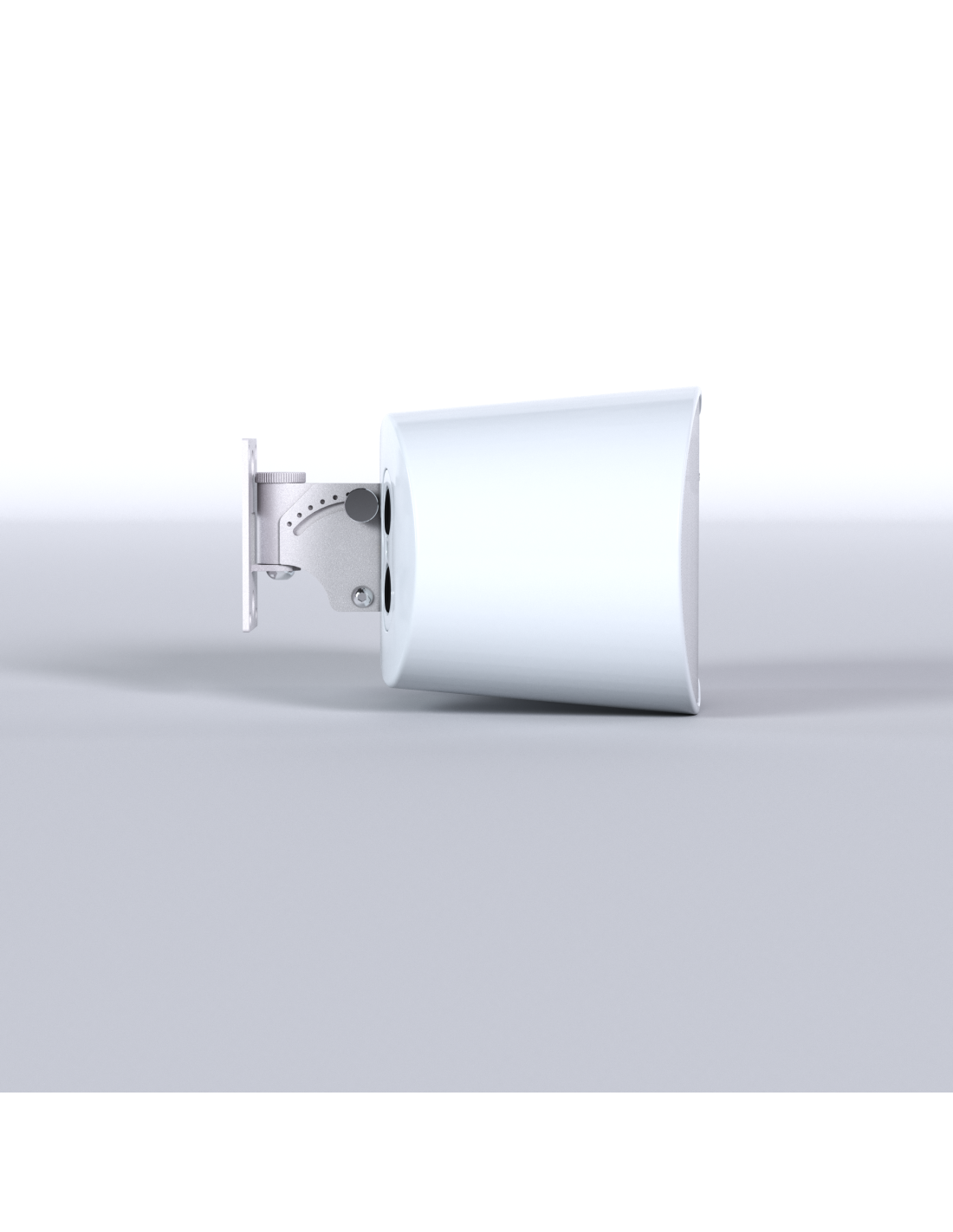

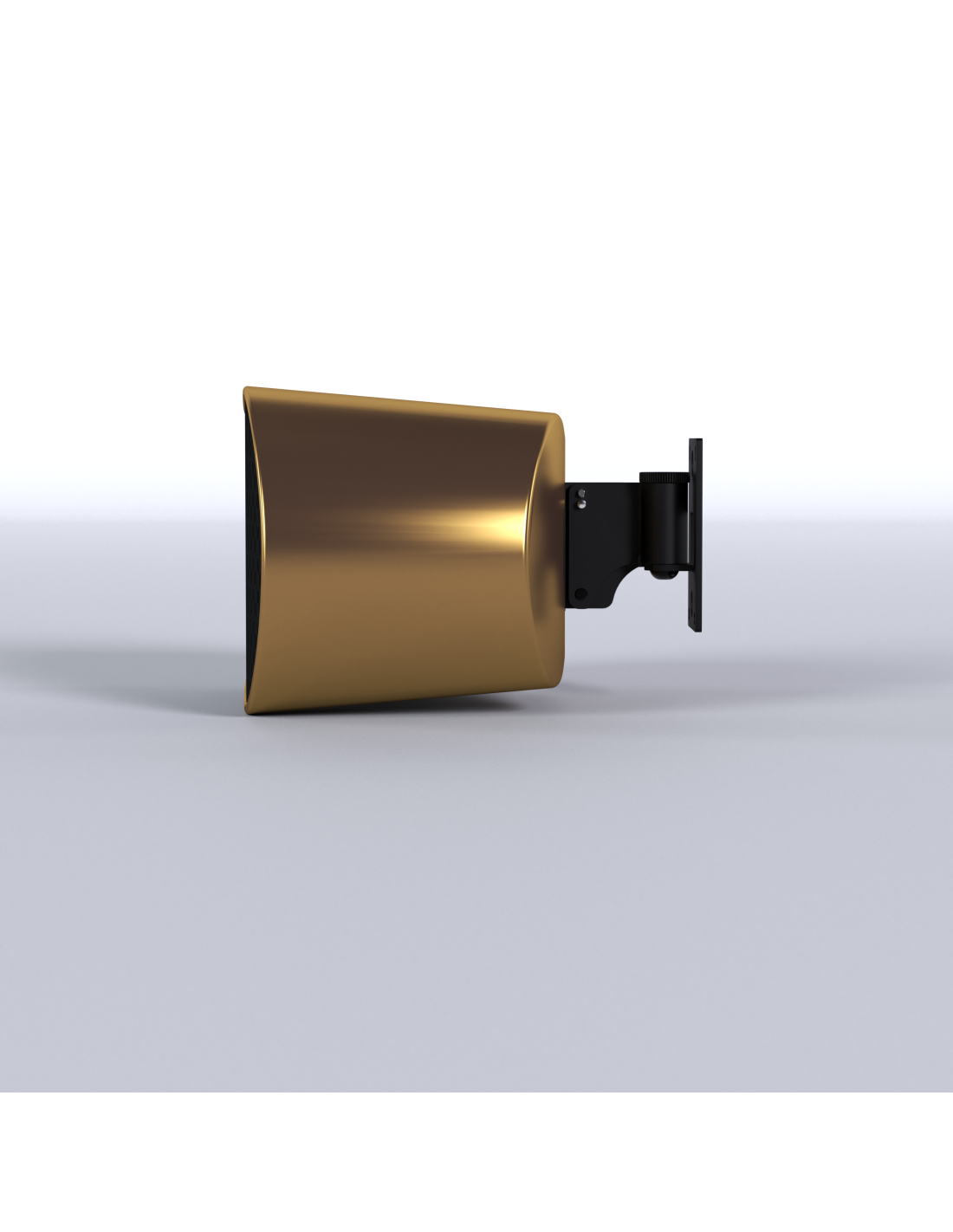

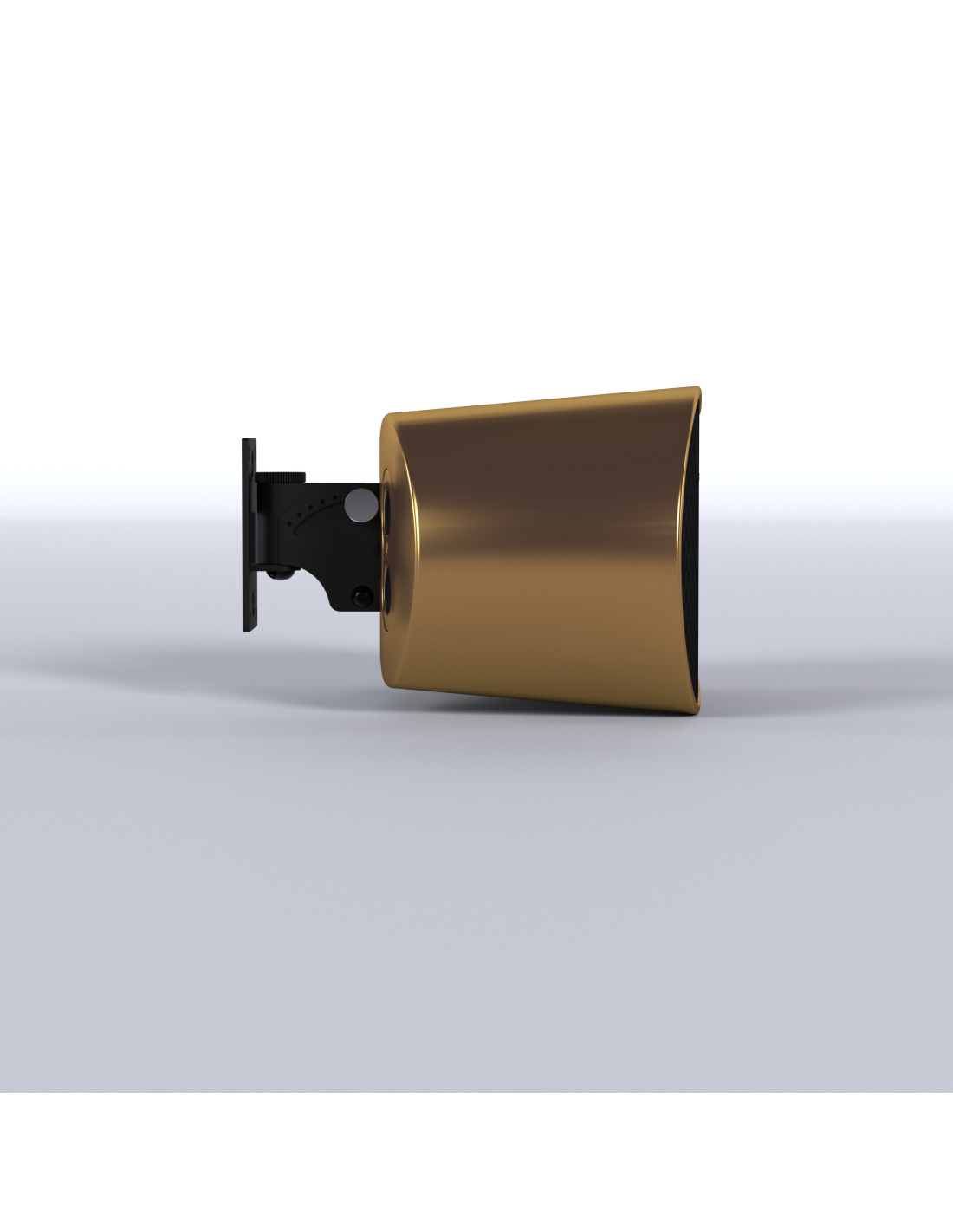

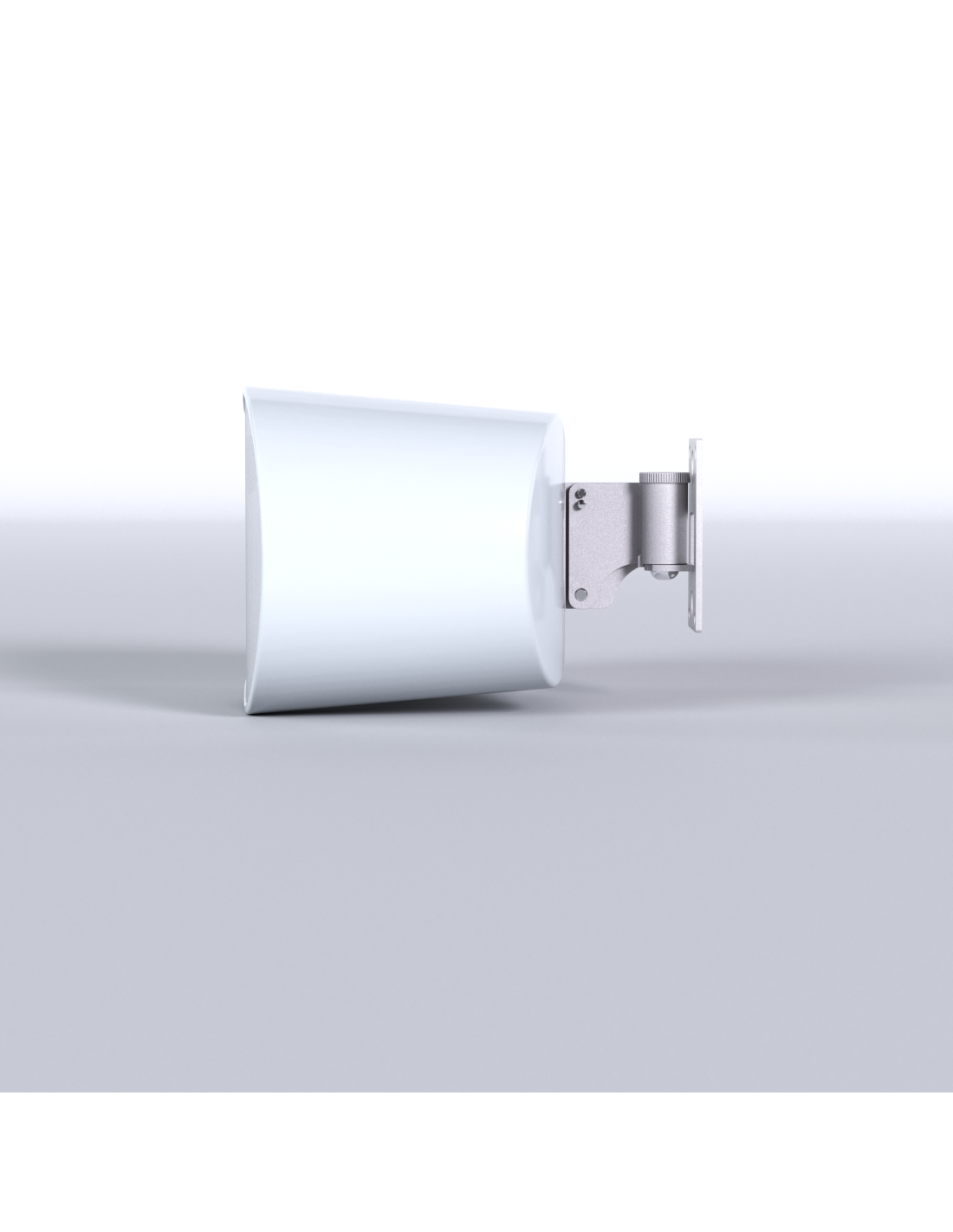

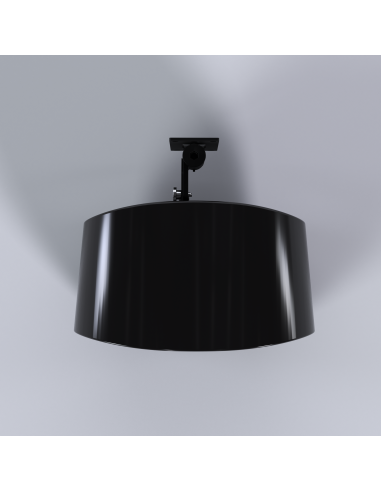

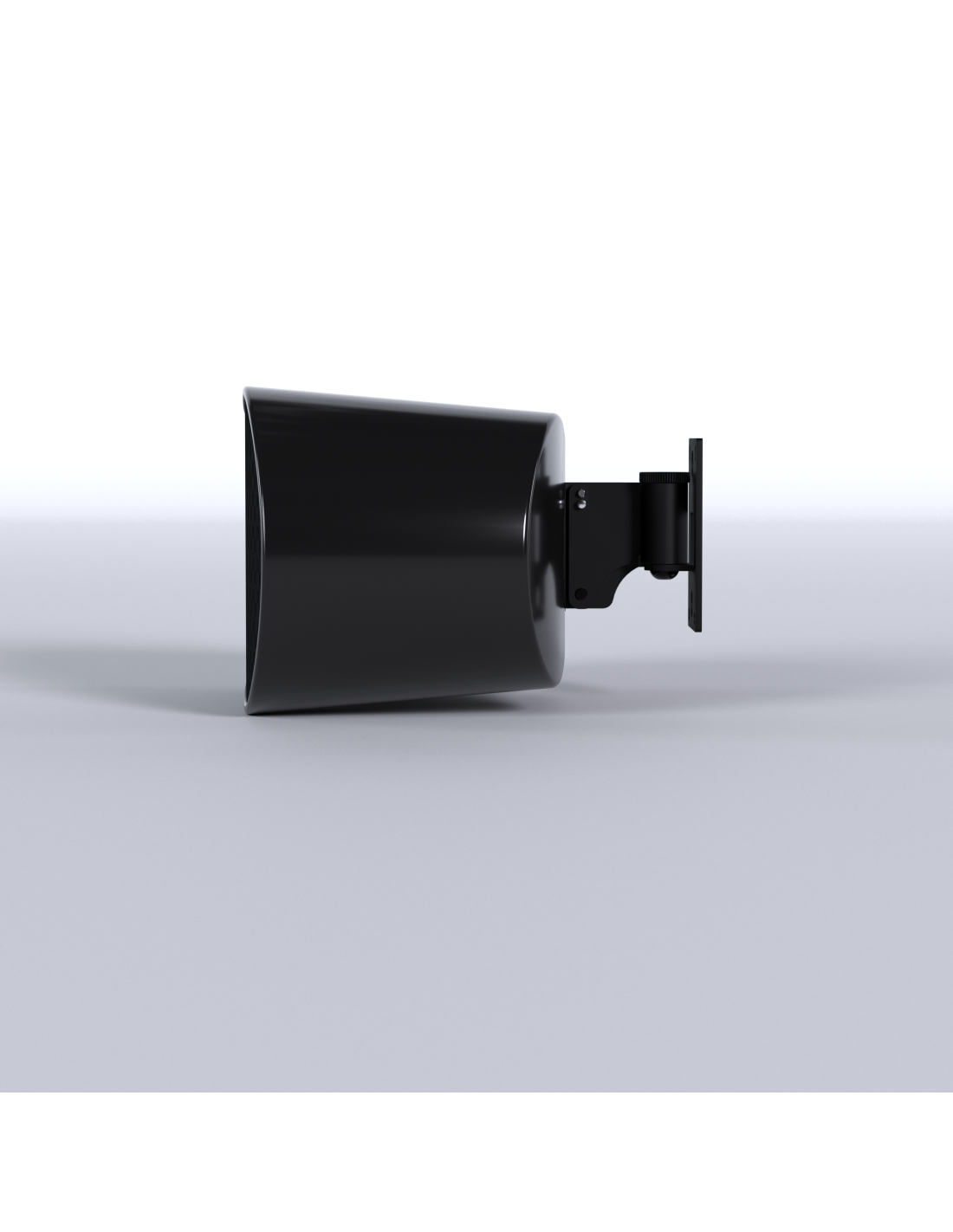

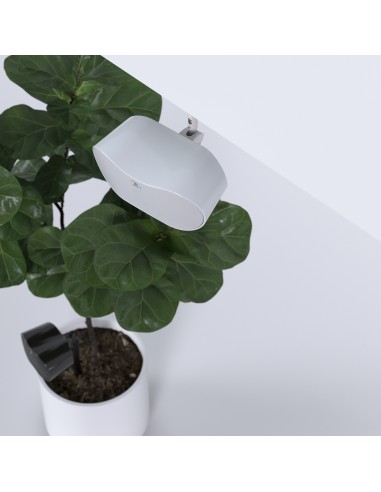

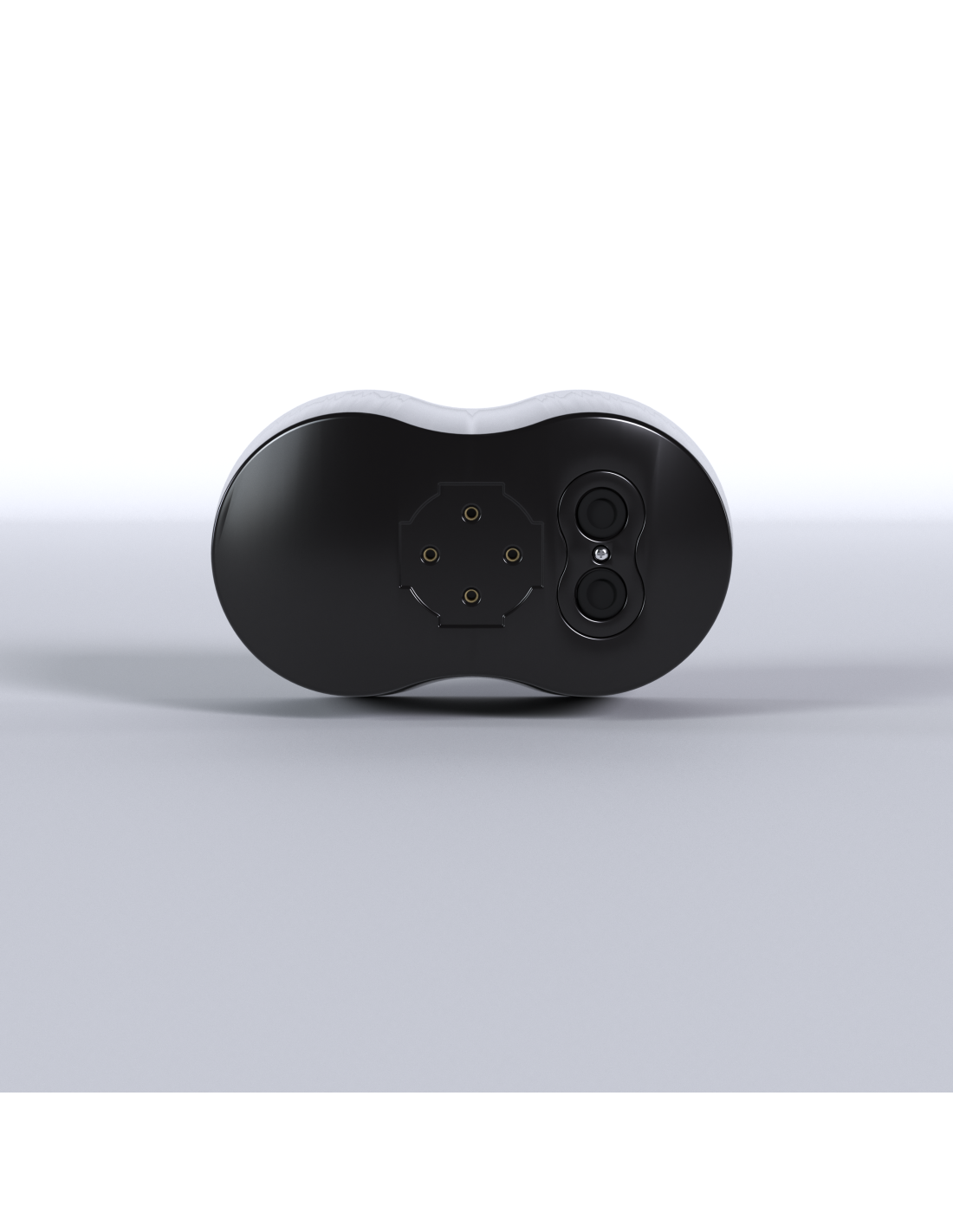

It includes a wall-mount bracket (inox), allowing tilt and pan adjustment using a single screw.
- Effective Freq. Range
- 75Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 128° x 196° (HxV)
- Power handling
- 40W RMS / 160 W Peak
- Sensitivity
- 81db (1W/1m)
- Maximum SPL
- 97dB continuous / 103 dB peak
- Recommended amplifier power
- 80W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 1 x 4" Woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 8Ω
- Crossover filter
- 1,65 kHz

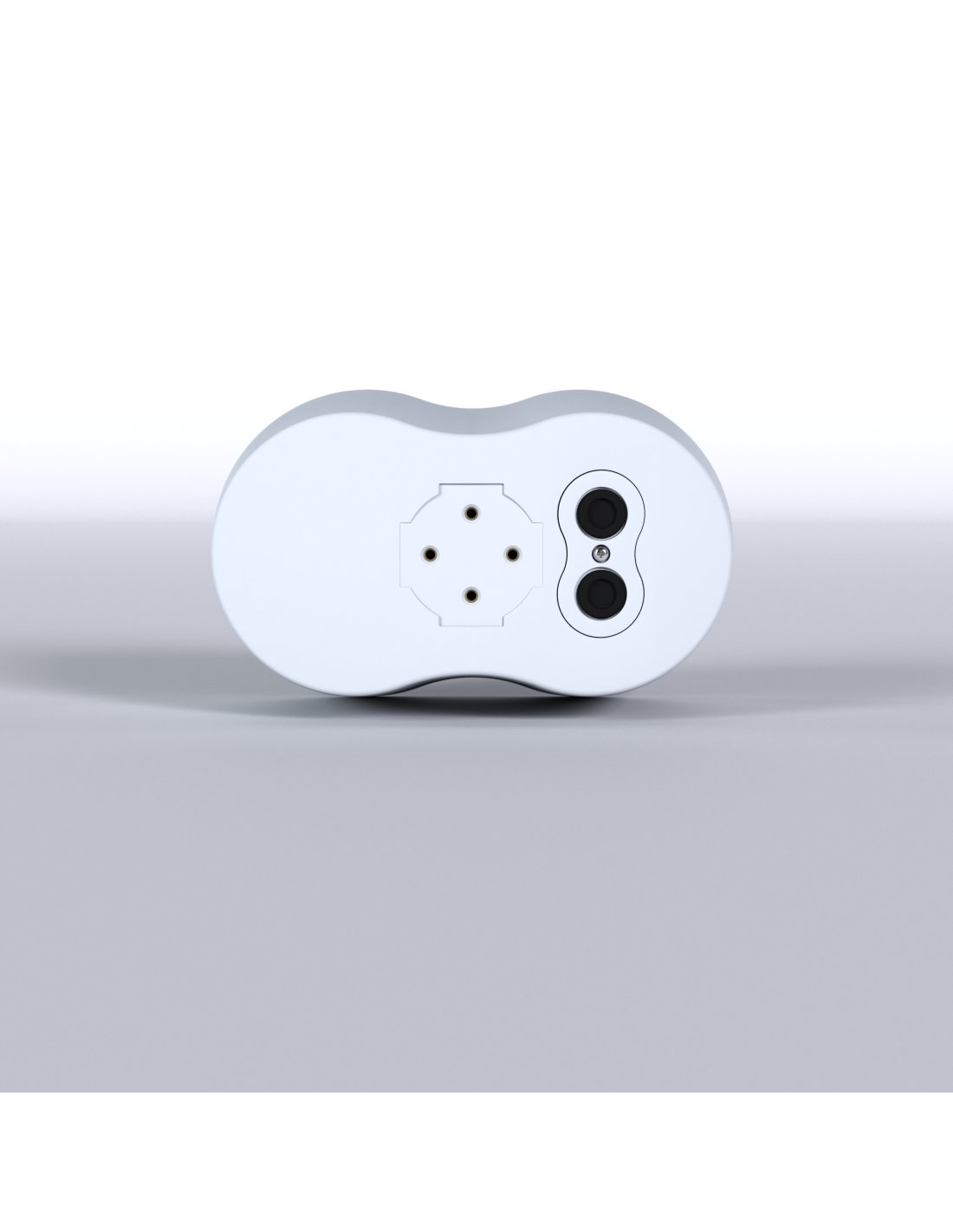

- Connection type

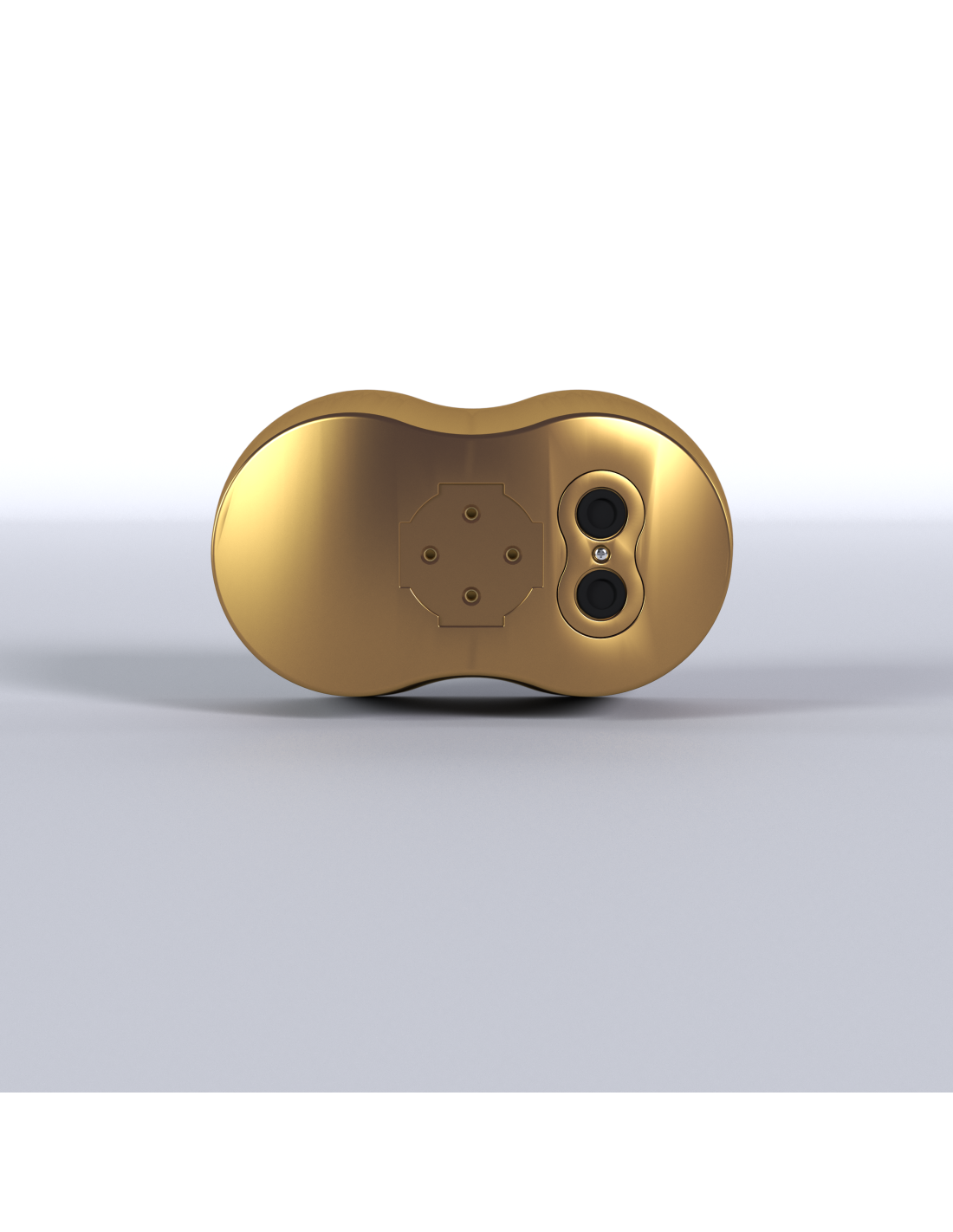

- Double INPUT/LINK connector, Euroblock type
- Installation options
- Surface / Wall mounting
- Environmental
- IP44 rated
- Enclosure material
- ABS reinforced with fibreglass
- Grille material
- Aluminium
- Grille fixing system
- Pressure mount system
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- Wall-mount bracket, 2x Euroblock connector
- Optional accessories

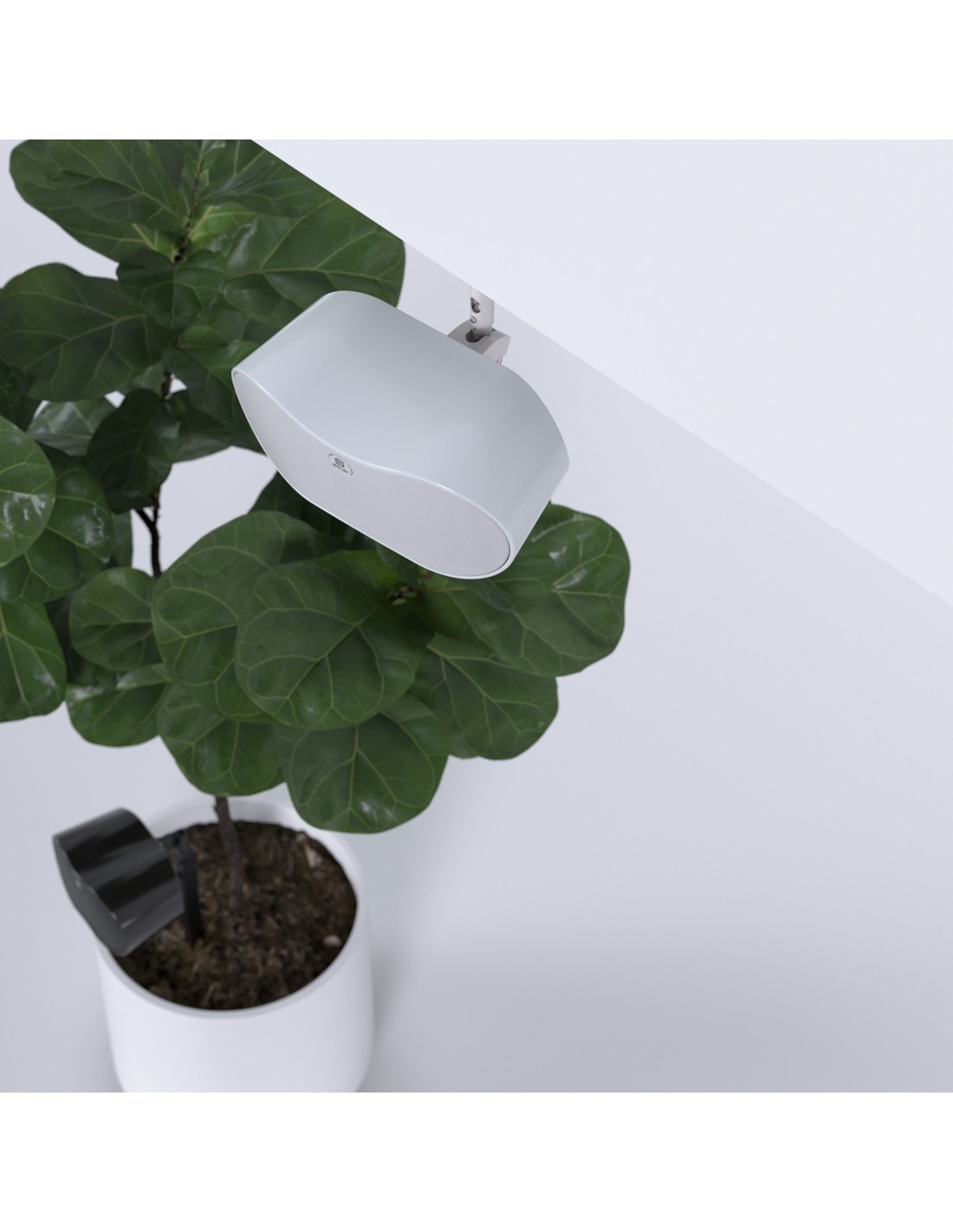

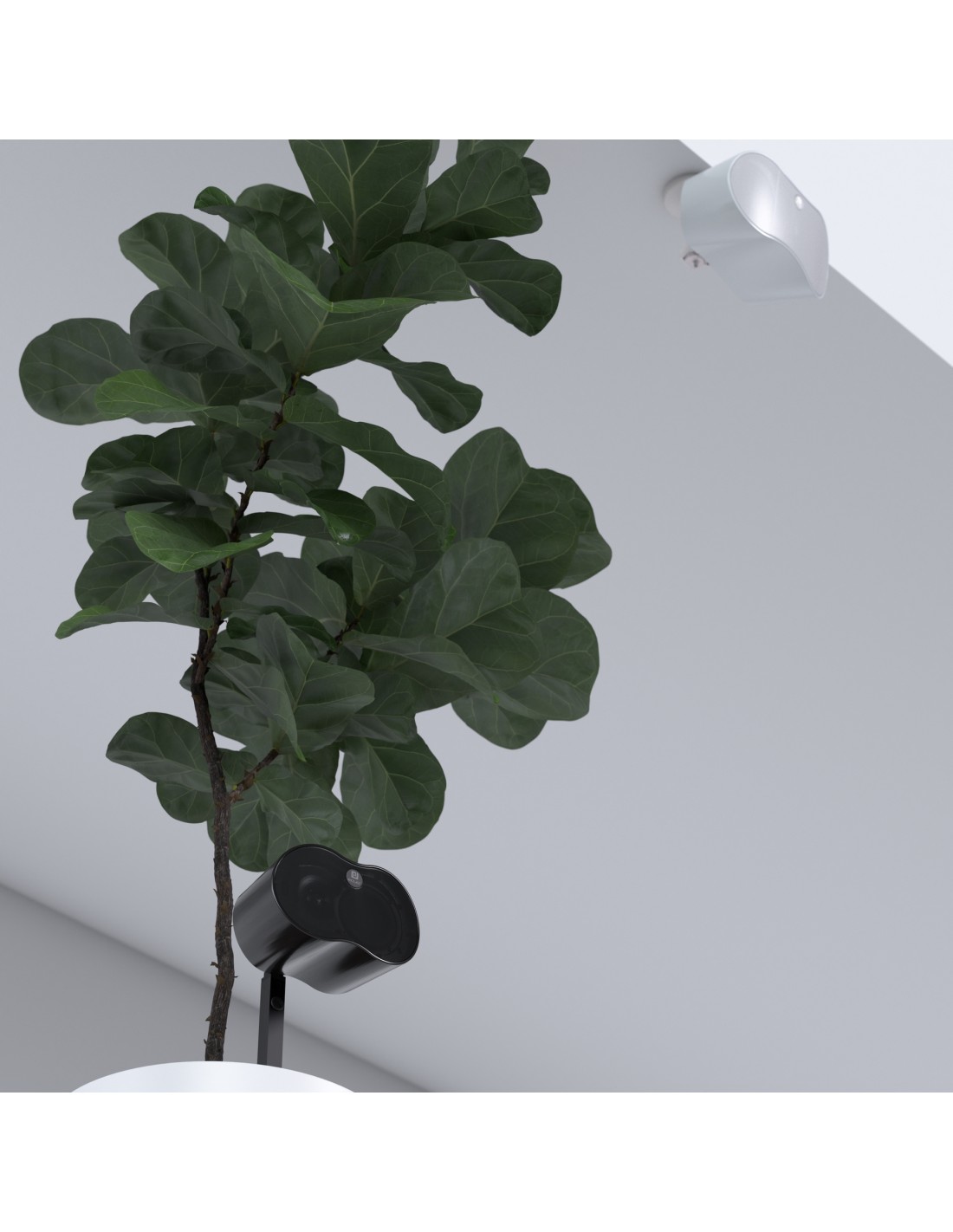

- GROUNDY and CEILY brackets

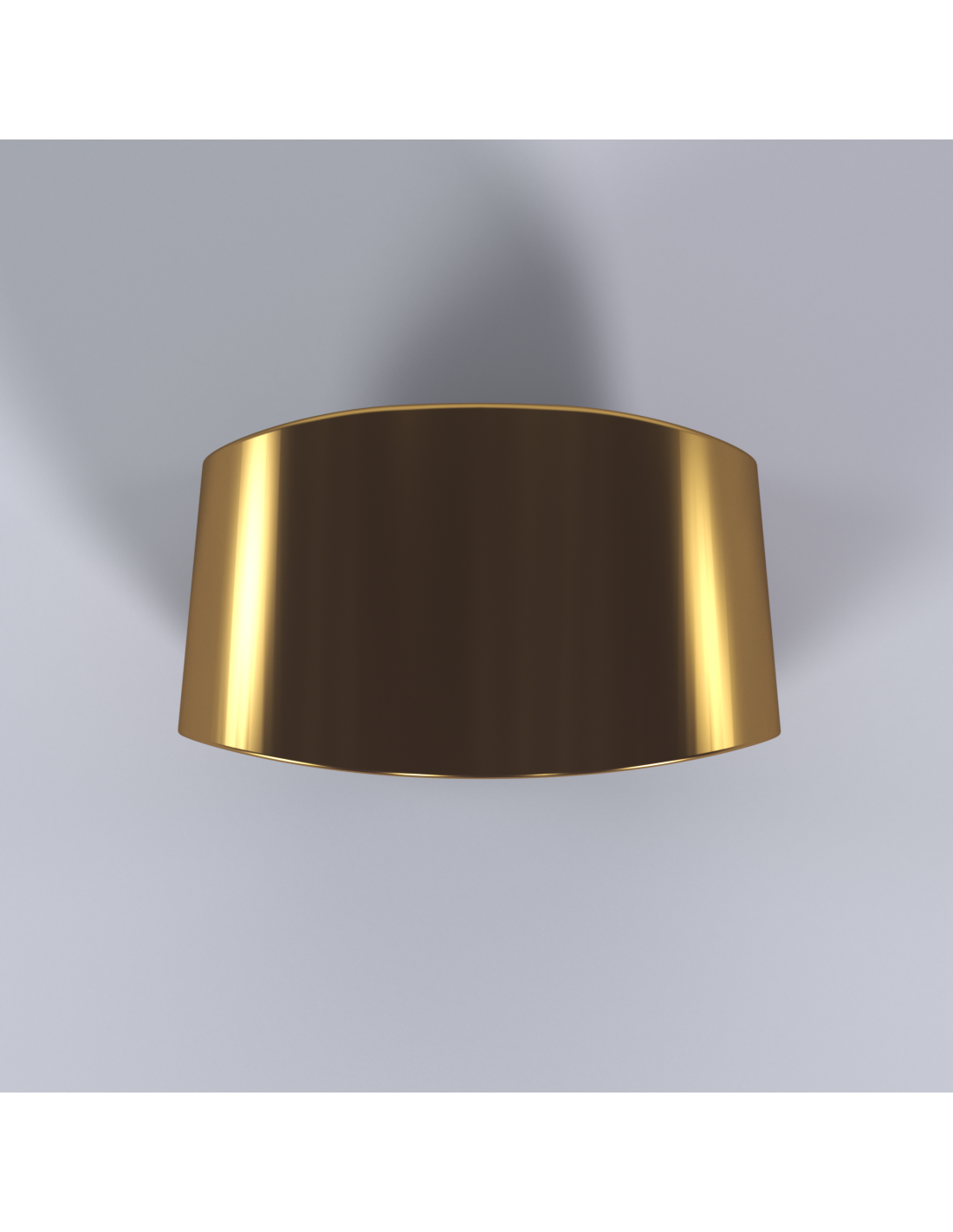

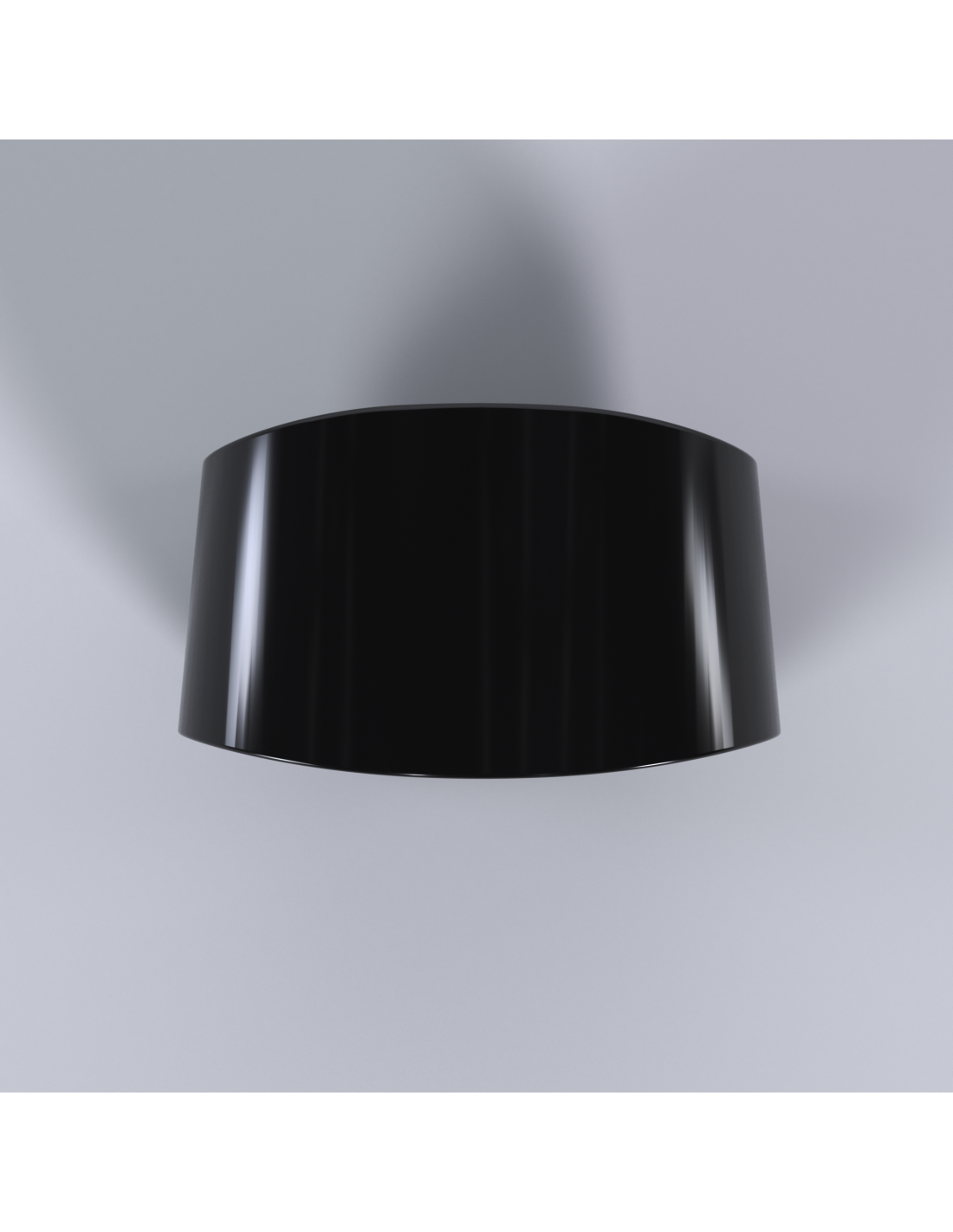

- Finished colour

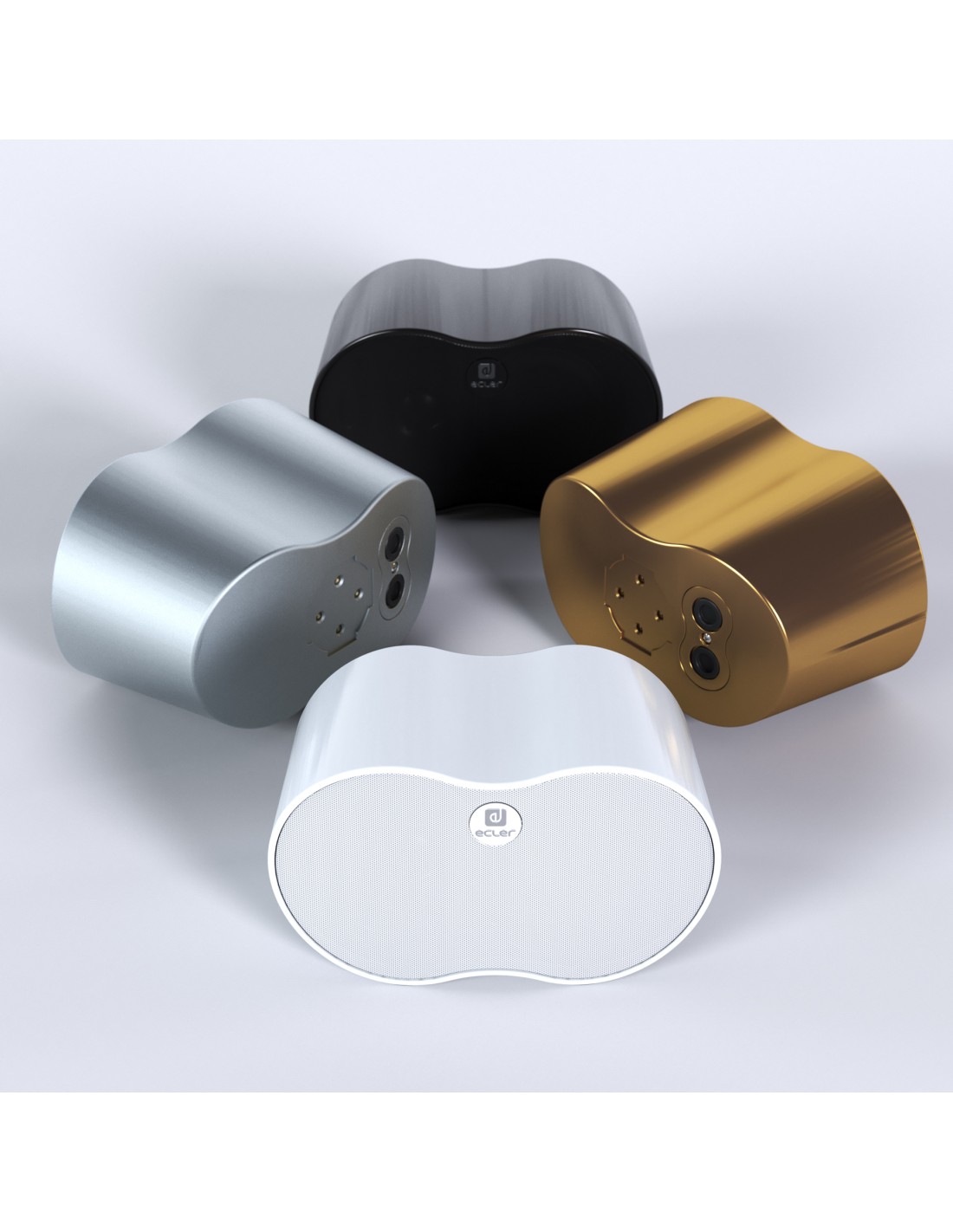

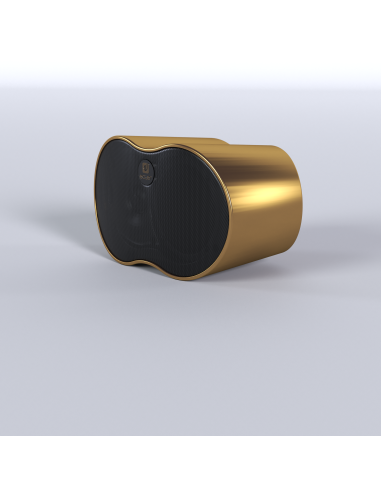

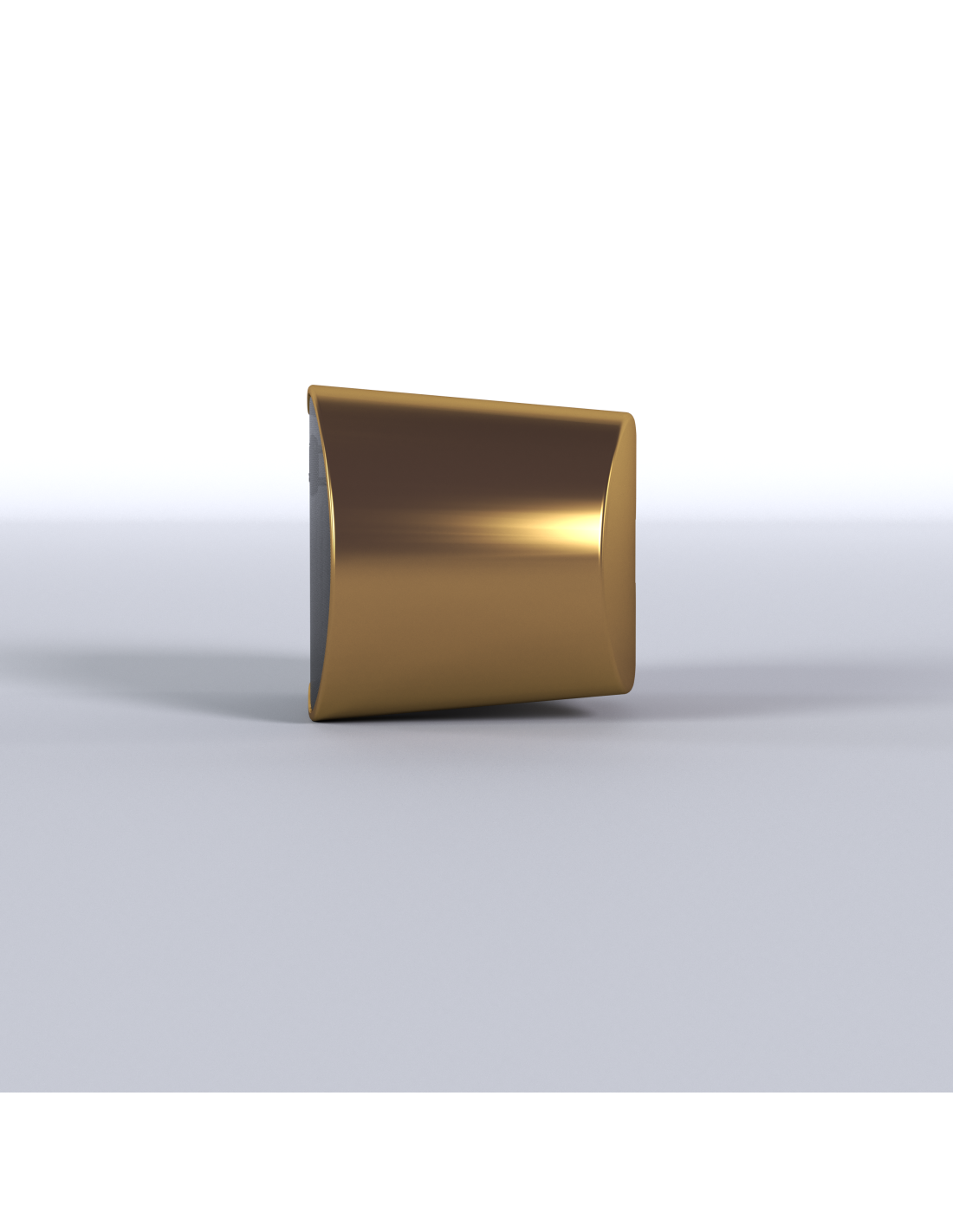

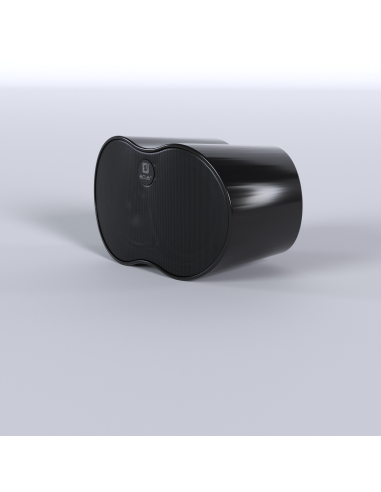

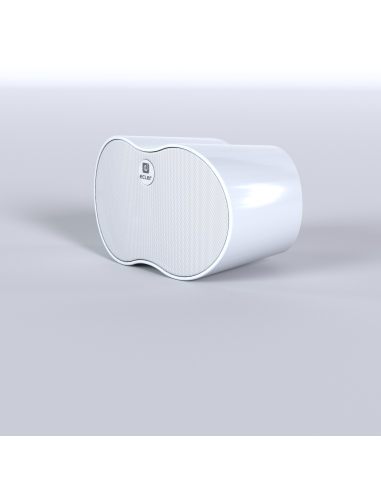

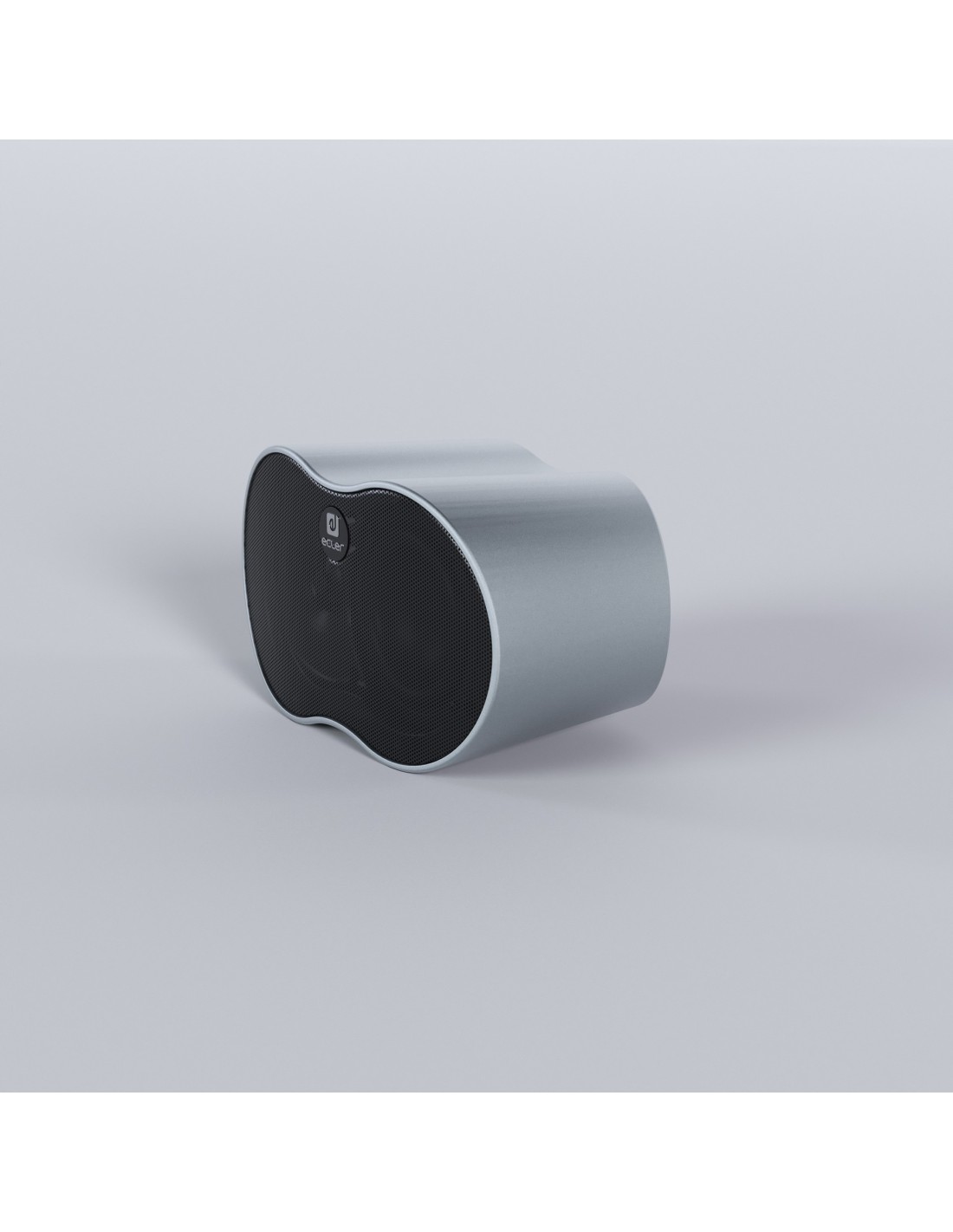

- White (RAL9003), Black (RAL9005), Gold (RAL1036, approx.) or Titanium (RAL9007 MATT).
- Dimensions
- 250 x 148.7x 150 mm / 9.84 x 5.85 x 5.91 in. (WxHxD)
- Weight
- 1.7 kg / 3.75 lb
- Pieces per box
- 1
- Shipping dimensions
- 330 x 250 x 240 mm / 13 x 9.84 x 9.45 in.
- Shipping weight
- 2,7 kg / 5,95 lb
- Mounting system
- Wall-mount bracket (inox)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
75Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
128° x 196° (HxV) |
| Power handling |
40W RMS / 160 W Peak |
| Sensitivity |
81db (1W/1m) |
| Maximum SPL |
97dB continuous / 103 dB peak |
| Recommended amplifier power |
80W RMS |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
1 x 4" Woofer |
| High frequency driver |
1" silk dome tweeter |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
1,65 kHz |
|---|
PHYSICAL
| Connection type |
Double INPUT/LINK connector, Euroblock type |
|---|---|
| Installation options |
Surface / Wall mounting |
| Environmental |
IP44 rated |
| Enclosure material |
ABS reinforced with fibreglass |
| Grille material |
Aluminium |
| Grille fixing system |
Pressure mount system |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Wall-mount bracket, 2x Euroblock connector |
| Optional accessories |
GROUNDY and CEILY brackets |
| Finished colour |
White (RAL9003), Black (RAL9005), Gold (RAL1036, approx.) or Titanium (RAL9007 MATT). |
| Dimensions |
250 x 148.7x 150 mm / 9.84 x 5.85 x 5.91 in. (WxHxD) |
| Weight |
1.7 kg / 3.75 lb |
| Pieces per box |
1 |
| Shipping dimensions |
330 x 250 x 240 mm / 13 x 9.84 x 9.45 in. |
| Shipping weight |
2,7 kg / 5,95 lb |
| Mounting system |
Wall-mount bracket (inox) |
