IG108i
CIG108ISD
Check availability
8" | 2-way | 100 WRMS | Kevlar woofer | IP65 | in-ground

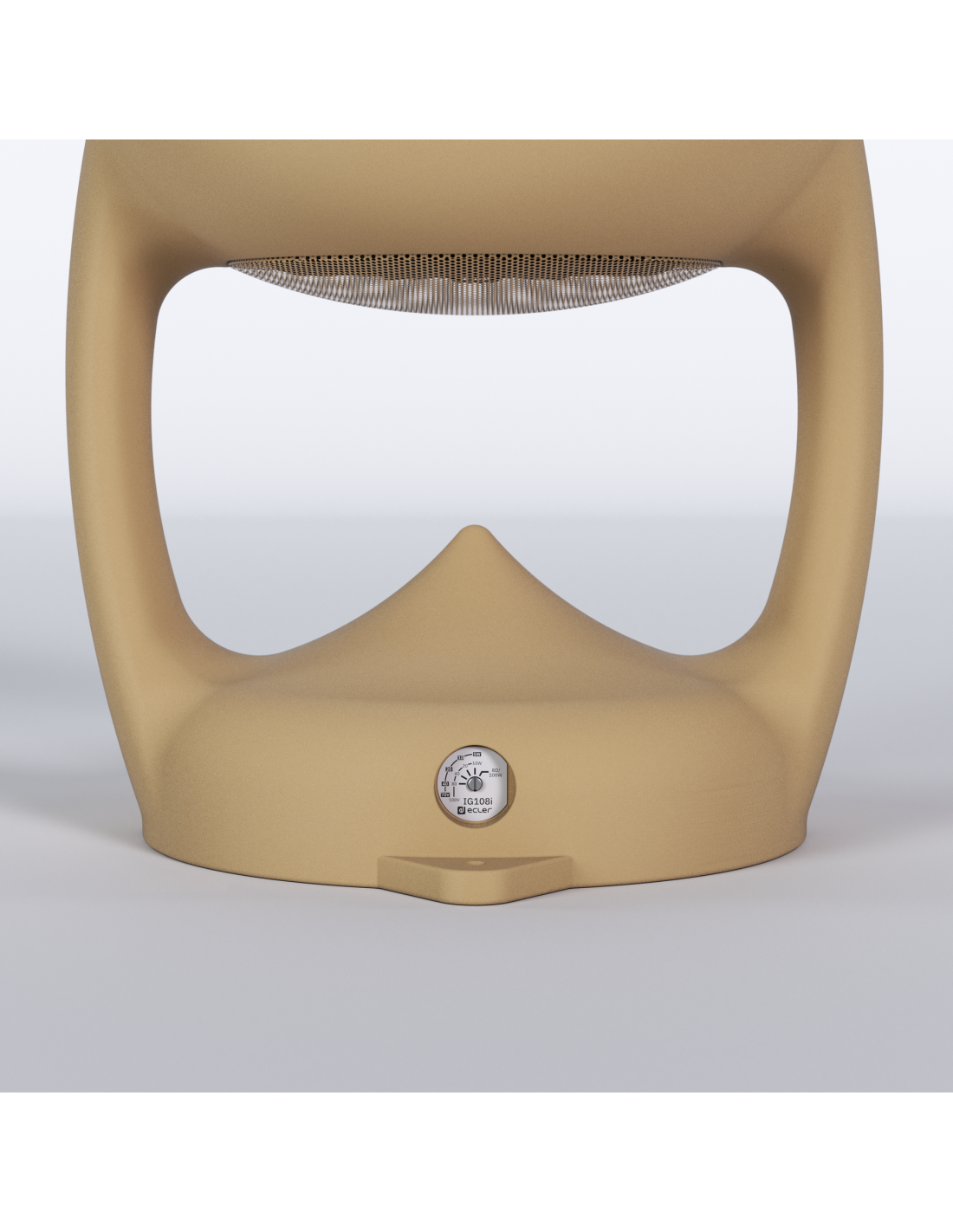

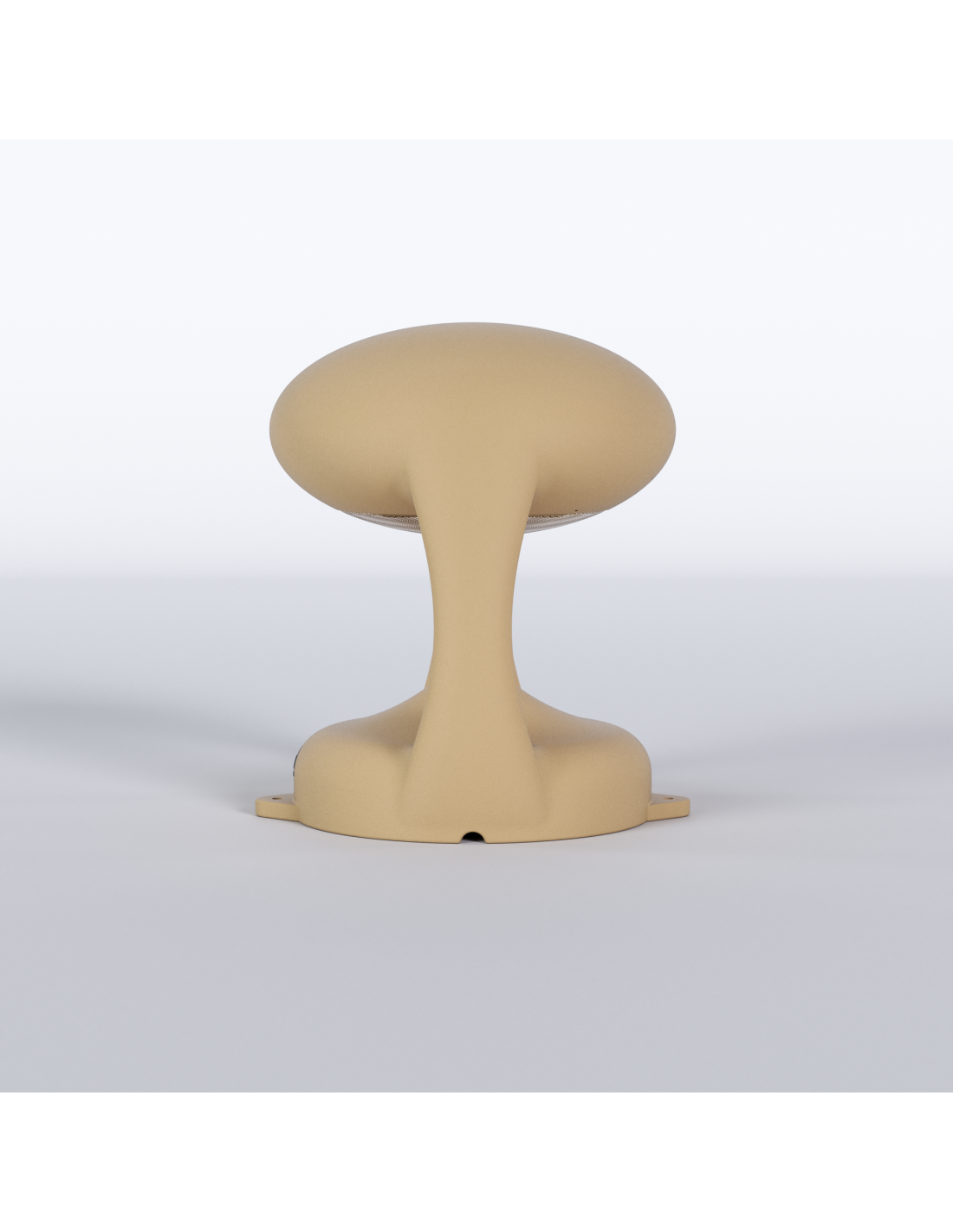

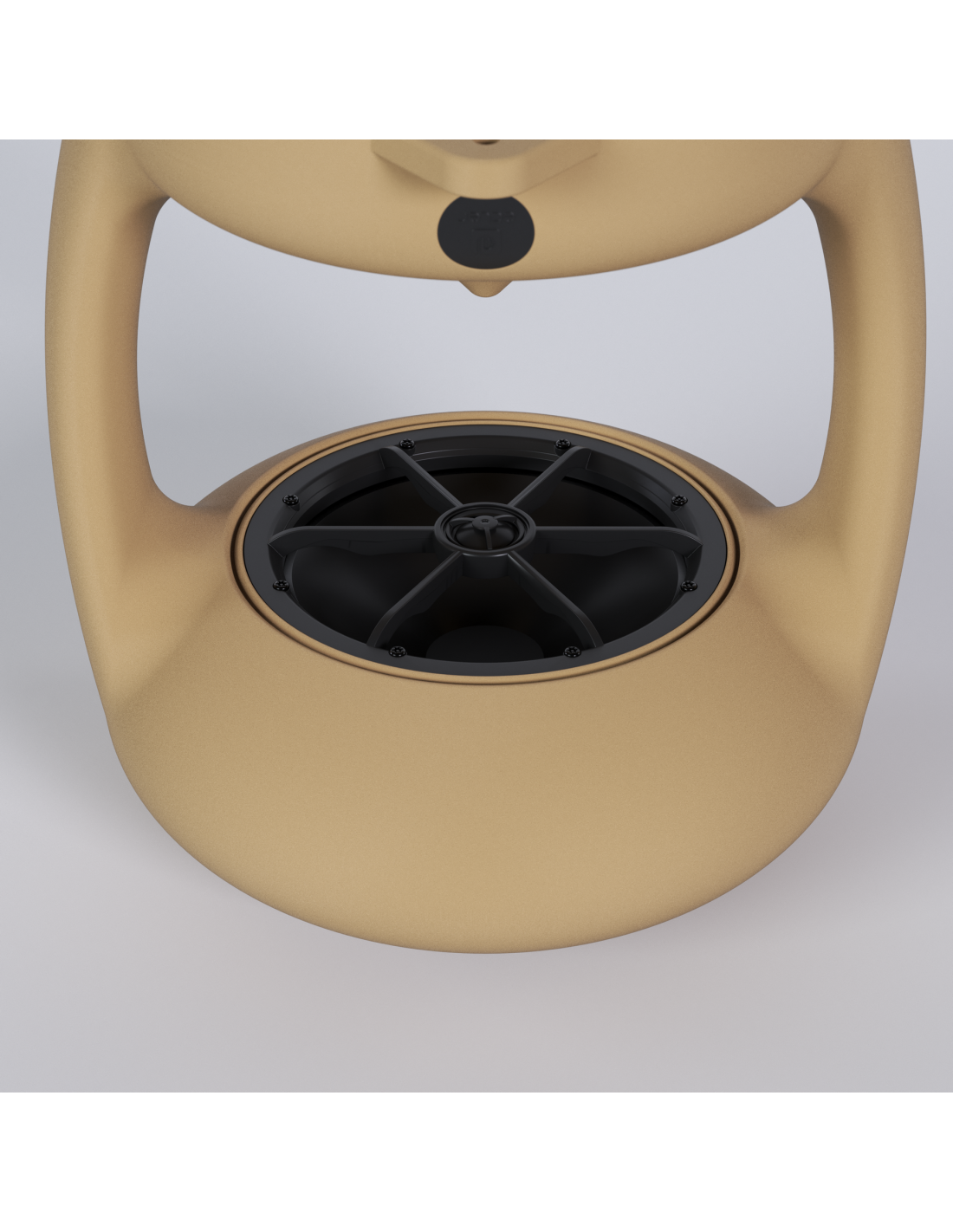

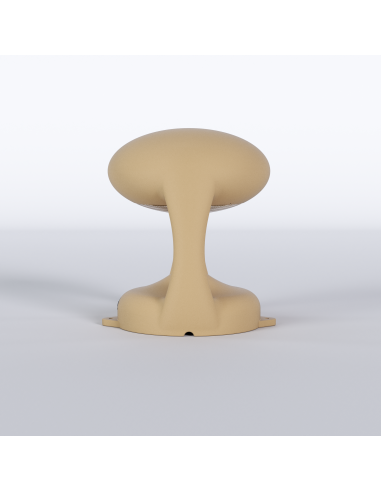

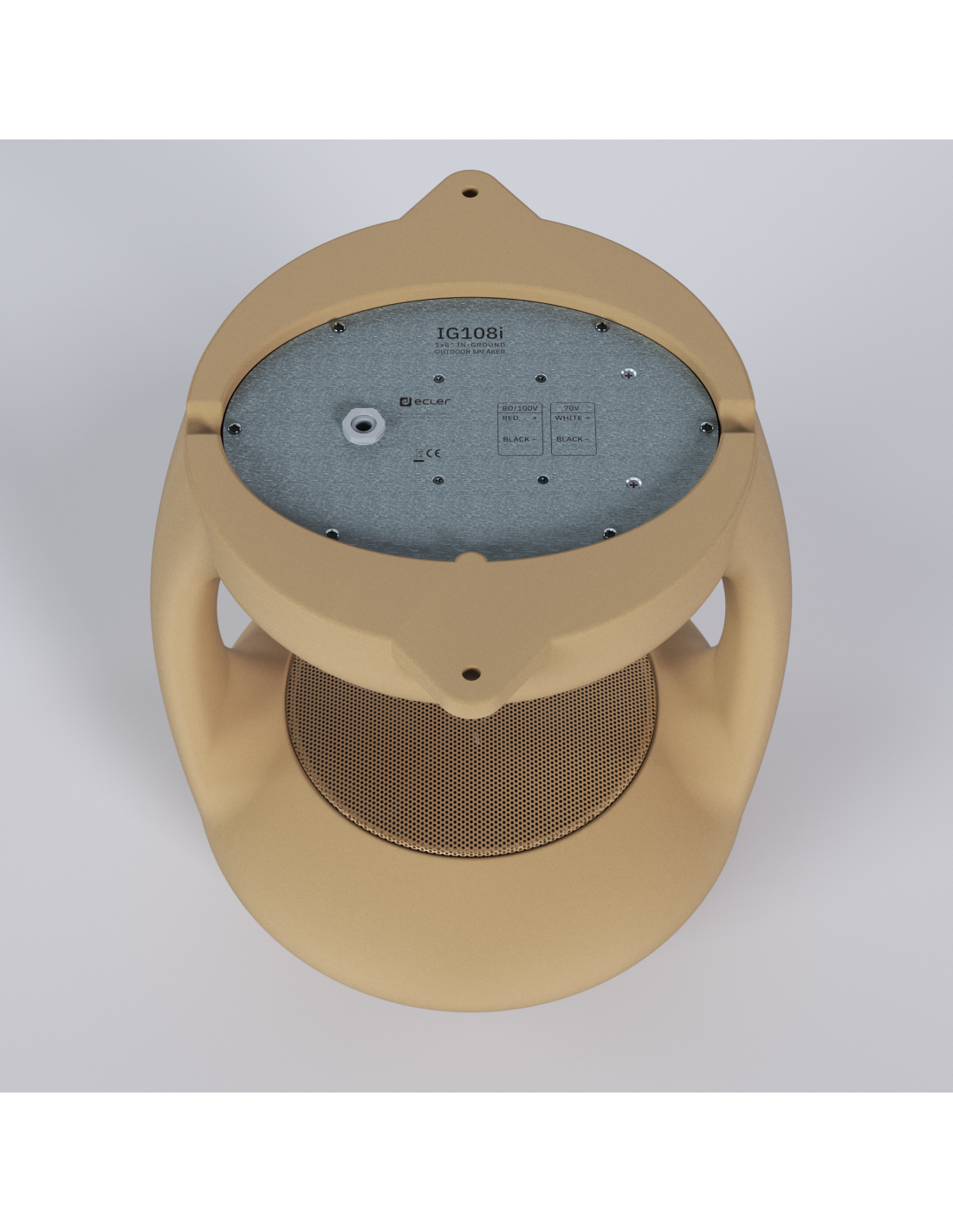

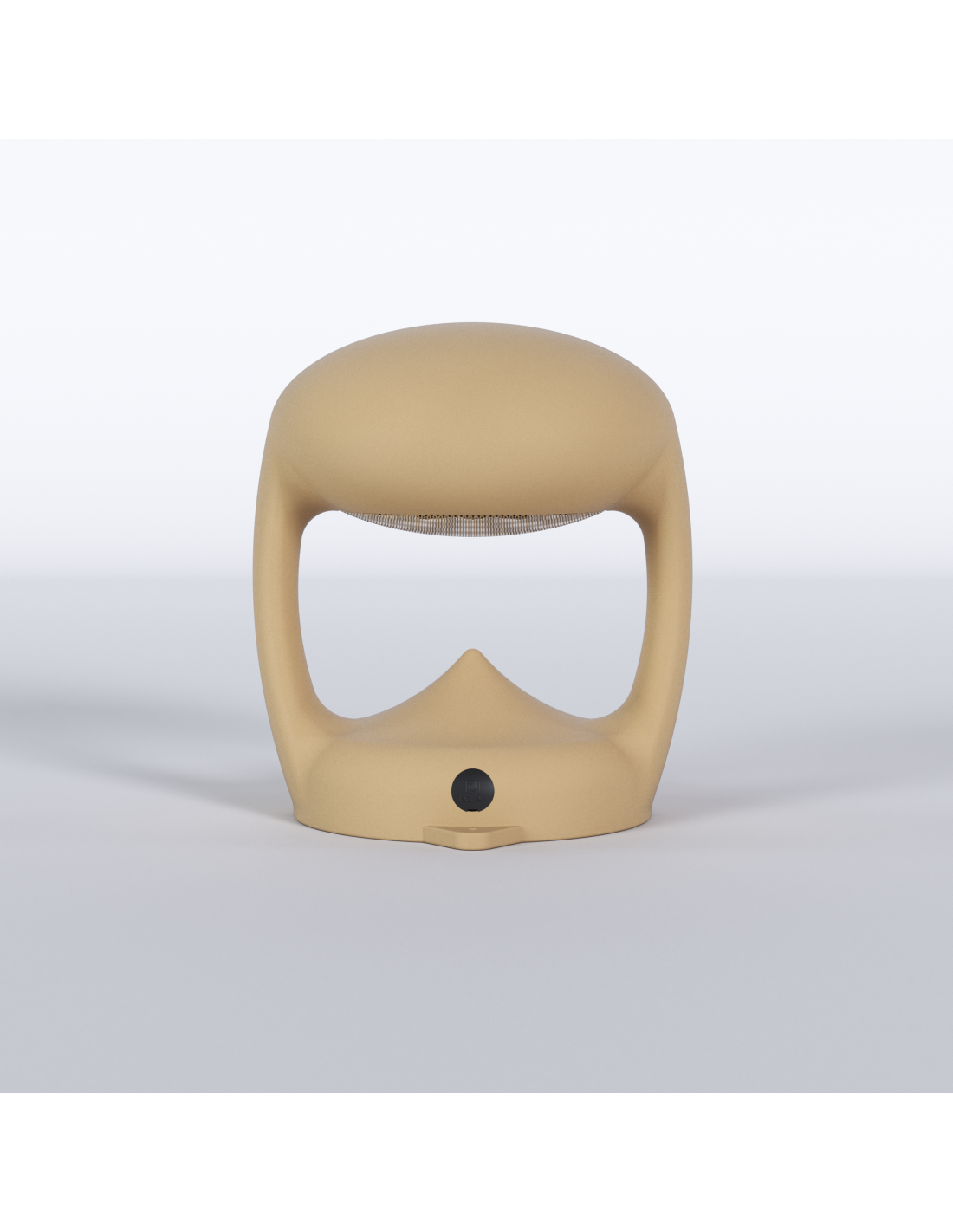

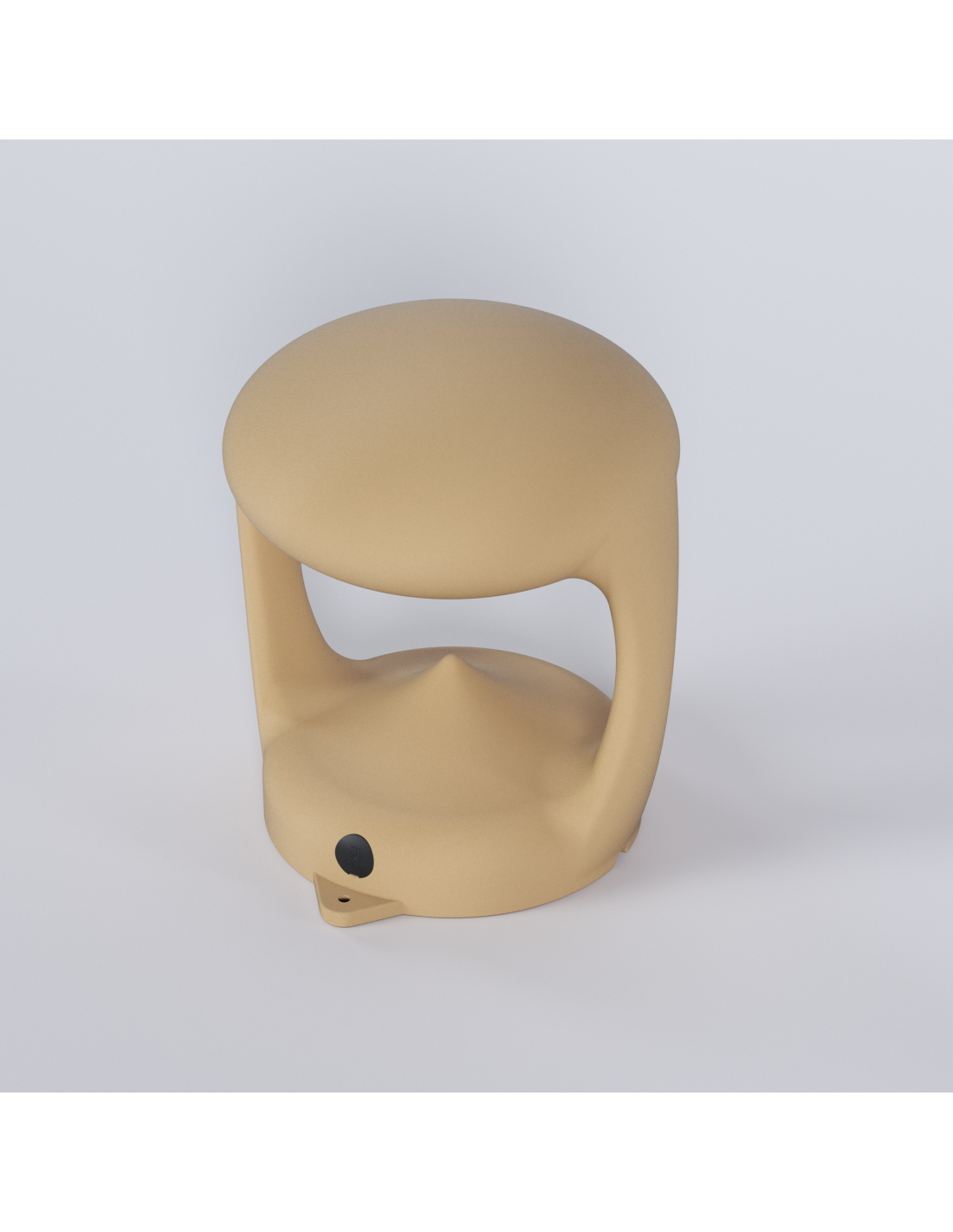

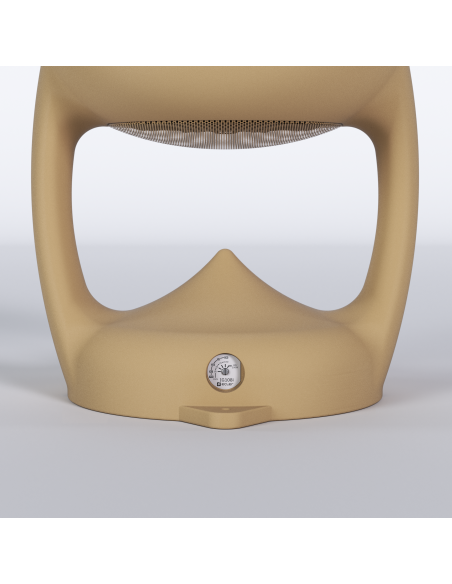

IG108i is a ground-standing speaker, water-resistant (IP65), with a 360º omnidirectional horizontal dispersion pattern. It is ideal for outdoor music and paging applications where a high-quality, reliable sound system is required.
- Effective Freq. Range
- 61Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 360°
- Power handling
- 100W RMS/ 200W Program / 400W Peak
- Sensitivity
- 92dB (1W/1m)
- Maximum SPL
- 112dB continous / 118dB peak
- Recommended amplifier power
- 200W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 8" Kevlar woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 8Ω
- Connection type
- External multi-wire cable with waterproof connection plug included
- Installation options
- Above-ground mounting
- Environmental
- IP65
- Enclosure material
- Polyethylene
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C / -4°F
Max: 70°C / 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C / -4°F
Max: 70°C / 158°F - Storage humidity
- 90% HR
- Included accessories
- 3x Waterproof wire connectors
- Finished colour
- sand (RAL1001) or green (RAL6028)
- Dimensions
- 392 x 440 x 390 mm / 15.43 x 17.32 x 15.35 in. (WxHxD)
- Weight
- 6.70 Kg / 14.77 lb
- Pieces per box
- 1
- Shipping dimensions
- 440 x 528 x 440 mm / 17.32 x 20.79 x 17.32 in. (WxHxD)
- Shipping weight
- 10.60 Kg / 23.37 lb
- Power options (Hi Z Multi-tap)
- 100V: 80W / 40W / 20W / 10W / 8Ω
70V: 40W / 20W / 10W / 5W - Power type selector
- tap selector
- Cable length
- 0.85 m.
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
61Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
360° |
| Power handling |
100W RMS/ 200W Program / 400W Peak |
| Sensitivity |
92dB (1W/1m) |
| Maximum SPL |
112dB continous / 118dB peak |
| Recommended amplifier power |
200W RMS |
| Power options (Hi Z Multi-tap) |
100V: 80W / 40W / 20W / 10W / 8Ω
70V: 40W / 20W / 10W / 5W |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
8" Kevlar woofer |
| High frequency driver |
1" silk dome tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
External multi-wire cable with waterproof connection plug included |
|---|---|
| Installation options |
Above-ground mounting |
| Environmental |
IP65 |
| Enclosure material |
Polyethylene |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C / -4°F
Max: 70°C / 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C / -4°F
Max: 70°C / 158°F |
| Storage humidity |
90% HR |
| Included accessories |
3x Waterproof wire connectors |
| Finished colour |
sand (RAL1001) or green (RAL6028) |
| Dimensions |
392 x 440 x 390 mm / 15.43 x 17.32 x 15.35 in. (WxHxD) |
| Weight |
6.70 Kg / 14.77 lb |
| Pieces per box |
1 |
| Shipping dimensions |
440 x 528 x 440 mm / 17.32 x 20.79 x 17.32 in. (WxHxD) |
| Shipping weight |
10.60 Kg / 23.37 lb |
| Power type selector |
tap selector |
| Cable length |
0.85 m. |
