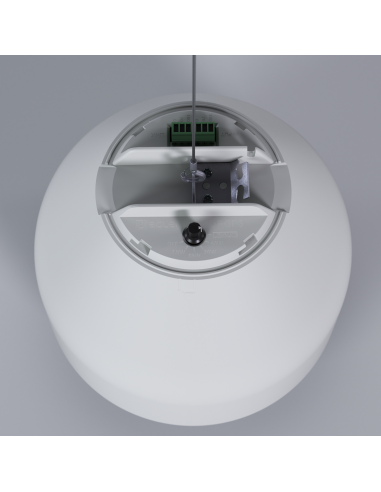

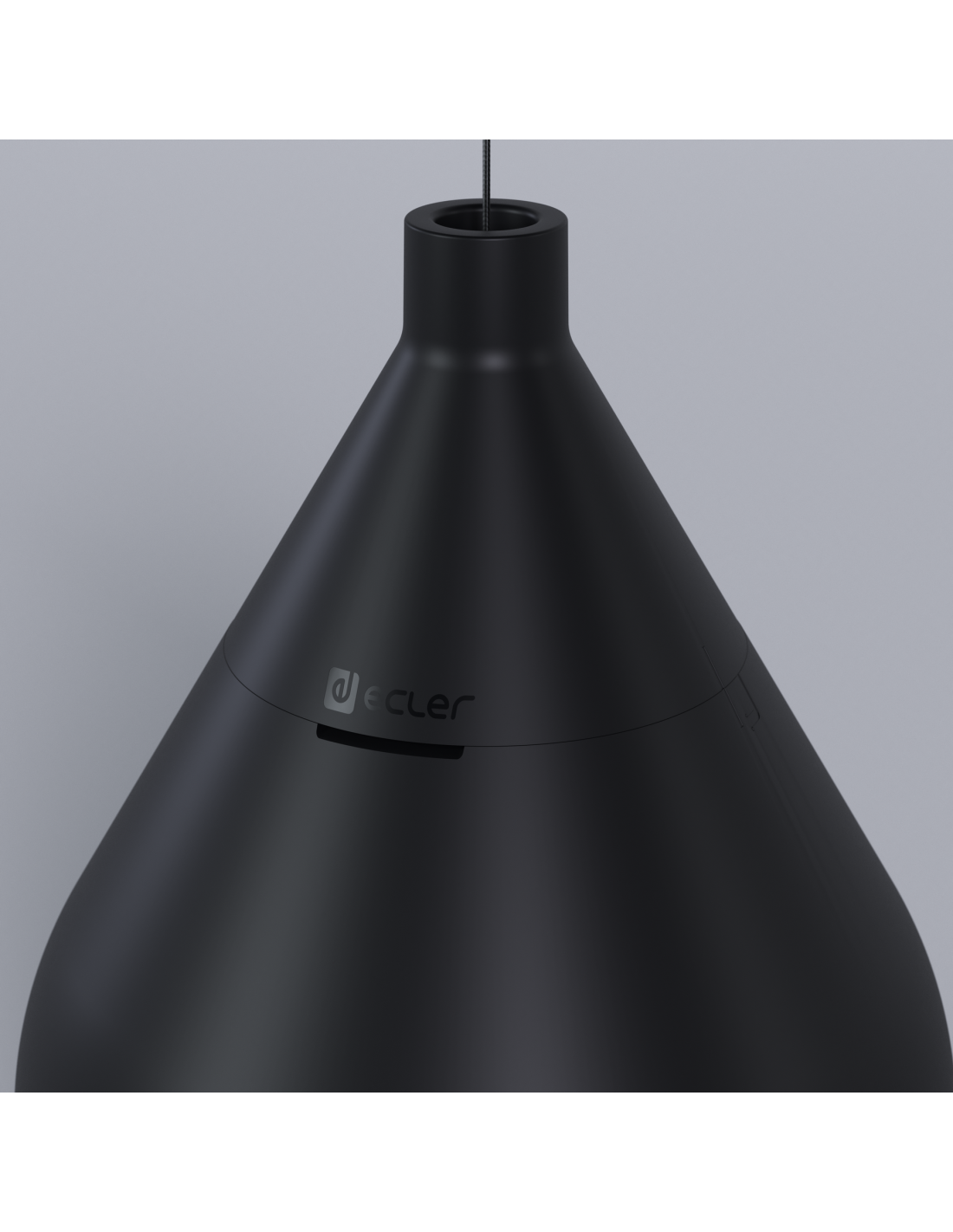

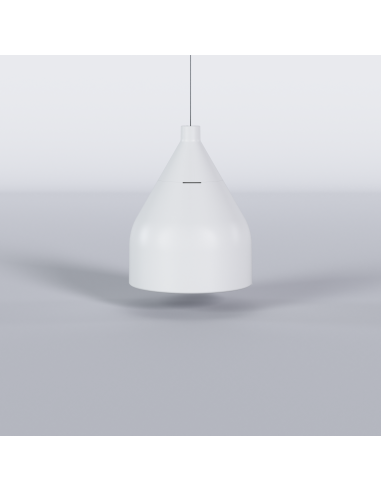

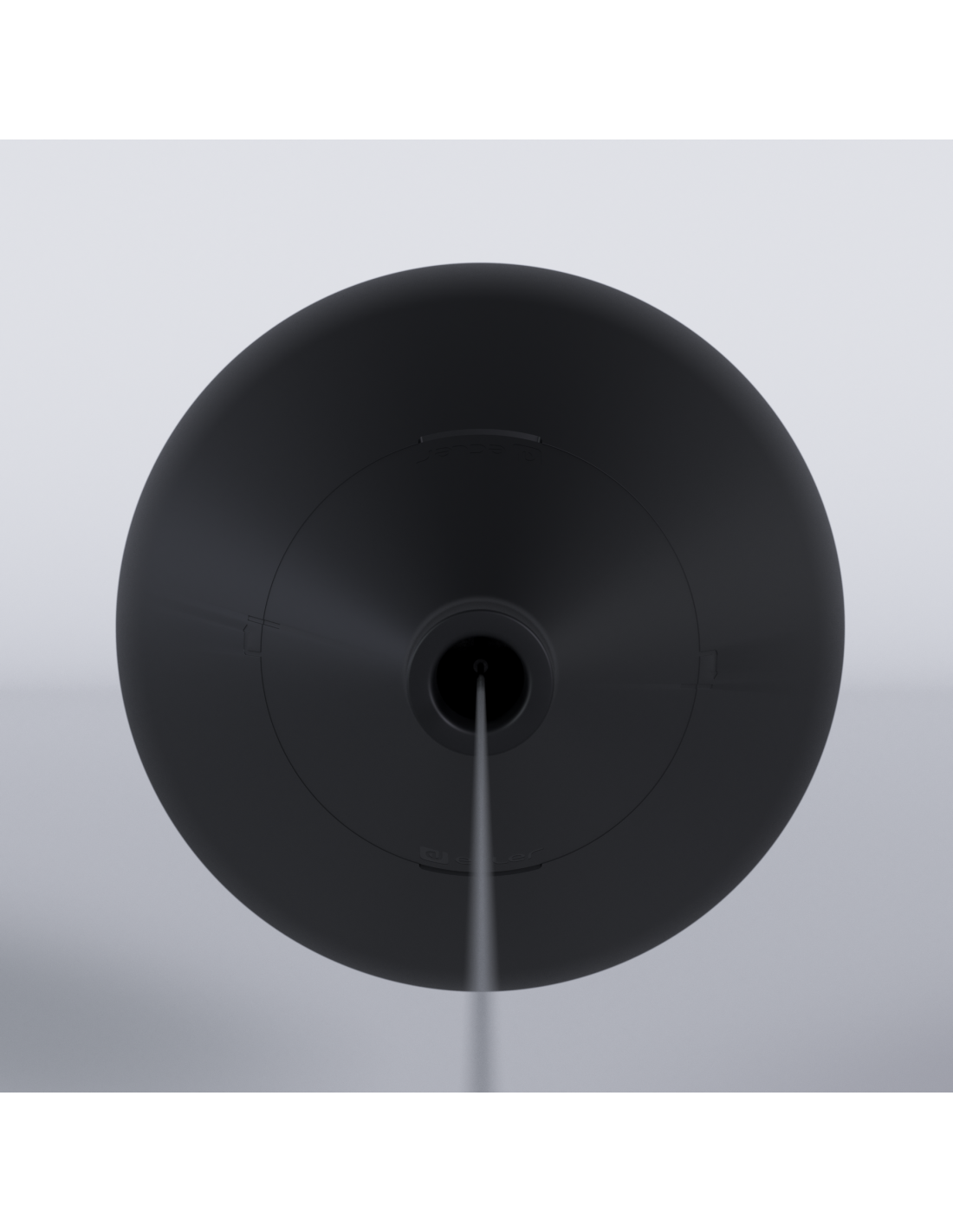

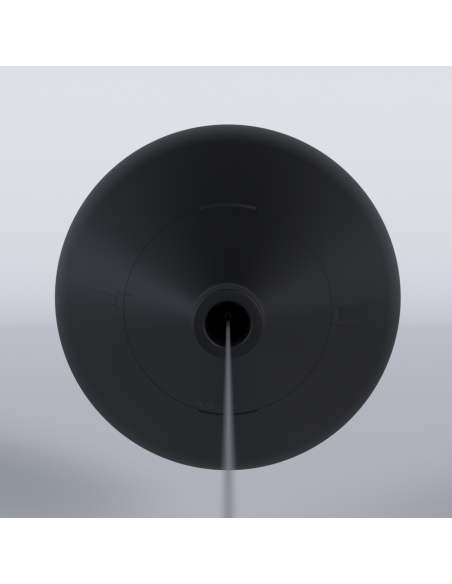

DROP6i BK
CDROP6IBK
Check availability
6.5" | 2-way | 75 WRMS | ABS reinforced

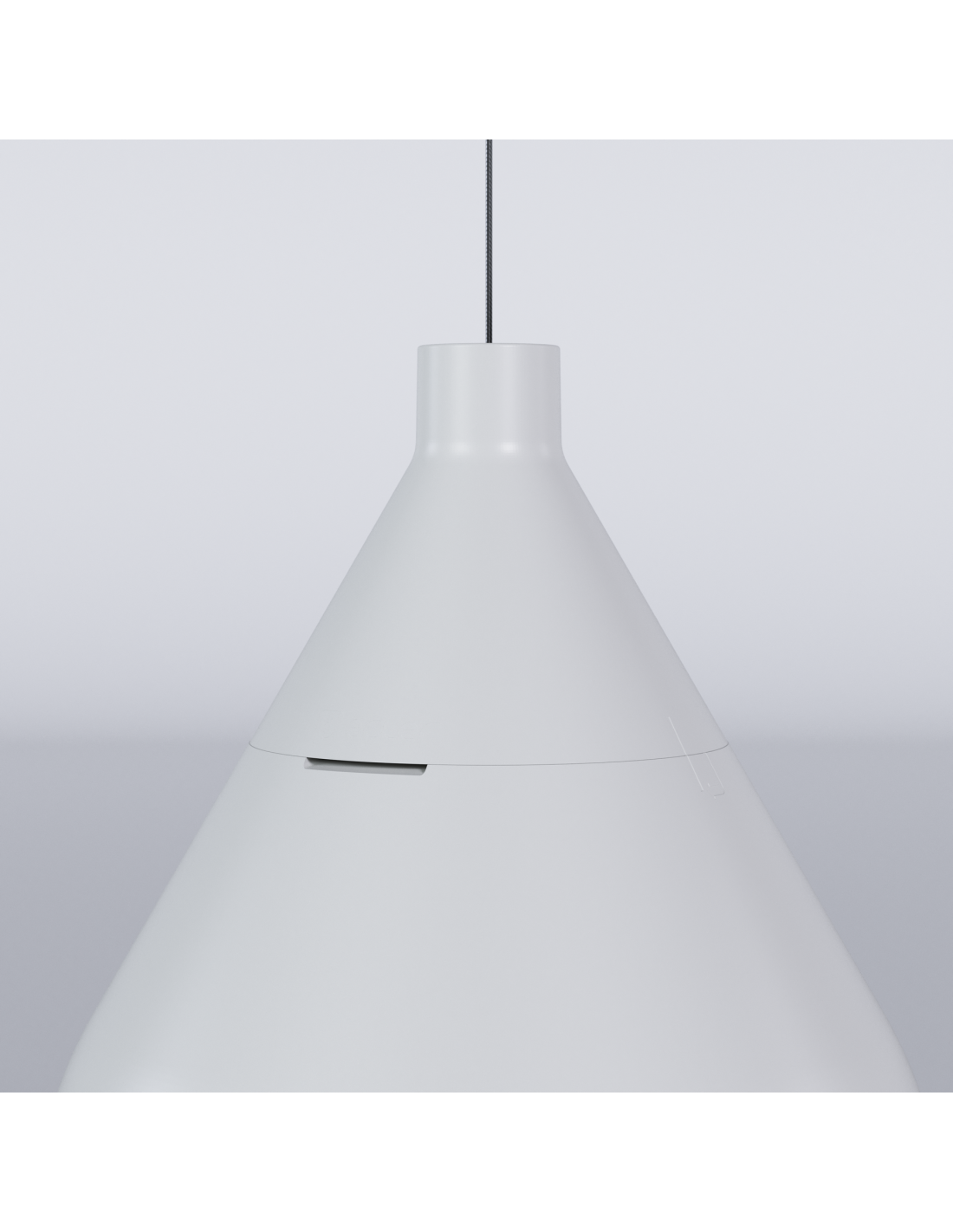

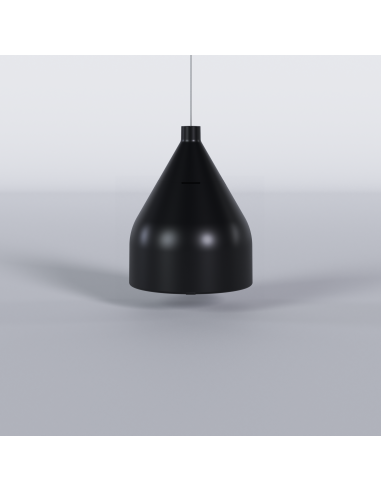

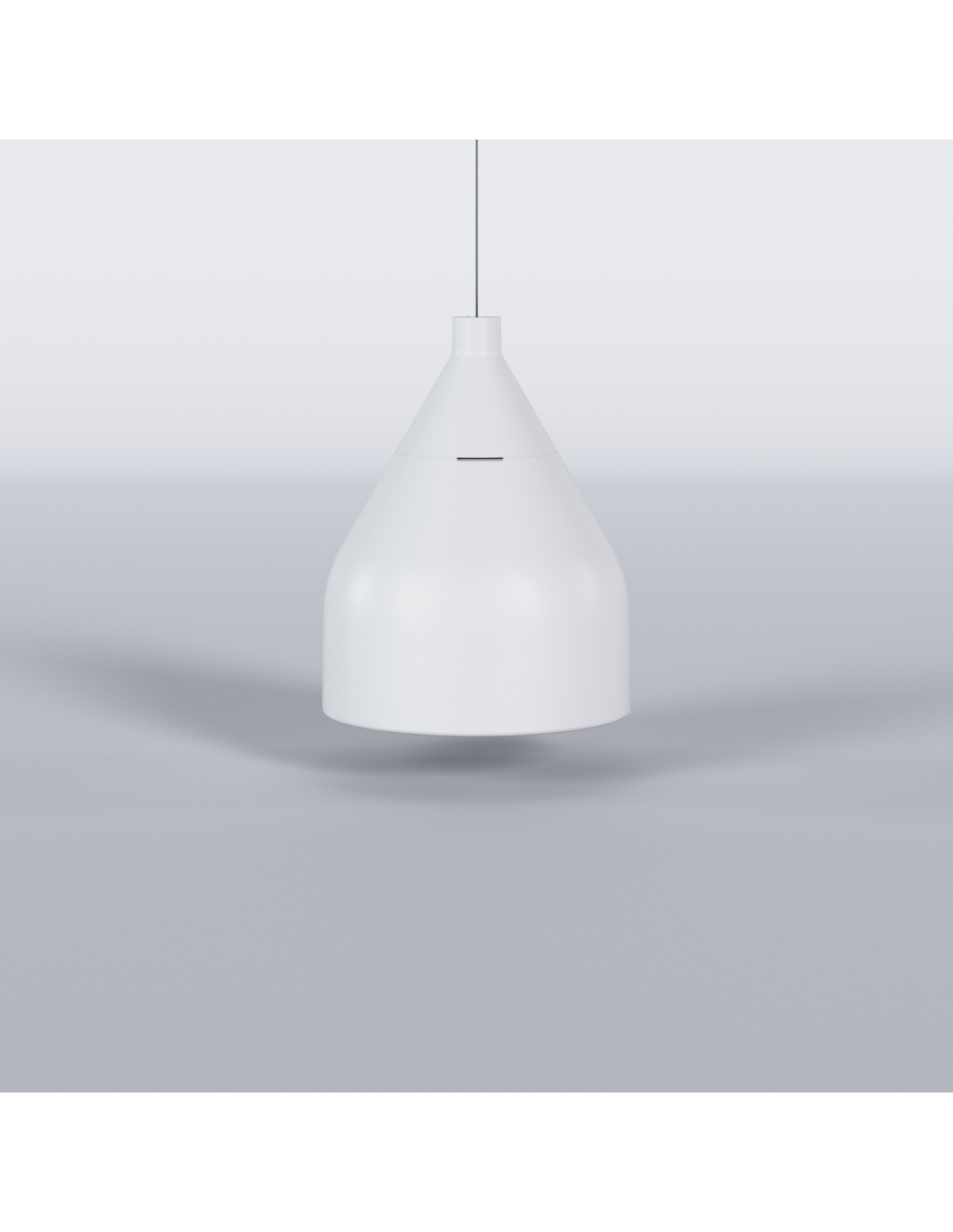

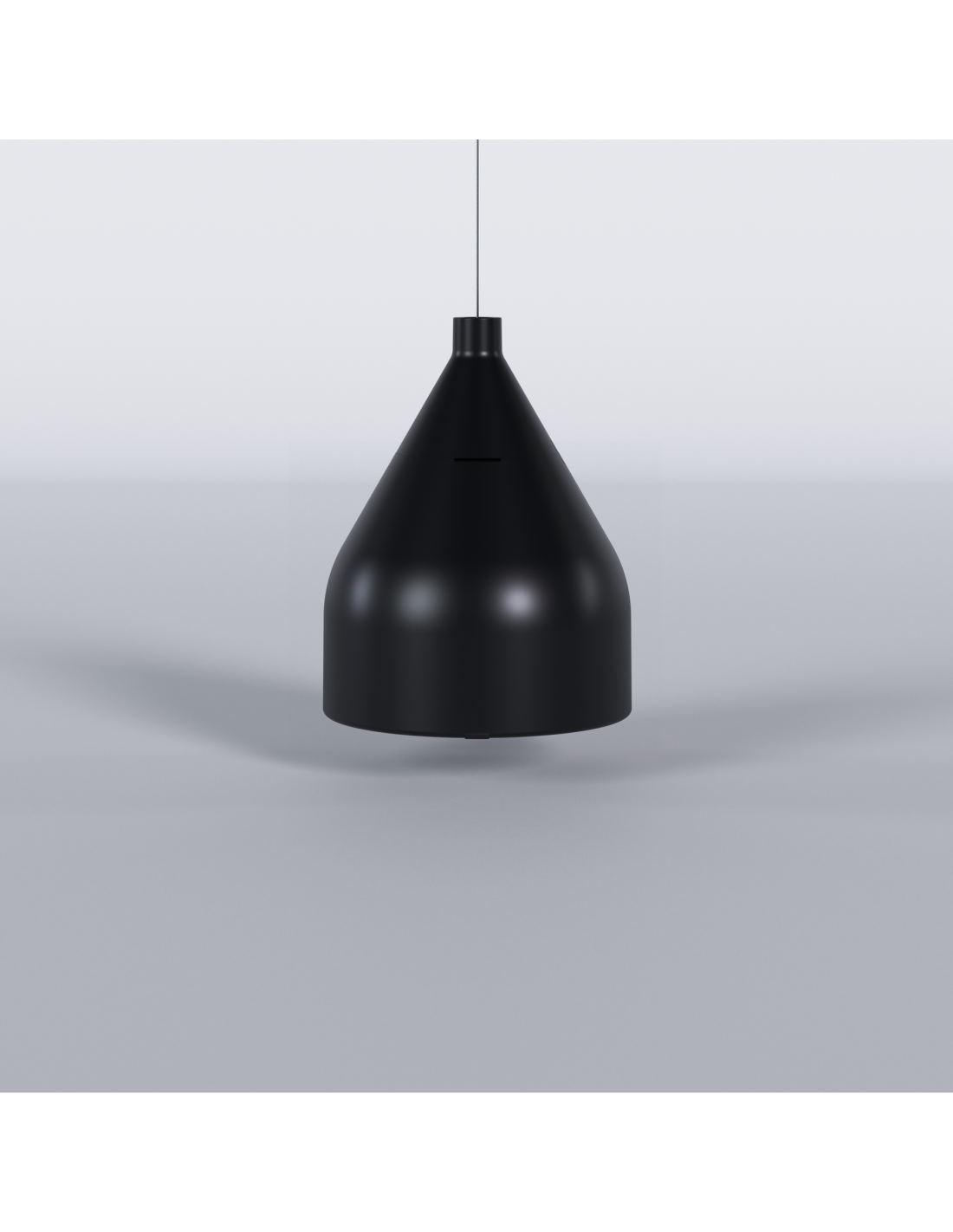

DROP6i is a 2‑way full‑range 6.5” pendant loudspeaker delivering 75W @ 8Ω, designed with a sleek, discreet aesthetic. It features a 70/100V line transformer with selectable 60/30/15/7.5W power taps and is available in both high‑ and low‑impedance configurations.
- Effective Freq. Range
- 70Hz -20KHz (-10dB)
- Coverage angle / Dispersion
- 135° Conical
- Power handling
- 75W RMS / 300W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 109 dB continuous / 115 dB peak
- Recommended amplifier power
- 150W RMS
- Ways
- 2-ways full range

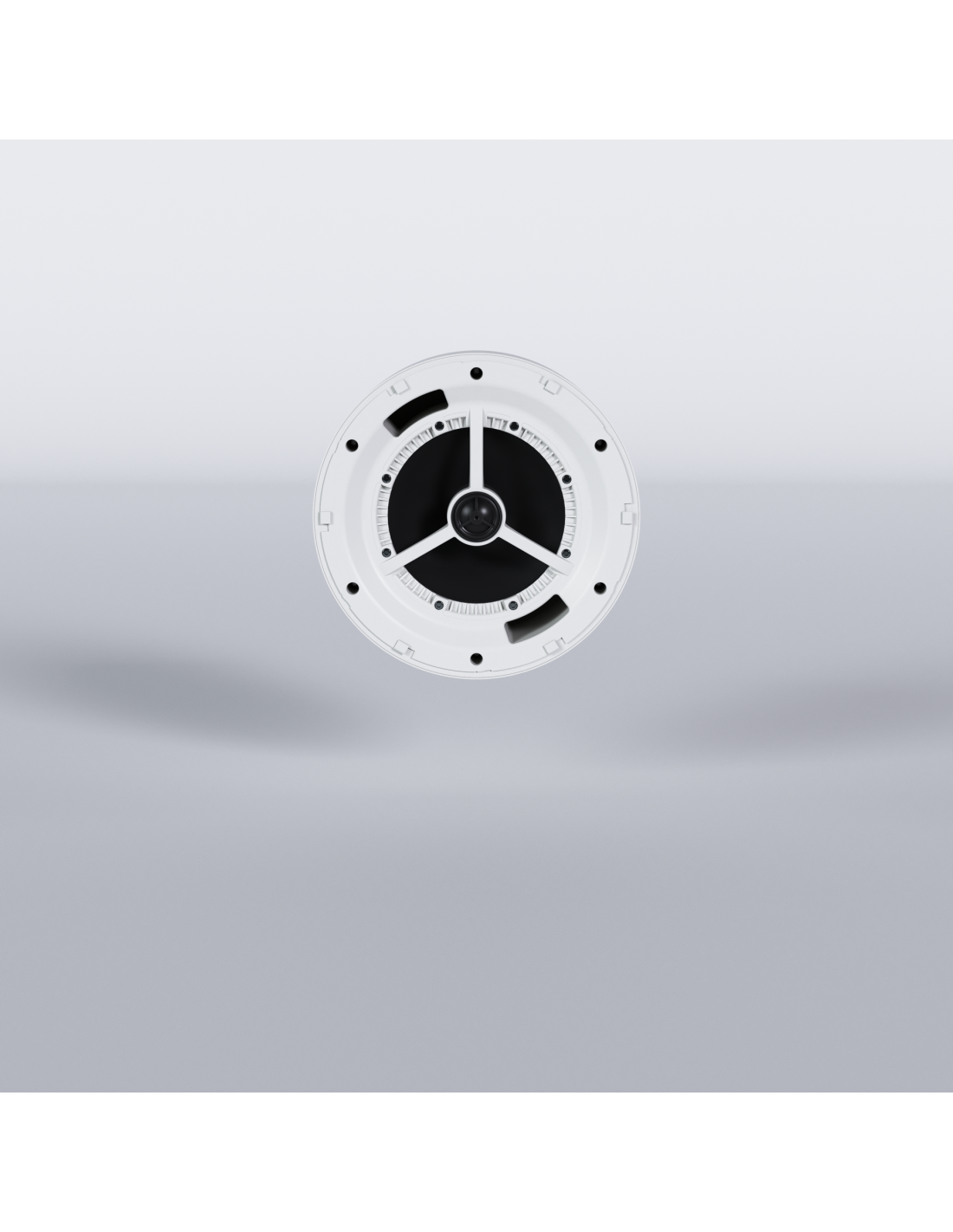

- Low frequency driver
- 6.5" woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 8Ω
- Crossover filter
- 1,65 kHz

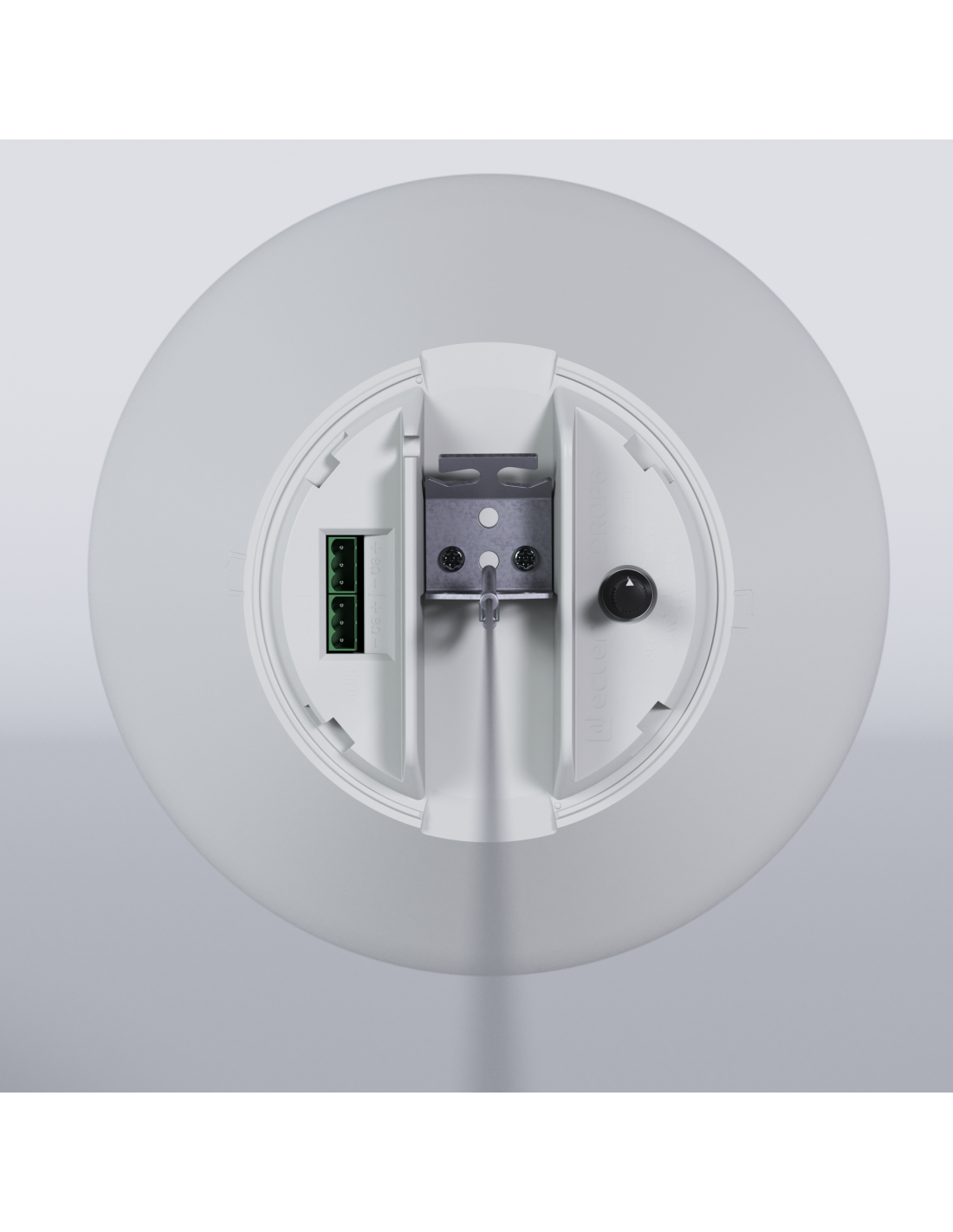

- Connection type
- Double INPUT/LINK connector, Euroblock type
- Installation options
- Pendant
- Environmental
- IP53 rated
- Enclosure material
- ABS reinforced with fibreglass

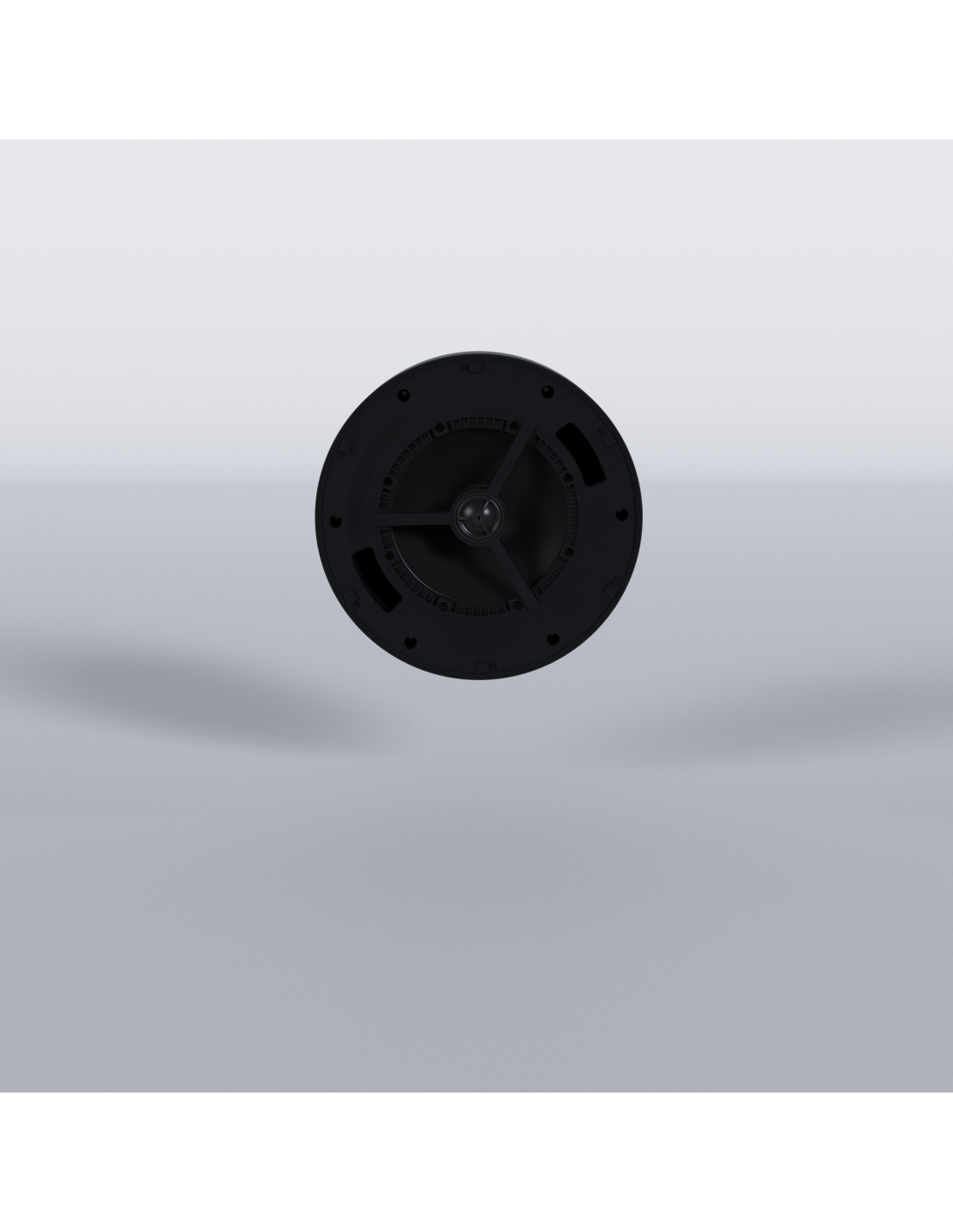

- Grille material
- Aluminium
- Grille fixing system

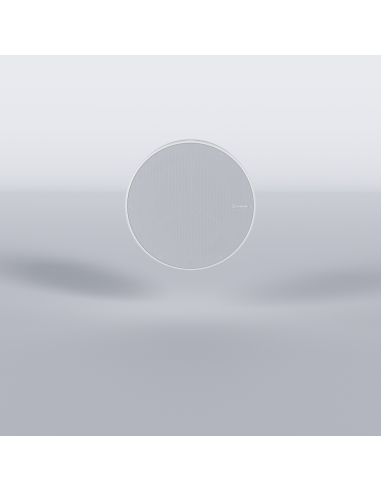

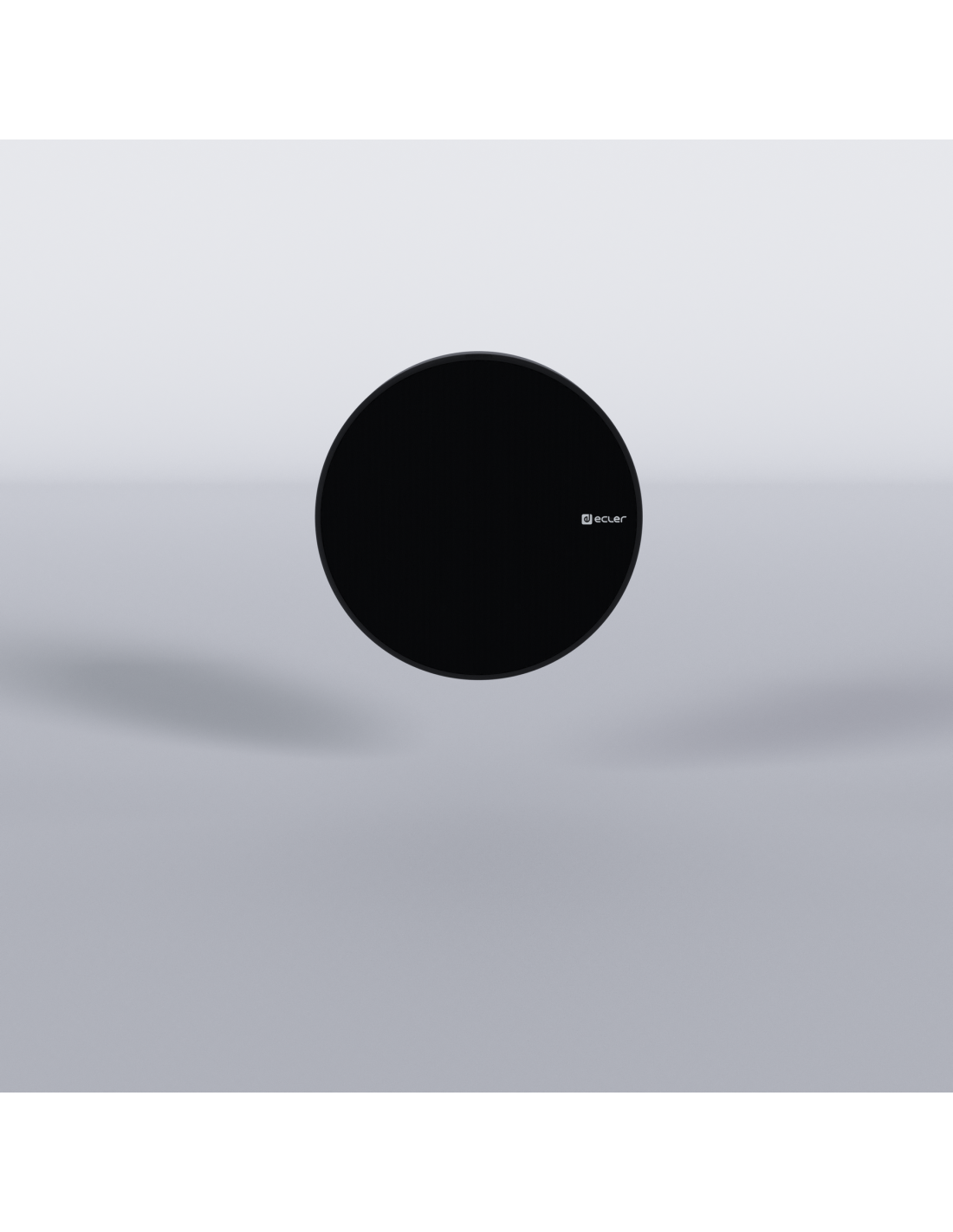

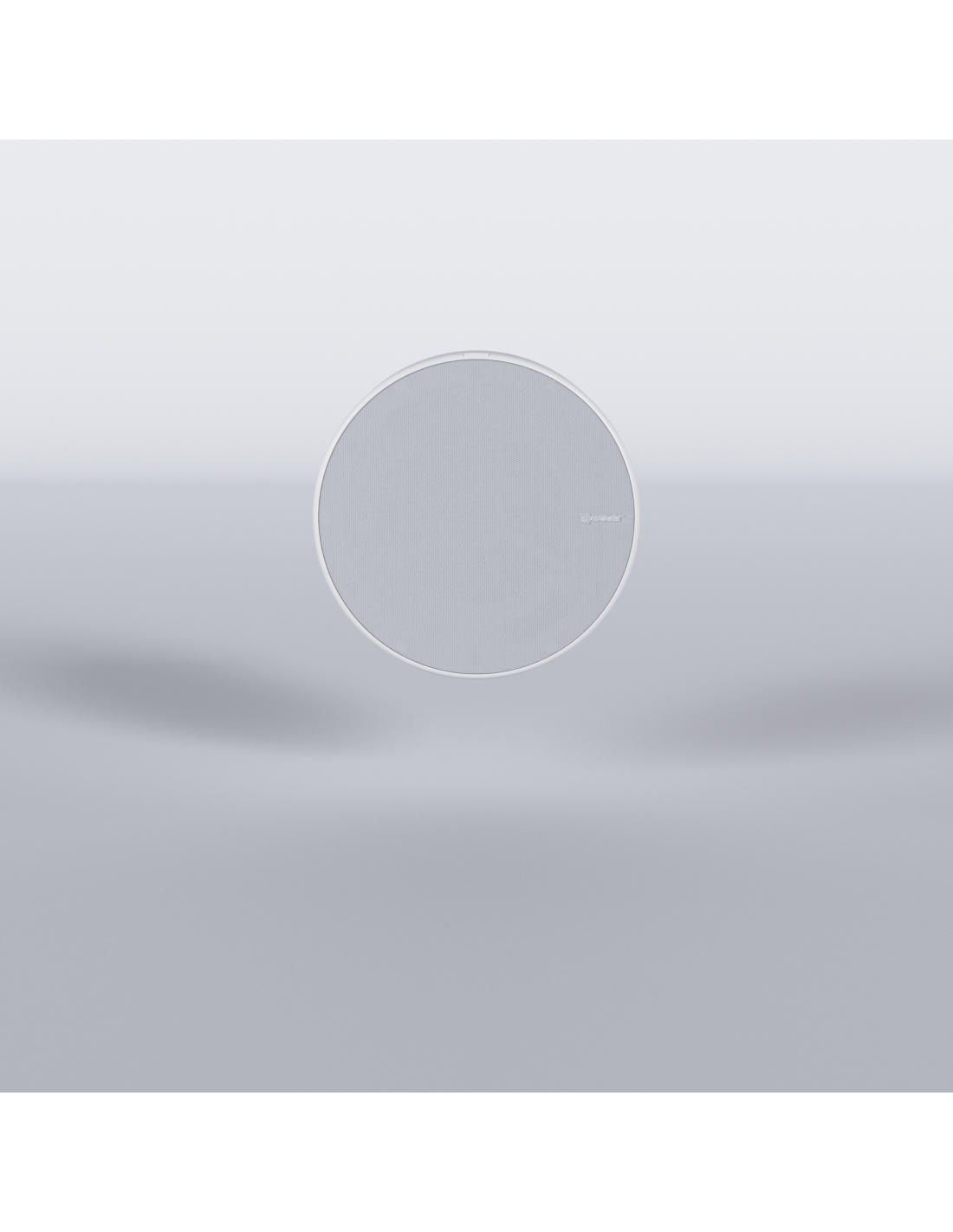

- Bayonet mount system

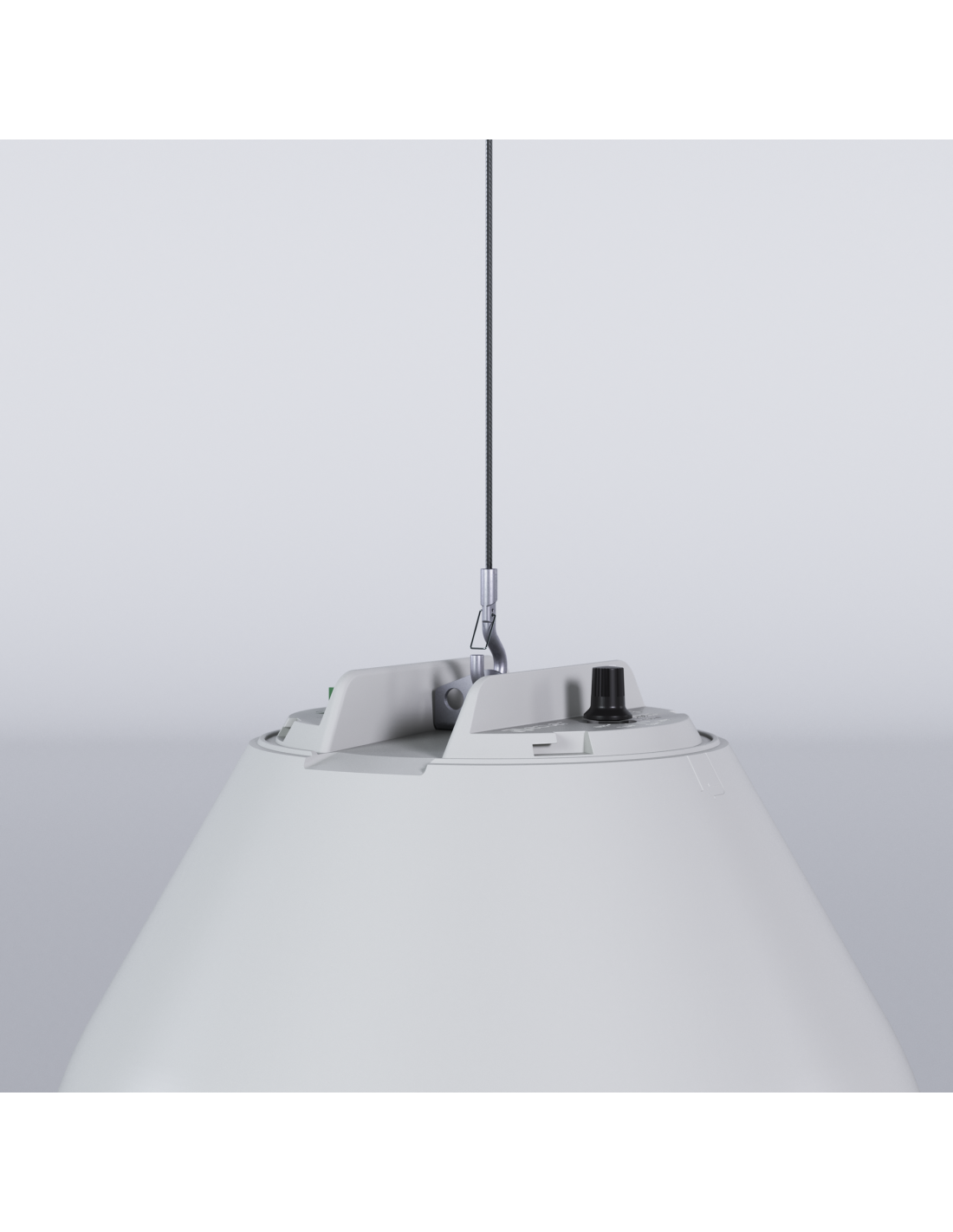

- Flying points
- 2 x Steel wire hanging points
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- 2 x Steel Wire for hanging (5 m), 2 x 3C Euroblock connector
- Finished colour
- White (RAL9003) or Black (RAL9005)
- Dimensions
- 270mm x 344mm / 10.63 in. x 13.54 in. (Ø xH)
- Weight
- 4.2 kg / 9.26 lb
- Pieces per box
- 1
- Shipping dimensions
- 380 x 325 x 370mm / 14.96 x 12.80 x 15.57 in. (WxHxD)
- Shipping weight
- 5.5 Kg / 12.13 lbs
- Mounting system
- Steel wire hanging
- Driver
- 6.5" Woofer + 1" Tweeter
- Power options (Hi Z Multi-tap)
- 70V/100V: 7.5W - 15W - 30W - 60W / 75W@8Ω

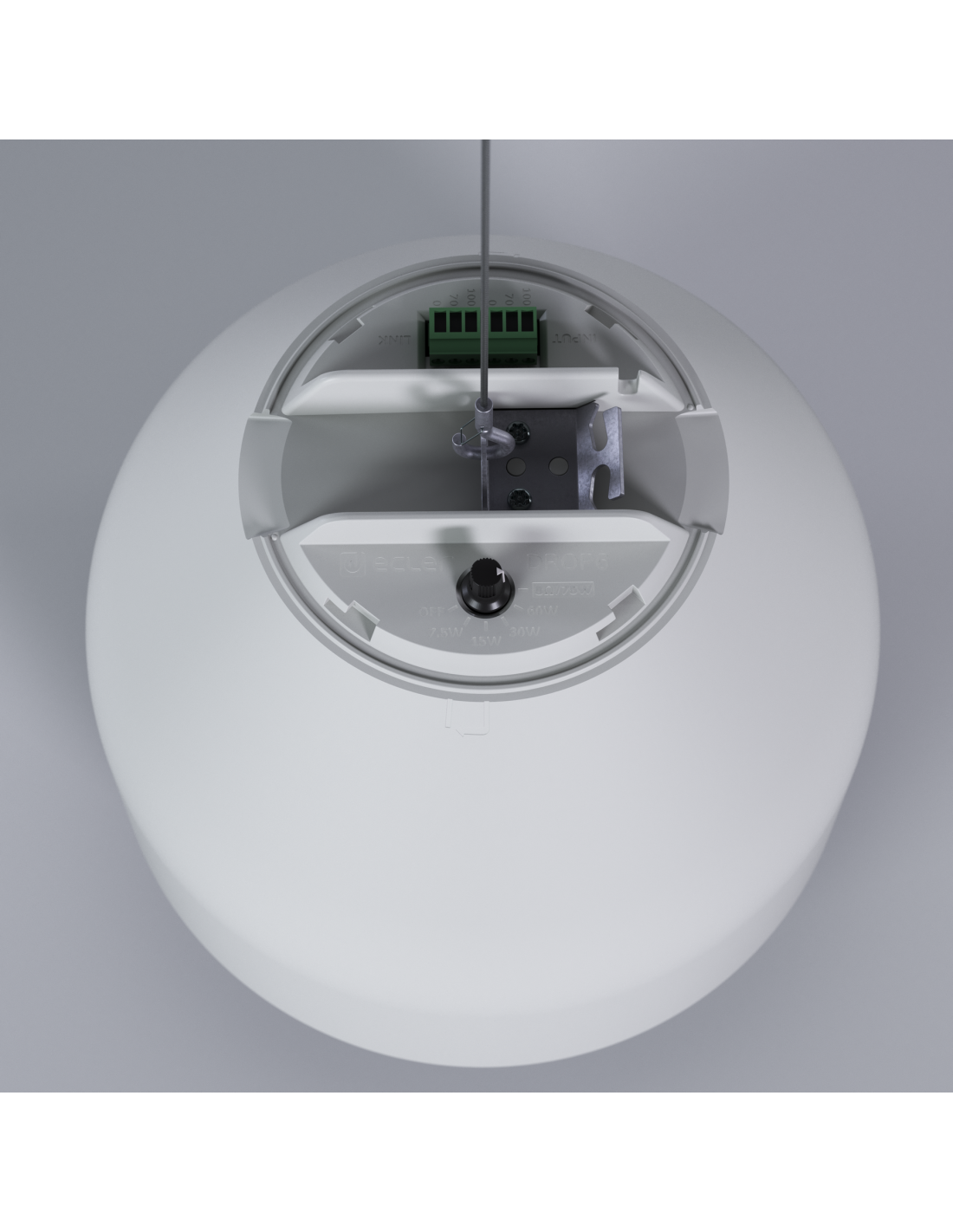

- Power type selector
- Back panel tap rotary selector
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70Hz -20KHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
135° Conical |
| Power handling |
75W RMS / 300W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
109 dB continuous / 115 dB peak |
| Recommended amplifier power |
150W RMS |
| Power options (Hi Z Multi-tap) |
70V/100V: 7.5W - 15W - 30W - 60W / 75W@8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
6.5" woofer |
| High frequency driver |
1" silk dome tweeter |
| Nominal impedance |
8Ω |
| Driver |
6.5" Woofer + 1" Tweeter |
FILTERS
| Crossover filter |
1,65 kHz |
|---|
PHYSICAL
| Connection type |
Double INPUT/LINK connector, Euroblock type |
|---|---|
| Installation options |
Pendant |
| Environmental |
IP53 rated |
| Enclosure material |
ABS reinforced with fibreglass |
| Grille material |
Aluminium |
| Grille fixing system |
Bayonet mount system |
| Flying points |
2 x Steel wire hanging points |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
2 x Steel Wire for hanging (5 m), 2 x 3C Euroblock connector |
| Finished colour |
White (RAL9003) or Black (RAL9005) |
| Dimensions |
270mm x 344mm / 10.63 in. x 13.54 in. (Ø xH) |
| Weight |
4.2 kg / 9.26 lb |
| Pieces per box |
1 |
| Shipping dimensions |
380 x 325 x 370mm / 14.96 x 12.80 x 15.57 in. (WxHxD) |
| Shipping weight |
5.5 Kg / 12.13 lbs |
| Mounting system |
Steel wire hanging |
| Power type selector |
Back panel tap rotary selector |
