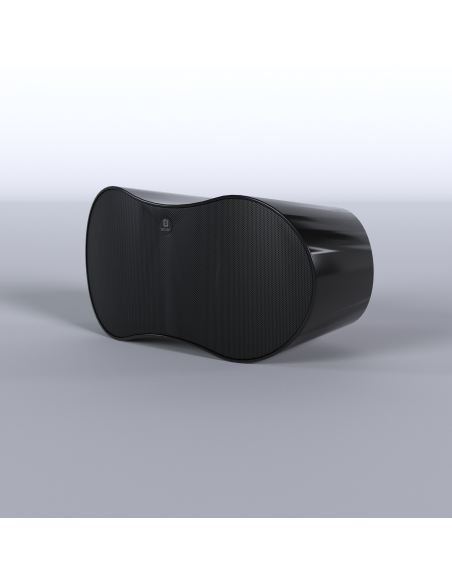

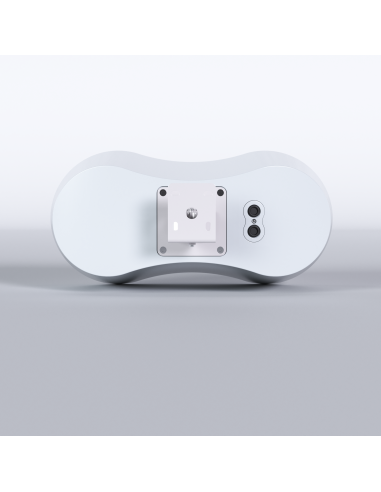

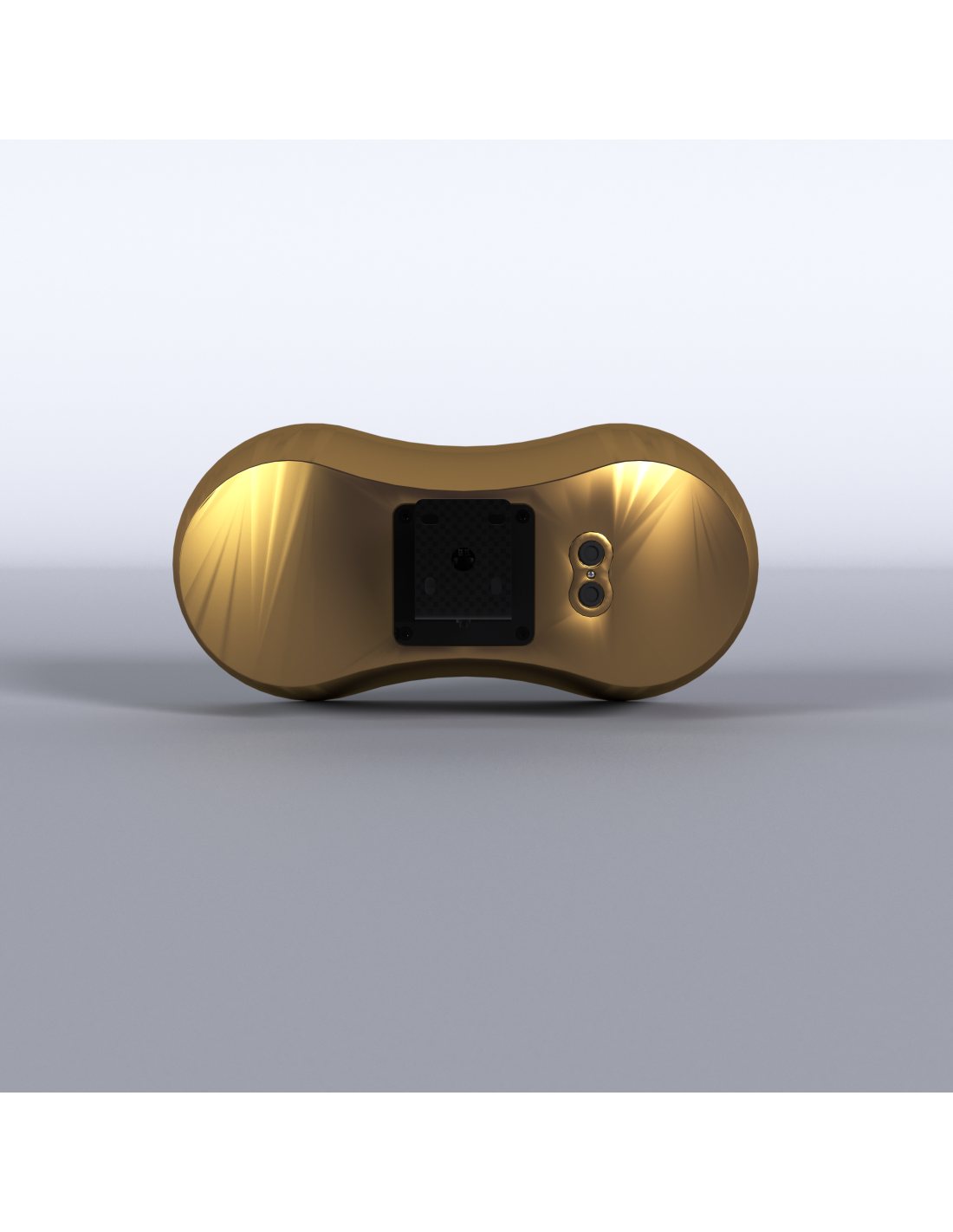

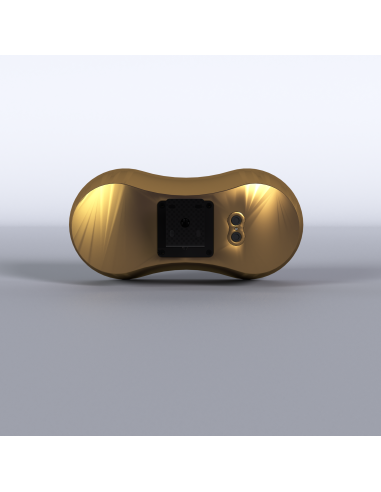

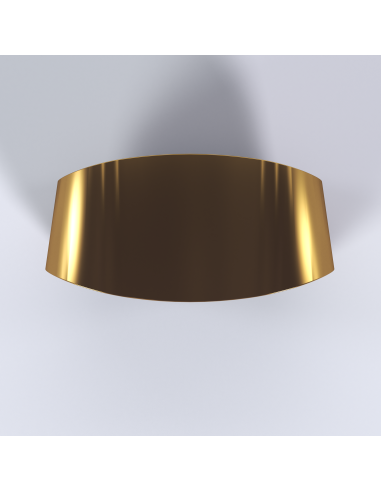

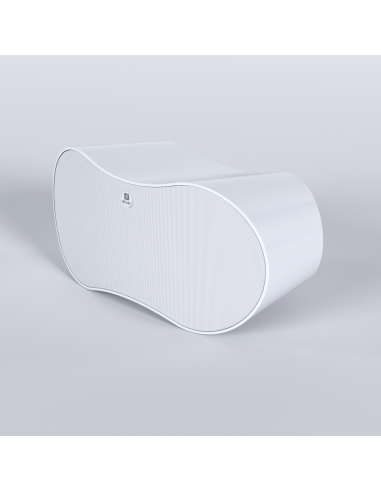

NIMBO-26 GD
CNIMBO26GD
Check availability

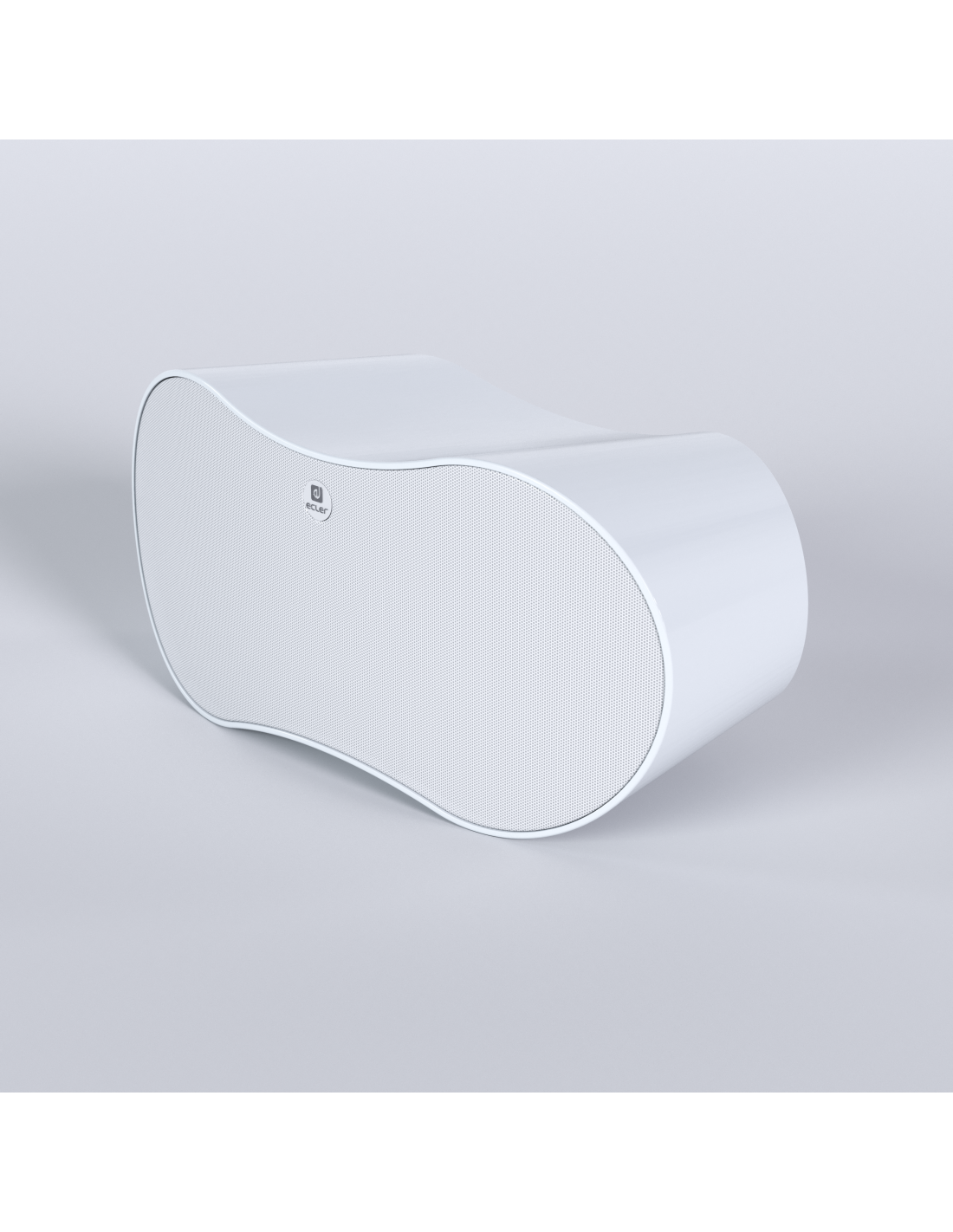

Top performance cabinet loudspeaker

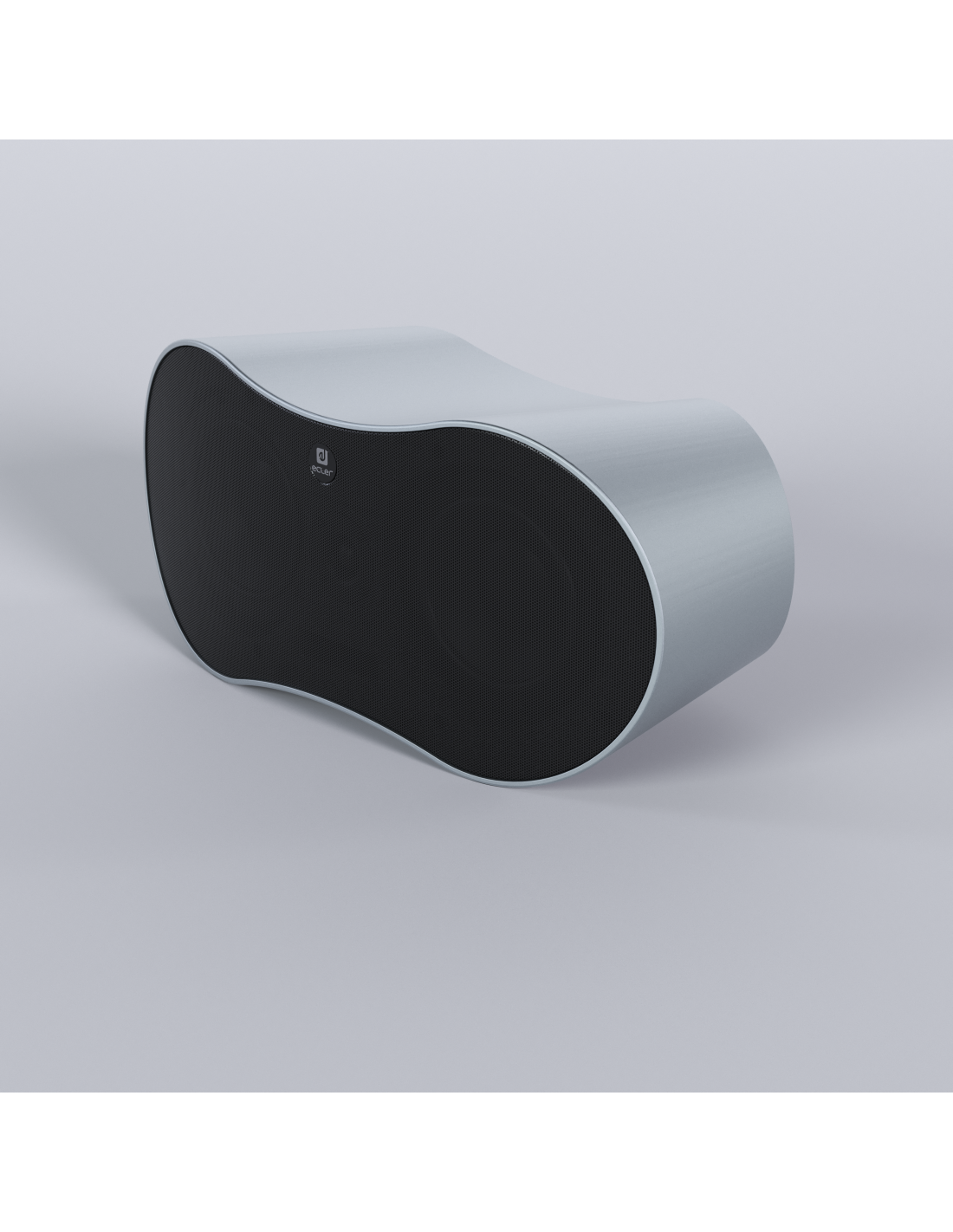

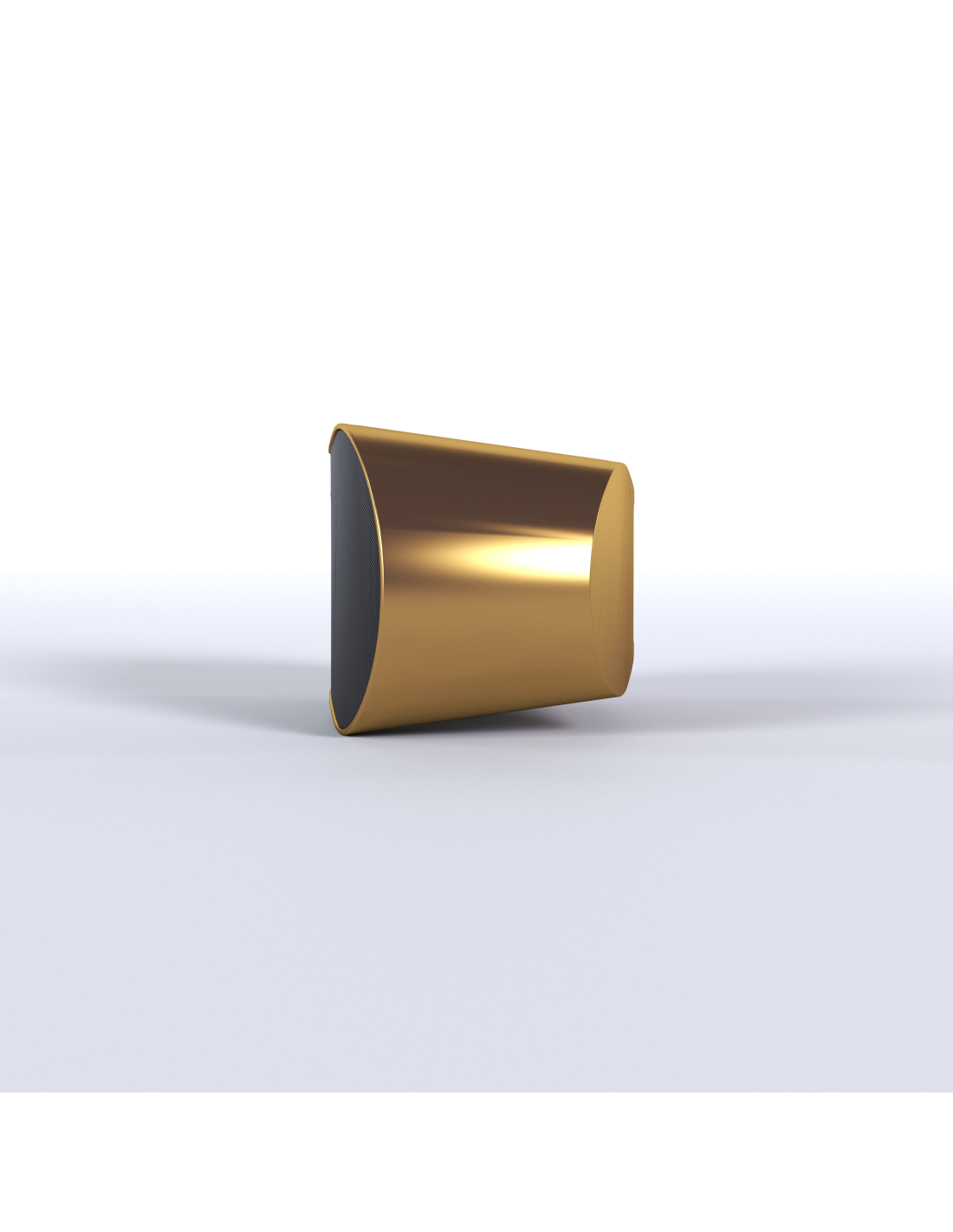

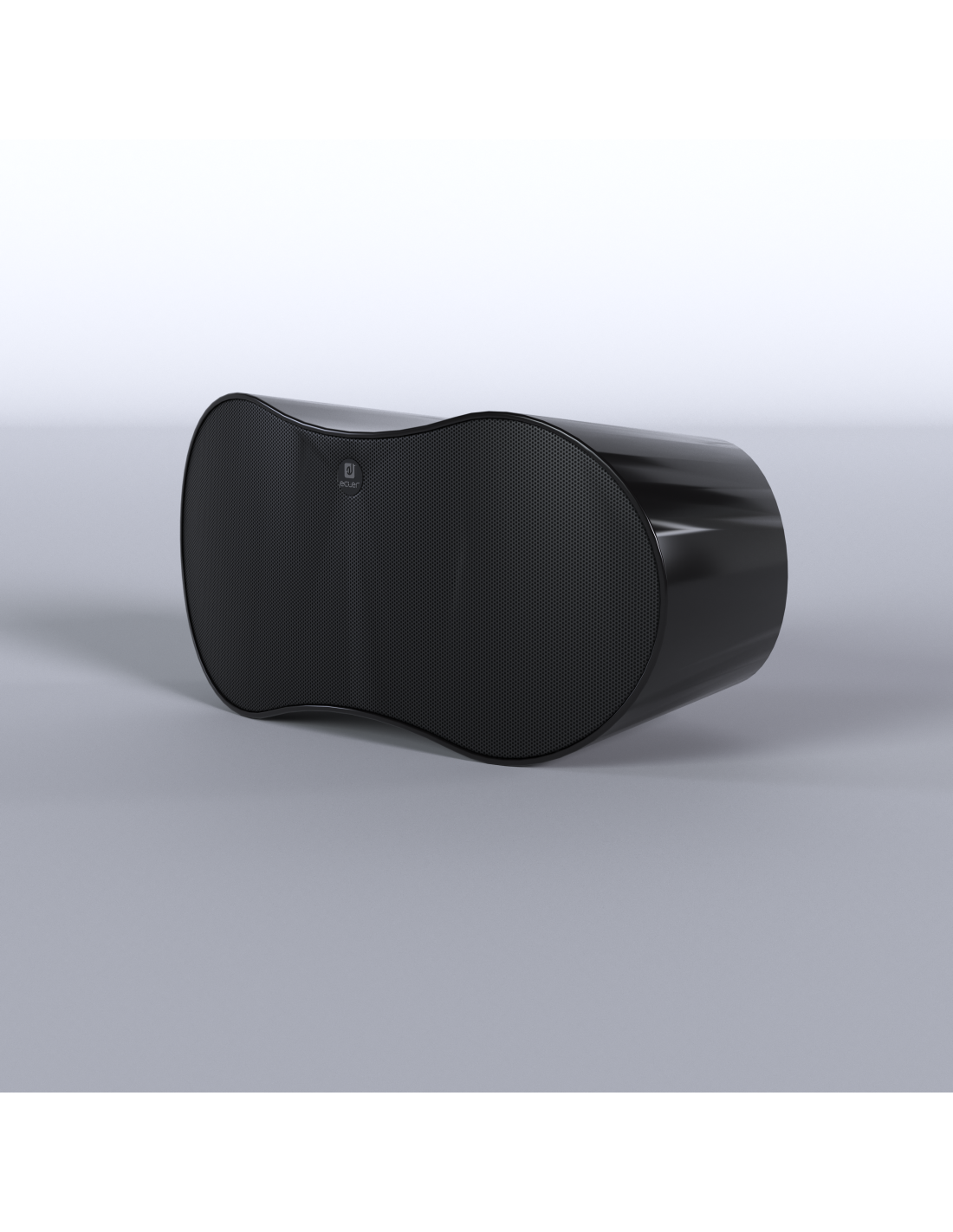

NIMBO-26 is a premium performance 2-way passive loudspeaker with 140W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers.
Including 2 x 6.5" woofers and a 1" silk tweeter located in the acoustic centre, acting as a single point source to disperse the sound evenly.

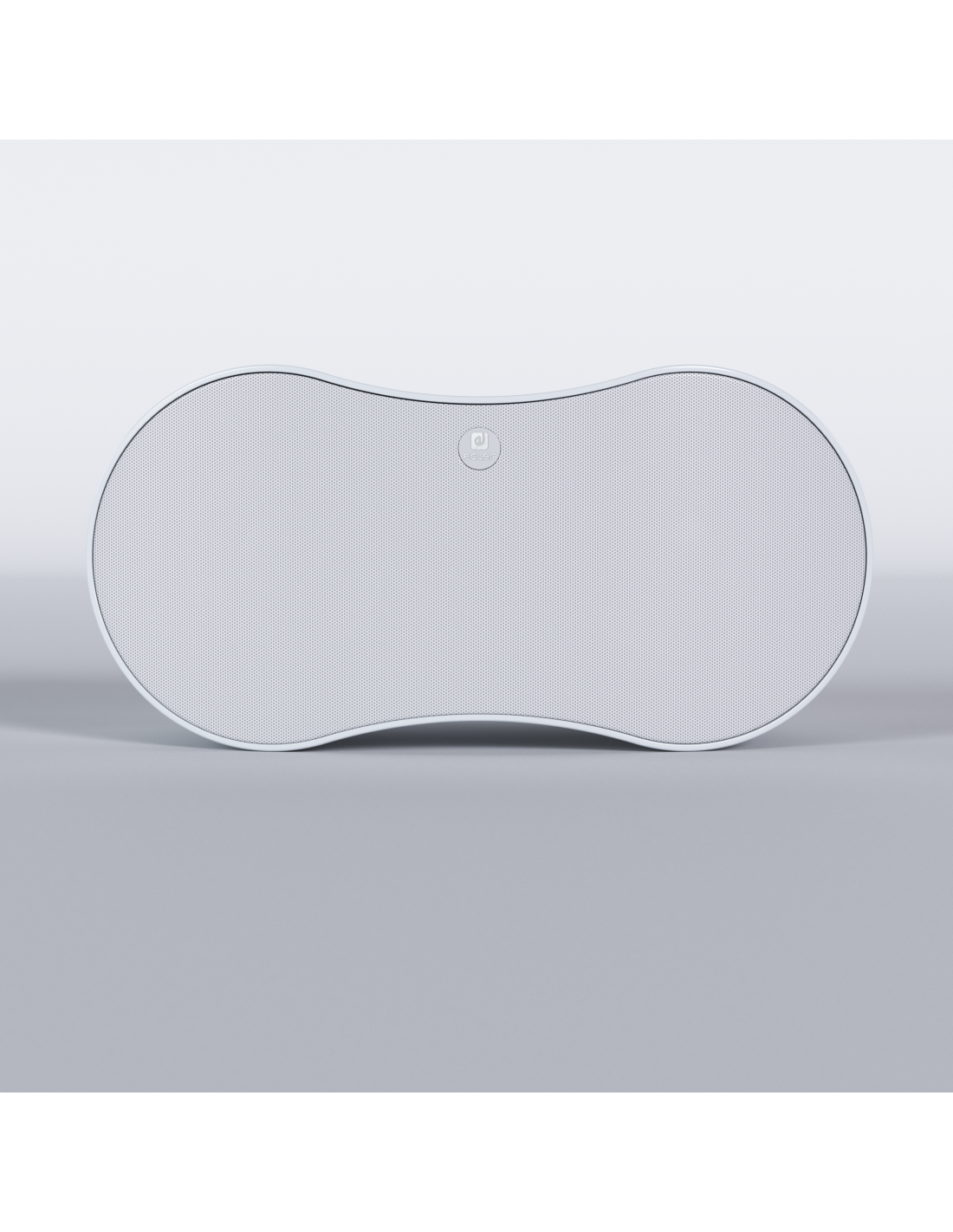

The nominal impedance of the speaker can be selected to 4 ohm or 16 ohm thanks to the front switch located behind the logo, which allows to modify its impedance without removing the aluminium front grille.

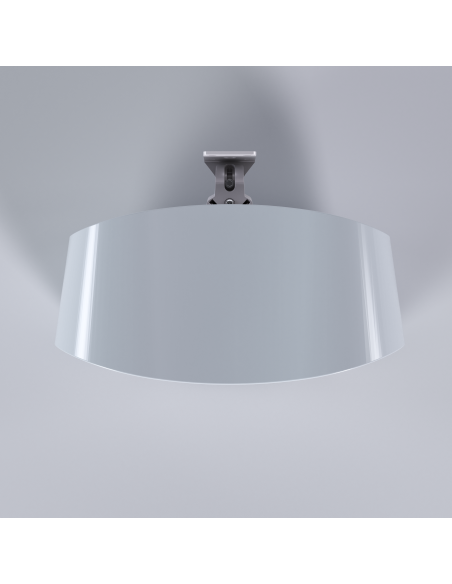

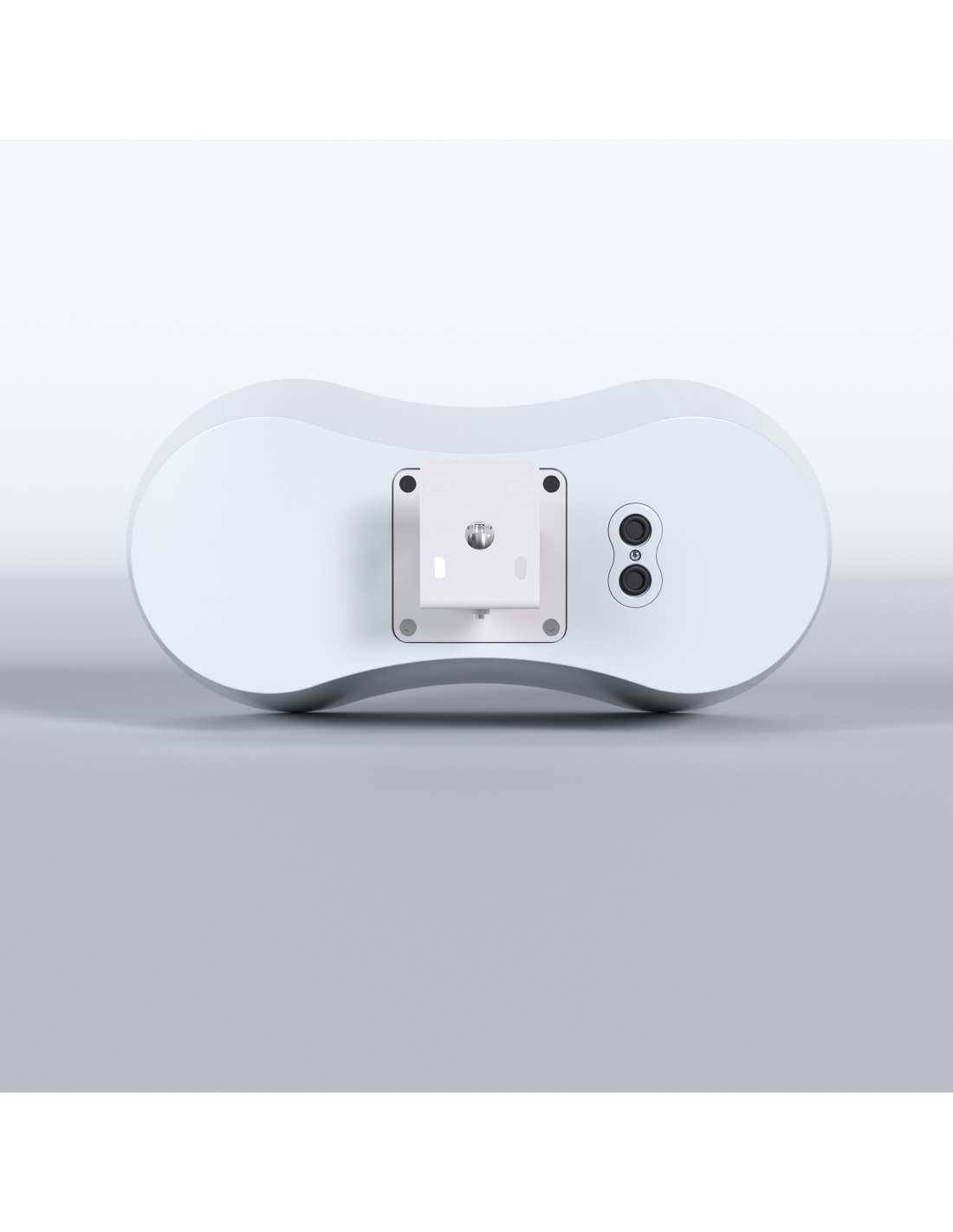

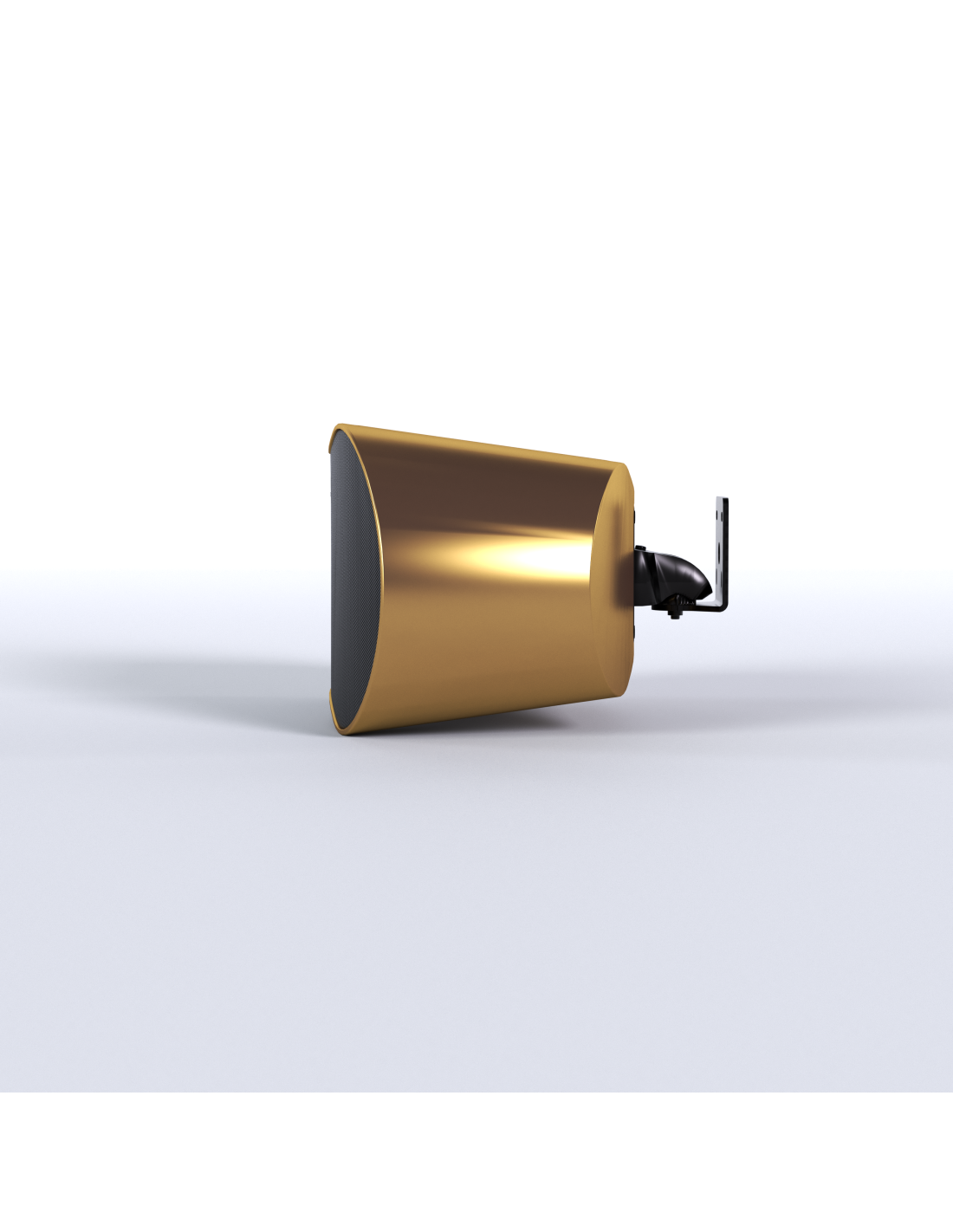

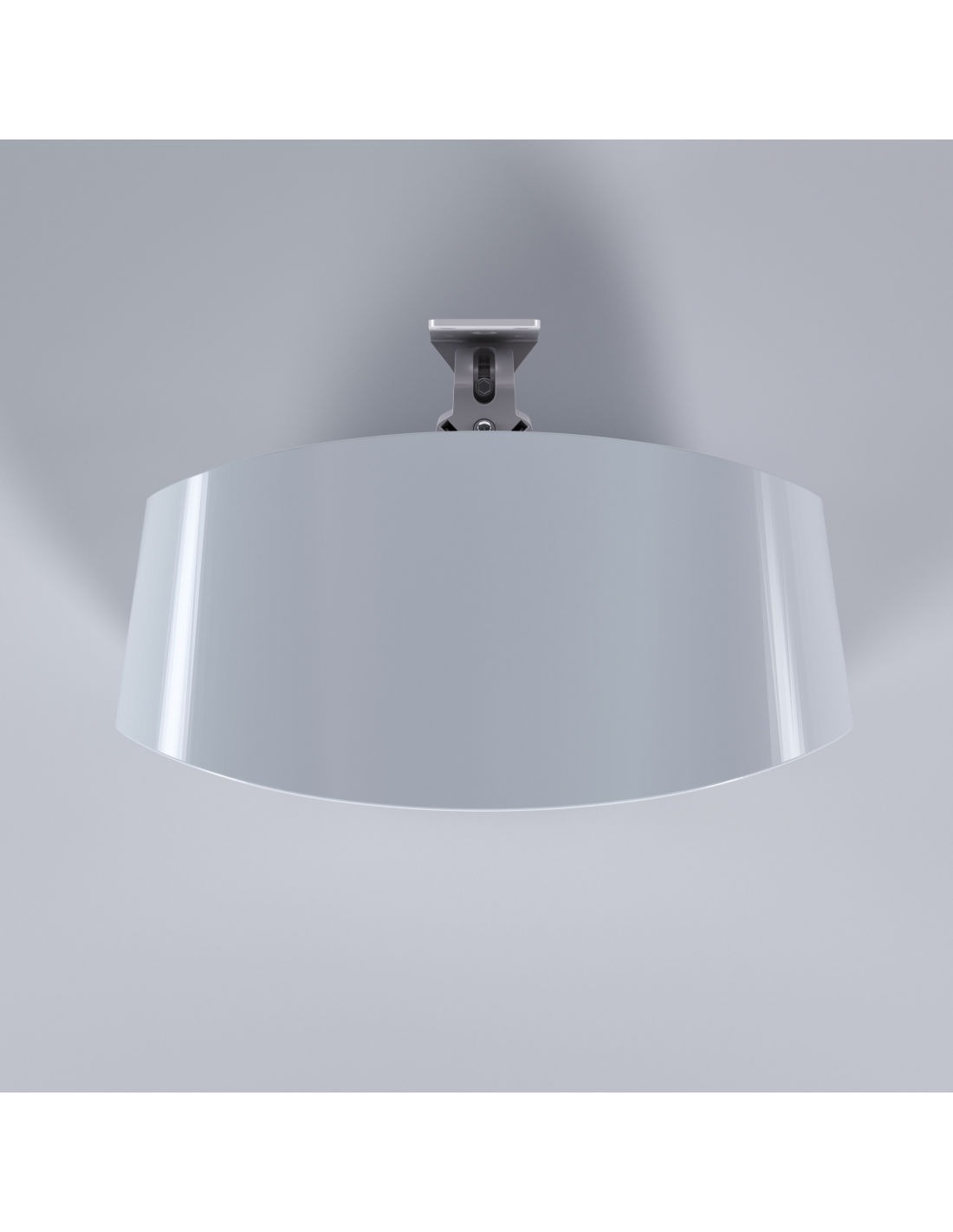

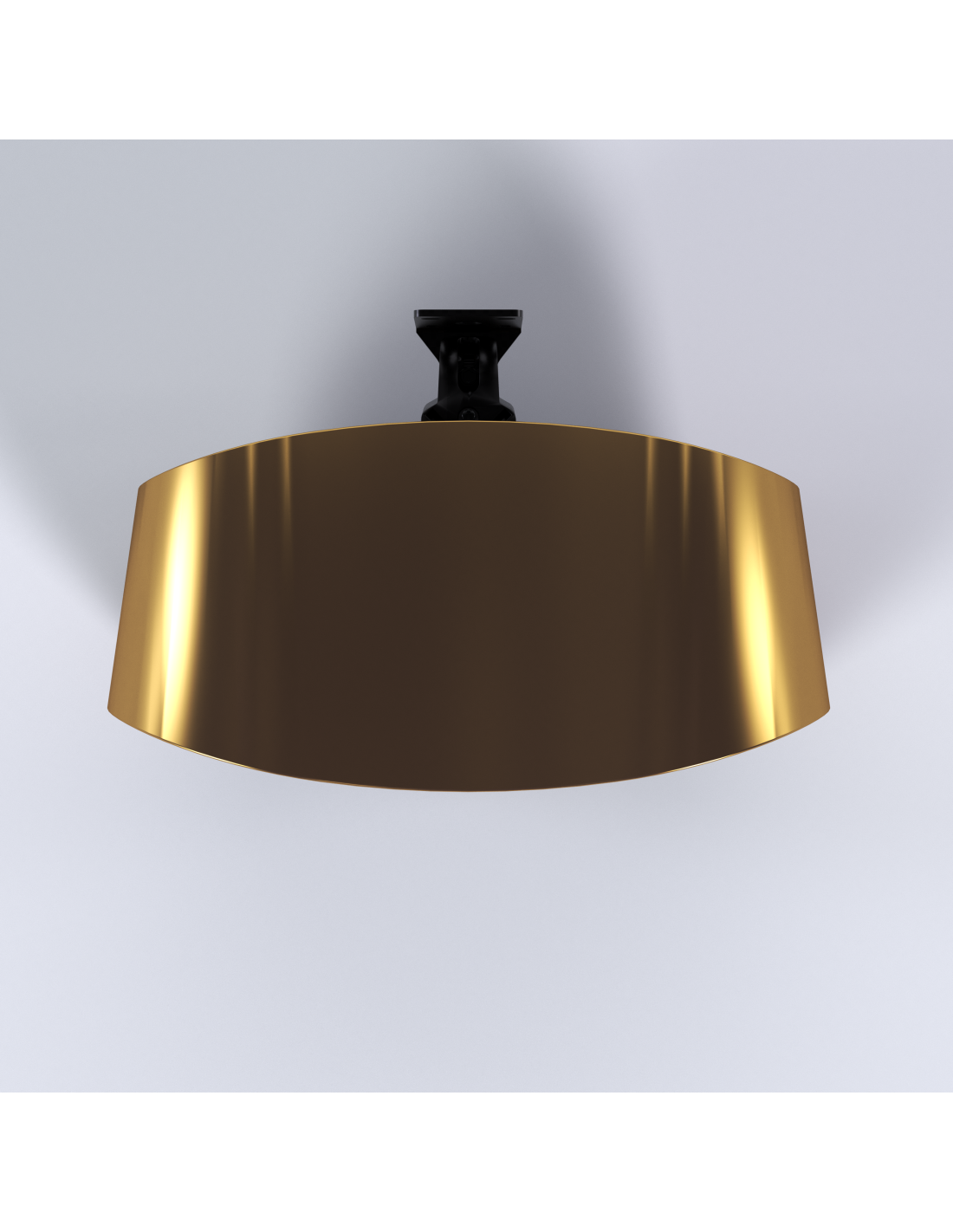

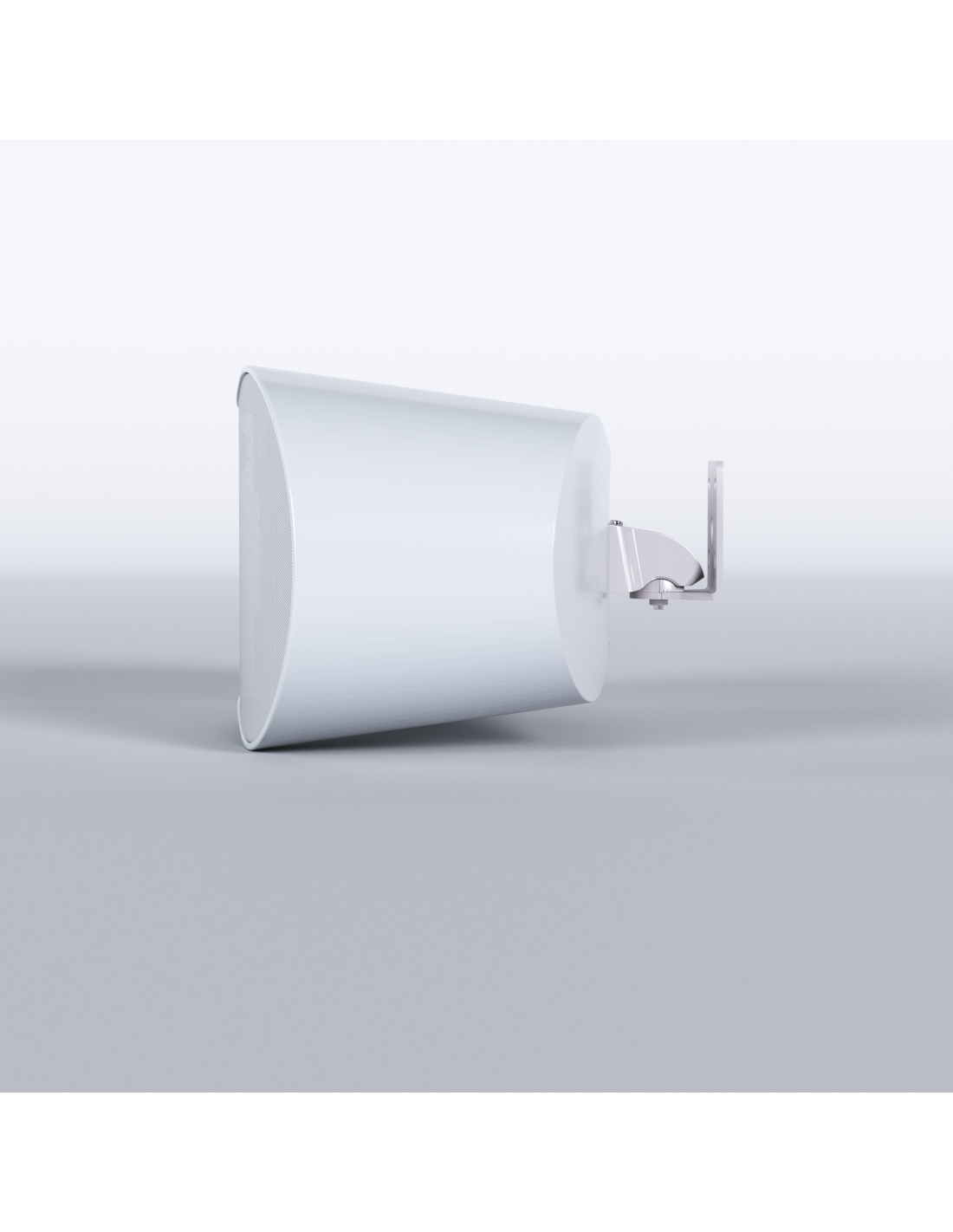

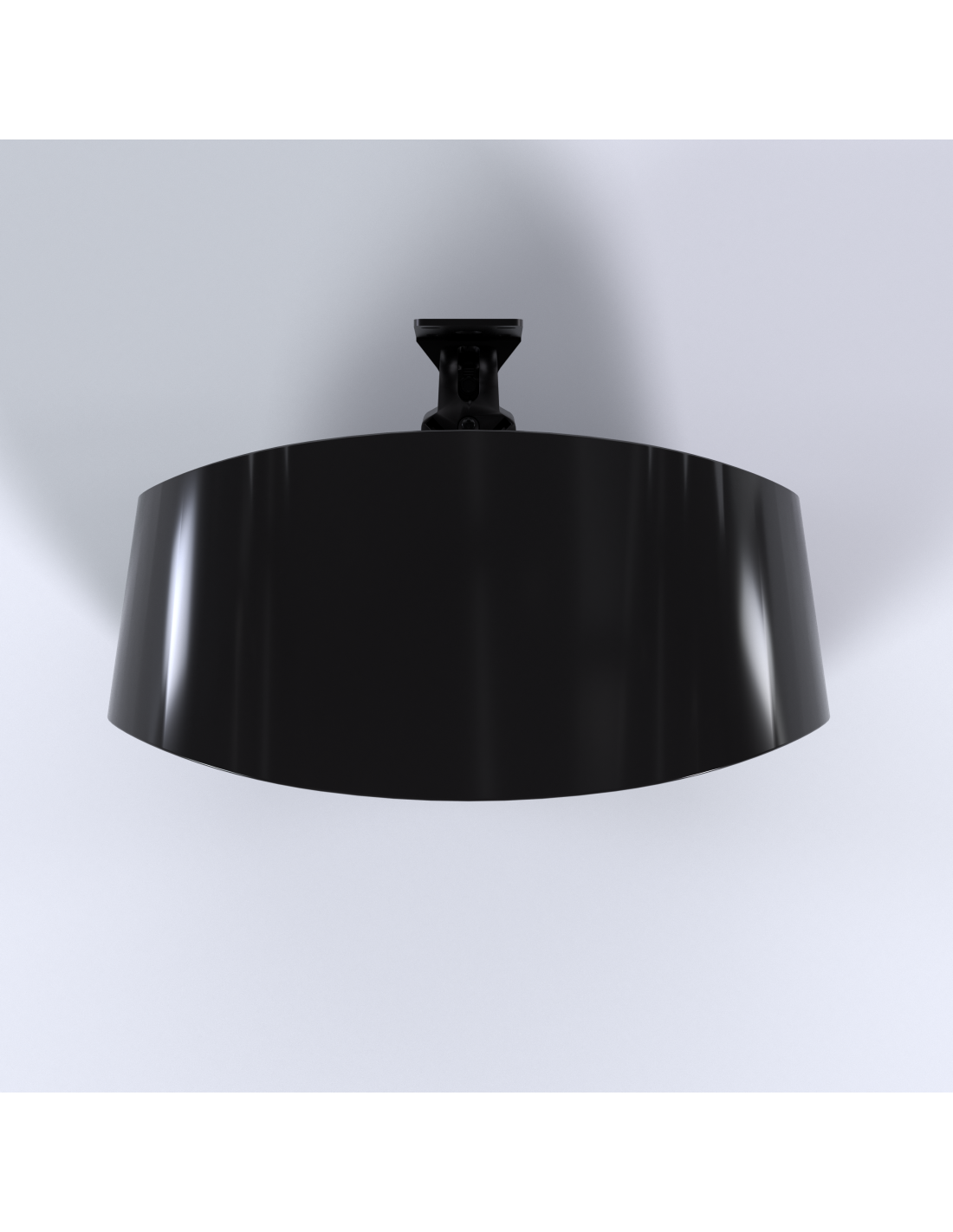

It includes the robust VEASY wall bracket, allowing tilt and pan adjustment using a single screw.
- Effective Freq. Range
- 60Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 210° x 228° (HxV)
- Power handling
- 140W RMS / 560 W Peak
- Sensitivity
- 92 dB (1W/1m)
- Maximum SPL
- 113 dB continuous / 119 dB peak
- Recommended amplifier power
- 280W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 2 x 6.5" Woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 4Ω / 16Ω
- Crossover filter
- 1,65 kHz

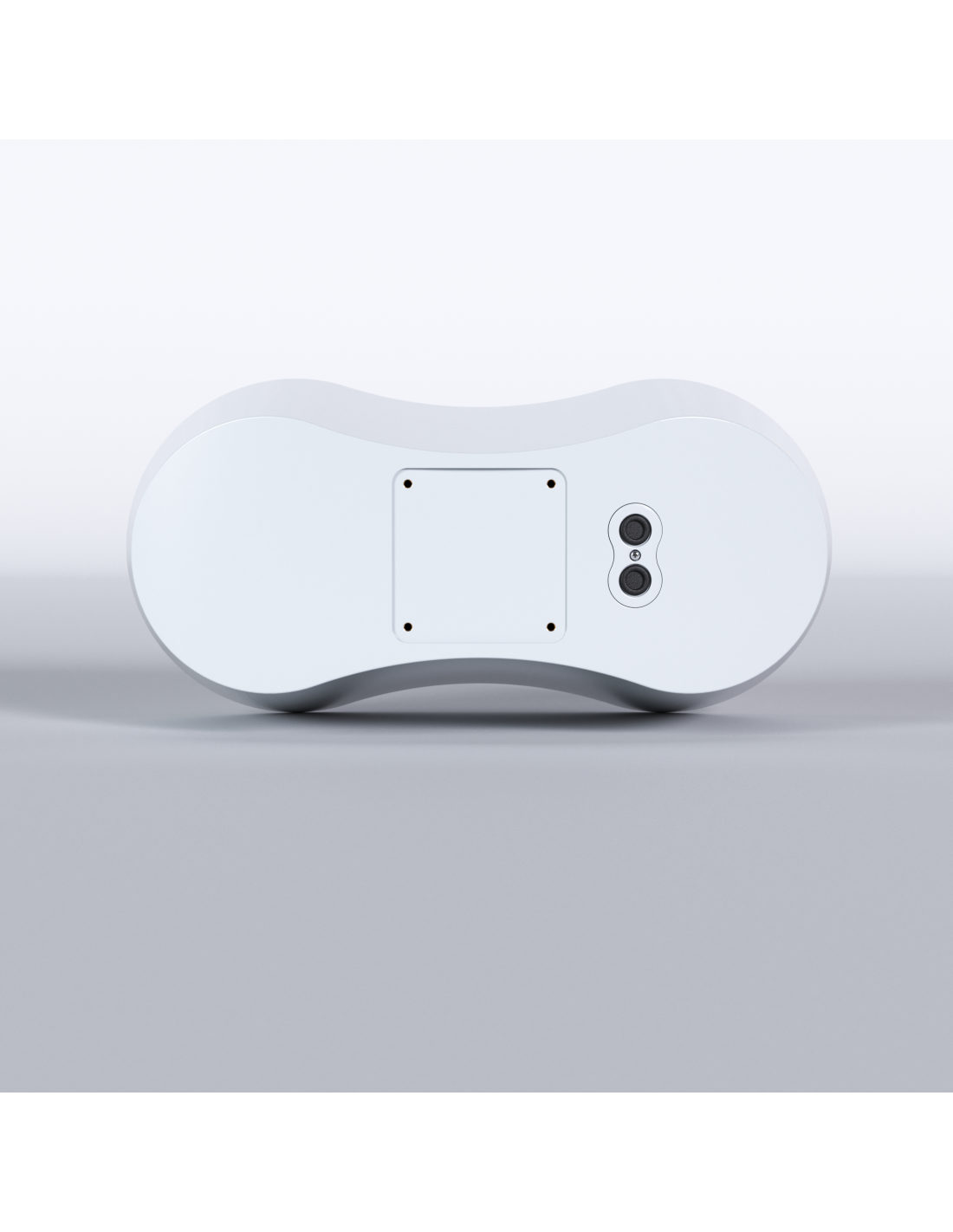

- Connection type
- Double INPUT/LINK connector, Euroblock type
- Installation options
- Surface / Wall mounting
- Environmental
- IP44
- Enclosure material
- ABS reinforced with fibreglass
- Grille material
- Aluminium
- Grille fixing system
- Pressure mount system
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- Wall-mount bracket, 2x Euroblock connector
- Finished colour

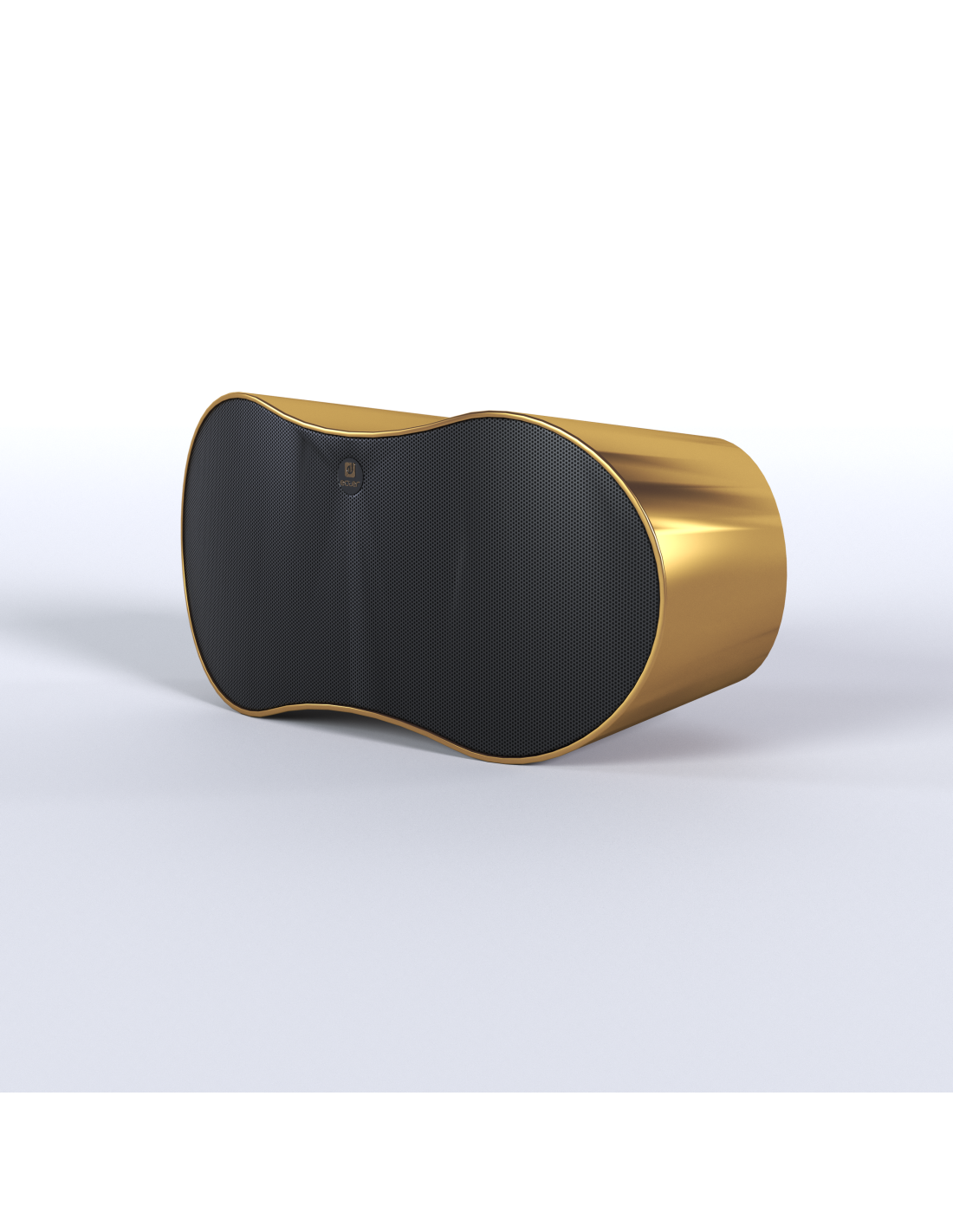

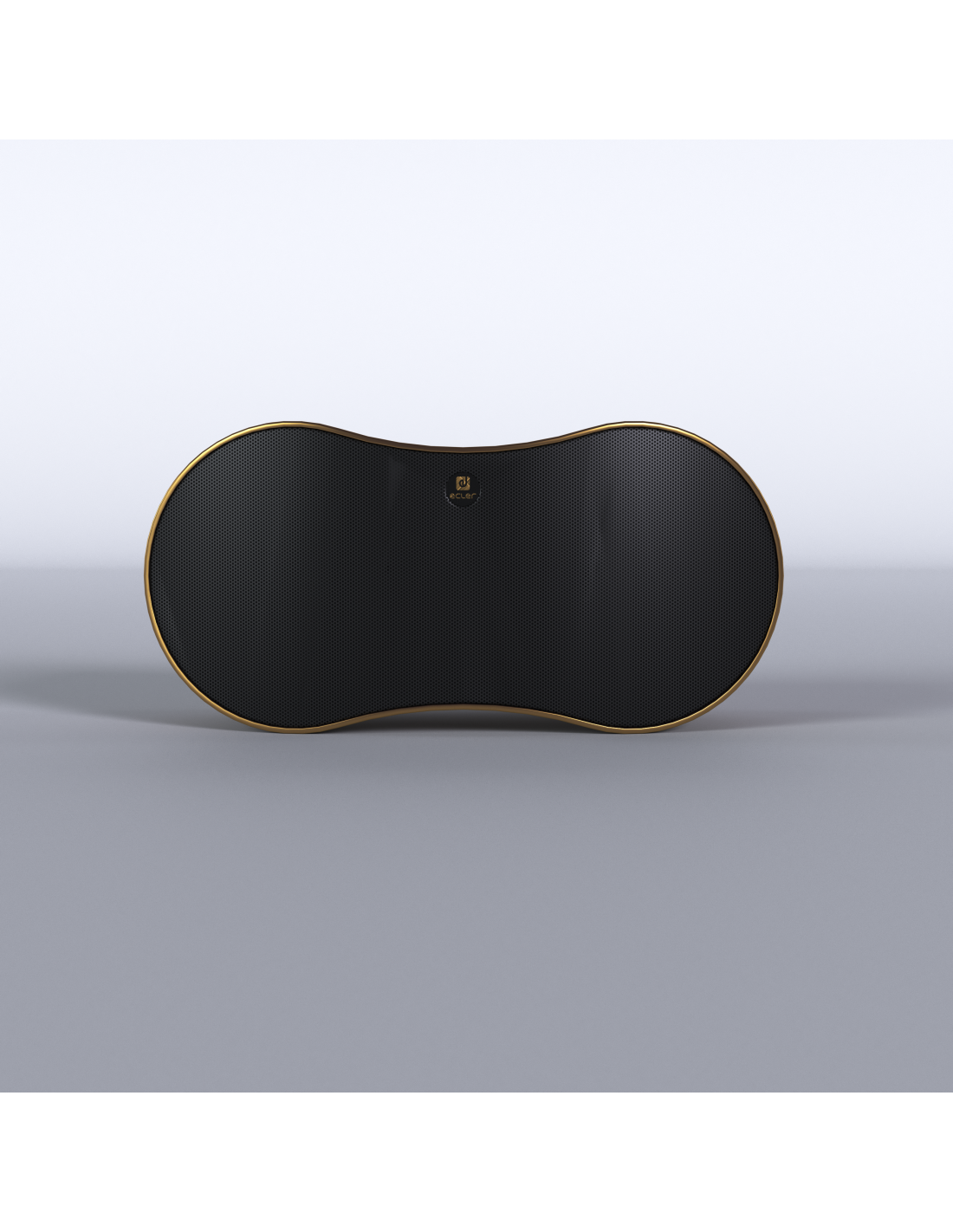

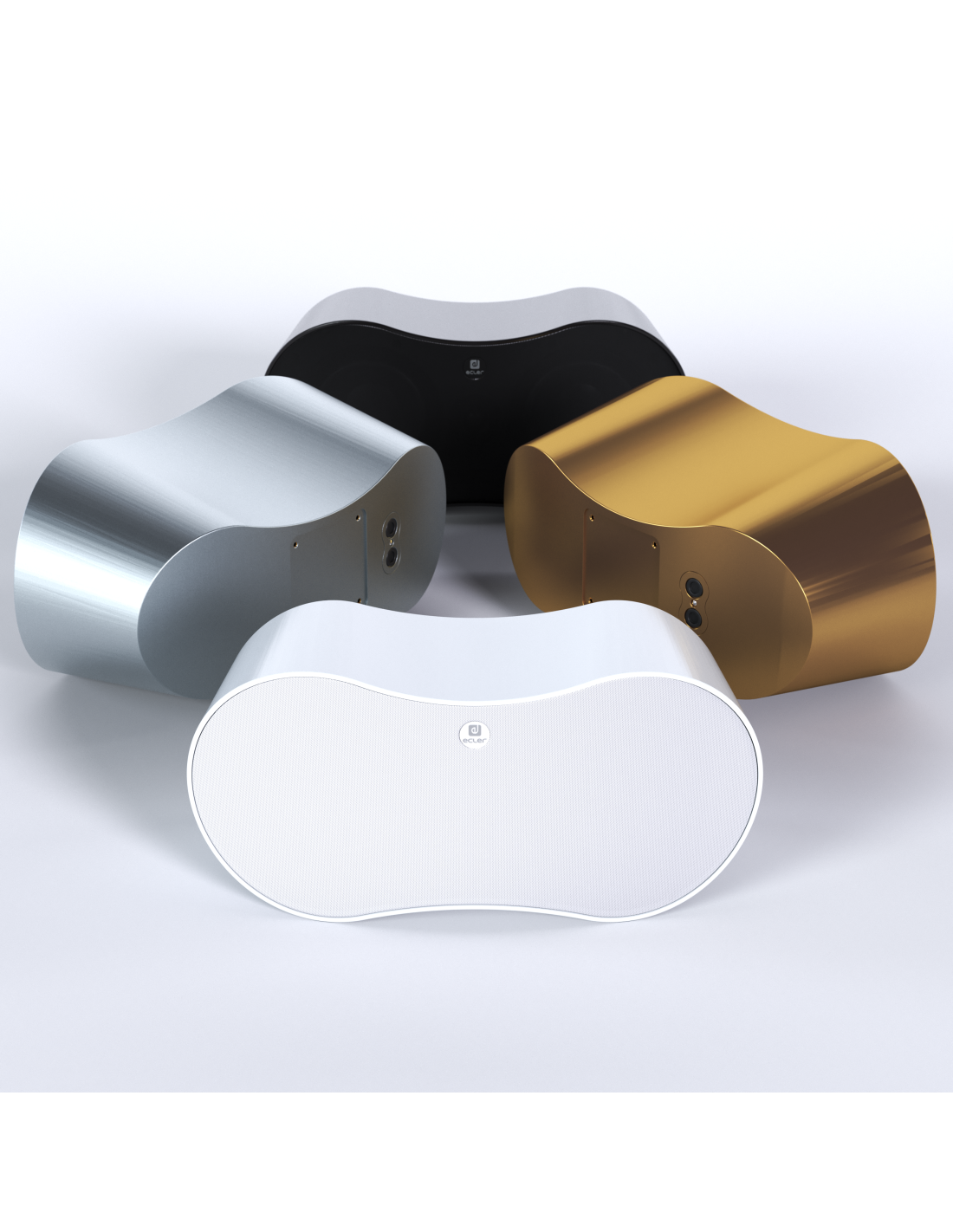

- White (RAL9003), Black (RAL9005), Gold (RAL1036, approx.) or Titanium (RAL9007 MATT).
- Dimensions
- 542.5 x 261 x 269 mm / 21.36 x 10.28 x 10.59 in. (WxHxD)
- Weight
- 8.5 kg / 18.74 lb
- Shipping dimensions
- 640 x 445 x 390 mm / 25.20 x 17.52 x 15.35 in. (WxHxD)
- Shipping weight
- 12.6 Kg / 27.78 lb
- Mounting system
- Stainless steel VEASY bracket
- Power type selector
- Front selection by toggle switch
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
60Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
210° x 228° (HxV) |
| Power handling |
140W RMS / 560 W Peak |
| Sensitivity |
92 dB (1W/1m) |
| Maximum SPL |
113 dB continuous / 119 dB peak |
| Recommended amplifier power |
280W RMS |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
2 x 6.5" Woofer |
| High frequency driver |
1" silk dome tweeter |
| Nominal impedance |
4Ω / 16Ω |
FILTERS
| Crossover filter |
1,65 kHz |
|---|
PHYSICAL
| Connection type |
Double INPUT/LINK connector, Euroblock type |
|---|---|
| Installation options |
Surface / Wall mounting |
| Environmental |
IP44 |
| Enclosure material |
ABS reinforced with fibreglass |
| Grille material |
Aluminium |
| Grille fixing system |
Pressure mount system |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Wall-mount bracket, 2x Euroblock connector |
| Finished colour |
White (RAL9003), Black (RAL9005), Gold (RAL1036, approx.) or Titanium (RAL9007 MATT). |
| Dimensions |
542.5 x 261 x 269 mm / 21.36 x 10.28 x 10.59 in. (WxHxD) |
| Weight |
8.5 kg / 18.74 lb |
| Shipping dimensions |
640 x 445 x 390 mm / 25.20 x 17.52 x 15.35 in. (WxHxD) |
| Shipping weight |
12.6 Kg / 27.78 lb |
| Mounting system |
Stainless steel VEASY bracket |
| Power type selector |
Front selection by toggle switch |
