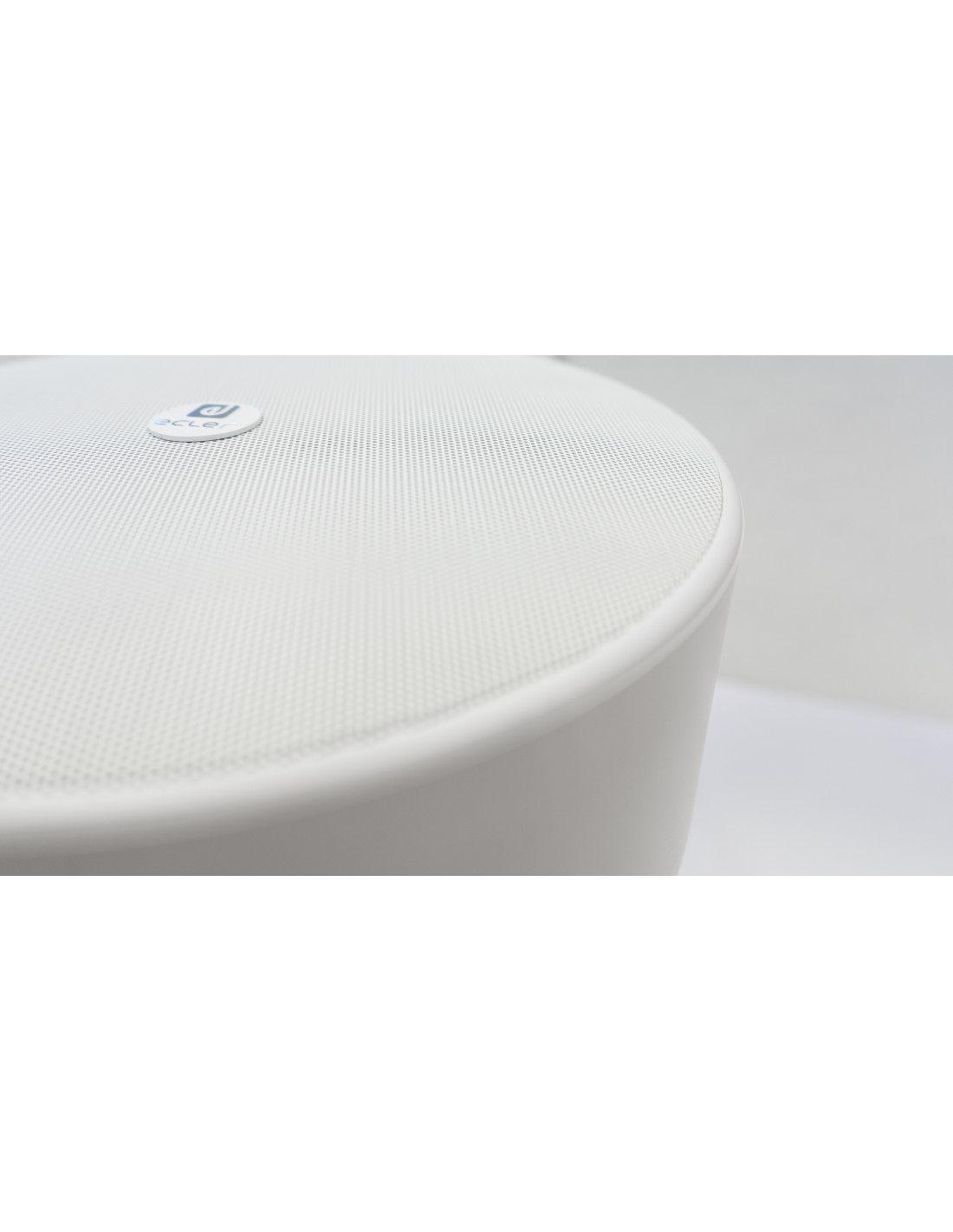

DROP6 WH
CDROP6WH
Check availability
6" | 2-way | 75 WRMS | ABS reinforced

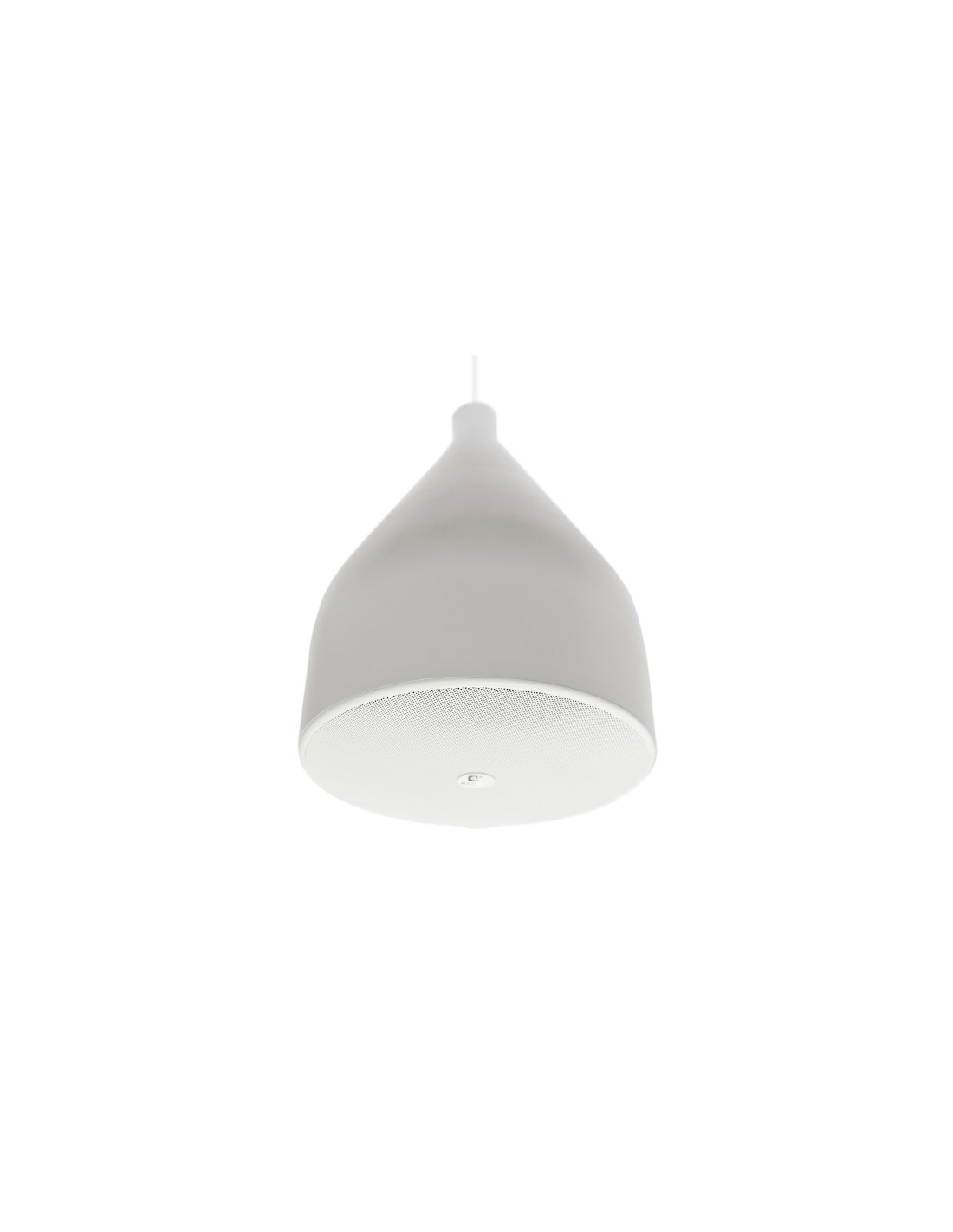

DROP6 is a 6.5" 75W @ 8Ω 2-way pendant loudspeaker with a sleek design, featuring a 70/100V line transformer with 60/30/15 and 7.5W power selections, available in high and low impedance levels.
- Effective Freq. Range
- 90 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 112° Conical
- Power handling
- 75 W RMS / 300 W Peak
- Sensitivity
- 88 dB (1W/1m)
- Maximum SPL
- 107 dB continuous / 113 dB peak
- Recommended amplifier power
- 150 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 6.5" woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 8Ω
- Crossover filter
- 1,65 kHz

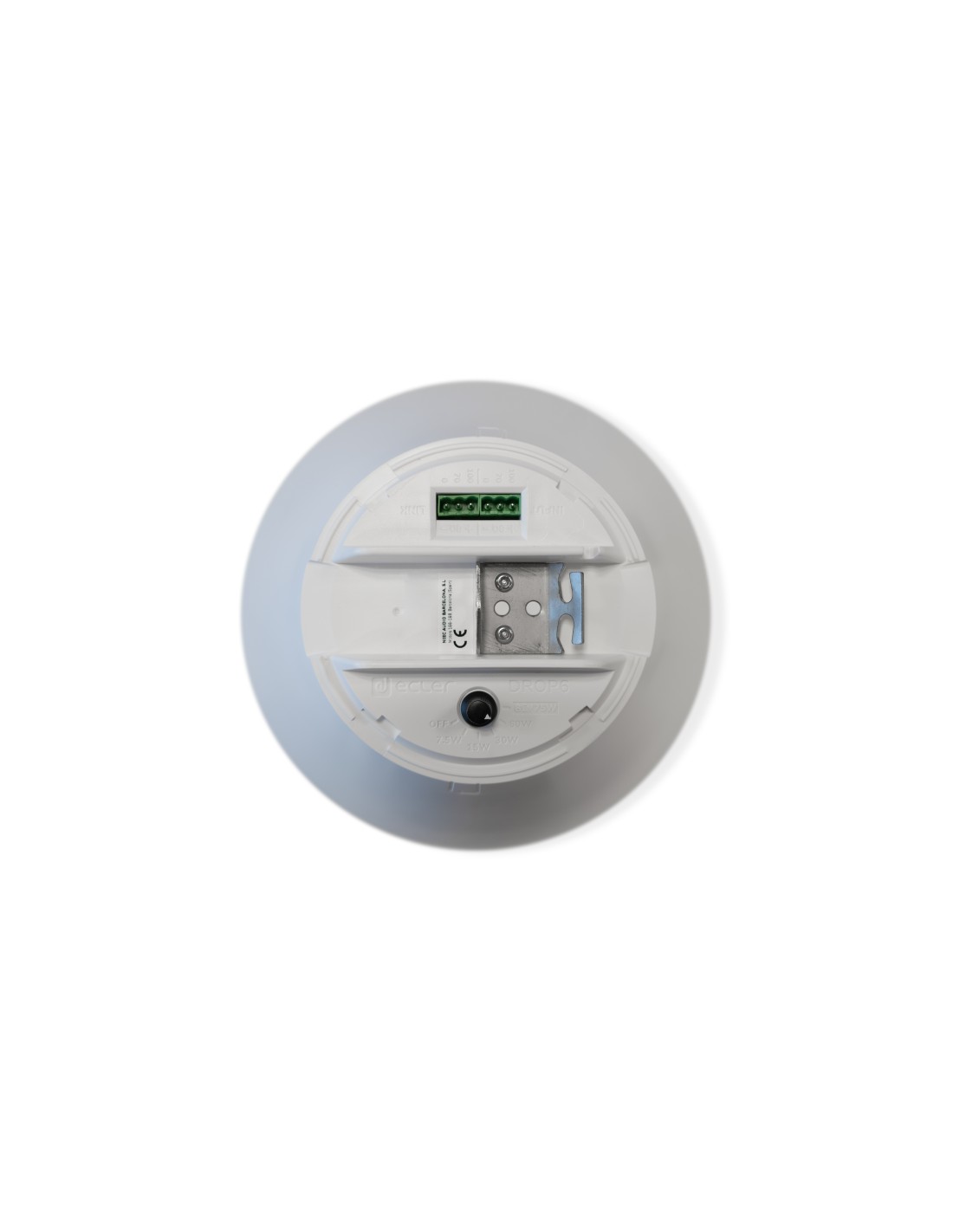

- Connection type
- Double INPUT/LINK connector, Euroblock type
- Installation options
- Pendant
- Environmental
- IP53 rated
- Enclosure material
- ABS reinforced with fibreglass
- Grille material
- Aluminium
- Grille fixing system
- Bayonet mount system
- Flying points
- 2 x Steel wire hanging points
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
Min: 0°C ; 32°F
Max: 35°C ; 95°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories
- 2 x Steel Wire for hanging 5 mts, 2 x 3C Euroblock connector
- Finished colour
- White (RAL9003) or Black (RAL9005)
- Dimensions
- 270 x 355mm / 10.6" x 14" (ØxH)
- Weight
- 4.2 kg / 9.26 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 380 x 325 x 370 mm / 14.9 x 12.8 x 15.5 in. (WxHxD)
- Shipping weight
- 5.5 kg / 12.12 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071314831
WH: 8435071314848 - Tariff code
- 8518210000
- Shipping Location
- Spain
- Width (cm)
- 37.00
- Height (cm)
- 37.00
- Depth (cm)
- 31.00
- Vol. (dm3)
- 42.44
- Gross Weight (kg)
- 5.50
- Net Weight (kg)
- 4.30
- Format
- Unit
- Warranty (months)
- 36 month
- Mounting system
- Steel wire hanging
- Power options (Hi Z Multi-tap)
- 70V/100V: 60W / 30W / 15W / 7.5W / 75W@8Ω
- Power type selector
- Back panel tap rotary selector
