ARQIS110i BK
CARQIS110IB
Available
10" | 2-way | 300 WRMS | wooden made

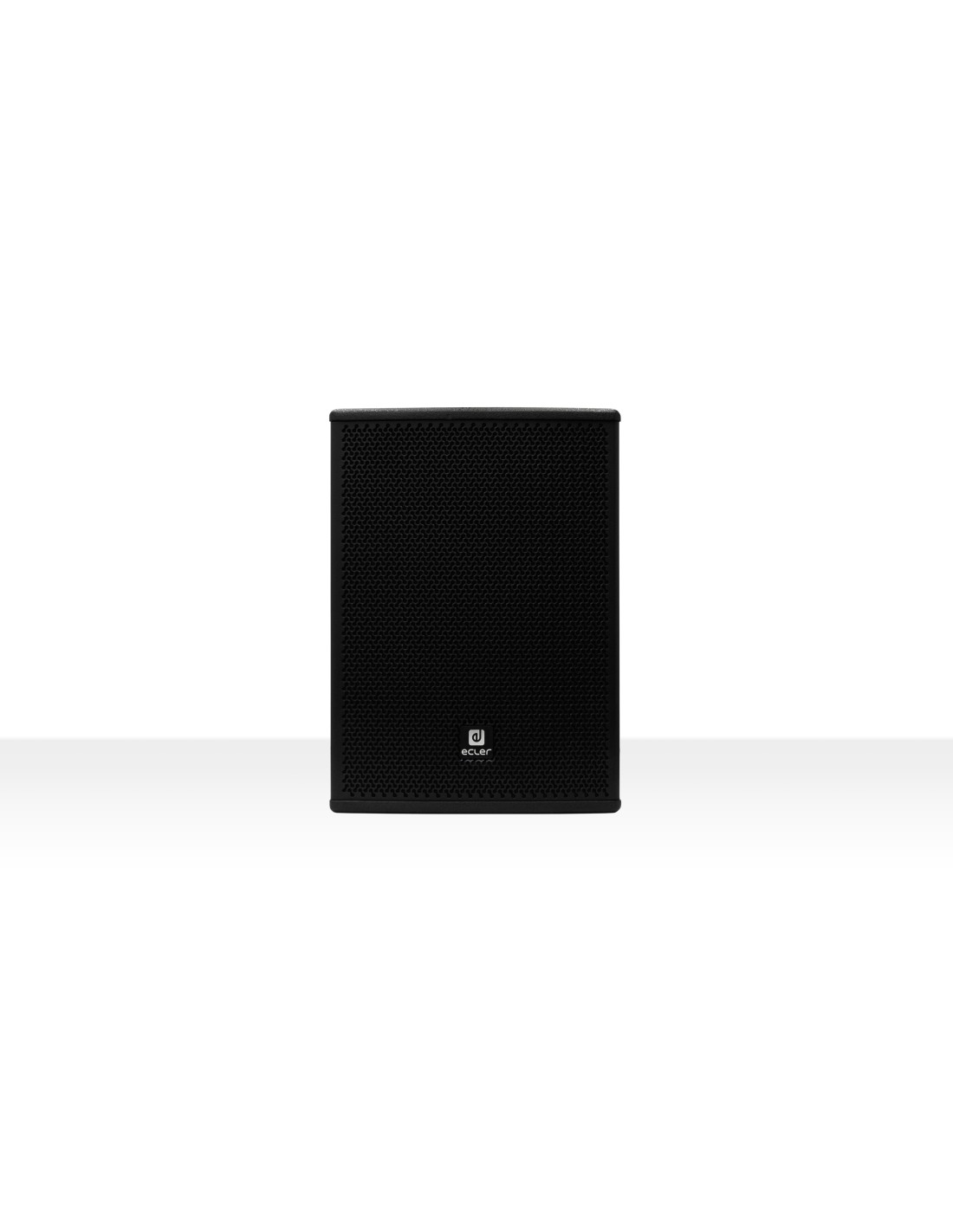

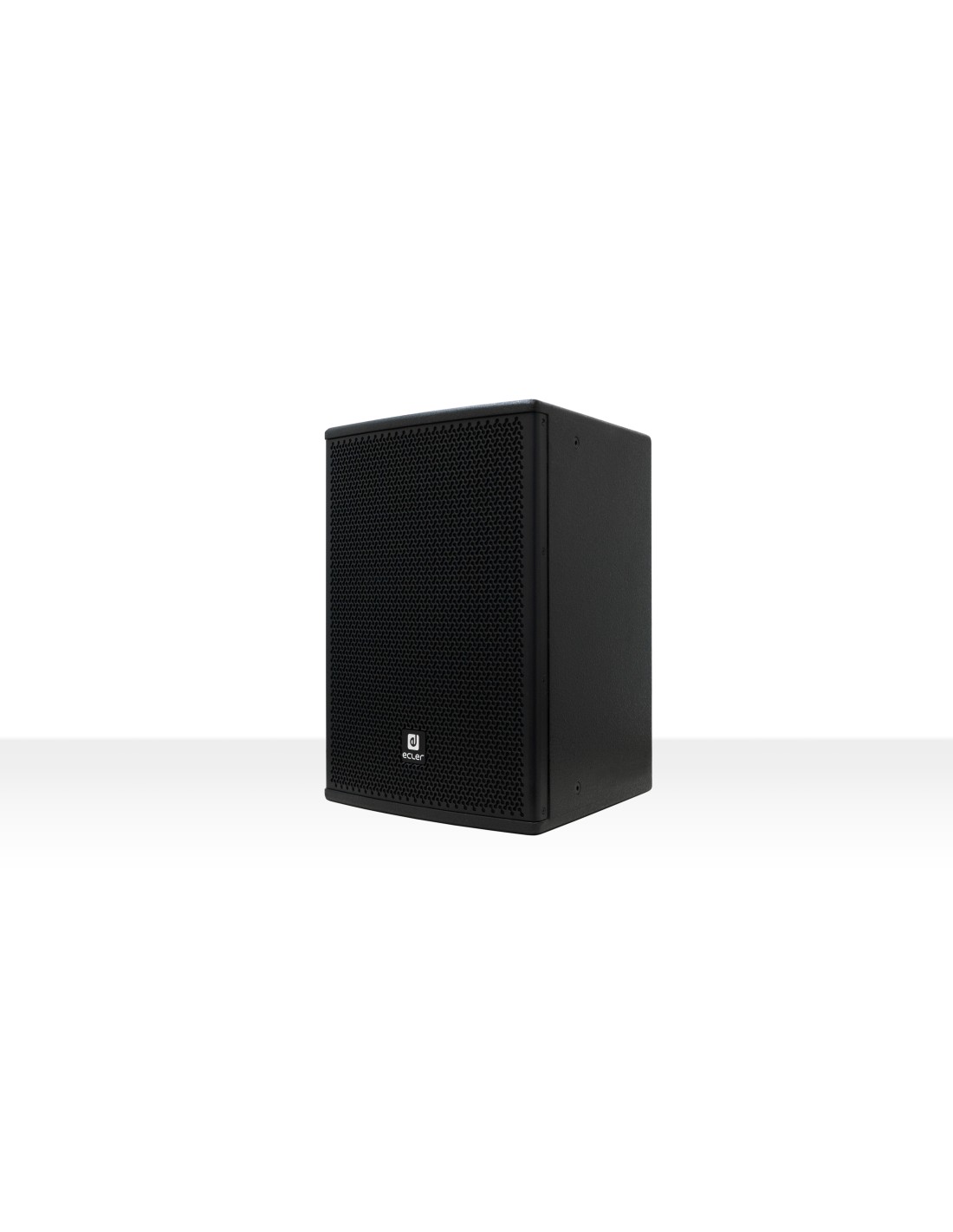

ARQIS110i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 300 WRMS @ 8Ω, 10" woofer and 1,7" HF Compression Driver. 35 mm mount socket and 8 x M8 rigging points, allowing for horizontal or vertical mounting options.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 70 Hz-19 kHz (-10dB)
- Coverage angle / Dispersion
- 110°x110° (HxV)
- Power handling
- 300 W RMS / 1200 W Peak
- Sensitivity
- 94 dB (1W/1m)
- Maximum SPL
- 119 dB continuous / 125 dB peak
- Recommended amplifier power
- 600 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 10" woofer
- High frequency driver
- 1,7" rotable compression driver
1,7" rotatable compression driver - Nominal impedance
- 8Ω
- Crossover filter
- 2,1 kHz
- Recommended High-Pass protection filter
- 60 Hz with minimum 12 dB / octave filter
- Connection type
- 1 x Euroblock & 1 x SPEAKON®
1 x Euroblock & 1 x Speakon® (+1, -1) - Installation options
- Surface, wall, desktop, 35mm mount socket
- Environmental
- IP31
- Enclosure material
- MDF
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Pan and tilt wall-mount
- TBC
- Flying points
- 12 x M8
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- 4 x Rubber feet, 4 x screws
- Optional accessories
- U-bracket wall-mount accessory compatible (ARQ110UB), 35 mm mount socket compatible with SR12 wall bracket & TRIPO1 floor stand
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 342.5 x 495 x 345 mm / 13.48 x 19.49 x 13.58 in. (WxHxD)
- Weight
- 18.5 kg / 40.78 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 580 x 460 x 460 mm / 22.83 x 18.11 x 18,11 in. (WxHxD)
- Shipping weight
- 21 kg / 46.29 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313520
WH: 8435071313537 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 46.00
- Height (cm)
- 46.00
- Depth (cm)
- 58.00
- Vol. (dm3)
- 122.73
- Gross Weight (kg)
- 21.00
- Net Weight (kg)
- 18.50
- Format
- Unit
- Warranty (months)
- 36 months
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70 Hz-19 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
110°x110° (HxV) |
| Power handling |
300 W RMS / 1200 W Peak |
| Sensitivity |
94 dB (1W/1m) |
| Maximum SPL |
119 dB continuous / 125 dB peak |
| Recommended amplifier power |
600 W RMS |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
10" woofer |
| High frequency driver |
1,7" rotable compression driver 1,7" rotatable compression driver |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
2,1 kHz |
|---|---|
| Recommended High-Pass protection filter |
60 Hz with minimum 12 dB / octave filter |
PHYSICAL

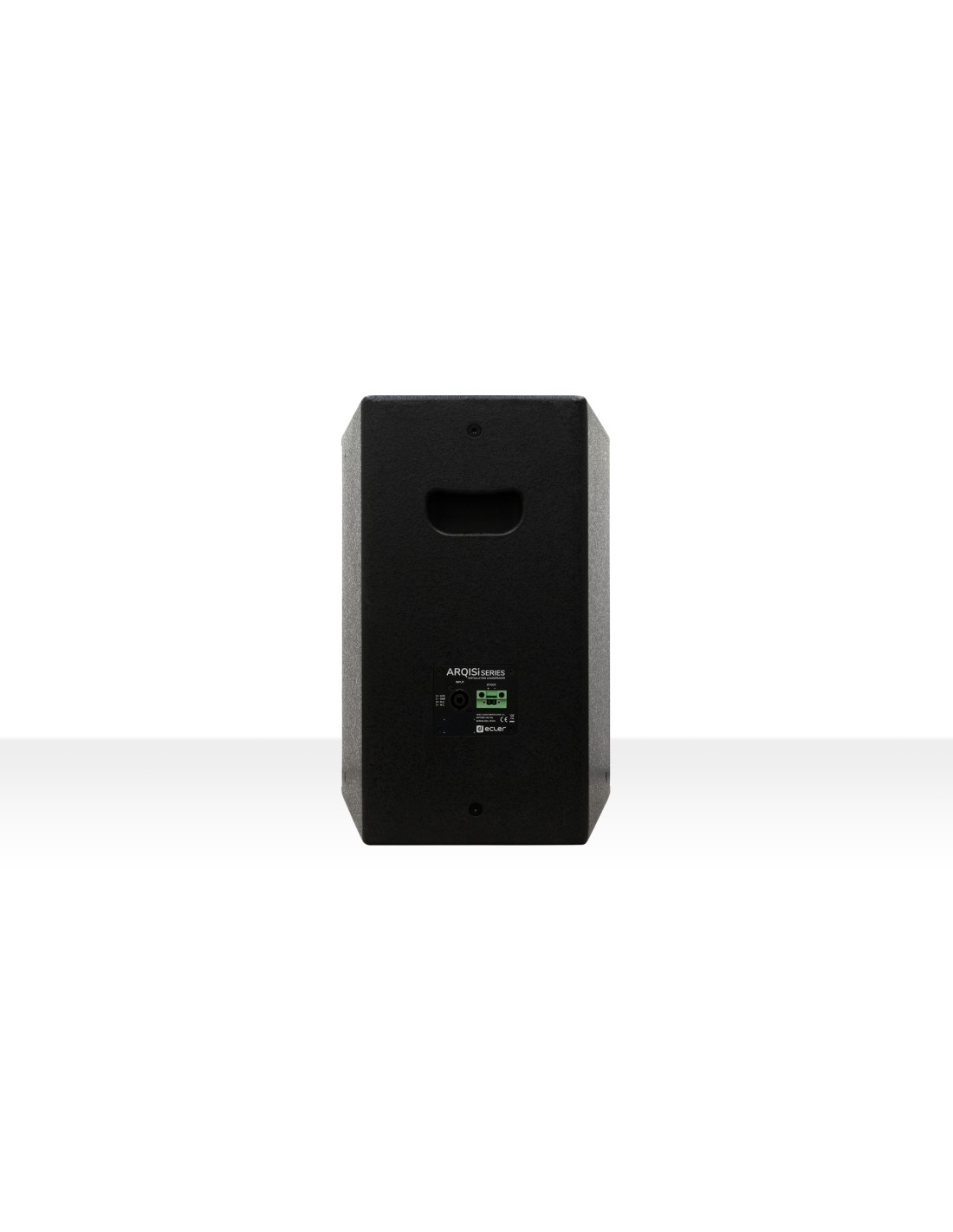

| Connection type |
1 x Euroblock & 1 x SPEAKON® 1 x Euroblock & 1 x Speakon® (+1, -1) |
|---|---|
| Installation options |
Surface, wall, desktop, 35mm mount socket |
| Environmental |
IP31 |
| Enclosure material |
MDF |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Pan and tilt wall-mount |
TBC |
| Flying points |
12 x M8 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
4 x Rubber feet, 4 x screws |
| Optional accessories |
U-bracket wall-mount accessory compatible (ARQ110UB), 35 mm mount socket compatible with SR12 wall bracket & TRIPO1 floor stand |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
342.5 x 495 x 345 mm / 13.48 x 19.49 x 13.58 in. (WxHxD) |
| Weight |
18.5 kg / 40.78 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
580 x 460 x 460 mm / 22.83 x 18.11 x 18,11 in. (WxHxD) |
| Shipping weight |
21 kg / 46.29 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313520
WH: 8435071313537 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
46.00 |
| Height (cm) |
46.00 |
| Depth (cm) |
58.00 |
| Vol. (dm3) |
122.73 |
| Gross Weight (kg) |
21.00 |
| Net Weight (kg) |
18.50 |
| Warranty (months) |
36 months |
