ARQIS108i BK
CARQIS108IB
Only a few left
8" | 2-way | 150 WRMS | wooden made

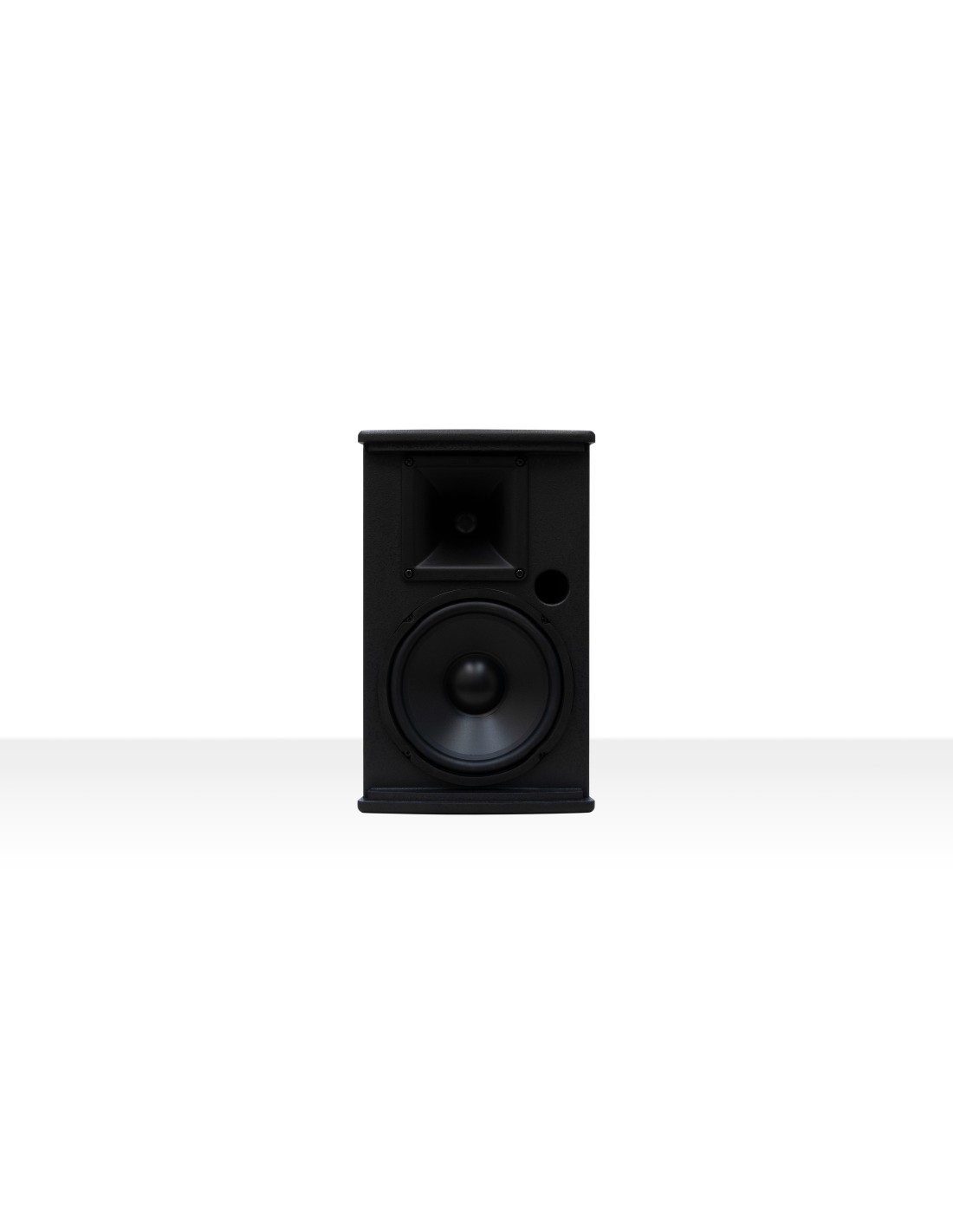

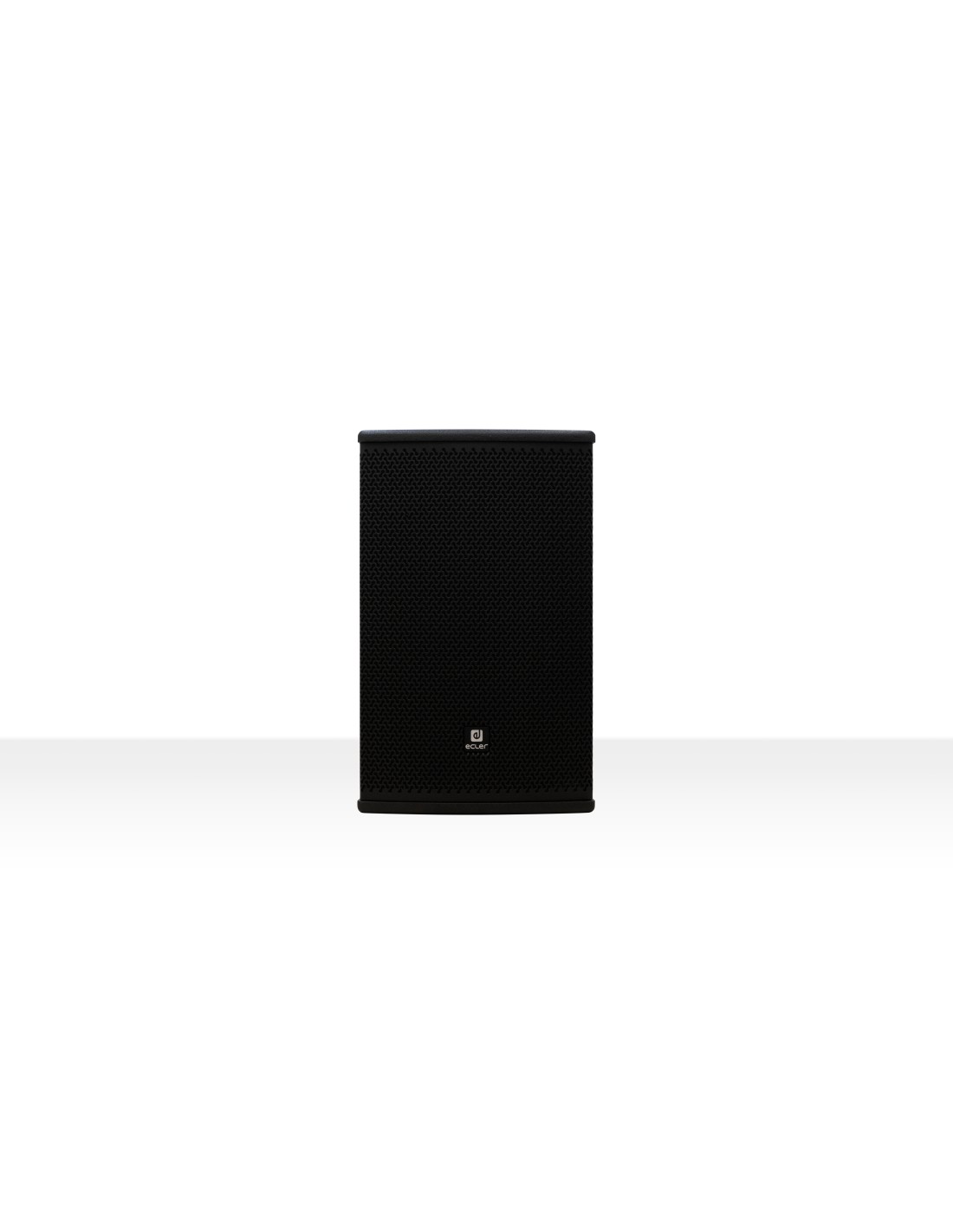

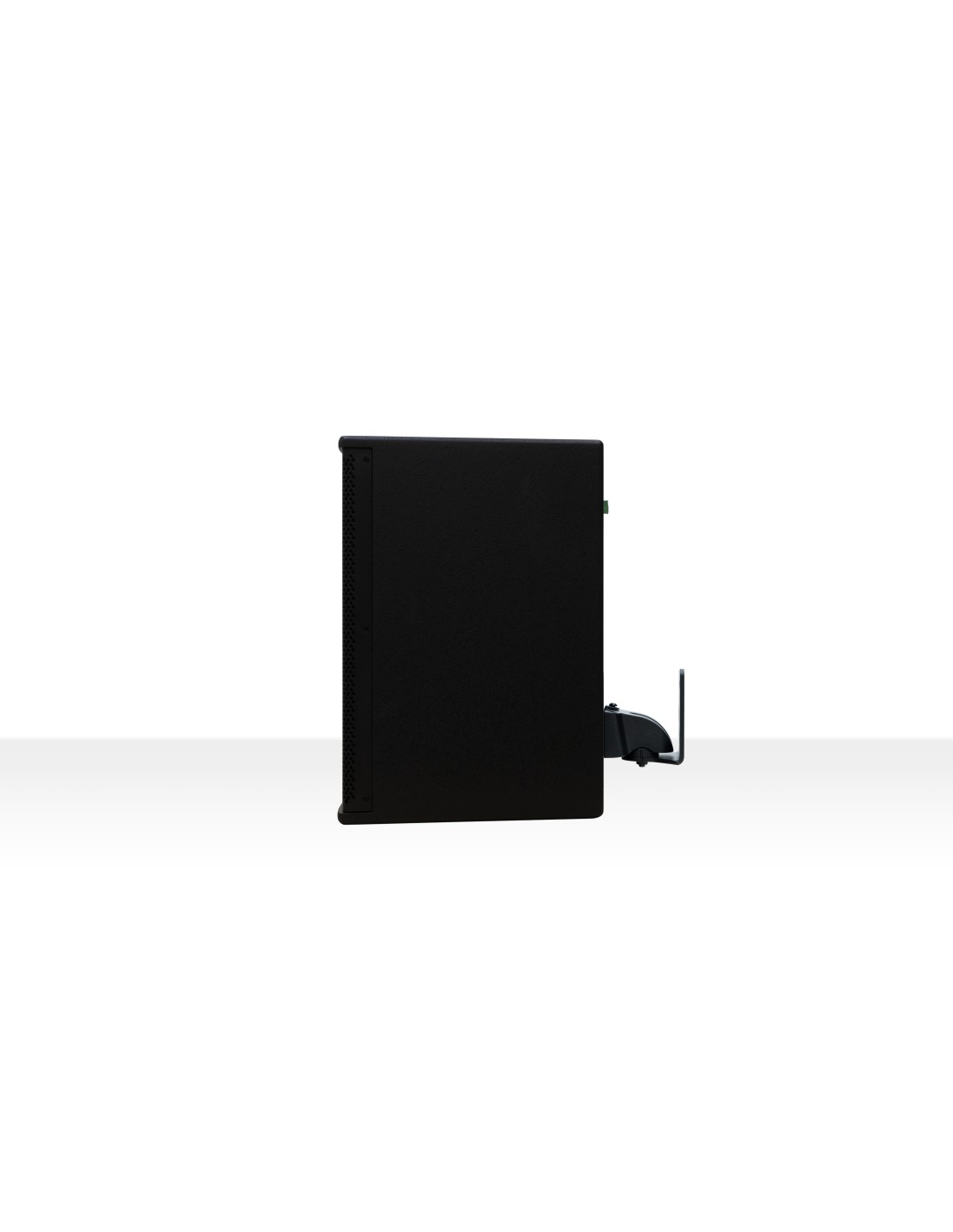

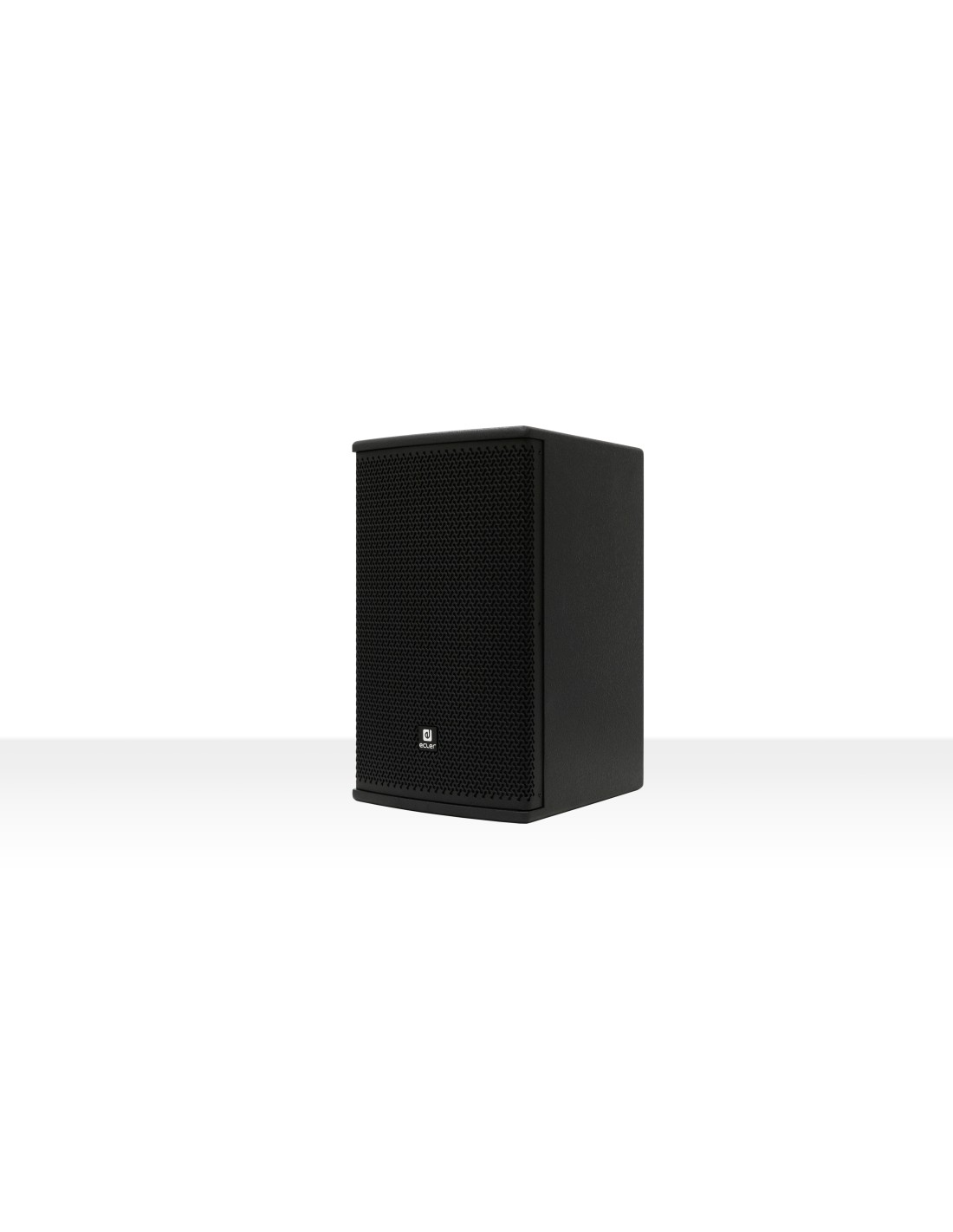

ARQIS108i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 150 WRMS @ 8Ω, 8" woofer and 1" rotatable HF Compression Driver. Its VEASY wall bracket included (VESA compatible), allows for pan & tilt adjustment, employing a single screw for fastening.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 65 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 130°x130° (HxV)
- Power handling
- 150 W RMS / 600 W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 112 dB continuous / 118 dB peak
- Recommended amplifier power
- 300 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 8" woofer
- High frequency driver
- 1" rotable compression driver
1" rotatable compression driver - Nominal impedance
- 8Ω
- Crossover filter
- 3,5 kHz
- Recommended High-Pass protection filter
- 70 Hz with minimum 12 dB / octave filter
- Connection type
- 1 x Euroblock & 1x SPEAKON®
1 x Euroblock & 1x Speakon® (+1, -1) - Installation options
- Surface, wall, desktop
- Environmental
- IP31
- Enclosure material
- MDF
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Pan and tilt wall-mount
- TBC
- Flying points
- 6 x M6 & 2 x M8
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories

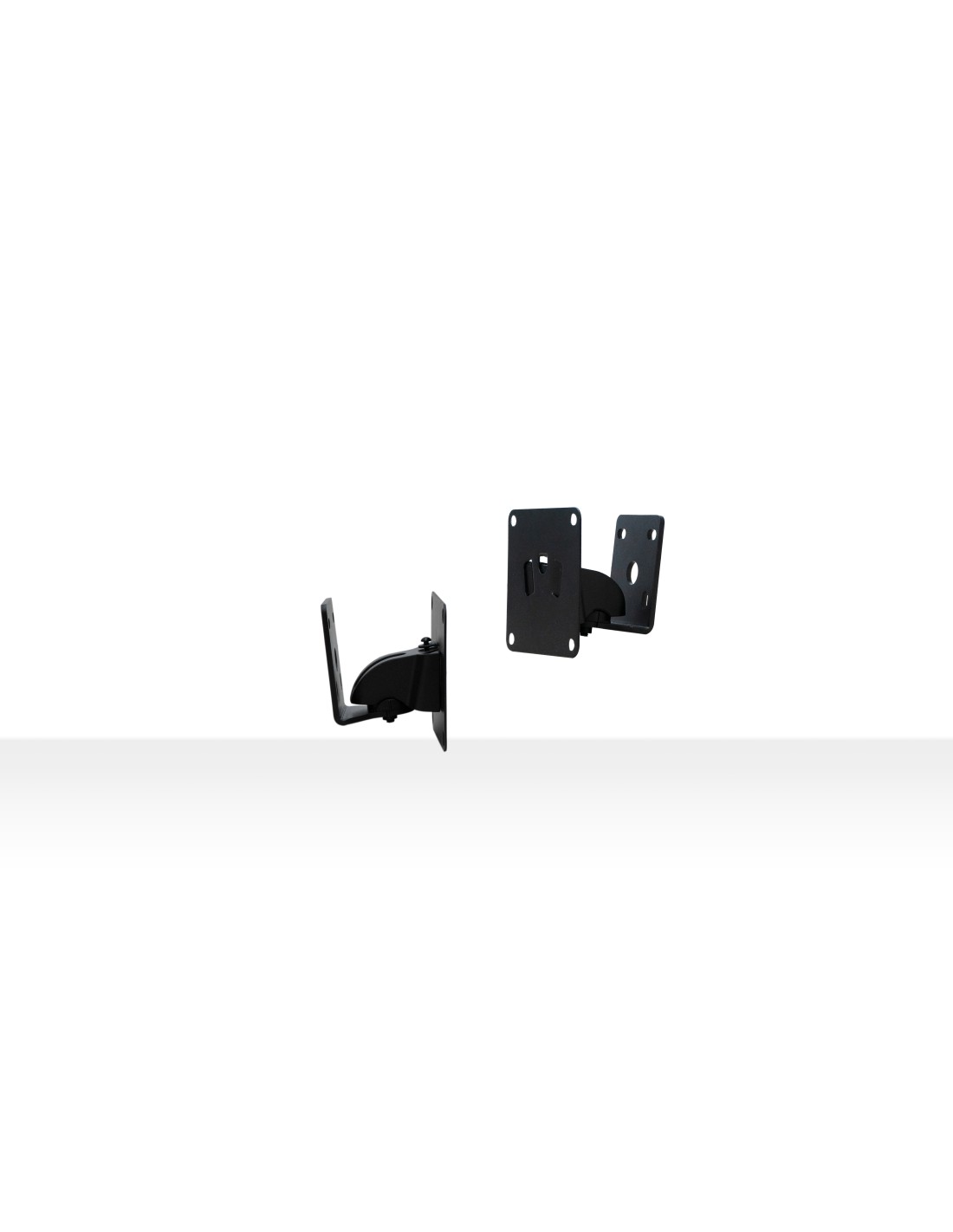

- VEASY Wall Bracket / 3mm Allen key / 4mm Allen key / 6mm Allen key
- Optional accessories
- U-bracket wall-mount accessory compatible (ARQ108UB)
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 244 x 390 x 280 mm / 9.61 x 15.35 x 11.02 in. (WxHxD)
- Weight
- 8.4 kg / 18.51 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 435 x 445 x 320 mm / 17.13 x 17.52 x 12.60 in. (WxHxD)
- Shipping weight
- 10.5 kg / 23.14 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313506
WH: 8435071313513 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 32.00
- Height (cm)
- 44.50
- Depth (cm)
- 43.50
- Vol. (dm3)
- 61.94
- Gross Weight (kg)
- 10.50
- Net Weight (kg)
- 8.40
- Format
- Unit
- Warranty (months)
- 36 months
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
65 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
130°x130° (HxV) |
| Power handling |
150 W RMS / 600 W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
112 dB continuous / 118 dB peak |
| Recommended amplifier power |
300 W RMS |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
8" woofer |
| High frequency driver |
1" rotable compression driver 1" rotatable compression driver |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
3,5 kHz |
|---|---|
| Recommended High-Pass protection filter |
70 Hz with minimum 12 dB / octave filter |
PHYSICAL

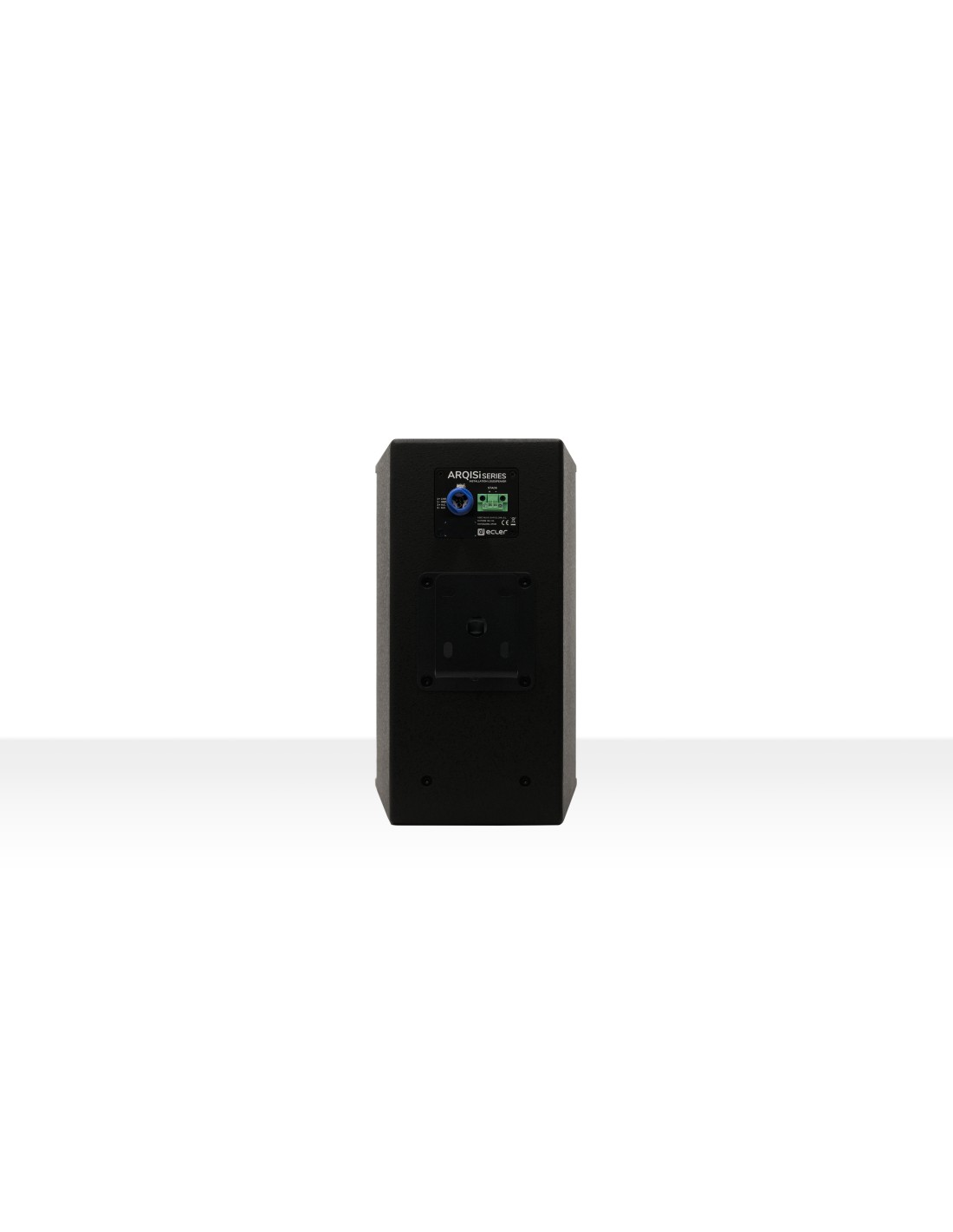

| Connection type |
1 x Euroblock & 1x SPEAKON® 1 x Euroblock & 1x Speakon® (+1, -1) |
|---|---|
| Installation options |
Surface, wall, desktop |
| Environmental |
IP31 |
| Enclosure material |
MDF |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Pan and tilt wall-mount |
TBC |
| Flying points |
6 x M6 & 2 x M8 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
VEASY Wall Bracket / 3mm Allen key / 4mm Allen key / 6mm Allen key |
| Optional accessories |
U-bracket wall-mount accessory compatible (ARQ108UB) |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
244 x 390 x 280 mm / 9.61 x 15.35 x 11.02 in. (WxHxD) |
| Weight |
8.4 kg / 18.51 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
435 x 445 x 320 mm / 17.13 x 17.52 x 12.60 in. (WxHxD) |
| Shipping weight |
10.5 kg / 23.14 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313506
WH: 8435071313513 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
32.00 |
| Height (cm) |
44.50 |
| Depth (cm) |
43.50 |
| Vol. (dm3) |
61.94 |
| Gross Weight (kg) |
10.50 |
| Net Weight (kg) |
8.40 |
| Warranty (months) |
36 months |
