ARQIS106i WH
CARQIS106IW
Available
6" | 2-way | 120 WRMS | wooden made

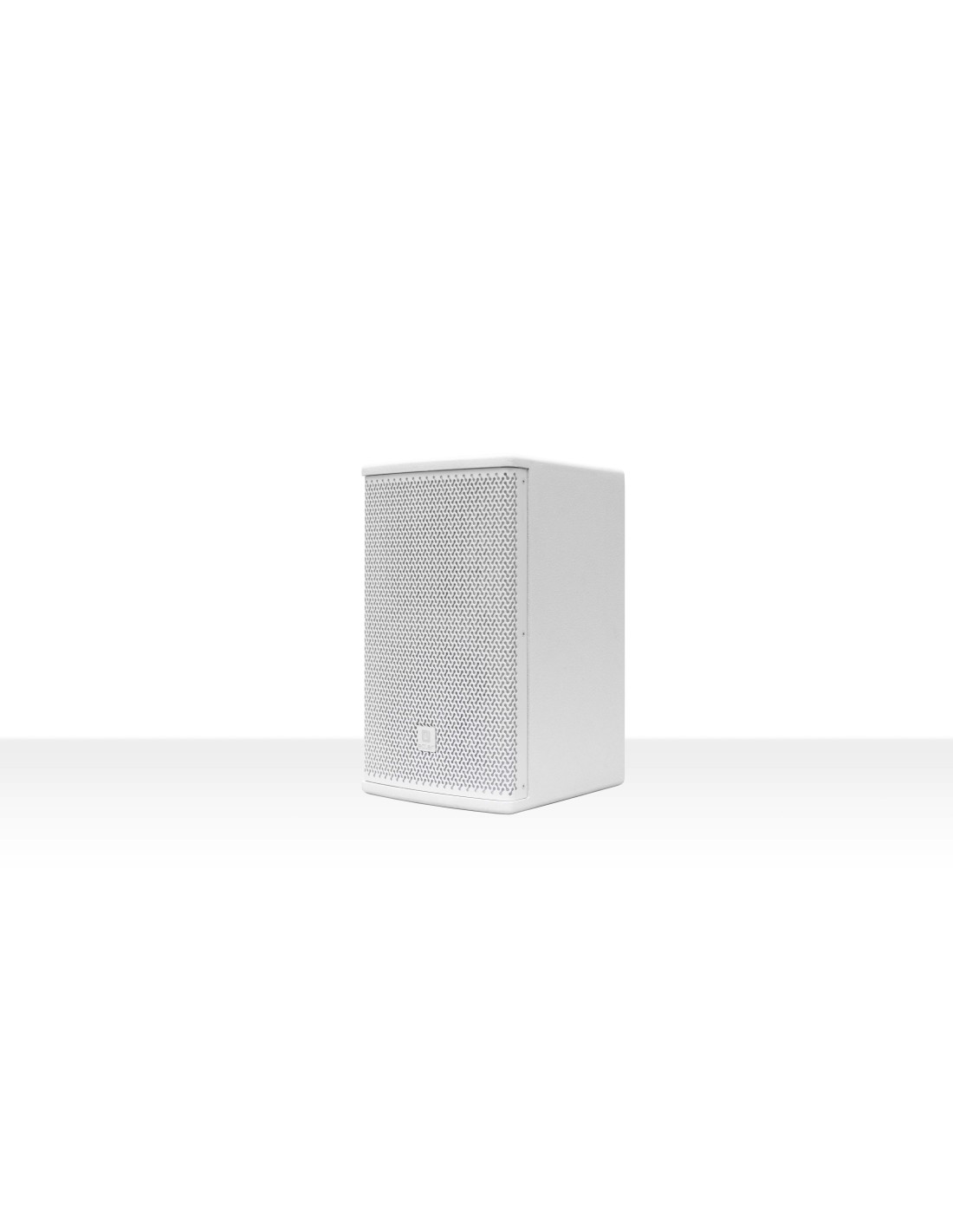

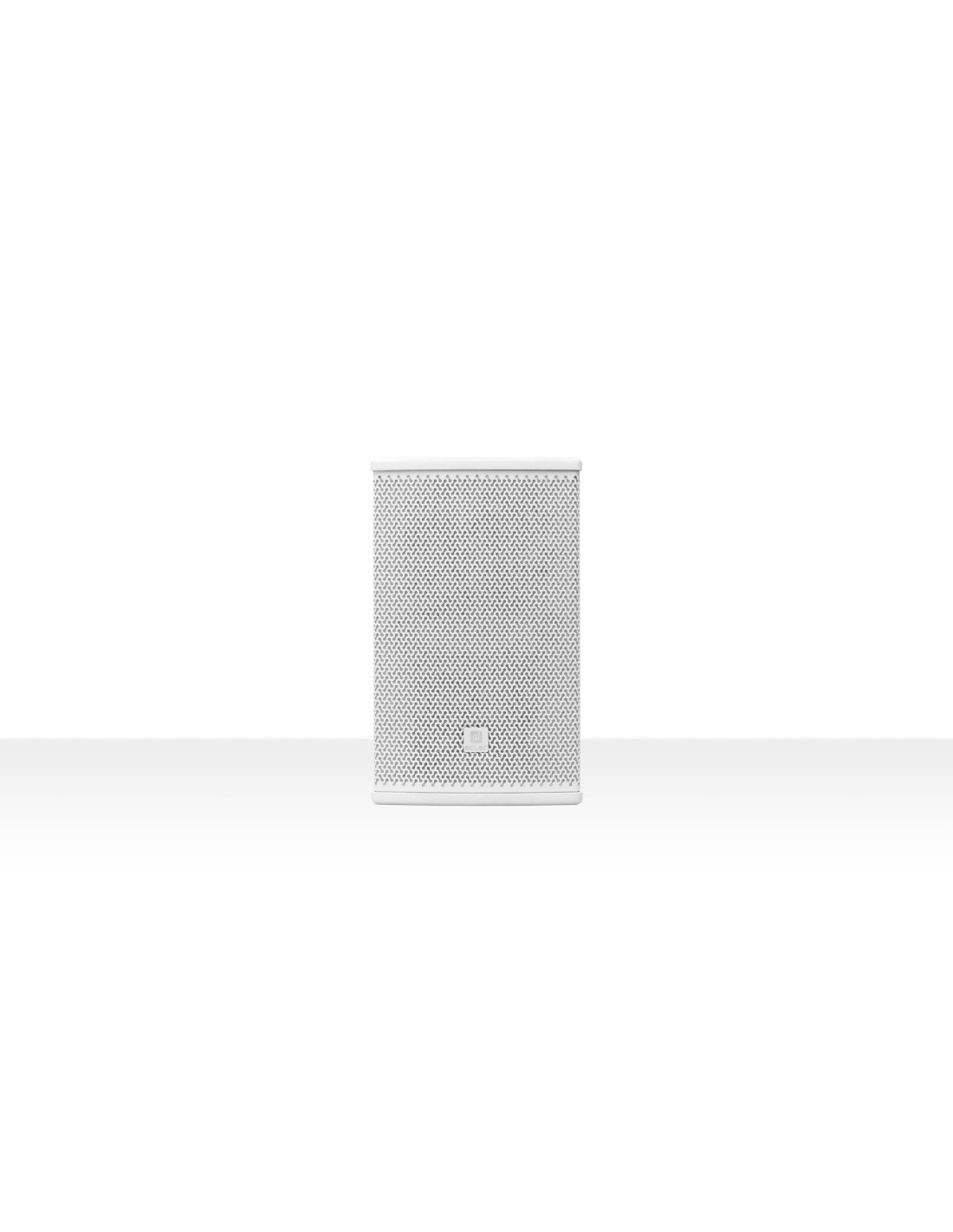

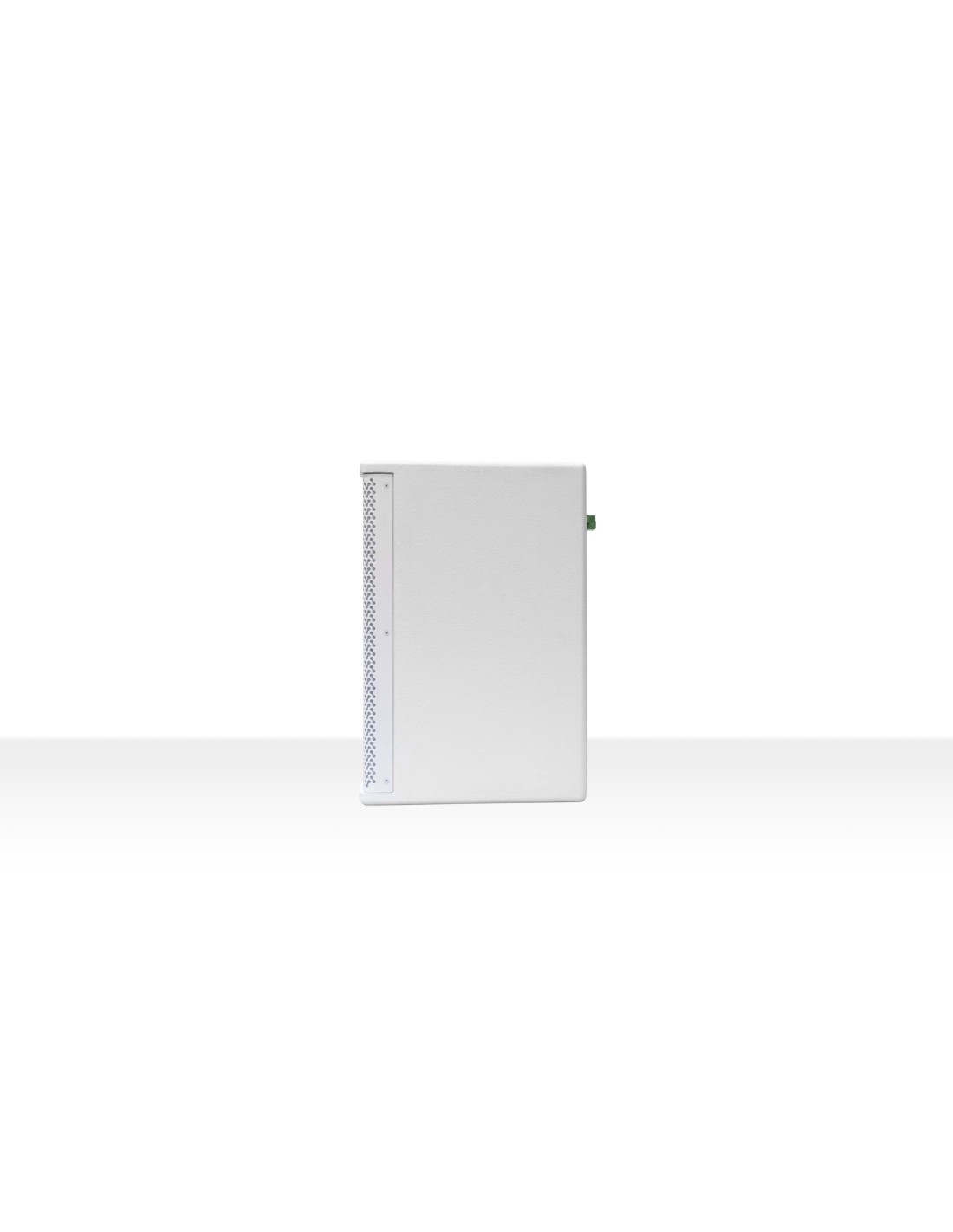

ARQIS106i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 120 WRMS @ 8Ω, 6" woofer and 1" rotatable HF Compression Driver. Its VEASY wall bracket included (VESA compatible), allows for pan & tilt adjustment, employing a single screw for fastening.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 75 Hz - 20 kHz (-10dB)
- Coverage angle / Dispersion
- 140°x160° (HxV)
- Power handling
- 120 W RMS / 480 W Peak
- Sensitivity
- 88 dB (1W/1m)
- Maximum SPL
- 109 dB continuous / 115 dB peak
- Recommended amplifier power
- 240 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 6" woofer
- High frequency driver
- 1" rotable compression driver
1" rotatable compression driver - Nominal impedance
- 8Ω
- Crossover filter
- 3,2 kHz
- Recommended High-Pass protection filter
- 70 Hz with minimum 12 dB / octave filter

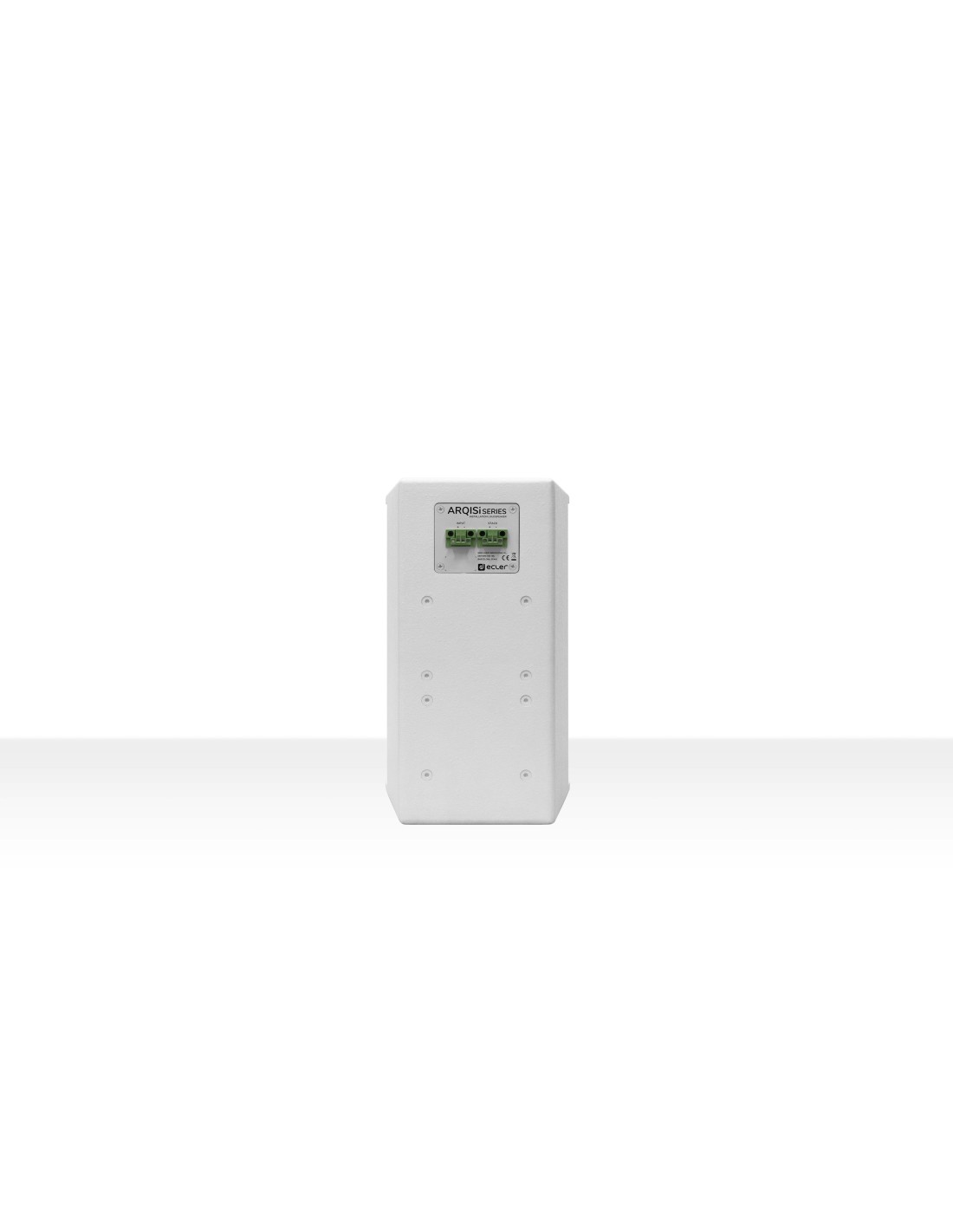

- Connection type
- 2 x Euroblock
- Installation options
- Surface, wall, desktop
- Environmental
- IP31
- Enclosure material
- MDF
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Pan and tilt wall-mount
- TBC
- Flying points
- 8 x M6
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories

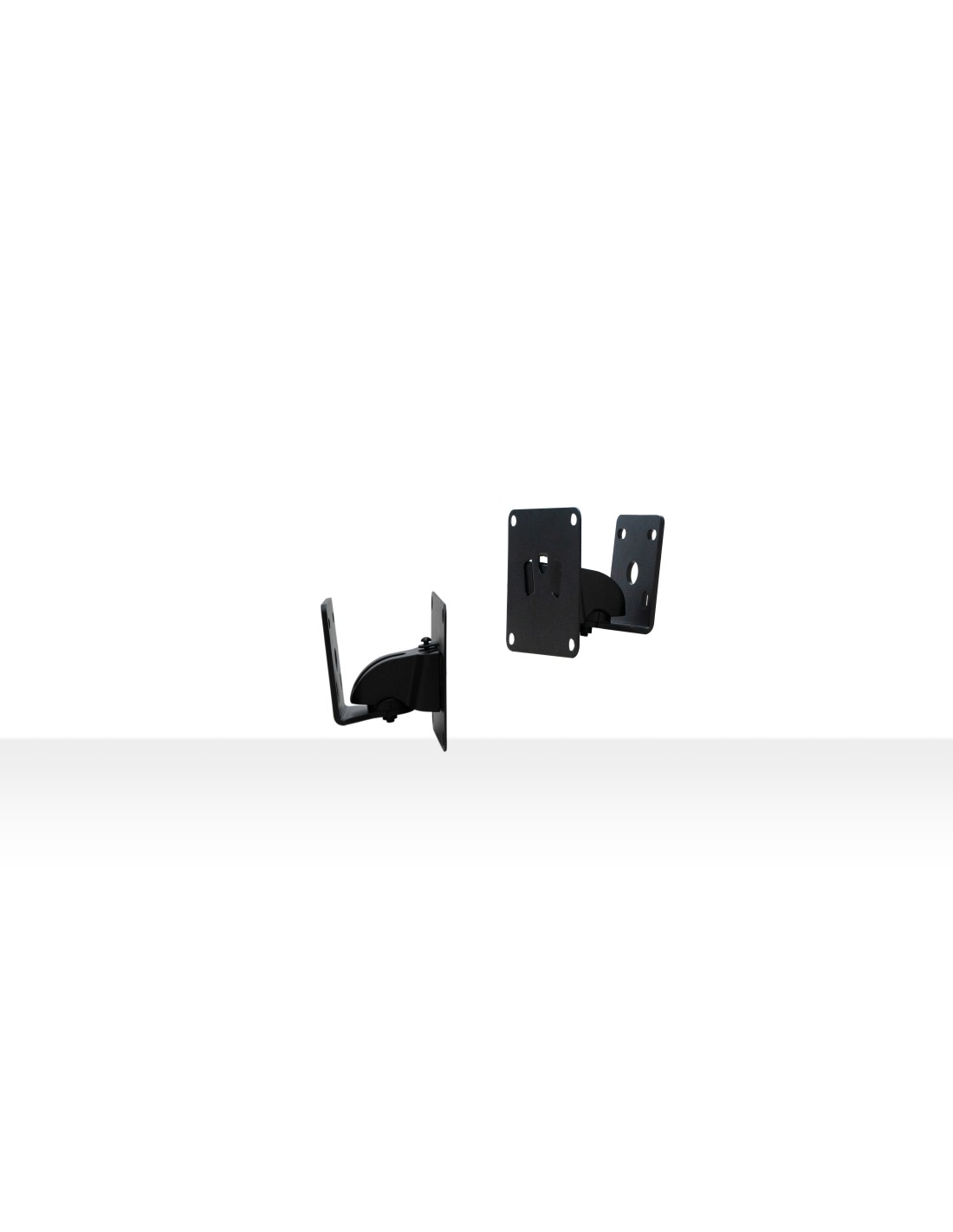

- VEASY Wall Bracket / 3 mm Allen key / 4 mm Allen key / 6 mm Allen key
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 215 x 350 x 240 mm / 8.46 x 13.78 x 9.45 in. (WxHxD)
- Weight
- 7.4 kg / 16.31 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 395 x 290 x 405 mm / 15.55 x 11.42 x 15.94 in. (WxHxD)
- Shipping weight
- 8.7 kg / 19.18 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313483
WH: 8435071313490 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 29.00
- Height (cm)
- 40.50
- Depth (cm)
- 39.50
- Vol. (dm3)
- 46.39
- Gross Weight (kg)
- 8.70
- Net Weight (kg)
- 7.40
- Format
- Unit
- Warranty (months)
- 36 months
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
75 Hz - 20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
140°x160° (HxV) |
| Power handling |
120 W RMS / 480 W Peak |
| Sensitivity |
88 dB (1W/1m) |
| Maximum SPL |
109 dB continuous / 115 dB peak |
| Recommended amplifier power |
240 W RMS |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
6" woofer |
| High frequency driver |
1" rotable compression driver 1" rotatable compression driver |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
3,2 kHz |
|---|---|
| Recommended High-Pass protection filter |
70 Hz with minimum 12 dB / octave filter |
PHYSICAL
| Connection type |
2 x Euroblock |
|---|---|
| Installation options |
Surface, wall, desktop |
| Environmental |
IP31 |
| Enclosure material |
MDF |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Pan and tilt wall-mount |
TBC |
| Flying points |
8 x M6 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
VEASY Wall Bracket / 3 mm Allen key / 4 mm Allen key / 6 mm Allen key |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
215 x 350 x 240 mm / 8.46 x 13.78 x 9.45 in. (WxHxD) |
| Weight |
7.4 kg / 16.31 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
395 x 290 x 405 mm / 15.55 x 11.42 x 15.94 in. (WxHxD) |
| Shipping weight |
8.7 kg / 19.18 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313483
WH: 8435071313490 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
29.00 |
| Height (cm) |
40.50 |
| Depth (cm) |
39.50 |
| Vol. (dm3) |
46.39 |
| Gross Weight (kg) |
8.70 |
| Net Weight (kg) |
7.40 |
| Warranty (months) |
36 months |
