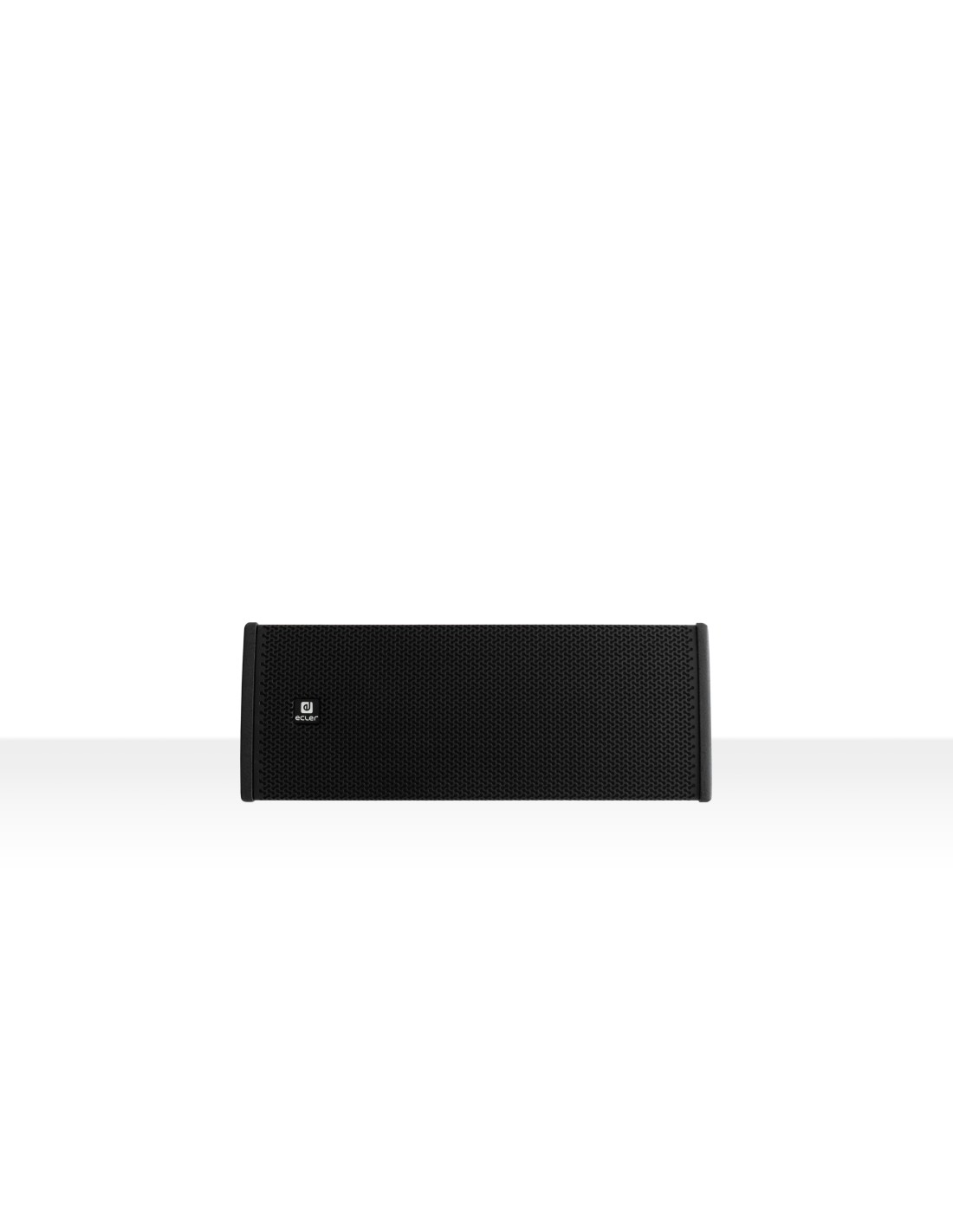

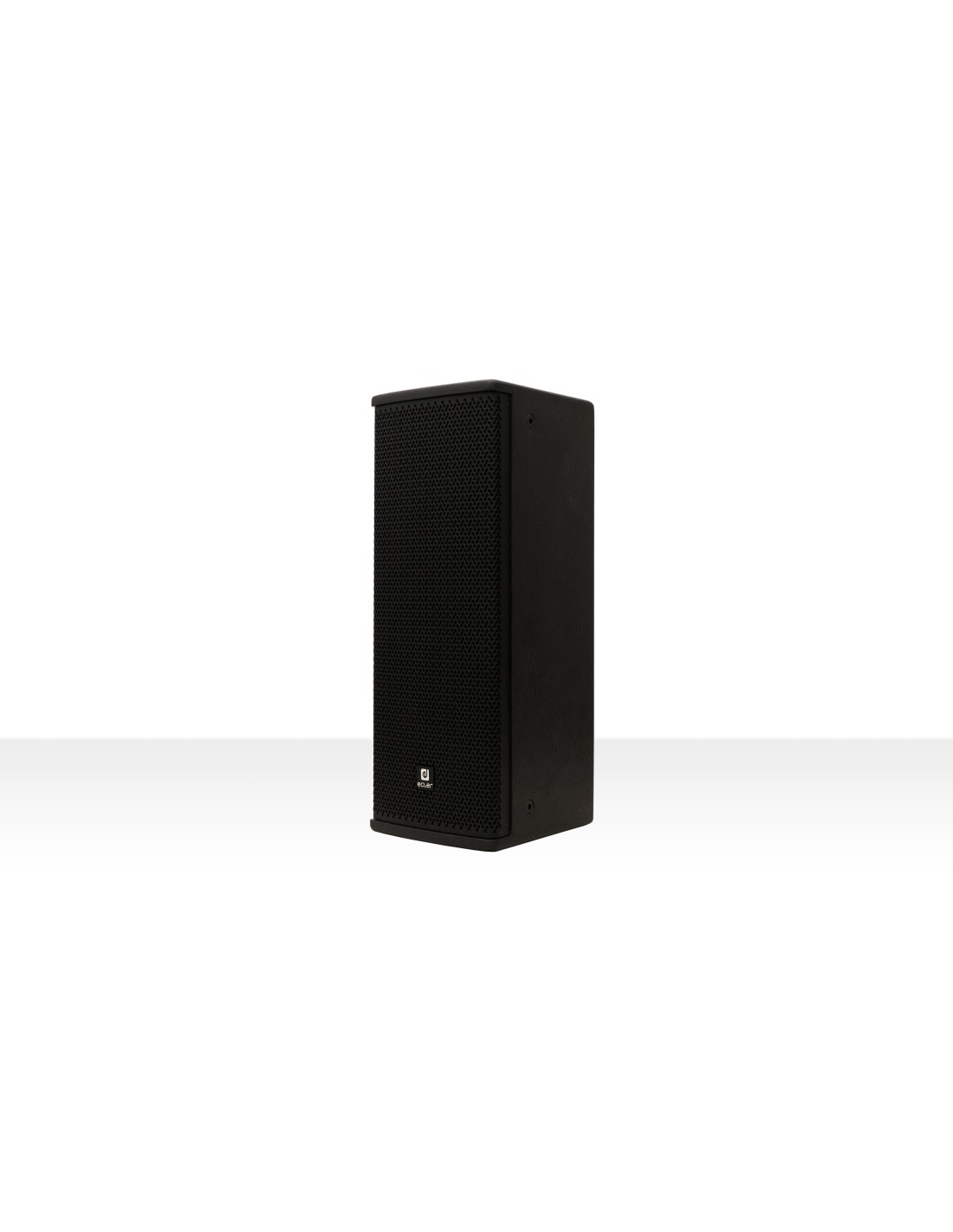

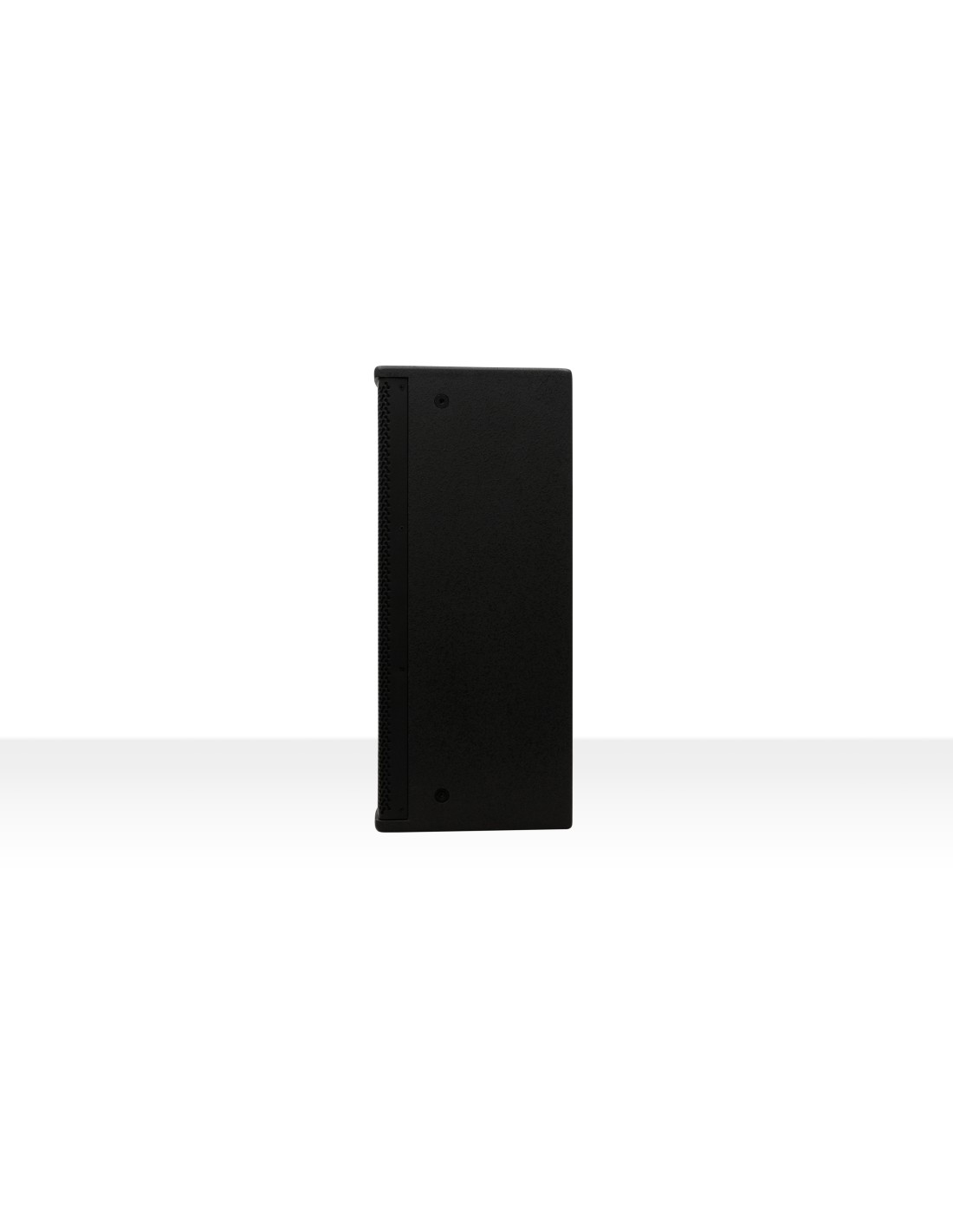

ARQIS205i BK
CARQIS205IB
Only a few left
2x5.25" | 2-way | 140 WRMS | wooden made

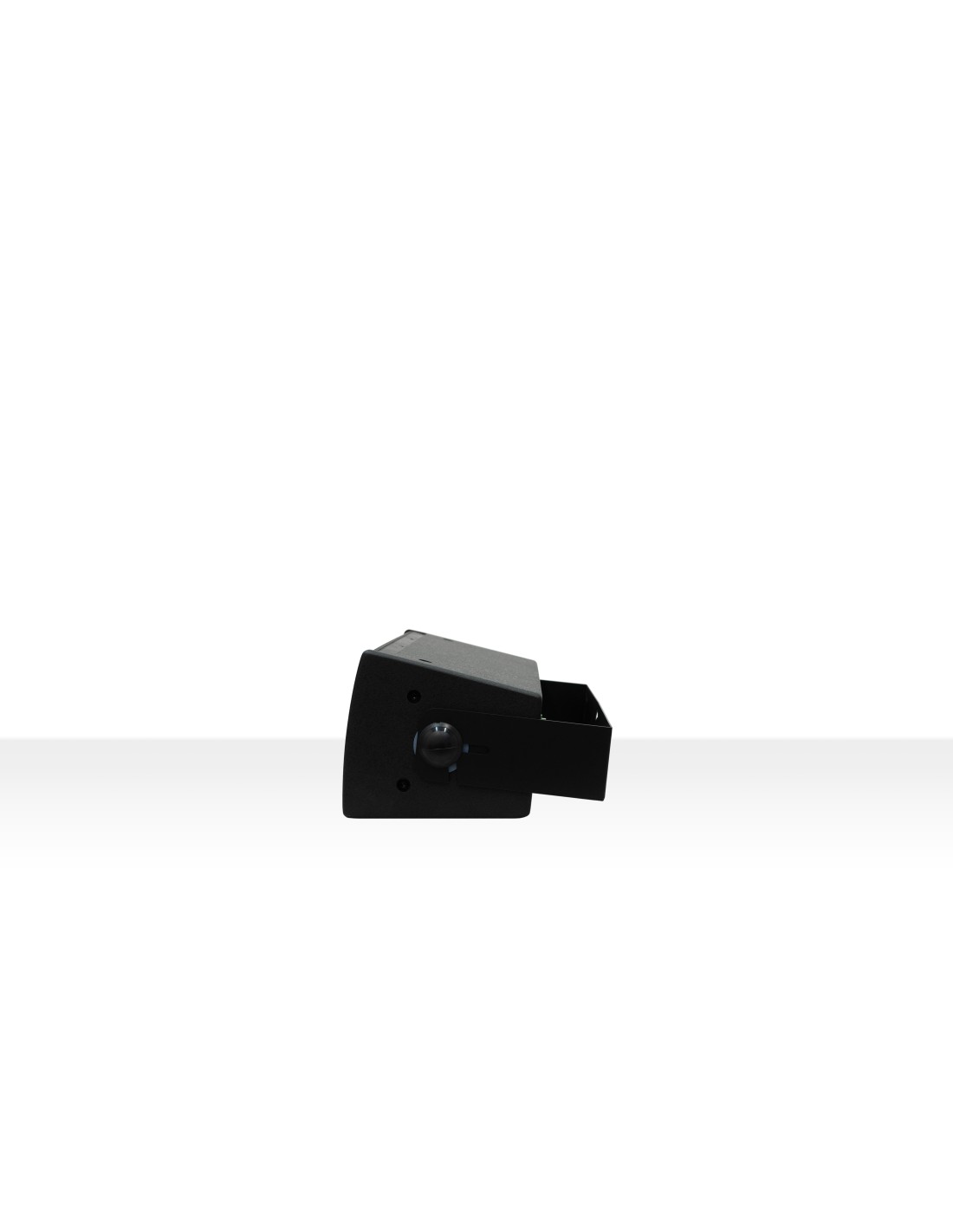

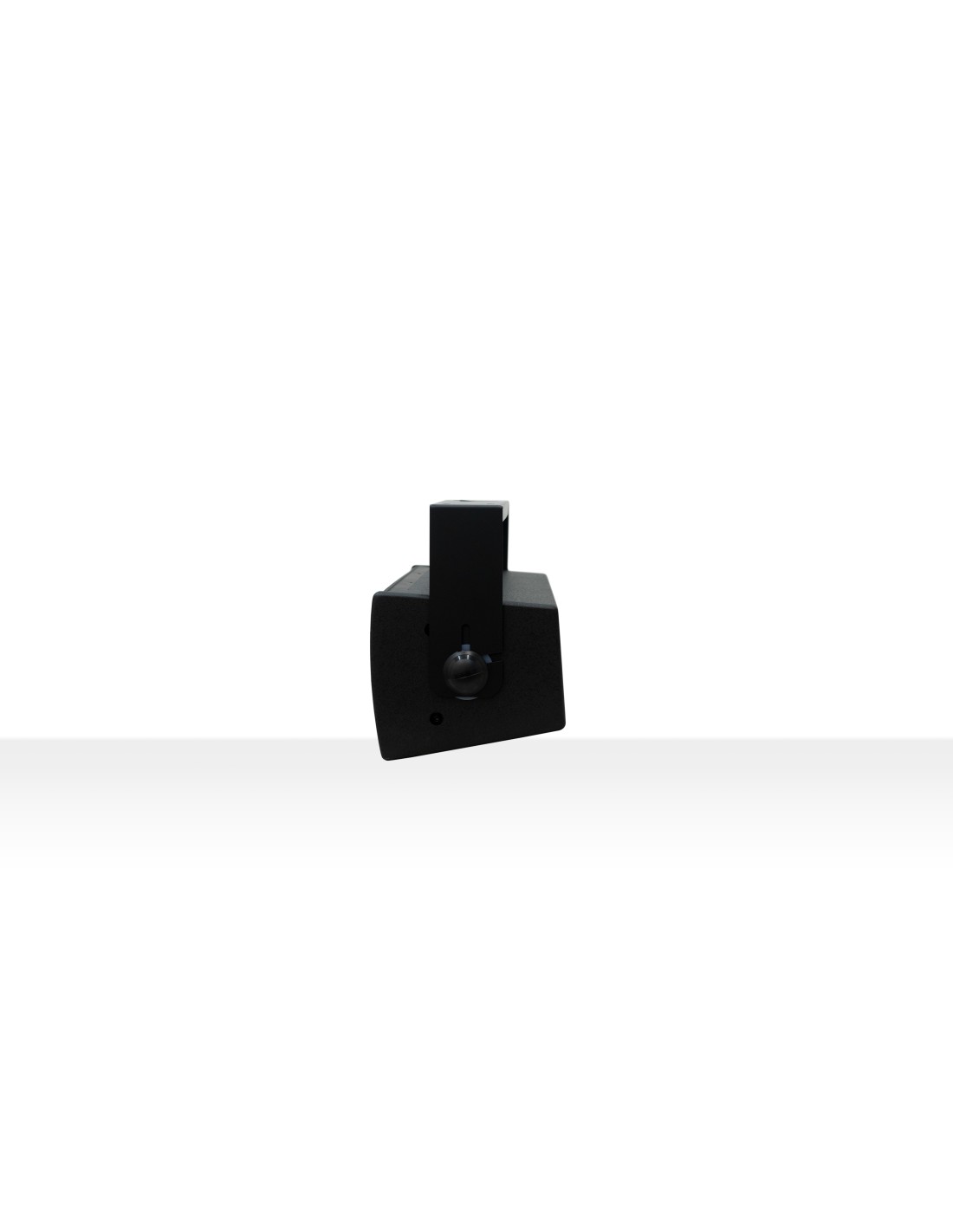

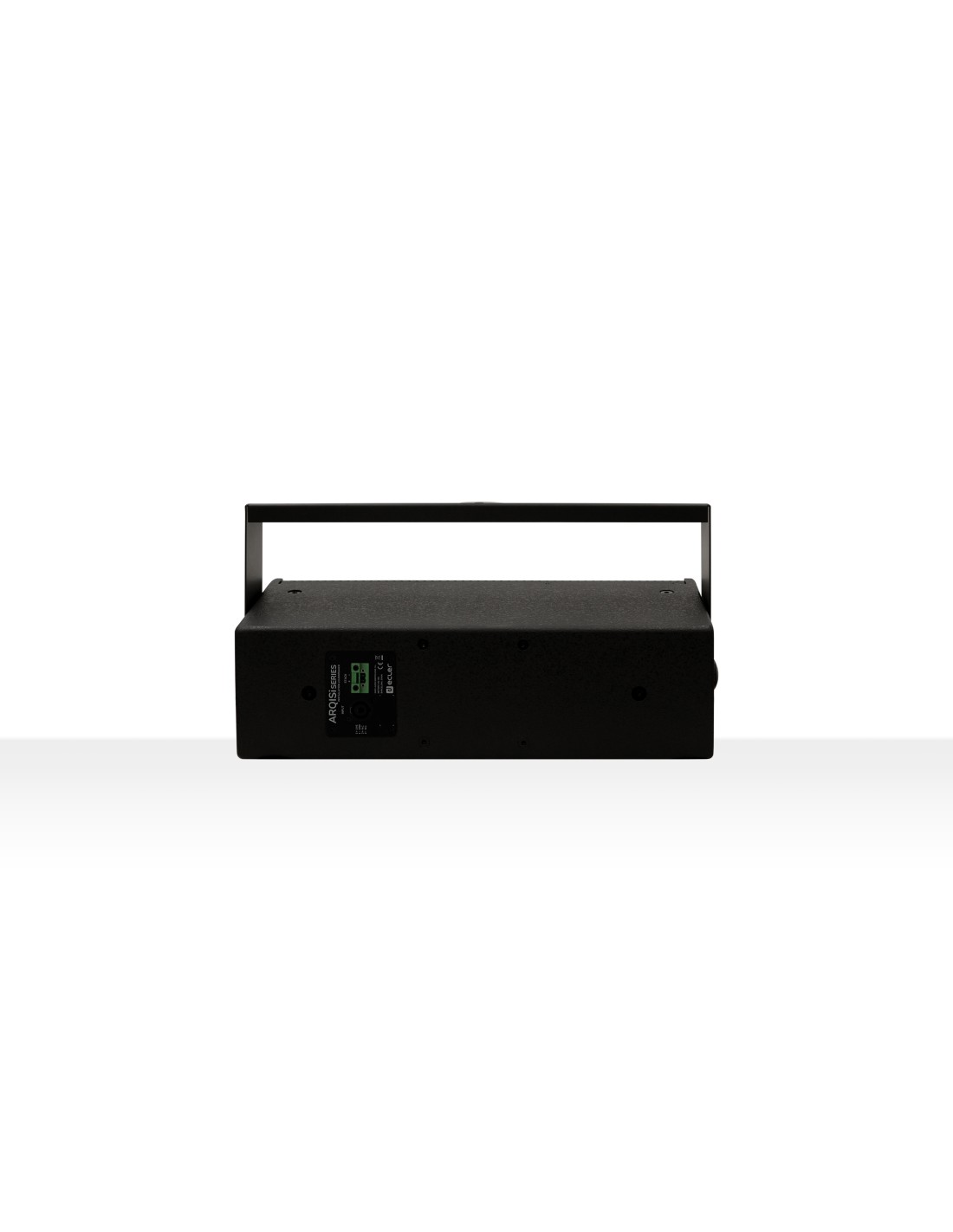

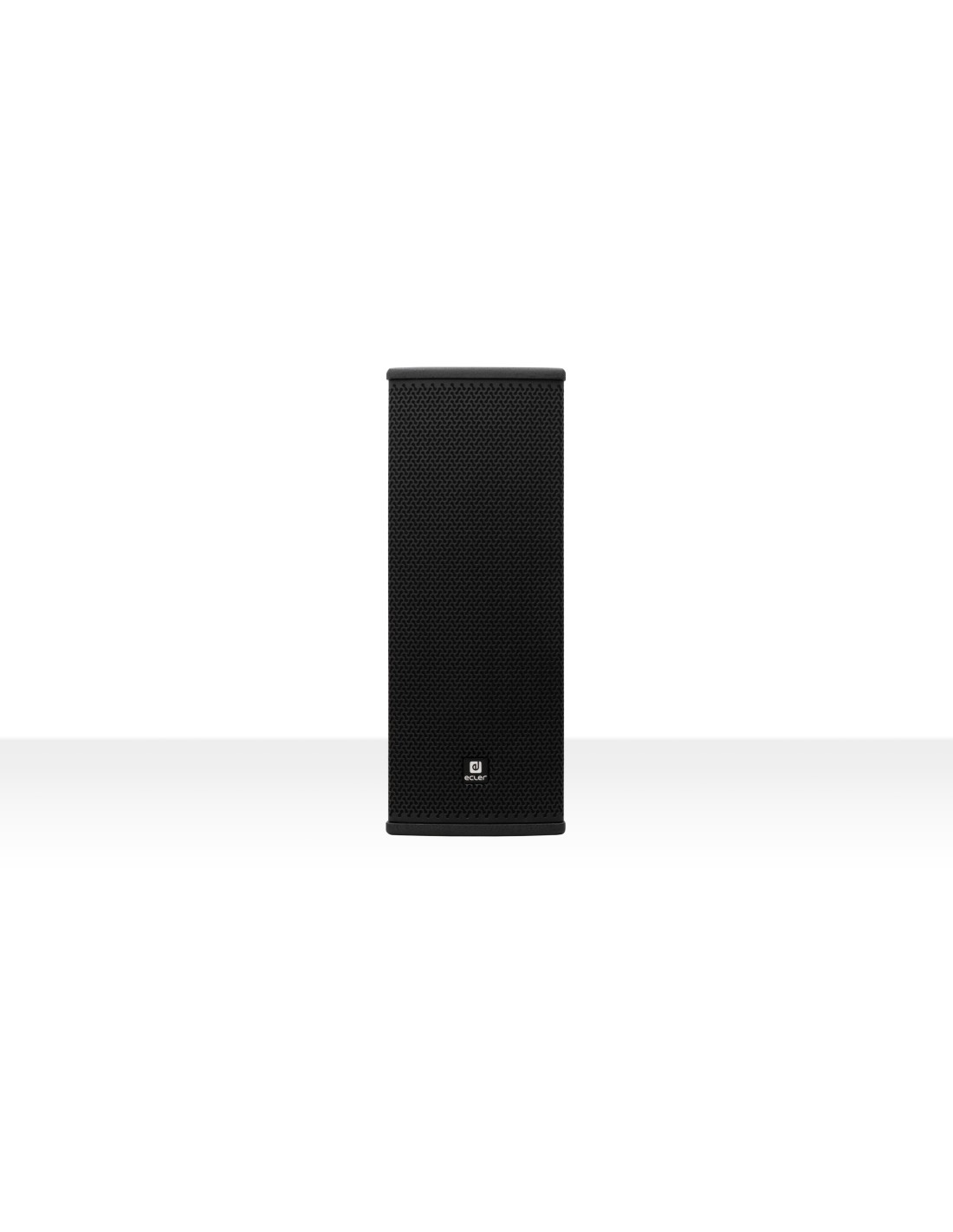

ARQIS205i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 140 WRMS @ 8Ω, 2 x 5" woofer and 1" HF Compression Driver. Its "U" shape wall bracket (included) allows for tilt adjustment.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 78 Hz-20 kHz
- Coverage angle / Dispersion
- 150°x40° (HxV)
- Power handling
- 140 W RMS / 560 W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 111 dB continuous / 117 dB peak
- Recommended amplifier power
- 280 W RMS
- Ways
- 2-ways full range

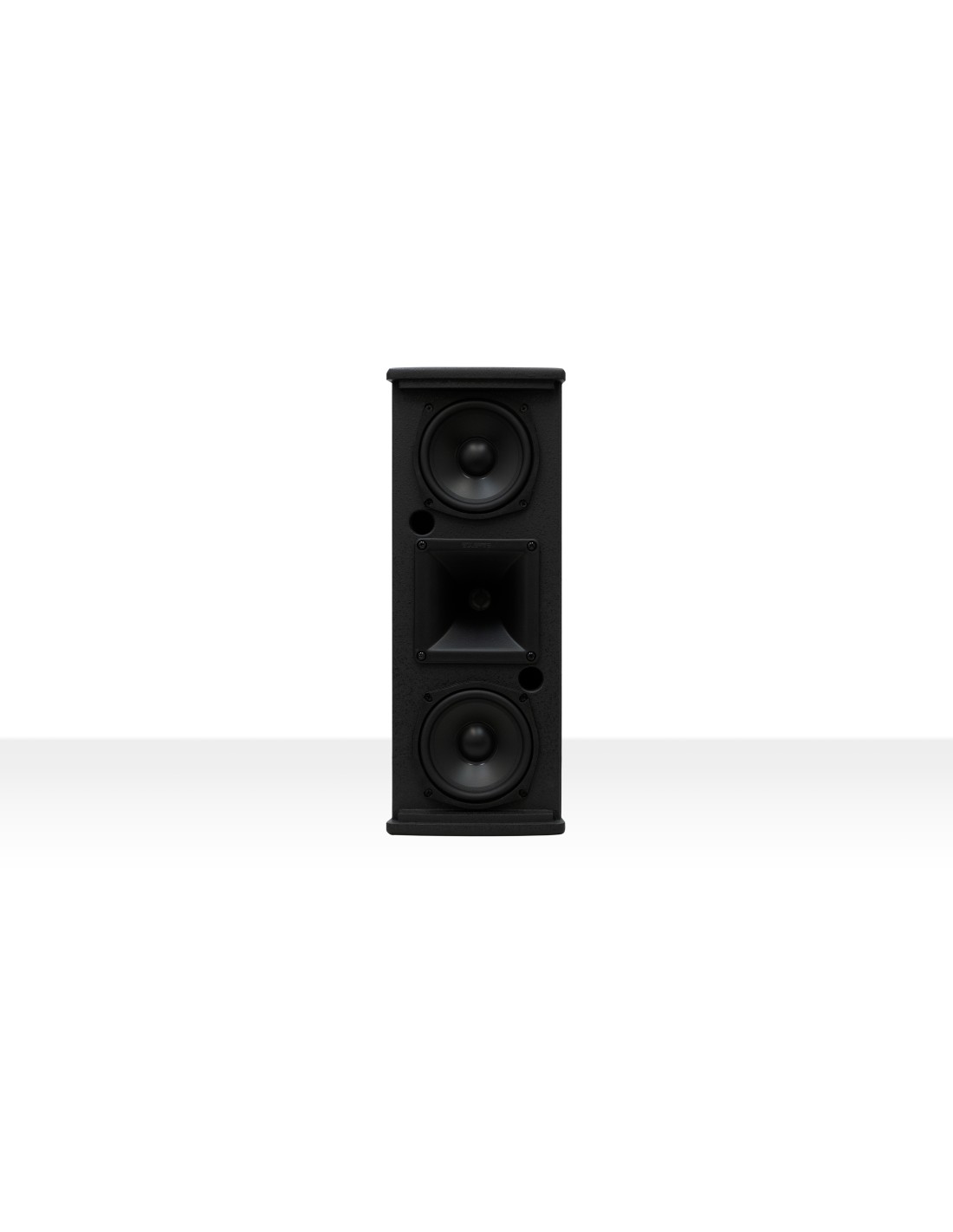

- Low frequency driver
- 2 x 5" woofer
- High frequency driver
- 1" rotable compression driver
1" rotatable compression driver - Nominal impedance
- 8Ω
- Crossover filter
- 2,3 kHz
- Recommended High-Pass protection filter
- 80 Hz with minimum 12 dB / octave filter

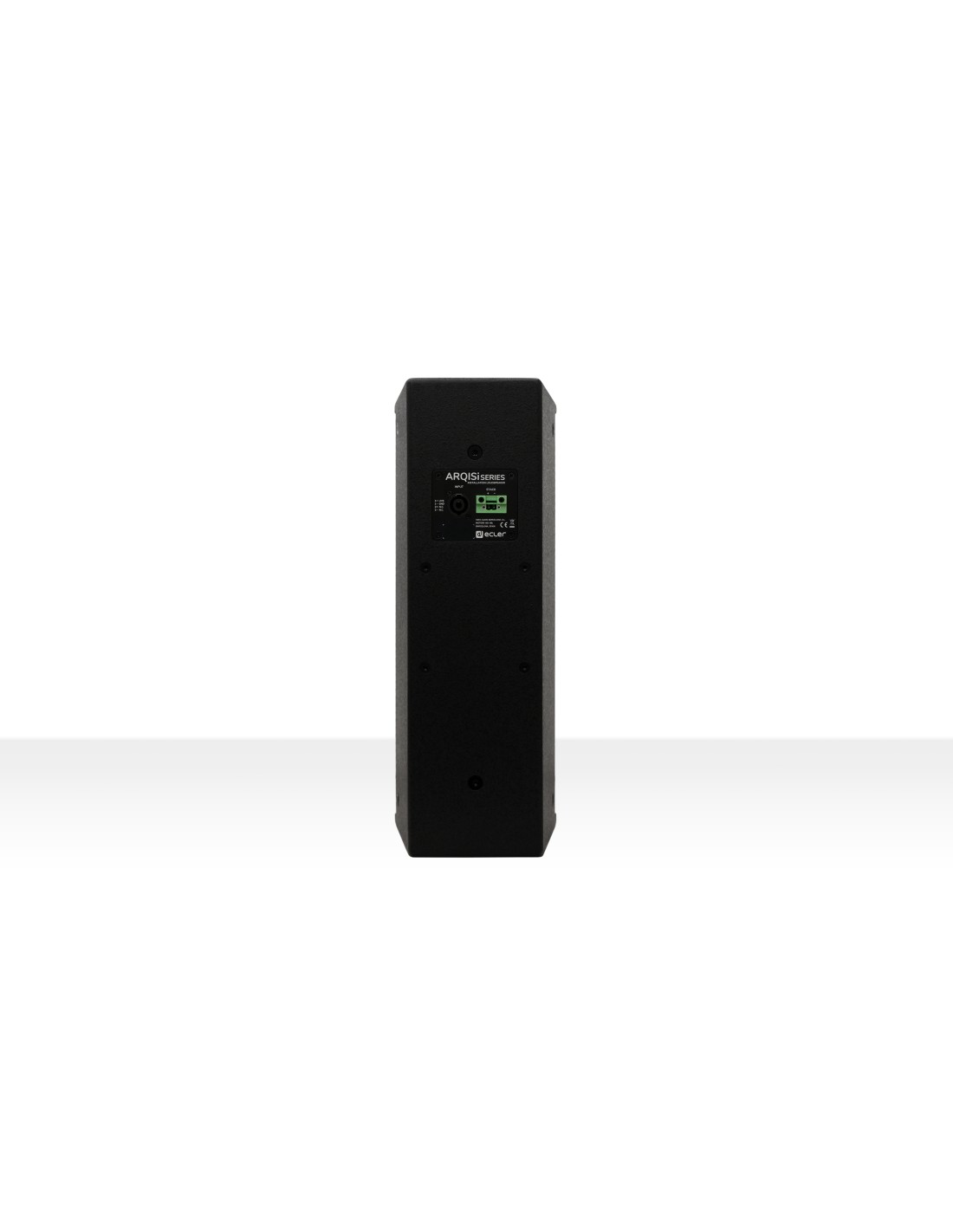

- Connection type
- 1 x Euroblock & 1 x SPEAKON®
1 x Euroblock & 1 x Speakon® (+1, -1) - Installation options
- Surface, wall, desktop
- Environmental
- IP31
- Enclosure material
- MDF
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Pan and tilt wall-mount
- TBC
- Flying points
- 4 x M6 & 12 x M8
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- U Bracket / 5mm Allen key / 6mm Allen key
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 480 x 186 x 210 mm / 18.90 x 7.32 x 8.27 in. (WxHxD)
- Weight
- 8,4 kg / 18.52 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 540 x 265 x 300 mm / 21.26 x 10.43 x 11.81 in. (WxHxD)
- Shipping weight
- 9.5 kg / 20.94 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313568
WH: 8435071313575 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 30.00
- Height (cm)
- 26.50
- Depth (cm)
- 54.00
- Vol. (dm3)
- 42.93
- Gross Weight (kg)
- 9.50
- Net Weight (kg)
- 7.20
- Format
- Unit
- Warranty (months)
- 36 months
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
78 Hz-20 kHz |
|---|---|
| Coverage angle / Dispersion |
150°x40° (HxV) |
| Power handling |
140 W RMS / 560 W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
111 dB continuous / 117 dB peak |
| Recommended amplifier power |
280 W RMS |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
2 x 5" woofer |
| High frequency driver |
1" rotable compression driver 1" rotatable compression driver |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
2,3 kHz |
|---|---|
| Recommended High-Pass protection filter |
80 Hz with minimum 12 dB / octave filter |
PHYSICAL
| Connection type |
1 x Euroblock & 1 x SPEAKON® 1 x Euroblock & 1 x Speakon® (+1, -1) |
|---|---|
| Installation options |
Surface, wall, desktop |
| Environmental |
IP31 |
| Enclosure material |
MDF |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Pan and tilt wall-mount |
TBC |
| Flying points |
4 x M6 & 12 x M8 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
U Bracket / 5mm Allen key / 6mm Allen key |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
480 x 186 x 210 mm / 18.90 x 7.32 x 8.27 in. (WxHxD) |
| Weight |
8,4 kg / 18.52 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
540 x 265 x 300 mm / 21.26 x 10.43 x 11.81 in. (WxHxD) |
| Shipping weight |
9.5 kg / 20.94 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313568
WH: 8435071313575 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
30.00 |
| Height (cm) |
26.50 |
| Depth (cm) |
54.00 |
| Vol. (dm3) |
42.93 |
| Gross Weight (kg) |
9.50 |
| Net Weight (kg) |
7.20 |
| Warranty (months) |
36 months |
