VEO-XPS47
CVEOXPS47
Available

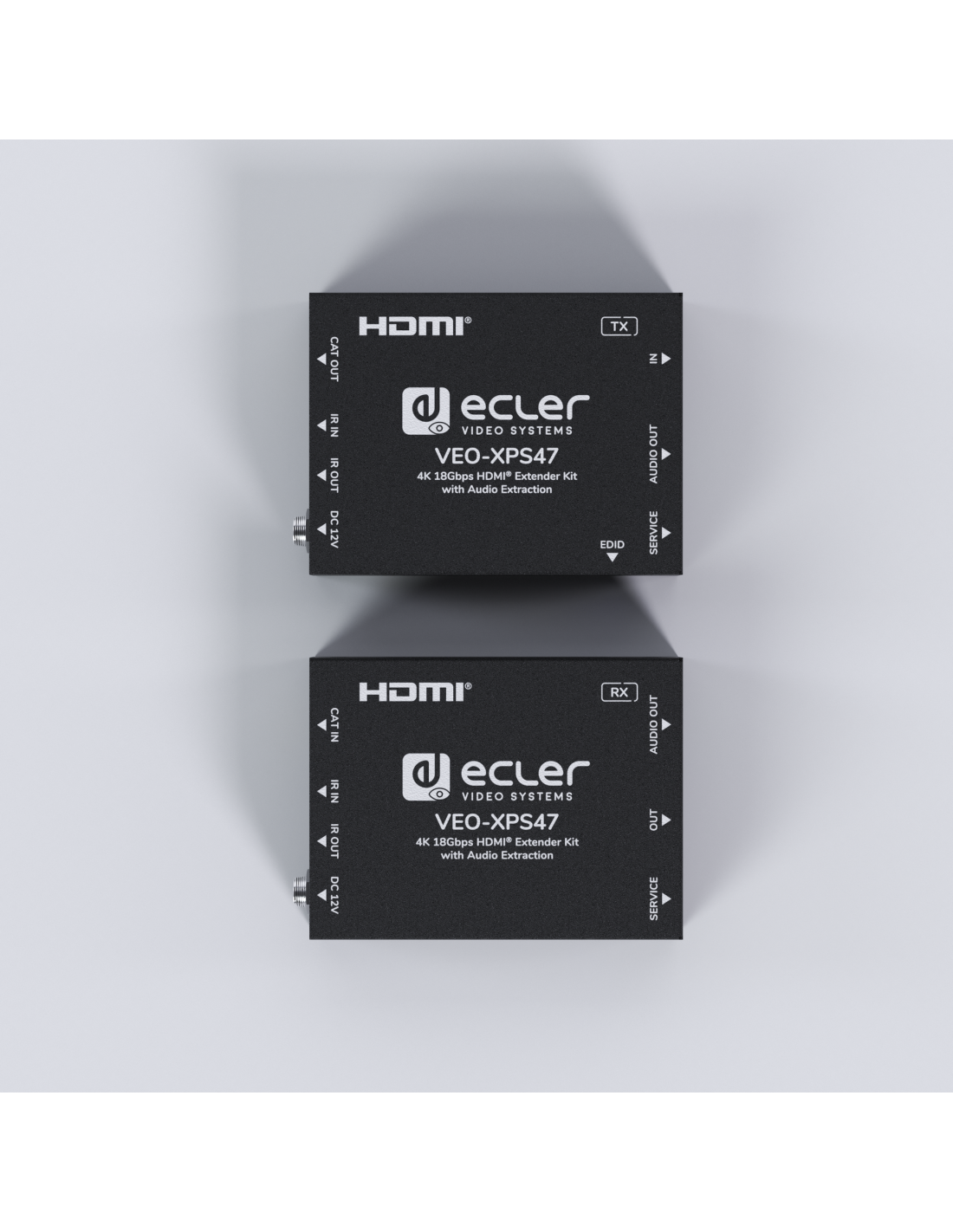

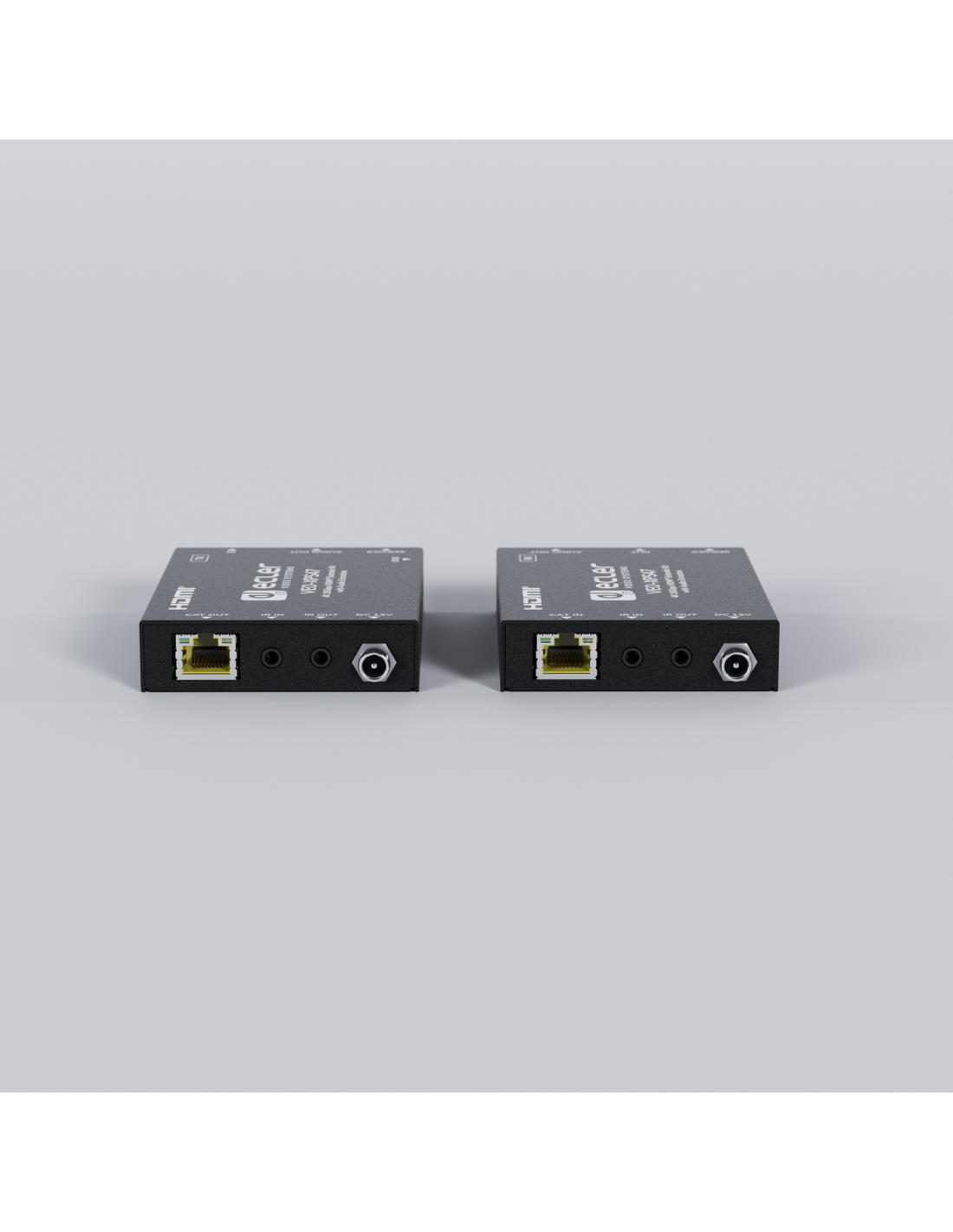

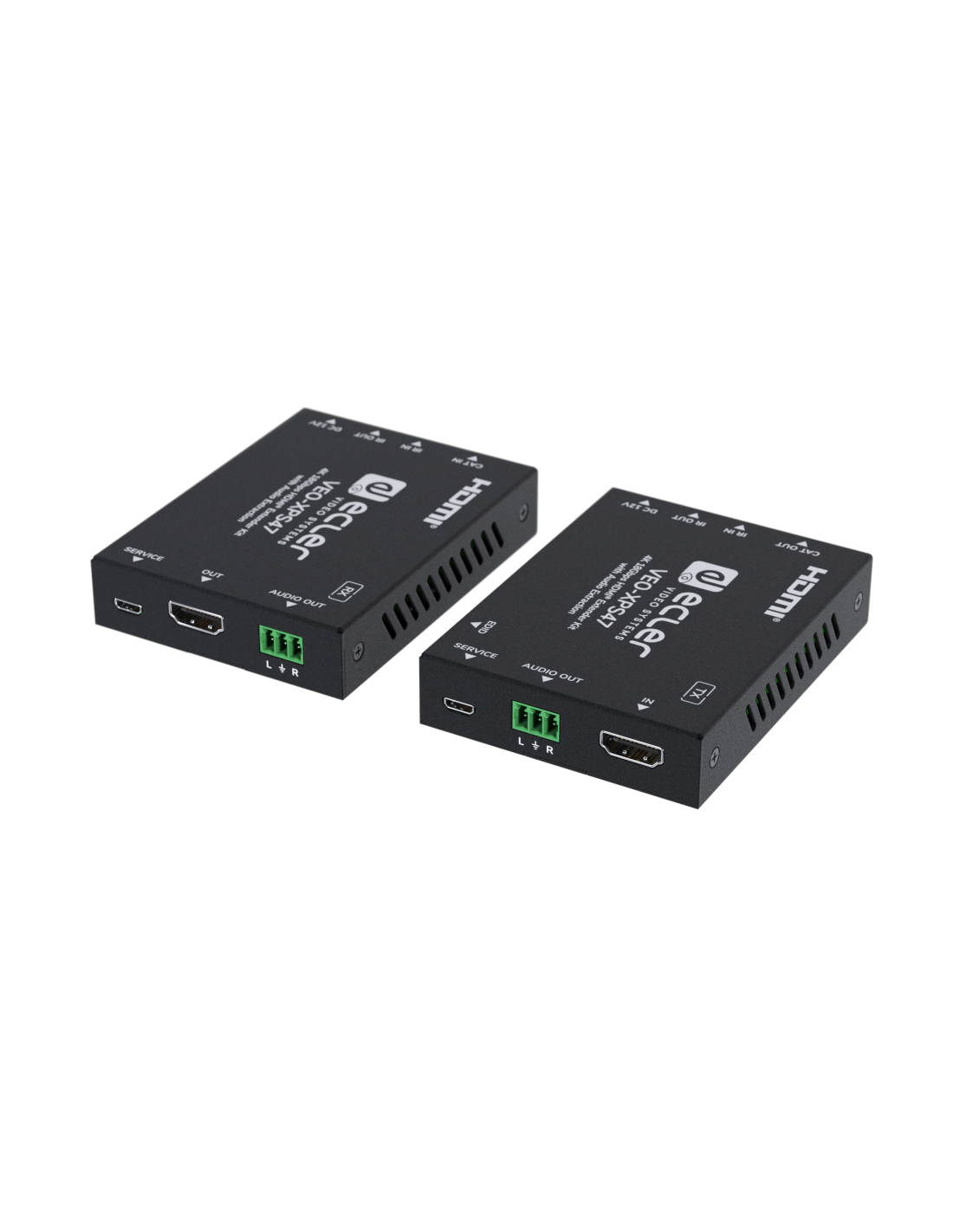

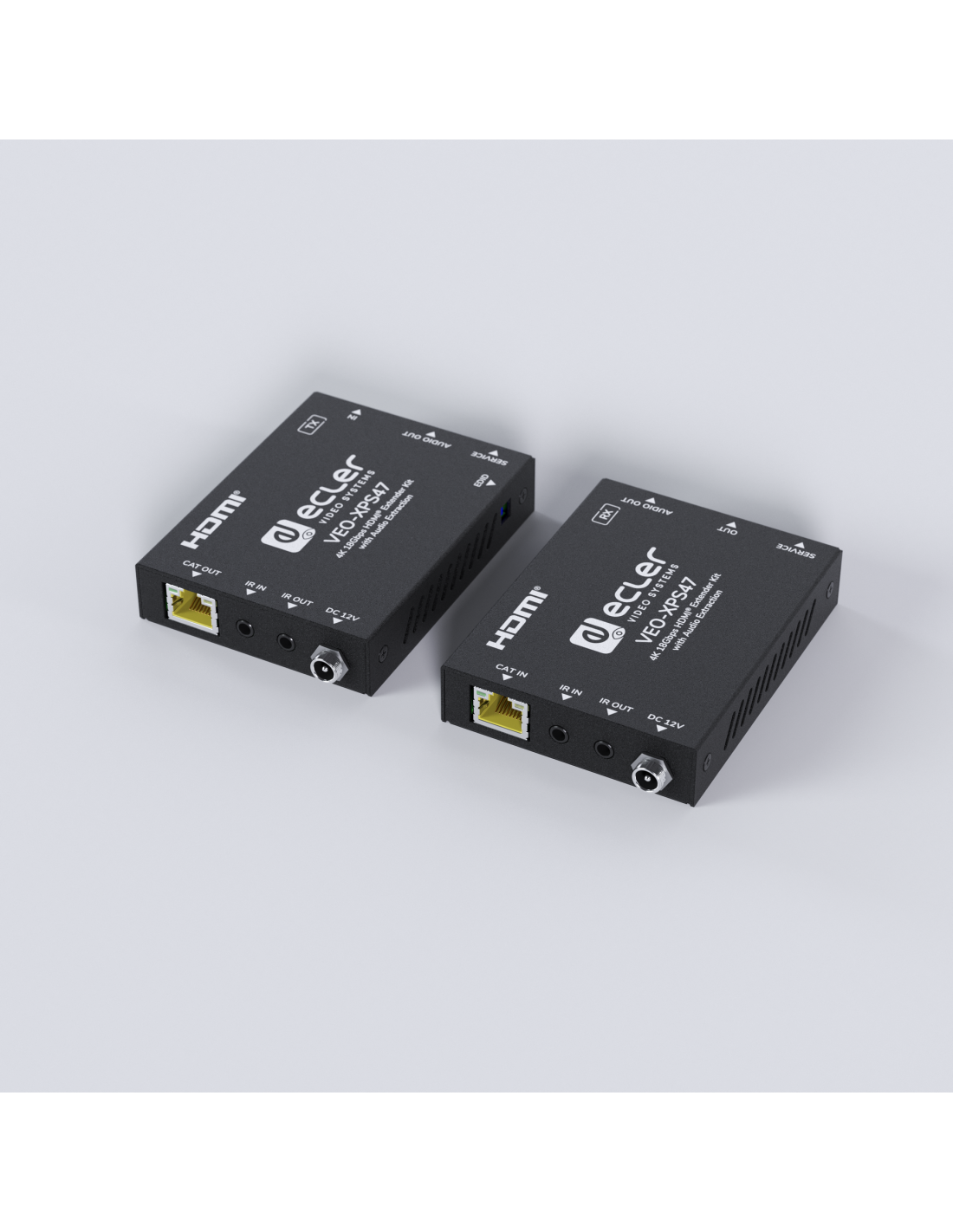

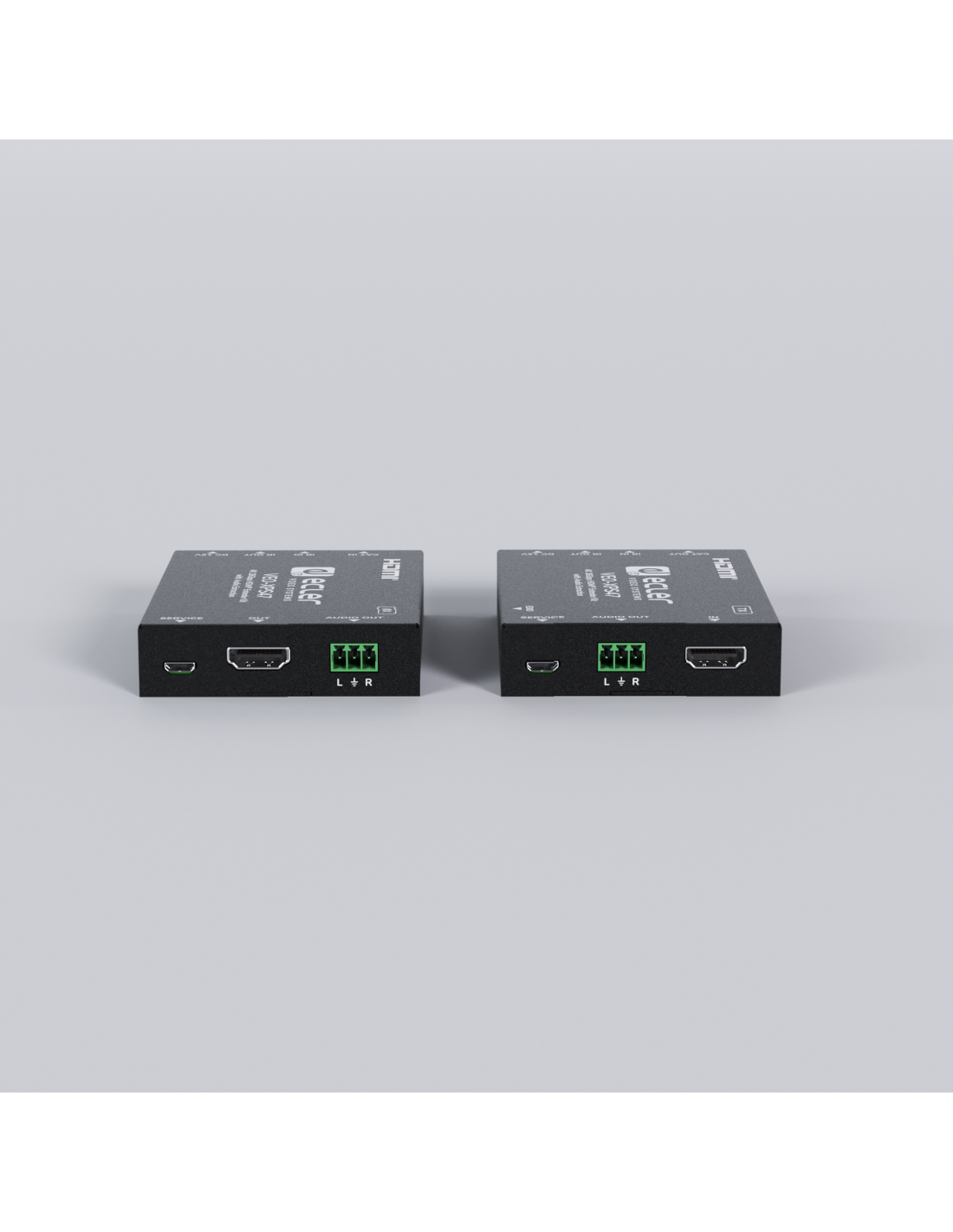

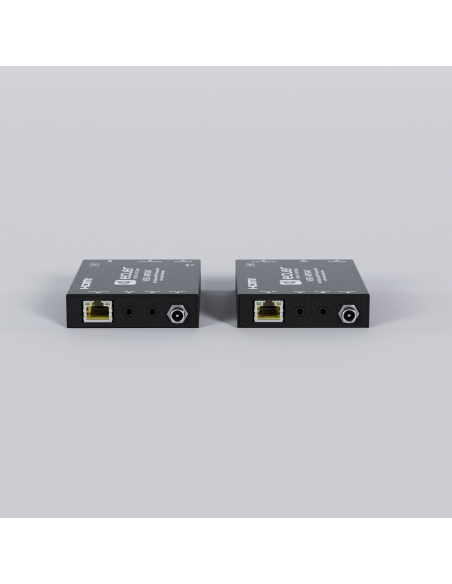

4K 18Gbps HDMI® Extender Kit with Audio Extraction
VEO-XPS47 is an HDMI® 18Gbps extender kit that enables 4K 50Hz 4:4:4 video signals to be extended up to 70 meters with zero latency over a single Cat 5e or higher cable. It features stereo unbalanced audio extraction via Euroblock connectors on both the transmitter and receiver, as well as EDID management, IR signal pass-through, and bidirectional PoC support, making it a simple and cost-effective solution for professional extension applications.
- Installation options
- Mounting ears for table, wall or screwed
- Operating temperature
- Min: 0°C; 32°F
Max: 40°C; 104°F
- Operating humidity
- 20 - 80% RH, non-condensing
- Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
- Storage humidity
- 10% - 90% RH, non-condensing
- Included accessories
- 1 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 2 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x USB 2.0 Cable, 1 x Firmware Update USB Adapter, 1 x PSU 12V/1A
1 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 2 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x USB 2.0 Cable, 1 x PSU 12V/1A - Finished colour
- Black
- Dimensions
- Transmitter & Receiver: 90 x 18 x 68mm / 3.54 x 0.71 x 2.68 in (WxHxD)
- Weight
- Transmitter: 0.160 Kg / 0.35 lb
Receiver: 0.155 Kg / 0.34 lb
- Shipping dimensions
- 215 x 75 x 135mm / 8.47 x 2.95 x 5.31 in (WxHxD)
- Shipping weight
- 0.7kg / 1.54 lb
- Frequency response
- 20Hz-20KHz (±3dB)
- AC mains connector
- External PSU. Included 4 region power blades (UK,US,AU,EU)
- Power consumption
- 3.36W
- Video Input Connectors
- Transmitter: 1 x HDMI® Type A Female, 2.0, 18Gbps;
1 x RJ-45 Female
- Video Output Connectors
- Receiver: 1 x HDMI® Type A Female, 2.0, 18Gbps;
1 x RJ-45 Female
- Video Input Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
- Video Output Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
- Chroma Subsampling
- 4:4:4，4:2:2，4:2:0
- Colour Depth
- 8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
- Colour Space
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- HDCP
- HDCP 2.2
- HDR
- HDR10, HDR10+, Dolby Vision, HLG
- Audio Output Connectors
- 1 x 3-pin Euroblock
- Audio Formats
- LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS
HD-HRA, DTS-X - Sample Rate
- 48 KHz, 96 KHz, 192 KHz
- Bit Depth
- Up to 24-bit
- EDID Management
- EDID Copy, EDID Setting
- Status Indicators
- Link Status LEDs
- Pass-through Connectors
- 1 x Jack 3,5mm
- Power supply
- PoC bidirectional; External:Input 100-240VAC 50/60Hz 0.3A, Output DC 12VDC-1A
- DC mains connector
- DC Locking
- Chassis material
- Metal
- Pass-through Protocols
- IR
- Control Connectors
- 1 x DIP Switch
- Transmission Distance
- 4K/50Hz up to 70m with Cat 5e or higher
4K/30Hz up to 30m with Cat 5e or higher
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Mounting ears for table, wall or screwed |
|---|---|
| Operating temperature |
Min: 0°C; 32°F
Max: 40°C; 104°F
|
| Operating humidity |
20 - 80% RH, non-condensing |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F
|
| Storage humidity |
10% - 90% RH, non-condensing |
| Included accessories |
1 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 2 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x USB 2.0 Cable, 1 x Firmware Update USB Adapter, 1 x PSU 12V/1A 1 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 2 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x USB 2.0 Cable, 1 x PSU 12V/1A |
| Finished colour |
Black |
| Dimensions |
Transmitter & Receiver: 90 x 18 x 68mm / 3.54 x 0.71 x 2.68 in (WxHxD) |
| Weight |
Transmitter: 0.160 Kg / 0.35 lb
Receiver: 0.155 Kg / 0.34 lb
|
| Shipping dimensions |
215 x 75 x 135mm / 8.47 x 2.95 x 5.31 in (WxHxD) |
| Shipping weight |
0.7kg / 1.54 lb |
| Chassis material |
Metal |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades (UK,US,AU,EU) |
|---|---|
| Power consumption |
3.36W |
| Power supply |
PoC bidirectional; External:Input 100-240VAC 50/60Hz 0.3A, Output DC 12VDC-1A |
| DC mains connector |
DC Locking |
DEVICE CONTROL
| EDID Management |
EDID Copy, EDID Setting |
|---|---|
| Status Indicators |
Link Status LEDs |
| Control Connectors |
1 x DIP Switch |
LINE OUTPUTS
| Frequency response |
20Hz-20KHz (±3dB) |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
Transmitter: 1 x HDMI® Type A Female, 2.0, 18Gbps;
1 x RJ-45 Female
|
|---|---|
| Video Output Connectors |
Receiver: 1 x HDMI® Type A Female, 2.0, 18Gbps;
1 x RJ-45 Female
|
| Video Input Resolutions |
480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Video Output Resolutions |
480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Chroma Subsampling |
4:4:4，4:2:2，4:2:0 |
| Colour Depth |
8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0) |
| Colour Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDCP |
HDCP 2.2 |
| HDR |
HDR10, HDR10+, Dolby Vision, HLG |
AUDIO PERFORMANCES
| Audio Output Connectors |
1 x 3-pin Euroblock |
|---|---|
| Audio Formats |
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS
HD-HRA, DTS-X |
| Sample Rate |
48 KHz, 96 KHz, 192 KHz |
| Bit Depth |
Up to 24-bit |
PASS-THROUGH CONTROL
| Pass-through Connectors |
1 x Jack 3,5mm |
|---|---|
| Pass-through Protocols |
IR |
CONNECTION SPECIFICATION
HDBaseT SPECIFICATION
| Transmission Distance |
4K/50Hz up to 70m with Cat 5e or higher
4K/30Hz up to 30m with Cat 5e or higher |
|---|
