VEO-XTT44
CVEOXTT44
Check availability

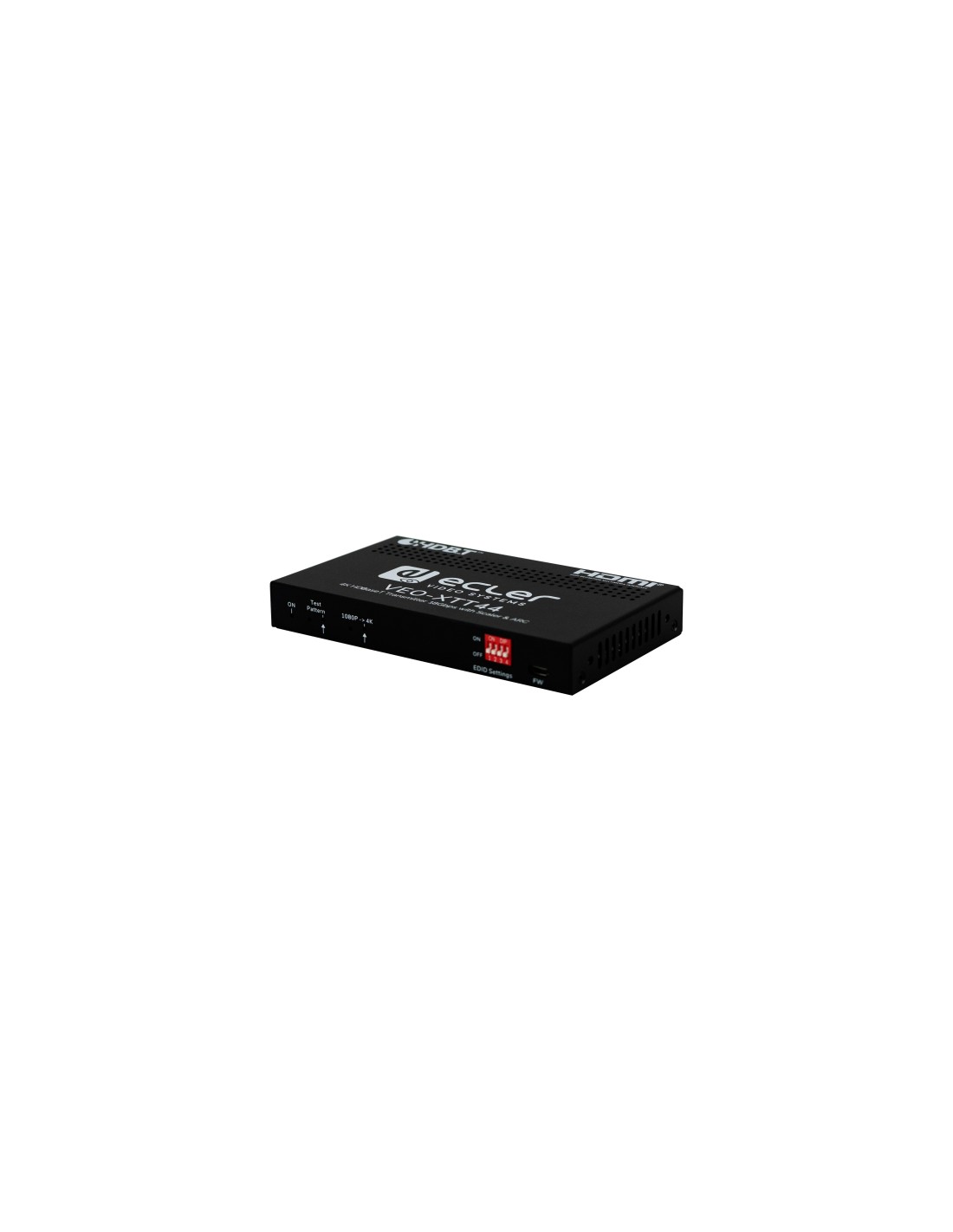

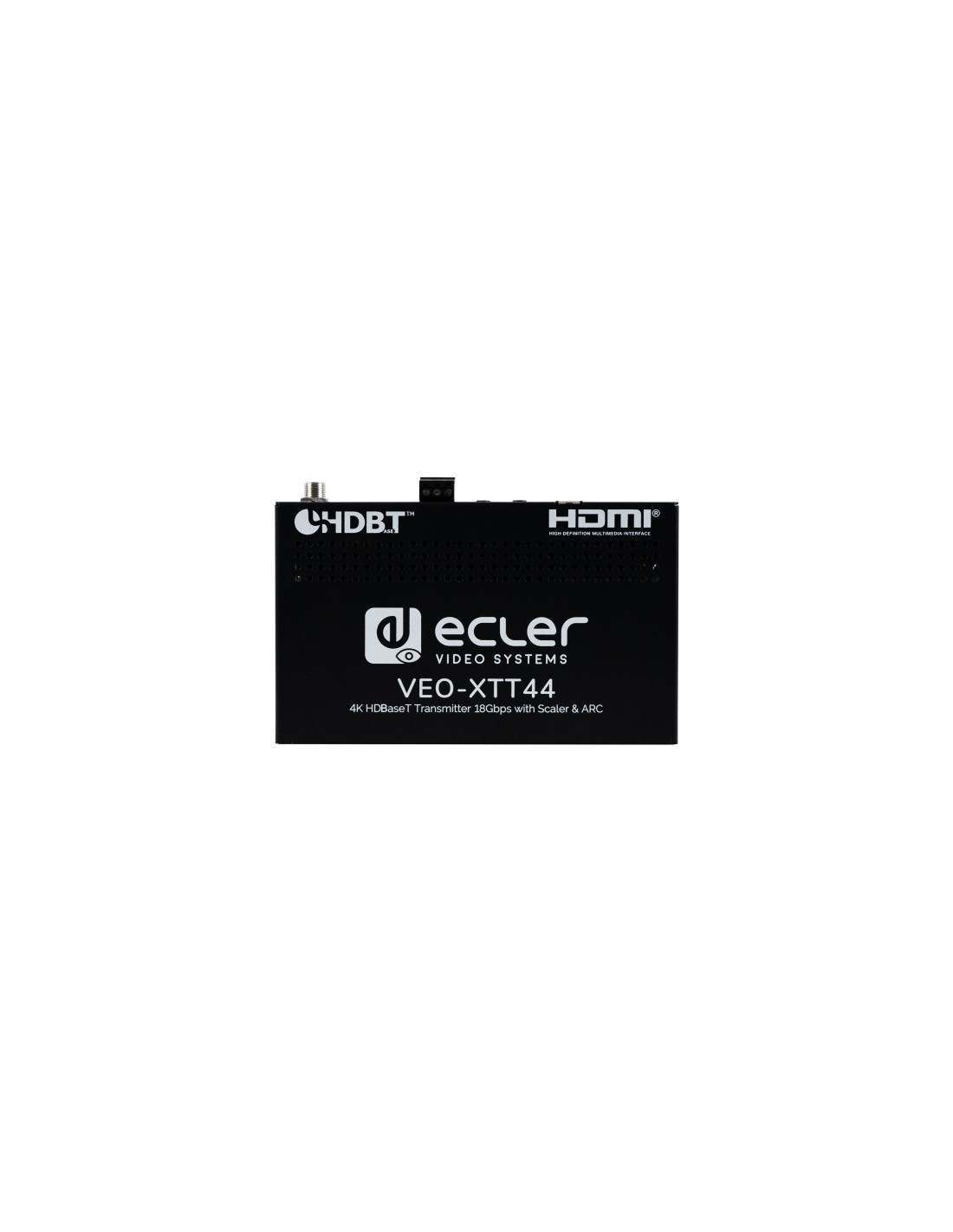

4K 18Gbps HDBaseT Extender/Scaler
VEO-XTT44 is a professional HDBaseT transmitter for HDMI® extension of High Dynamic Range (HDR) formats. Bidirectional PoH (Power Over HDBaseT) allows to use only one power supply connected to the Transmitter or the Receiver, according to the installation needs. This product represents the ideal solution for residential and commercial applications that include the latest 4K/UHD and HDR sources and displays.
- Installation options
- Desktop - TBC
- Operating temperature
- Min: -5°C ; 23°F
Max: 55°C ; 131°F - Operating humidity
- 10 to 90 % RH (no condensation)
- Included accessories
- 2x TX Mounting Ears with 4 Screws, 4 x TX Rubber feet, 3-pin Terminal Block, Power Adapter (24V DC 1.25A), Quick guide and warranty
- Finished colour
- Black
- Dimensions
- 140 × 20 x 84 mm / 5.51 x 0.79 x 3.31 in. (WxHxD)
- Weight
- 0.275 kg / 0.606 lb
- Shipping dimensions
- 175 x 119 x 110 mm / 6.89 x 4.69 x 4.33 in. (WxHxD)
- Shipping weight
- 0.6 kg / 1.32 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071312707
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Frequency response
- 20Hz – 20KHz, ±3dB
- Power consumption
- 12W Maximum

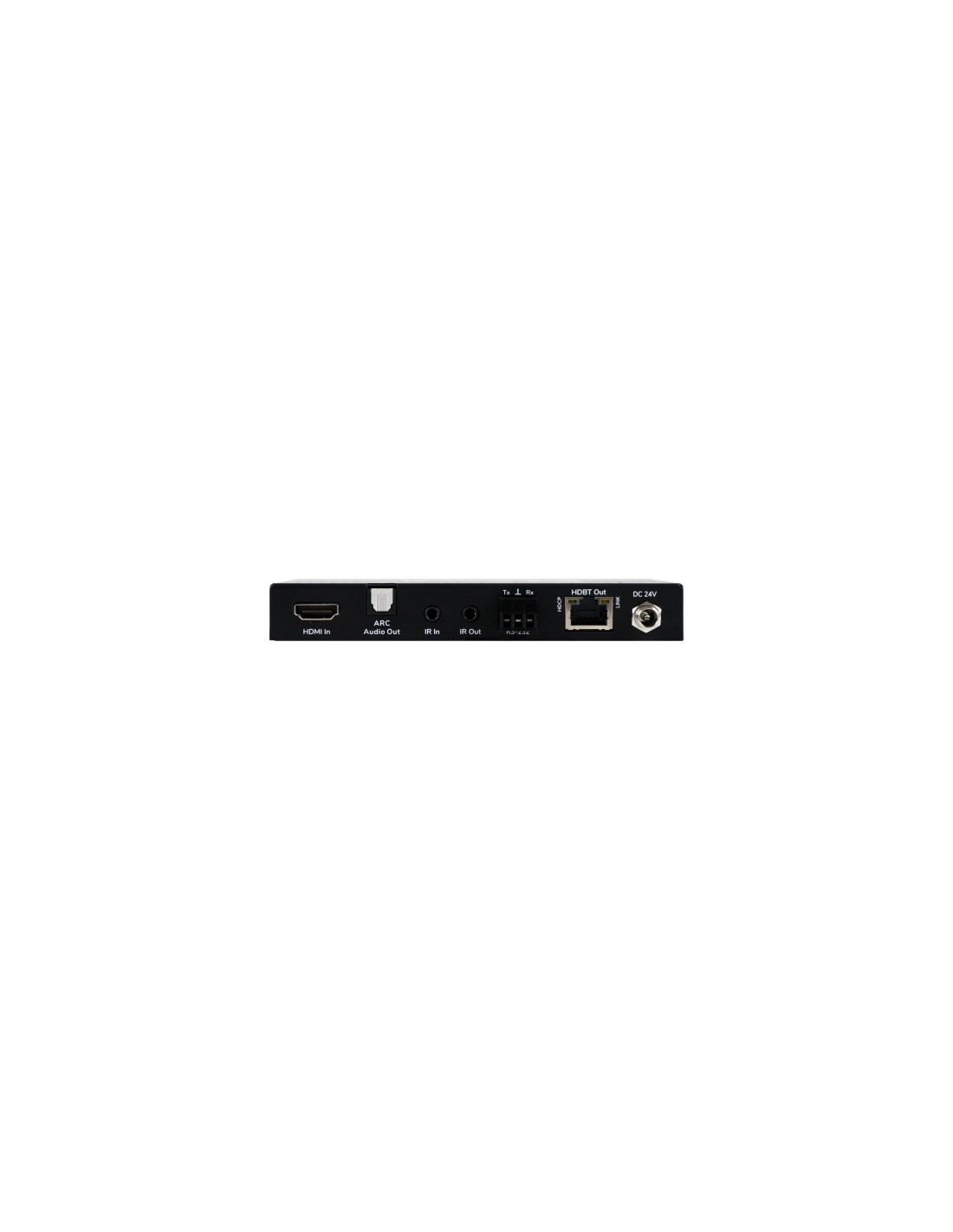

- Video Input Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 18 Gbps - Video Input Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
Up to 4Kx2K@60Hz - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit, 10-bit, 12-bit, 16-bit only @4K30
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters / 33 ft with Ecler VEO cables
- Audio Output Connectors
- Toslink (ARC output)
- Audio Formats
- PCM 2Ch, PCM 5.1, PCM 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
- Sample Rate
- 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Depth
- Up to 24-bit
- ARC/eARC
- Yes

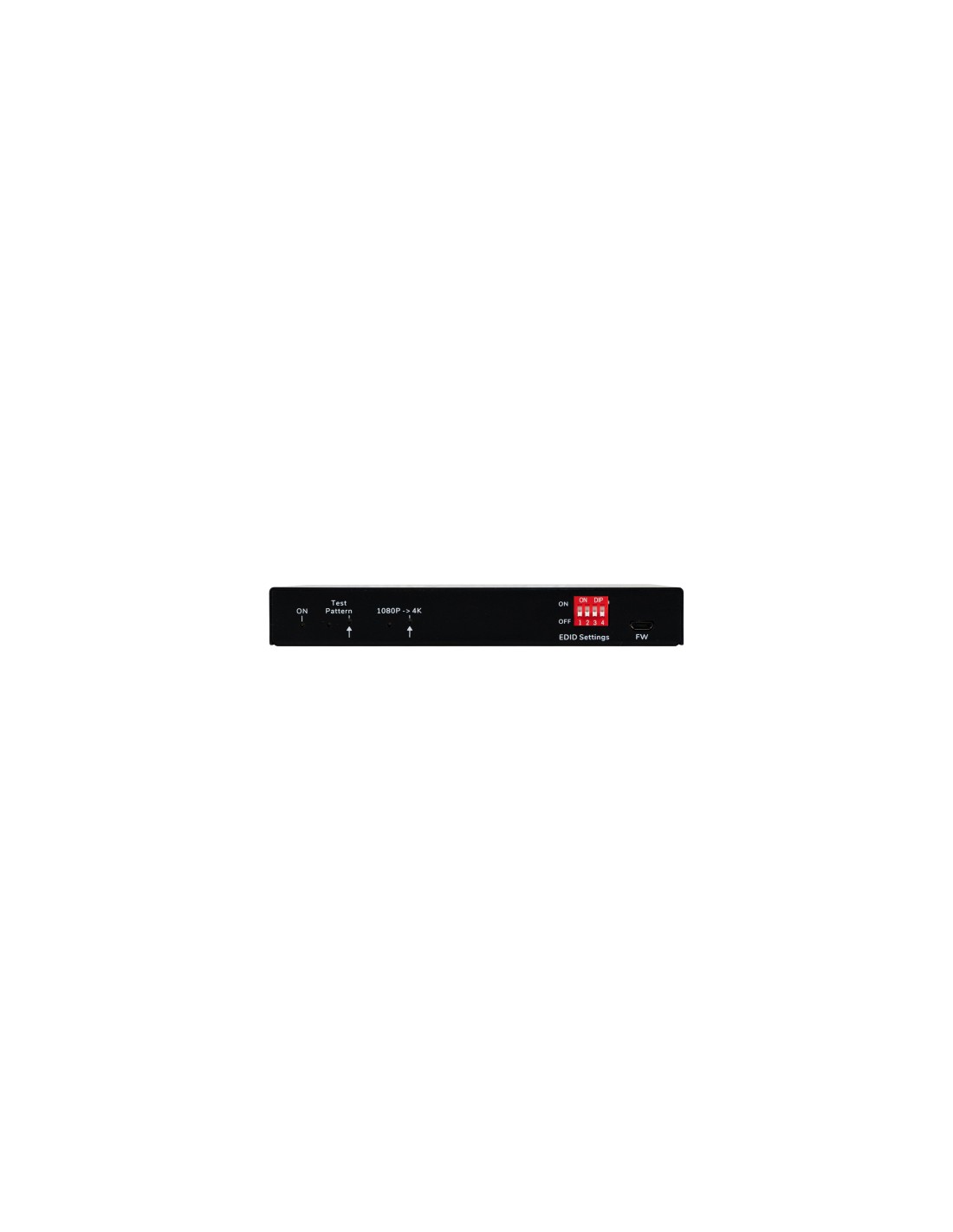

- Control Buttons
- Test Pattern button, 1080P to 4K button

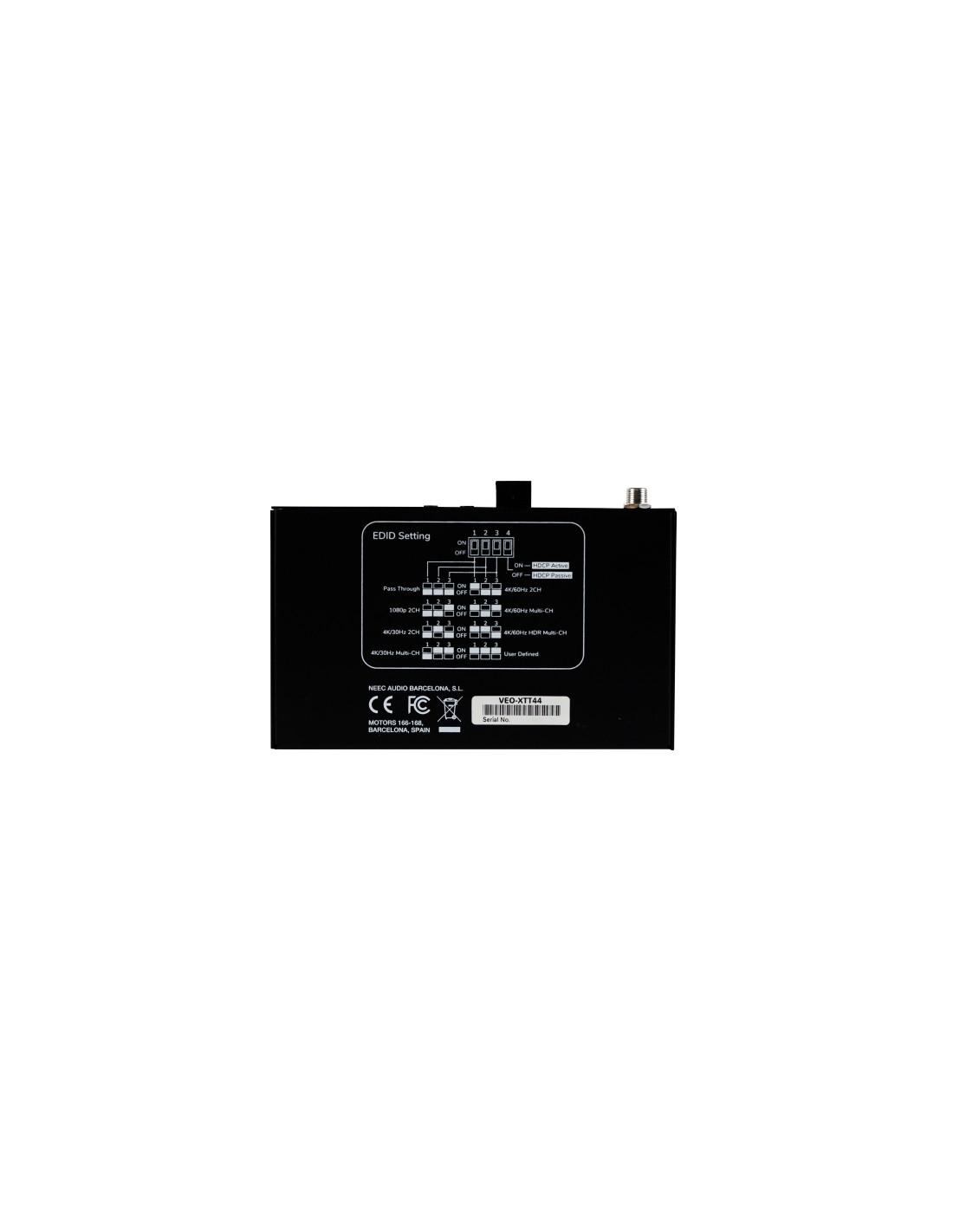

- EDID Management
- 4-pin Dip-switch or through the FW port
- Status Indicators
- Power LED, Test Pattern mode LEDs
- Pass-through Connectors
- Jack 3.5mm
- Power supply
- PoH; External: AC 100V - 240V @ 50-60Hz Output: DC 24V-1.25A
- DC mains connector
- DC 24V Connector
- Chassis material
- Metal
- Pass-through Protocols
- IR, CEC
- Control Connectors
- Jack 3.5mm, 3-pin Euroblock, Micro-USB
- Control Protocols
- IR, RS-232
- Transmission Distance
- CAT5e/6 @ 4K up to 35 m / up to 115 feet
CAT6a/7 @ 4K up to 40 m/ up to 130 feet
CAT5e/6 @ 1080p up to 60 m / up to 197 feet
CAT6a/7 @ 1080p up to 70 m / up to 230 feet - Scaling Features
- Yes
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop - TBC |
|---|---|
| Operating temperature |
Min: -5°C ; 23°F
Max: 55°C ; 131°F |
| Operating humidity |
10 to 90 % RH (no condensation)
|
| Included accessories |
2x TX Mounting Ears with 4 Screws, 4 x TX Rubber feet, 3-pin Terminal Block, Power Adapter (24V DC 1.25A), Quick guide and warranty |
| Finished colour |
Black |
| Dimensions |
140 × 20 x 84 mm / 5.51 x 0.79 x 3.31 in. (WxHxD) |
| Weight |
0.275 kg / 0.606 lb |
| Shipping dimensions |
175 x 119 x 110 mm / 6.89 x 4.69 x 4.33 in. (WxHxD) |
| Shipping weight |
0.6 kg / 1.32 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071312707 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power consumption |
12W Maximum |
|---|---|
| Power supply |
PoH; External: AC 100V - 240V @ 50-60Hz Output: DC 24V-1.25A |
| DC mains connector |
DC 24V Connector |
DEVICE CONTROL
| Control Buttons |
Test Pattern button, 1080P to 4K button |
|---|---|
| EDID Management |
4-pin Dip-switch or through the FW port |
| Status Indicators |
Power LED, Test Pattern mode LEDs |
| Control Connectors |
Jack 3.5mm, 3-pin Euroblock, Micro-USB |
| Control Protocols |
IR, RS-232 |
LINE OUTPUTS
| Frequency response |
20Hz – 20KHz, ±3dB |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Input Resolutions |
Up to 4Kx2K@60Hz 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Colour Depth |
8-bit, 10-bit, 12-bit, 16-bit only @4K30 |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR10 |
| HDMI Distance |
up to 10 meters / 33 ft with Ecler VEO cables |
| Scaling Features |
Yes |
AUDIO PERFORMANCES
| Audio Output Connectors |
Toslink (ARC output) |
|---|---|
| Audio Formats |
PCM 2Ch, PCM 5.1, PCM 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio |
| Sample Rate |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
Yes |
PASS-THROUGH CONTROL
| Pass-through Connectors |
Jack 3.5mm |
|---|---|
| Pass-through Protocols |
IR, CEC |
HDBaseT SPECIFICATION
| Transmission Distance |
CAT5e/6 @ 4K up to 35 m / up to 115 feet
CAT6a/7 @ 4K up to 40 m/ up to 130 feet
CAT5e/6 @ 1080p up to 60 m / up to 197 feet
CAT6a/7 @ 1080p up to 70 m / up to 230 feet |
|---|
