VEO-XPT44A
CVEOXPT44A
Available
HDMI® HDbaseT Extender | with Audio Extraction

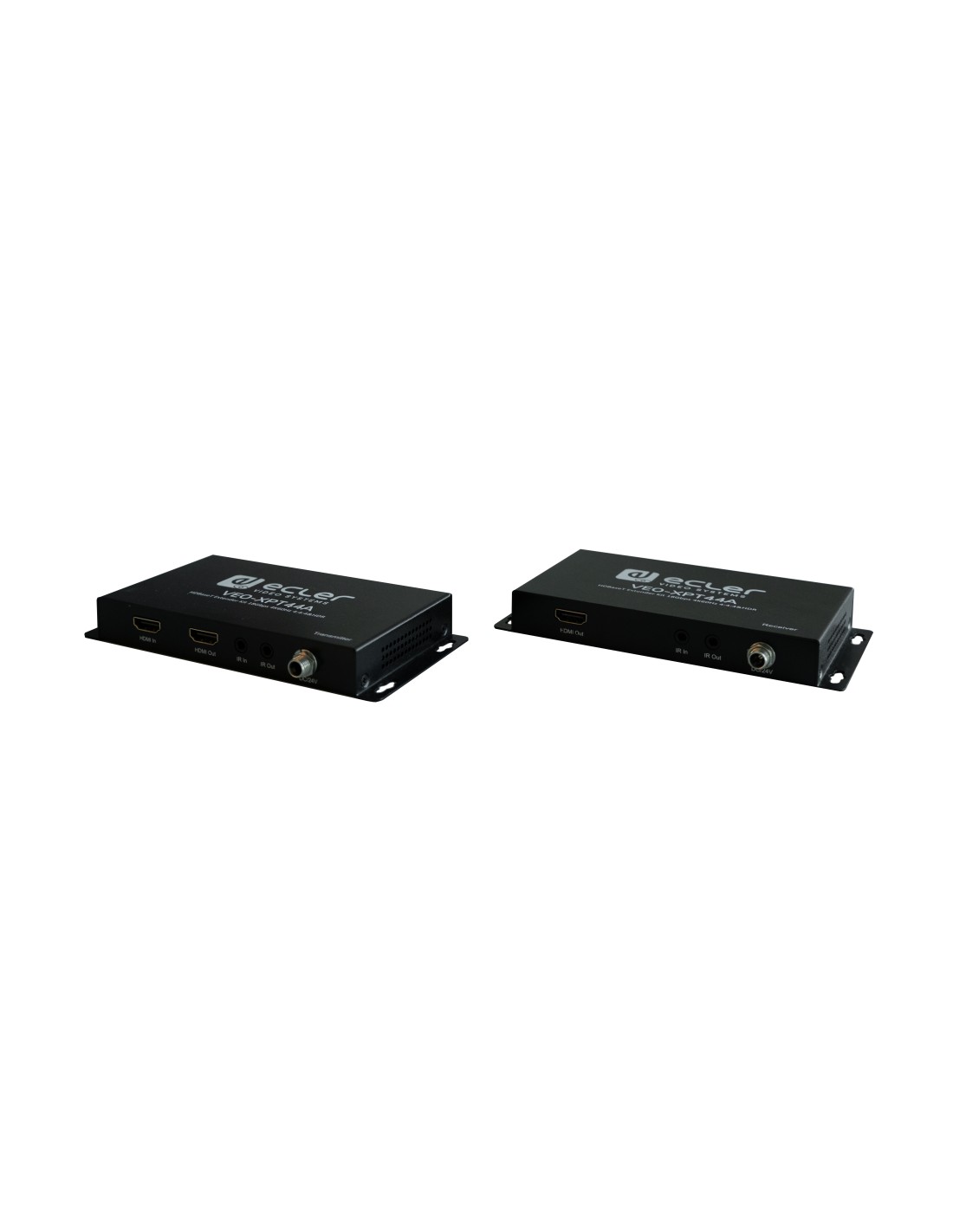

VEO-XPT44A is a professional HDBaseT extension kit that includes a transmitter and a receiver. It allows to extend a 4K video signal up to 40m or a Full HD signal up to 70m over a single Cat 5e/6 cable. It supports 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR10. The transmitter includes a HDMI® loop output for monitoring or daisy-chain connection. A stereo unbalanced output on Euroblock connector is available both, on the transmitter and the receiver, for easy integration. In addition, VEO-XPT44A includes bidirectional PoH feature so the transmitter can be powered by the receiver and vice versa. With a reduced form factor and the added features of RS-232 and bidirectional IR, this is the perfect solution for any applications where AV and control extensions are required.
- Installation options
- Desktop, VEO-RACK19 - TBC
- Operating temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Operating humidity
- 5 - 90% RH (no condensation)
- Included accessories
- 24VDC International Power Supply (One PSU for both units), 2x IR Blaster unit, 2x IR Receiver unit, 4x Euroblock plugs for RS-232 and audio cable termination
- Finished colour
- Black
- Dimensions
- 154.4 x 78.3 x 20 mm / 6.08 x 3.08 x 0.79 in. (WxHxD)
- Weight
- 0.688 kg / 1.52 lb (Pair)
- Shipping dimensions
- 170 x 90 x 200 mm / 6.69 x 3.54 x 7.87 in. (WxHxD)
- Shipping weight
- 0.9 kg / 1.98 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071316200
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 19.5
- Height (cm)
- 17
- Depth (cm)
- 8.5
- Vol. (dm3)
- 2.82
- Gross Weight (kg)
- 0.6
- Net Weight (kg)
- 1
- Format
- Unit
- Warranty (months)
- 36
- Frequency response
- 20Hz–20KHz, ±3dB
- Power consumption
- 12W Maximum
- Video Input Connectors
- Tx: HDMI Type A Female, 2.0, 18 Gbps
Tx: HDMI® Type A Female, 18 Gbps - Video Output Connectors
- HDMI Type A Female, 2.0, 18 Gbps (loop output on Tx)
HDMI® Type A Female, 18 Gbps (loop output on Tx) - Video Input Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
Up to 4Kx2K@60Hz - Video Output Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
Up to 4Kx2K@60Hz - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit, 10-bit, 12-bit, 16-bit only @4K30
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters / 33 ft with Ecler VEO cables
- Audio Output Connectors
- 3pin Euroblock for Stereo Unbalanced Output (PCM 2.0)
- Audio Formats
- Dolby True-HD, DTS-HD Master Audio, PCM
- Sample Rate
- 32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz, 192 KHz
- Bit Depth
- Up to 24-bit
- ARC/eARC
- No
- Control Buttons
- EDID mode selector (Tx only), Reset button,
- EDID Management
- 3-positions EDID mode selector
- Status Indicators
- Green LED: HDbaseT connection OK
Orange LED flashing: HDCP negotiation
Orange LED fixed: HDCP encryption - Pass-through Connectors
- Jack 3.5mm, 3-pin Euroblock
- Power supply
- PoH bidirectional; External: AC 100V - 240V @ 50-60Hz
Output: DC 24V-1A - DC mains connector
- DC 24V Connector
- Chassis material
- Metal
- Release Date
- 10/11/2022
- Pass-through Protocols
- Bi-directional IR and RS-232
- Control Connectors
- Jack 3.5mm, 3-pin Euroblock, RJ45
- Control Protocols
- IR, RS-232
- Transmission Distance
- CAT5e/6 @ 4K up to 35 m / up to 115 feet CAT6a/7 @ 4K up to
40 m/ up to 130 feet CAT5e/6 @ 1080p up to 60 m / up to 197
feet CAT6a/7 @ 1080p up to 70 m / up to 230 feet - Scaling Features
- No
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, VEO-RACK19 - TBC |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Operating humidity |
5 - 90% RH (no condensation) |
| Included accessories |
24VDC International Power Supply (One PSU for both units), 2x IR Blaster unit, 2x IR Receiver unit, 4x Euroblock plugs for RS-232 and audio cable termination |
| Finished colour |
Black |
| Dimensions |
154.4 x 78.3 x 20 mm / 6.08 x 3.08 x 0.79 in. (WxHxD) |
| Weight |
0.688 kg / 1.52 lb (Pair)
|
| Shipping dimensions |
170 x 90 x 200 mm / 6.69 x 3.54 x 7.87 in. (WxHxD) |
| Shipping weight |
0.9 kg / 1.98 lb |
| Format |
Unit |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071316200
|
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
19.5 |
| Height (cm) |
17 |
| Depth (cm) |
8.5 |
| Vol. (dm3) |
2.82 |
| Gross Weight (kg) |
0.6 |
| Net Weight (kg) |
1 |
| Warranty (months) |
36 |
| Release Date |
10/11/2022 |
ELECTRICAL
| Power consumption |
12W Maximum |
|---|---|
| Power supply |
PoH bidirectional; External: AC 100V - 240V @ 50-60Hz
Output: DC 24V-1A |
| DC mains connector |
DC 24V Connector |
DEVICE CONTROL
| Control Buttons |
EDID mode selector (Tx only), Reset button, |
|---|---|
| EDID Management |
3-positions EDID mode selector |
| Status Indicators |
Green LED: HDbaseT connection OK
Orange LED flashing: HDCP negotiation
Orange LED fixed: HDCP encryption |
| Control Connectors |
Jack 3.5mm, 3-pin Euroblock, RJ45 |
| Control Protocols |
IR, RS-232 |
LINE OUTPUTS
| Frequency response |
20Hz–20KHz, ±3dB |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
Tx: HDMI Type A Female, 2.0, 18 Gbps Tx: HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors |
HDMI Type A Female, 2.0, 18 Gbps (loop output on Tx) HDMI® Type A Female, 18 Gbps (loop output on Tx) |
| Video Input Resolutions |
Up to 4Kx2K@60Hz 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Video Output Resolutions |
Up to 4Kx2K@60Hz 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0
|
| Colour Depth |
8-bit, 10-bit, 12-bit, 16-bit only @4K30 |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR10 |
| HDMI Distance |
up to 10 meters / 33 ft with Ecler VEO cables |
| Scaling Features |
No |
AUDIO PERFORMANCES
| Audio Output Connectors |
3pin Euroblock for Stereo Unbalanced Output (PCM 2.0) |
|---|---|
| Audio Formats |
Dolby True-HD, DTS-HD Master Audio, PCM |
| Sample Rate |
32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz, 192 KHz |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
No |
PASS-THROUGH CONTROL
| Pass-through Connectors |
Jack 3.5mm, 3-pin Euroblock |
|---|---|
| Pass-through Protocols |
Bi-directional IR and RS-232 |
HDBaseT SPECIFICATION
| Transmission Distance |
CAT5e/6 @ 4K up to 35 m / up to 115 feet CAT6a/7 @ 4K up to
40 m/ up to 130 feet CAT5e/6 @ 1080p up to 60 m / up to 197
feet CAT6a/7 @ 1080p up to 70 m / up to 230 feet |
|---|
