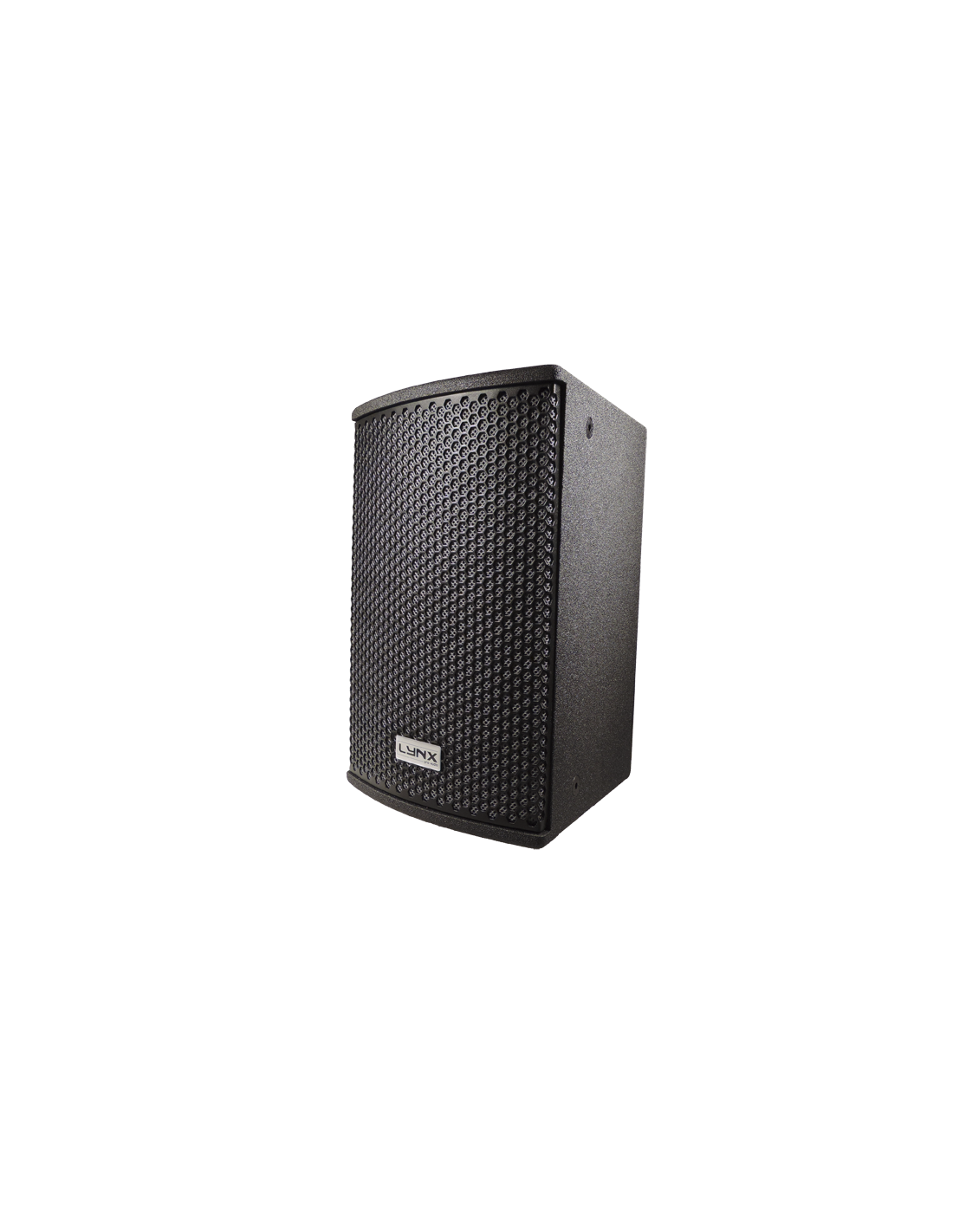

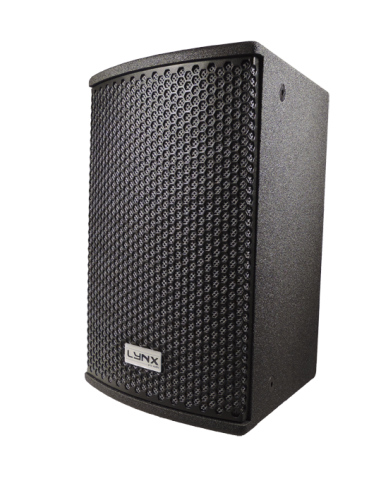

HR-8MG
CLYHR8MG
Check availability
Loudspeaker 8"" FR 300W 90/60 Intemperie
Passive ultra compact, lightweight and very versatile enclosure especially designed for all types of installation projects.It consists of a 8” transducer with Neodimium magnet and a 1” high frequency compression driver. It offers 125 dB SPL (600 W program).
It is an excellent solution for all types of fixed installations and has a complete range of accessories to provide an easier installation. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
- Effective Freq. Range
- Frequency range: 60 Hz – 20 KHz (-10dB)
Frequency response: 78 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 90º x 90º rotatable
- Sensitivity
- 97 dB (1W@1m)
- Maximum SPL
- 122 dB – 128 dB Peak
- Crossover filter
- Passive
- Connection type
- 2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 420 x 274 x 298 mm (HxWxD)
- Weight
- 10 Kg ( 22 lbs)
- Status
- New
- EAN code
- 8436612041117
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power handling per way
- LF: 1 x 8” – 2” aluminum voice coil kapton cone
HF: 1” Exit compression Driver , 1.75” aluminium voice coil, Polyester diaphragm - Finish
- Polyurea coating, black colour
- Power options (Hi Z Multi-tap)
- 300 W (600 W program, 1200 W peak)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency range: 60 Hz – 20 KHz (-10dB)
Frequency response: 78 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
90º x 90º rotatable |
| Sensitivity |
97 dB (1W@1m) |
| Maximum SPL |
122 dB – 128 dB Peak |
| Power handling per way |
LF: 1 x 8” – 2” aluminum voice coil kapton cone
HF: 1” Exit compression Driver , 1.75” aluminium voice coil, Polyester diaphragm |
| Power options (Hi Z Multi-tap) |
300 W (600 W program, 1200 W peak) |
FILTERS
| Crossover filter |
Passive |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
420 x 274 x 298 mm (HxWxD) |
| Weight |
10 Kg ( 22 lbs) |
| Finish |
Polyurea coating, black colour |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041117 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
