HR-6W
CLYHR6W
Check availability

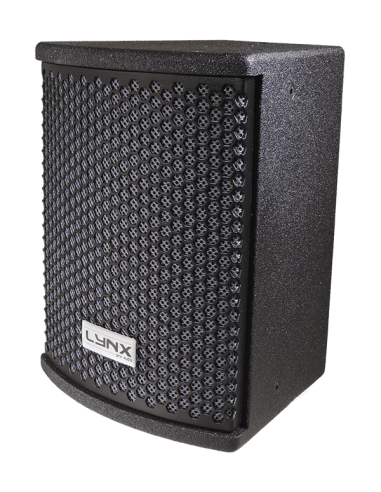

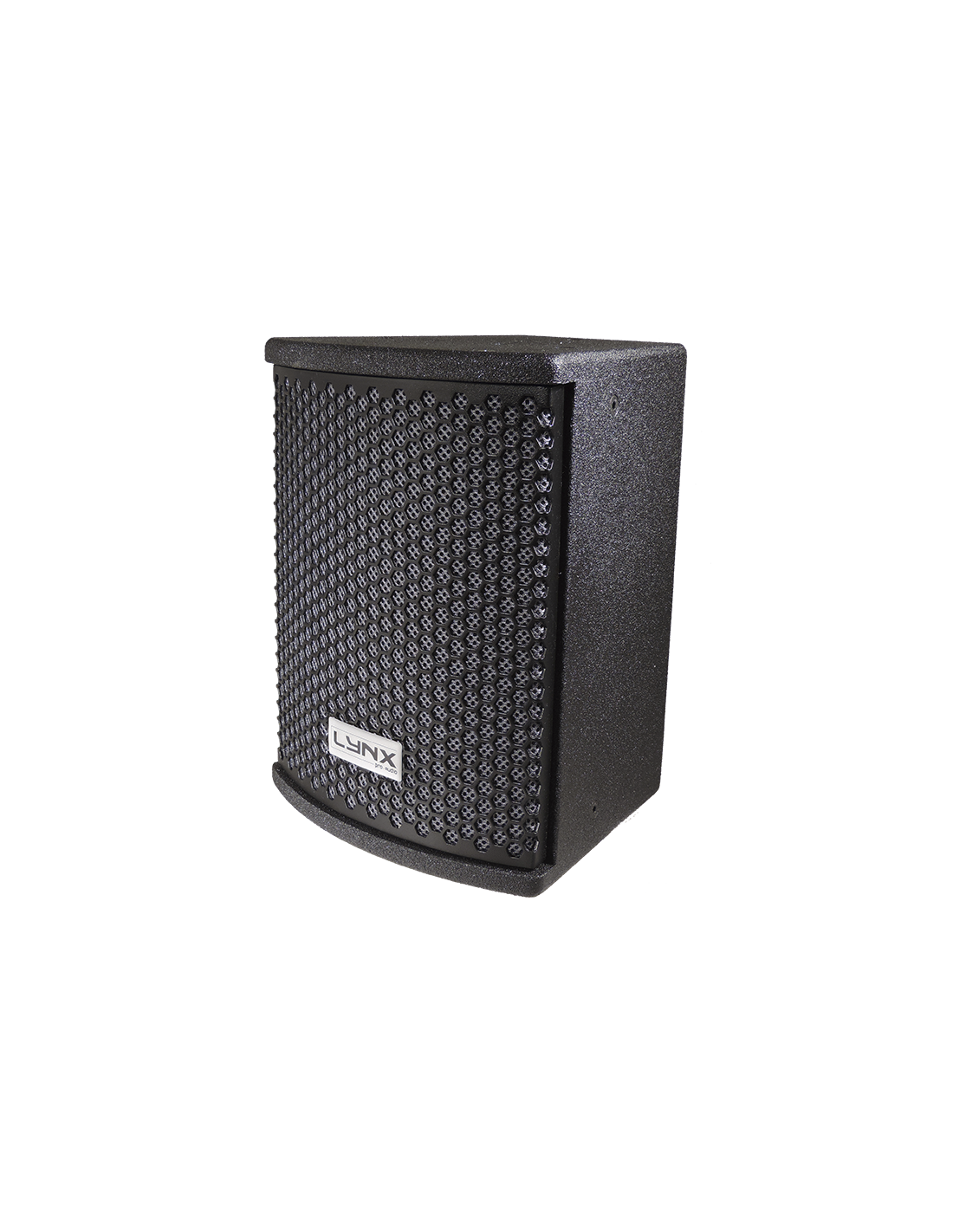

Speaker 6" FR 200W 90/90 White
Ultra compact, light and very versatile passive enclosure specially designed for all types of installation projects, both indoors and outdoors (outdoor version available). It consists of a 6.5” transducer (impedance 16 ohm) and a 1” high frequency Mylar tweeter. It offers 119 dB SPL (400 W program)
It is an excellent solution for large installation projects or basic installations. It has a complete range of accessories to provide an easier installation. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
- Effective Freq. Range
- Frequency Range: 62 Hz – 20 KHz (-10dB)
Frequency Response: 88 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 90º H x 90 º V
- Sensitivity
- 93 dB (1W@1m)
- Maximum SPL
- 116 dB – 122 dB Peak
- Nominal impedance
- 16 Ω
- Crossover filter
- Passive
- Connection type
- 2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 300 x 236 x 220 mm (HxWxD)
- Weight
- 7.5 Kg (17 lbs)
- Status
- New
- EAN code
- 8436612041056
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power handling per way
- 200 W (400 W program, 800 W peak)
- Finish
- Polyurea coating
SYSTEM
| Effective Freq. Range |
Frequency Range: 62 Hz – 20 KHz (-10dB)
Frequency Response: 88 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
90º H x 90 º V |
| Sensitivity |
93 dB (1W@1m) |
| Maximum SPL |
116 dB – 122 dB Peak |
| Power handling per way |
200 W (400 W program, 800 W peak) |
TRANSDUCERS
| Nominal impedance |
16 Ω |
|---|
FILTERS
| Crossover filter |
Passive |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
300 x 236 x 220 mm (HxWxD) |
| Weight |
7.5 Kg (17 lbs) |
| Finish |
Polyurea coating |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041056 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
