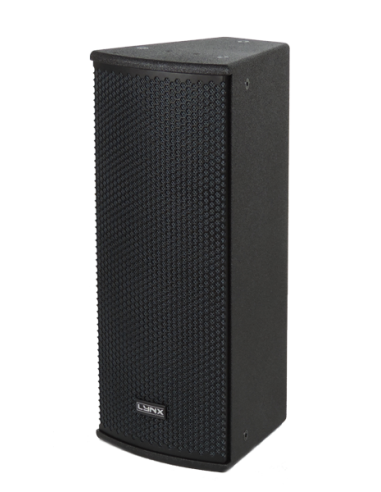

HR-28MG
CLYHR28MG
Check availability
High-performance passive full-range enclosure with an excellent power-to-size ratio.
The HR-28 enclosure is a high performance passive full range, with an excellent power to size ratio. It features two very special 8"" Hexacone loudspeakers and a 1"" motor for a very compact, high-performance two-way configuration.
This enclosure offers selectable bi-amp or passive operation and is ideal for a wide variety of applications. For optimized operation it is recommended to apply the high performance preset included with the ARK-20 processor.
- Effective Freq. Range
- Frequency Range: 54 Hz – 20 KHz (-10dB)
Frequency Response: 60 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 90º x 60 º (Rotatable)
- Sensitivity
- Passive Mode: 93 dB (1W@1m)
- Maximum SPL
-
Passive Mode: 120dB – 126dB Peak
Bi-Amp LF: 120dB – 126dB Peak
Bi-Amp HF: 125dB – 131dB Peak
Passive Mode: 120dB – 126dB Peak
Bi-Amp LF: 120dB – 126dB Peak
Bi-Amp HF: 125dB – 131dB Peak
Passive Mode: 120dB – 126dB Peak
Bi-Amp LF: 120dB – 126dB Peak
Bi-Amp HF: 125dB – 131dB Peak - Nominal impedance
- 4 Ω Passive / Biamp LF 4 Ω, HF 8 Ω
- Crossover filter
- Bi-Amp / Passive (Selectable)
- Connection type
- 2 x Neutrik Speakon NL4MP
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 665 x 279 x 298 mm (H x W x D)
- Weight
- 17 Kg (37 lbs)
- Status
- New
- EAN code
- 8436612041162
8436612041193
8436612041186
8436612041179
8436612041193 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Power handling per way
- LF: 2 x 8″, 2″ aluminium voice coil, hexacone cone
HF: 1″ Exit compression Driver, 1.75″ aluminium voice coil, Polyester diaphragm - Finish
- Polyurea coating – other colours (RAL) available
- Power options (Hi Z Multi-tap)
- Passive mode: 500 W (1000 W program, 2000 W peak)
Bi- Amp LF: 500 W (1000 W program, 2000 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak)
SYSTEM
| Effective Freq. Range |
Frequency Range: 54 Hz – 20 KHz (-10dB)
Frequency Response: 60 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
90º x 60 º (Rotatable) |
| Sensitivity |
Passive Mode: 93 dB (1W@1m) |
| Maximum SPL |
Passive Mode: 120dB – 126dB Peak
Bi-Amp LF: 120dB – 126dB Peak
Bi-Amp HF: 125dB – 131dB Peak Passive Mode: 120dB – 126dB Peak Bi-Amp LF: 120dB – 126dB Peak Bi-Amp HF: 125dB – 131dB Peak Passive Mode: 120dB – 126dB Peak Bi-Amp LF: 120dB – 126dB Peak Bi-Amp HF: 125dB – 131dB Peak |
| Power handling per way |
LF: 2 x 8″, 2″ aluminium voice coil, hexacone cone
HF: 1″ Exit compression Driver, 1.75″ aluminium voice coil, Polyester diaphragm |
| Power options (Hi Z Multi-tap) |
Passive mode: 500 W (1000 W program, 2000 W peak)
Bi- Amp LF: 500 W (1000 W program, 2000 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak) |
TRANSDUCERS
| Nominal impedance |
4 Ω Passive / Biamp LF 4 Ω, HF 8 Ω |
|---|
FILTERS
| Crossover filter |
Bi-Amp / Passive (Selectable) |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
665 x 279 x 298 mm (H x W x D) |
| Weight |
17 Kg (37 lbs) |
| Finish |
Polyurea coating – other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041162
8436612041193
8436612041186
8436612041179 8436612041193 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
