HR-26RAL
CLYHR26RAL
Check availability

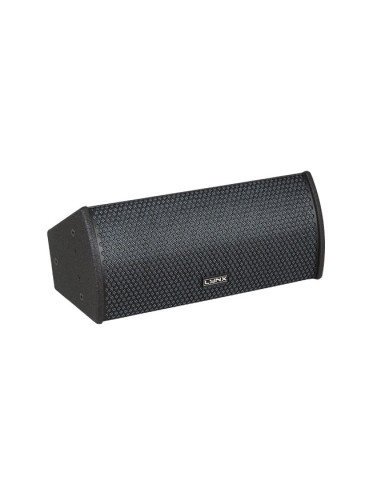

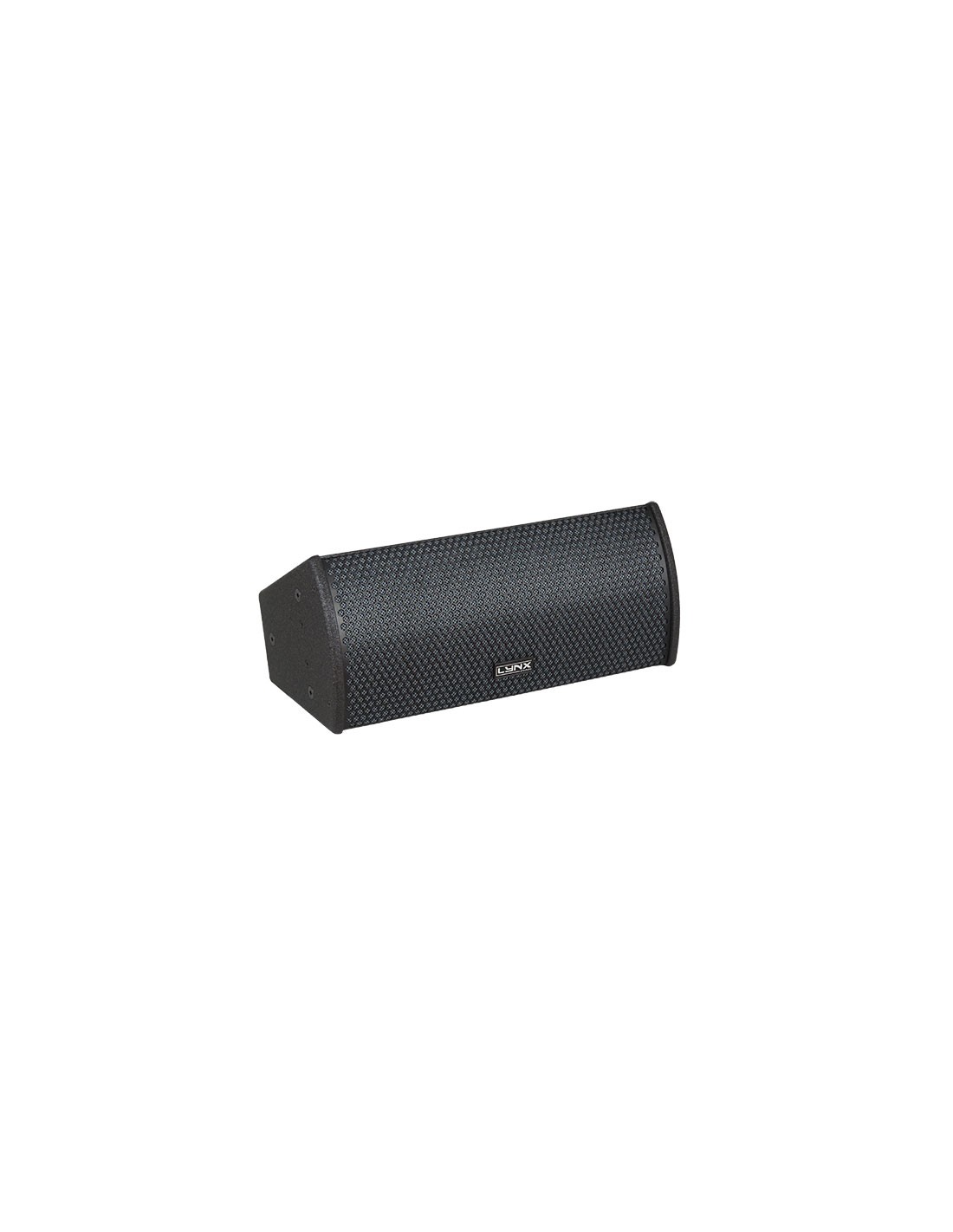

Speaker 2x6" FR 400W 90/60 RAL
The HR-26 enclosure is a high-performance passive full range, with an excellent power-size ratio.It consists of two 6.5”transducers (at 8ohm impedance) and a 1” high frequency compression driver. It offers a wide dispersion of 90º x 60º and 122dB SPL (800W program).
This enclosure offers a selectable operation between bi-amp or passive mode and is ideal for a wide variety of applications and has several accessories that provide an easier installation. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
- Effective Freq. Range
- Frequency Range: 72 Hz – 20 KHz (-10dB)
Frequency Response: 78 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 80º H x 60 º V Constant directivity horn
- Sensitivity
- Passive Mode: 90 dB (1W@1m)
- Maximum SPL
- Passive Mode: 117dB – 122dB Peak
Bi-Amp LF: 119dB – 125dB Peak
Bi-Amp HF: 125dB – 131dB Peak - Crossover filter
- Bi-Amp / Passive (Selectable)
- Connection type
- 2 x Neutrik Speakon NL4MP
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 249 x 568 x 252 mm (HxWxD)
- Weight
- 15 Kg (33 lbs)
- Status
- New
- EAN code
- 8436612041148
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Input sensitivity
- 8 Ω – also available in 4 Ω
- Power handling per way
- LF: 2 x 6.5″, 2″ voice coil
HF: 1″ Exit compression Driver , 1.75″ aluminium voice coil, PM-4 polymer diaphragm - Finish
- Polyurea coating – other colours (RAL) available
- Power options (Hi Z Multi-tap)
- Passive mode: 400 W (800 W program, 1600 W peak)
Bi- Amp LF: 400 W (800 W program, 1600 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 72 Hz – 20 KHz (-10dB)
Frequency Response: 78 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
80º H x 60 º V Constant directivity horn |
| Sensitivity |
Passive Mode: 90 dB (1W@1m) |
| Maximum SPL |
Passive Mode: 117dB – 122dB Peak
Bi-Amp LF: 119dB – 125dB Peak
Bi-Amp HF: 125dB – 131dB Peak |
| Power handling per way |
LF: 2 x 6.5″, 2″ voice coil
HF: 1″ Exit compression Driver , 1.75″ aluminium voice coil, PM-4 polymer diaphragm |
| Power options (Hi Z Multi-tap) |
Passive mode: 400 W (800 W program, 1600 W peak)
Bi- Amp LF: 400 W (800 W program, 1600 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak) |
FILTERS
| Crossover filter |
Bi-Amp / Passive (Selectable) |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
249 x 568 x 252 mm (HxWxD) |
| Weight |
15 Kg (33 lbs) |
| Finish |
Polyurea coating – other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041148 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
8 Ω – also available in 4 Ω |
|---|
