HR-1564-7
CLYHR15647
Check availability

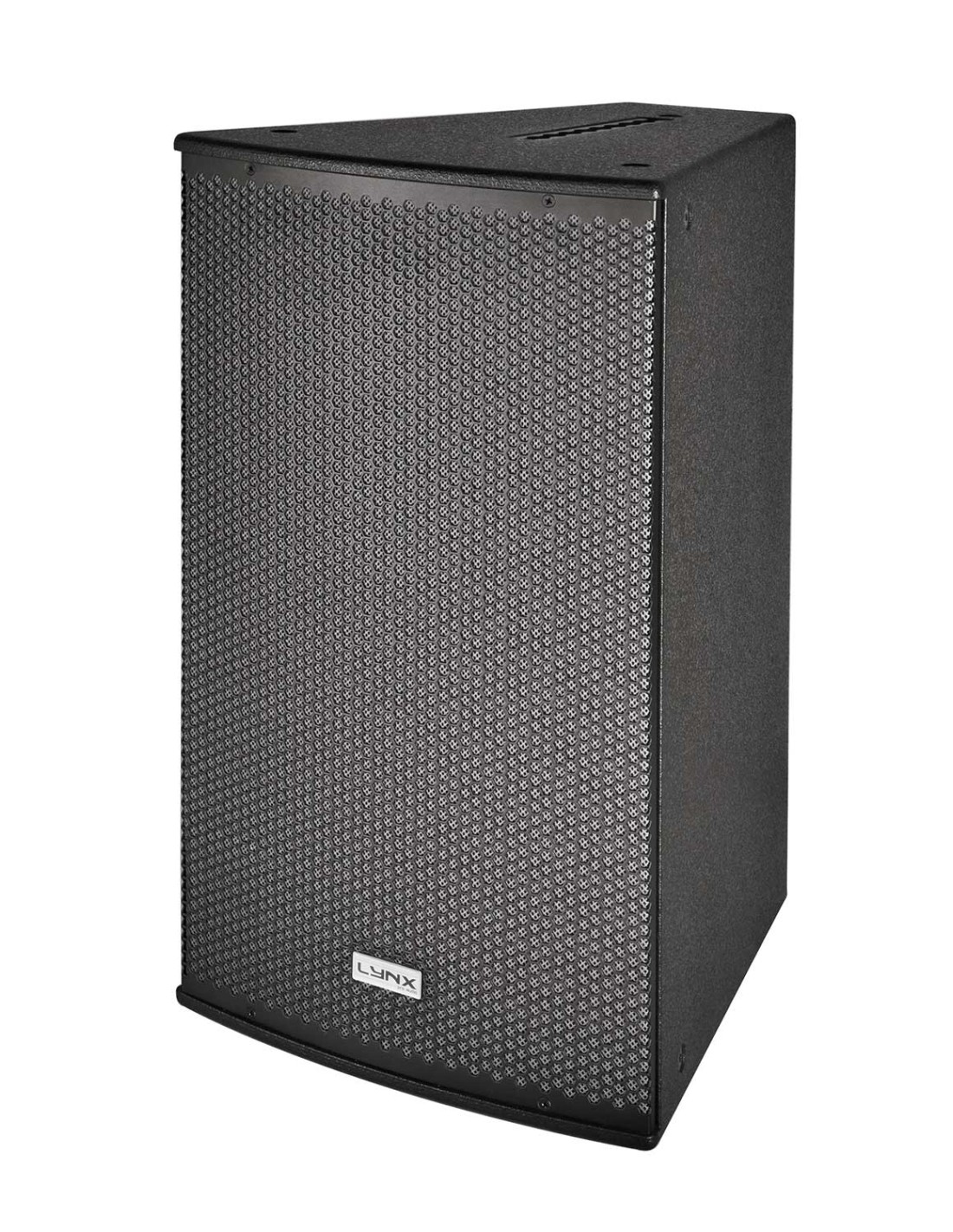

High performance, ultra-compact, full range, two way bi-amp/ passive cabinet.
High performance, ultra-compact, full range, two way bi-amp/passive cabinet. It consists of a 15” transducer and a 1.4” high frequency compression driver. They offer 2 dispersion options. The model HR-1564/7 provides a narrow dispersion of 60º x 40º (rotatable) and the model HR-1596/7 offers a wide dispersion of 90º x 60º (rotatable). 129dB SPL (1400W program)
This cabinet is ideal for a wide variety of applications and has a range of accessories that provide an easier assembly. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
For Low Frequency reinforcement, several subwoofer options are available.
- Effective Freq. Range
- 58 Hz – 20 KHz (-10dB)
- Sensitivity
- Passive Mode: 94 dB (1W@1m)
- Maximum SPL
- Passive Mode: 123dB – 129dB Peak
Bi-Amp LF: 126dB – 132dB Peak
Bi-Amp HF: 127dB – 133dB Peak - Nominal impedance
- 8 Ω Passive / Bi-amp LF 8 Ω, HF 8 Ω
- Crossover filter
- Bi-Amp / Passive (Selectable)
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 790 x 444,5 x 541 mm (H x W x D)
- Weight
- 32 Kg (70.5 lbs)
- Status
- New
- EAN code
- 8436612041445
- Tariff code
- 8518220000
- Finish
- Polyurea coating – other colours (RAL) available
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
58 Hz – 20 KHz (-10dB) |
|---|---|
| Sensitivity |
Passive Mode: 94 dB (1W@1m) |
| Maximum SPL |
Passive Mode: 123dB – 129dB Peak
Bi-Amp LF: 126dB – 132dB Peak
Bi-Amp HF: 127dB – 133dB Peak |
TRANSDUCERS
| Nominal impedance |
8 Ω Passive / Bi-amp LF 8 Ω, HF 8 Ω |
|---|
FILTERS
| Crossover filter |
Bi-Amp / Passive (Selectable) |
|---|
PHYSICAL
| Grille material |
15 mm Premium birch plywood |
|---|---|
| Dimensions |
790 x 444,5 x 541 mm (H x W x D) |
| Weight |
32 Kg (70.5 lbs) |
| Finish |
Polyurea coating – other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041445 |
| Tariff code |
8518220000 |
