HR-1564-5
CLYHR15645
Check availability

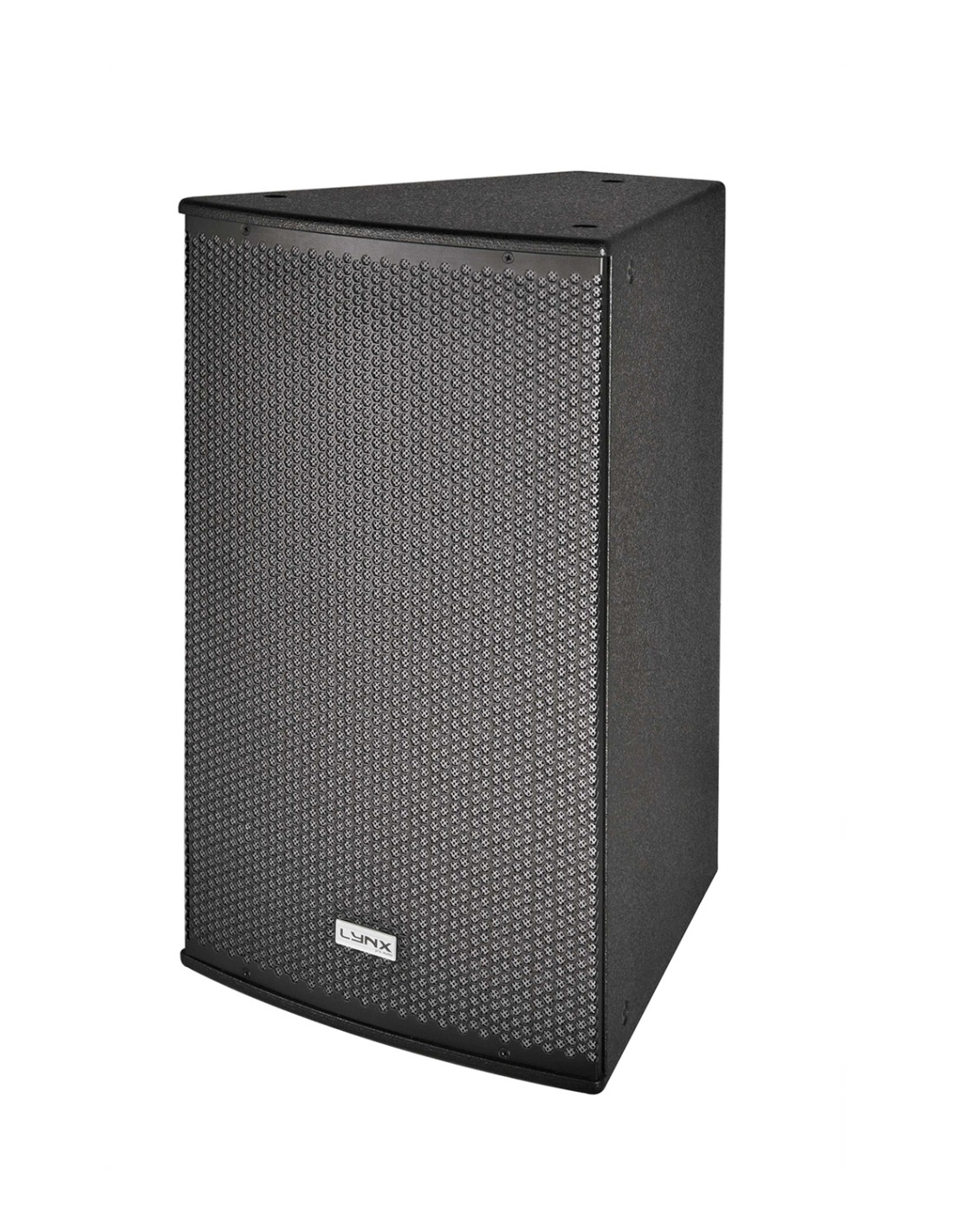

High performance, ultra-compact, full range, two way bi-amp/ passive cabinet.
High performance, ultra-compact, full range, two way bi-amp/passive cabinet.
It consists of a 15”transducer and a 1”high frequency compression driver.
They offer 2 dispersion options. The model HR-1564/5 provides a narrow dispersion of 60º x 40º (rotatable) and the model HR-1596/5 offers a wide dispersion of 90º x 60º (rotatable). 129dB SPL (1000W program).
This enclosure is ideal for a wide variety of applications and has a range of accessories that provide an easier assembly. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
For Low Frequency reinforcement, several subwoofer options are available.
- Effective Freq. Range
- 58 Hz – 20 KHz (-10dB)
- Sensitivity
- Passive Mode: 96dB (1W@1m)
- Maximum SPL
- Passive Mode: 123dB – 129dB Peak
Bi-Amp LF: 125dB – 131dB Peak
Bi-Amp HF: 126dB – 132dB Peak - Nominal impedance
-
8 Ω Passive / Biamp LF 8 Ω, HF 8 Ω - Crossover filter
- Bi-Amp / Passive (Selectable)
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 790 x 444,5 x 541 mm (H x W x D)
- Weight
- 30 Kg (66 lbs)
- Status
- New
- EAN code
- 8436612041360
- Tariff code
- 8518220000
- Finish
- Polyurea coating – other colours (RAL) available
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
58 Hz – 20 KHz (-10dB) |
|---|---|
| Sensitivity |
Passive Mode: 96dB (1W@1m) |
| Maximum SPL |
Passive Mode: 123dB – 129dB Peak
Bi-Amp LF: 125dB – 131dB Peak
Bi-Amp HF: 126dB – 132dB Peak |
TRANSDUCERS
| Nominal impedance |
8 Ω Passive / Biamp LF 8 Ω, HF 8 Ω |
|---|
FILTERS
| Crossover filter |
Bi-Amp / Passive (Selectable) |
|---|
PHYSICAL
| Grille material |
15 mm Premium birch plywood |
|---|---|
| Dimensions |
790 x 444,5 x 541 mm (H x W x D) |
| Weight |
30 Kg (66 lbs) |
| Finish |
Polyurea coating – other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041360 |
| Tariff code |
8518220000 |
