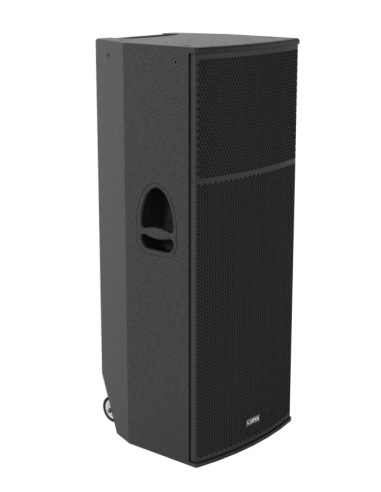

GXR-215
CLYGXR215
Check availability
High Output, self powered, two-way cabinet.
The GXR-215 enclosure has an excellent power-size ratio, does not need to carry out an external amplification rack and is the ideal solution as a compact portable PA system. The enclosure has a 1400 W class D amplifier switching power supply, with DSP processor and linear phase FIR filters. This system can be controlled online in real time.
- Effective Freq. Range
- Frequency Range: 55 Hz – 20 KHz (-10dB)
Frequency Response: 60 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 60º H x 50 º V constant directivity horn
- Maximum SPL
- 131 dB
- Connection type
- Ethernet (optional) / USB (DSP programming)
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 1140 x 444 x 486 mm (H x W x D)
- Weight
- 45 Kg (99 lbs)
- Status
- New
- EAN code
- 8436612040493
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power supply
- 85 – 270V. 50/60 Hz with PFC
- Power handling per way
- LF Amplifier: 1 x 800 W
HF Amplifier: 1 x 350 W@ 8 Ω - Finish
- Polyurea coating, black colour
- Power options (Hi Z Multi-tap)
- 1400W Class D with switching power supply & PFC
- Audio inputs
- Analog / AES3 (optional)
- Display
- User control interface with 2.8″ IPS screen
- AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 55 Hz – 20 KHz (-10dB)
Frequency Response: 60 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
60º H x 50 º V constant directivity horn |
| Maximum SPL |
131 dB |
| Power handling per way |
LF Amplifier: 1 x 800 W
HF Amplifier: 1 x 350 W@ 8 Ω |
| Power options (Hi Z Multi-tap) |
1400W Class D with switching power supply & PFC |
PHYSICAL
| Connection type |
Ethernet (optional) / USB (DSP programming) |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
1140 x 444 x 486 mm (H x W x D) |
| Weight |
45 Kg (99 lbs) |
| Finish |
Polyurea coating, black colour |
POWERED
| Audio inputs |
Analog / AES3 (optional) |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040493 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
85 – 270V. 50/60 Hz with PFC |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8″ IPS screen |
|---|
