GXR-15ETH
CLYGXR15ETH
Check availability
High-performance two-way multi-purpose self-powered amplifier with Ethernet connection.

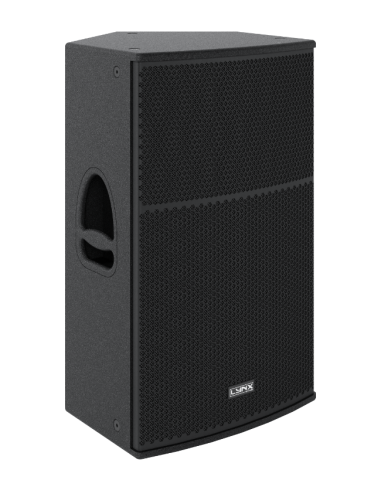

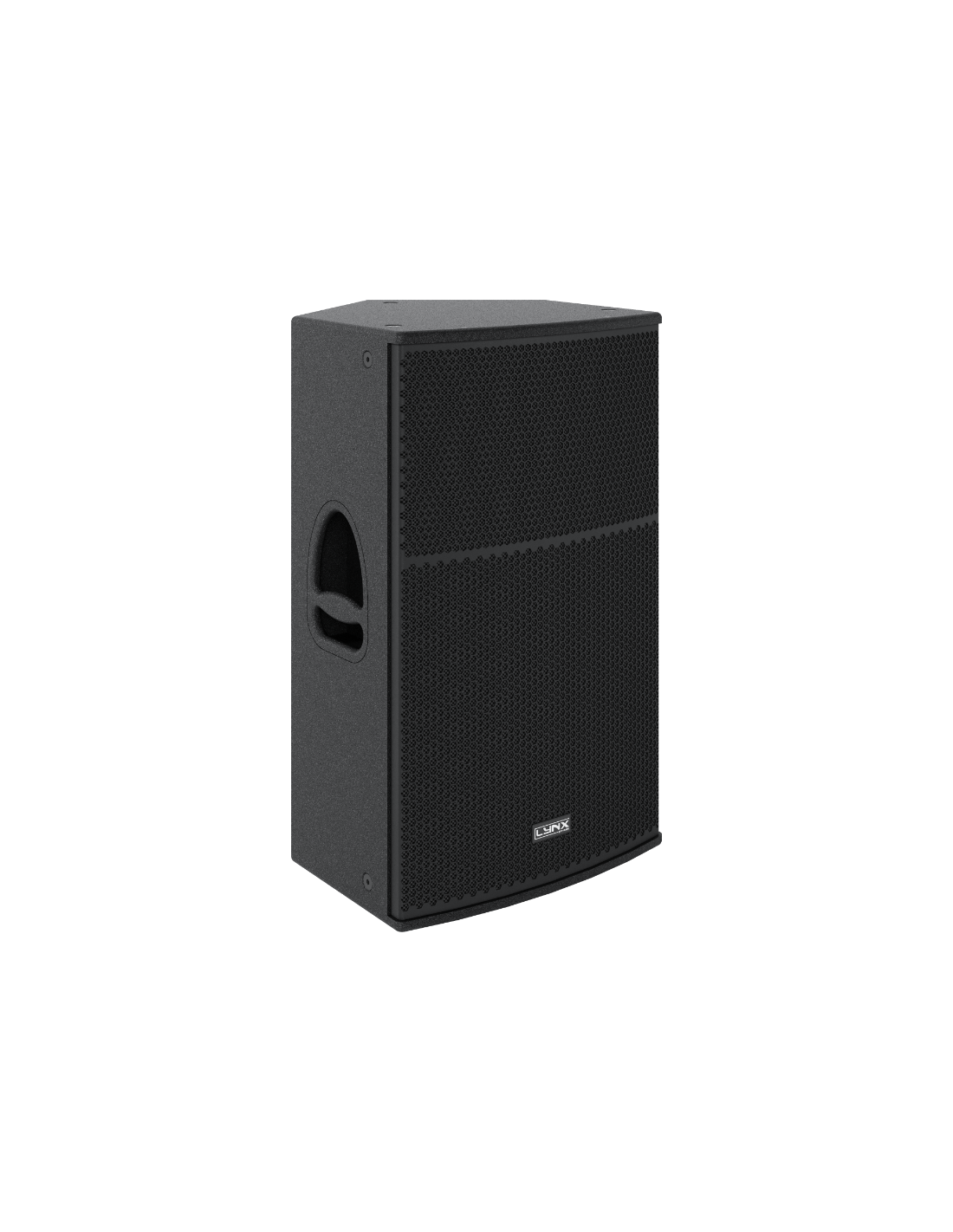

The GXR-15 enclosure is a multipurpose full-range self-powered that stands out for its high performance, with an excellent power-size ratio. It does not need to carry an external amplification rack and is ideal for a wide variety of applications, both in fixed installations and portable applications since its trapezoidal design allows it to function even as a stage monitor.
- Effective Freq. Range
- Frequency Range: 60 Hz – 20 KHz (-10dB)
Frequency Response: 66 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 90º x 40º constant directivity horn. Rotatable
- Maximum SPL
- 128 dB
- Recommended amplifier power
- 1400W Class D with switching power supply & PFC
- Connection type
- Ethernet optional
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 730 x 444 x 433 mm (H x W x D)
- Weight
- 28.5 kg (62.8 lbs)
- Status
- New
- EAN code
- 8436612040523
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power supply
- 90 – 264V. 50/60 Hz with PFC
- Finish
- Polyurea coating, black colour
- Power options (Hi Z Multi-tap)
- LF Amplifier: 1 x 800 W
HF Amplifier: 1 x 600 W - Audio inputs
- Analog / AES3 (optional)
- Display
- User control interface with 2.8″ IPS screen
- AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 60 Hz – 20 KHz (-10dB)
Frequency Response: 66 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
90º x 40º constant directivity horn. Rotatable |
| Maximum SPL |
128 dB |
| Recommended amplifier power |
1400W Class D with switching power supply & PFC |
| Power options (Hi Z Multi-tap) |
LF Amplifier: 1 x 800 W
HF Amplifier: 1 x 600 W |
PHYSICAL
| Connection type |
Ethernet optional |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
730 x 444 x 433 mm (H x W x D) |
| Weight |
28.5 kg (62.8 lbs) |
| Finish |
Polyurea coating, black colour |
POWERED
| Audio inputs |
Analog / AES3 (optional) |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040523 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
90 – 264V. 50/60 Hz with PFC |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8″ IPS screen |
|---|
