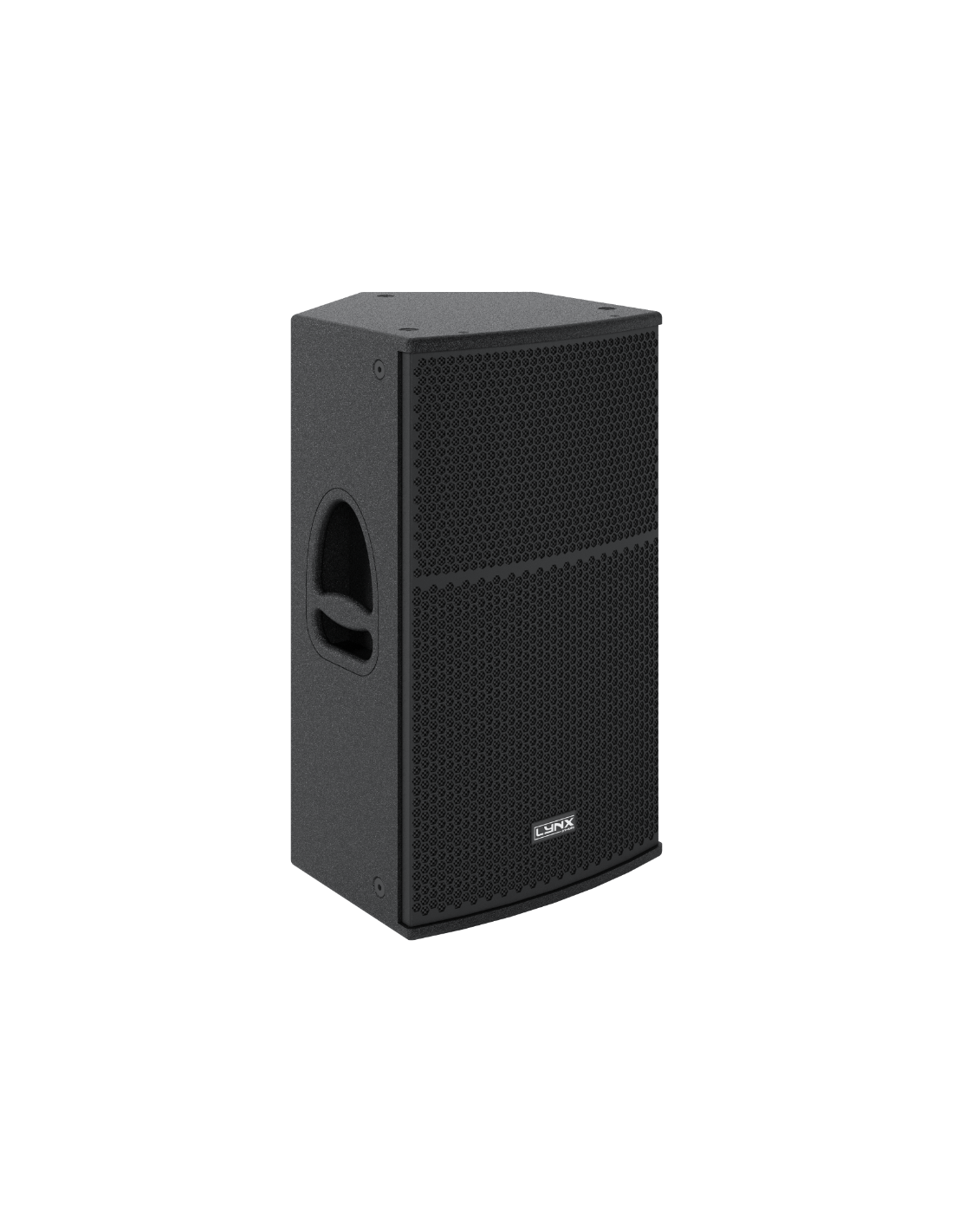

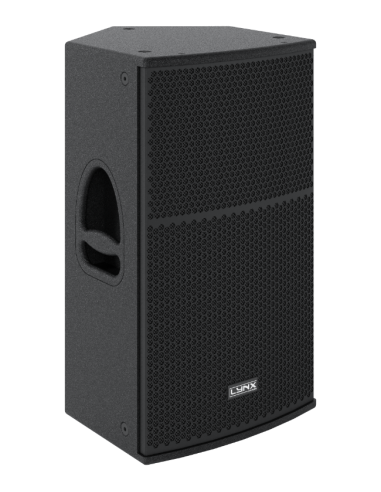

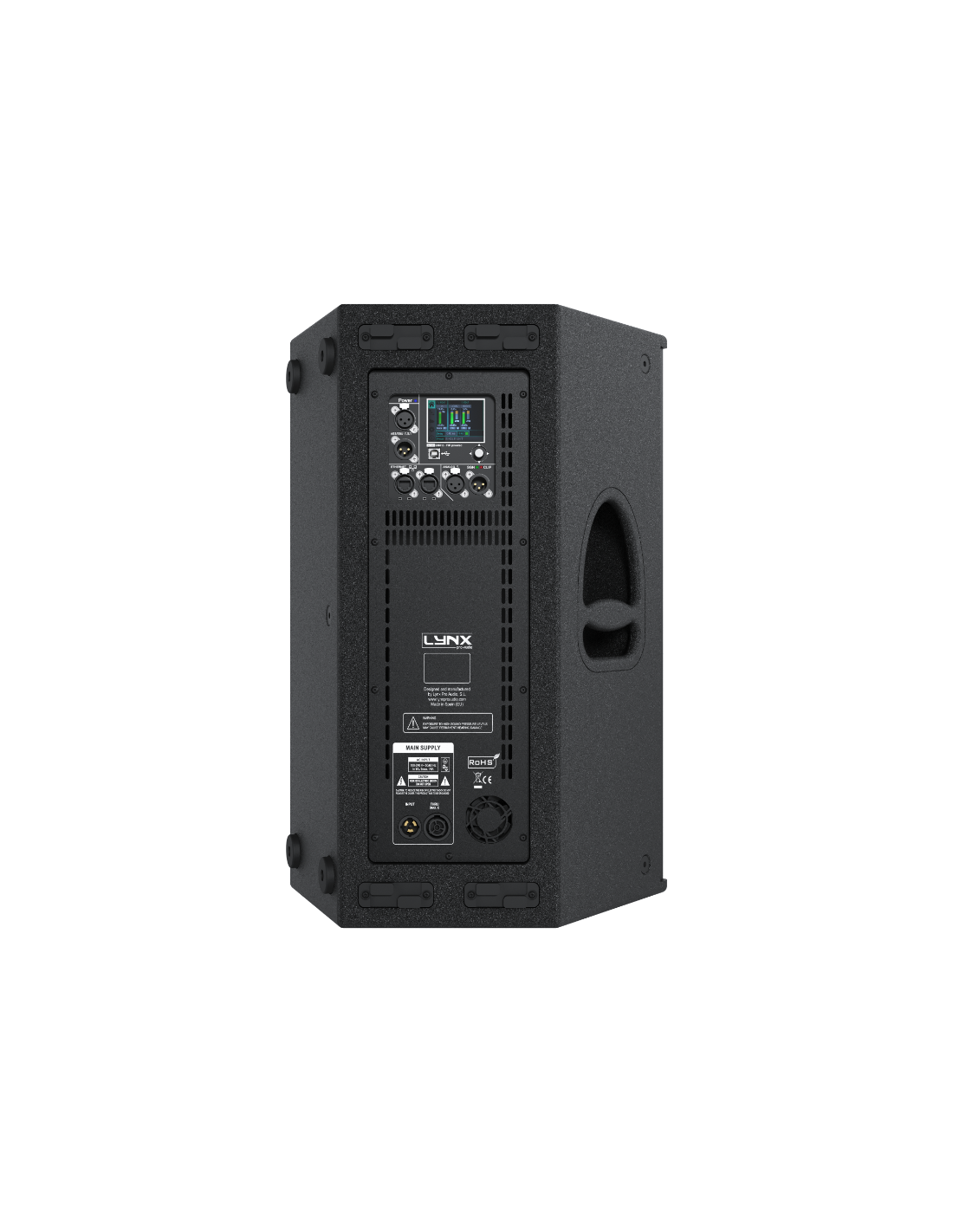

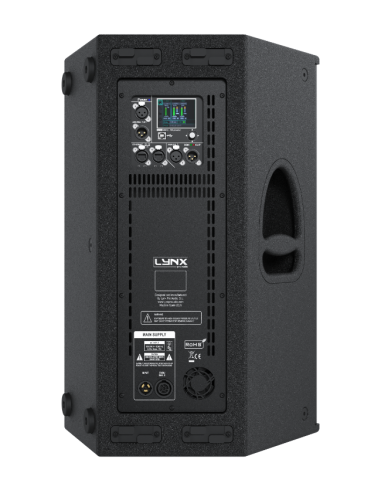

GXR-12
CLYGXR12
Check availability
High Output, self powered and two-way cabinet.
The GXR-12 enclosure is a multipurpose full-range self-powered that stands out for its high performance. It does not need to carry an external amplification rack and is ideal for a wide variety of applications, both in fixed installations and portable applications since its trapezoidal design allows it to function even as a stage monitor.
- Effective Freq. Range
- Frequency range: 60 Hz - 20 KHz (-10dB)
Frequency response: 66 Hz - 18 KHz (± 3dB) - Coverage angle / Dispersion
- 90º x 40º constant directivity horn. Rotatable
- Maximum SPL
- 127 dB
- Recommended amplifier power
- 1400W Class D with switching power supply & PFC
LF amplifier: 1 x 800 W
HF amplifier: 1 x 600 W - Connection type
- USB (DSP programming)
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 639 x 370 x 386 mm (HxWxD)
- Weight
- 23.5 Kg (51.7 lbs)
- Status
- New
- EAN code
- 8436612040530
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power handling per way
- LF: 12”, 2.5” voice coil, Malt Cross Cooling System
HF: 1” Exit compression Driver, 1.5” aluminium voice coil - Finish
- Polyurea coating, high grade resistant paint
- Audio inputs
- Analog / AES3 (optional)
- Display
- User control interface with 2.8” IPS screen
- AC connections
- 16A Neutrik powercon true1 with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency range: 60 Hz - 20 KHz (-10dB)
Frequency response: 66 Hz - 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
90º x 40º constant directivity horn. Rotatable |
| Maximum SPL |
127 dB |
| Recommended amplifier power |
1400W Class D with switching power supply & PFC
LF amplifier: 1 x 800 W
HF amplifier: 1 x 600 W |
| Power handling per way |
LF: 12”, 2.5” voice coil, Malt Cross Cooling System
HF: 1” Exit compression Driver, 1.5” aluminium voice coil |
PHYSICAL
| Connection type |
USB (DSP programming) |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
639 x 370 x 386 mm (HxWxD) |
| Weight |
23.5 Kg (51.7 lbs) |
| Finish |
Polyurea coating, high grade resistant paint |
POWERED
| Audio inputs |
Analog / AES3 (optional) |
|---|---|
| AC connections |
16A Neutrik powercon true1 with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040530 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
SCREEN/DISPLAY
| Display |
User control interface with 2.8” IPS screen |
|---|
