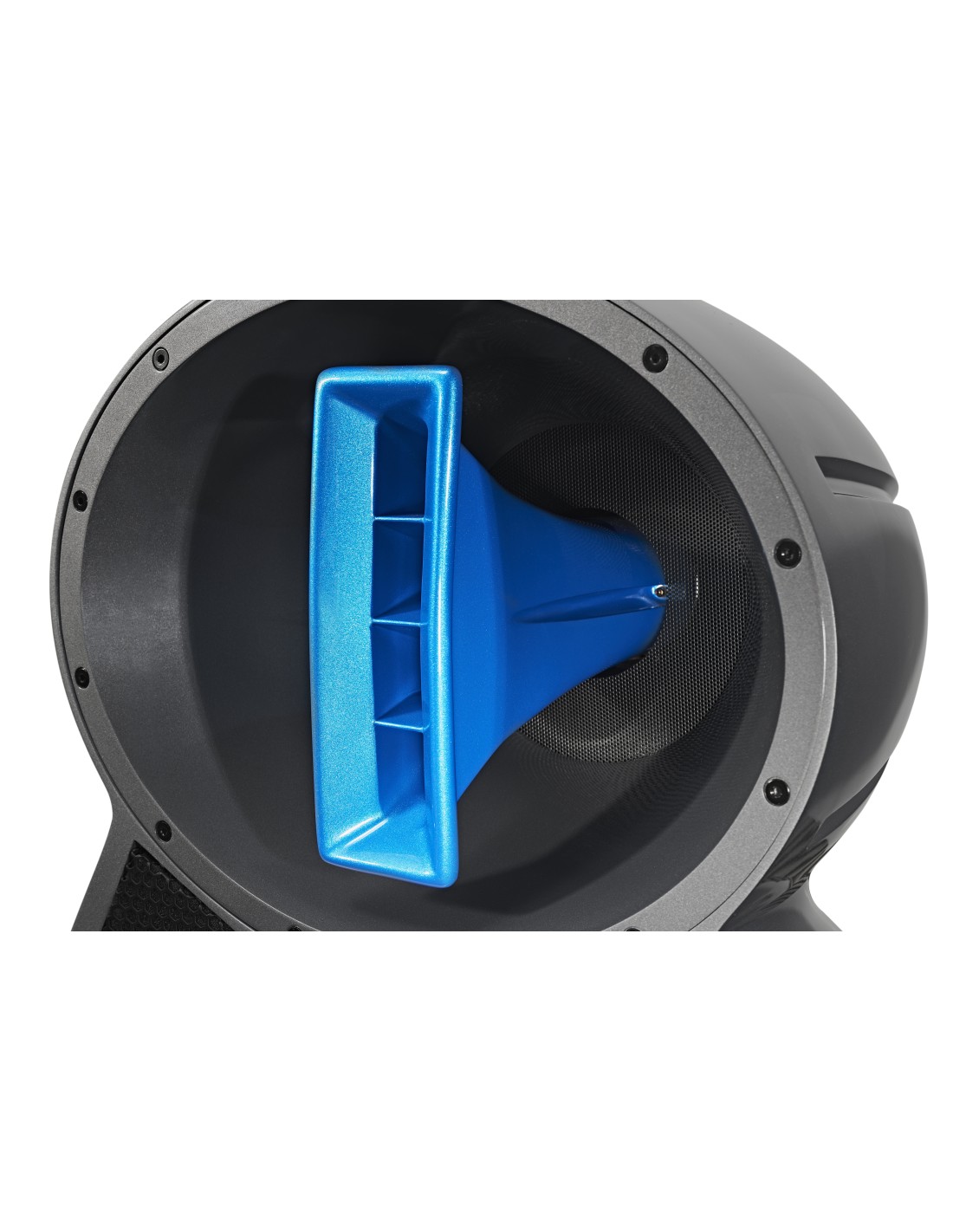

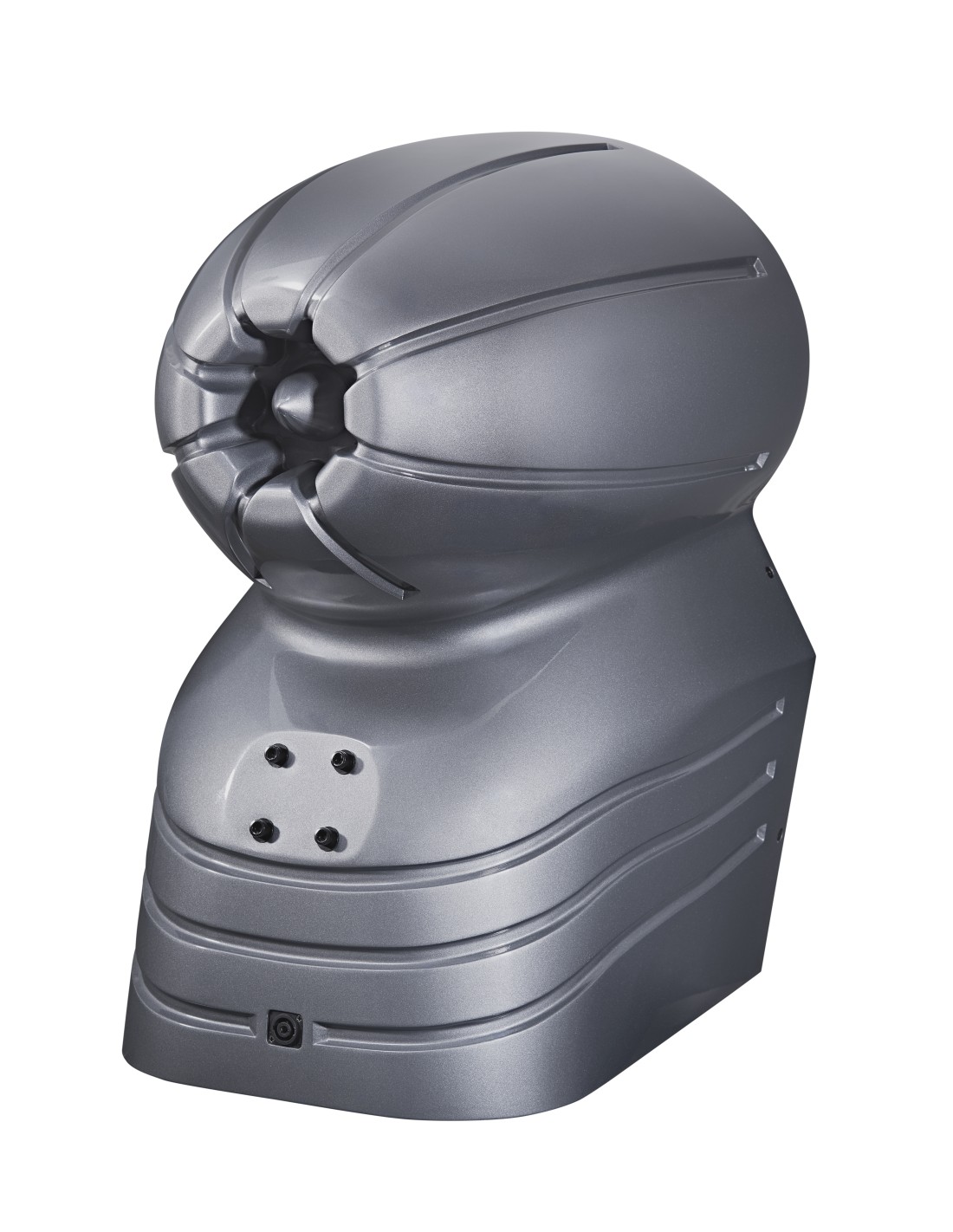

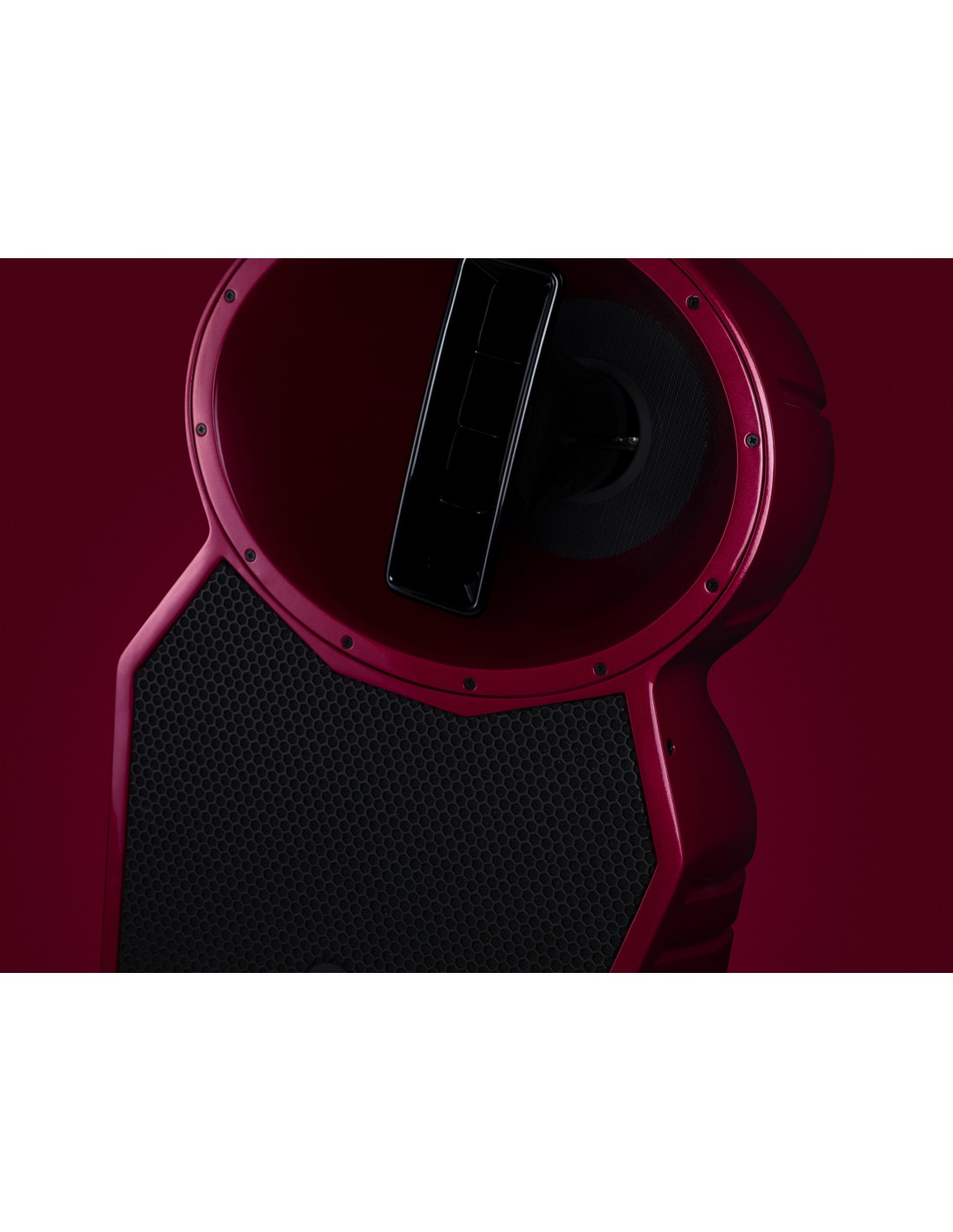

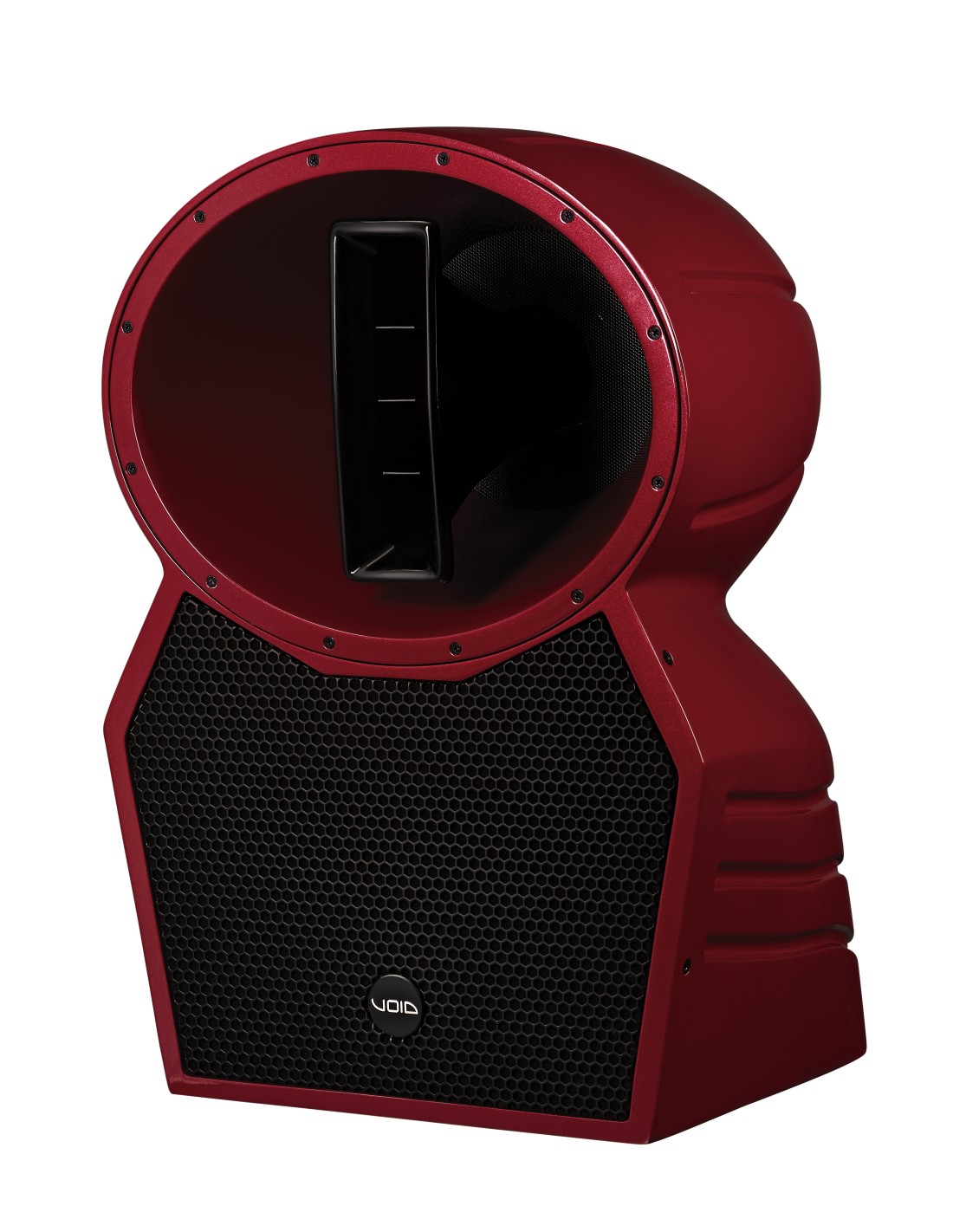

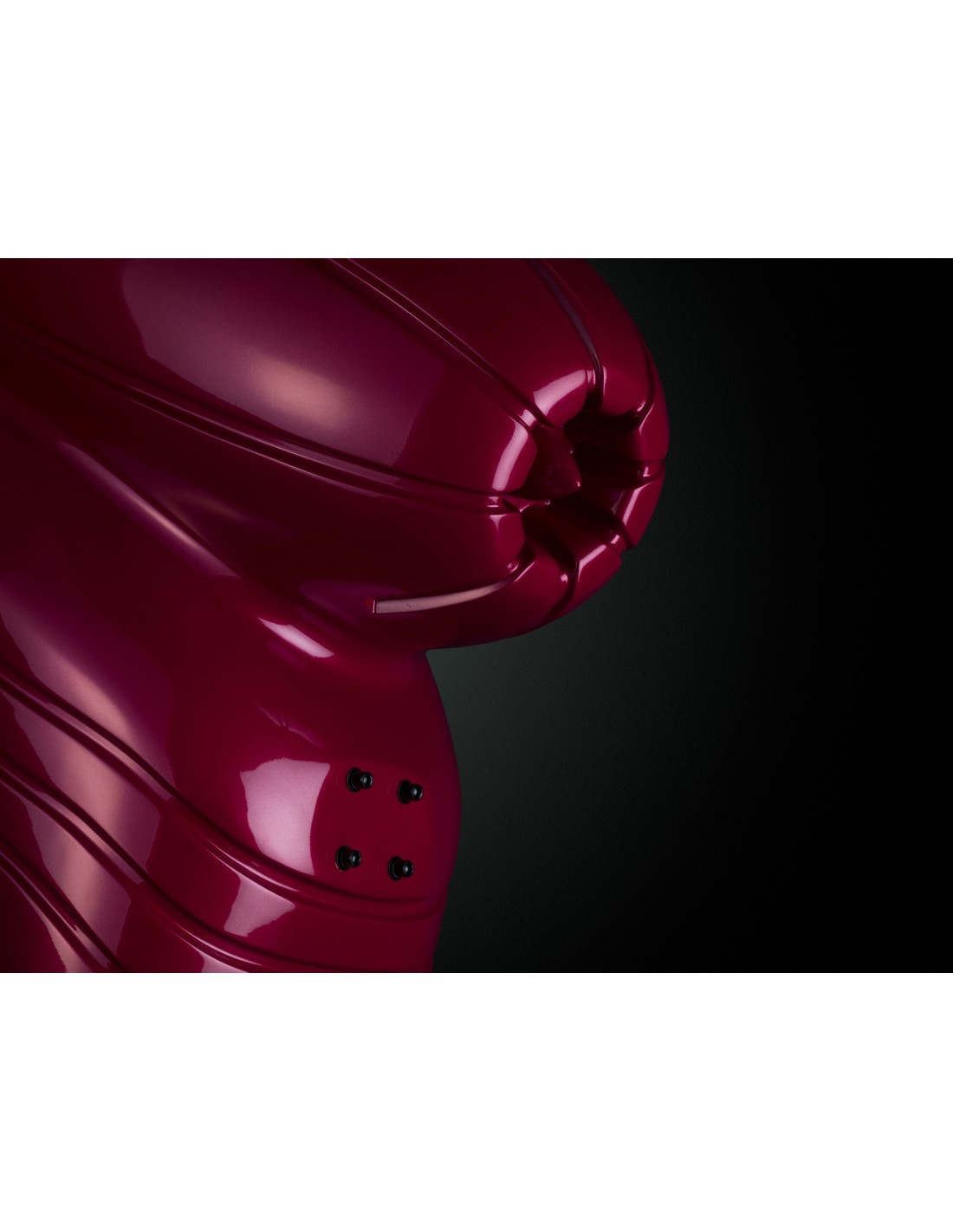

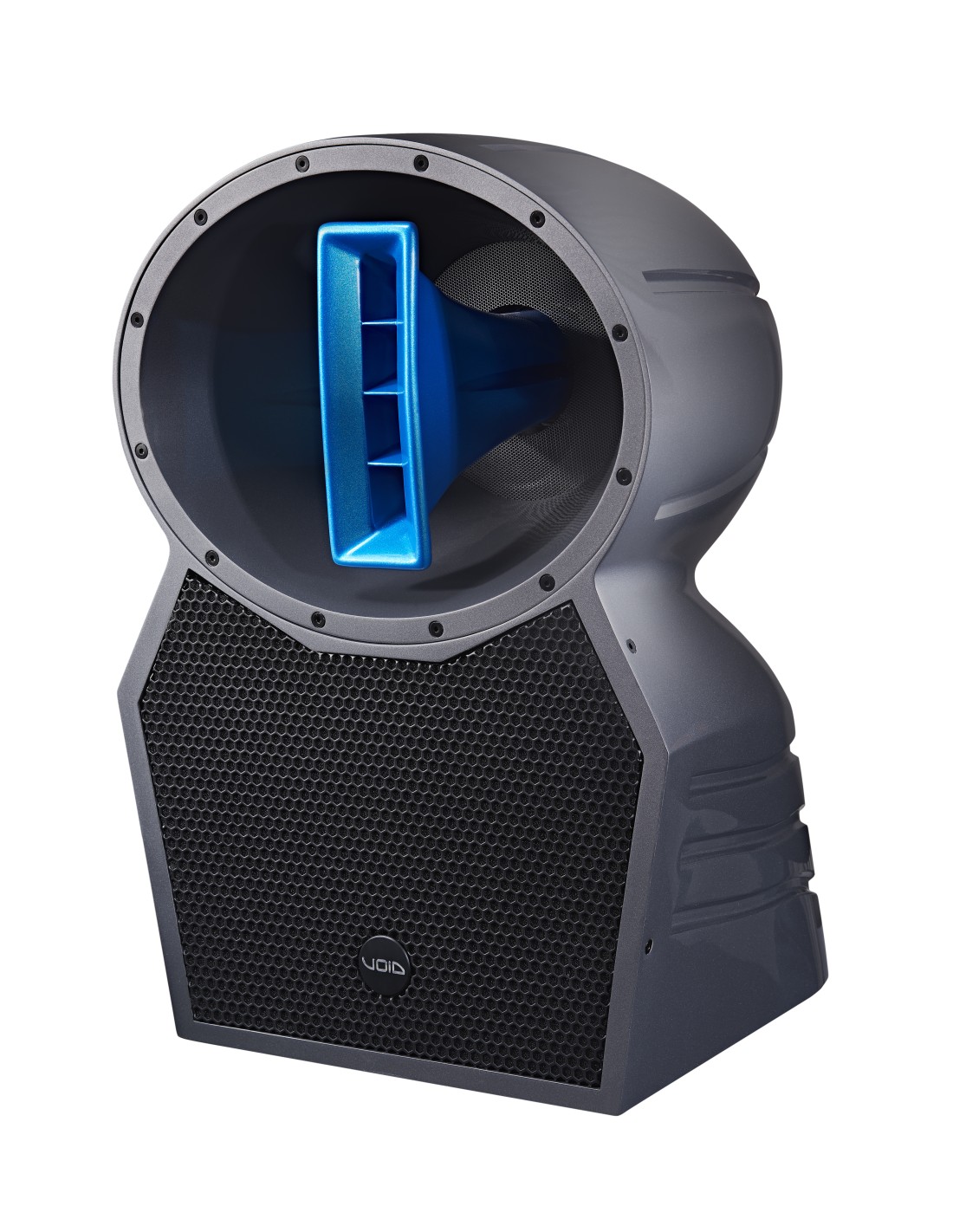

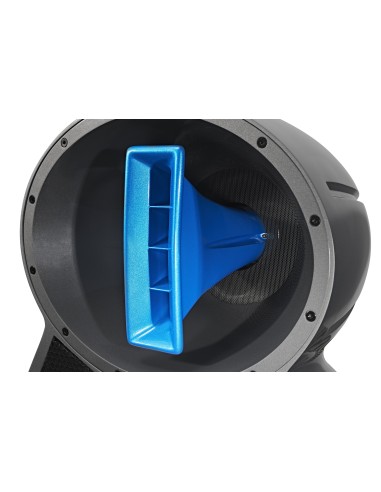

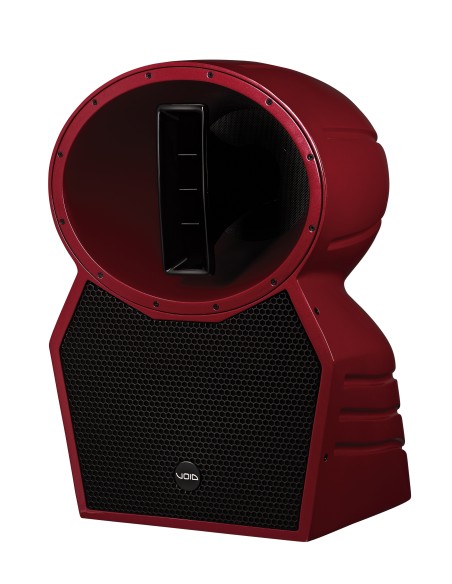

Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF
Air Stream - Rojo - Negro HF

Air Stream - Rojo - Negro HF

CVOIT1014
Check availability
High performance full range satellite 3 way installation.
See more Features Resources

The loudspeaker shall be an active, three-way, biamped system consisting of a high power 15” (381 mm) direct radiating reflex loaded Low frequency (LF) transducer with a passive two way mid-high frequency section consisting of a 12” (305 mm) horn loaded mid frequency (MF) transducer and a 1.5” (38.1mm) diameter exit, coaxial high frequency (HF) compression driver mounted on a user rotatable waveguide, in an aesthetic designed enclosure.
Effective Freq. Range
54 Hz - 20 kHz ±3 dB
Coverage angle / Dispersion
70°H x 45°V
Sensitivity
LF: 106 dB 1W/1m, MHF: 108 dB 1W/1m
Maximum SPL
127 dB cont, 133 dB peak
Low frequency driver
1 x 15” LF, 1 x 12” MF, 1 x 1.5” HF compression driver
Nominal impedance
LF: 8 Ω, MHF: 8 Ω
Crossover filter
Passive 1.6 kHz
Connection type
1 x 4-pole speakON™ NL4
Enclosure material
Fibreglass composite
Finished colour
Custom colours available upon request
Weight
42.5 kg (93.7 lbs)
Status
New
EAN code
IT1014
Tariff code
8518220000
Shipping Location
Spain
Mounting system
Integral mounting system
Power handling per way
LF: 700 W AES, MHF: 500 W AES
