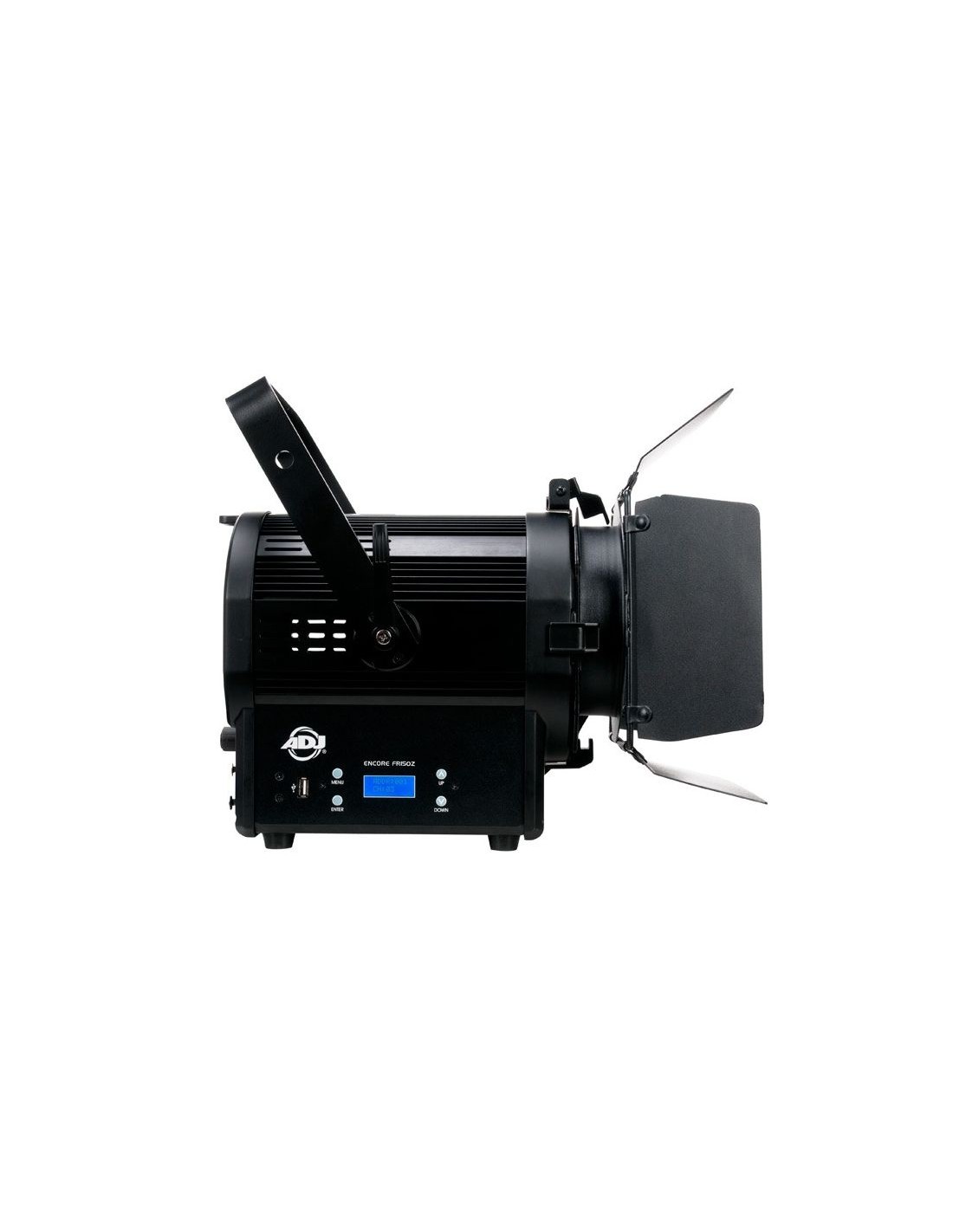

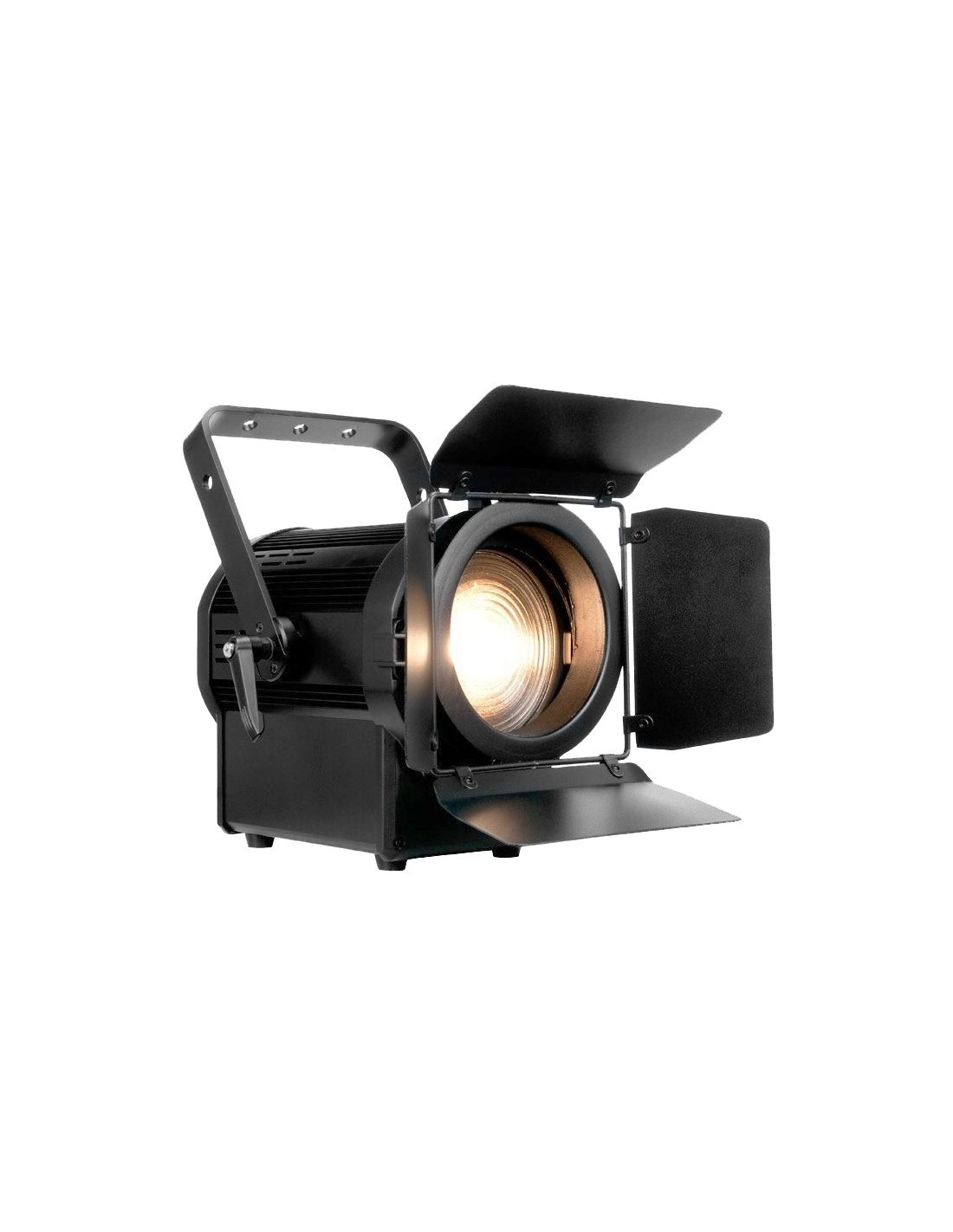

Encore FR150Z
CATEAFR0174
Check availability
Part of the Encore stage lighting series
Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.

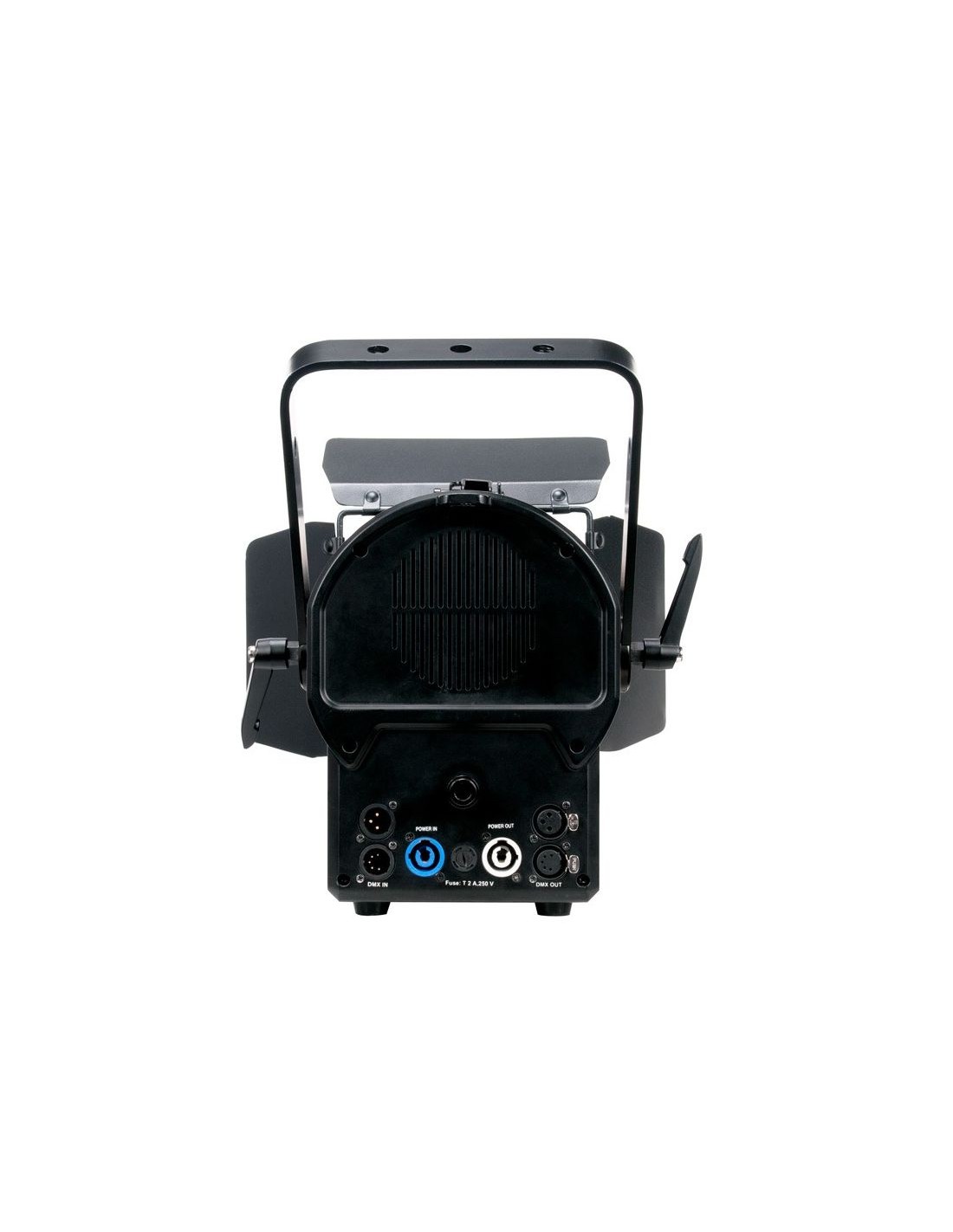

The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.
- Weight
- Without Barndoors: 6,8 kg.
With Barndoors: 7,4 kg - Modos de trabajo DMX
- 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
- Control
- 3 & 5-pin Locking DMX In/Out connections
- Tensión de alimentación
- 100-240V 50/60Hz
- Consumo máximo
- 150W
- Longitud
- Without Barndoors: 276mm
With Barndoors: 422.23mm - Amplitud
- 298.62mm
- Altura vertical
- 416mm
PHYSICAL
| Weight |
Without Barndoors: 6,8 kg.
With Barndoors: 7,4 kg |
|---|
CONTROL
| Modos de trabajo DMX |
6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel |
|---|
CONEXIONES
| Control |
3 & 5-pin Locking DMX In/Out connections |
|---|
ALIMENTACION y TEMPERATURA
| Tensión de alimentación |
100-240V 50/60Hz
|
|---|---|
| Consumo máximo |
150W |
DIMENSIONES Y PESO
| Longitud |
Without Barndoors: 276mm
With Barndoors: 422.23mm |
|---|---|
| Amplitud |
298.62mm |
| Altura vertical |
416mm
|
