HUB1616
CHUB1616
Available
16x16 | digital zoner | DSP | plug&play

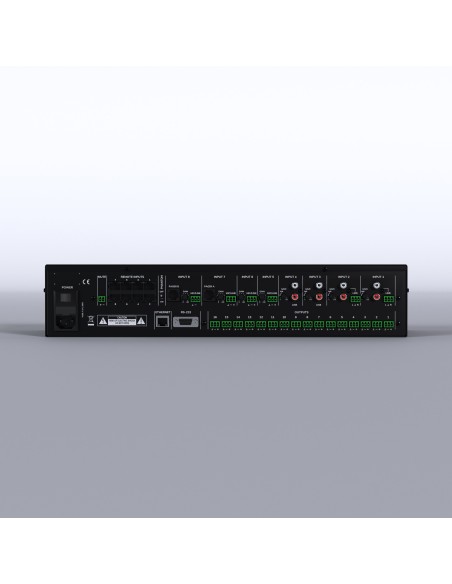

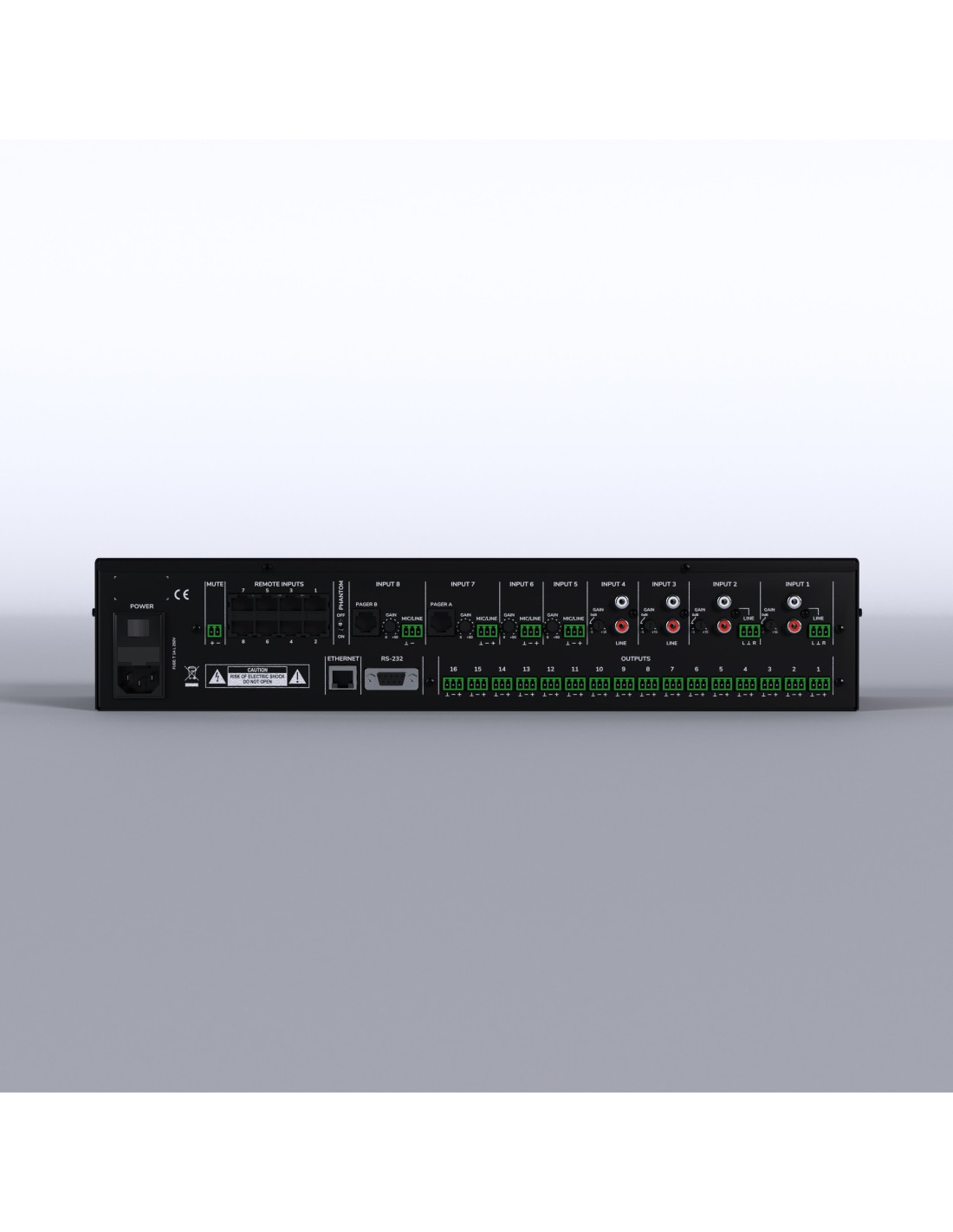

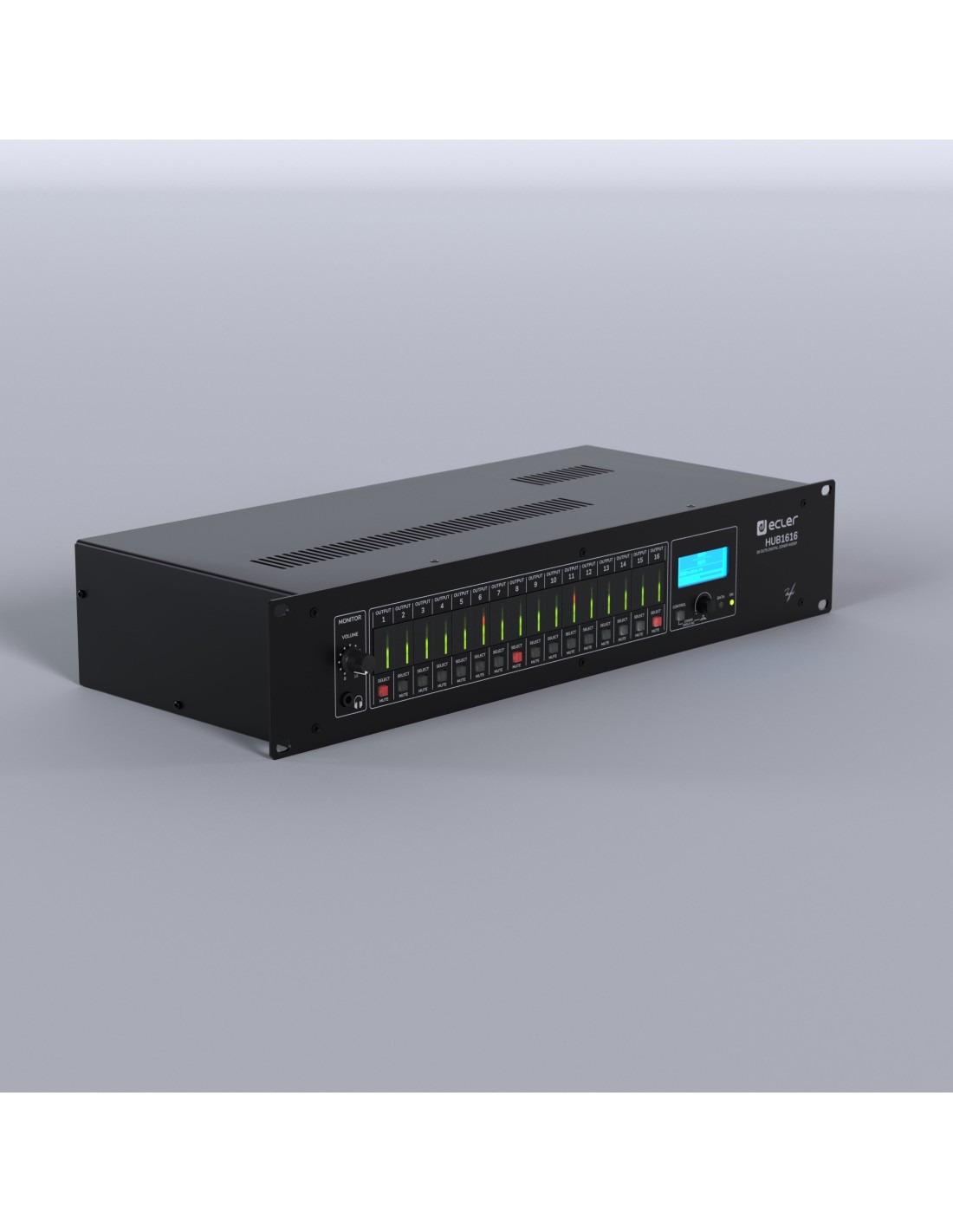

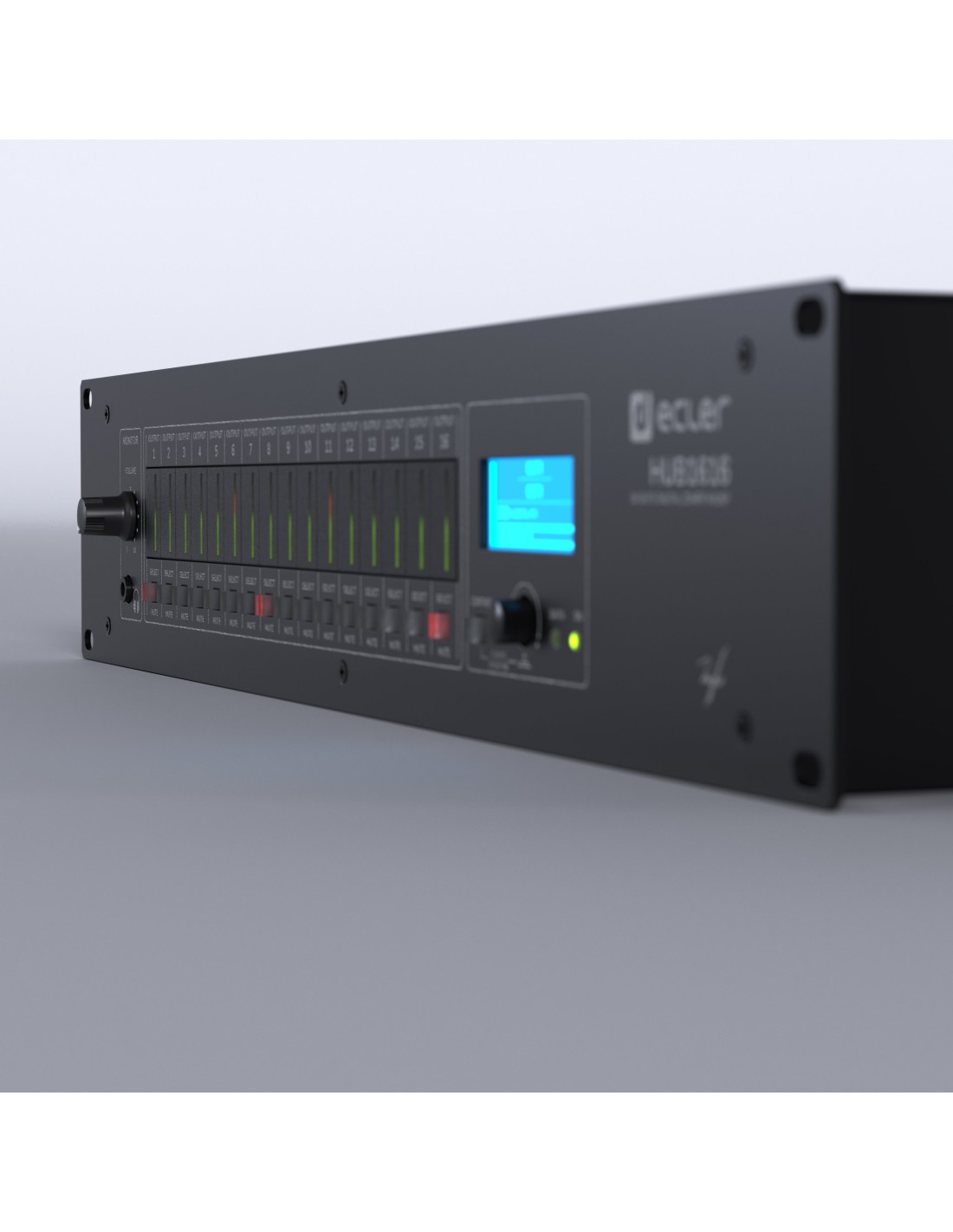

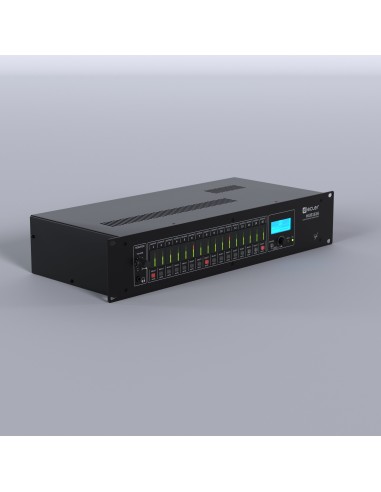

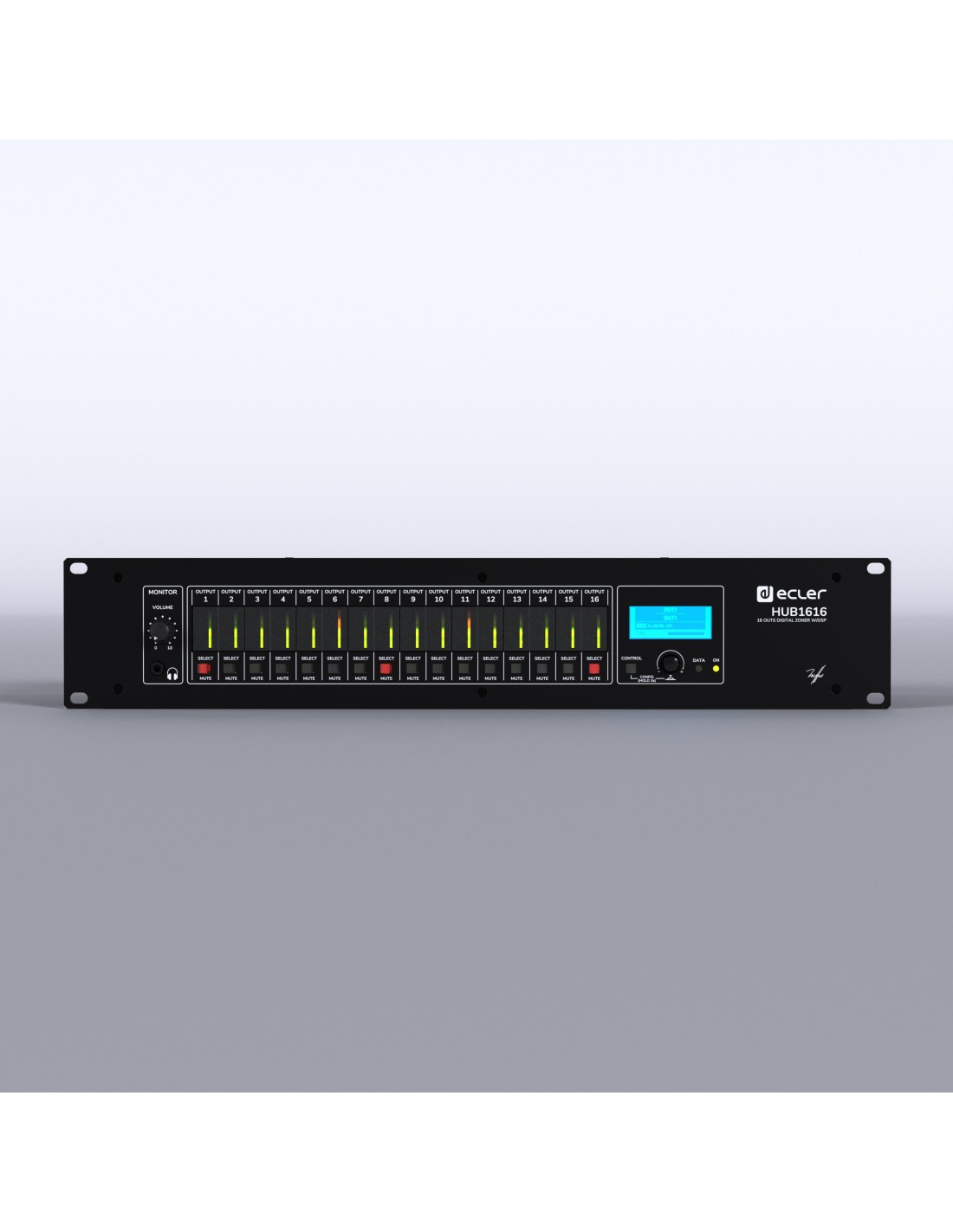

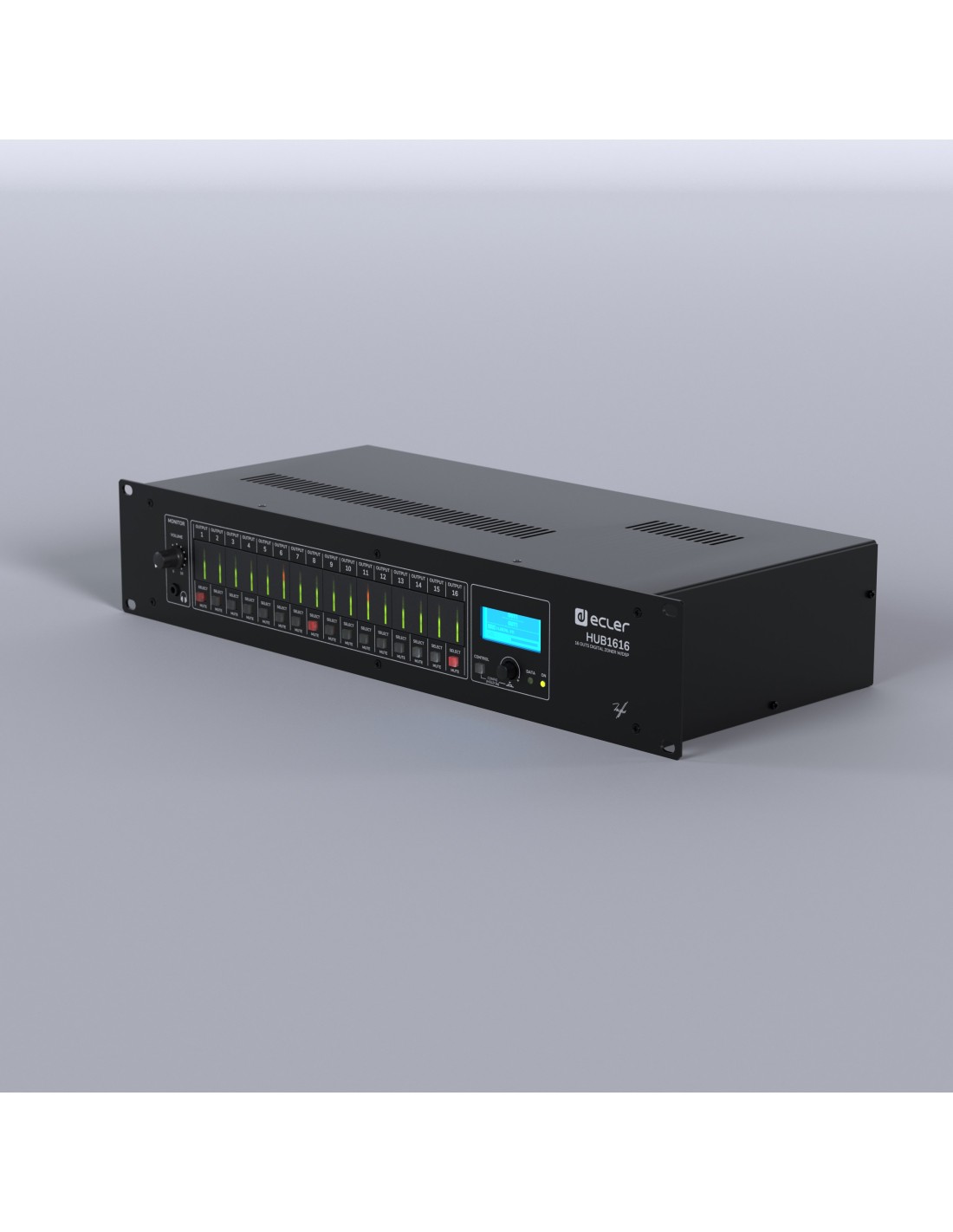

HUB1616 is a digital zone manager with 16 inputs and 16 outputs, an evolution of its predecessor eMIMO1616. It has the HANGAR embedded web-server application (control from standard web browser in Windows / MacOS, etc.) for its configuration; remote control from physical wall installation panels, call (paging) stations and applications for mobile devices (Android, iOS). Includes DSP with specific functions for both inputs and outputs.
HUB Series offers multiple possibilities, being intuitive and easy to configure. From the least experienced user to the most expert, you can set up a professional audio installation in a matter of minutes (Plug and Play). It is the perfect solution for any type of sound that requires managing and controlling different zones.
- Connection type
- Euroblock, 3-pin, balanced
Line: RCA female. Input 1 and 2 with Euroblock stack, Unbalanced
Mic/Line: Euroblock (Symmetrical), Balanced
Remote: RJ45 Connector, Balanced - Installation options
- 19" rack format (2RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- eMCONTROL1-type physical wall panels, eMPAGE-type paging stations, WPaMIX-T, WPaBT
- Dimensions
- 482.6 x 88.0 x 200.0 mm / 19.0 x 3.5 x 7.9 in. (WxHxD)
- Weight
- 3.66 kg / 8.07 lb
- Shipping dimensions
- 550 x 120 x 390 mm / 21.65 x 4.72 x 15.35 in. (WxHxD)
- Shipping weight
- 5.66 kg / 12.48 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071310239
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 55.00
- Height (cm)
- 12.00
- Depth (cm)
- 39.00
- Vol. (dm3)
- 25.74
- Gross Weight (kg)
- 5.66
- Net Weight (kg)
- 3.80
- Format
- Unit
- Warranty (months)
- 36
- Processor
- Floating point 32/64bit
- Sampling rate
- 48 kHz
- Resolution
- 24 bit, AKM
- Frequency response
- 10Hz ~ 20kHz (+0dB / -0.5dB)
<10Hz ~ 20kHz (+0dB / -0.5dB) - Number of input ports
- 4 (IN1-4), Line
4 (IN5-8), Mic/Line
8 (IN9-16), Remote - Input sensitivity
- Line: +5 / -15dBV External potentiometer adjust
Mic/Line: +0 / -50dBV External potentiometer adjustment
Remote: 0 dBV without adjustment - Input impedanc
- Line: 13kΩ
Mic/Line: 24kΩ electronically balanced
Remote: 24kΩ electronically balanced
Line: >13kΩ
Mic/Line: >24kΩ electronically balanced
Remote: >24kΩ electronically balanced - CMRR
- Mic/Line: 60dB (20Hz - 20kHz)
Remote: 60dB (20Hz - 20kHz)
Mic/Line: >60dB (20Hz - 20kHz)
Remote: >60dB (20Hz - 20kHz) - Number of output ports
- 16, Line
- Crosstalk
- 90dB, 20Hz - 20kHz
>90dB, 20Hz - 20kHz
- Serial port
- RS-232 interface with DB9 connector
- Programing and control
- Hangar (embedded web application), Ecler pilot (Android/iOS application), TPNET (UDP/RS232)
- Digital remote controls
- Remote bus, RS485
- GPIs
- 1, MUTE port
- AC mains requirement
- 100-240 VAC @ 50-60Hz
- AC mains connector
- C14 IEC connector
- Power consumption
- 20W
- Phantom power
- Mic/Line: +48VDC (rear panel switch)
- Input impedance
- Line: 13kΩ
Mic/Line: 24kΩ electronically balanced
Remote: 24kΩ electronically balanced - Max input level
- 12dBV
- THD + Noise
- 0.005% (1kHz, 1Vrms)
< 0.005% (1kHz, 1Vrms) - Latency
- 1.5 ms
<1.5 ms - Ethernet
- 1, RJ-45
Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m - Dynamic range
- AD:111dB, DA: 115dB
- Max output level
- 12dbV
- Headphones
- From Out1 to Out16 selectable, Mini-Jack 3,5mm (200mW – 200Ω)
From Out1 to Out16 selectable, Mini-Jack 3,5mm (>200mW – 200Ω) - Secondary power supply
- +12VDC, 0,6A max. (short circuit protected)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Floating point 32/64bit |
|---|
PHYSICAL
| Connection type |
Euroblock, 3-pin, balanced Line: RCA female. Input 1 and 2 with Euroblock stack, Unbalanced Mic/Line: Euroblock (Symmetrical), Balanced Remote: RJ45 Connector, Balanced |
|---|---|
| Installation options |
19" rack format (2RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
eMCONTROL1-type physical wall panels, eMPAGE-type paging stations, WPaMIX-T, WPaBT |
| Dimensions |
482.6 x 88.0 x 200.0 mm / 19.0 x 3.5 x 7.9 in. (WxHxD) |
| Weight |
3.66 kg / 8.07 lb |
| Shipping dimensions |
550 x 120 x 390 mm / 21.65 x 4.72 x 15.35 in. (WxHxD) |
| Shipping weight |
5.66 kg / 12.48 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071310239 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
55.00 |
| Height (cm) |
12.00 |
| Depth (cm) |
39.00 |
| Vol. (dm3) |
25.74 |
| Gross Weight (kg) |
5.66 |
| Net Weight (kg) |
3.80 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
100-240 VAC @ 50-60Hz
|
|---|---|
| AC mains connector |
C14 IEC connector |
| Power consumption |
20W |
| Secondary power supply |
+12VDC, 0,6A max. (short circuit protected) |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
<1.5 ms 1.5 ms |
| Dynamic range |
AD:111dB, DA: 115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
4 (IN1-4), Line
4 (IN5-8), Mic/Line
8 (IN9-16), Remote |
|---|---|
| Input impedanc |
Line: >13kΩ
Mic/Line: >24kΩ electronically balanced
Remote: >24kΩ electronically balanced Line: 13kΩ Mic/Line: 24kΩ electronically balanced Remote: 24kΩ electronically balanced |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
16, Line |
|---|---|
| Crosstalk |
>90dB, 20Hz - 20kHz
90dB, 20Hz - 20kHz |
ANALOGUE MONITOR PORTS
| Headphones |
From Out1 to Out16 selectable, Mini-Jack 3,5mm (>200mW – 200Ω) From Out1 to Out16 selectable, Mini-Jack 3,5mm (200mW – 200Ω) |
|---|
CONNECTIVITY
| Serial port |
RS-232 interface with DB9 connector |
|---|---|
| Programing and control |
Hangar (embedded web application), Ecler pilot (Android/iOS application), TPNET (UDP/RS232)
|
| Ethernet |
1, RJ-45
Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m |
REMOTE CONTROL CONNECTIONS
| Digital remote controls |
Remote bus, RS485 |
|---|---|
| GPIs |
1, MUTE port |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
Line: +5 / -15dBV External potentiometer adjust
Mic/Line: +0 / -50dBV External potentiometer adjustment
Remote: 0 dBV without adjustment |
|---|
MIC INPUTS
| Phantom power |
Mic/Line: +48VDC (rear panel switch)
|
|---|
LINE INPUTS
| CMRR |
Mic/Line: >60dB (20Hz - 20kHz)
Remote: >60dB (20Hz - 20kHz) Mic/Line: 60dB (20Hz - 20kHz) Remote: 60dB (20Hz - 20kHz) |
|---|---|
| Input impedance |
Line: 13kΩ
Mic/Line: 24kΩ electronically balanced
Remote: 24kΩ electronically balanced |
| Max input level |
12dBV |
LINE OUTPUTS
| Frequency response |
<10Hz ~ 20kHz (+0dB / -0.5dB) 10Hz ~ 20kHz (+0dB / -0.5dB) |
|---|---|
| THD + Noise |
< 0.005% (1kHz, 1Vrms) 0.005% (1kHz, 1Vrms) |
| Max output level |
12dbV |
SCREEN/DISPLAY
| Resolution |
24 bit, AKM |
|---|
