MIMO88
CMIMO88
Available
8x8 | digital matrix | DSP | expandable

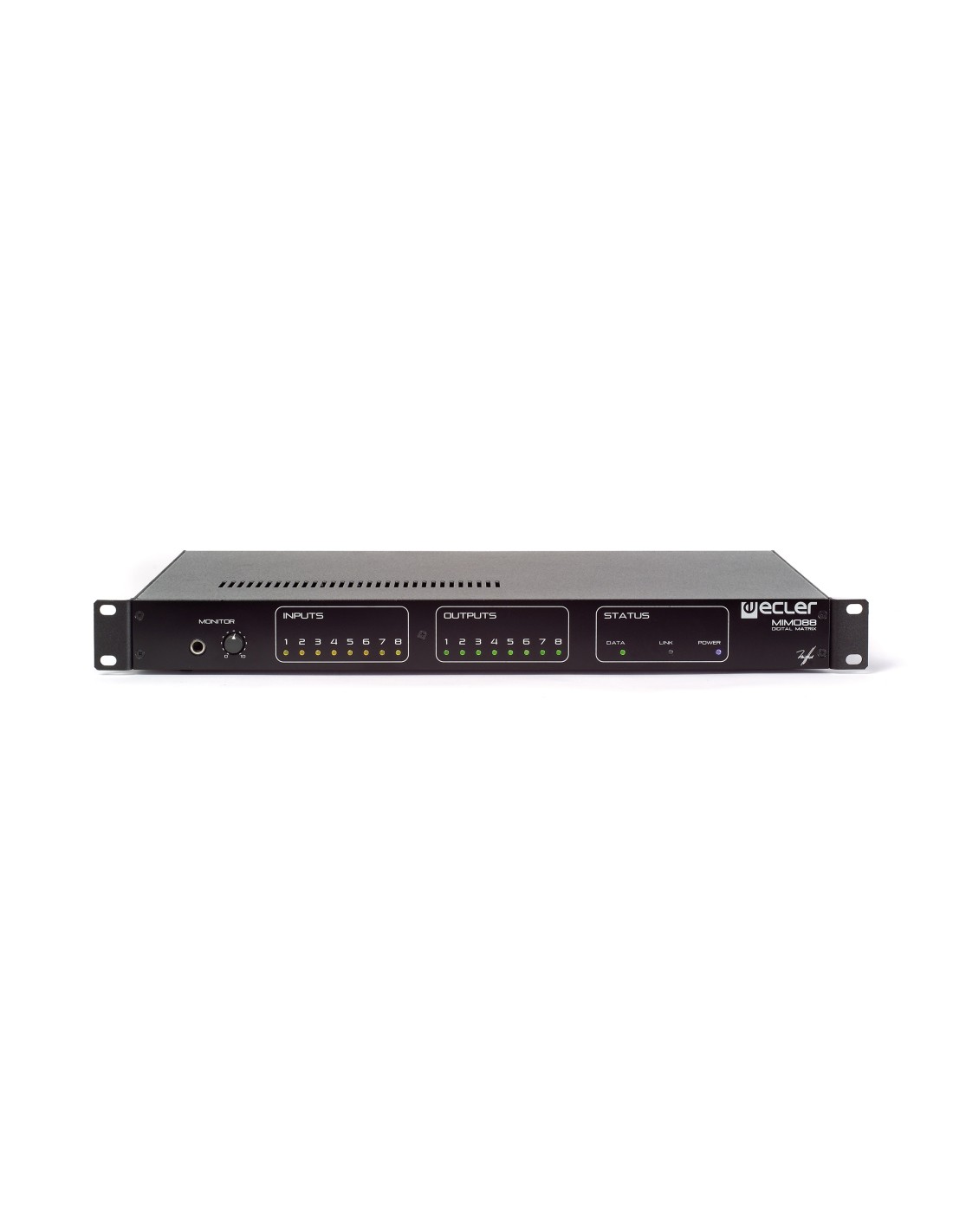

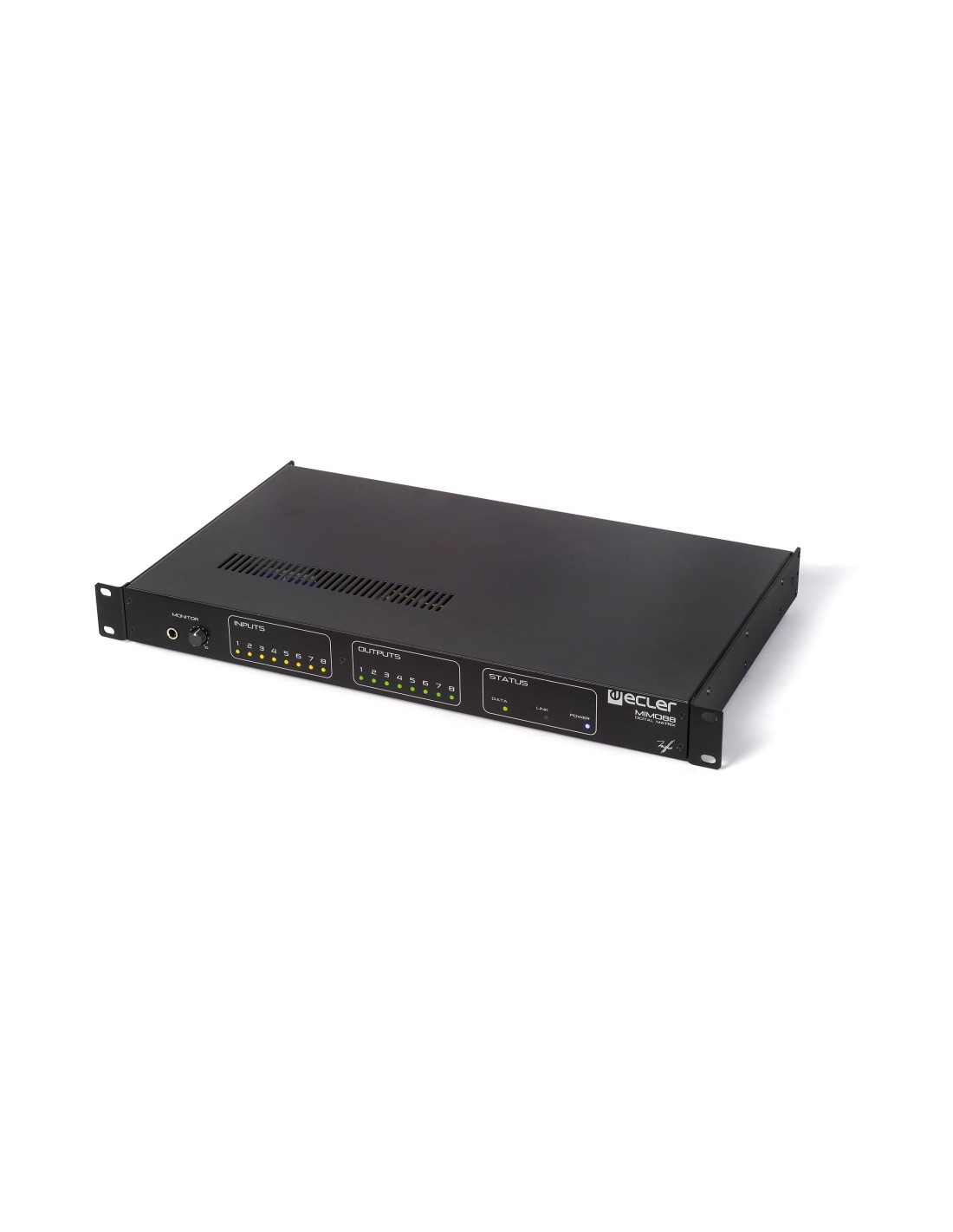

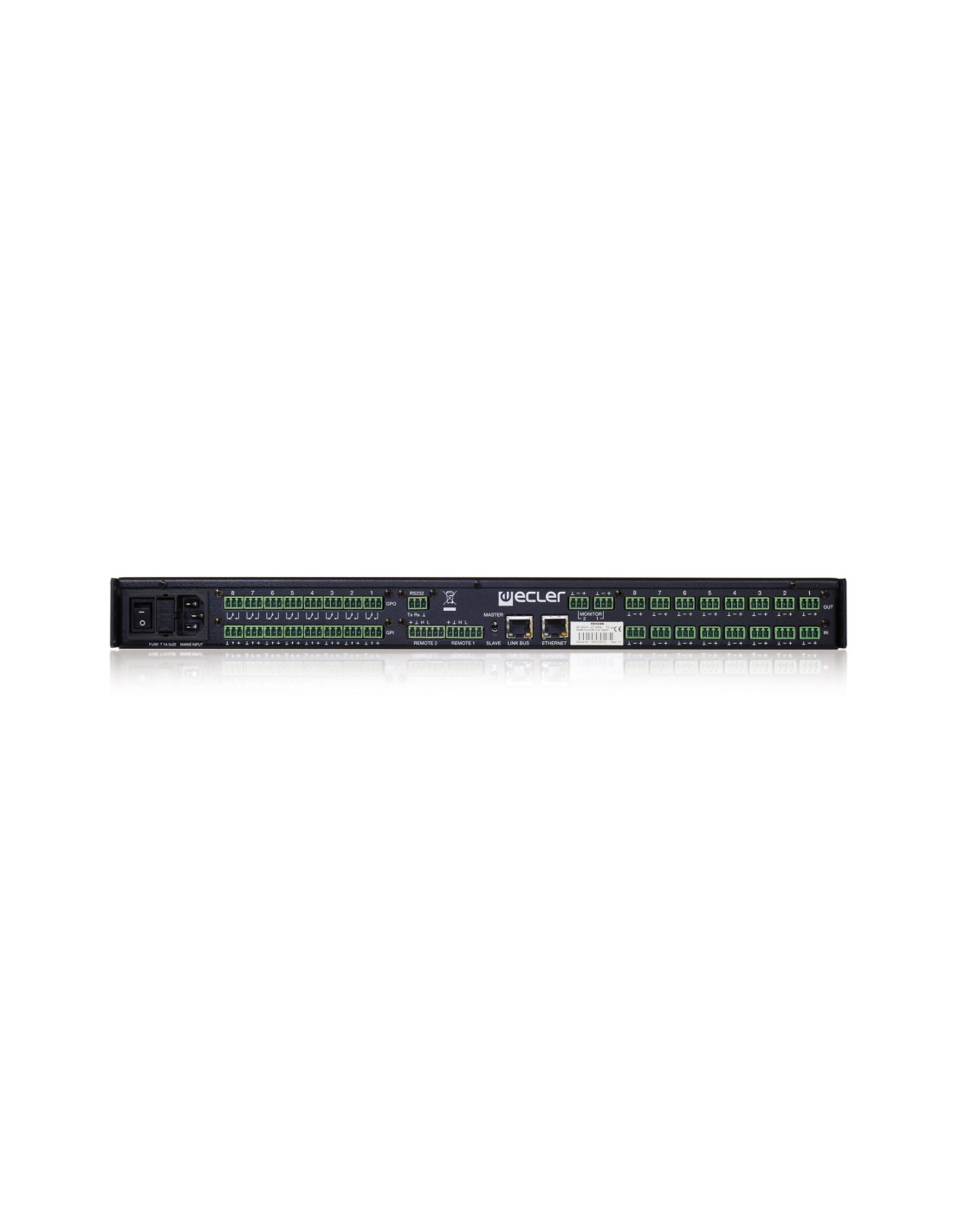

MIMO88 is an 8 in / 8 out digital audio matrix, fully programmable and linkable to a second unit to become a 16x16 matrix, with real routing from any input to any output.
- Connection type
- Terminal block (symmetrical)
- Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPa series control panels, WPNETTOUCH digital panel, eMPAGE
- Dimensions
- 482.6 x 44 x 266.5 mm / 19 x 1.73 x 10.5 in. (WxHxD)
- Weight
- 3.5 kg / 7.72 lb
- Shipping dimensions
- 590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD)
- Shipping weight
- 4.8 kg / 10.58 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071304047
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 59.00
- Height (cm)
- 7.00
- Depth (cm)
- 38.00
- Vol. (dm3)
- 15.69
- Gross Weight (kg)
- 4.80
- Net Weight (kg)
- 4.30
- Format
- Unit
- Warranty (months)
- 36
- Processor
- 2 x 32/64bit
- Sampling rate
- 48kHz
- Resolution
- 24bit AKM
- Frequency response
- 5Hz to 24kHz (-3dB)
- Number of input ports
- 8+8, Mic/Line
- Input sensitivity
- -50dBV to +10dBV in 0.5dB step
- Input impedanc
- Balanced, 4kΩ
Balanced, >4kΩ - CMRR
- 65dB typ.
- Number of output ports
- 8+8, Line
- Crosstalk
- Better than 90dB (100dB typ.)
- Serial port
- RS-232
- Programing and control
- EclerNet manager (software), TPNET (UDP), UCP control panels
- Digital remote controls
- Expansion LINK BUS (16x16 ch.): Proprietary over CAT5, Xover cable up to 100m.
Remote Bus: 2, over twisted pairs; up to 1km (see specific specs.) - GPIs
- 8, from 0 to 10VDC or TTL level
- AC mains requirement
- 90-264VAC @ 47-63Hz
- AC mains connector
- IEC mains socket connector
- Power consumption
- 45VA
- Phantom power
- +42VDC, 5mA max. software switched
- Input impedance
- Balanced, 4kΩ
- Max input level
- +27dBV +30dBu
- THD + Noise
- THD+Noise @ 1kHz, 0dBV input (line) 0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.008%
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% - Latency
- 2.9ms (+1ms for 16x16)
<2.9ms (+1ms for 16x16)
- Ethernet
- 1 RJ-45, Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m
- Dynamic range
- AD:110dB, DA: 115dB
- Max output level
- +18dBV +21dBu
- GPOs
- 8, 3 poles isolated relay; 1A, 48VDC max
- Retention time
- 1 month aprox. (ambient temperature dependant)
- Accuracy
- ±1 minute / year
- Headphones
- Jack 1/4 (200mW/200Ω)
Jack 1/4 (>200mW/200Ω) - Secondary power supply
- +12VDC, 1.2A. max. (short circuit protected)
- Number of monitor output ports
- 2
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
2 x 32/64bit |
|---|
PHYSICAL
| Connection type |
Terminal block (symmetrical) |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPa series control panels, WPNETTOUCH digital panel, eMPAGE |
| Dimensions |
482.6 x 44 x 266.5 mm / 19 x 1.73 x 10.5 in. (WxHxD) |
| Weight |
3.5 kg / 7.72 lb |
| Shipping dimensions |
590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD) |
| Shipping weight |
4.8 kg / 10.58 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071304047
|
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
59.00 |
| Height (cm) |
7.00 |
| Depth (cm) |
38.00 |
| Vol. (dm3) |
15.69 |
| Gross Weight (kg) |
4.80 |
| Net Weight (kg) |
4.30 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
90-264VAC @ 47-63Hz |
|---|---|
| AC mains connector |
IEC mains socket connector |
| Power consumption |
45VA |
| Secondary power supply |
+12VDC, 1.2A. max. (short circuit protected) |
AUDIO CONVERTERS
| Sampling rate |
48kHz
|
|---|---|
| Latency |
<2.9ms (+1ms for 16x16)
2.9ms (+1ms for 16x16) |
| Dynamic range |
AD:110dB, DA: 115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
8+8, Mic/Line |
|---|---|
| Input impedanc |
Balanced, >4kΩ Balanced, 4kΩ |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
8+8, Line
|
|---|---|
| Crosstalk |
Better than 90dB (100dB typ.)
|
ANALOGUE MONITOR PORTS
| Headphones |
Jack 1/4 (>200mW/200Ω) Jack 1/4 (200mW/200Ω) |
|---|---|
| Number of monitor output ports |
2 |
CONNECTIVITY
| Serial port |
RS-232 |
|---|---|
| Programing and control |
EclerNet manager (software), TPNET (UDP), UCP control panels |
| Ethernet |
1 RJ-45, Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m |
REMOTE CONTROL CONNECTIONS
| Digital remote controls |
Expansion LINK BUS (16x16 ch.): Proprietary over CAT5, Xover cable up to 100m.
Remote Bus: 2, over twisted pairs; up to 1km (see specific specs.) |
|---|---|
| GPIs |
8, from 0 to 10VDC or TTL level |
| GPOs |
8, 3 poles isolated relay; 1A, 48VDC max |
REAL-TIME CLOCK
| Retention time |
1 month aprox. (ambient temperature dependant)
|
|---|---|
| Accuracy |
±1 minute / year |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-50dBV to +10dBV in 0.5dB step |
|---|
MIC INPUTS
| Phantom power |
+42VDC, 5mA max. software switched |
|---|
LINE INPUTS
| CMRR |
65dB typ. |
|---|---|
| Input impedance |
Balanced, 4kΩ |
| Max input level |
+27dBV +30dBu |
LINE OUTPUTS
| Frequency response |
5Hz to 24kHz (-3dB) |
|---|---|
| THD + Noise |
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% THD+Noise @ 1kHz, 0dBV input (line) 0.004% THD+Noise @ 1kHz, -40dBV input (mic.) 0.008% |
| Max output level |
+18dBV +21dBu |
SCREEN/DISPLAY
| Resolution |
24bit AKM |
|---|
