MIMO7272DN
CMIMO7272DN
Only a few left
72x72 | digital matrix | Dante™ | AES67

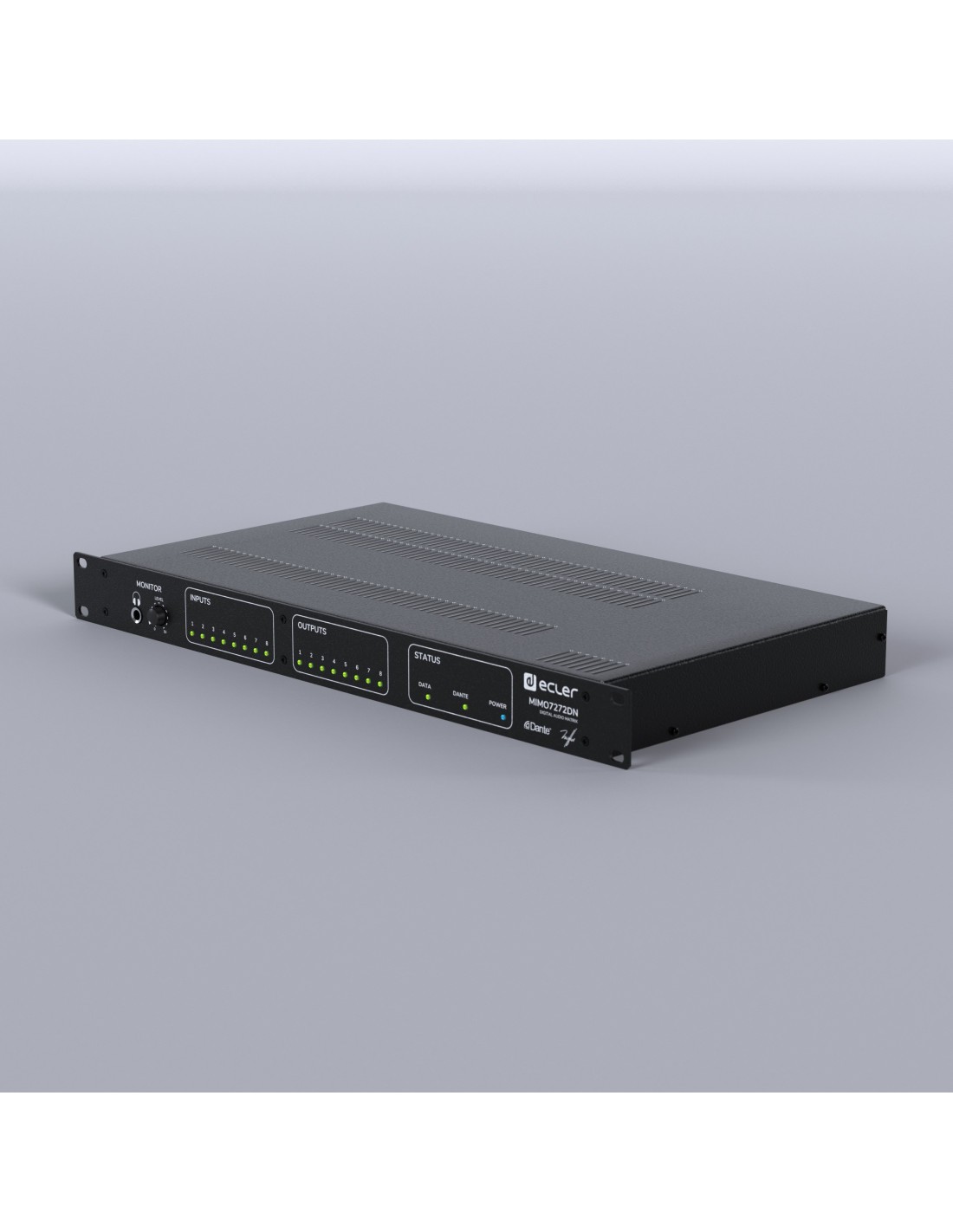

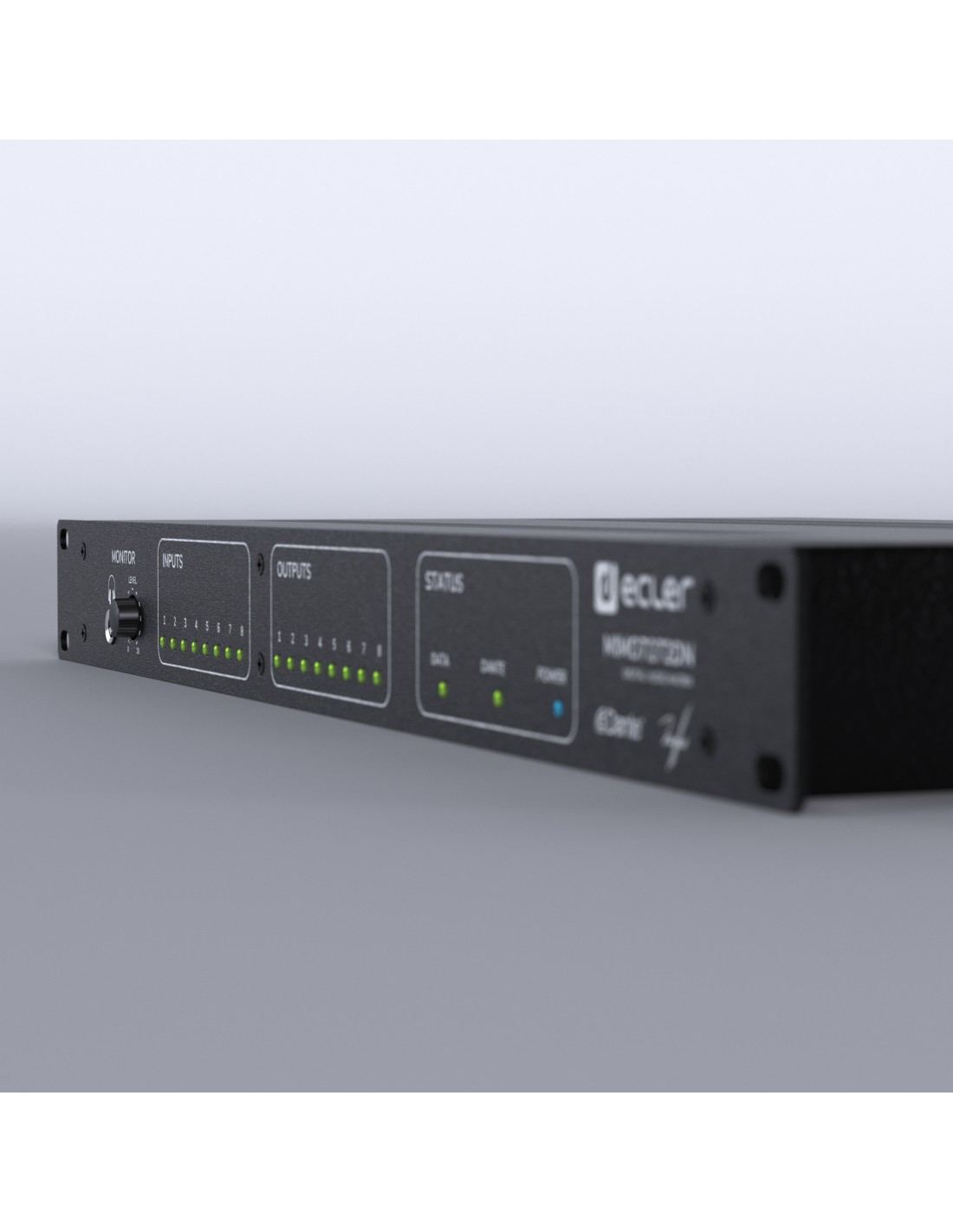

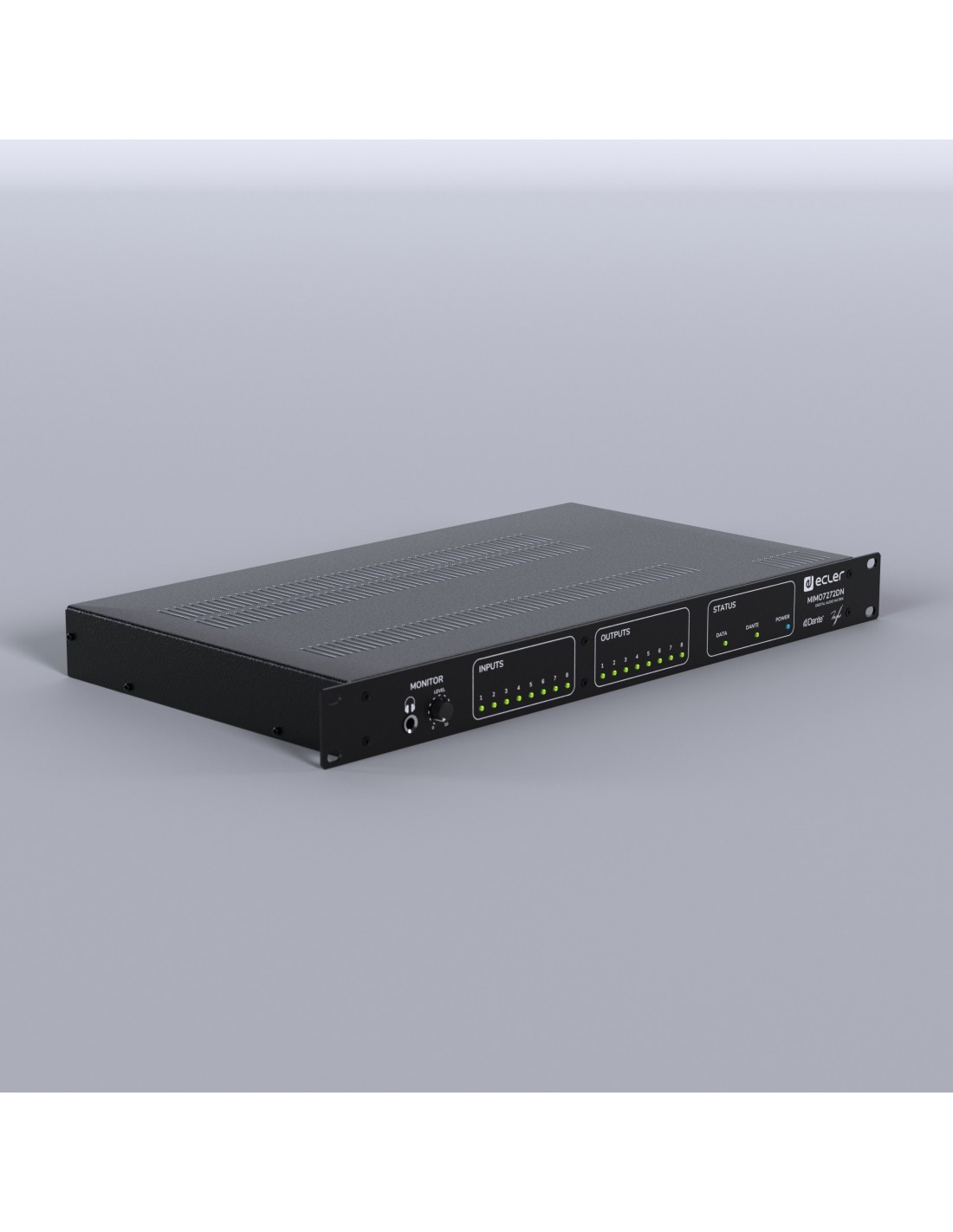

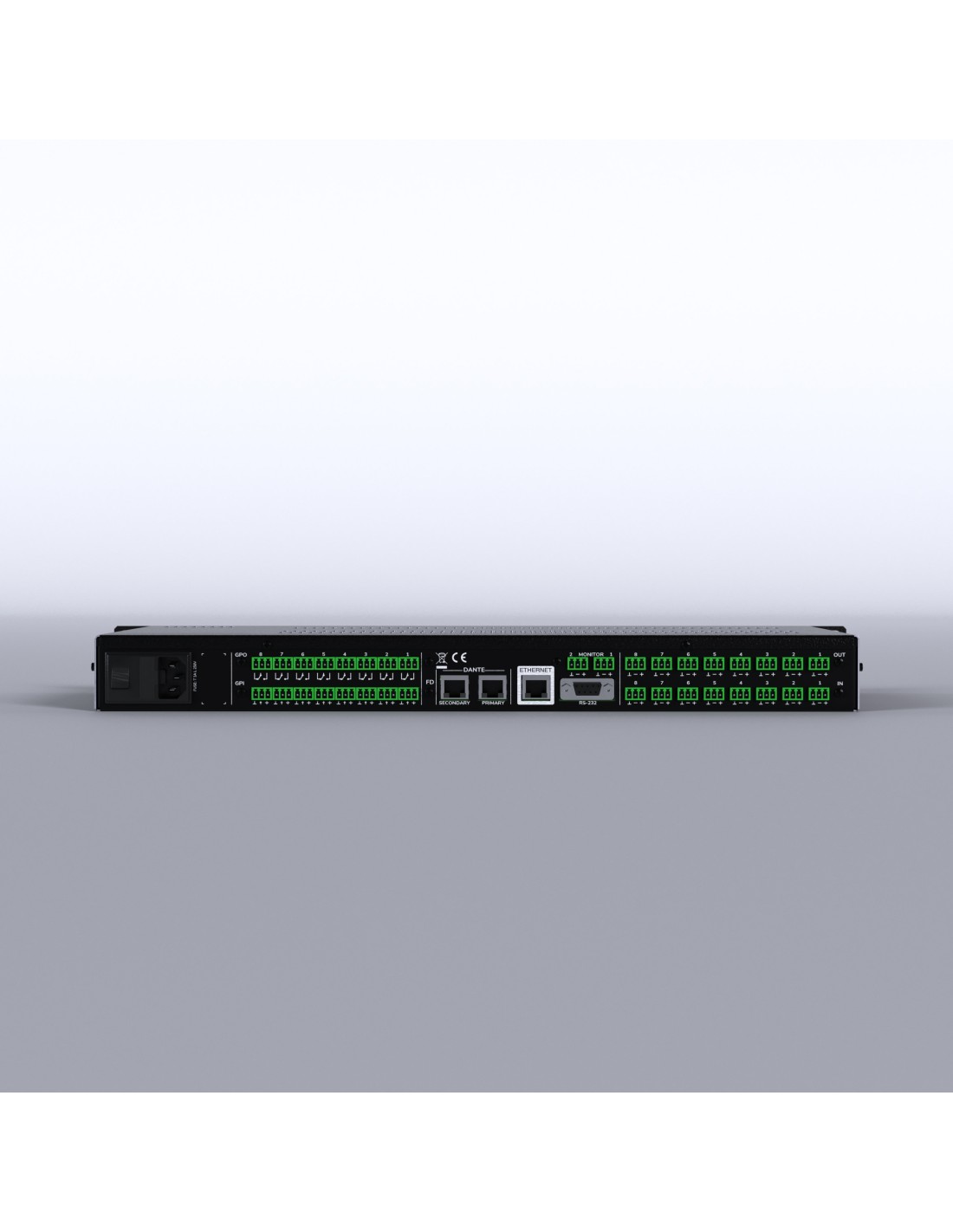

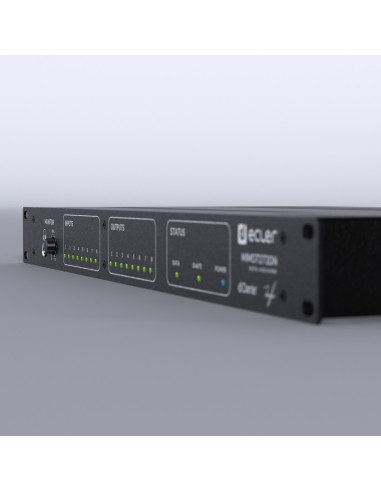

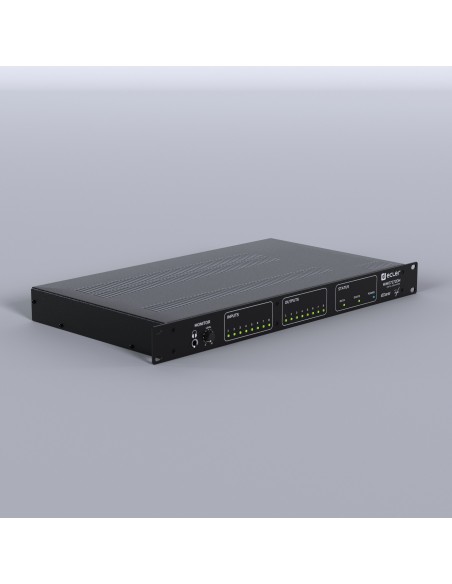

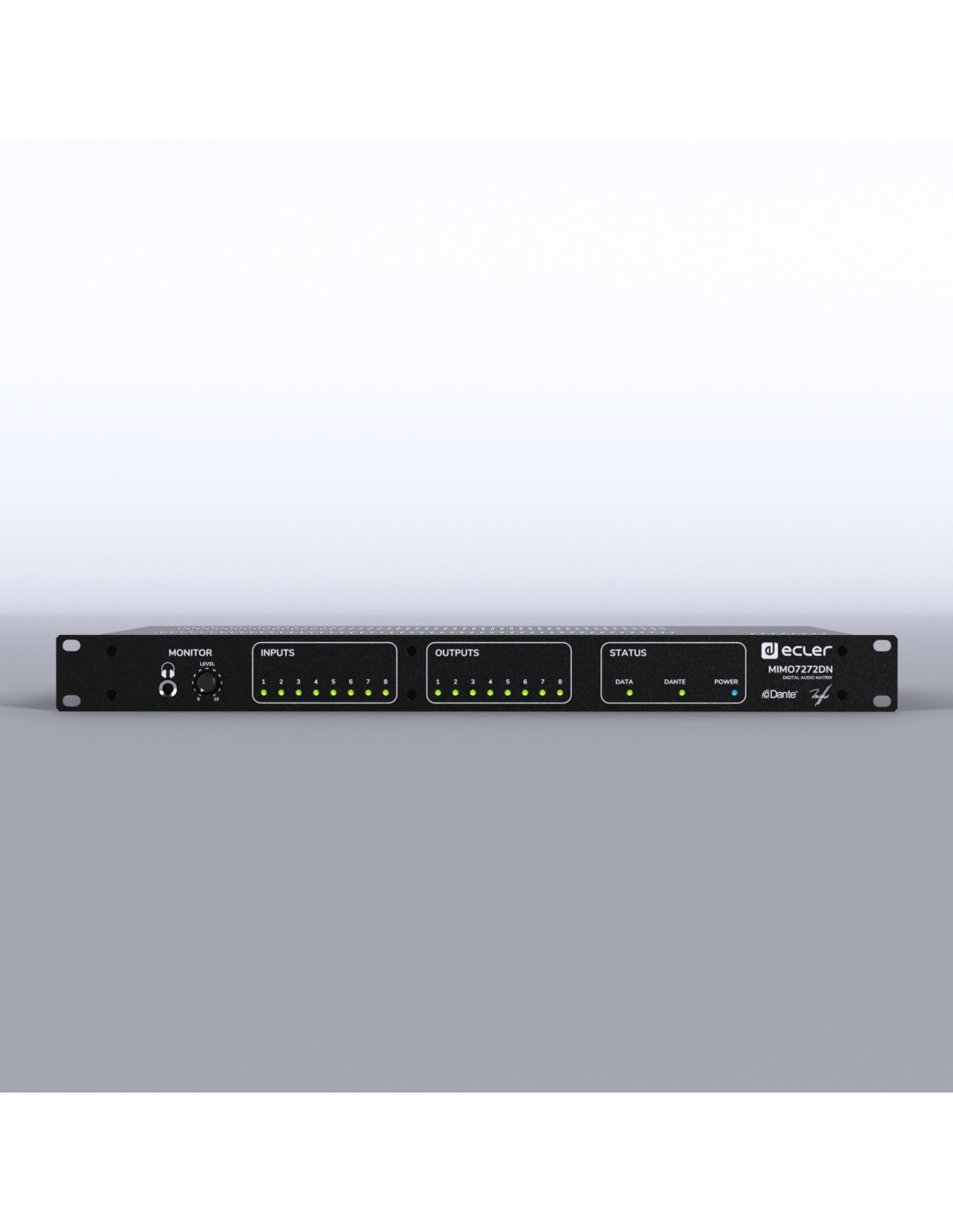

MIMO7272DN is a digital matrix including 72 audio inputs and 72 audio outputs (8 analogue inputs, 8 analogue outputs, 64 Dante™/AES67 digital inputs and 64 Dante™/AES67 digital outputs), and a native internal matrix of 64x64 simultaneous input / output channels. Incorporating audio over IP technology, MIMO7272DN allows signal transmission using a Local Ethernet network, suppressing cabling distance limitations. It features accessories from WPNET Series connected by Ethernet interface and PoE DC supply ready. This ensures flexible and efficient installations. MIMO7272DN is also capable of executing EclerNet projects embedded into its processor and electronics engine, acting as a UCP (User Control Panels) server within an EclerNet devices network.
- Connection type
- Terminal block (symmetrical)
- Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPNET series, WPNETTOUCH, PAGENETDN digital control stations
- Dimensions
- 482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in. (WxHxD)
- Weight
- 3.25 kg / 7.17 lb
- Shipping dimensions
- 70 x 590 x 380 mm / 2.76 x 23.23 x 14.96 in. (WxHxD)
- Shipping weight
- 4.5 kg / 9.92 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071314251
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 7.00
- Height (cm)
- 59.00
- Depth (cm)
- 38.00
- Vol. (dm3)
- 15.69
- Gross Weight (kg)
- 4.50
- Net Weight (kg)
- 3.25
- Format
- Unit
- Warranty (months)
- 36
- Processor
- Quad core 64bits 1GHz
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 5Hz to 24kHz (-3dB)
- Number of input ports
- 8, Mic/Line
- Input sensitivity
- -50dBV to +10dBV in 0.5dB steps
- Input impedanc
- Balanced, 4kΩ
Balanced, >4kΩ - CMRR
- 65dB typ.
- Number of output ports
- 8 Line
- Crosstalk
- Better than 90dB (100dB typ.)
- Serial port
- RS-232, DB9 connector
- Programing and control
- EclerNet manager (software) from v6.00, TPNET, UCP and WPNET series control panels
- GPIs
- 8, from 0 to 12VDC or TTL level
- AC mains requirement
- 90-264VCA 47-63Hz
- AC mains connector
- IEC mains socket connector
- Power consumption
- 30VA
- Power supply
- PoE DC supply
- Phantom power
- +42VDC, 5mA max. software switched
- Input impedance
- Balanced, 4kΩ
- Max input level
- +27dBV +30dBu
- THD + Noise
- THD+Noise @ 1kHz, 0dBV input (line) 0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.008%
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% - Latency
- 4.3 ms
<4.3 ms - Ethernet
- Ethernet Base-Tx 10 /100Mb, 1GB Auto X-Over CAT5e or better
- Dynamic range
- AD:110dB, DA: 115dB
- Max output level
- +18dBV +21dBu
- Protocols
- Dante™ (Brooklyn)/AES67
Dante™ (Brooklyn)/AES67 (32/32 flows)
Dante™/AES67 - Number of digital input ports
- 64
- Number of digital output ports
- 64
- Interfaces
- 2 x RJ45 (Primary / Secondary)
- GPOs
- 8, 3 poles isolated relay; 1A, 48VDC max.
- Retention time
- 3 months
> 3 months - Headphones
- Jack 1/4 (200mW/200Ω)
Jack 1/4 (>200mW/200Ω) - Secondary power supply
- +12VDC, 1.2A max. (short circuit protected)
- Number of monitor output ports
- 2
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Quad core 64bits 1GHz |
|---|
PHYSICAL
| Connection type |
Terminal block (symmetrical) |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPNET series, WPNETTOUCH, PAGENETDN digital control stations |
| Dimensions |
482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in. (WxHxD) |
| Weight |
3.25 kg / 7.17 lb |
| Shipping dimensions |
70 x 590 x 380 mm / 2.76 x 23.23 x 14.96 in. (WxHxD) |
| Shipping weight |
4.5 kg / 9.92 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071314251 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
7.00 |
| Height (cm) |
59.00 |
| Depth (cm) |
38.00 |
| Vol. (dm3) |
15.69 |
| Gross Weight (kg) |
4.50 |
| Net Weight (kg) |
3.25 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
90-264VCA 47-63Hz |
|---|---|
| AC mains connector |
IEC mains socket connector |
| Power consumption |
30VA |
| Power supply |
PoE DC supply |
| Secondary power supply |
+12VDC, 1.2A max. (short circuit protected) |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
<4.3 ms 4.3 ms |
| Dynamic range |
AD:110dB, DA: 115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
8, Mic/Line |
|---|---|
| Input impedanc |
Balanced, >4kΩ Balanced, 4kΩ |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
8 Line |
|---|---|
| Crosstalk |
Better than 90dB (100dB typ.)
|
ANALOGUE MONITOR PORTS
| Headphones |
Jack 1/4 (>200mW/200Ω) Jack 1/4 (200mW/200Ω) |
|---|---|
| Number of monitor output ports |
2 |
AUDIO OVER IP
| Protocols |
Dante™/AES67 Dante™ (Brooklyn)/AES67 Dante™ (Brooklyn)/AES67 (32/32 flows) |
|---|---|
| Number of digital input ports |
64 |
| Number of digital output ports |
64 |
| Interfaces |
2 x RJ45 (Primary / Secondary) |
CONNECTIVITY
| Serial port |
RS-232, DB9 connector |
|---|---|
| Programing and control |
EclerNet manager (software) from v6.00, TPNET, UCP and WPNET series control panels |
| Ethernet |
Ethernet Base-Tx 10 /100Mb, 1GB Auto X-Over CAT5e or better |
REMOTE CONTROL CONNECTIONS
| GPIs |
8, from 0 to 12VDC or TTL level |
|---|---|
| GPOs |
8, 3 poles isolated relay; 1A, 48VDC max. |
REAL-TIME CLOCK
| Retention time |
> 3 months 3 months |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-50dBV to +10dBV in 0.5dB steps |
|---|
MIC INPUTS
| Phantom power |
+42VDC, 5mA max. software switched |
|---|
LINE INPUTS
| CMRR |
65dB typ. |
|---|---|
| Input impedance |
Balanced, 4kΩ |
| Max input level |
+27dBV +30dBu |
LINE OUTPUTS
| Frequency response |
5Hz to 24kHz (-3dB) |
|---|---|
| THD + Noise |
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% THD+Noise @ 1kHz, 0dBV input (line) 0.004% THD+Noise @ 1kHz, -40dBV input (mic.) 0.008% |
| Max output level |
+18dBV +21dBu |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
