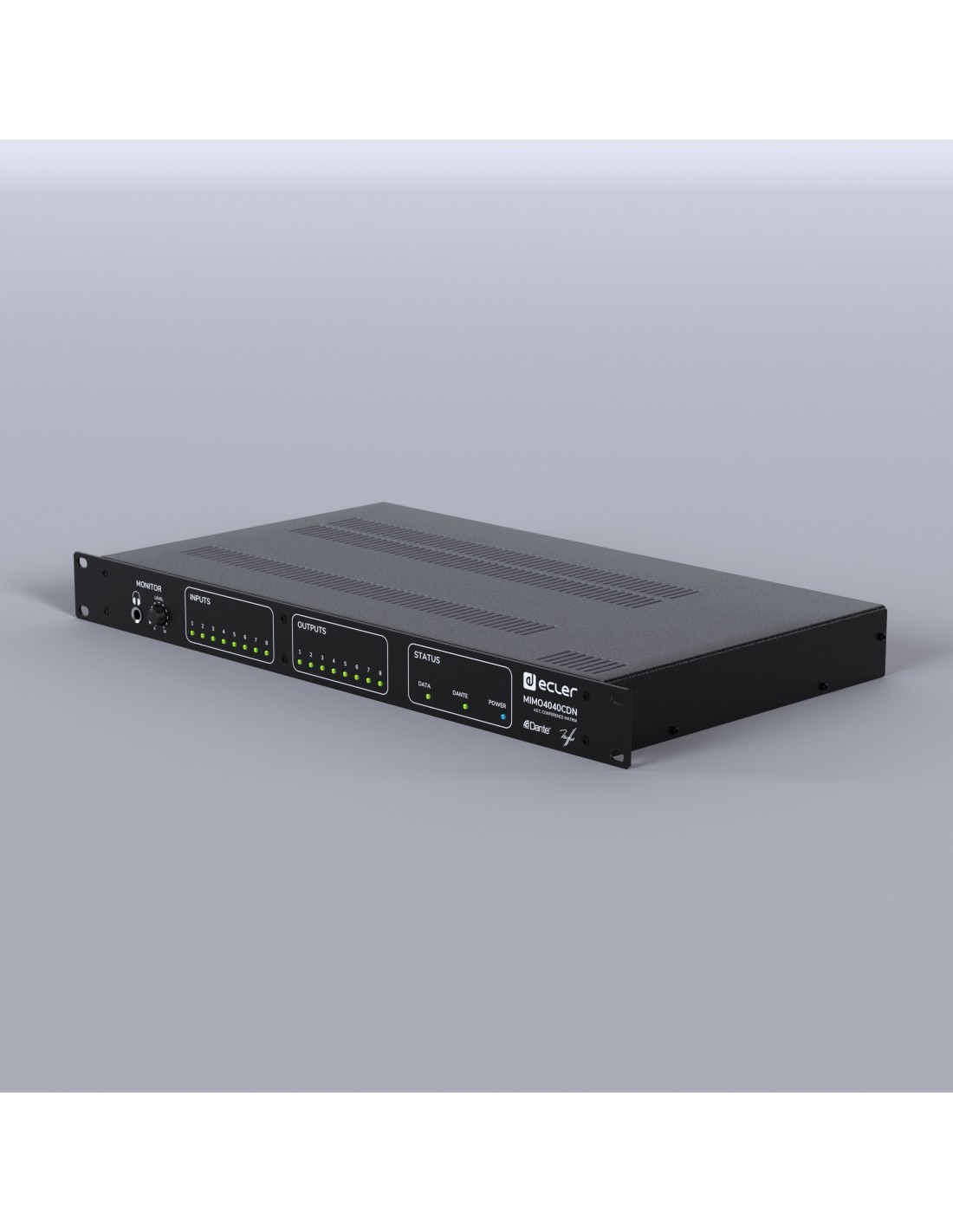

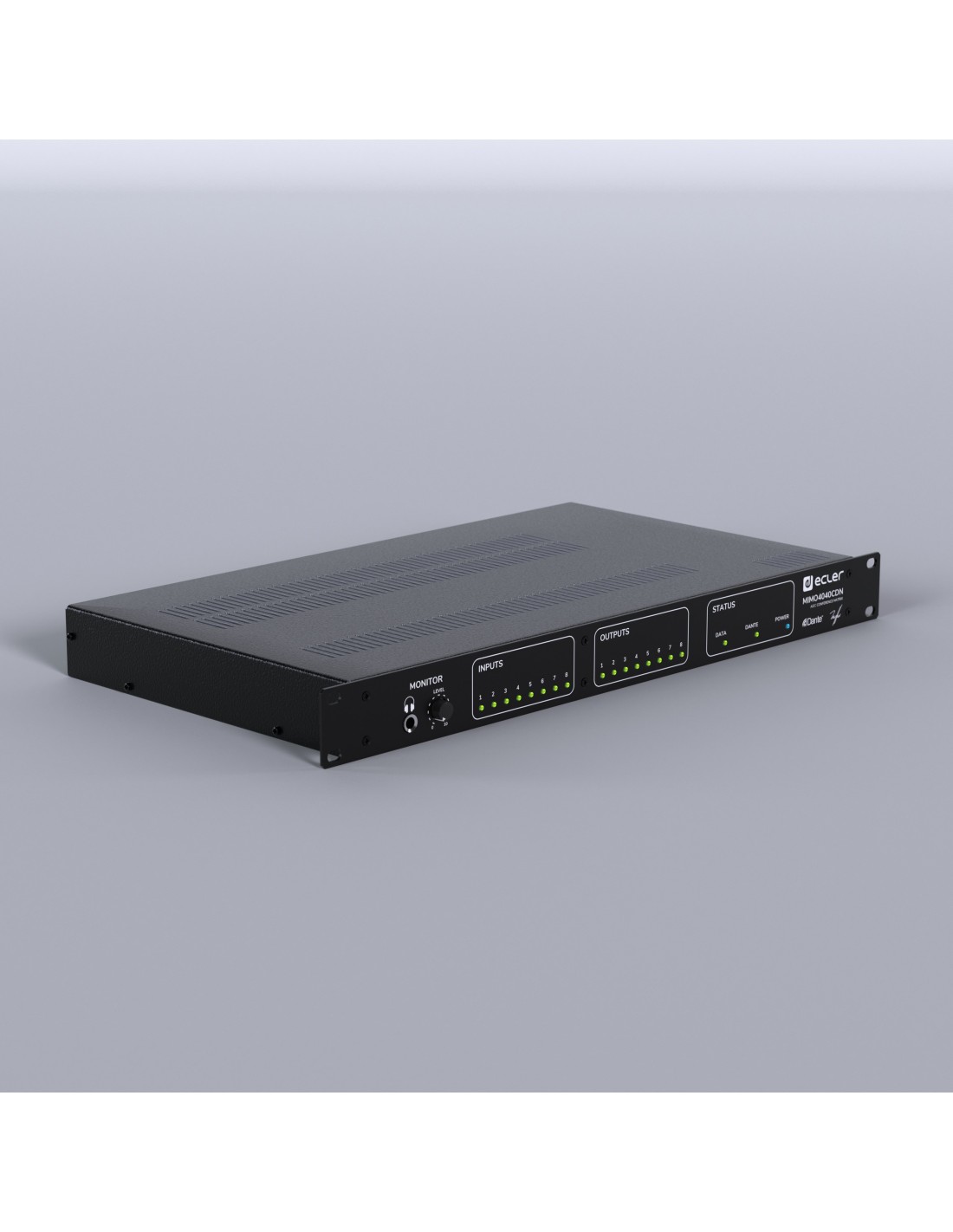

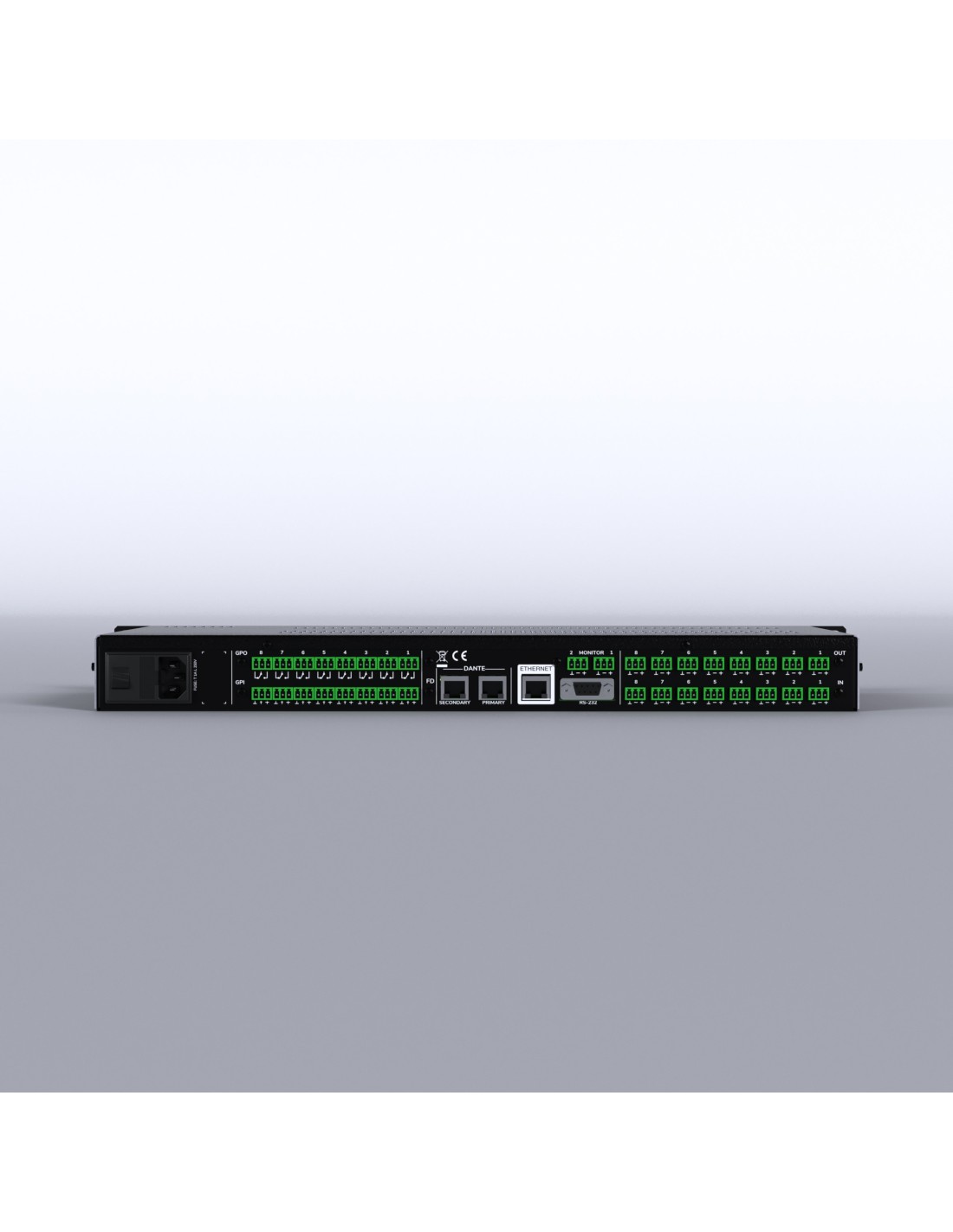

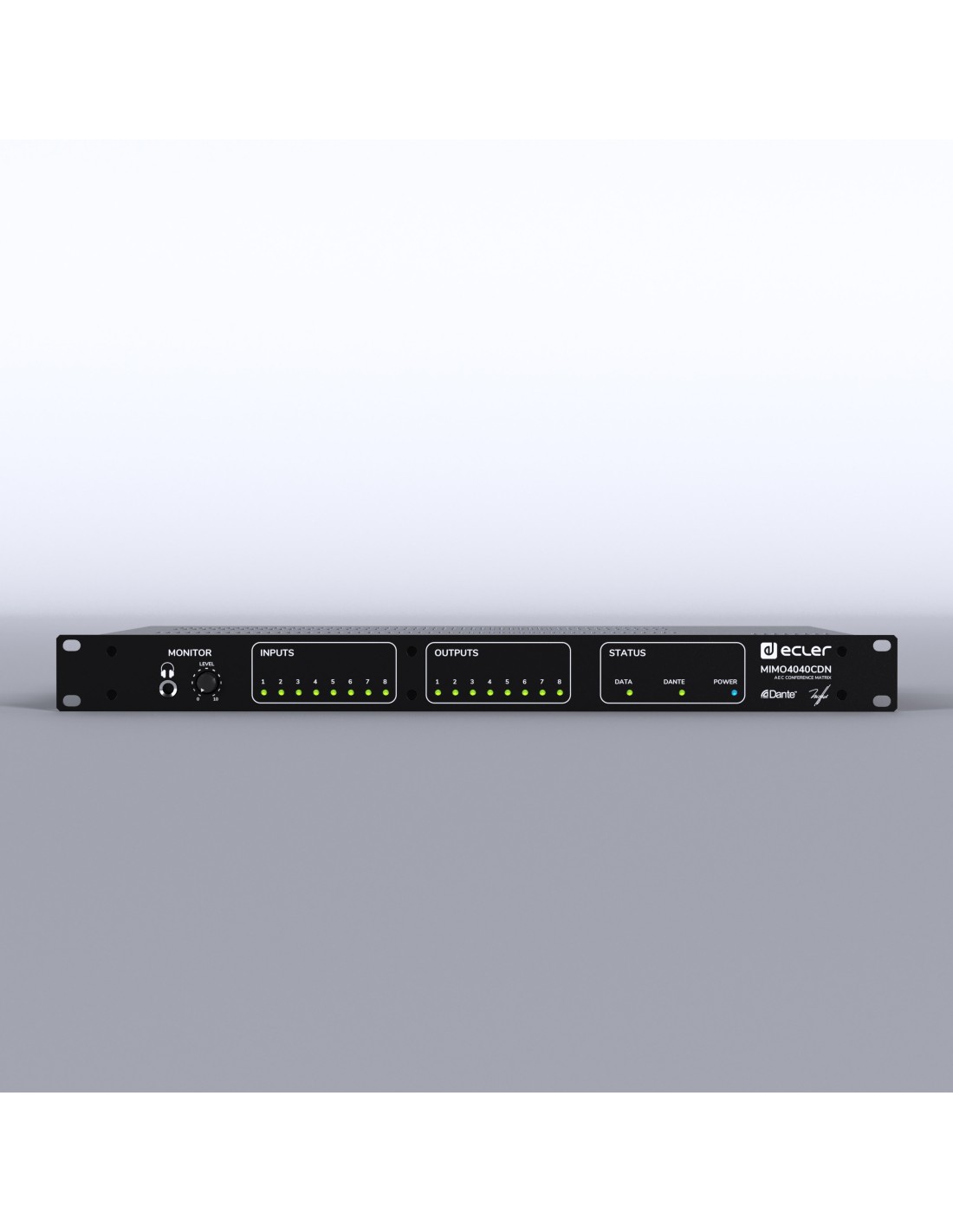

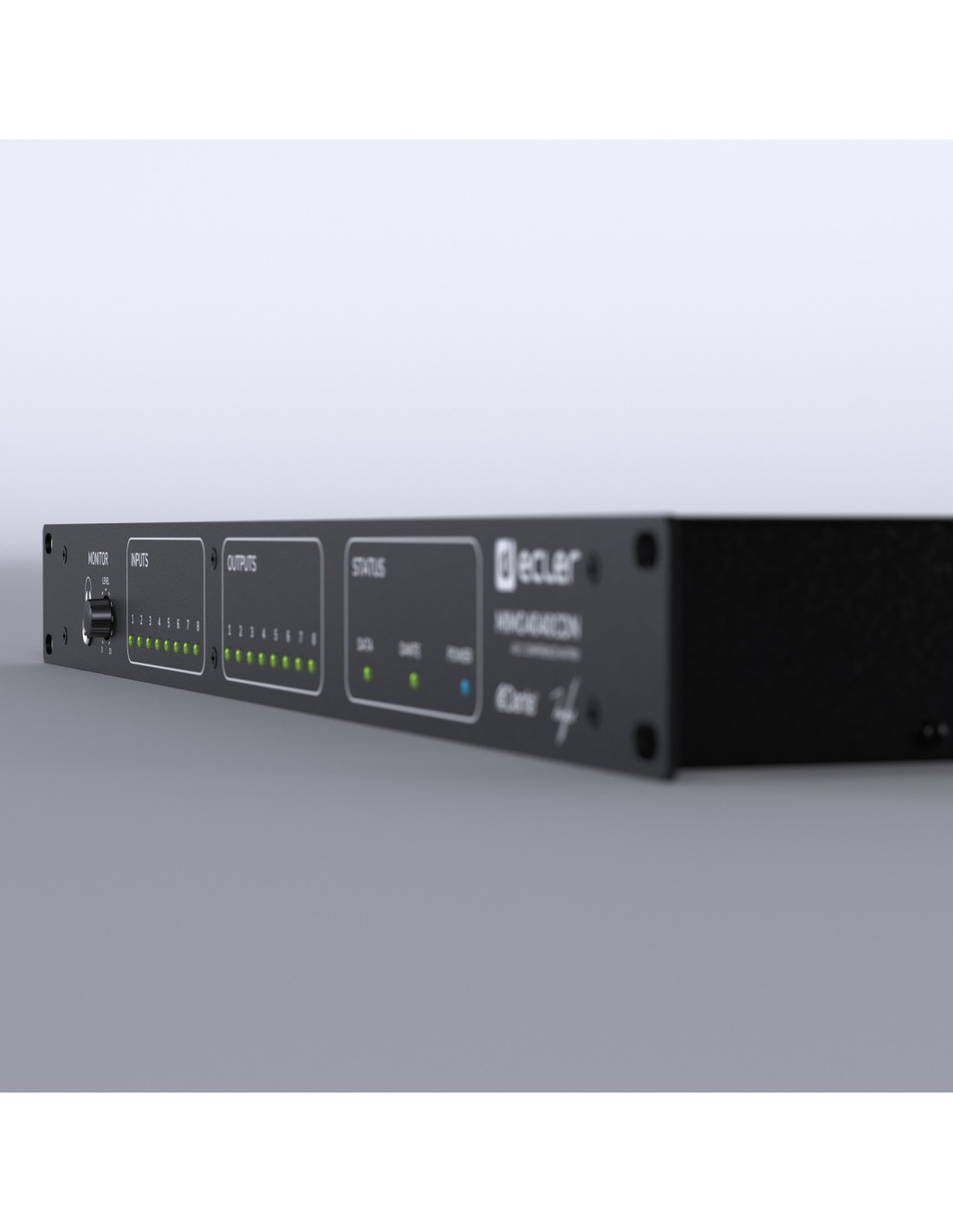

MIMO4040CDN
CMIMO4040CDN
Only a few left
40x40 | digital matrix | Dante™ | AES67
MIMO4040CDN is is a digital audio matrix including a native (full DSP) matrix of 40x40 input and output audio channels total size, specially designed for conference rooms. It includes functions such as AUTOMIXER or FEEDBACK KILLER by default, as well as up to 8 microphone channels with AEC (Acoustic Echo Canceling) processing activated by software licenses.
- Connection type
- Terminal block (symmetrical)
- Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPNET series, WPNETTOUCH, PAGENETDN digital control stations
- Dimensions
- 482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in. (WxHxD)
- Weight
- 3.25 kg / 7.17 lb
- Shipping dimensions
- 70 x 590 x 380 mm / 2.76 x 23.23 x 14.96 in. (WxHxD)
- Shipping weight
- 4.5 kg / 9.92 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071314268
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 7.00
- Height (cm)
- 59.00
- Depth (cm)
- 38.00
- Vol. (dm3)
- 15.69
- Gross Weight (kg)
- 4.50
- Net Weight (kg)
- 3.25
- Format
- Unit
- Warranty (months)
- 36
- Processor
- Quad core 64bits 1GHz
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 5Hz to 24kHz (-3dB)
- Number of input ports
- 8, Mic/Line
- Input sensitivity
- -50dBV to +10dBV in 0.5dB steps
- Input impedanc
- Balanced, 4kΩ
Balanced, >4kΩ - CMRR
- 65dB typ.
- Number of output ports
- 8, Line
- Crosstalk
- Better than 90dB (100dB typ.)
- Serial port
- RS-232 (DB9 connector)
- Programing and control
- EclerNet manager (software) from v6.00, TPNET, UCP and WPNET series control panels
- GPIs
- 8, from 0 to 10VDC or TTL level
- AC mains requirement
- 90-264VCA @ 47-63Hz
- AC mains connector
- IEC mains socket connector
- Power consumption
- 30VA
- Power supply
- PoE DC supply
- Phantom power
- +42VDC, 5mA max. software switched
- Input impedance
- Balanced, 4kΩ
- Max input level
- +27dBV +30dBu
- THD + Noise
- THD+Noise @ 1kHz, 0dBV input (line) 0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.008%
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% - Latency
- 4.3 ms
<4.3 ms - Ethernet
- Ethernet Base-Tx 10 /100Mb, 1GB Auto X-Over CAT5e or better
- Dynamic range
- AD:110dB, DA: 115dB
- Max output level
- +18dBV +21dBu
- Protocols
- Dante™ (Brooklyn) /AES67
Dante™ (Brooklyn) /AES67 (32/32 flows)
Dante™/AES67 - Number of digital input ports
- 32
- Number of digital output ports
- 32
- Interfaces
- 2 x RJ45 (Primary / Secondary)
- GPOs
- 8, 3 poles isolated relay; 1A, 48VDC max.
- Retention time
- 3 months
> 3 months - Headphones
- Jack 1/4 (200mW/200Ω)
Jack 1/4 (>200mW/200Ω) - Secondary power supply
- +12VDC, 1.2A max. (short circuit protected)
- Number of monitor output ports
- 2
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Quad core 64bits 1GHz |
|---|
PHYSICAL
| Connection type |
Terminal block (symmetrical) |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPNET series, WPNETTOUCH, PAGENETDN digital control stations |
| Dimensions |
482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in. (WxHxD) |
| Weight |
3.25 kg / 7.17 lb |
| Shipping dimensions |
70 x 590 x 380 mm / 2.76 x 23.23 x 14.96 in. (WxHxD) |
| Shipping weight |
4.5 kg / 9.92 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071314268 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
7.00 |
| Height (cm) |
59.00 |
| Depth (cm) |
38.00 |
| Vol. (dm3) |
15.69 |
| Gross Weight (kg) |
4.50 |
| Net Weight (kg) |
3.25 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
90-264VCA @ 47-63Hz |
|---|---|
| AC mains connector |
IEC mains socket connector |
| Power consumption |
30VA |
| Power supply |
PoE DC supply |
| Secondary power supply |
+12VDC, 1.2A max. (short circuit protected) |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
<4.3 ms 4.3 ms |
| Dynamic range |
AD:110dB, DA: 115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
8, Mic/Line |
|---|---|
| Input impedanc |
Balanced, >4kΩ Balanced, 4kΩ |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
8, Line |
|---|---|
| Crosstalk |
Better than 90dB (100dB typ.) |
ANALOGUE MONITOR PORTS
| Headphones |
Jack 1/4 (>200mW/200Ω) Jack 1/4 (200mW/200Ω) |
|---|---|
| Number of monitor output ports |
2 |
AUDIO OVER IP
| Protocols |
Dante™/AES67 Dante™ (Brooklyn) /AES67 Dante™ (Brooklyn) /AES67 (32/32 flows) |
|---|---|
| Number of digital input ports |
32 |
| Number of digital output ports |
32 |
| Interfaces |
2 x RJ45 (Primary / Secondary) |
CONNECTIVITY
| Serial port |
RS-232 (DB9 connector) |
|---|---|
| Programing and control |
EclerNet manager (software) from v6.00, TPNET, UCP and WPNET series control panels |
| Ethernet |
Ethernet Base-Tx 10 /100Mb, 1GB Auto X-Over CAT5e or better |
REMOTE CONTROL CONNECTIONS
| GPIs |
8, from 0 to 10VDC or TTL level |
|---|---|
| GPOs |
8, 3 poles isolated relay; 1A, 48VDC max. |
REAL-TIME CLOCK
| Retention time |
> 3 months 3 months |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-50dBV to +10dBV in 0.5dB steps |
|---|
MIC INPUTS
| Phantom power |
+42VDC, 5mA max. software switched |
|---|
LINE INPUTS
| CMRR |
65dB typ. |
|---|---|
| Input impedance |
Balanced, 4kΩ |
| Max input level |
+27dBV +30dBu |
LINE OUTPUTS
| Frequency response |
5Hz to 24kHz (-3dB) |
|---|---|
| THD + Noise |
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% THD+Noise @ 1kHz, 0dBV input (line) 0.004% THD+Noise @ 1kHz, -40dBV input (mic.) 0.008% |
| Max output level |
+18dBV +21dBu |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
