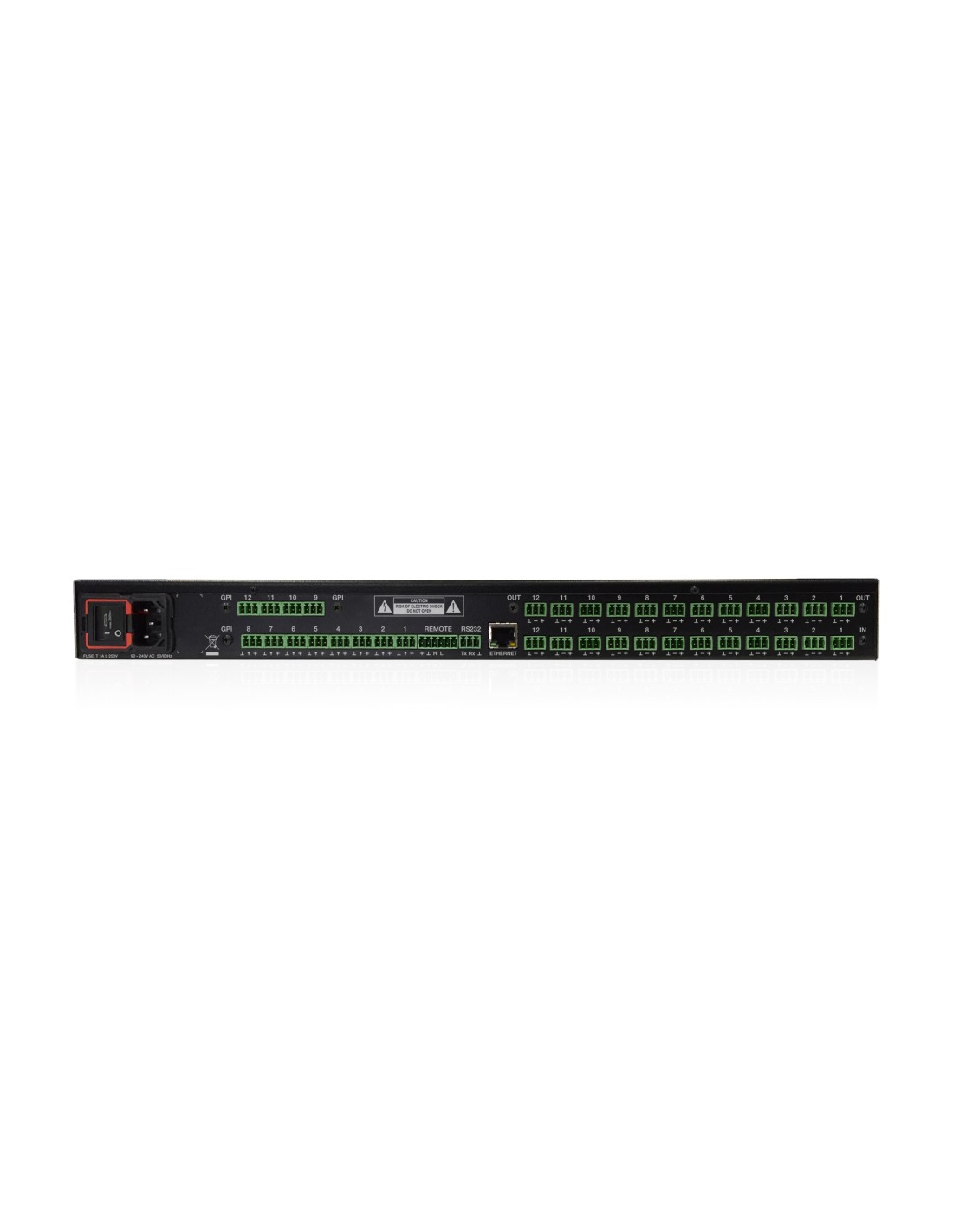

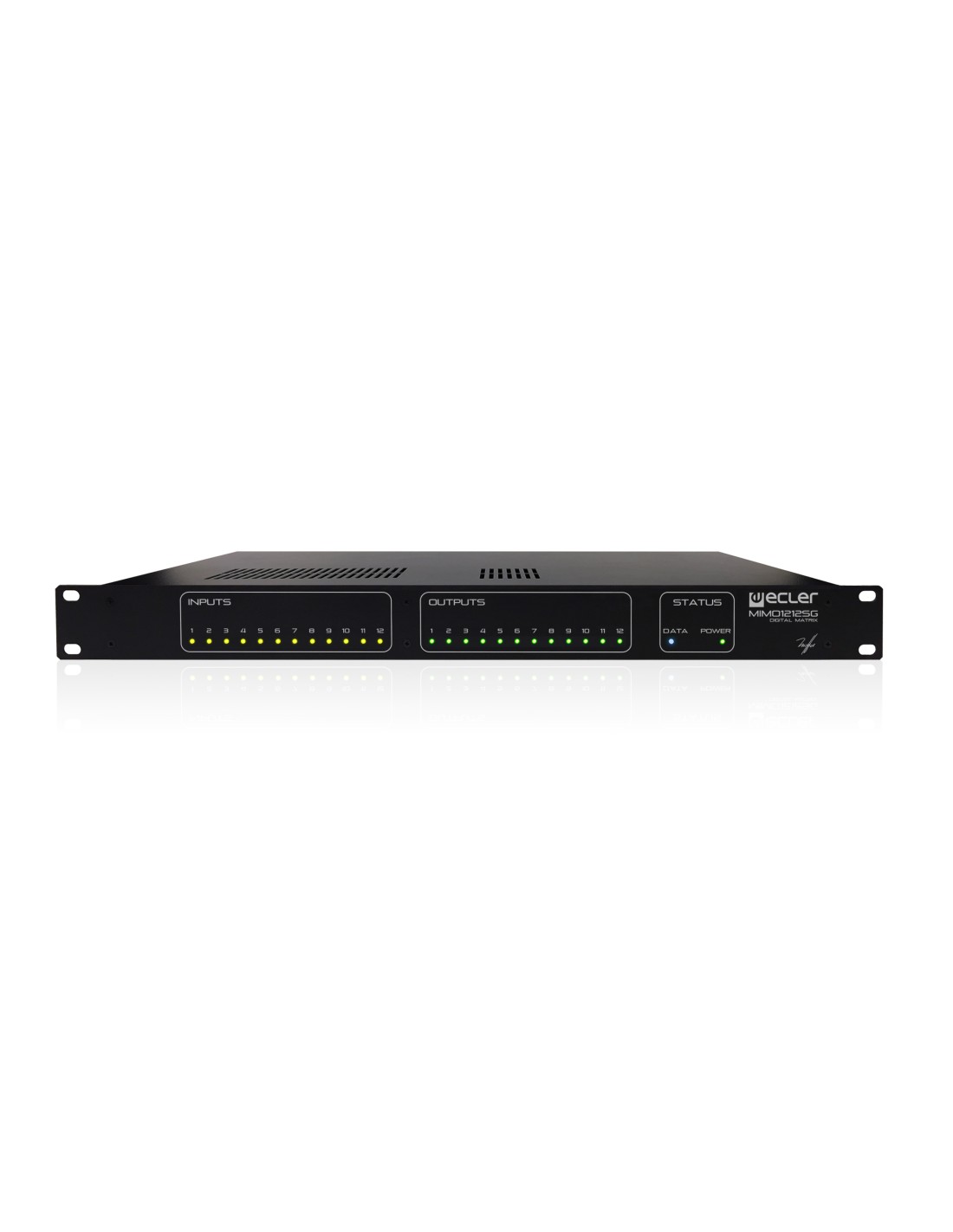

MIMO1212SG
CMIMO1212SG
Available
12x12 | digital matrix | DSP
MIMO1212SG (MIMO1212 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version (12x12) of this acclaimed digital matrix.
- Connection type
- Terminal block (symmetrical)
- Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPa series control panels, WPTOUCH, MPAGE16
- Dimensions
- 482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in. (WxHxD)
- Weight
- 3.2 kg / 7.05 lb
- Shipping dimensions
- 590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD)
- Shipping weight
- 4.5 kg / 9.92 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071306461
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 59.00
- Height (cm)
- 7.00
- Depth (cm)
- 38.00
- Vol. (dm3)
- 15.69
- Gross Weight (kg)
- 4.50
- Net Weight (kg)
- 3.50
- Format
- Unit
- Warranty (months)
- 36
- Processor
- 2 x 32/64bit
- Sampling rate
- 48kHz
- Resolution
- 24bit AKM
- Frequency response
- 5Hz to 24kHz (-3dB)
- Number of input ports
- 12, Mic/Line
- Input sensitivity
- -50dBV to +10dBV in 0.5dB step
- Input impedanc
- Balanced, 4kΩ
Balanced, >4kΩ - CMRR
- 65dB typ.
- Number of output ports
- 12, Line
- Crosstalk
- Better than 90dB (100dB typ.)
- Serial port
- RS-232
- Programing and control
- EclerNet manager (software) from v3.03r4 version, TPNET, UCP control panels
- Digital remote controls
- Remote Bus: Over twisted pairs; up to 1km (see specific specs.)
- GPIs
- 12, from 0 to 10VDC or TTL level
- AC mains requirement
- 90-264VAC @ 47-63Hz
- AC mains connector
- IEC mains socket connector
- Power consumption
- 75VA
- Phantom power
- +42VDC, 5mA max. software switched
- Input impedance
- Balanced, 4kΩ
- Max input level
- +27dBV +30dBu
- THD + Noise
- THD+Noise @ 1kHz, 0dBV input (line) 0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.008%
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% - Latency
- 3.2ms
<3.2ms - Ethernet
- 1 RJ45, Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m.
- Dynamic range
- AD:110dB, DA: 115dB
- Max output level
- +18dBV +21dBu
- Retention time
- 100 hours approx. (ambient temperature dependant)
- Accuracy
- ±1 minute / month
- Secondary power supply
- +12VDC, 0,6A. max. (short circuit protected)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
2 x 32/64bit |
|---|
PHYSICAL
| Connection type |
Terminal block (symmetrical) |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPa series control panels, WPTOUCH, MPAGE16 |
| Dimensions |
482.6 x 44 x 253 mm / 19 x 1.73 x 9.96 in. (WxHxD) |
| Weight |
3.2 kg / 7.05 lb |
| Shipping dimensions |
590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD) |
| Shipping weight |
4.5 kg / 9.92 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071306461 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
59.00 |
| Height (cm) |
7.00 |
| Depth (cm) |
38.00 |
| Vol. (dm3) |
15.69 |
| Gross Weight (kg) |
4.50 |
| Net Weight (kg) |
3.50 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
90-264VAC @ 47-63Hz |
|---|---|
| AC mains connector |
IEC mains socket connector |
| Power consumption |
75VA |
| Secondary power supply |
+12VDC, 0,6A. max. (short circuit protected) |
AUDIO CONVERTERS
| Sampling rate |
48kHz |
|---|---|
| Latency |
<3.2ms 3.2ms |
| Dynamic range |
AD:110dB, DA: 115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
12, Mic/Line |
|---|---|
| Input impedanc |
Balanced, >4kΩ Balanced, 4kΩ |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
12, Line |
|---|---|
| Crosstalk |
Better than 90dB (100dB typ.) |
CONNECTIVITY
| Serial port |
RS-232 |
|---|---|
| Programing and control |
EclerNet manager (software) from v3.03r4 version, TPNET, UCP control panels |
| Ethernet |
1 RJ45, Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m. |
REMOTE CONTROL CONNECTIONS
| Digital remote controls |
Remote Bus: Over twisted pairs; up to 1km (see specific specs.) |
|---|---|
| GPIs |
12, from 0 to 10VDC or TTL level |
REAL-TIME CLOCK
| Retention time |
100 hours approx. (ambient temperature dependant) |
|---|---|
| Accuracy |
±1 minute / month |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-50dBV to +10dBV in 0.5dB step |
|---|
MIC INPUTS
| Phantom power |
+42VDC, 5mA max. software switched |
|---|
LINE INPUTS
| CMRR |
65dB typ. |
|---|---|
| Input impedance |
Balanced, 4kΩ |
| Max input level |
+27dBV +30dBu |
LINE OUTPUTS
| Frequency response |
5Hz to 24kHz (-3dB) |
|---|---|
| THD + Noise |
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% THD+Noise @ 1kHz, 0dBV input (line) 0.004% THD+Noise @ 1kHz, -40dBV input (mic.) 0.008% |
| Max output level |
+18dBV +21dBu |
SCREEN/DISPLAY
| Resolution |
24bit AKM |
|---|
