BIO-X8G
CBIOX8G
Available

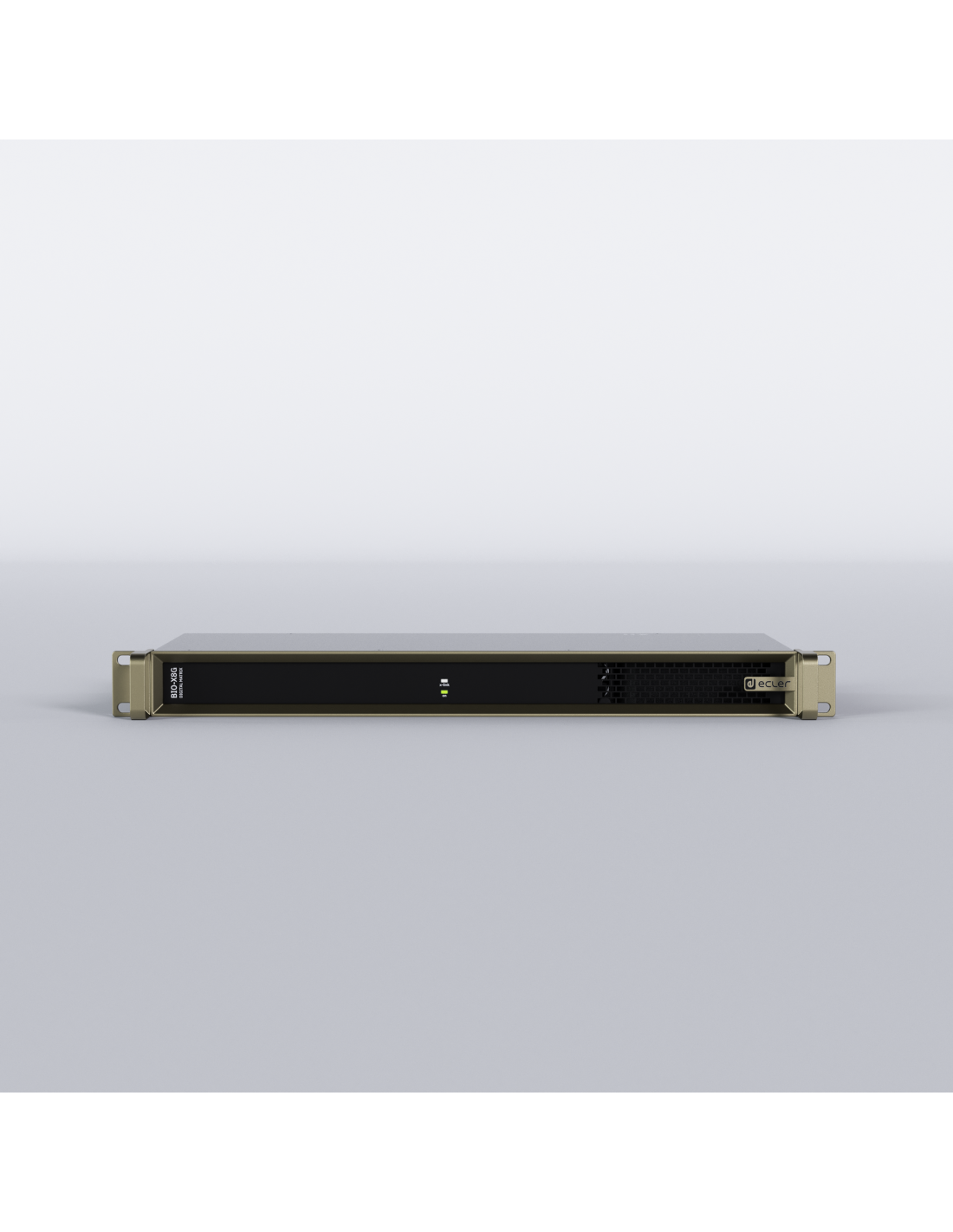

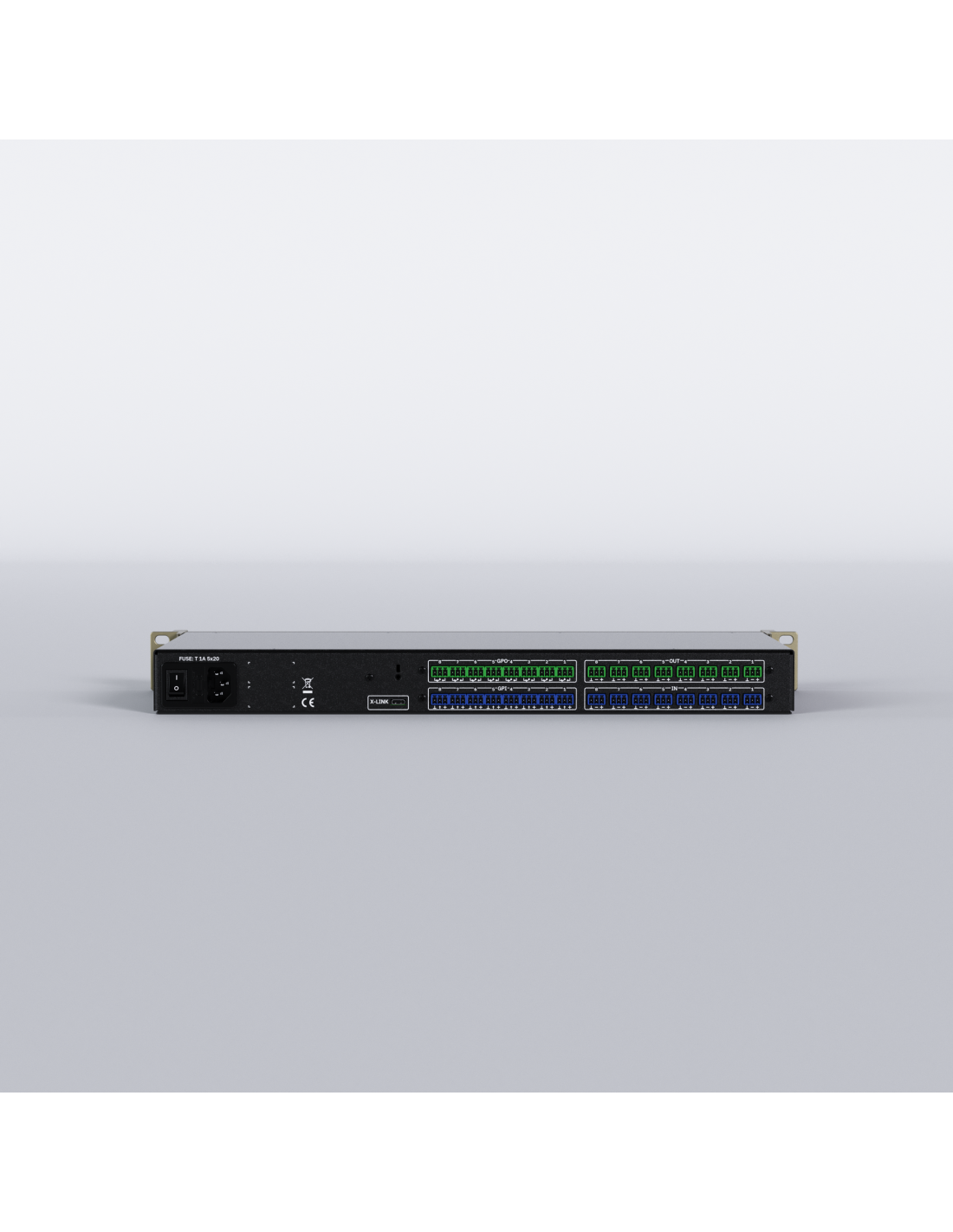

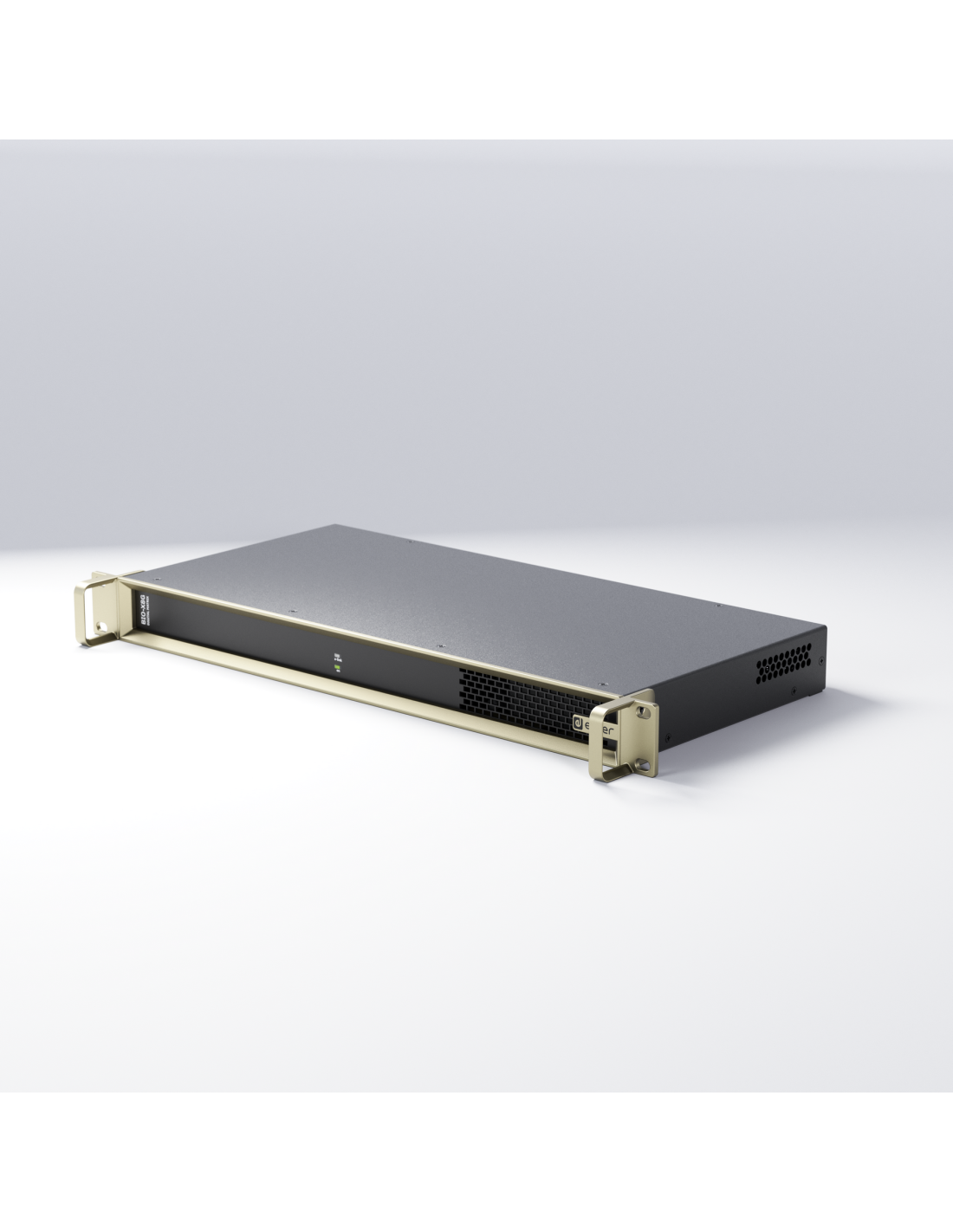

EclerPLEX Expansion Interface 8x8 Analogue Audio 8x8 GPIO
BIO-X8G is an affordable expansion interface that can easily scale up an EclerPLEX digital host matrix, adding to its default size 8 input and 8 output analogue audio ports, 8 GPI ports and 8 GPO ports. A maximum of 2 BIO-X8G units can be linked to the same EclerPLEX host matrix, reaching a maximum total matrix size of 24 analogue audio input ports, 24 analogue audio output ports and 24x24 GPIO control ports.
- Connection type
- Euroblock, 3-pin, balanced
- Installation options
- Desktop, 19" racks (1RU)
- Operating temperature
- Min: 0°C ; 32°F
Max: 50°C ; 122°F - Operating humidity
- 5 - 85% RH, non-condensing
- Storage temperature
- Min: 0°C ; 32°F
Max: 50°C ; 122°F - Storage humidity
- 5-85% RH, non-condensing
- Included accessories
- 1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 1x USB-C Ecler X-Link certified cable, 16x Euroblock connectors (green colour), 16x Euroblock connectors (blue colour), 1x USB holder, 1x Screw.
- Dimensions
- 482.4 x 44 x 214 mm / 18.99 x 1.73 x 8.43 in. (WxHxD)
- Weight
- 3.0 kg / 6.6 lb
- Shipping dimensions
- 585 x 385 x 75 mm / 23.03 x 15.15 x 2.95 in. (WxHxD)
- Shipping weight
- 4.45 kg/ 9.81 lb
- Sampling rate
- 48 kHz
- Resolution
- 32 bit
- Frequency response
- 10Hz to 20kHz (-0,5 dB)
- Number of input ports
- 8, MIC/LINE level
- Input sensitivity
- -32,5 dBV to +18,5 dBV
-30,3 dBu to +20,7 dBu - CMRR
- 70dB typ (1kHz)
60 dB typ (20 Hz - 20kHz) - Number of output ports
- 8, LINE level
- Output impedance
- 300Ω (balanced), 150Ω (unbalanced)
- Crosstalk
- 95dB
- GPIs
- 8, 0 to 12VDC
- AC mains requirement
- 100-240 VAC @ 50-60Hz
- AC mains connector
- IEC C14 inlet
- Power consumption
- 16 W Typ, 20 W Max
30 VA, 36,3 VA Max - Power supply
- Internal.
Universal, regulated switching mode supply - Phantom power
- +48VDC, 10mA per input max
- Input impedance
- 8kΩ (balanced), 4kΩ (unbalanced)
- Max input level
- 18,5 dBV / 20,7dBu
- THD + Noise
- Gain 0 dB & Vin 0 dBV: 0,0025%
Gain 21 dB & Vin -21 dBV: 0,0026%
Gain 42 dB & Vin -42 dBV: 0,0044%
Gain 51 dB & Vin -51 dBV: 0,0085%
Gain 0 dB & Vin +17 dBV: 0,0010%
Gain 21 dB & Vin -4 dBV: 0,0015%
Gain 42 dB & Vin -25 dBV: 0,0 - Latency
- 3.87ms
- Heat load
- 54,6 BTU/h Typ, 68,2 BTU/h Max
- Ventilation
- FAN
- Dynamic range
- 112,5 dB
ADC:115dB, DAC: 115dB
Gain 0 dB: 110,2 dB
Gain 21 dB: 109,5 dB
Gain 42 dB: 105,5 dB
Gain 51 dB: 99,5 dB - Max output level
- 18,5dBV / 20,7dBu
- GPOs
- 8, 3 poles isolated relay;
Contact rating: 2A, 30VDC; 0,5A, 125 VAC - Mic preamp EIN
- -129,5 dBV
-127,3 dBu - X-LINK
- 1, X-LINK port. USB-C connector
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
Euroblock, 3-pin, balanced |
|---|---|
| Installation options |
Desktop, 19" racks (1RU) |
| Operating temperature |
Min: 0°C ; 32°F
Max: 50°C ; 122°F |
| Operating humidity |
5 - 85% RH, non-condensing |
| Storage temperature |
Min: 0°C ; 32°F
Max: 50°C ; 122°F |
| Storage humidity |
5-85% RH, non-condensing |
| Included accessories |
1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 1x USB-C Ecler X-Link certified cable, 16x Euroblock connectors (green colour), 16x Euroblock connectors (blue colour), 1x USB holder, 1x Screw. |
| Dimensions |
482.4 x 44 x 214 mm / 18.99 x 1.73 x 8.43 in. (WxHxD) |
| Weight |
3.0 kg / 6.6 lb |
| Shipping dimensions |
585 x 385 x 75 mm / 23.03 x 15.15 x 2.95 in. (WxHxD)
|
| Shipping weight |
4.45 kg/ 9.81 lb |
MICS
| Output impedance |
300Ω (balanced), 150Ω (unbalanced) |
|---|
ELECTRICAL
| AC mains requirement |
100-240 VAC @ 50-60Hz |
|---|---|
| AC mains connector |
IEC C14 inlet |
| Power consumption |
16 W Typ, 20 W Max
30 VA, 36,3 VA Max |
| Power supply |
Internal.
Universal, regulated switching mode supply |
| Heat load |
54,6 BTU/h Typ, 68,2 BTU/h Max |
| Ventilation |
FAN |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
3.87ms |
| Dynamic range |
ADC:115dB, DAC: 115dB Gain 0 dB: 110,2 dB Gain 21 dB: 109,5 dB Gain 42 dB: 105,5 dB Gain 51 dB: 99,5 dB 112,5 dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
8, MIC/LINE level |
|---|---|
| Mic preamp EIN |
-129,5 dBV
-127,3 dBu |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
8, LINE level |
|---|---|
| Crosstalk |
95dB |
CONNECTIVITY
| X-LINK |
1, X-LINK port. USB-C connector |
|---|
REMOTE CONTROL CONNECTIONS
| GPIs |
8, 0 to 12VDC |
|---|---|
| GPOs |
8, 3 poles isolated relay;
Contact rating: 2A, 30VDC; 0,5A, 125 VAC |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-32,5 dBV to +18,5 dBV
-30,3 dBu to +20,7 dBu |
|---|
MIC INPUTS
| Phantom power |
+48VDC, 10mA per input max |
|---|
LINE INPUTS
| CMRR |
70dB typ (1kHz)
60 dB typ (20 Hz - 20kHz) |
|---|---|
| Input impedance |
8kΩ (balanced), 4kΩ (unbalanced) |
| Max input level |
18,5 dBV / 20,7dBu |
LINE OUTPUTS
| Frequency response |
10Hz to 20kHz (-0,5 dB) |
|---|---|
| THD + Noise |
Gain 0 dB & Vin 0 dBV: 0,0025%
Gain 21 dB & Vin -21 dBV: 0,0026%
Gain 42 dB & Vin -42 dBV: 0,0044%
Gain 51 dB & Vin -51 dBV: 0,0085%
Gain 0 dB & Vin +17 dBV: 0,0010%
Gain 21 dB & Vin -4 dBV: 0,0015%
Gain 42 dB & Vin -25 dBV: 0,0 |
| Max output level |
18,5dBV / 20,7dBu |
SCREEN/DISPLAY
| Resolution |
32 bit |
|---|
