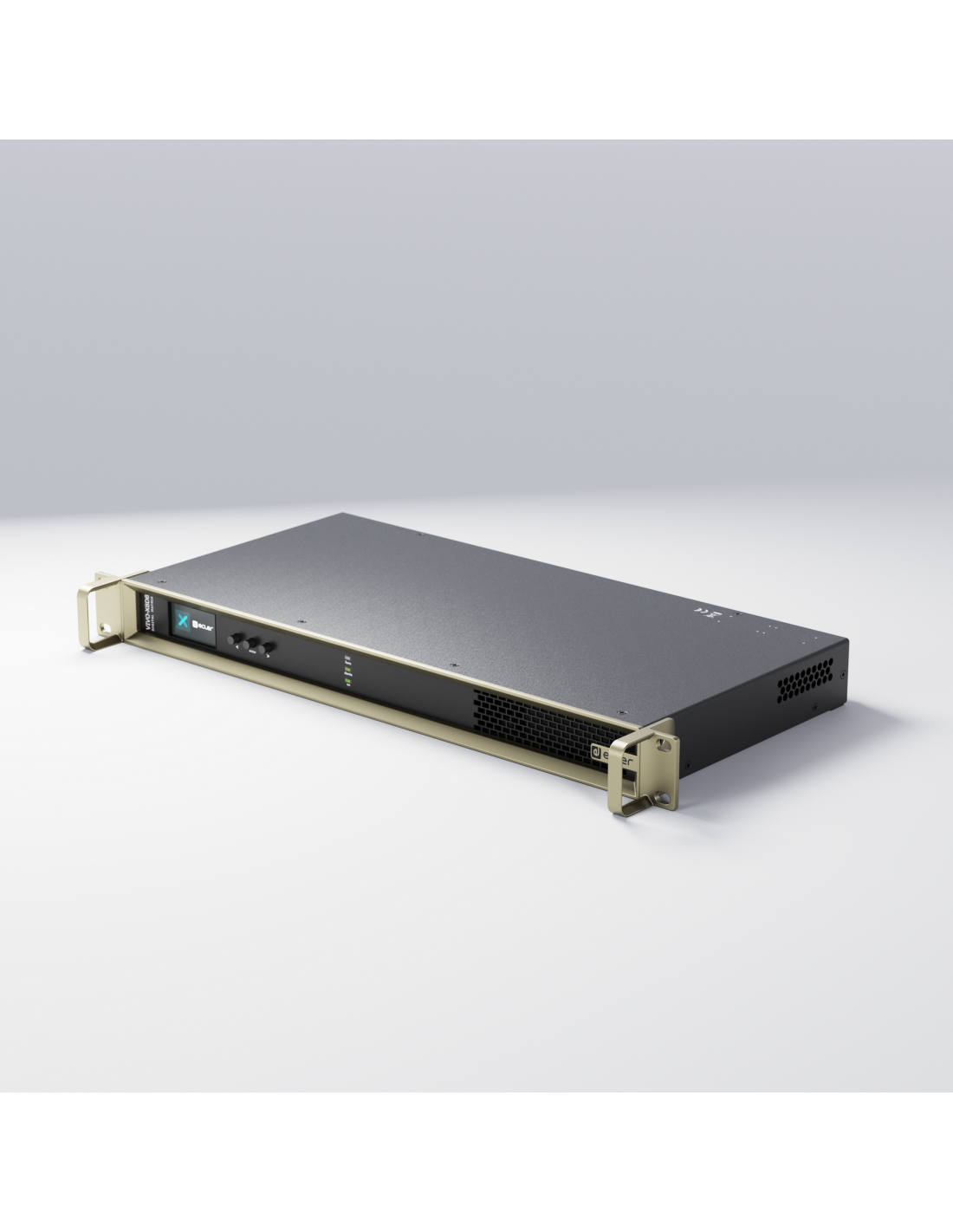

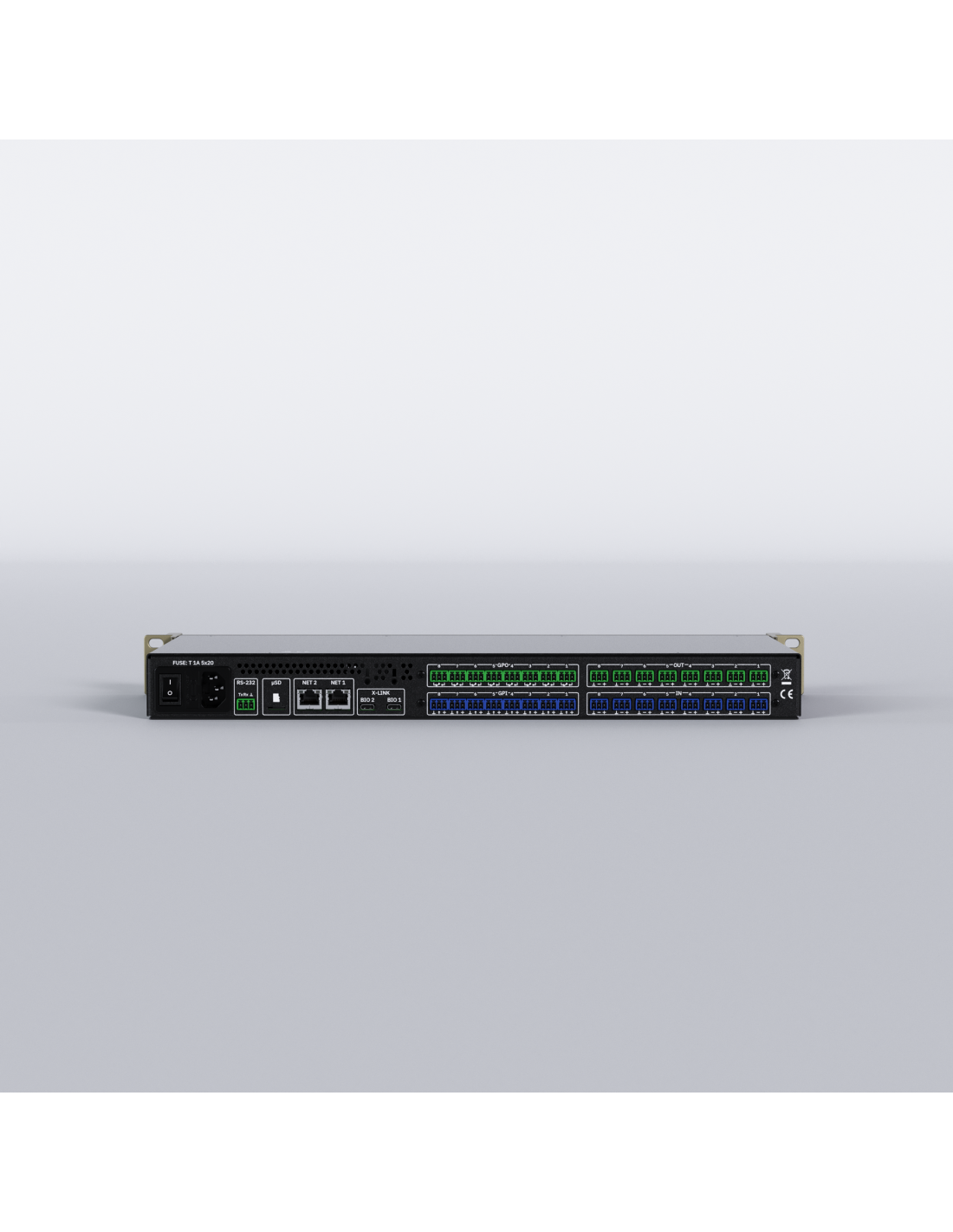

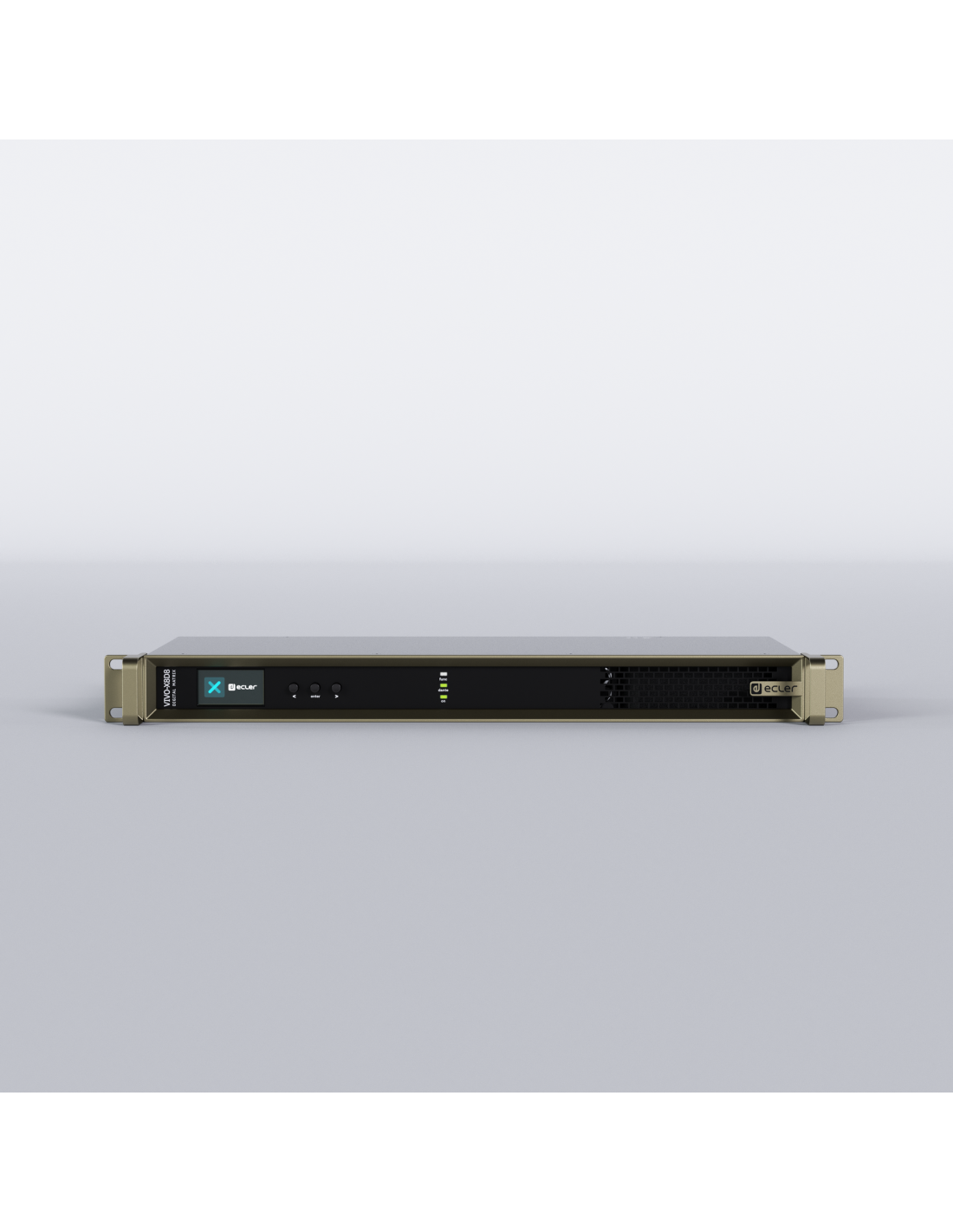

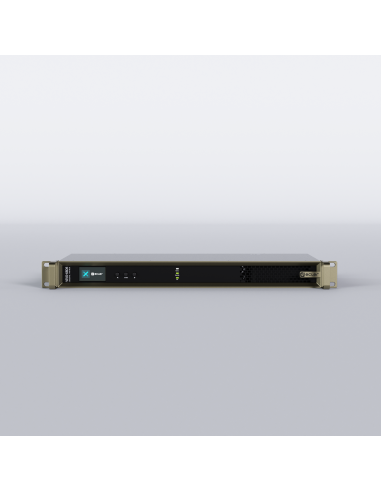

VIVO-X8D8
CVIVOX8D8
Check availability
EclerPLEX Matrix 8x8 Analogue 8x8 Dante®/AES67
VIVO-X8D8 is an EclerPLEX Host matrix with 8 analogue and 8 Dante®/AES67 audio input ports, 8 analogue and 8 Dante®/AES67 audio output ports, scalable thanks to two X-link ports. A BIO-X8 (or BIO-X8G) expansion unit can be connected to each X-link port. VIVO-X8D8, performing as a Host unit in an EclerPLEX deployment, can contain multiple projects running simultaneously and serve user control panels to end users.
- Connection type
- Euroblock, 3-pin, balanced
- Installation options
- Desktop, 19" racks (1RU)
- Operating temperature
- Min: 0°C ; 32°F
Max: 50°C ; 122°F - Operating humidity
- 5-85% RH, non-condensing
- Storage temperature
- Min: 0°C ; 32°F
Max: 50°C ; 122°F - Storage humidity
- 5-85% RH, non-condensing
- Included accessories
- 1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 17x Euroblock connectors (green colour), 16x Euroblock connectors (blue colour), 2 USB holders, 2x Screws.
1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 17x Euroblock connectors (green colour), 16x Euroblock connectors (blue colour), 2 USB holders, 2x Screws. - Dimensions
- 482.4 x 44 x 214 mm / 18.99 x 1.73 x 8.43 in. (WxHxD)
482.4 x 44 x 214 mm / 18.99 x 1.73 x 8.43 in. (WxHxD) - Weight
- 3.2 kg / 7.05 lb
- Shipping dimensions
- 585 x 385 x 75 mm / 23.03 x 15.15 x 2.95 in. (WxHxD)
585 x 385 x 75 mm / 23.03 x 15.15 x 2.95 in. (WxHxD) - Shipping weight
- 4.65 kg/ 10.25 lb
- Processor
- Quad core 64bits 1,5GHz
- Sampling rate
- 48 kHz
- Resolution
- 32 bit
- Frequency response
- 10Hz to 20kHz (-0,5 dB)
- Number of input ports
- 8, MIC/LINE level
- Input sensitivity
- -32,5 dBV to +18,5 dBV
-30,3 dBu to +20,7 dBu - CMRR
- 70dB typ (1kHz)
60 dB typ (20 Hz - 20kHz) - Number of output ports
- 8, LINE level
- Output impedance
- 300Ω (balanced), 150Ω (unbalanced)
- Crosstalk
- 95dB
- Serial port
- RS-232, Euroblock, 3-pin connector
- Programing and control
- EclerPLEX (Web application), TPNET (UDP/RS232), UCP control panels
EclerPLEX (Web application), TPNET (UDP/RS232), UCP control panels - GPIs
- 8, 0 to 12VDC
- AC mains requirement
- 100-240 VAC @ 50-60Hz
- AC mains connector
- IEC C14 inlet
- Power consumption
- 19 W Typ, 23,5 W Max
36 VA, 41,5 VA Max
19 W Typ, 23,5 W Max
36 VA, 41,5 VA Max - Power supply
- Internal.
Universal, regulated switching mode supply - Phantom power
- +48VDC, 10mA per input max
- Input impedance
- 8kΩ (balanced), 4kΩ (unbalanced)
- Max input level
- 18,5 dBV / 20,7dBu
- THD + Noise
- Gain 0 dB & Vin 0 dBV: 0,0025%
Gain 21 dB & Vin -21 dBV: 0,0026%
Gain 42 dB & Vin -42 dBV: 0,0044%
Gain 51 dB & Vin -51 dBV: 0,0085%
Gain 0 dB & Vin +17 dBV: 0,0010%
Gain 21 dB & Vin -4 dBV: 0,0015%
Gain 42 dB & Vin -25 dBV: 0,0 - Latency
- 3.87ms
- Ethernet
- 2, RJ-45 connector NET1 & NET2 (no switch capability)
- Heat load
- 65 BTU/h Typ, 80 BTU/h Max
- Ventilation
- FAN
- Dynamic range
- 112,5 dB
ADC:115dB, DAC: 115dB
Gain 0 dB: 110,2 dB
Gain 21 dB: 109,5 dB
Gain 42 dB: 105,5 dB
Gain 51 dB: 99,5 dB - Max output level
- 18,5dBV / 20,7dBu
- Protocols
- Dante/AES67 (4/4 flows)
- Number of digital input ports
- 8
- Number of digital output ports
- 8
- Interfaces
- 1 x RJ-45 - NET2
- GPOs
- 8, 3 poles isolated relay;
Contact rating: 2A, 30VDC; 0,5A, 125 VAC - Retention time
- 5 years
- Accuracy
- ±1 minute / month
- Micro SD
- SDXC
- Capacity
- Up to 2TB
- File system
- FAT16, FAT 32, VFAT (read/write)
NTFS (read)
Multi-partition up to 1 - Playable audio files
- mp3, ogg, WAV, FLAC, AIFF
- Files analysis
- 65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder - Folder hierarchy
- Up to 8 containing the root directory
- Sorting
- UNICODE, in alphabetical order
Up to 100 folders / files by folder
Folders/files over 100 sorted in the FAT order - Mic preamp EIN
- -129,5 dBV
-127,3 dBu - X-LINK
- 2, X-LINK ports. USB-C connector
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Quad core 64bits 1,5GHz |
|---|
PHYSICAL
| Connection type |
Euroblock, 3-pin, balanced |
|---|---|
| Installation options |
Desktop, 19" racks (1RU) |
| Operating temperature |
Min: 0°C ; 32°F
Max: 50°C ; 122°F |
| Operating humidity |
5-85% RH, non-condensing |
| Storage temperature |
Min: 0°C ; 32°F
Max: 50°C ; 122°F |
| Storage humidity |
5-85% RH, non-condensing |
| Included accessories |
1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 17x Euroblock connectors (green colour), 16x Euroblock connectors (blue colour), 2 USB holders, 2x Screws. 1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 17x Euroblock connectors (green colour), 16x Euroblock connectors (blue colour), 2 USB holders, 2x Screws. |
| Dimensions |
482.4 x 44 x 214 mm / 18.99 x 1.73 x 8.43 in. (WxHxD) 482.4 x 44 x 214 mm / 18.99 x 1.73 x 8.43 in. (WxHxD) |
| Weight |
3.2 kg / 7.05 lb |
| Shipping dimensions |
585 x 385 x 75 mm / 23.03 x 15.15 x 2.95 in. (WxHxD) 585 x 385 x 75 mm / 23.03 x 15.15 x 2.95 in. (WxHxD) |
| Shipping weight |
4.65 kg/ 10.25 lb |
MICS
| Output impedance |
300Ω (balanced), 150Ω (unbalanced) |
|---|
ELECTRICAL
| AC mains requirement |
100-240 VAC @ 50-60Hz |
|---|---|
| AC mains connector |
IEC C14 inlet |
| Power consumption |
19 W Typ, 23,5 W Max
36 VA, 41,5 VA Max 19 W Typ, 23,5 W Max 36 VA, 41,5 VA Max |
| Power supply |
Internal.
Universal, regulated switching mode supply |
| Heat load |
65 BTU/h Typ, 80 BTU/h Max |
| Ventilation |
FAN |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
3.87ms |
| Dynamic range |
ADC:115dB, DAC: 115dB Gain 0 dB: 110,2 dB Gain 21 dB: 109,5 dB Gain 42 dB: 105,5 dB Gain 51 dB: 99,5 dB 112,5 dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
8, MIC/LINE level |
|---|---|
| Mic preamp EIN |
-129,5 dBV
-127,3 dBu |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
8, LINE level |
|---|---|
| Crosstalk |
95dB |
AUDIO OVER IP
| Protocols |
Dante/AES67 (4/4 flows) |
|---|---|
| Number of digital input ports |
8 |
| Number of digital output ports |
8 |
| Interfaces |
1 x RJ-45 - NET2 |
CONNECTIVITY
| Serial port |
RS-232, Euroblock, 3-pin connector |
|---|---|
| Programing and control |
EclerPLEX (Web application), TPNET (UDP/RS232), UCP control panels EclerPLEX (Web application), TPNET (UDP/RS232), UCP control panels |
| Ethernet |
2, RJ-45 connector NET1 & NET2 (no switch capability) |
| X-LINK |
2, X-LINK ports. USB-C connector |
REMOTE CONTROL CONNECTIONS
| GPIs |
8, 0 to 12VDC |
|---|---|
| GPOs |
8, 3 poles isolated relay;
Contact rating: 2A, 30VDC; 0,5A, 125 VAC |
REAL-TIME CLOCK
| Retention time |
5 years |
|---|---|
| Accuracy |
±1 minute / month |
LOCAL STORAGE
| Micro SD |
SDXC |
|---|---|
| Capacity |
Up to 2TB |
| File system |
FAT16, FAT 32, VFAT (read/write)
NTFS (read)
Multi-partition up to 1 |
| Playable audio files |
mp3, ogg, WAV, FLAC, AIFF |
| Files analysis |
65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder |
| Folder hierarchy |
Up to 8 containing the root directory |
| Sorting |
UNICODE, in alphabetical order
Up to 100 folders / files by folder
Folders/files over 100 sorted in the FAT order |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-32,5 dBV to +18,5 dBV
-30,3 dBu to +20,7 dBu |
|---|
MIC INPUTS
| Phantom power |
+48VDC, 10mA per input max |
|---|
LINE INPUTS
| CMRR |
70dB typ (1kHz)
60 dB typ (20 Hz - 20kHz) |
|---|---|
| Input impedance |
8kΩ (balanced), 4kΩ (unbalanced) |
| Max input level |
18,5 dBV / 20,7dBu |
LINE OUTPUTS
| Frequency response |
10Hz to 20kHz (-0,5 dB) |
|---|---|
| THD + Noise |
Gain 0 dB & Vin 0 dBV: 0,0025%
Gain 21 dB & Vin -21 dBV: 0,0026%
Gain 42 dB & Vin -42 dBV: 0,0044%
Gain 51 dB & Vin -51 dBV: 0,0085%
Gain 0 dB & Vin +17 dBV: 0,0010%
Gain 21 dB & Vin -4 dBV: 0,0015%
Gain 42 dB & Vin -25 dBV: 0,0 |
| Max output level |
18,5dBV / 20,7dBu |
SCREEN/DISPLAY
| Resolution |
32 bit |
|---|
