DAM614
CDAM614C
Check availability

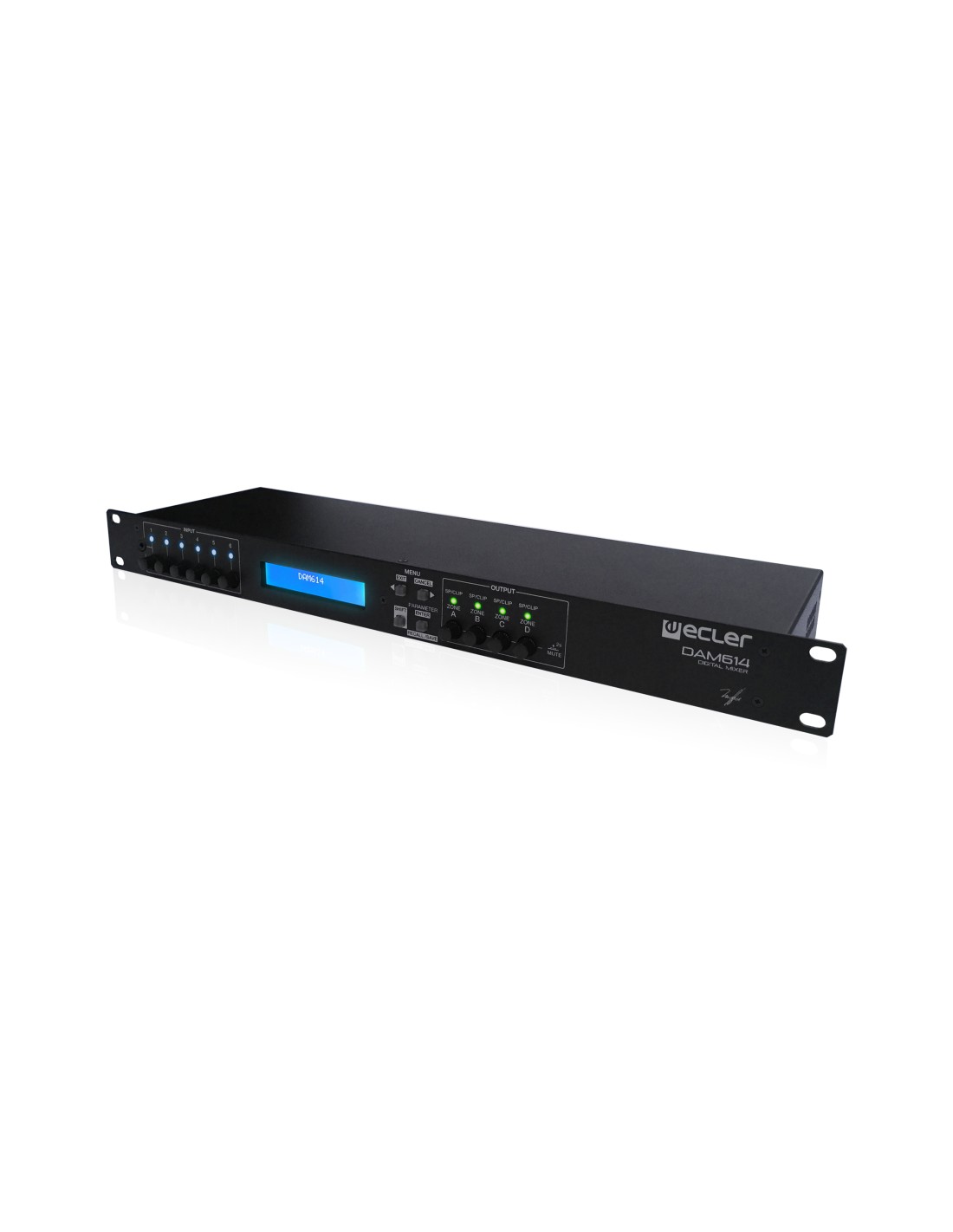

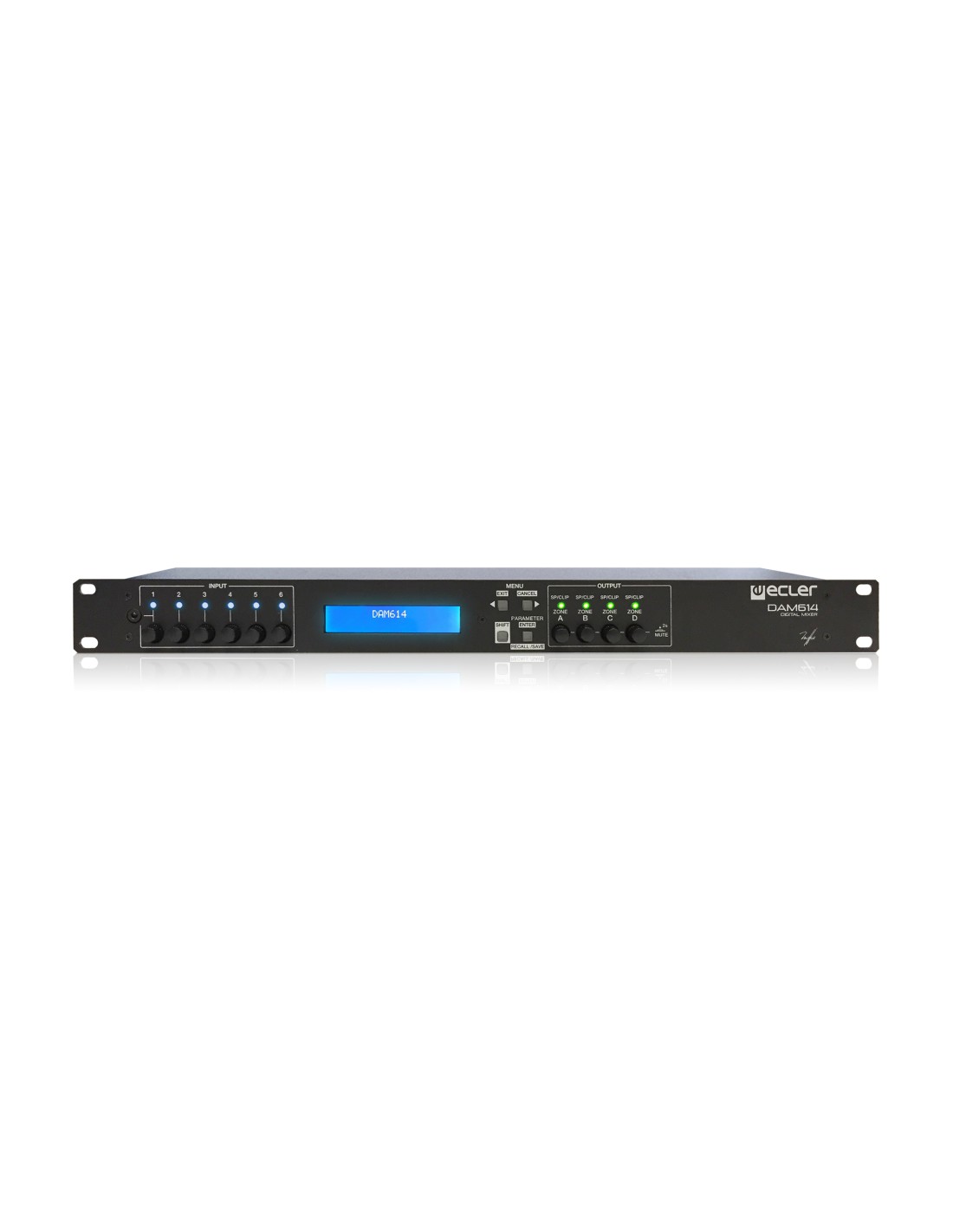

6x4 | installation audio digital mixer
DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 REMOTE control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs, the first 2 are stereo LINE inputs, and the 3rd, 4th, 5th and 6th ones are MIC/LINE ready (phantom available), being possible to use them independently (mono) or as stereo-coupled inputs.

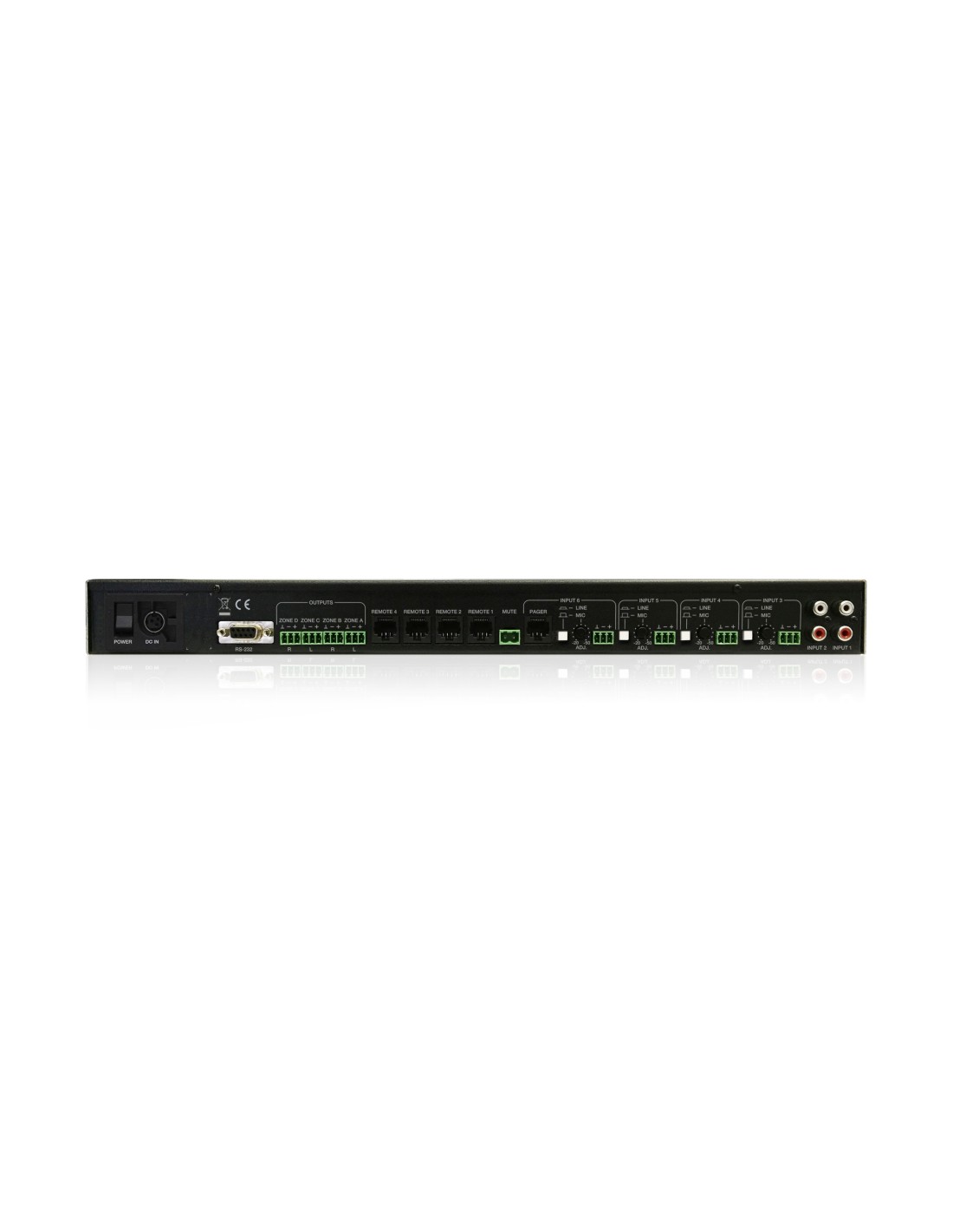

- Connection type
- IN1-2: RCA female (minijack for duplicated IN1)
IN3-6: Terminal block (symmetrical)
Terminal block (symmetrical) - Installation options
- Desktop, 19" rack format
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPa series or similar for remote control, MPAGE4
- Dimensions
- 482,6 x 44 x 120 mm / 19.0 x 1.7 x 4.72 in. (WxHxD)
- Weight
- 2.0 kg / 4.4 lb
- Shipping dimensions
- 560 x 60 x 220 mm / 22.05 x 2.36 x 8.66 in. (WxHxD)
- Shipping weight
- 2.6 kg / 5.73 lb
- Status
- Descat
- Origin Production
- Spain
- EAN code
- 8435071305013
8435071308212
- Tariff code
- 8518408099
- Shipping Location
- Spain
- Width (cm)
- 56.00
- Height (cm)
- 6.00
- Depth (cm)
- 22.0
- Vol. (dm3)
- 7.39
- Gross Weight (kg)
- 2.60
- Net Weight (kg)
- 2.00
- Format
- Unit
- Warranty (months)
- 36
- Processor
- 24 bits 48kHz
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 10Hz ~ 20kHz (+0dB / -0.5dB)
<10Hz ~ 20kHz (+0dB / -0.5dB)
- Number of input ports
- IN1-2, LINE
IN3-6, MIC/LINE - Input sensitivity
- IN1-2: 0 / -6dBV Internal jumper adjust. 0dBV factory default
IN3-6: -20 / -50dBV External potentiometer adjust - Input impedanc
- IN1-2: 13kΩ
IN3-6: 24k electronically balanced
IN1-2: >13kΩ
IN3-6: >24k electronically balanced - CMRR
- IN3-6: 55dB (20Hz ÷ 20kHz)
IN3-6: >55dB (20Hz ÷ 20kHz) - Number of output ports
- 4, Line
- Output impedance
- 300Ω electronically balanced
- Crosstalk
- 90dB, 20Hz ÷ 20kHz
>90dB, 20Hz ÷ 20kHz - Serial port
- RS-232
- Programing and control
- EclerCOMM software or CA-NET protocol
- Digital remote controls
- 4, RJ-45
1, MUTE control - GPIs
- x4 GPIs (0-10VDC) for volume control, x1 rear panel MUTE connector
- AC mains requirement
- 100-240VAC + External PSU 17.5VDC
- AC mains connector
- AC socket connector (IEC)
- Power consumption
- 12W
- Power supply
- DC supply ± 17,5 VDC
- Phantom power
- IN3-6: +17,5 VDC (Internal jumper)
- Input impedance
- IN1-2: 13kΩ
IN3-6: 24k electronically balanced - THD + Noise
- N/A
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
24 bits 48kHz |
|---|
PHYSICAL
| Connection type |
IN1-2: RCA female (minijack for duplicated IN1)
IN3-6: Terminal block (symmetrical) Terminal block (symmetrical) |
|---|---|
| Installation options |
Desktop, 19" rack format |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPa series or similar for remote control, MPAGE4 |
| Dimensions |
482,6 x 44 x 120 mm / 19.0 x 1.7 x 4.72 in. (WxHxD) |
| Weight |
2.0 kg / 4.4 lb |
| Shipping dimensions |
560 x 60 x 220 mm / 22.05 x 2.36 x 8.66 in. (WxHxD) |
| Shipping weight |
2.6 kg / 5.73 lb |
| Format |
Unit |
LOGISTICS
| Status |
Descat |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071305013
8435071308212
|
| Tariff code |
8518408099 |
| Shipping Location |
Spain |
| Width (cm) |
56.00 |
| Height (cm) |
6.00 |
| Depth (cm) |
22.0 |
| Vol. (dm3) |
7.39 |
| Gross Weight (kg) |
2.60 |
| Net Weight (kg) |
2.00 |
| Warranty (months) |
36 |
MICS
| Output impedance |
300Ω electronically balanced |
|---|
ELECTRICAL
| AC mains requirement |
100-240VAC + External PSU 17.5VDC |
|---|---|
| AC mains connector |
AC socket connector (IEC) |
| Power consumption |
12W
|
| Power supply |
DC supply ± 17,5 VDC |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
IN1-2, LINE
IN3-6, MIC/LINE |
|---|---|
| Input impedanc |
IN1-2: >13kΩ
IN3-6: >24k electronically balanced IN1-2: 13kΩ IN3-6: 24k electronically balanced |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
4, Line |
|---|---|
| Crosstalk |
>90dB, 20Hz ÷ 20kHz 90dB, 20Hz ÷ 20kHz |
CONNECTIVITY
| Serial port |
RS-232 |
|---|---|
| Programing and control |
EclerCOMM software or CA-NET protocol |
REMOTE CONTROL CONNECTIONS
| Digital remote controls |
4, RJ-45
1, MUTE control |
|---|---|
| GPIs |
x4 GPIs (0-10VDC) for volume control, x1 rear panel MUTE connector |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
IN1-2: 0 / -6dBV Internal jumper adjust. 0dBV factory default
IN3-6: -20 / -50dBV External potentiometer adjust |
|---|
MIC INPUTS
| Phantom power |
IN3-6: +17,5 VDC (Internal jumper)
|
|---|
LINE INPUTS
| CMRR |
IN3-6: >55dB (20Hz ÷ 20kHz) IN3-6: 55dB (20Hz ÷ 20kHz) |
|---|---|
| Input impedance |
IN1-2: 13kΩ
IN3-6: 24k electronically balanced |
LINE OUTPUTS
| Frequency response |
<10Hz ~ 20kHz (+0dB / -0.5dB)
10Hz ~ 20kHz (+0dB / -0.5dB) |
|---|---|
| THD + Noise |
N/A
|
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
