PULSO-4
CPULSO4
Available
4“ Control Touch Panel
PULSO-4 is a digital control touch panel compatible with several Ecler product families. Its elegant and discreet design makes it the perfect choice as a control surface in any interior design. Featuring an IPS display and capacitive touch surface, to meet any installation requirement. It is compatible with standard European flush-mounted electrical boxes and support PoE power, ensuring quick and easy installation and set-up. The web control interface allows unprecedented configuration and maintenance. PULSO-4 is compatible with Ecler VIDA and HALO series, Ecler HUB series (with the Ecler Pilot application), EclerNet Manager (hosting UCP panels) and it is ready for the upcoming EclerPLEX ecosystem whose compatibility allows the creation of nearly limitless control surfaces.
- Installation options

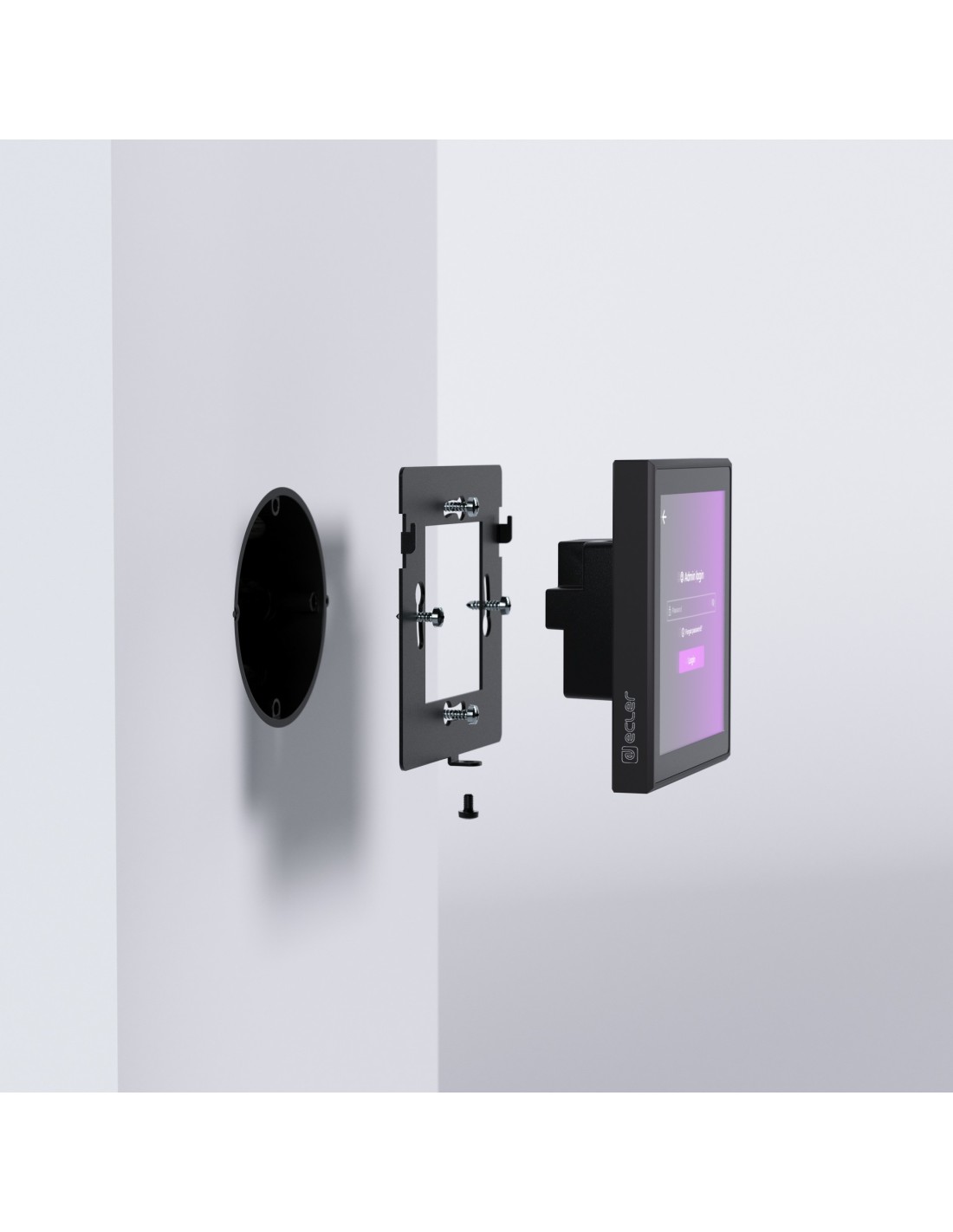

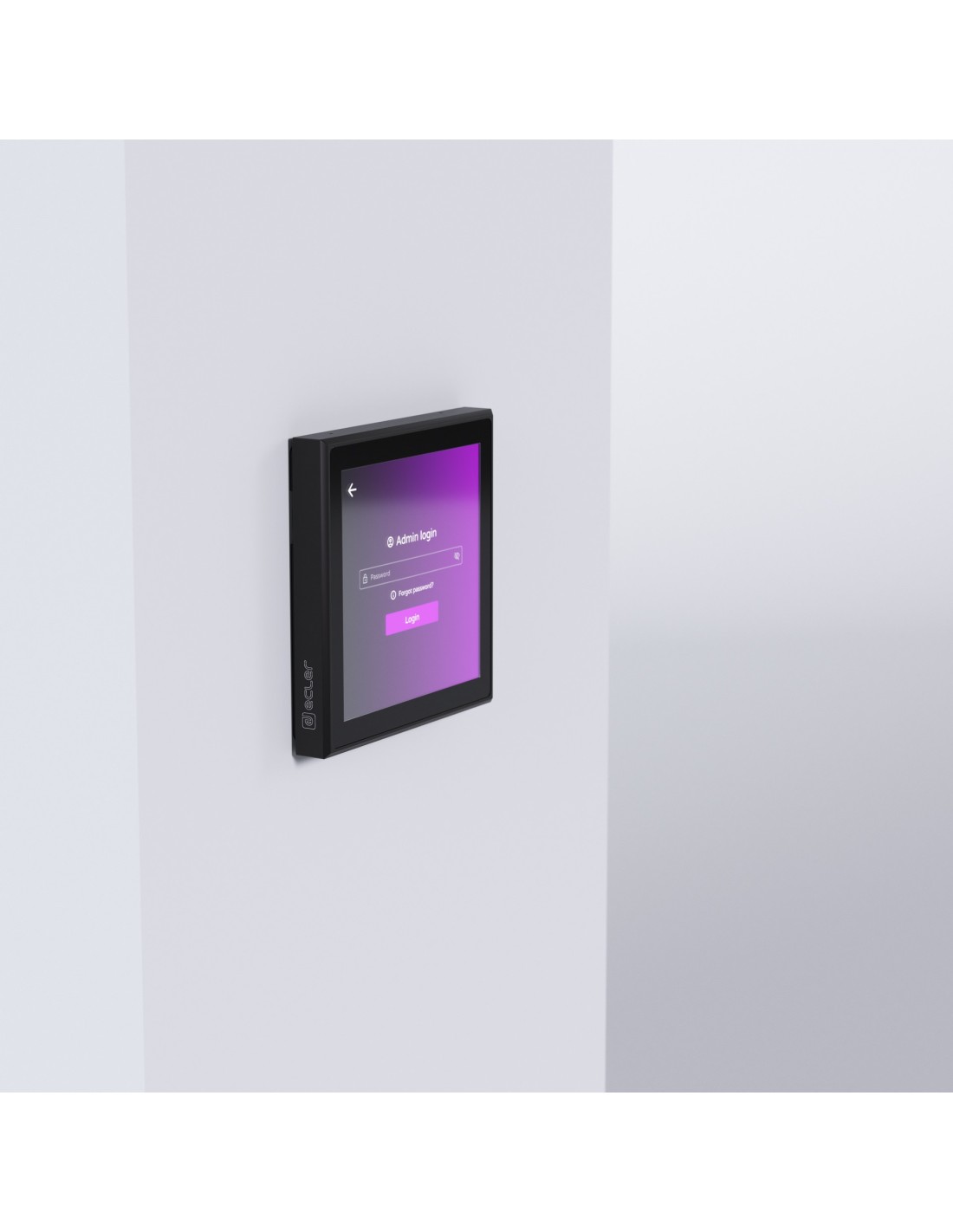

- In-wall and desktop (with optional accessory) mount
- Operating temperature
- Min: -10°C ; 14°F
Max: 60°C ; 140°F - Operating humidity
- ≤75% HR
- Storage temperature
- Min: -20°C ;-4°F
Max: 70°C ; 158°F - Storage humidity
- ≤75% HR
- Included accessories
- Security screw
- Optional accessories
- Pulso Desktop Mount (under development)
- Dimensions
- 89.34 x 89.34 x 37 mm / 3.52 x 3.52 x 1.46 in. (WxHxD)
- Weight
- 0.15 kg / 0.33 lb
- Shipping dimensions
- 145 x 80 x 130 mm / 5.71 x 3.15 x 5.12 in. (WxHxD)
- Shipping weight
- 0.37 Kg / 0.82 lb
- Format
- Standard EU single-gang compatible
- Processor
- Quad-Core ARM, up to 1.8GHz
- Resolution
- 480 x 480 pixels
- Serial port
- RS-232, Euroblock connector
- Programing and control
- Embedded application. Compatible with Ecler products ENM, EPX, VIDA, HALO, HUB.
- Power supply
- DC 12V 2A & PoE
- Max power consumption
- 6W
- Ethernet
- 1 RJ-45 connector, cable: Cat-5e or better
10 /100Mb, 1GB Auto X-Over
Supports PoE - Display
- 4" IPS Active area 71.86(W)x70.18(H)mm
- Buttons
- Reboot and Factory Reset micro buttons
- Type
- Control touch panel
- Touch-panel
- 5 points capactive touch panel
- PoE
- Class 0 802.3af Poe PD compliant
- Size
- 4"
- Contrast Ratio
- 800:1
- Brigthness
- 350 cdm2
- Scale
- 1:1
- Backlight
- LED
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Quad-Core ARM, up to 1.8GHz |
|---|
PHYSICAL
| Installation options |
In-wall and desktop (with optional accessory) mount |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 60°C ; 140°F |
| Operating humidity |
≤75% HR |
| Storage temperature |
Min: -20°C ;-4°F
Max: 70°C ; 158°F |
| Storage humidity |
≤75% HR |
| Included accessories |
Security screw |
| Optional accessories |
Pulso Desktop Mount (under development) |
| Dimensions |
89.34 x 89.34 x 37 mm / 3.52 x 3.52 x 1.46 in. (WxHxD) |
| Weight |
0.15 kg / 0.33 lb |
| Shipping dimensions |
145 x 80 x 130 mm / 5.71 x 3.15 x 5.12 in. (WxHxD) |
| Shipping weight |
0.37 Kg / 0.82 lb |
| Format |
Standard EU single-gang compatible |
| Type |
Control touch panel |
ELECTRICAL
| Power supply |
DC 12V 2A & PoE |
|---|---|
| Max power consumption |
6W |
| PoE |
Class 0 802.3af Poe PD compliant |
CONNECTIVITY
| Serial port |
RS-232, Euroblock connector |
|---|---|
| Programing and control |
Embedded application. Compatible with Ecler products ENM, EPX, VIDA, HALO, HUB. |
| Ethernet |
1 RJ-45 connector, cable: Cat-5e or better
10 /100Mb, 1GB Auto X-Over
Supports PoE |
MONITORING AND CONTROL
| Buttons |
Reboot and Factory Reset micro buttons |
|---|
SCREEN/DISPLAY
| Resolution |
480 x 480 pixels |
|---|---|
| Display |
4" IPS Active area 71.86(W)x70.18(H)mm |
| Touch-panel |
5 points capactive touch panel |
| Size |
4" |
| Contrast Ratio |
800:1 |
| Brigthness |
350 cdm2 |
| Scale |
1:1 |
| Backlight |
LED |
