WPNETTOUCH
CWPNETTOUCH
Only a few left

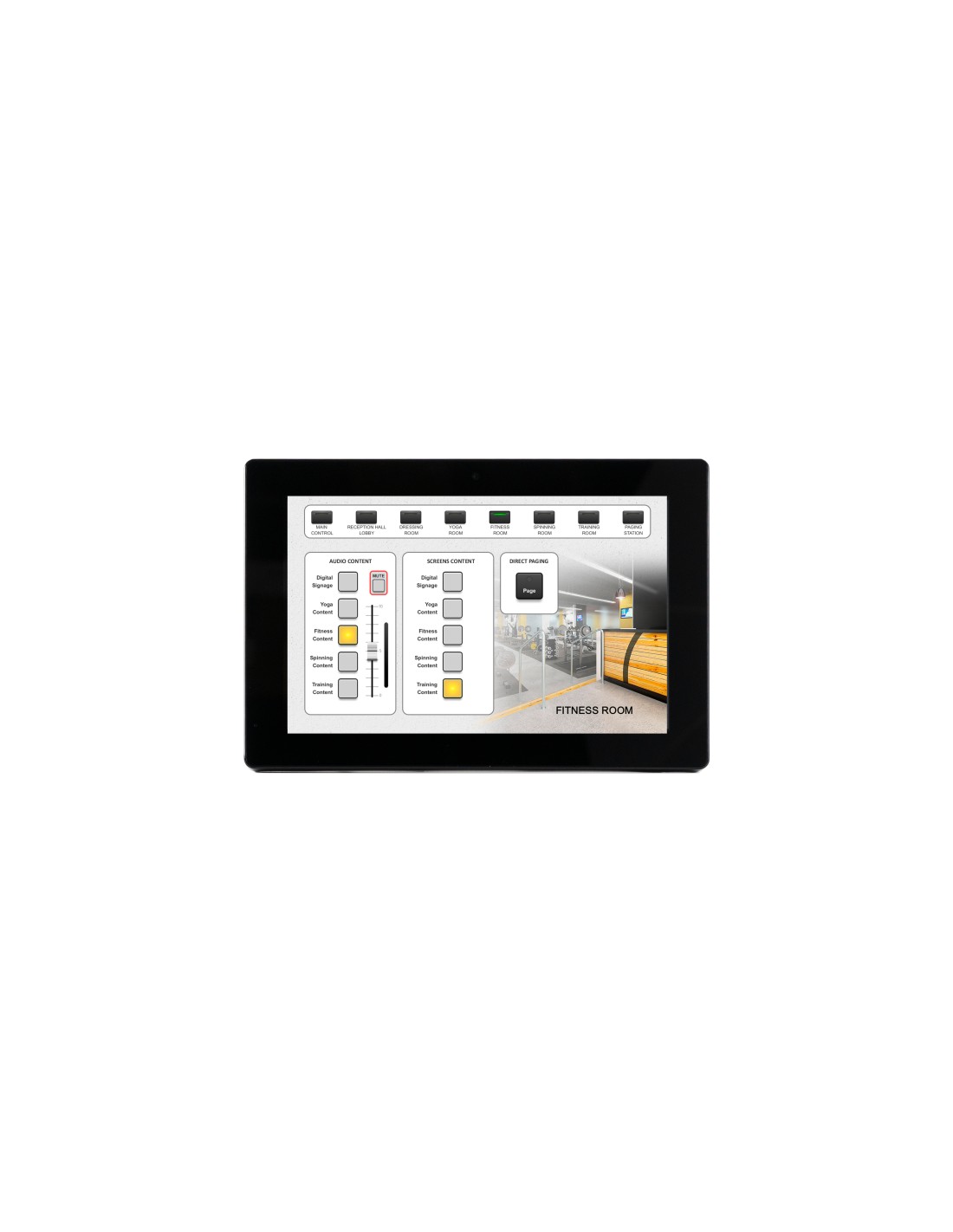

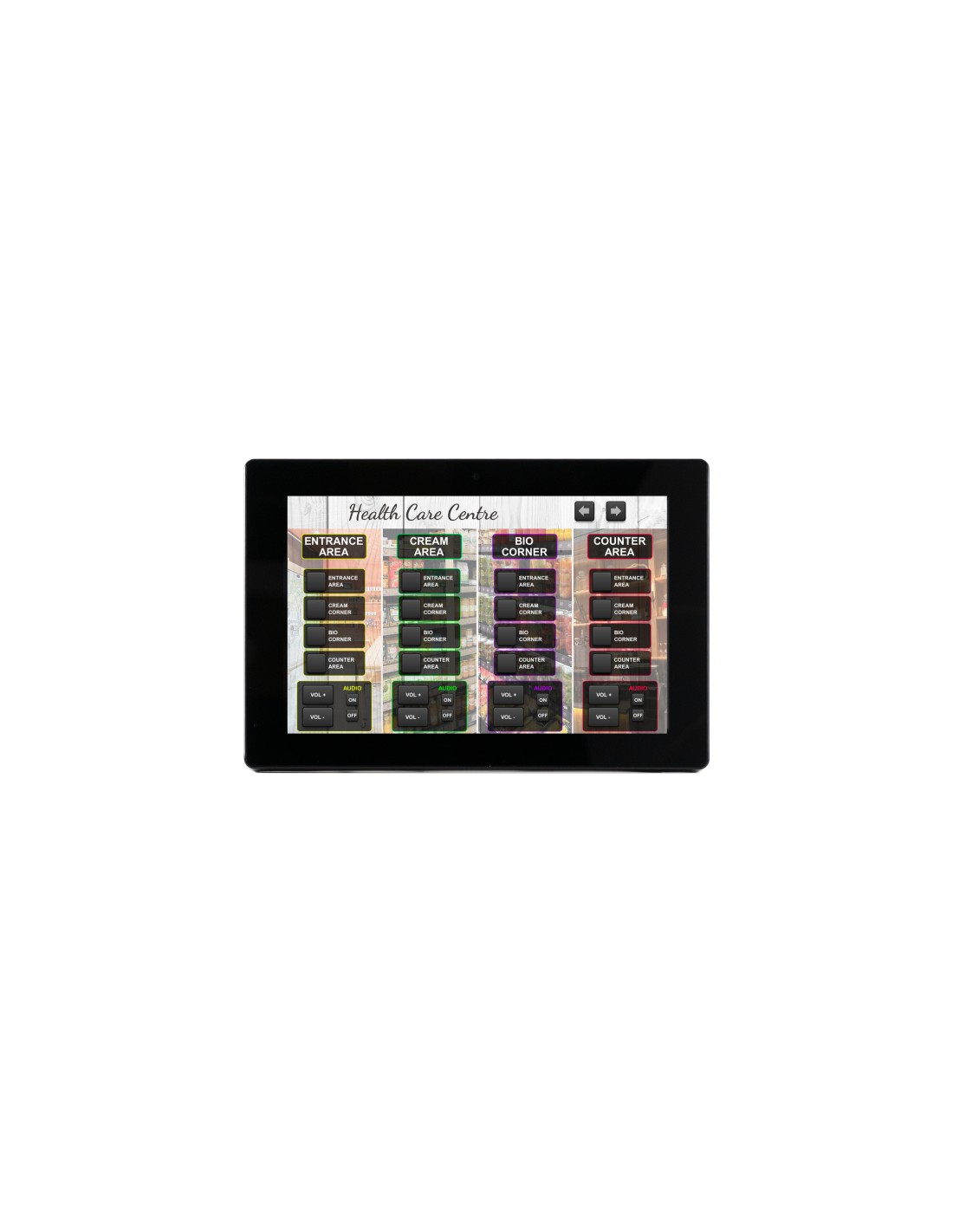

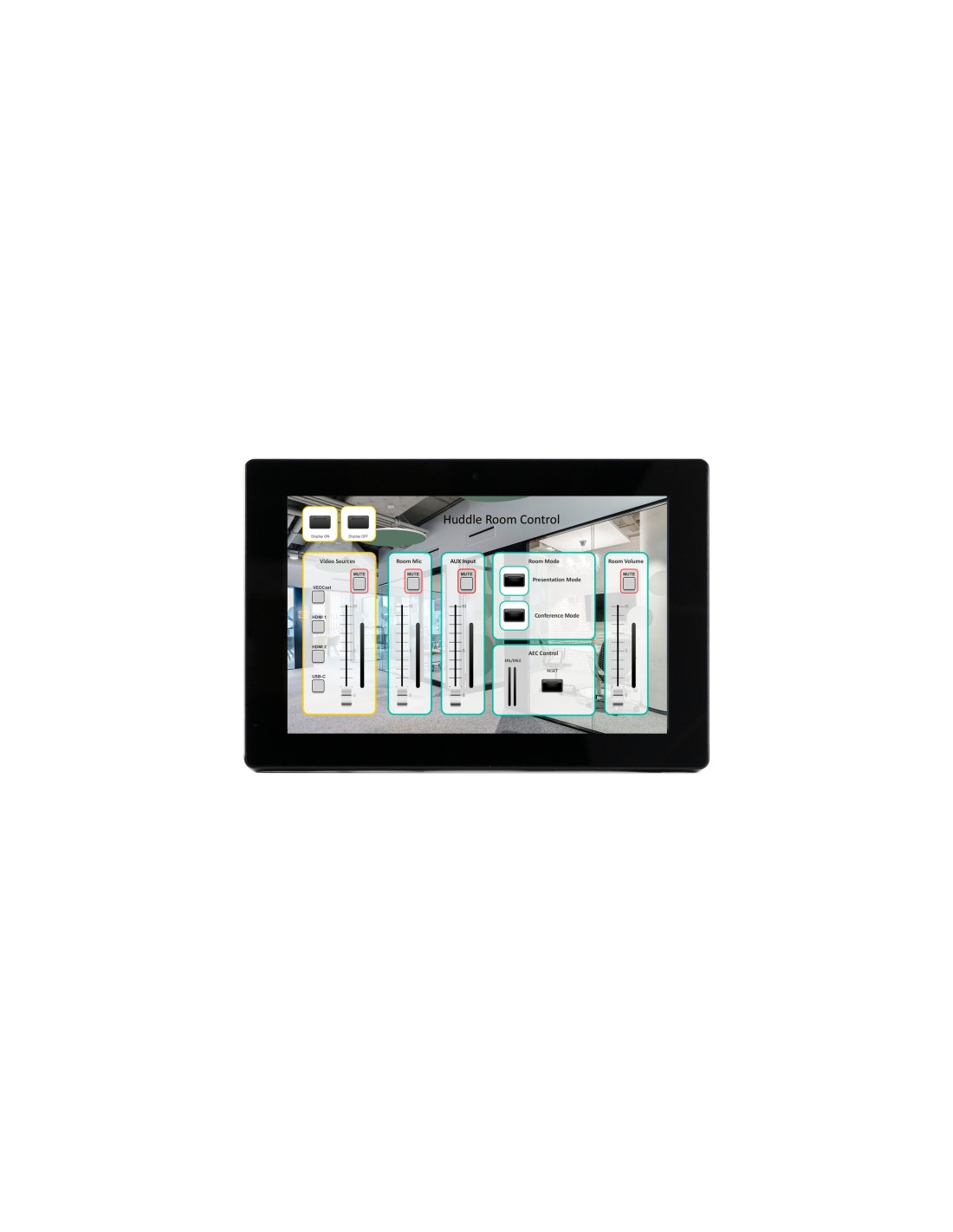

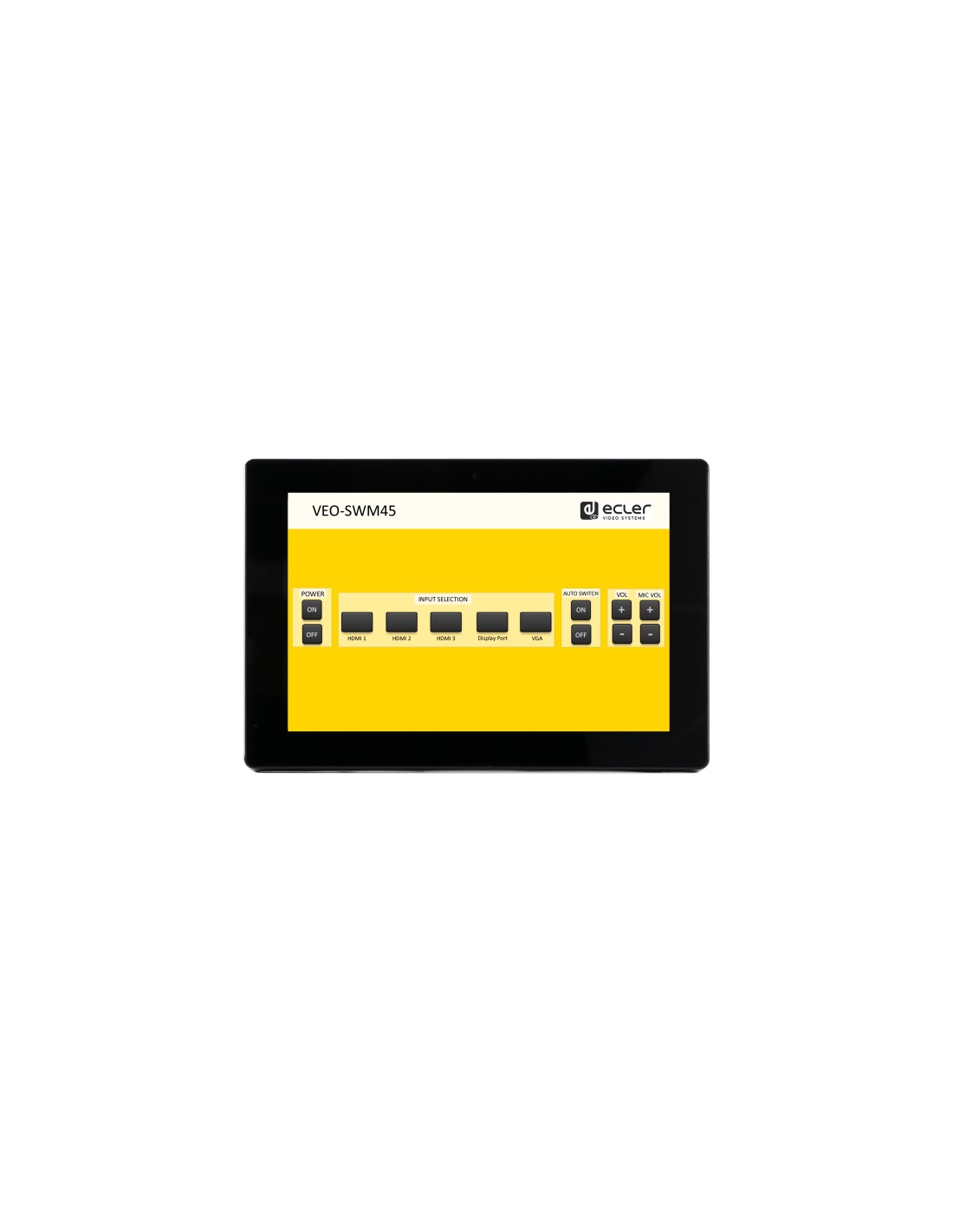

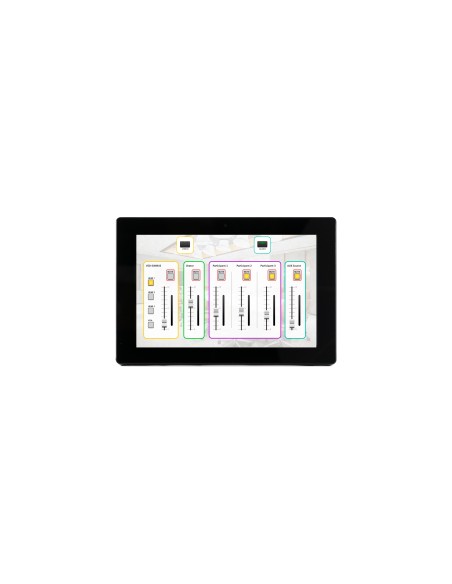

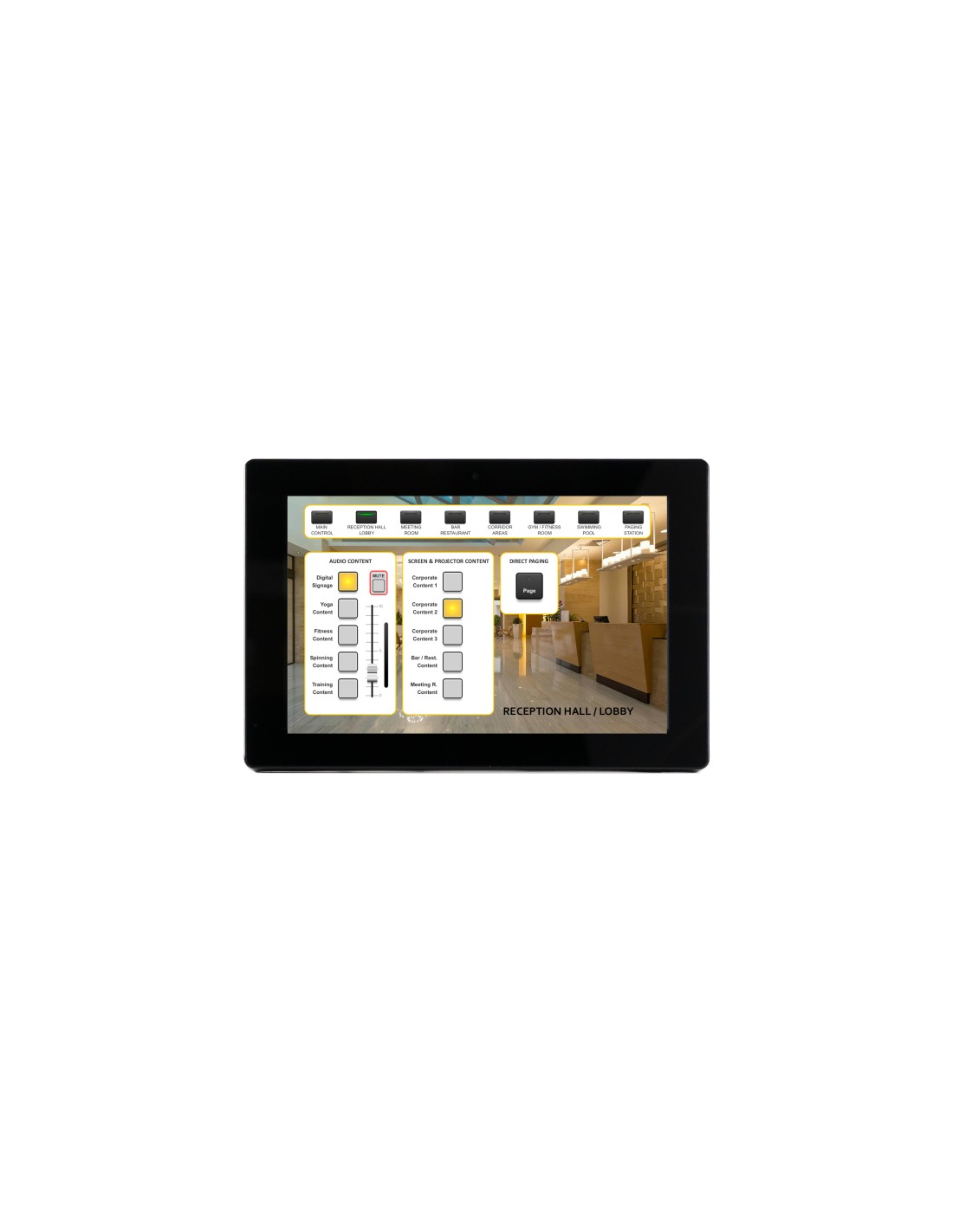

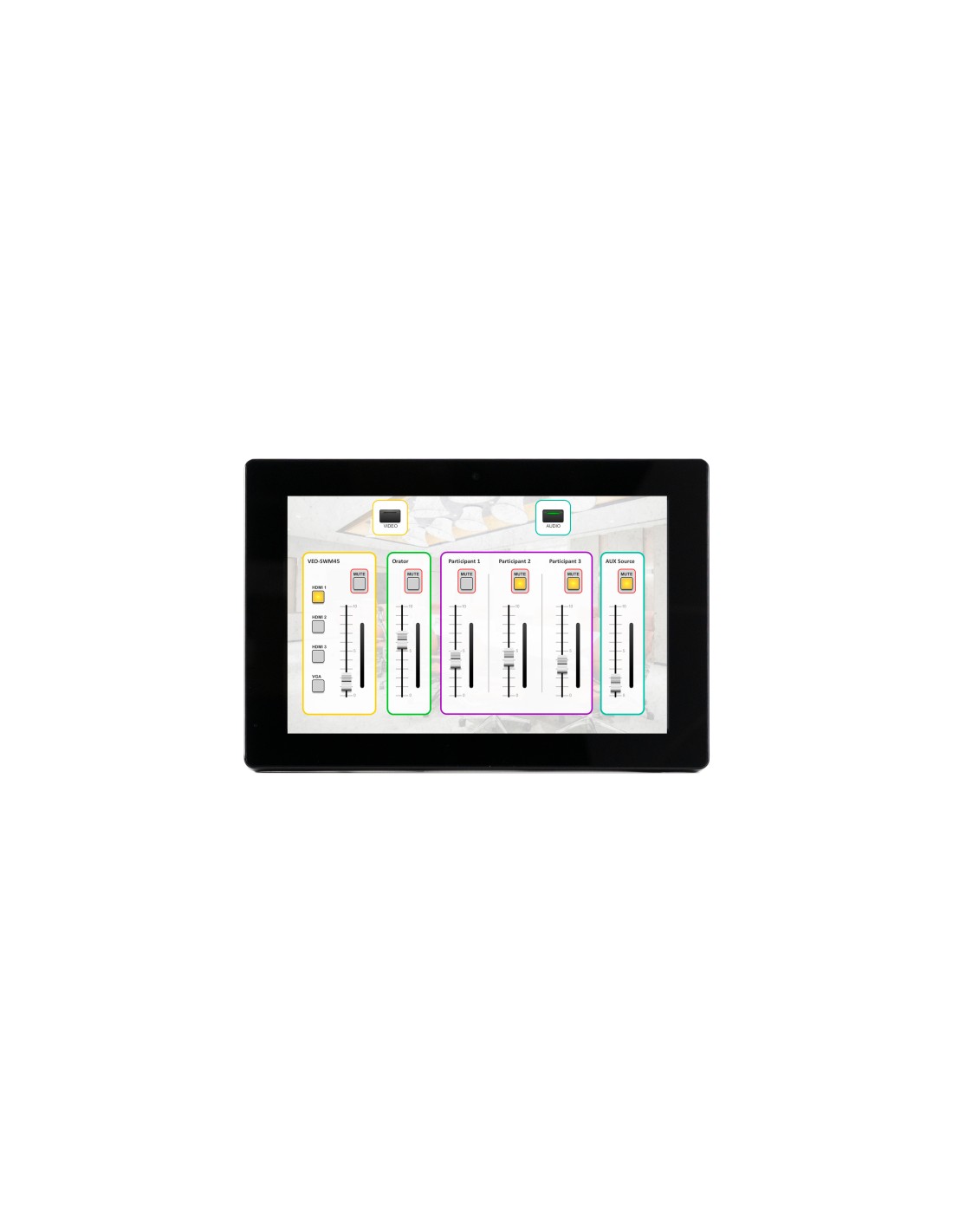

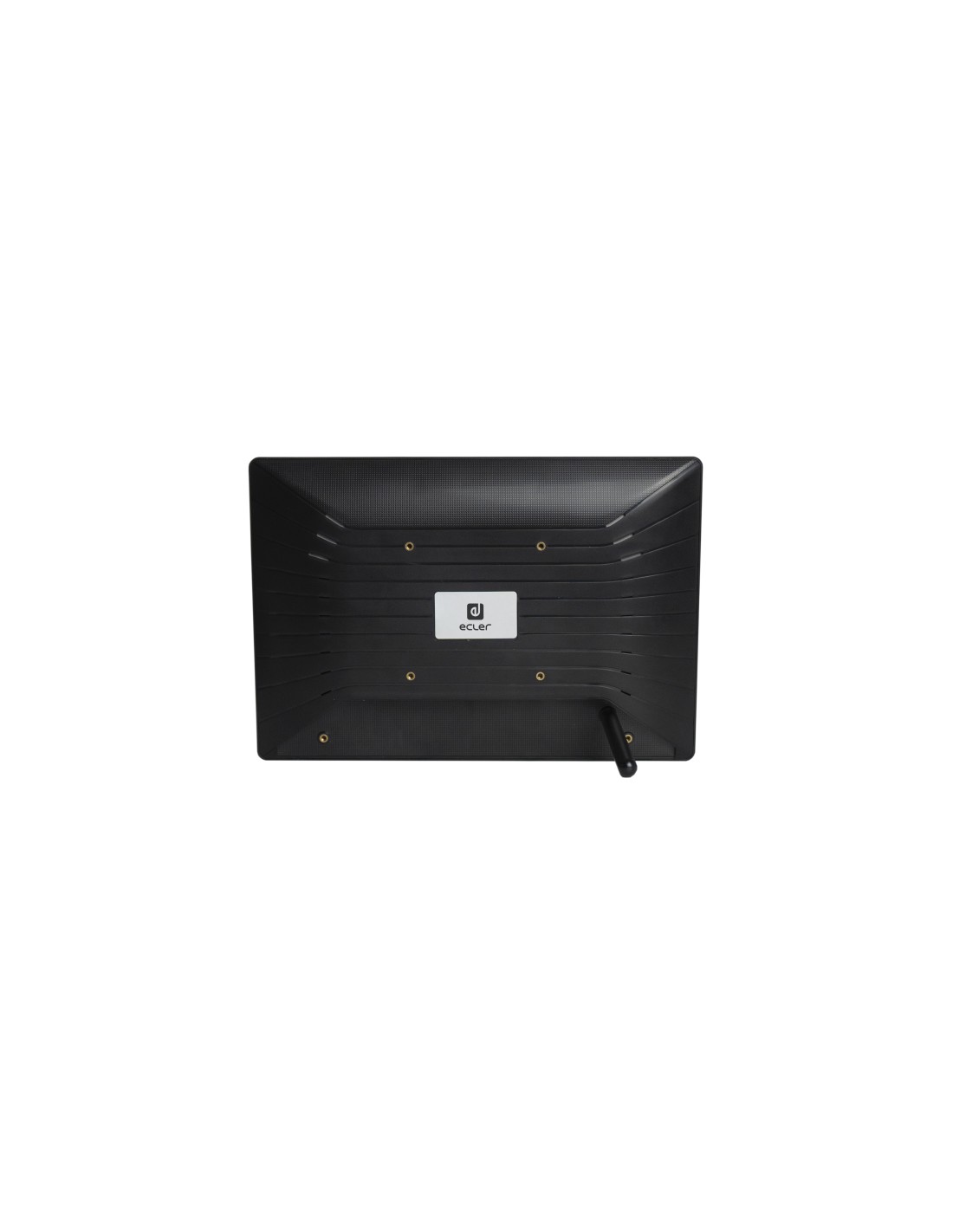

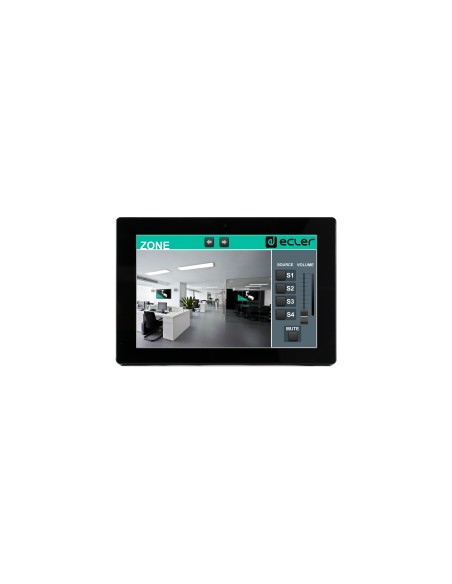

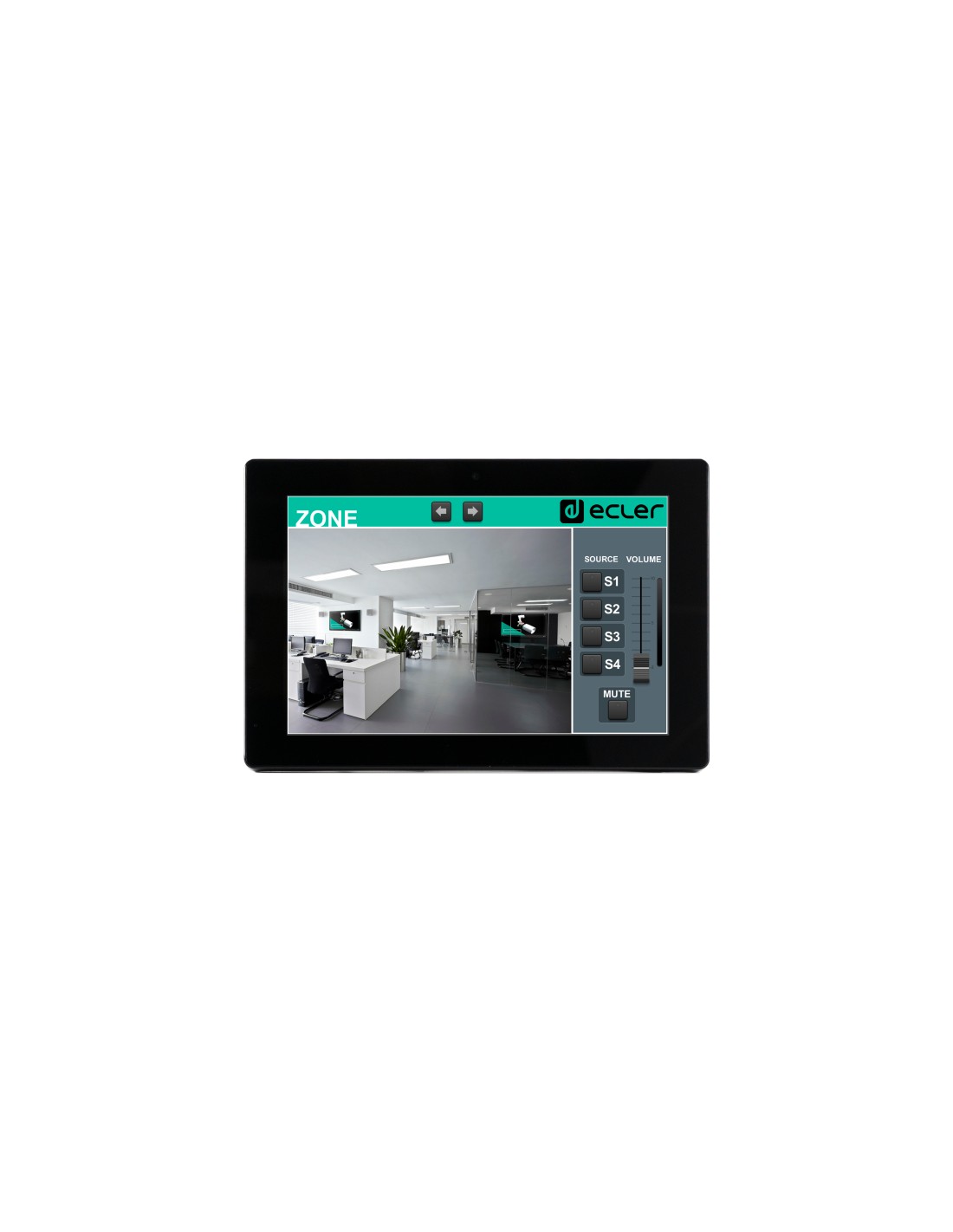

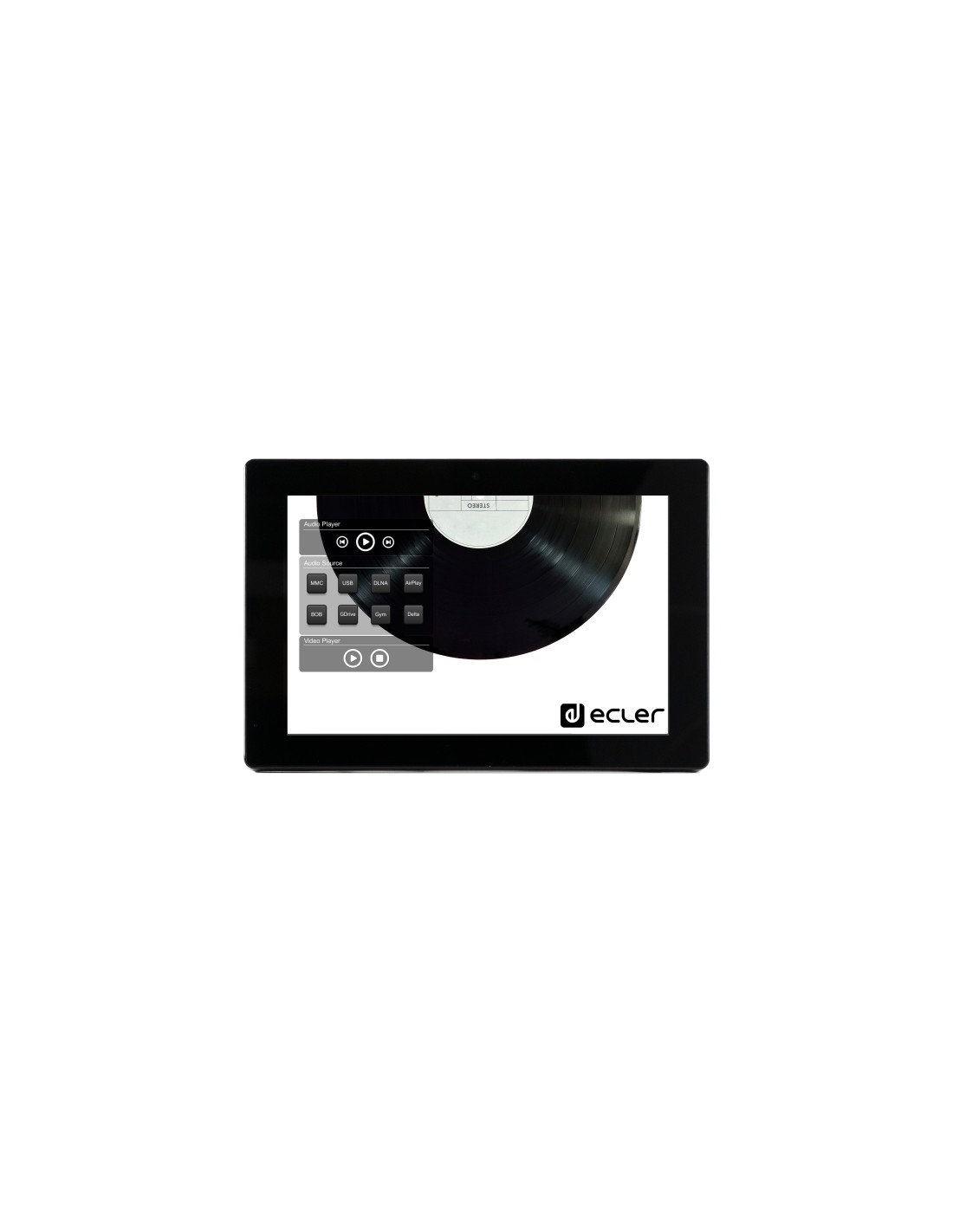

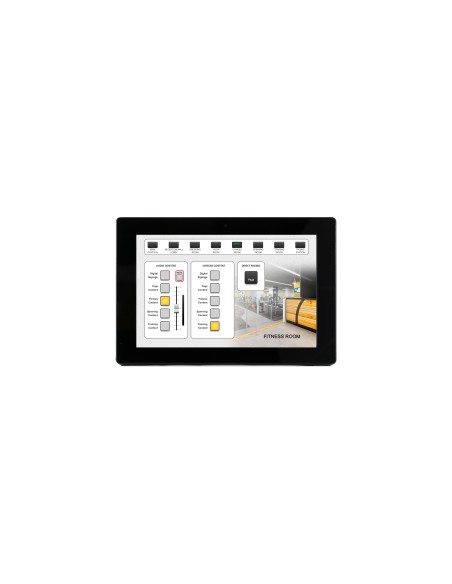

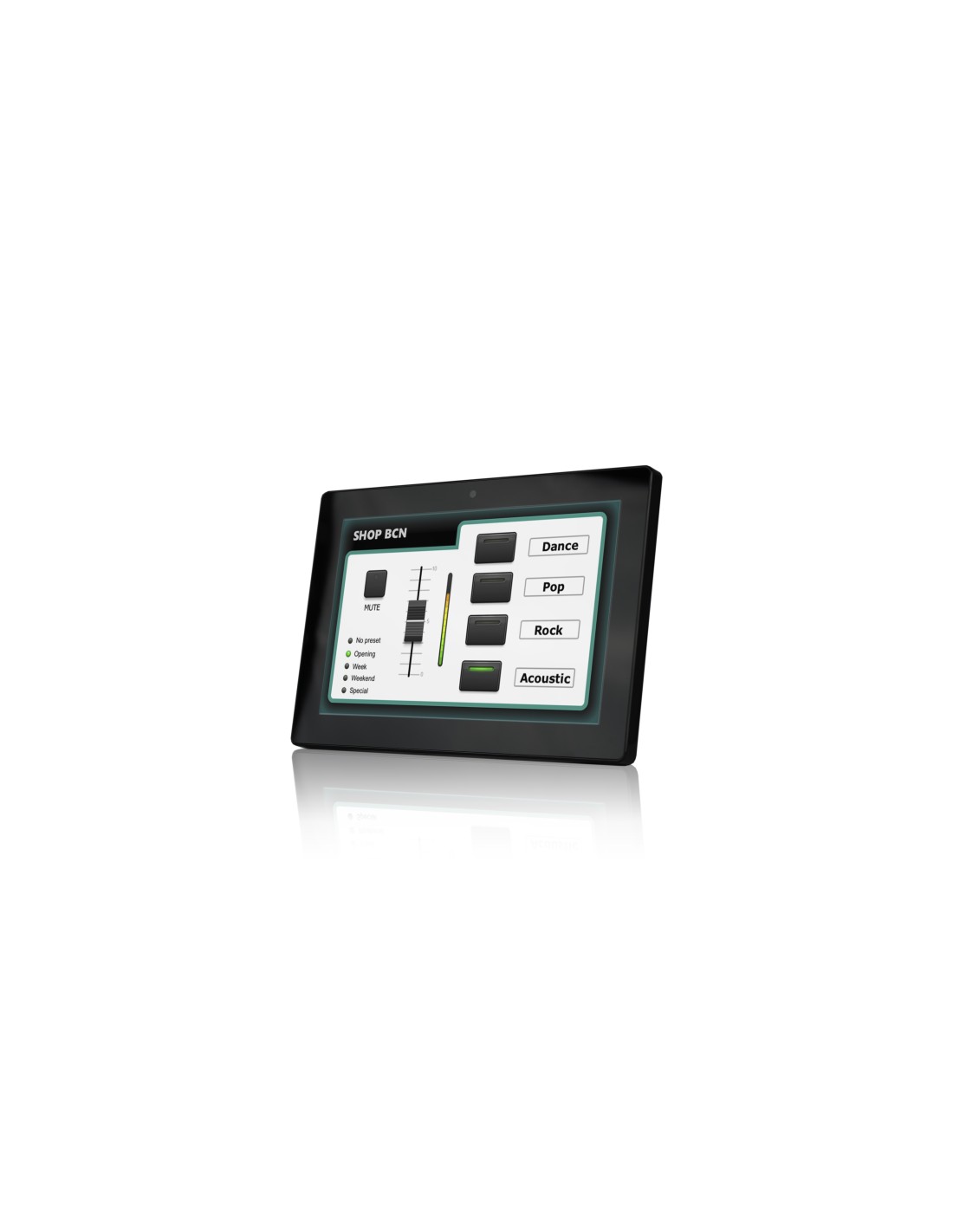

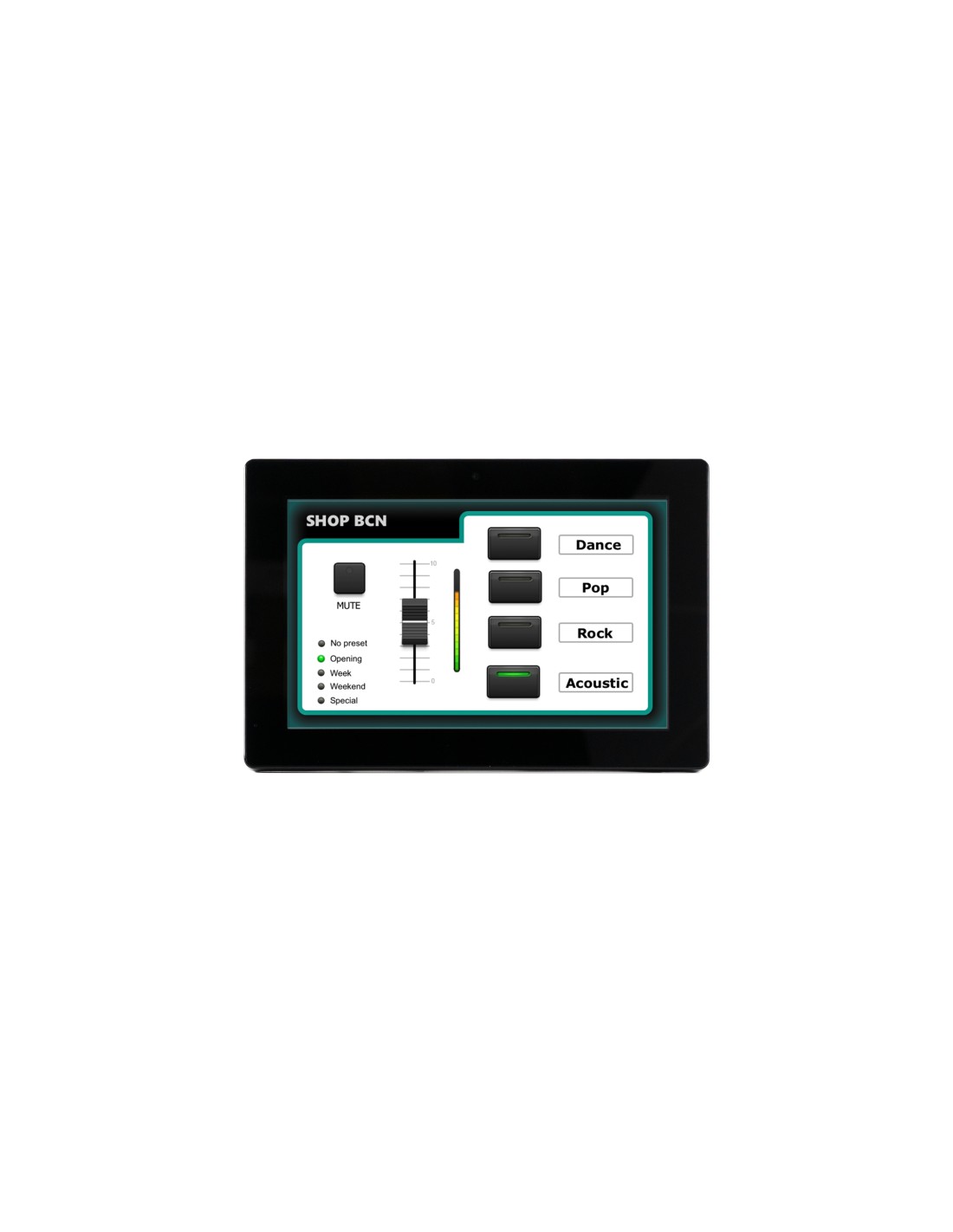

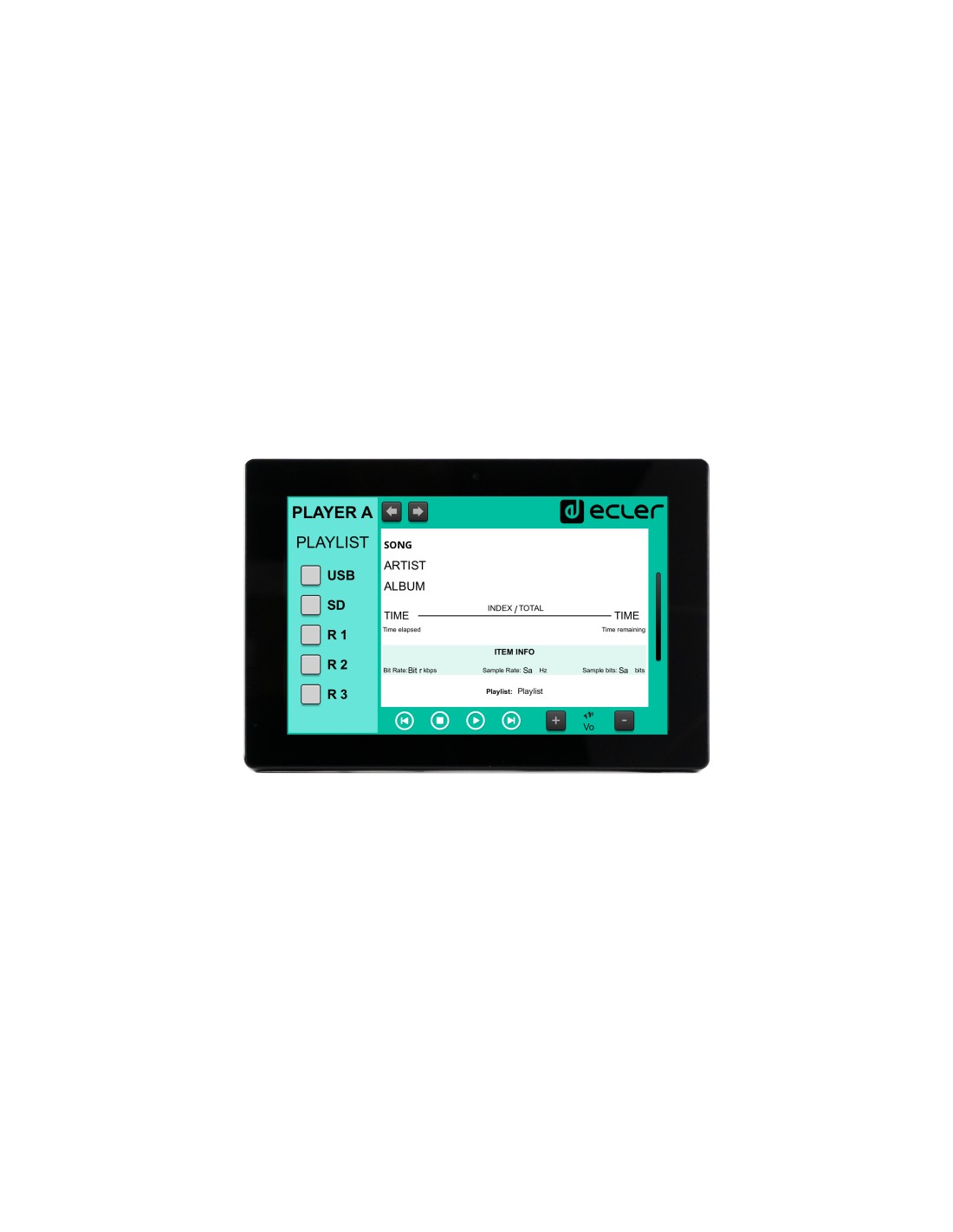

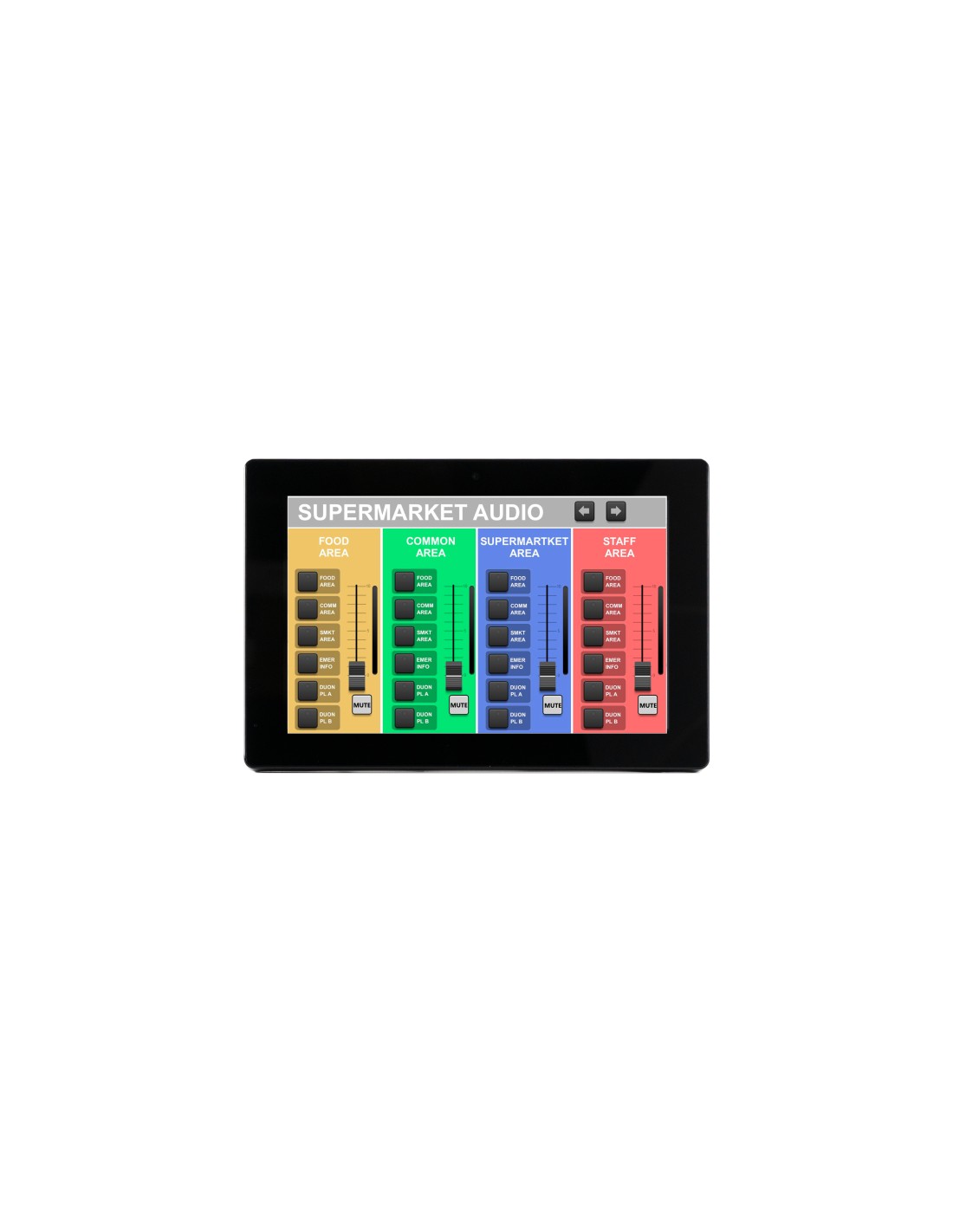

EclerNet Touchscreen Control Panel
WPNETTOUCH is a remote control TFT touchscreen compatible with all EclerNet products. Incorporates a capacitive 10” touch screen, a server client and UCP server (User Control Panel). Each unit could be configured to work as a single zone control panel or as a global multi-zone controller. It allows executing User Control Panels that are able to control volume, sound source selection, presets recovery, communication via TCP/UDP with external devices, etc.
- Installation options
- VESA75, desktop
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Included accessories

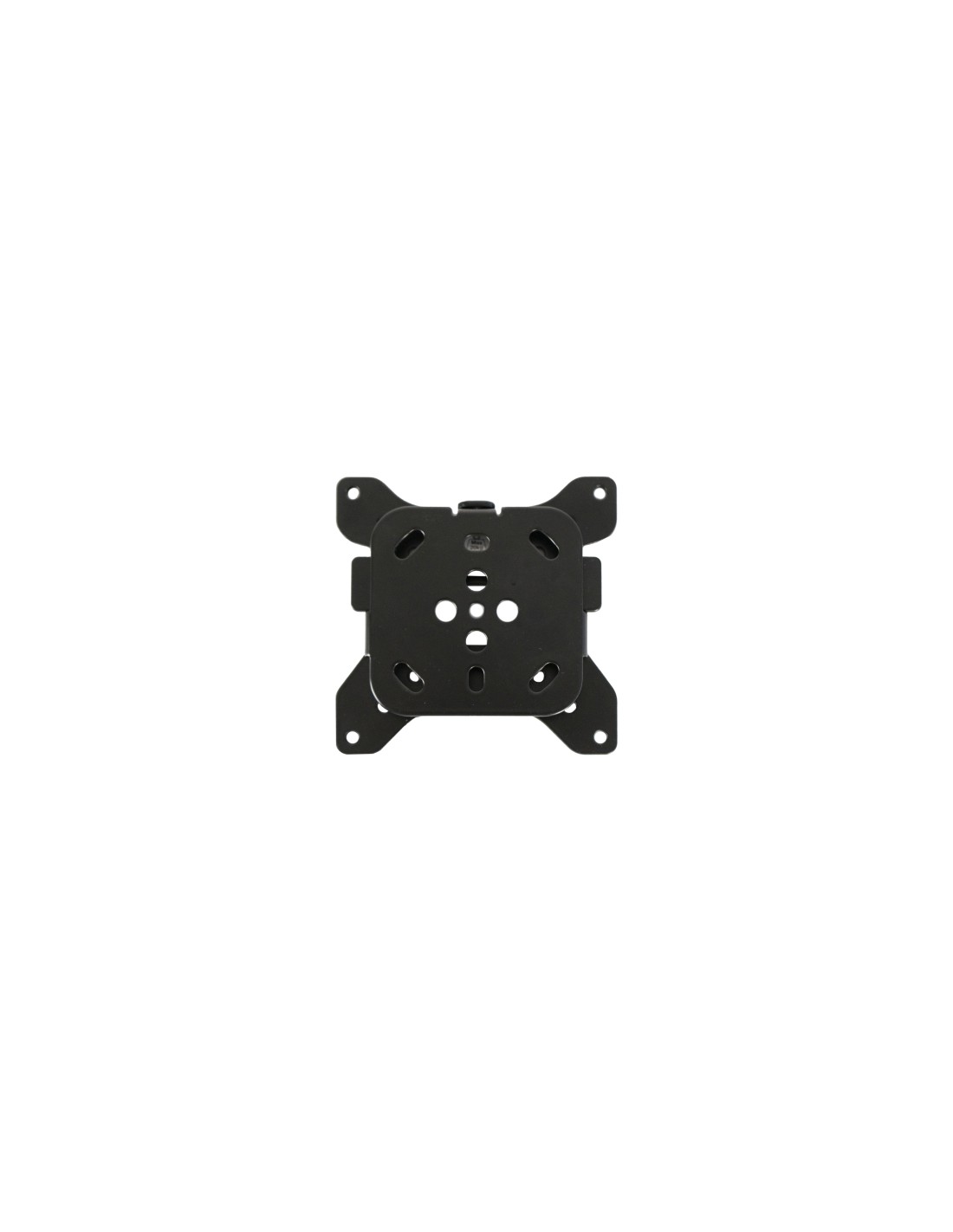

- External PSU, universal, multi AC plug, Wall mount VESA75 bracket + screws set + security screw + tool, Desktop mount stick-shape support
- Dimensions
- 260 x 178 x 28 mm / 10.2 x 7.0 x 1.1 in. (WxHxD)
- Weight
- 0.7 kg / 1.54 lb
- Shipping dimensions
- 230 x 70 x 390 mm / 9.06 x 2.76 x 15.35 in. (WxHxD)
- Shipping weight
- 1.2 kg / 2.65 lb
- Status
- New
- EAN code
- 8435071307345
- Tariff code
- 8528590000
- Shipping Location
- Spain
- Processor
- Quad core processor, clocked 1.6G
- Resolution
- 1280x800 pixels
- Programing and control
- EclerNet manager
- AC mains requirement
- 100-240 V @ 50-60Hz, 12V / 2A
- Power supply
- Universal, external power supply 12VDC, 2A
- Max power consumption
- 350mA from 12V External Power Supply Voltage
125mA from PoE - Ethernet

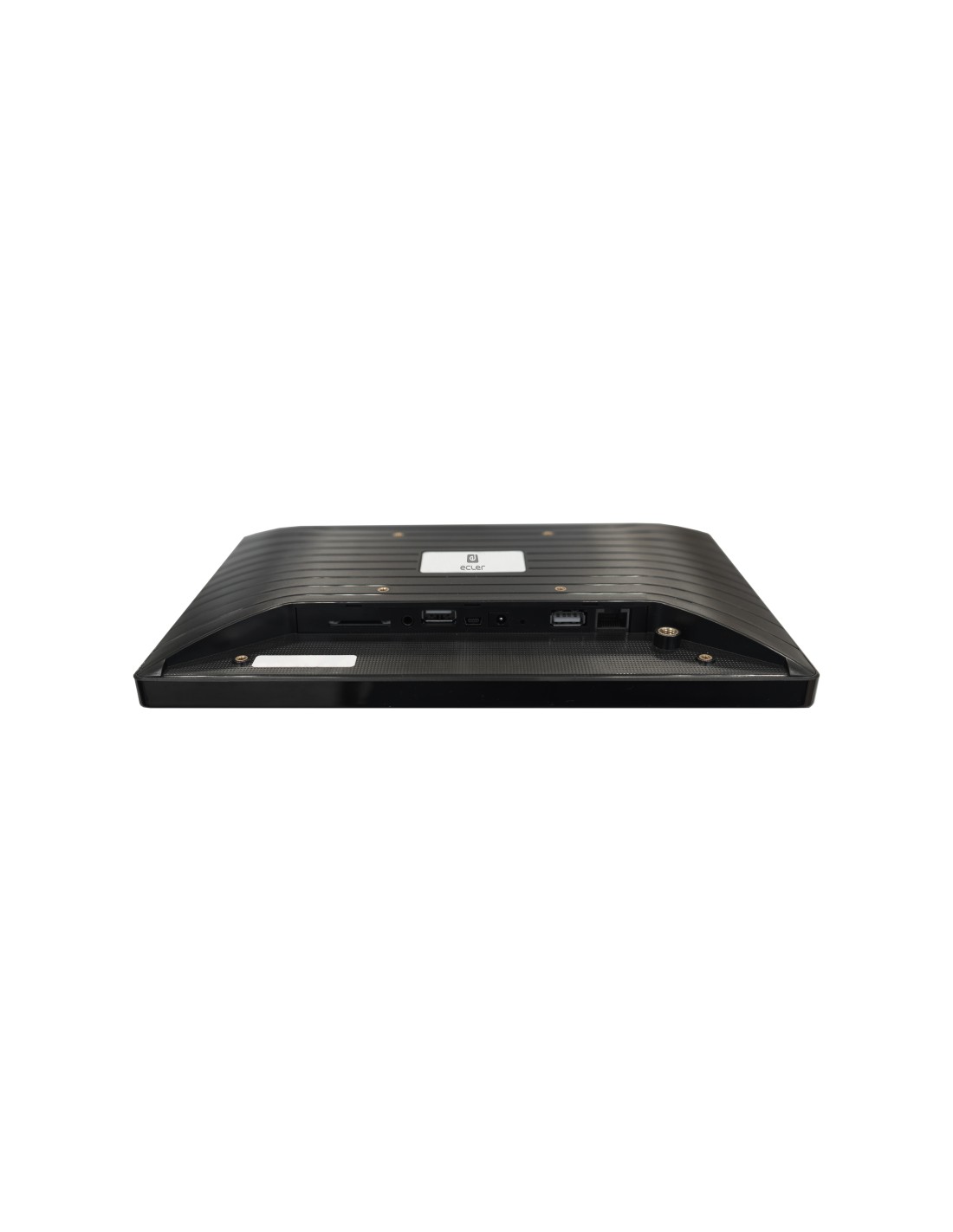

- 1 RJ-45, Ethernet Base-Tx 10/100Mb / 1GB CAT5e or
better up to 100m. Supports PoE - Display
- IPS, 218x135mm
- Type
- Remote control TFT touchscreen compatible with all EclerNet products
- Touch-panel
- Capacitive multi-touch
- PoE
- Yes
- Size
- 10.1"
- Contrast Ratio
- 1300
- Brigthness
- 300 cdm2
- Scale
- 16:9
- Backlight
- LED
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Quad core processor, clocked 1.6G |
|---|
PHYSICAL
| Installation options |
VESA75, desktop |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
External PSU, universal, multi AC plug, Wall mount VESA75 bracket + screws set + security screw + tool, Desktop mount stick-shape support |
| Dimensions |
260 x 178 x 28 mm / 10.2 x 7.0 x 1.1 in. (WxHxD) |
| Weight |
0.7 kg / 1.54 lb |
| Shipping dimensions |
230 x 70 x 390 mm / 9.06 x 2.76 x 15.35 in. (WxHxD) |
| Shipping weight |
1.2 kg / 2.65 lb |
| Type |
Remote control TFT touchscreen compatible with all EclerNet products |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071307345 |
| Tariff code |
8528590000 |
| Shipping Location |
Spain |
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz, 12V / 2A |
|---|---|
| Power supply |
Universal, external power supply 12VDC, 2A |
| Max power consumption |
350mA from 12V External Power Supply Voltage
125mA from PoE |
| PoE |
Yes |
CONNECTIVITY
| Programing and control |
EclerNet manager |
|---|---|
| Ethernet |
1 RJ-45, Ethernet Base-Tx 10/100Mb / 1GB CAT5e or
better up to 100m. Supports PoE |
SCREEN/DISPLAY
| Resolution |
1280x800 pixels |
|---|---|
| Display |
IPS, 218x135mm |
| Touch-panel |
Capacitive multi-touch |
| Size |
10.1" |
| Contrast Ratio |
1300 |
| Brigthness |
300 cdm2 |
| Scale |
16:9 |
| Backlight |
LED |
