WPNET8K
CWPNET8KR
Only a few left

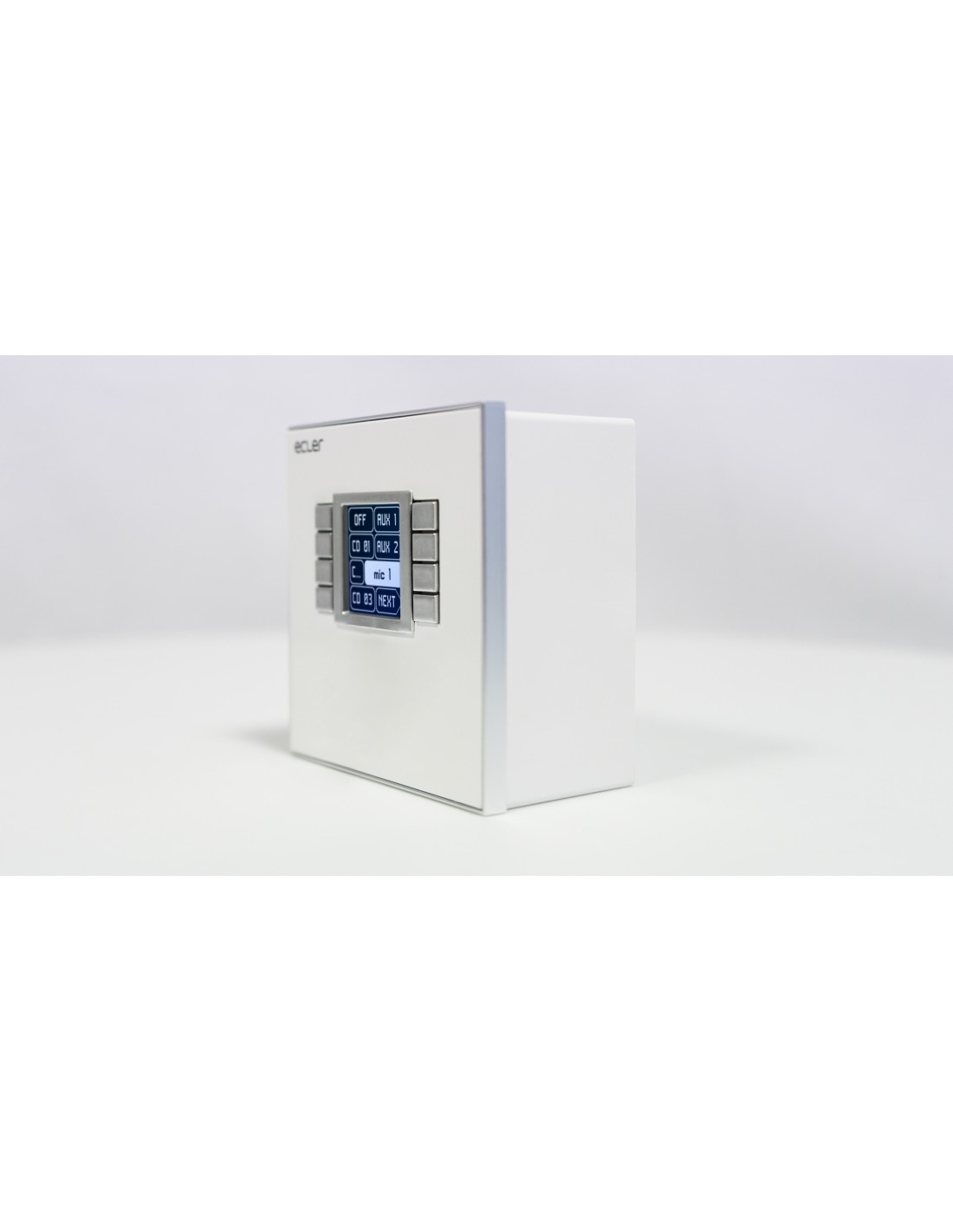

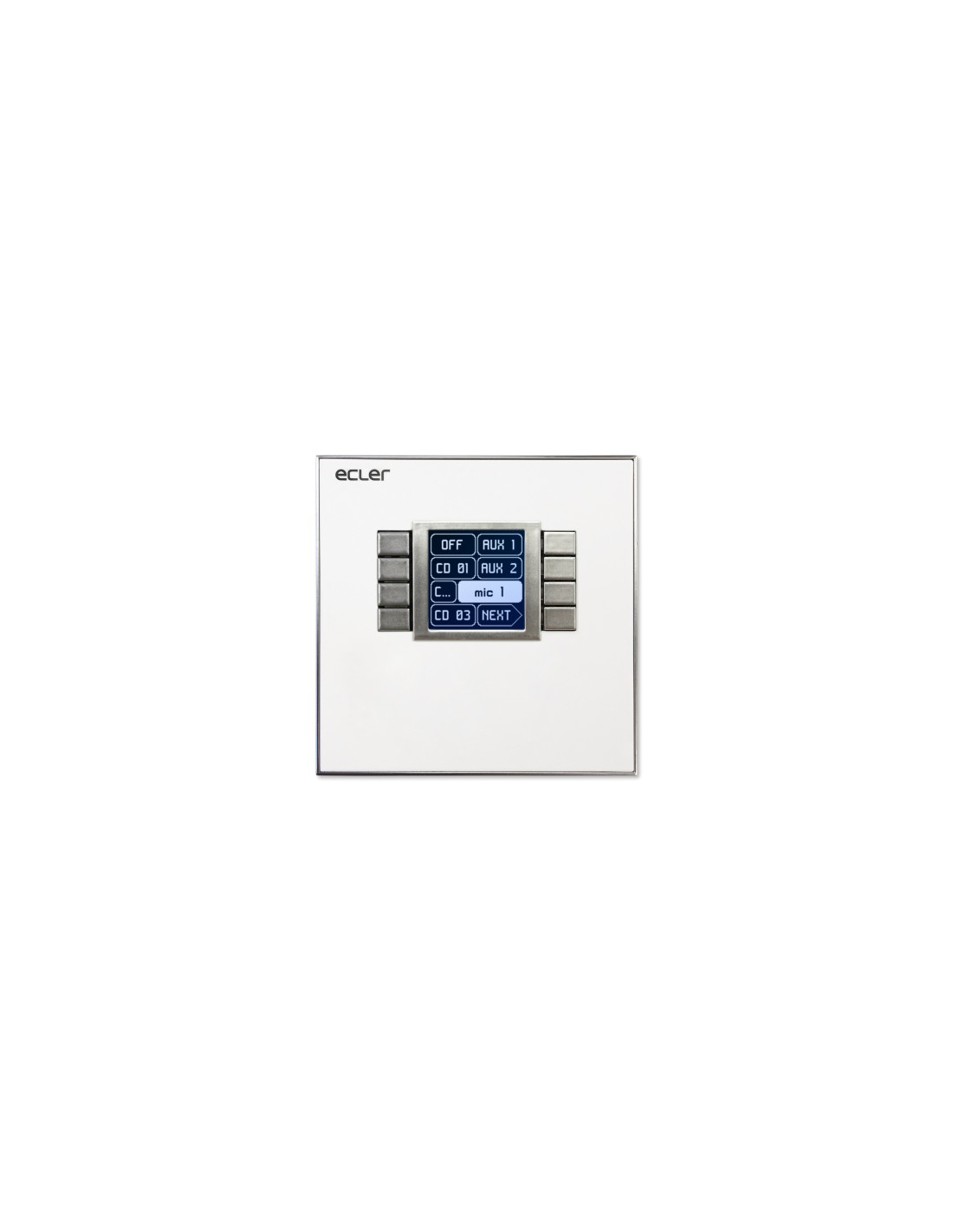

EclerNet Wall Control Panel
WPNET8K is an EclerNet compatible wall panel. It features a LCD screen and 8 selection keys. Works perfectly to enable presets or source selection functions.
- Installation options
- Wall
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- Two cables are included to connect to WPNET4KV and create
WPNET12KV, Frame for mounting on single-mechanism systems, screws, magnet for cover removal - Optional accessories
- Compatible with round electrical box (∅≥60mm), starting from
serial nº 266020001 products - Dimensions
- 86 x 86 x 30 mm / 3.39 x 3.39 x 1.18 in. (WxHxD)
- Weight
- 0.12 Kg / 0.26 lb
- Shipping dimensions
- 120 x 220 x 80 mm / 4.72 x 8.66 x 3.15 in. (WxHxD)
- Shipping weight
- 0.3 kg / 0.66 lb
- Status
- Descat
- EAN code
- 8435071306720
8435071308403 - Tariff code
- 8518400000
- Shipping Location
- Spain
- Format
- Single EU format
- Resolution
- 128x128 pixels
- Programing and control
- EclerNet manager
- Power supply
- External, 12 - 24VDC
- Max power consumption
- From PoE: 35mA / 1.6W
From Ext Power: 1.5W (WP24-PSU power supply model) - Ethernet
- 1 RJ45 connector, cable: CAT-5e or better
Supports PoE - Display
- LCD
- Buttons
- 8x control keys
- Type
- EclerNet compatible wall panel
- PoE
- Class 0 802.3af Poe PD compliant
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Wall |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Two cables are included to connect to WPNET4KV and create
WPNET12KV, Frame for mounting on single-mechanism systems, screws, magnet for cover removal |
| Optional accessories |
Compatible with round electrical box (∅≥60mm), starting from
serial nº 266020001 products |
| Dimensions |
86 x 86 x 30 mm / 3.39 x 3.39 x 1.18 in. (WxHxD) |
| Weight |
0.12 Kg / 0.26 lb |
| Shipping dimensions |
120 x 220 x 80 mm / 4.72 x 8.66 x 3.15 in. (WxHxD) |
| Shipping weight |
0.3 kg / 0.66 lb |
| Format |
Single EU format |
| Type |
EclerNet compatible wall panel |
LOGISTICS
| Status |
Descat |
|---|---|
| EAN code |
8435071306720
8435071308403 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
External, 12 - 24VDC |
|---|---|
| Max power consumption |
From PoE: 35mA / 1.6W
From Ext Power: 1.5W (WP24-PSU power supply model) |
| PoE |
Class 0 802.3af Poe PD compliant |
CONNECTIVITY
| Programing and control |
EclerNet manager |
|---|---|
| Ethernet |
1 RJ45 connector, cable: CAT-5e or better
Supports PoE |
MONITORING AND CONTROL
| Buttons |
8x control keys |
|---|
SCREEN/DISPLAY
| Resolution |
128x128 pixels |
|---|---|
| Display |
LCD |
