EclerNet Wall Control Panel
See more Features Resources

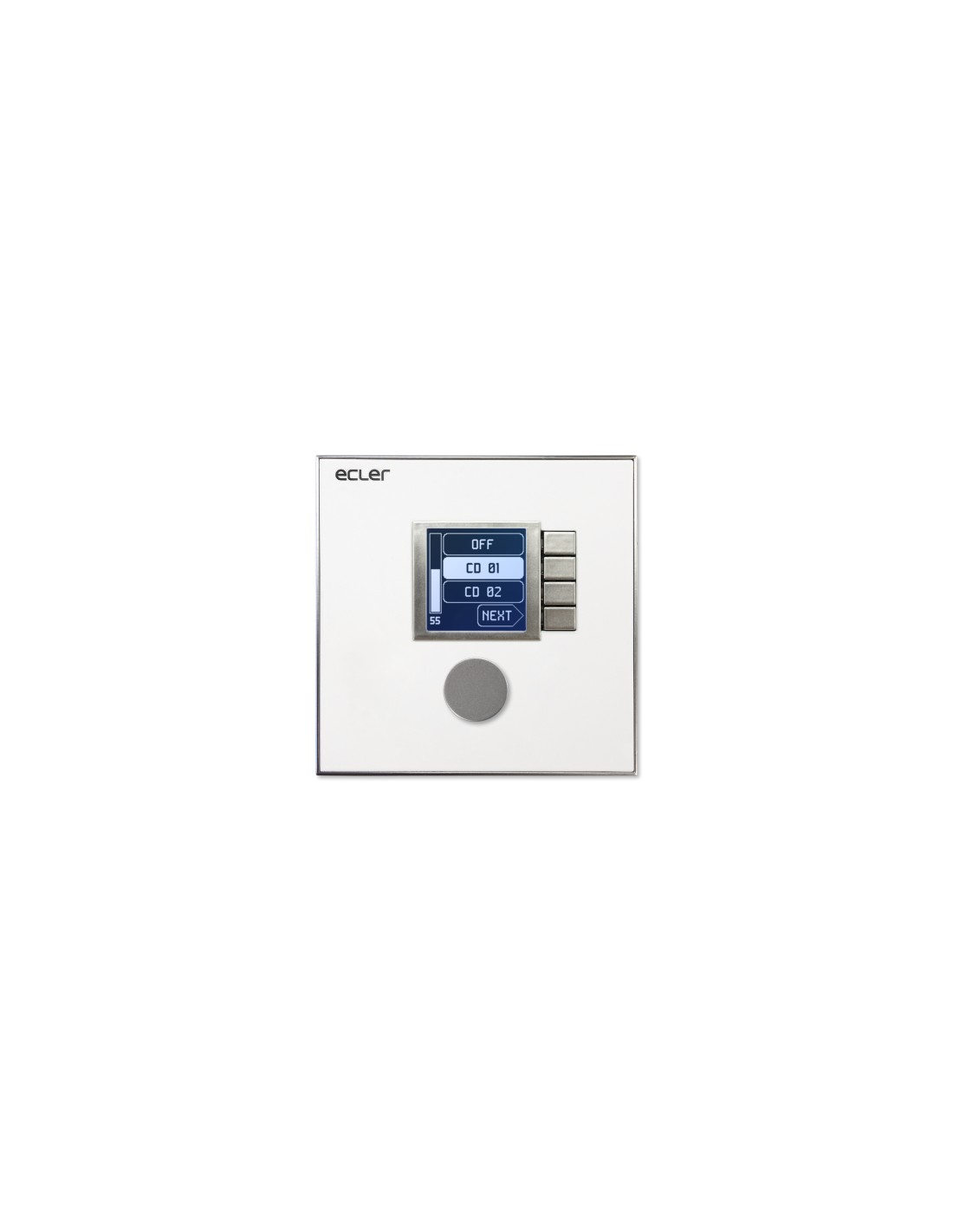

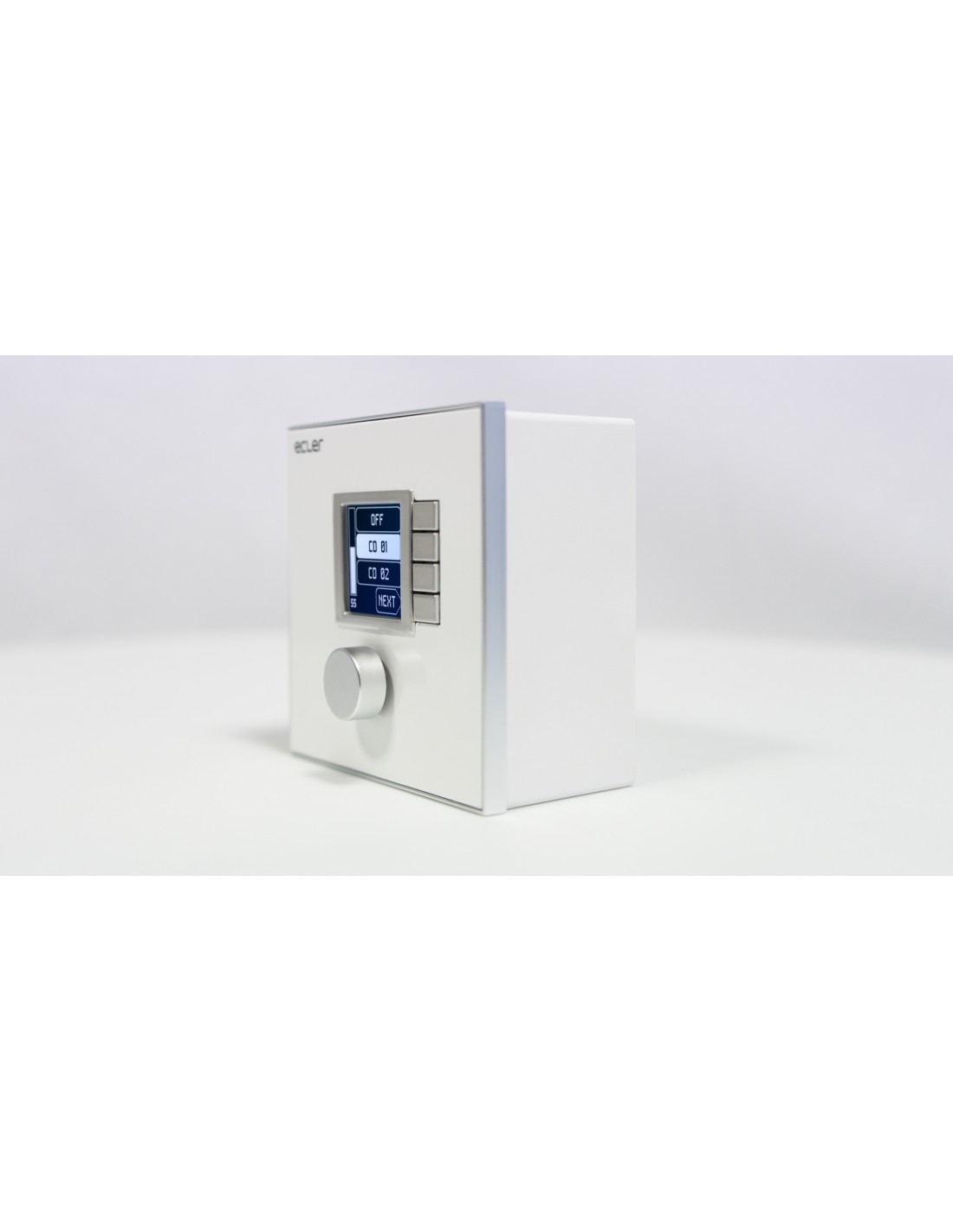

WPNET4KV is an EclerNet compatible wall panel, featuring an LCD screen, a digital rotary encoder and 4 direct selection keys. Its end-user control features are volume control, source and preset selection functions. Equipped with Ethernet interface and compatible with PoE (Power over Ethernet) or local power supply.
Installation options
Wall
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Included accessories
Frame for mounting on single-mechanism systems, Screws, Magnet for cover removal
Dimensions
86 x 86 x 30 mm / 3.39 x 3.39 x 1.18 in. (WxHxD)
Weight
0.12 Kg / 0.26 lb
Shipping dimensions
120 x 220 x 80 mm / 4.72 x 8.66 x 3.15 in. (WxHxD)
Shipping weight
0.3 kg / 0.66 lb
Status
Descat
EAN code
8435071306713
Tariff code
8518408099
Shipping Location
Spain
Format
Single EU format
Resolution
128x128 pixels
Programing and control
EclerNet manager
Power supply
External, 12 - 24VDC
Max power consumption
From PoE: 35mA / 1.6W
From Ext Power: 1.5W (WP-PSU power supply model)
Ethernet
1 RJ45 connector, cable: CAT-5e or better
Supports PoE
Display
LCD
Buttons
4 CONTROL keys
Type
EclerNet compatible wall panel
PoE
Class 0 802.3af Poe PD compliant

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Installation options Wall
Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Operating humidity <85% HR
85% HR
Storage temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Storage humidity <90% HR
90% HR
Included accessories Frame for mounting on single-mechanism systems, Screws, Magnet for cover removal
Dimensions 86 x 86 x 30 mm / 3.39 x 3.39 x 1.18 in. (WxHxD)
Weight 0.12 Kg / 0.26 lb
Shipping dimensions 120 x 220 x 80 mm / 4.72 x 8.66 x 3.15 in. (WxHxD)
Shipping weight 0.3 kg / 0.66 lb
Format Single EU format
Type EclerNet compatible wall panel
LOGISTICS
Status Descat
EAN code 8435071306713
Tariff code 8518408099
Shipping Location Spain
ELECTRICAL
Power supply External, 12 - 24VDC
Max power consumption From PoE: 35mA / 1.6W From Ext Power: 1.5W (WP-PSU power supply model)
PoE Class 0 802.3af Poe PD compliant
CONNECTIVITY
Programing and control EclerNet manager
Ethernet 1 RJ45 connector, cable: CAT-5e or better Supports PoE
MONITORING AND CONTROL
Buttons 4 CONTROL keys
SCREEN/DISPLAY
Resolution 128x128 pixels
Display LCD
