DN44BOB
CDN44BOBC
Only a few left
4x4 | Dante™ digital audio interface

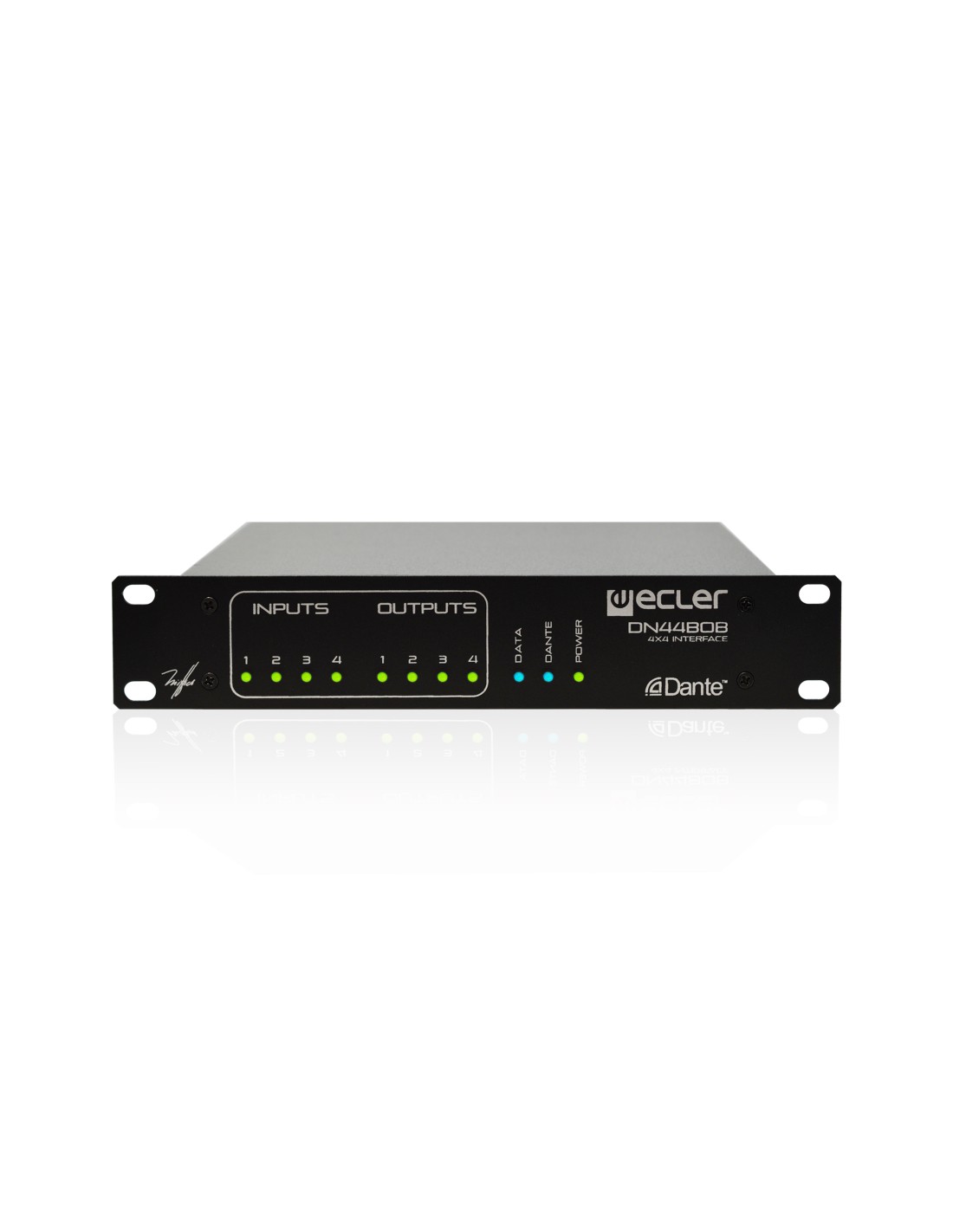

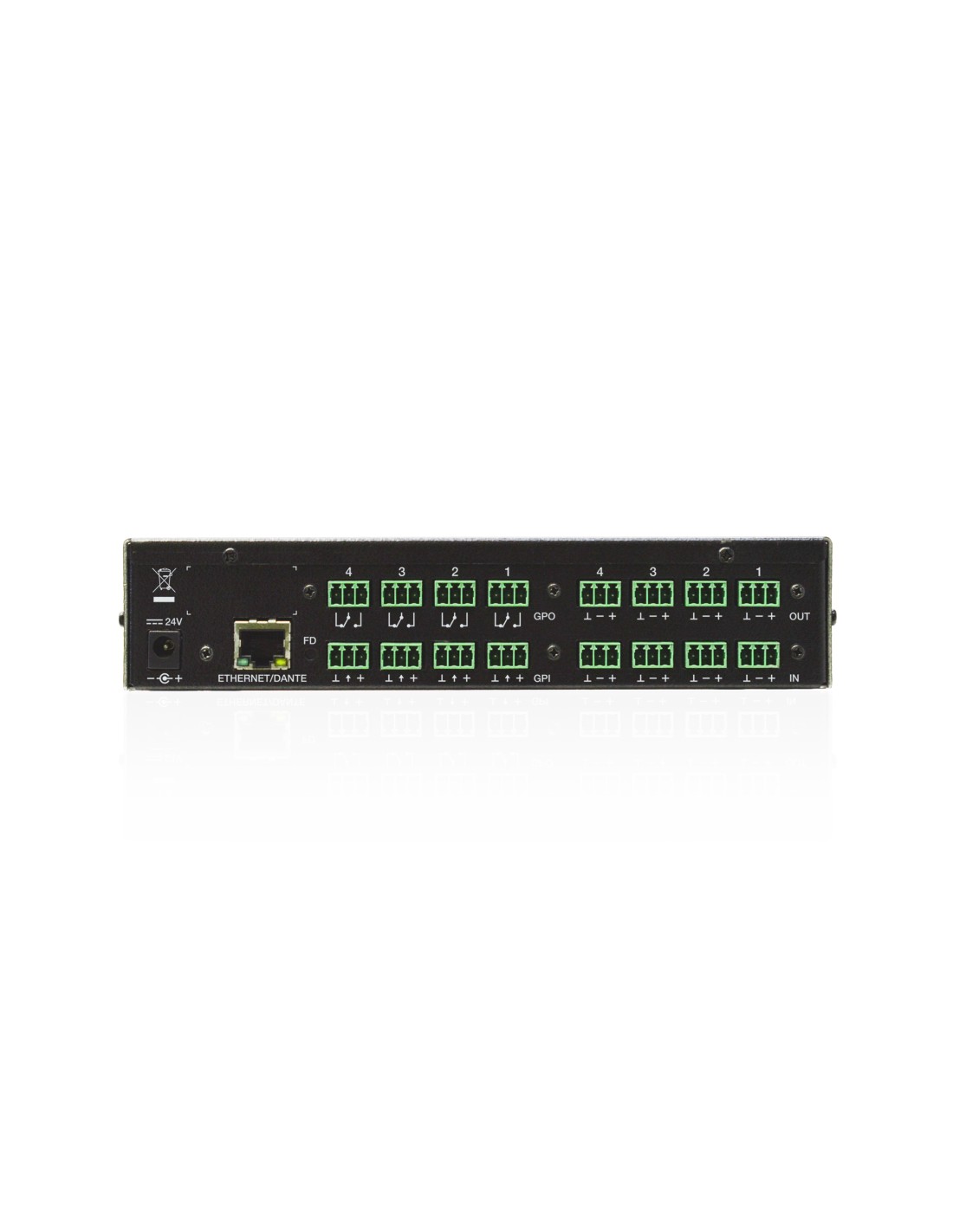

DN44BOB is a 4 inputs and 4 outputs DANTE (Audio Over IP) Break Out Box. It allows to convert 4 analogue audio signals into 4 DANTE channels and send them into an Ethernet LAN, as well as to take 4 DANTE channels from the Ethernet network and convert them to analogue audio signals. It includes 4 GPI control ports (0-10VDC) and 4 GPO control ports (NO/NC relays). Can be used together with EclerNet DANTE ready products or as a stand-alone DANTE interface, together with any audio device including analogue audio inputs and/or outputs.
- Connection type
- Phoenix connector (Symmetrical)
- Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Included accessories

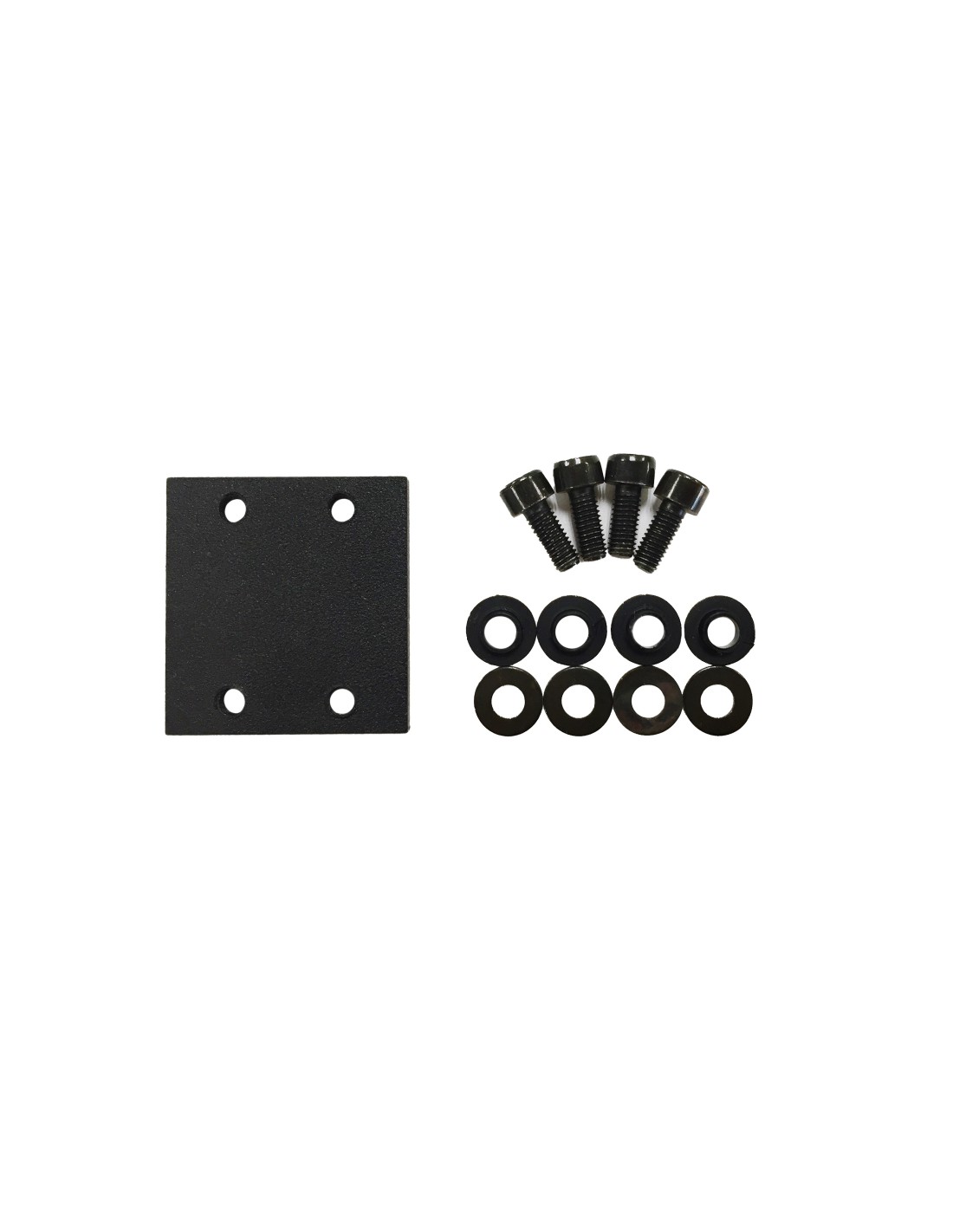

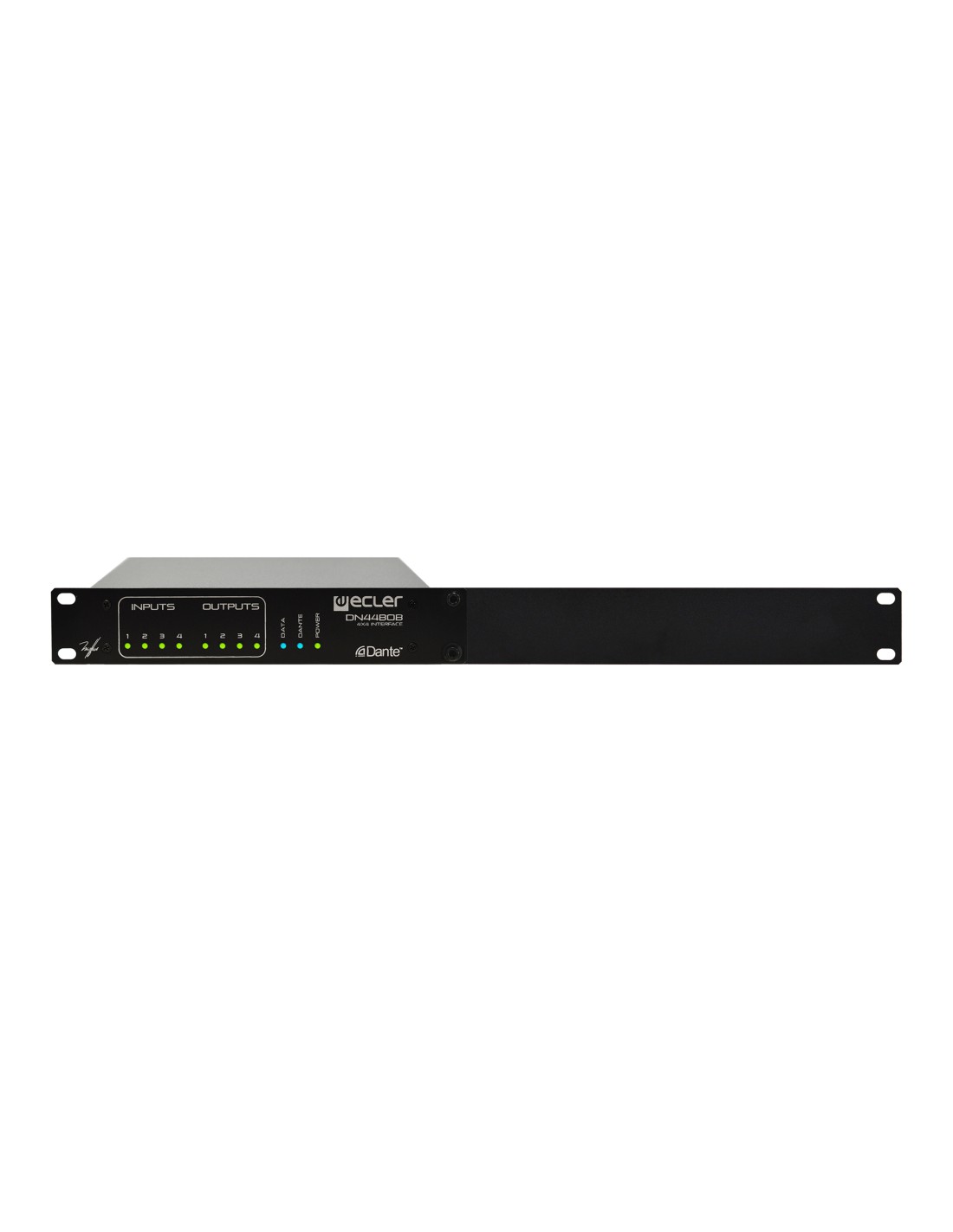

- Rack-mount kit included: 1UHRMKIT + PUM3 Rack-mount accessories to mount 2 half-width RU devices in 1 standard width RU space or to mount 1 half- width RU device in 1 standard width RU space
- Optional accessories
- WPa series control panels for remote control
- Dimensions
- 241 x 44 x 152 mm / 9.49 x 1.73 x 5.98 in. (WxHxD)
- Weight
- 1.1 kg / 2.43 lb
- Shipping dimensions
- 220 x 50 x 410 mm / 8.66 x 1.97 x 16.14 in. (WxHxD)
- Shipping weight
- 1.4 kg / 3.09 lb
- Status
- Descat
- Origin Production
- Spain
- EAN code
- 8435071305228
8435071308205
- Tariff code
- 8518408099
- Shipping Location
- Spain
- Width (cm)
- 22.00
- Height (cm)
- 5.00
- Depth (cm)
- 41.00
- Vol. (dm3)
- 4.51
- Gross Weight (kg)
- 1.40
- Net Weight (kg)
- 1.00
- Format
- Unit
- Warranty (months)
- 36
- Processor
- 32 bit, 44.1/ 48 / 88.2 / 96 kHz
- Sampling rate
- 44.1/ 48 / 88.2 / 96 kHz - TBC
- Resolution
- 24 bit AKM
- Frequency response
- 5Hz to 24kHz (-3dB)
- Number of input ports
- 4, MIC/LINE
- Input sensitivity
- -50dBV to +10dBV in 0.5dB step
- Input impedanc
- Balanced, 4kΩ
Balanced, >4kΩ - CMRR
- 65dB typ.
- Number of output ports
- 4, Line
- Crosstalk
- Better than 90dB (100dB typ.)
- Programing and control
- EclerNet manager (software) from v3.05r2 version
- Digital remote controls
- 8, Euroblock connector
- GPIs
- 4, from 0 to 10VDC or TTL level
- AC mains requirement

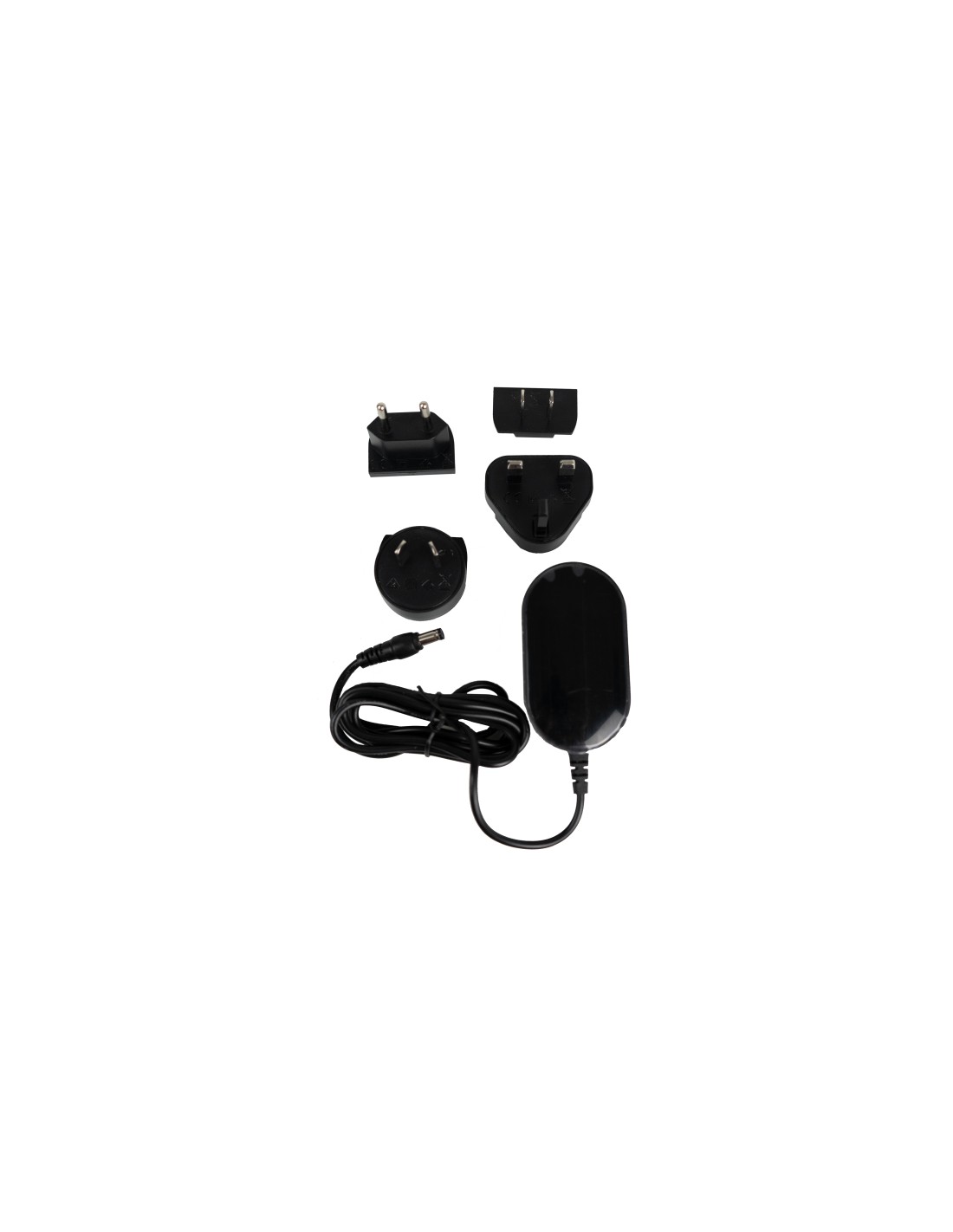

- 100-240VAC + External PSU 24VDC
- AC mains connector
- TBC
- Power consumption
- 6.5 W
- Power supply
- DC supply ± 24 VDC
- Phantom power
- +18VDC, 5mA max. software switched
- Input impedance
- Balanced, 4kΩ
- Max input level
- +27dBV +30dBu
- THD + Noise
- THD+Noise @ 1kHz, 0dBV input (line) 0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.008%
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% - Latency
- 1ms (fs 48kHz)
- Ethernet
- 1, RJ-45. Ethernet Base-Tx 10/100Mb; Auto X-Over CAT5 up to 100m
- Dynamic range
- AD:110dB; DA: 115dB
- Max output level
- +18dBV +21dBu
- Protocols
- Dante™ / AES67
Dante™ / AES67 (2/2 flows) - Number of digital input ports
- 4
- Number of digital output ports
- 4
- Interfaces
- 1 x RJ45
- GPOs
- 4, 3 poles isolated relay; 1A, 48 VDC max
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
32 bit, 44.1/ 48 / 88.2 / 96 kHz |
|---|
PHYSICAL
| Connection type |
Phoenix connector (Symmetrical) |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Rack-mount kit included: 1UHRMKIT + PUM3 Rack-mount accessories to mount 2 half-width RU devices in 1 standard width RU space or to mount 1 half- width RU device in 1 standard width RU space |
| Optional accessories |
WPa series control panels for remote control |
| Dimensions |
241 x 44 x 152 mm / 9.49 x 1.73 x 5.98 in. (WxHxD)
|
| Weight |
1.1 kg / 2.43 lb
|
| Shipping dimensions |
220 x 50 x 410 mm / 8.66 x 1.97 x 16.14 in. (WxHxD) |
| Shipping weight |
1.4 kg / 3.09 lb |
| Format |
Unit |
LOGISTICS
| Status |
Descat |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071305228
8435071308205
|
| Tariff code |
8518408099 |
| Shipping Location |
Spain |
| Width (cm) |
22.00 |
| Height (cm) |
5.00 |
| Depth (cm) |
41.00 |
| Vol. (dm3) |
4.51 |
| Gross Weight (kg) |
1.40 |
| Net Weight (kg) |
1.00 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
100-240VAC + External PSU 24VDC |
|---|---|
| AC mains connector |
TBC |
| Power consumption |
6.5 W |
| Power supply |
DC supply ± 24 VDC |
AUDIO CONVERTERS
| Sampling rate |
44.1/ 48 / 88.2 / 96 kHz - TBC |
|---|---|
| Latency |
1ms (fs 48kHz) |
| Dynamic range |
AD:110dB; DA: 115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
4, MIC/LINE |
|---|---|
| Input impedanc |
Balanced, >4kΩ Balanced, 4kΩ |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
4, Line |
|---|---|
| Crosstalk |
Better than 90dB (100dB typ.) |
AUDIO OVER IP
| Protocols |
Dante™ / AES67 Dante™ / AES67 (2/2 flows) |
|---|---|
| Number of digital input ports |
4 |
| Number of digital output ports |
4 |
| Interfaces |
1 x RJ45 |
CONNECTIVITY
| Programing and control |
EclerNet manager (software) from v3.05r2 version |
|---|---|
| Ethernet |
1, RJ-45. Ethernet Base-Tx 10/100Mb; Auto X-Over CAT5 up to 100m |
REMOTE CONTROL CONNECTIONS
| Digital remote controls |
8, Euroblock connector |
|---|---|
| GPIs |
4, from 0 to 10VDC or TTL level |
| GPOs |
4, 3 poles isolated relay; 1A, 48 VDC max |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-50dBV to +10dBV in 0.5dB step |
|---|
MIC INPUTS
| Phantom power |
+18VDC, 5mA max. software switched |
|---|
LINE INPUTS
| CMRR |
65dB typ. |
|---|---|
| Input impedance |
Balanced, 4kΩ |
| Max input level |
+27dBV +30dBu |
LINE OUTPUTS
| Frequency response |
5Hz to 24kHz (-3dB) |
|---|---|
| THD + Noise |
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008% THD+Noise @ 1kHz, 0dBV input (line) 0.004% THD+Noise @ 1kHz, -40dBV input (mic.) 0.008% |
| Max output level |
+18dBV +21dBu |
SCREEN/DISPLAY
| Resolution |
24 bit AKM |
|---|
