MIA-82 BK
CMIA82BK
Available

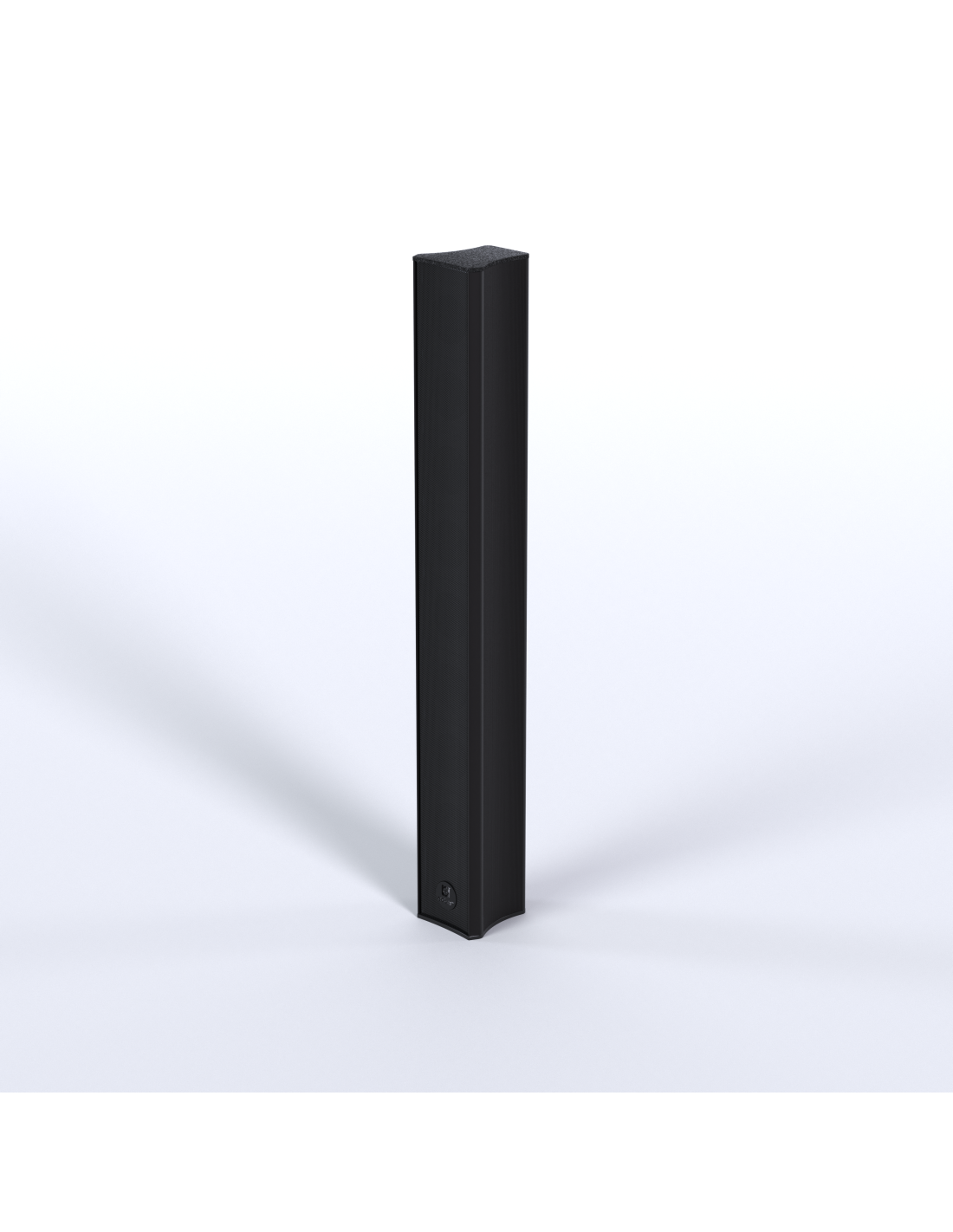

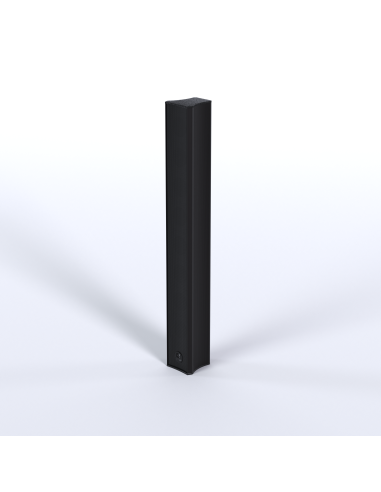

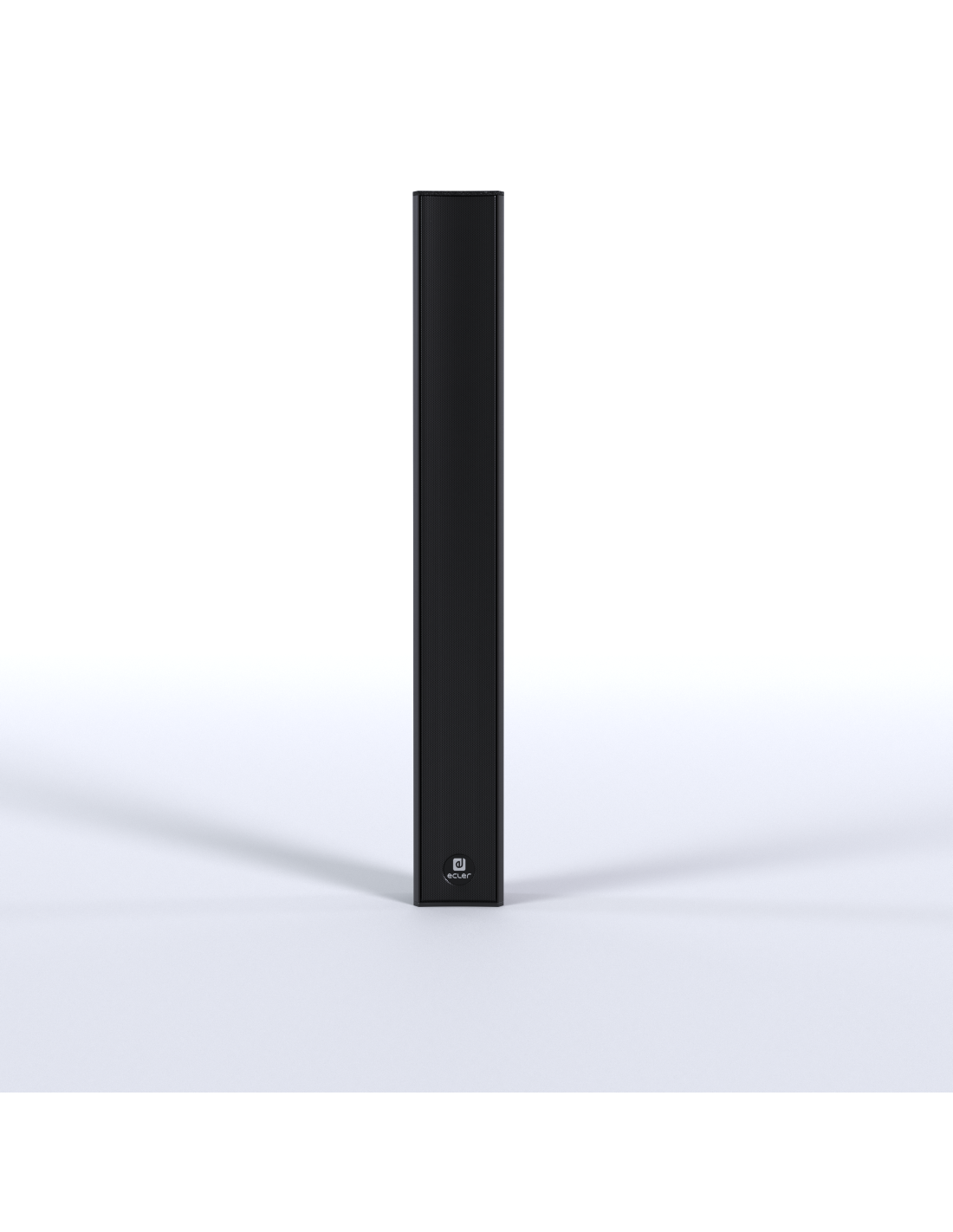

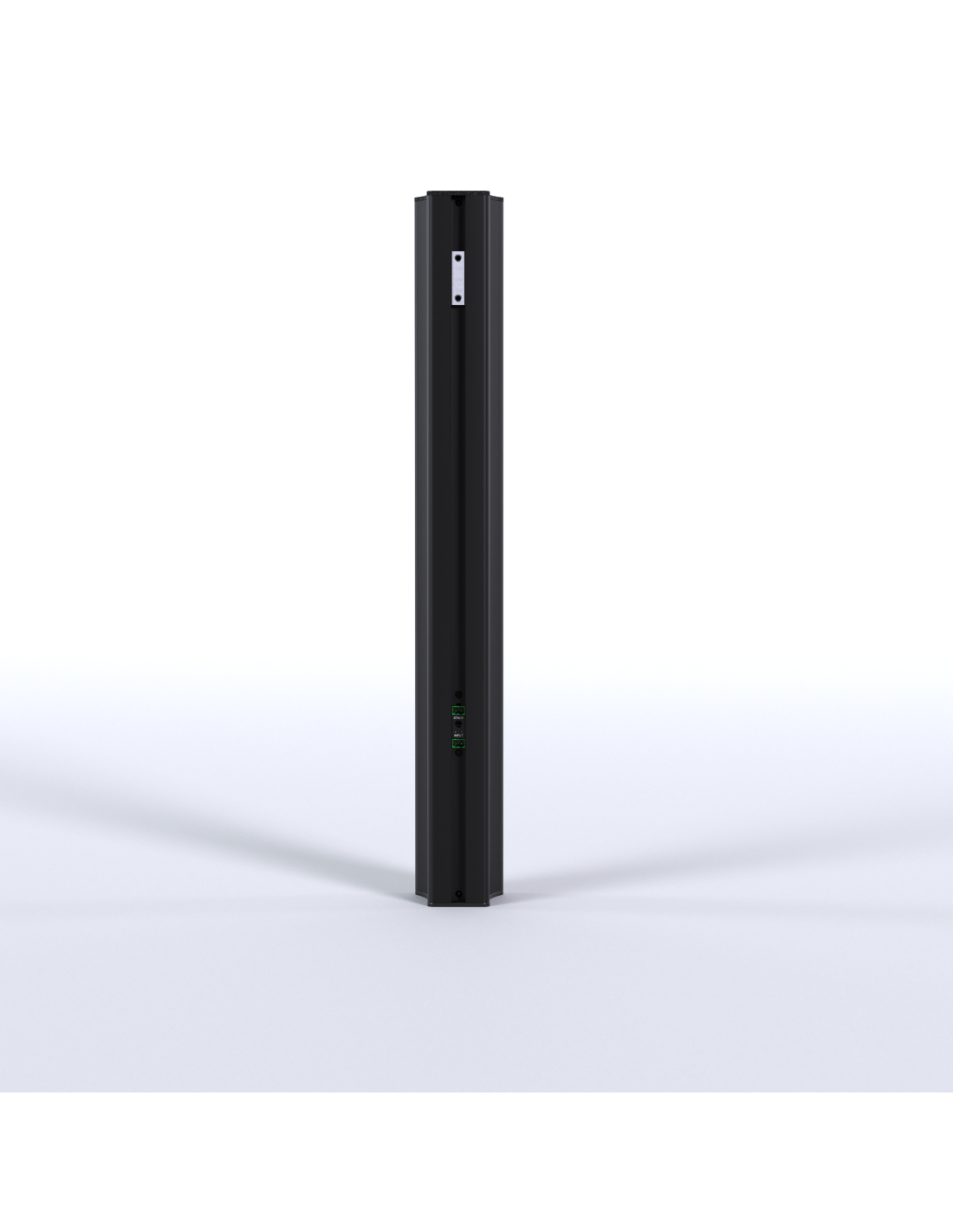

Mini Array Column Loudspeaker

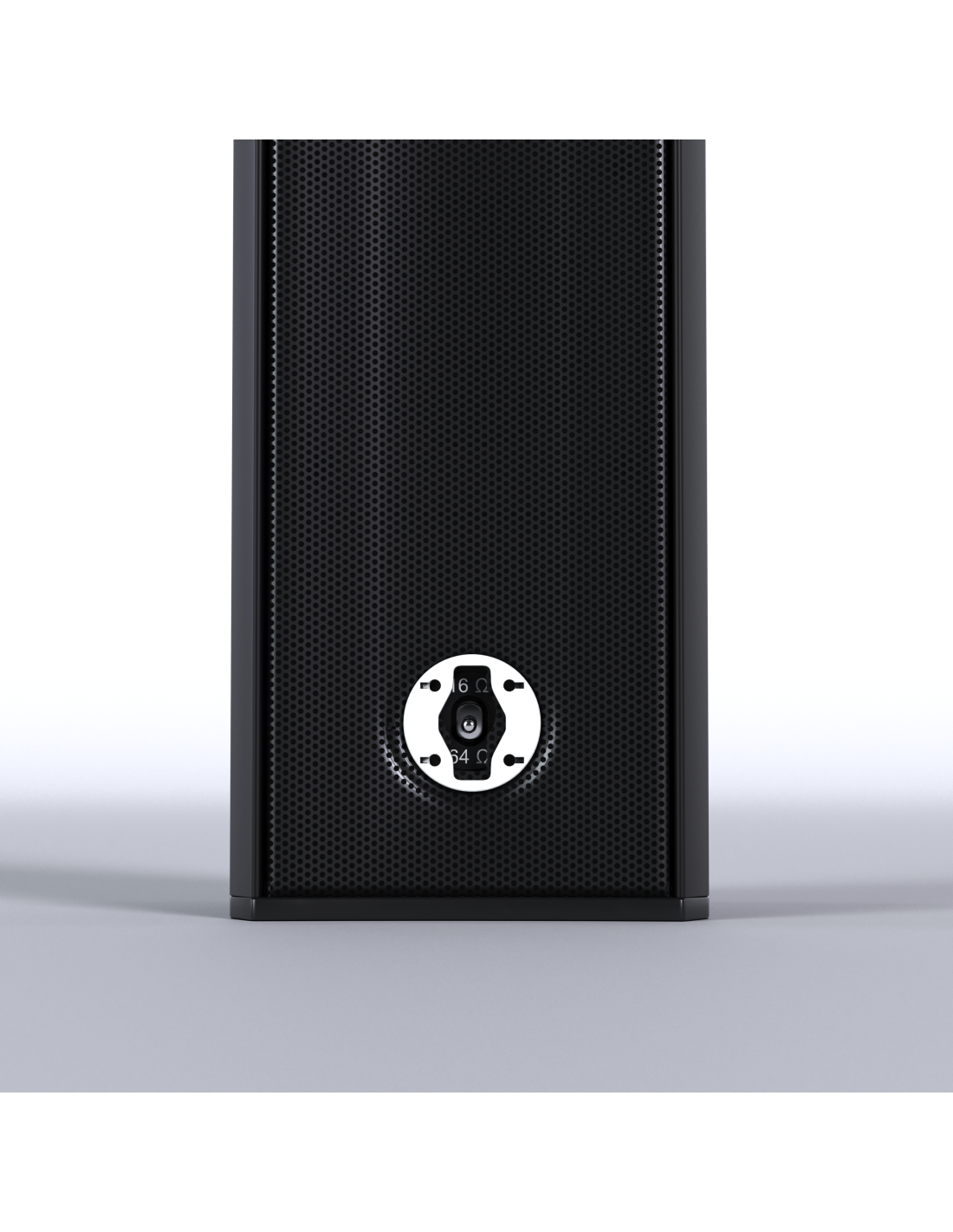

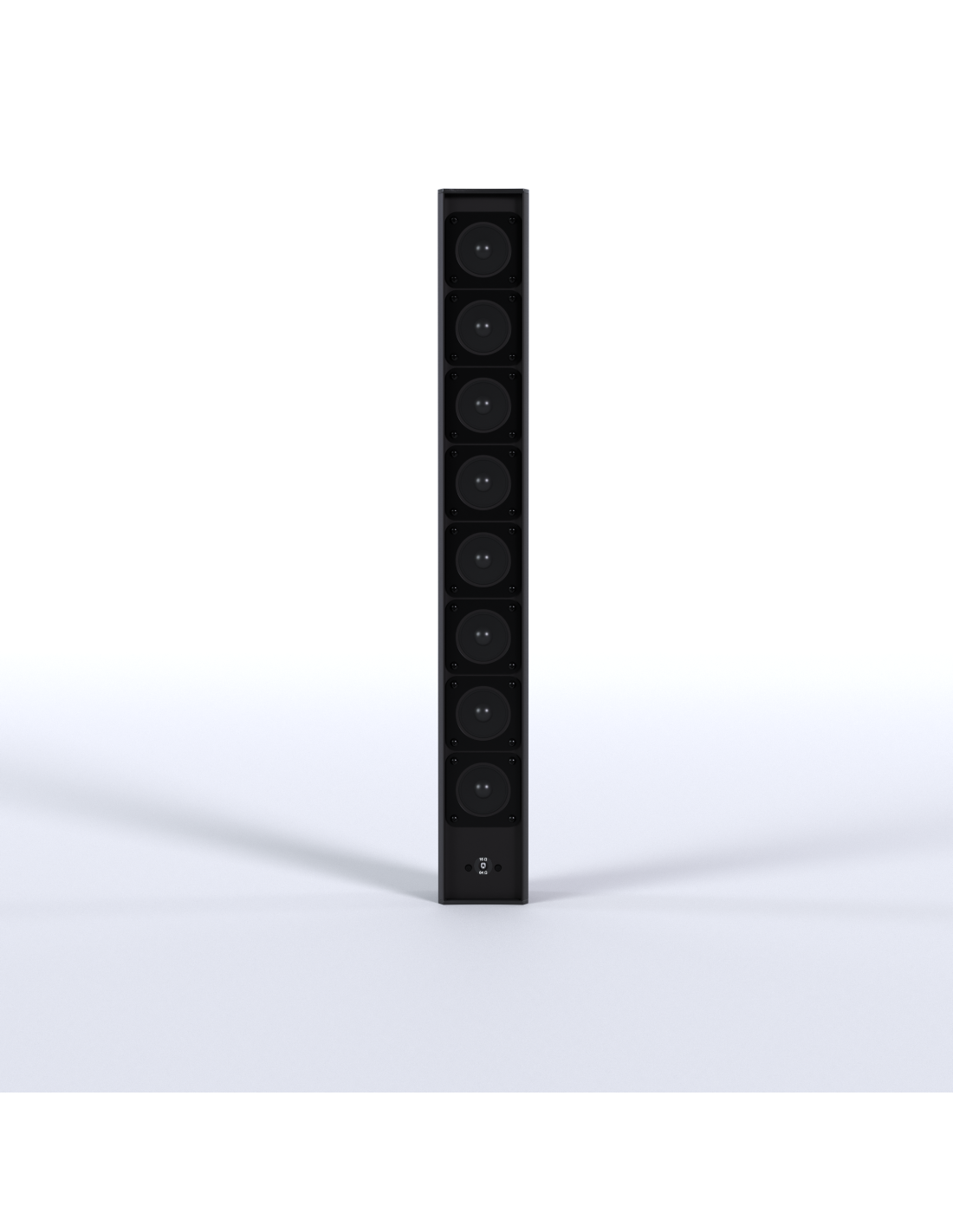

MIA-82 is a an elegant, unique a compact design column loudspeaker, built in a single aluminium piece to avoid vibrations and mechanical stress. MIA-82 includes 8x2.5” drivers with an RMS rating of 150W and behave as a mini line array with the disposition of 8 drivers per column and the possibility of working in 16Ω or 64Ω by selecting them behind the logo without the need to remove the grille.
MIA-82 is available in black and white colour, is IP44 graded ready for outdoor applications.

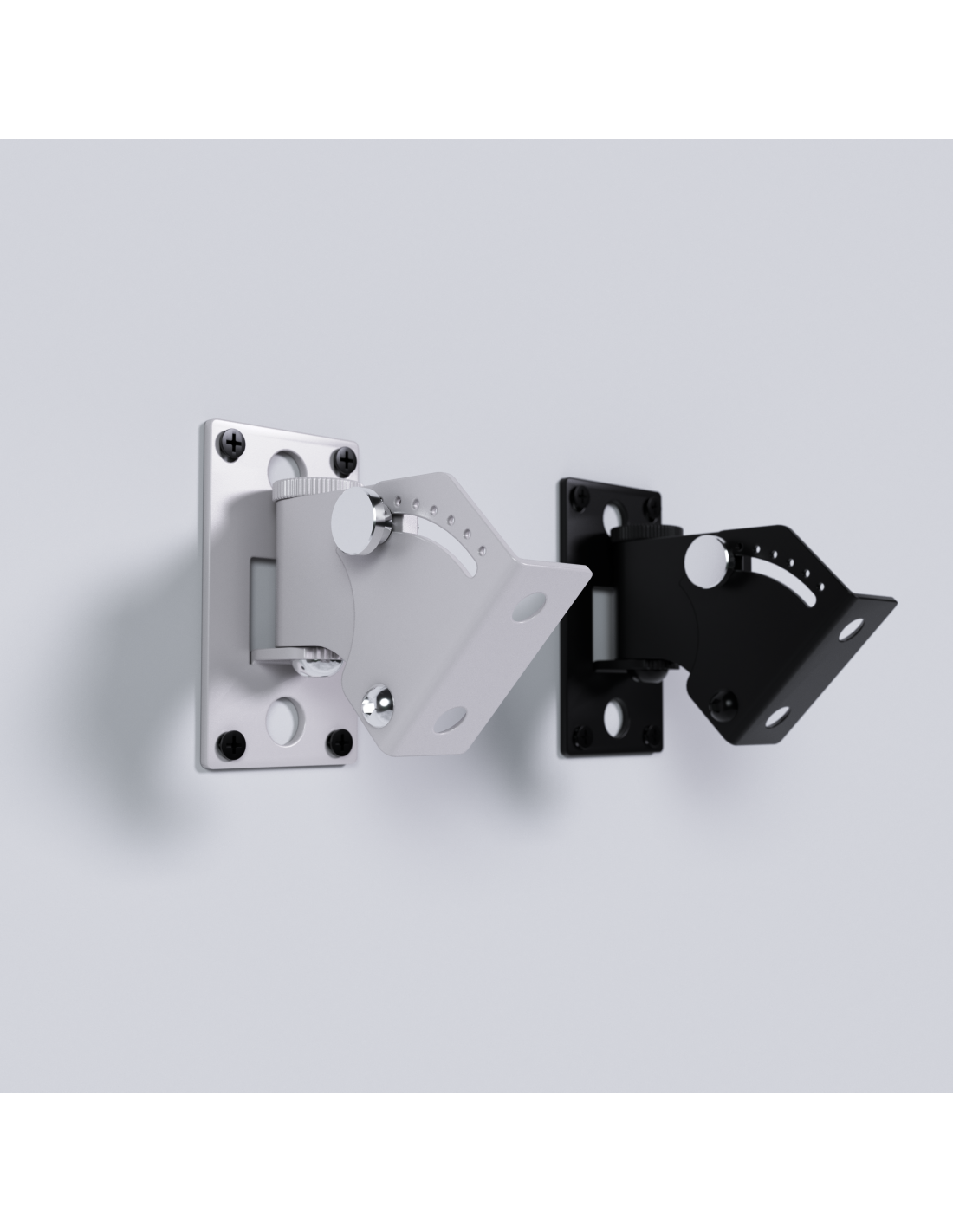

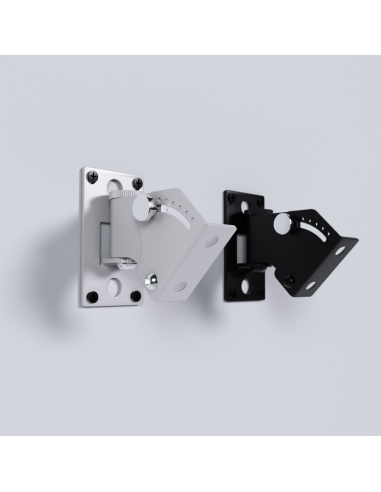

As a highlight, it includes the HANDY wall-mount incredibly versatile smart pan and tilt bracket made out of stainless-steel permits adjusting the height at any point of the length of the column.
- Effective Freq. Range
- 165Hz-20kHz
- Coverage angle / Dispersion
- 165° x 41° (HxV)
- Power handling
- 150 W RMS / 600 W Peak
- Sensitivity
- 105 dB
- Maximum SPL
- 127 dB continous / 133 dB peak
- Recommended amplifier power
- 300W RMS
- Ways
- 1-way full range
- Nominal impedance
- 16Ω / 64Ω
- Connection type
- Double INPUT/LINK connector, Euroblock type
- Installation options
- Surface / Wall mounting
- Environmental
- IP44
- Enclosure material
- Aluminium
- Grille material
- Aluminium
- Grille fixing system
- Side Insertion mount system
- Pan and tilt wall-mount
- 90°45° (HxV)
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
Min: 0°C ; 32°F
Max: 35°C ; 95°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- HANDY Wall-mount bracket, 2x Euroblock connector
- Finished colour
- White (RAL9003) or Black (RAL9005)
- Dimensions
- 83 x 648 x 87 mm / 3.27 x 25.51 x 3.43 in. (WxHxD)
- Weight
- 2.65 kg / 5.84 lb
- Pieces per box
- 1
- Shipping dimensions
- 135 x 920 x 160 mm / 5.31 x 36.22 x 6.30 in. (WxHxD)
- Shipping weight
- 3.45 kg / 7.61 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- BK: 8435071343688
WH: 8435071343695 - Tariff code
- 8518220000
- Width (cm)
- 92
- Height (cm)
- 16
- Depth (cm)
- 13.5
- Vol. (dm3)
- 19.87
- Gross Weight (kg)
- 3.45
- Net Weight (kg)
- 2.65
- Format
- 1 unit
- Warranty (months)
- 60
- Mounting system
- Stainless Steel Wall Bracket
- Driver
- 8 x 2.5" Loudspeaker
- Power options (Hi Z Multi-tap)
- 100V: 160W (switched to 64 Ohm)
70V: 80W (switched to 64 Ohm) - Power type selector
- Front selection by toggle switch
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
165Hz-20kHz |
|---|---|
| Coverage angle / Dispersion |
165° x 41° (HxV) |
| Power handling |
150 W RMS / 600 W Peak |
| Sensitivity |
105 dB |
| Maximum SPL |
127 dB continous / 133 dB peak |
| Recommended amplifier power |
300W RMS |
| Power options (Hi Z Multi-tap) |
100V: 160W (switched to 64 Ohm)
70V: 80W (switched to 64 Ohm) |
TRANSDUCERS
| Ways |
1-way full range |
|---|---|
| Nominal impedance |
16Ω / 64Ω |
| Driver |
8 x 2.5" Loudspeaker |
PHYSICAL
| Connection type |
Double INPUT/LINK connector, Euroblock type |
|---|---|
| Installation options |
Surface / Wall mounting |
| Environmental |
IP44 |
| Enclosure material |
Aluminium |
| Grille material |
Aluminium |
| Grille fixing system |
Side Insertion mount system |
| Pan and tilt wall-mount |
90°45° (HxV) |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
HANDY Wall-mount bracket, 2x Euroblock connector |
| Finished colour |
White (RAL9003) or Black (RAL9005) |
| Dimensions |
83 x 648 x 87 mm / 3.27 x 25.51 x 3.43 in. (WxHxD) |
| Weight |
2.65 kg / 5.84 lb |
| Pieces per box |
1 |
| Shipping dimensions |
135 x 920 x 160 mm / 5.31 x 36.22 x 6.30 in. (WxHxD) |
| Shipping weight |
3.45 kg / 7.61 lb |
| Format |
1 unit |
| Mounting system |
Stainless Steel Wall Bracket |
| Power type selector |
Front selection by toggle switch |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
BK: 8435071343688
WH: 8435071343695 |
| Tariff code |
8518220000 |
| Width (cm) |
92 |
| Height (cm) |
16 |
| Depth (cm) |
13.5 |
| Vol. (dm3) |
19.87 |
| Gross Weight (kg) |
3.45 |
| Net Weight (kg) |
2.65 |
| Warranty (months) |
60 |
