MIA-81 WH
CMIA81WH
Available

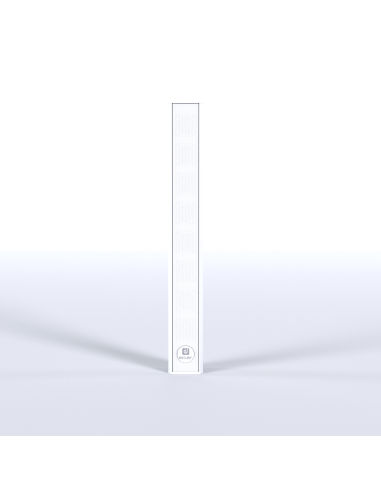

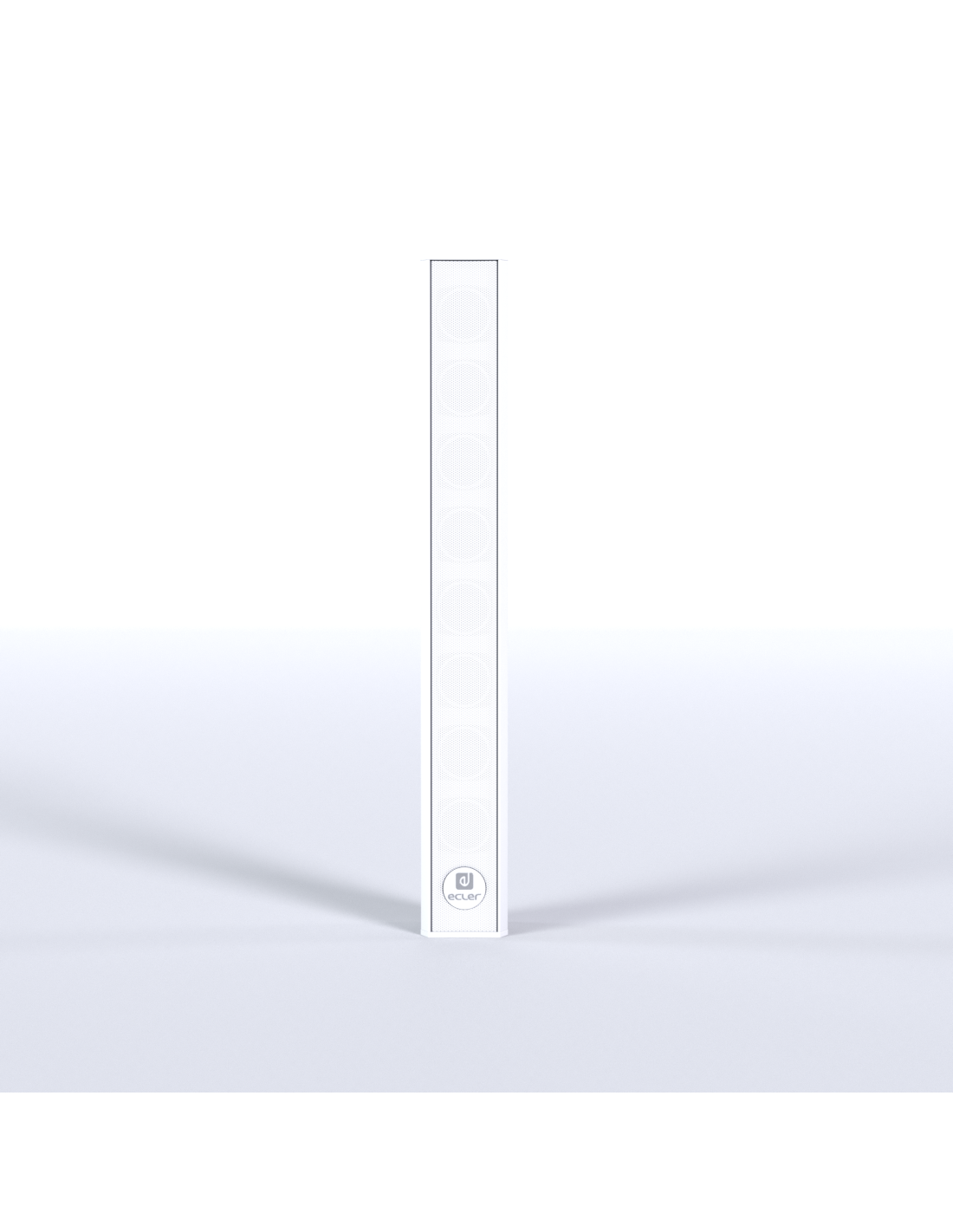

Mini Array Column Loudspeaker
MIA-81 is a an elegant, unique a compact design column loudspeaker, built in a single aluminium piece to avoid vibrations and mechanical stress. MIA-81 includes 8x1.5” drivers with an RMS rating of 40W and behave as a mini line array with the disposition of 8 drivers per column and the possibility of working in 16Ω or 64Ω by selecting them behind the logo without the need to remove the grille.
MIA-81 is available in black and white colour, is IP44 graded ready for outdoor applications.

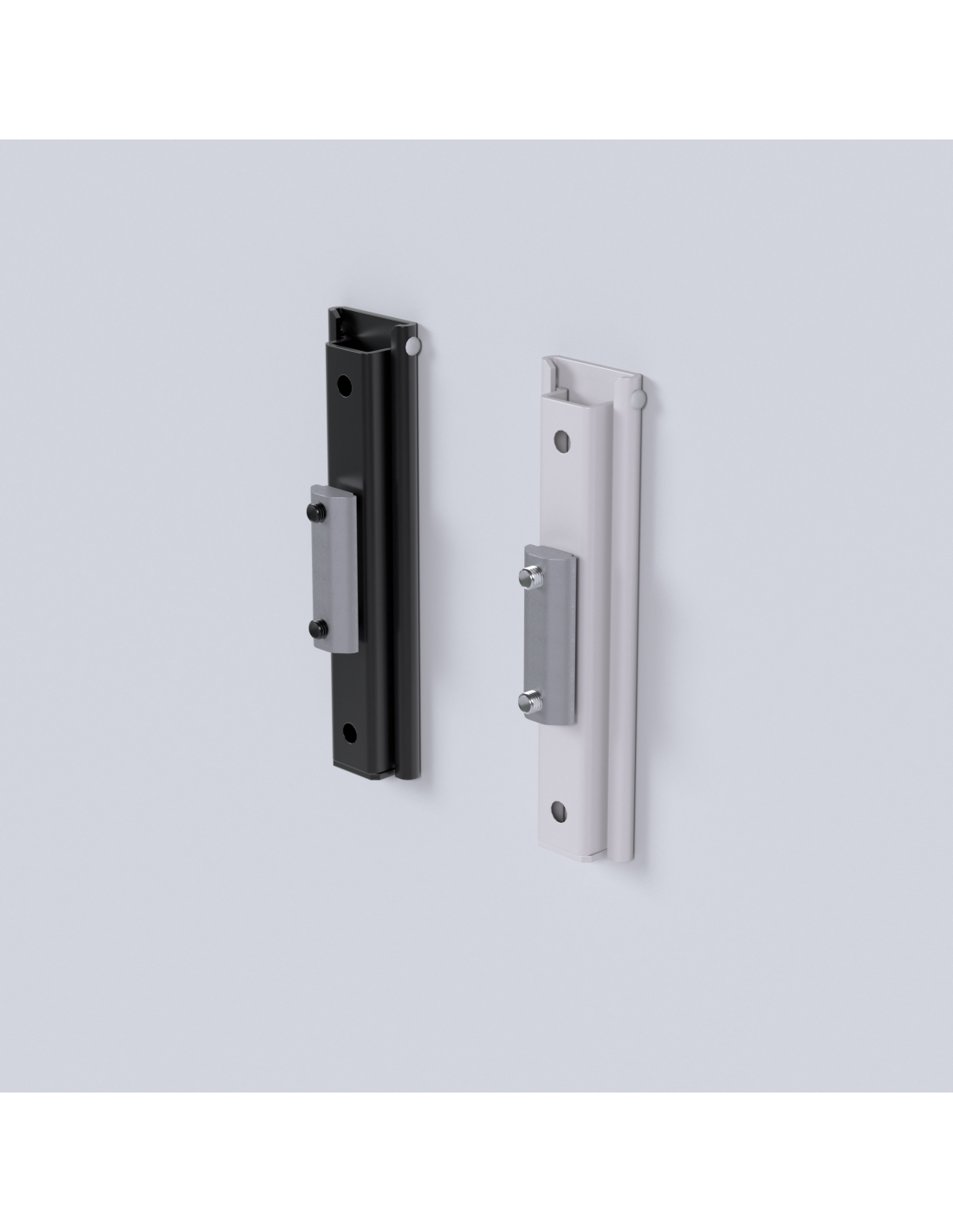

As a highlight, the included FLATY bracket allows the column to be mounted against the wall. FLATY is made of stainless steel and allows to be adjusted at any point along the length of the column.
- Effective Freq. Range
- 175Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 235° x 58° (HxV)
- Power handling
- 40 W RMS / 160 W Peak
- Sensitivity
- 98 dB
- Maximum SPL
- 114 dB continous / 120 dB peak
- Recommended amplifier power
- 80W RMS
- Ways
- 1-way full range
- Nominal impedance
- 16Ω / 64Ω
- Connection type
- Double INPUT/LINK connector, Euroblock type
- Installation options
- Surface / Wall mounting
- Environmental
- IP44
- Enclosure material
- Aluminium
- Grille material
- Aluminium
- Grille fixing system
- Side Insertion mount system
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
Min: 0°C ; 32°F
Max: 35°C ; 95°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- FLATY Wall-mount bracket, 2x Euroblock connector
- Finished colour
- White (RAL9003) or Black (RAL9005)
- Dimensions
- 58 x 448 x 67 mm / 2.28 x 17.64 x 2.64 in. (WxHxD)
- Weight
- 1.2 kg / 1.64 lb
- Pieces per box
- 1
- Shipping dimensions
- 135 x 655 x 160 mm / 5.31 x 25.79 x 6.30 in. (WxHxD)
- Shipping weight
- 1.9 kg / 4.18 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- BK: 8435071338233
WH: 8435071343671 - Width (cm)
- 65.5
- Height (cm)
- 16
- Depth (cm)
- 13.5
- Vol. (dm3)
- 14.15
- Gross Weight (kg)
- 1.9
- Net Weight (kg)
- 1.2
- Format
- 1 unit
- Warranty (months)
- 60
- Mounting system
- Stainless Steel FLAT Wall Bracket
- Driver
- 8 x 1.5" Loudspeaker
- Power type selector
- Front selection by toggle switch
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
175Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
235° x 58° (HxV) |
| Power handling |
40 W RMS / 160 W Peak |
| Sensitivity |
98 dB |
| Maximum SPL |
114 dB continous / 120 dB peak |
| Recommended amplifier power |
80W RMS |
TRANSDUCERS
| Ways |
1-way full range |
|---|---|
| Nominal impedance |
16Ω / 64Ω |
| Driver |
8 x 1.5" Loudspeaker |
PHYSICAL
| Connection type |
Double INPUT/LINK connector, Euroblock type |
|---|---|
| Installation options |
Surface / Wall mounting |
| Environmental |
IP44 |
| Enclosure material |
Aluminium |
| Grille material |
Aluminium |
| Grille fixing system |
Side Insertion mount system |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
FLATY Wall-mount bracket, 2x Euroblock connector |
| Finished colour |
White (RAL9003) or Black (RAL9005) |
| Dimensions |
58 x 448 x 67 mm / 2.28 x 17.64 x 2.64 in. (WxHxD) |
| Weight |
1.2 kg / 1.64 lb |
| Pieces per box |
1 |
| Shipping dimensions |
135 x 655 x 160 mm / 5.31 x 25.79 x 6.30 in. (WxHxD) |
| Shipping weight |
1.9 kg / 4.18 lb |
| Format |
1 unit |
| Mounting system |
Stainless Steel FLAT Wall Bracket |
| Power type selector |
Front selection by toggle switch |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
BK: 8435071338233
WH: 8435071343671 |
| Width (cm) |
65.5 |
| Height (cm) |
16 |
| Depth (cm) |
13.5 |
| Vol. (dm3) |
14.15 |
| Gross Weight (kg) |
1.9 |
| Net Weight (kg) |
1.2 |
| Warranty (months) |
60 |
