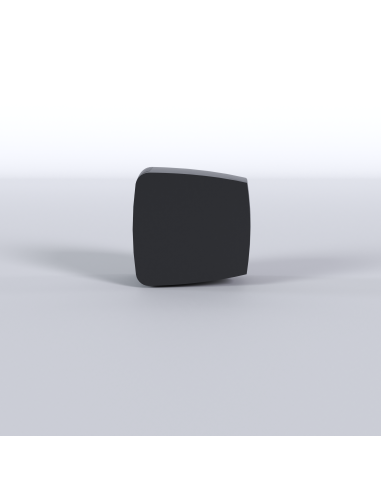

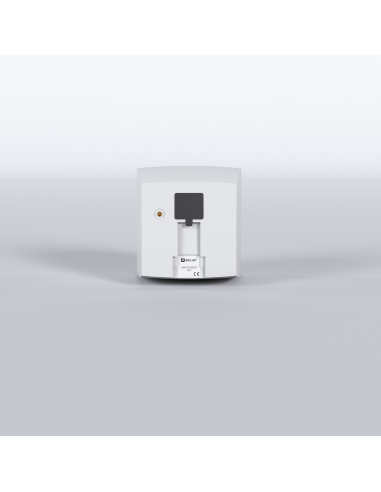

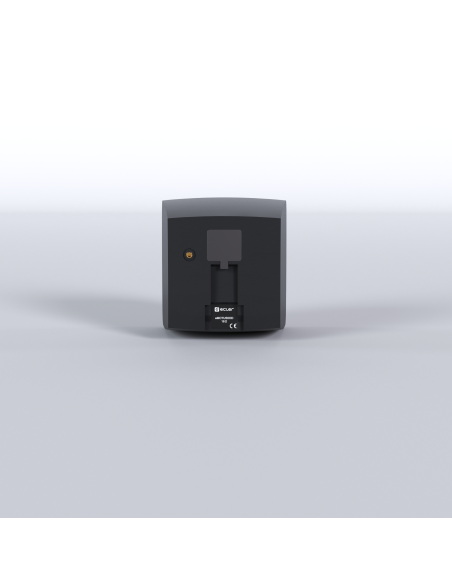

eMOTUS5O16
CEMOTUS5O16B
Only a few left
5"+1" | 40 WRMS | IP65 | outdoors

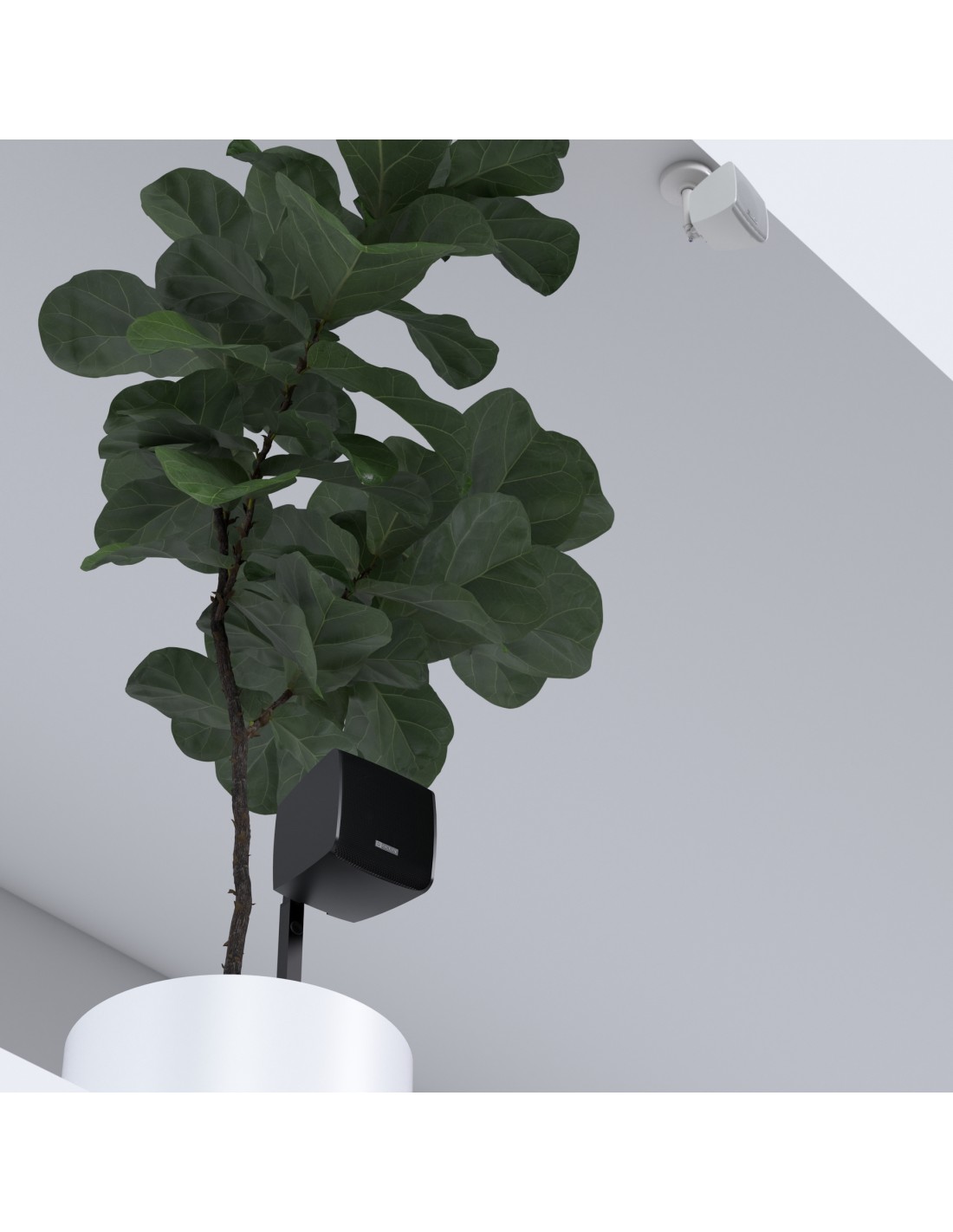

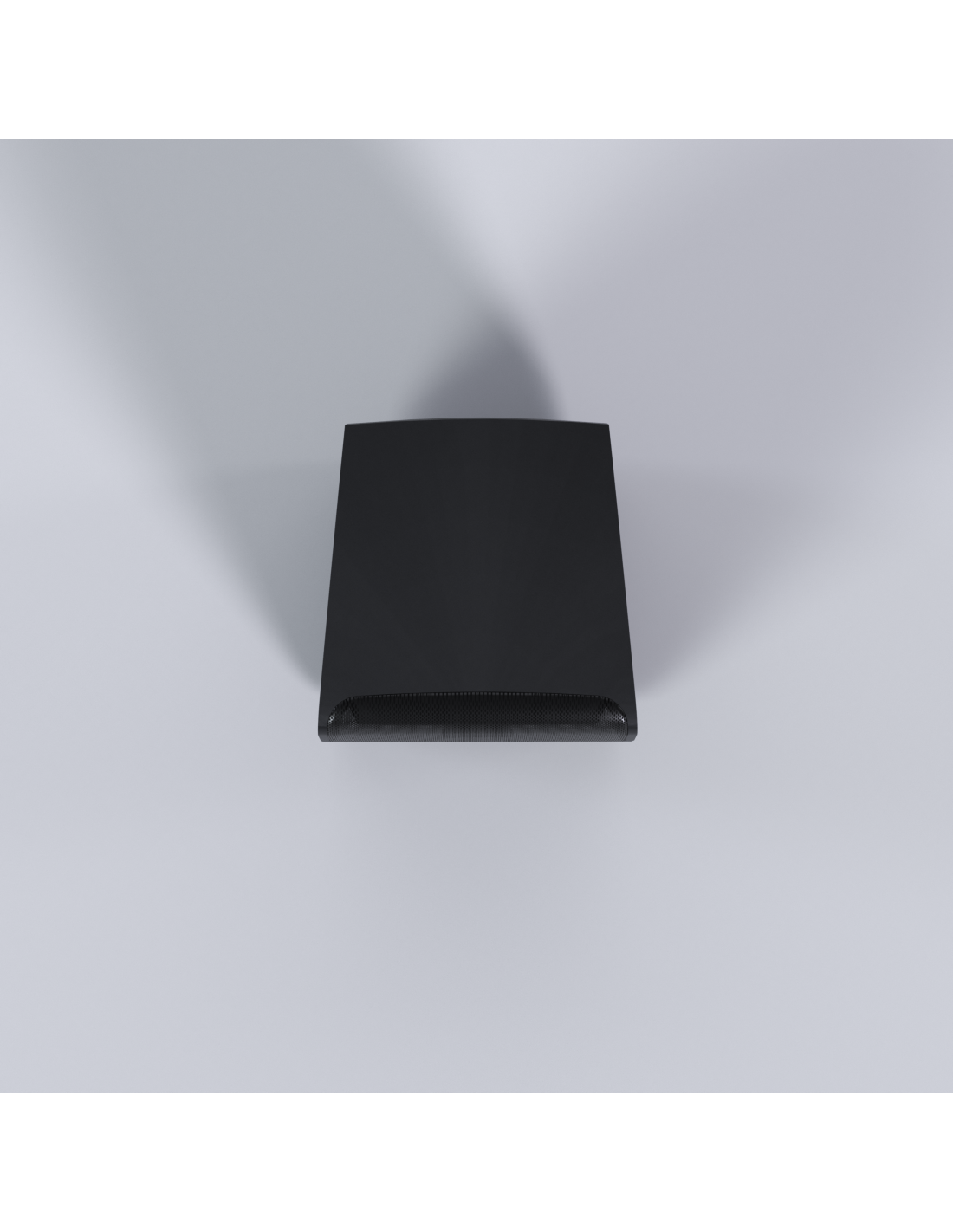

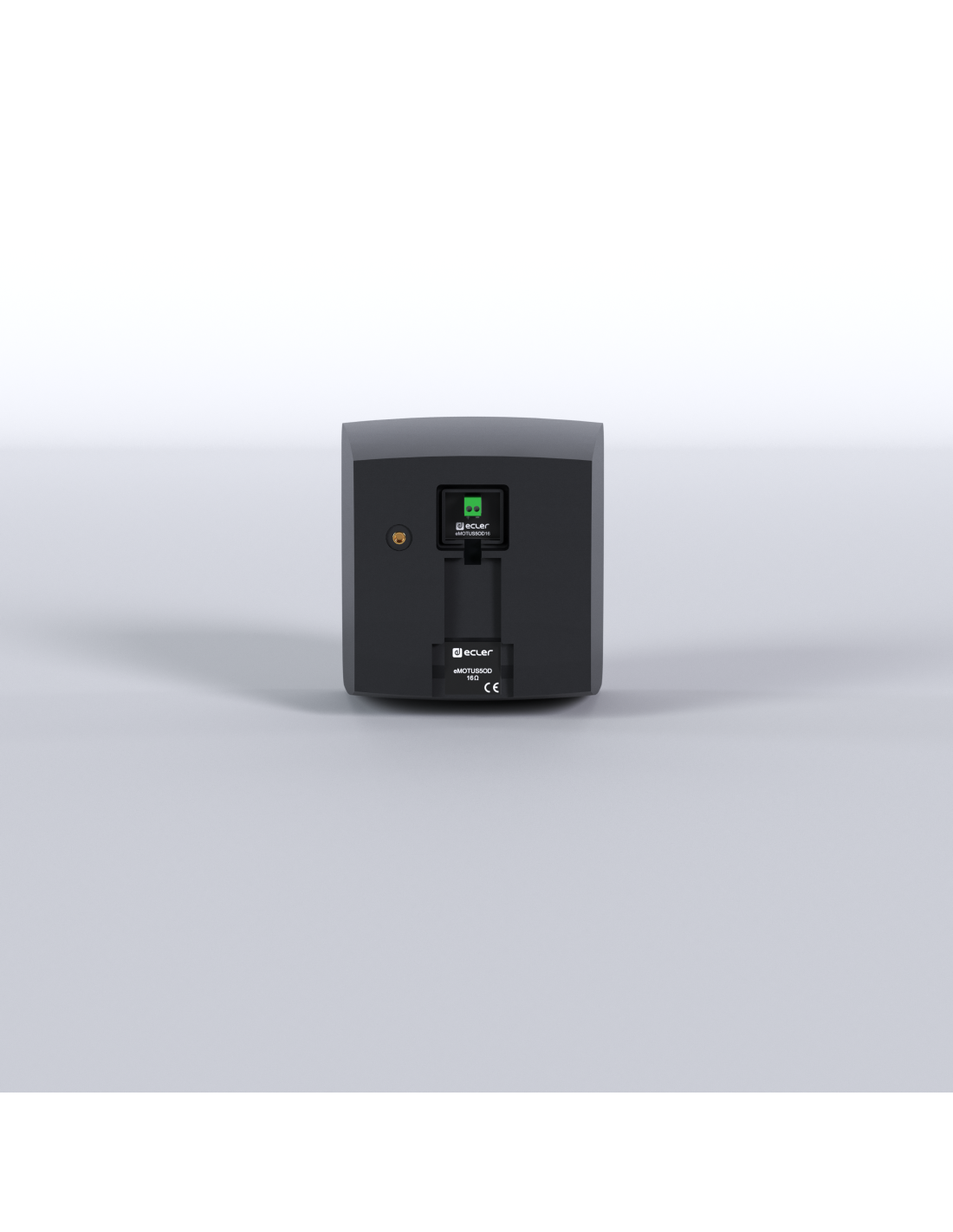

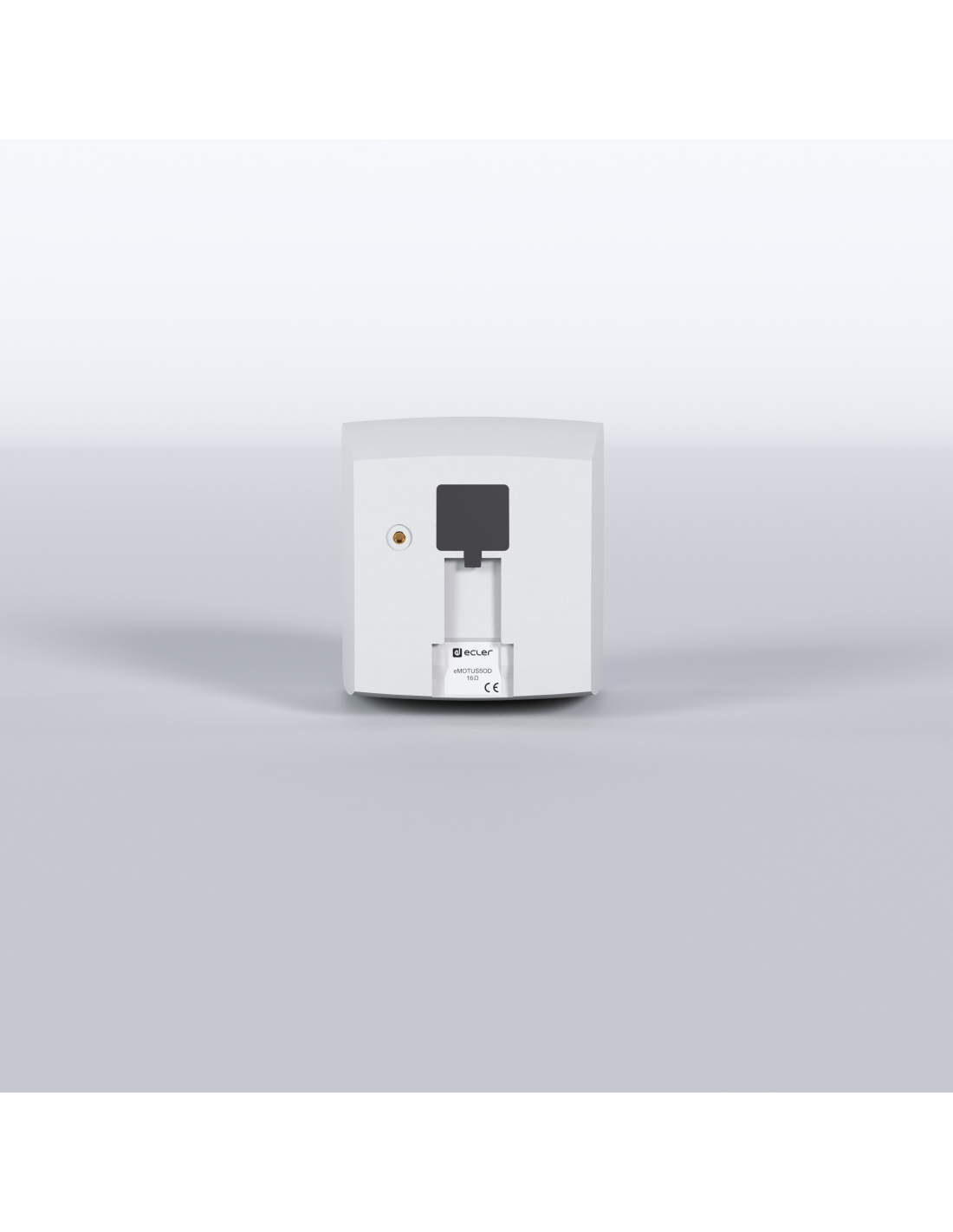

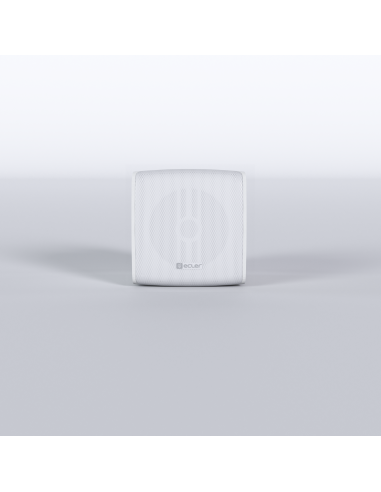

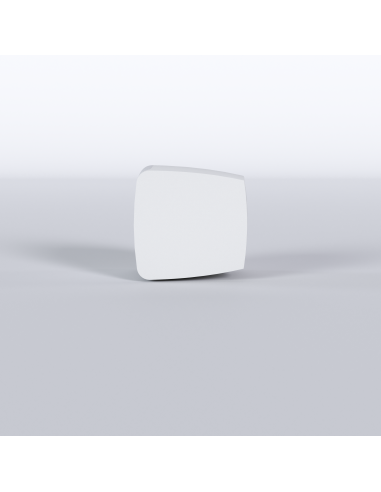

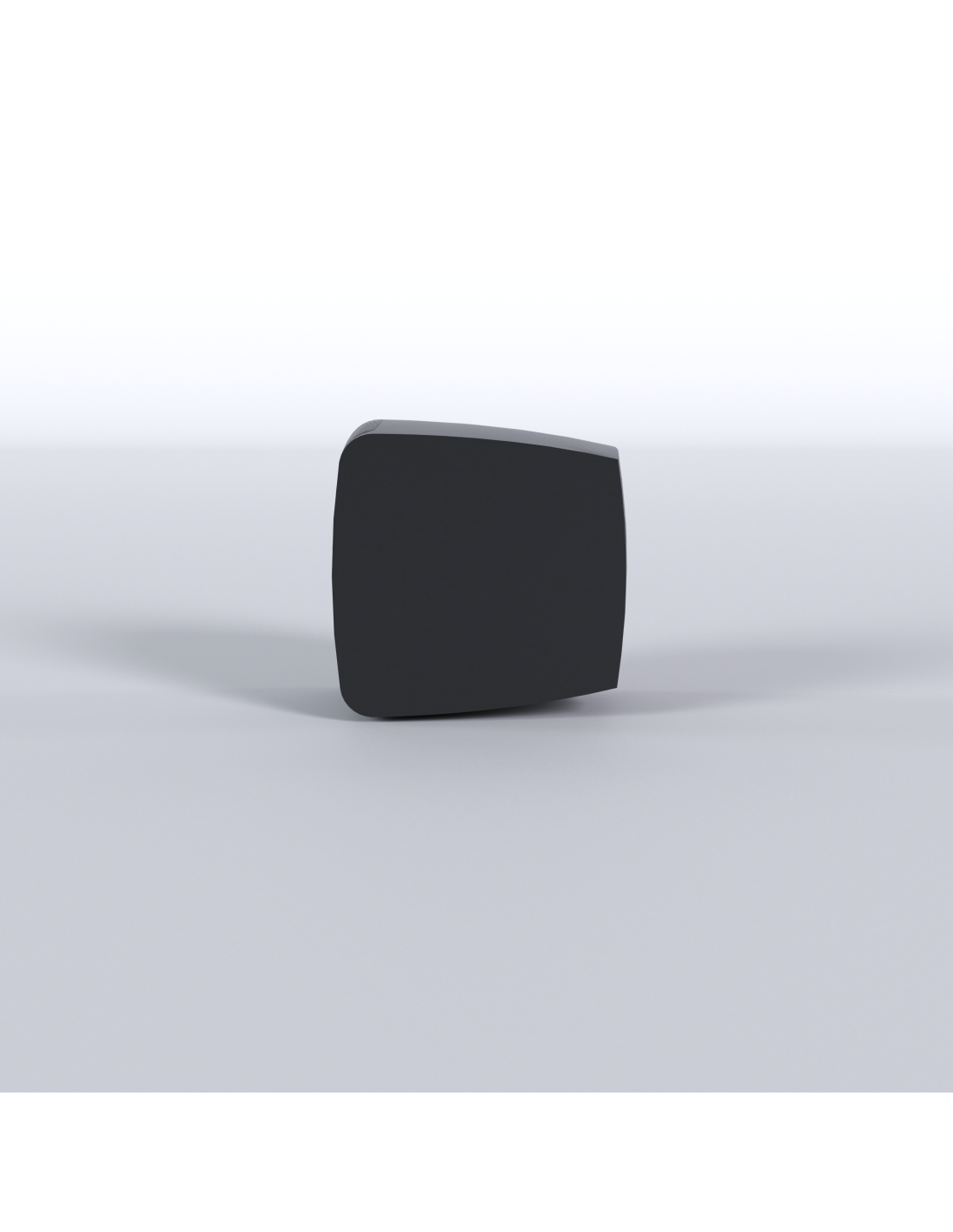

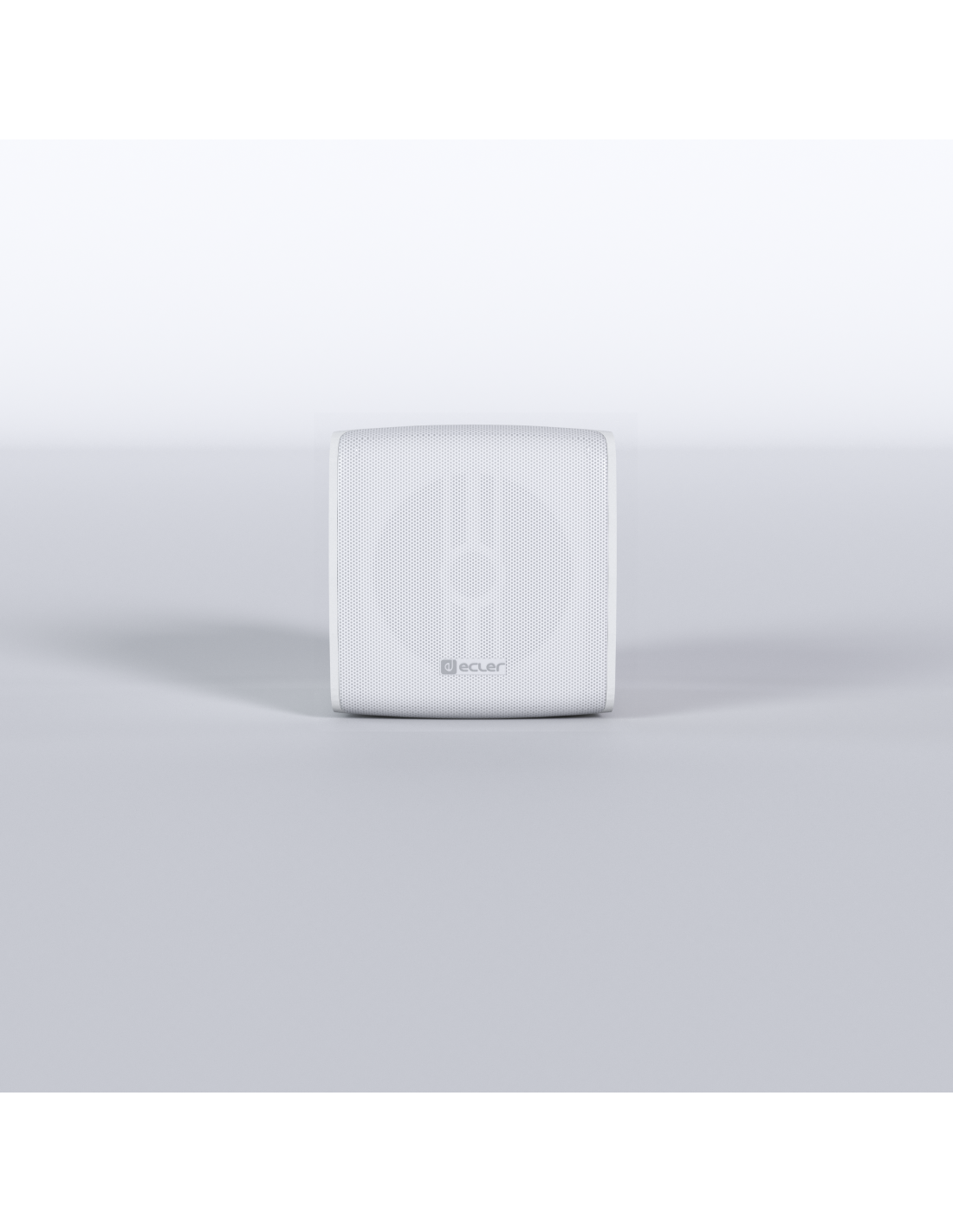

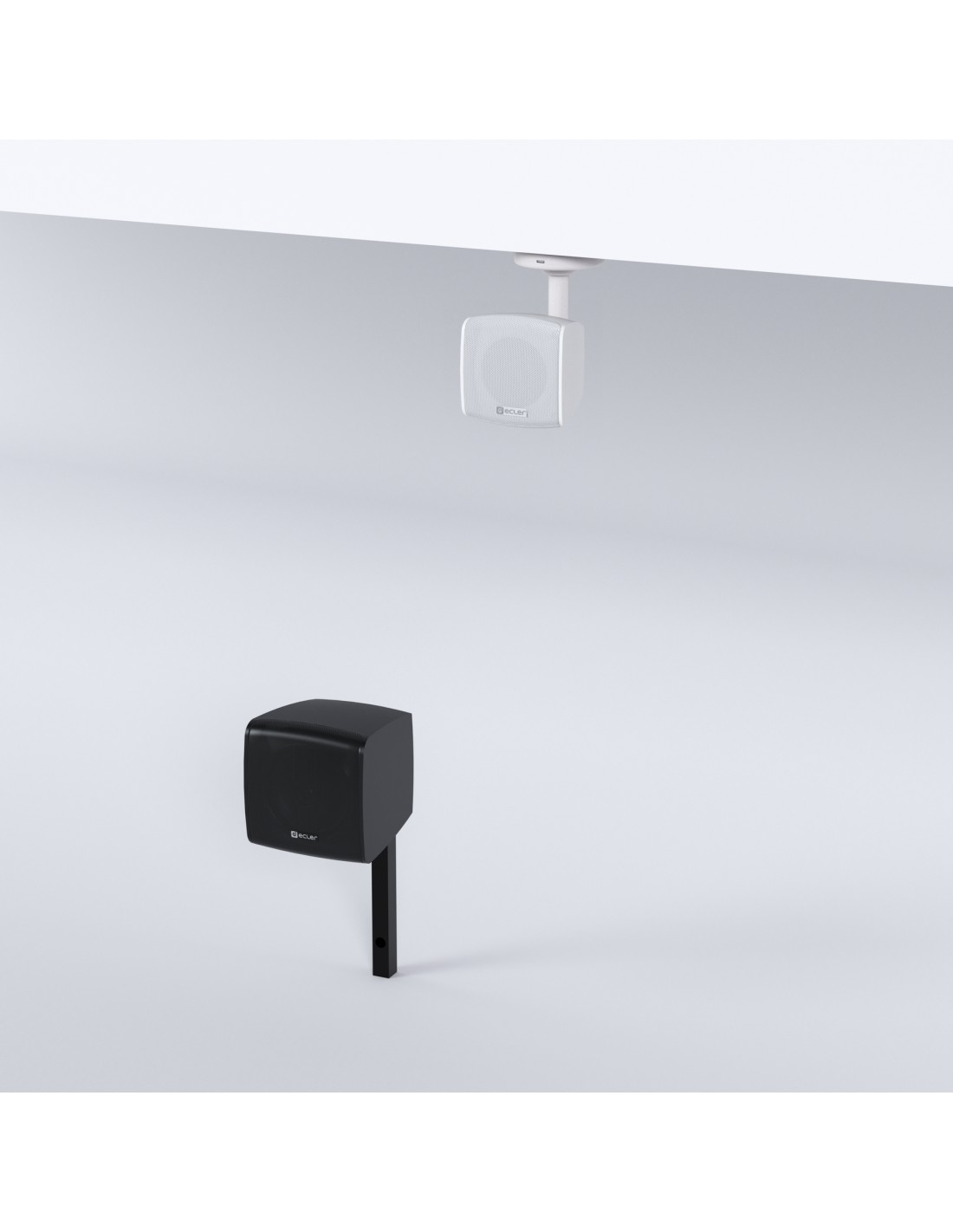

eMOTUS5O16 is a low impedance (16 ohm) loudspeaker cabinet, 5” woofer + 1” coaxial tweeter with eMOTUS unique design. Ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP65-rated). A professional and compact loudspeaker, cost-effective and with a unique design that will easily fit in a massive number of applications: theme parks, gardens, nature parks and urban spaces, leisure, health and sport centres, residential buildings, outdoor areas, etc.

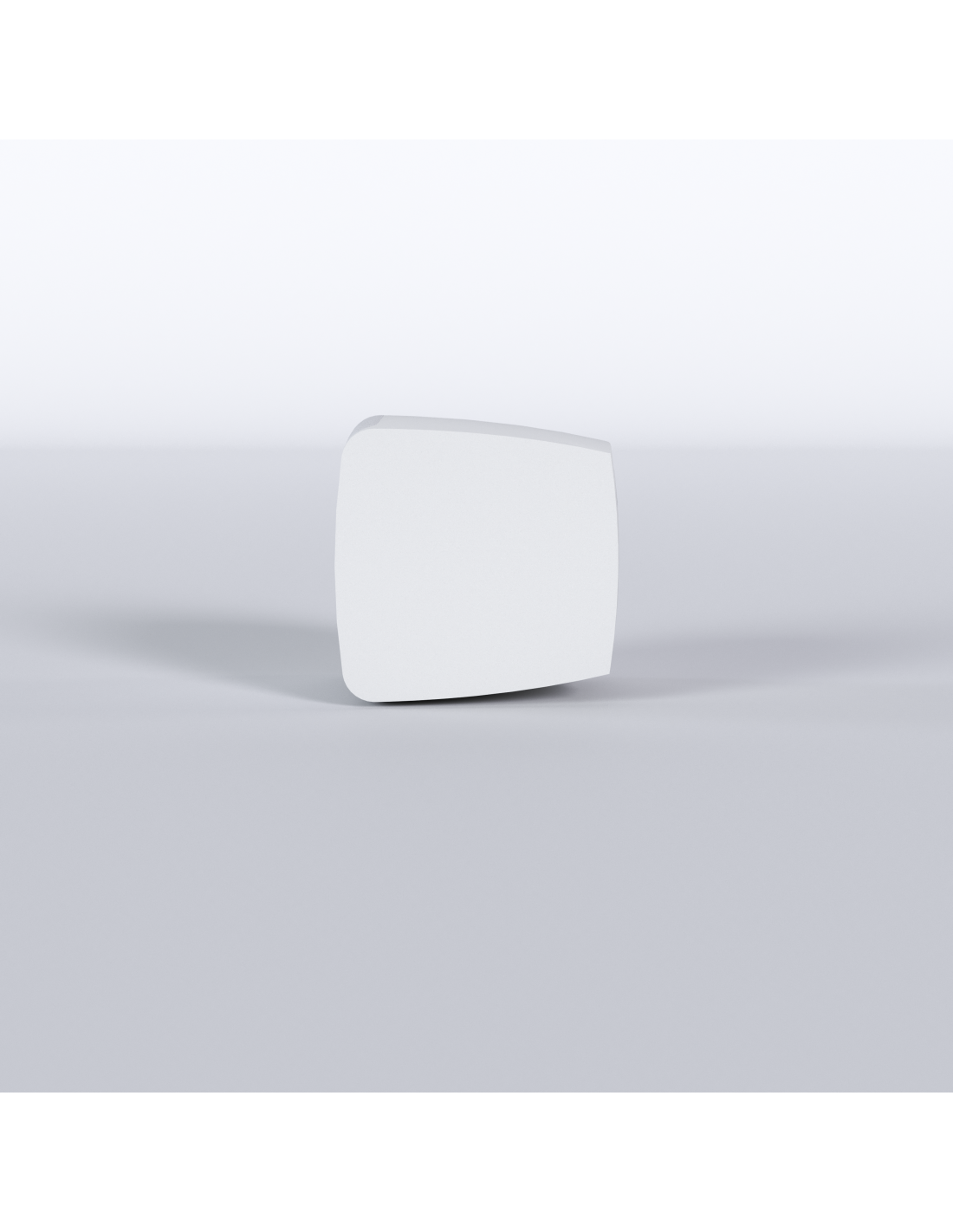

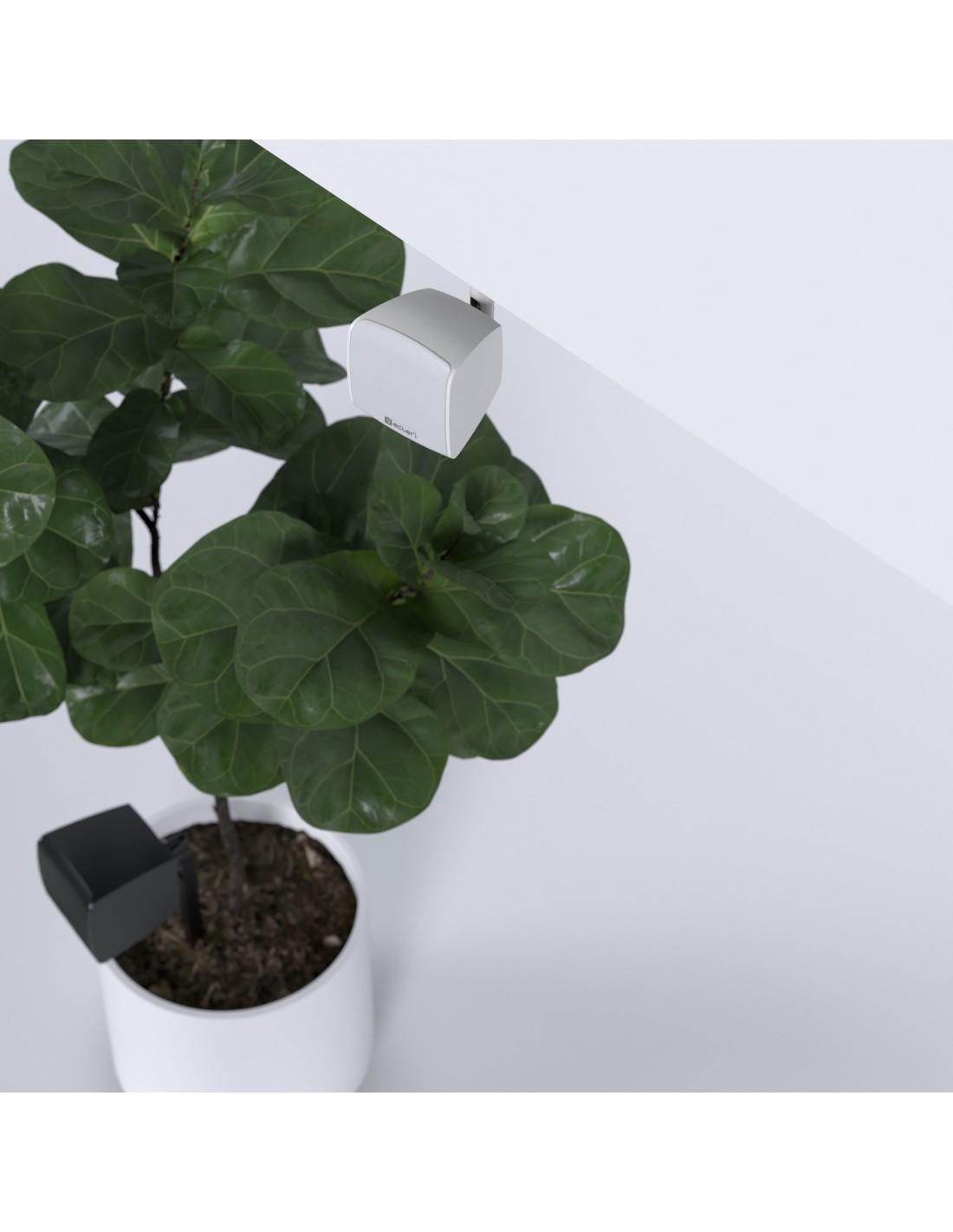

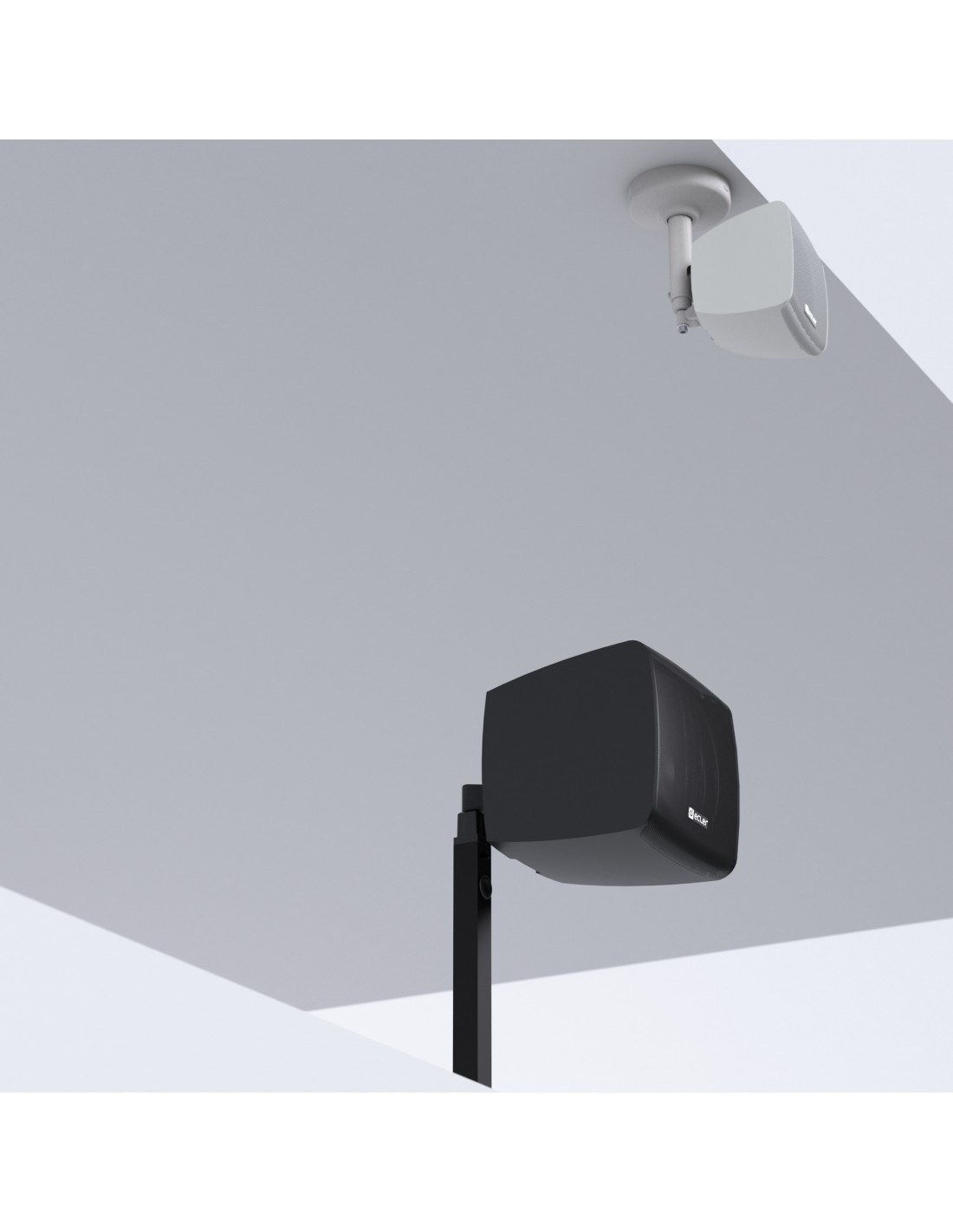

Available in black and white colour. Wall mount accessories and safety sling are included for an easy and secure installation.
- Effective Freq. Range
- 80Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 150° x 150° (HxV)
- Power handling
- 40 W RMS / 160 W Peak
- Sensitivity
- 86dB (1W/1m)
- Maximum SPL
- 102dB continuous / 108dB peak
- Recommended amplifier power
- 80 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 5’’ woofer
- High frequency driver
- 1" coaxial tweeter
- Nominal impedance
- 16Ω
- Connection type
- 2-terminal Euroblock connector (Input)
- Installation options
- Surface (wall mount), desktop
- Environmental
- IP65 rated
- Enclosure material
- ABS plastic
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- Wall-mount bracket, adhesive legs, back rubber cover & security steel cable
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 173 x 180 x 180 mm / 6.81 x 7.09 x 7.09 in. (WxHxD)
- Weight
- 1.75kg. / 3.86 lb.
- Pieces per box
- 2
- Shipping dimensions
- 230 x 220 x 460 mm / 9.01 x 9.67 x 18.11 in. (WxHxD)
- Shipping weight
- 4.5 kg / 9.92 lb
- Mounting system
- ABS bracket
- Power options (Hi Z Multi-tap)
- 16 Ω
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
80Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
150° x 150° (HxV) |
| Power handling |
40 W RMS / 160 W Peak |
| Sensitivity |
86dB (1W/1m) |
| Maximum SPL |
102dB continuous / 108dB peak |
| Recommended amplifier power |
80 W RMS |
| Power options (Hi Z Multi-tap) |
16 Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
5’’ woofer |
| High frequency driver |
1" coaxial tweeter |
| Nominal impedance |
16Ω |
PHYSICAL
| Connection type |
2-terminal Euroblock connector (Input) |
|---|---|
| Installation options |
Surface (wall mount), desktop |
| Environmental |
IP65 rated |
| Enclosure material |
ABS plastic |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Wall-mount bracket, adhesive legs, back rubber cover & security steel cable |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
173 x 180 x 180 mm / 6.81 x 7.09 x 7.09 in. (WxHxD) |
| Weight |
1.75kg. / 3.86 lb. |
| Pieces per box |
2 |
| Shipping dimensions |
230 x 220 x 460 mm / 9.01 x 9.67 x 18.11 in. (WxHxD) |
| Shipping weight |
4.5 kg / 9.92 lb |
| Mounting system |
ABS bracket |
